Home > Drone Systems > VTOL > ESC > 14S

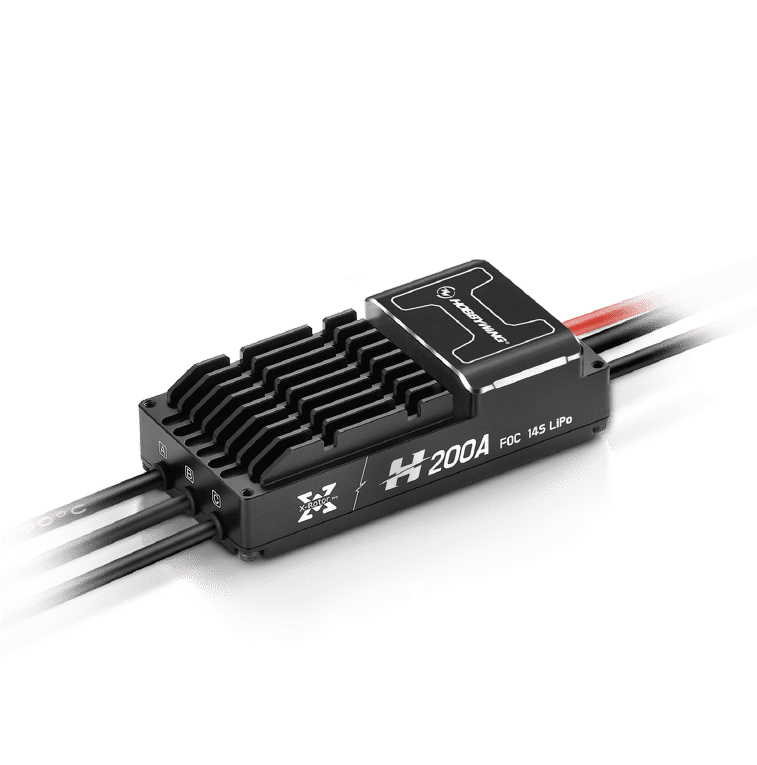

XRotor H200A-14S-BLDC/FOC
XRotor H200A-14S-BLDC/FOC

Input Voltage: 6-14S（18-65V）
Continuous current :100A（Good heat dissipation）
Weight（Without Cable）: 270g
Size: 116*56*31.5mm
Communication protocol: CAN(Custom Serial port)
lsolation mode: Throttle/ communication supported

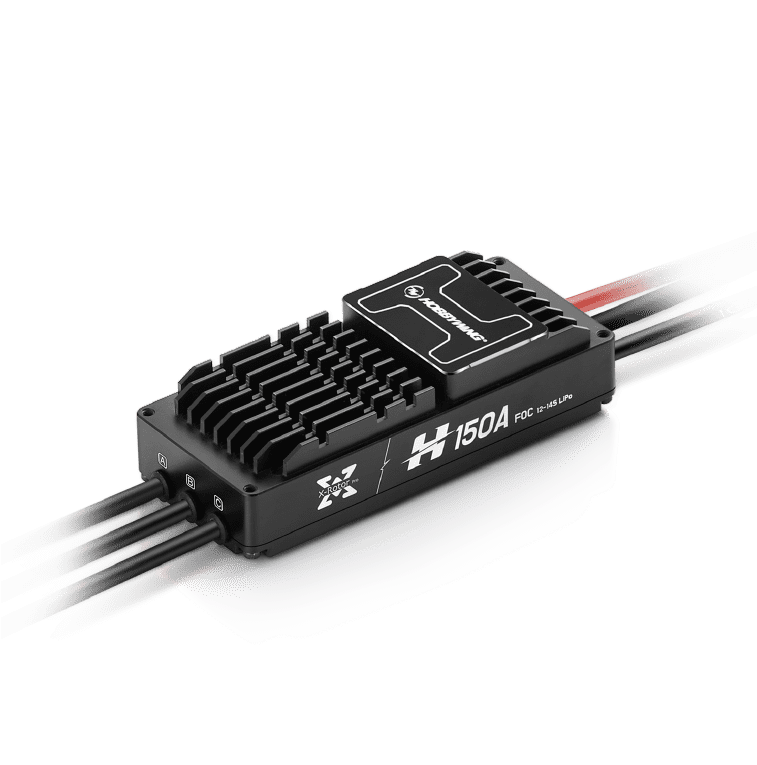

XRotor H150A 14S FOC
XRotor H150A 14S FOC

Input Voltage: 12-14S（44-60.9V）
Continuous current:60A（Good heat dissipation）
Weight（Without Cable）: 198g
Size: 116*49.4*29.6mm
Communication protocol: CAN(Custom Serial port)
Throttle signal isolated: Isolated

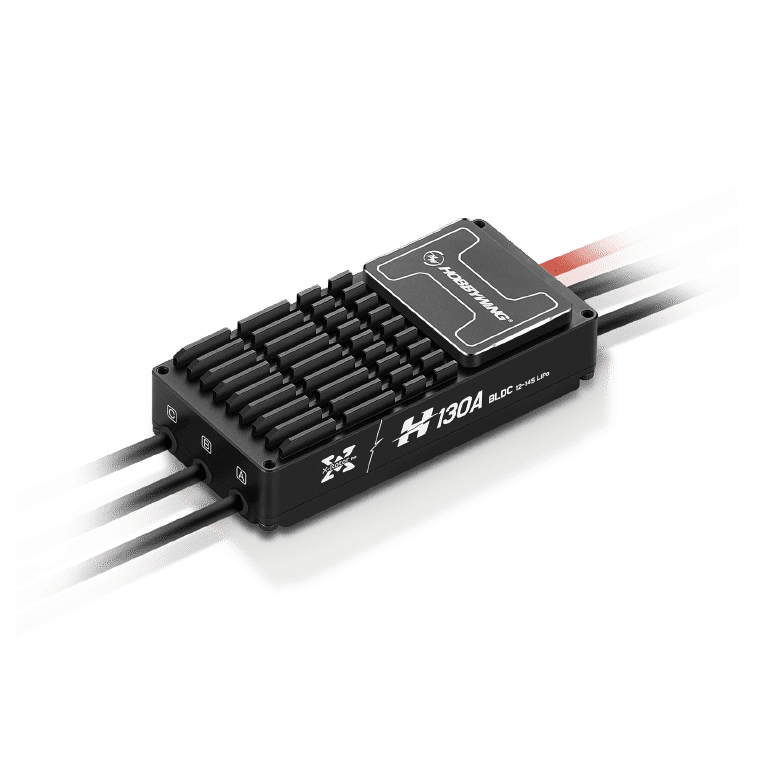

XRotor H130A 14S BLDC/FOC
XRotor H130A 14S BLDC/FOC

Input Voltage:6-14S（18-65V）
Peak Current: 60A（Good heat dissipation）
Weight（Without Cable）:148g
Size: 96.5*46*23.5mm
Communication protocol: CAN+485(Custom Serial port)
Throttle signal isolated: Throttle And Communication Isolation
XRotor H120A 14S FOC V1
XRotor H120A 14S FOC V1

Input Voltage: 12-14S(44-63V)
Peak Current (3s): 60A (Good heat dissipation)
Weight: 185.6g(Without wires)
Size: 113*56*25.9mm
Communication protocol: CAN(Custom Serial port)
Throttle signal isolated: Isolated (Custom non-isolated)

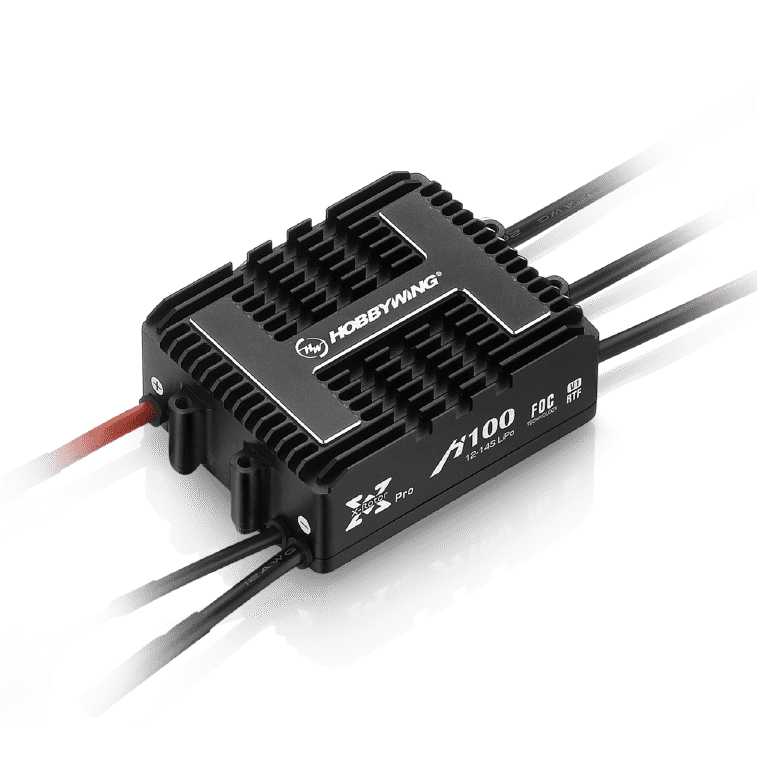

XRotor H100A 14S Foc V1
XRotor H100A 14S Foc V1

Input Voltage: 12~14S(44~63V)
Peak Current (3s): 40A (Good heat dissipation)
Weight: 144.1g(Without wires)
Size: 83*59*27.4mm
Communication protocol: CAN
Throttle signal isolated: Isolated (Custom non-isolated)

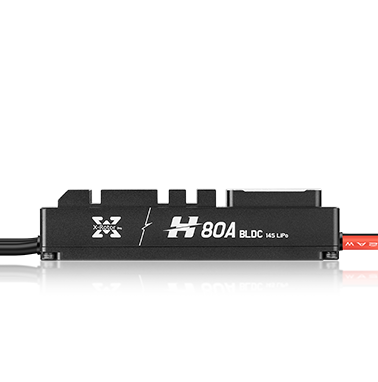

XRotor H80A 14S BLDC/FOC
XRotor H80A 14S BLDC/FOC

Input Voltage: 6-14S（18-65V）
Peak Current:40A（Good heat dissipation）
Weight（Without Cable）: 87g
Size: 84*35*20mm
Communication protocol:CAN(Custom Serial port)
Throttle signal isolated: Customizable Throttle Isolation
XRotor H60A(2in1) 14S FOC & BLDC V1
XRotor H60A(2in1) 14S FOC & BLDC V1

Input Voltage: 6-14S(18-63V)
Peak Current (3s): 15A(Good heat dissipation)
Weight: 117.4g(Without wires)
Size: 77.5*47*26.8mm
Communication protocol: CAN(Custom Serial port)
Throttle signal isolated: Isolated
