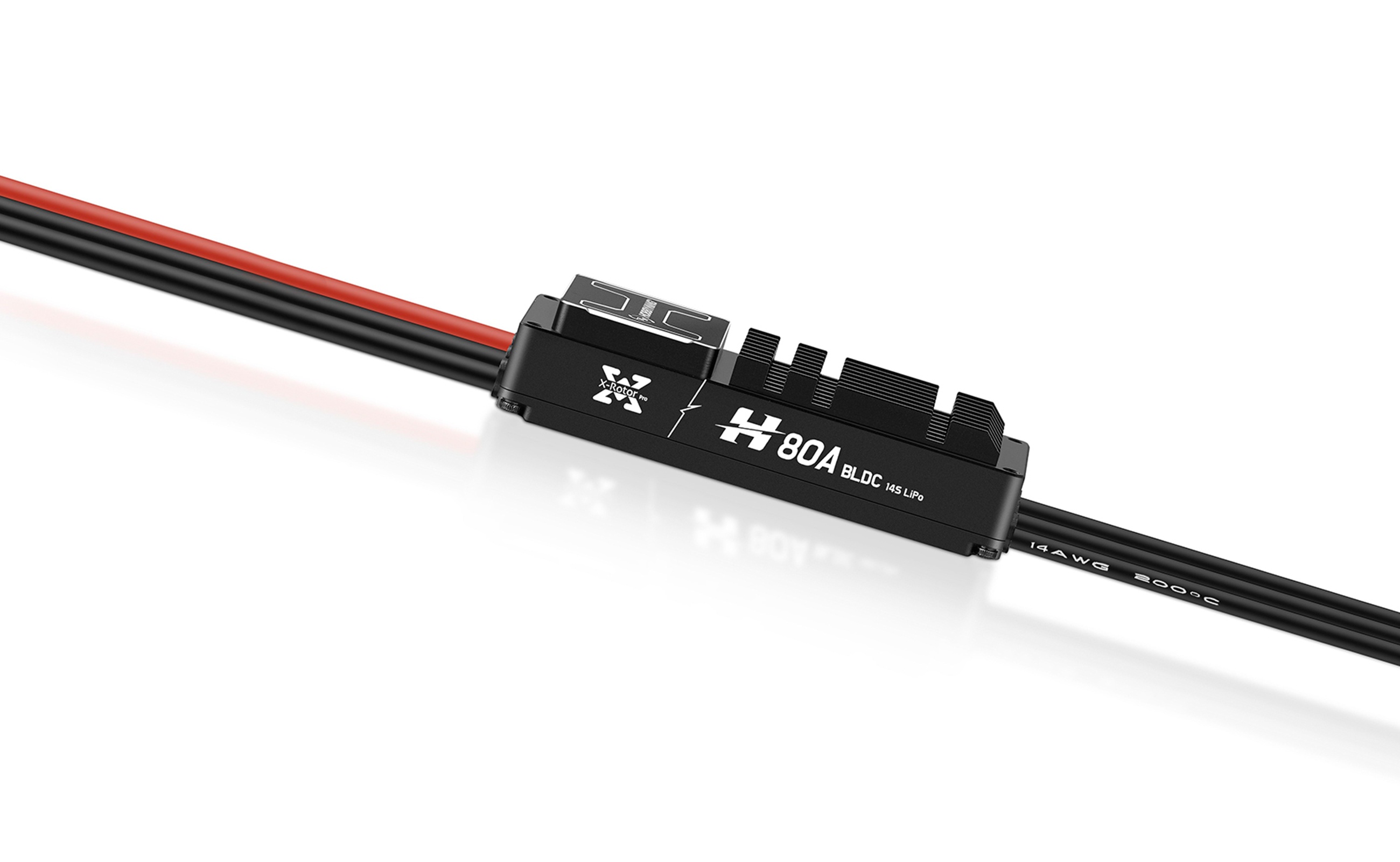

XRotor H80A 14S BLDC/FOC
Small Size & Light Weight
The advantages are not limited to these.

  • Weight
    Reduction

  • Supports standard and
    HV Lipo Battery packs.
BLDC, Compatible with More Motors
Intelligent timing and DEO, algorithm upgrade for high KV UAV motors.
Better compatibility and stability in driving. Higher drive efficiency and braking performance.

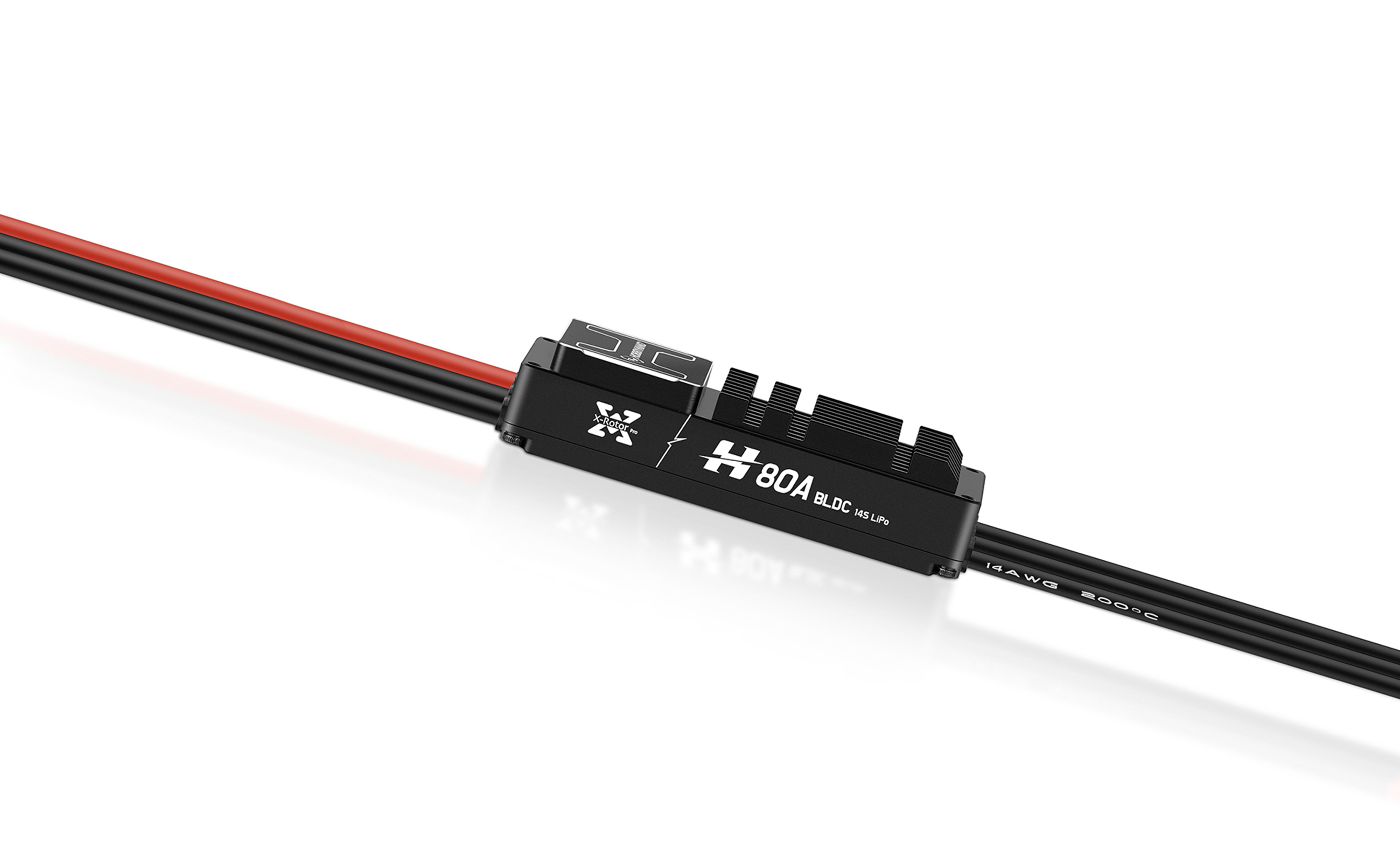

Detailed Design, Easy Installation
New appearance, easy to install on both multi-rotor and fixed-wing drones.

High Thermal Conductivity Materials
Strong heat dissipation, stable and reliable.

Wide Edge Design
Easy to do installation

Intelligent
Propeller Control
(H80A-BLDC-IPC)
Special design for VTOL and drone dock applications.

Compatible with different motors and propellers, open
parameter settings.

Adjust parameters such as fixed propeller and maximum
current according to the needs,effectively prevent motor
overheating.
CAN 2.0 Communication Technology
The working status of the ESC can be remotely monitored in real-time through
the flight controller, and the power system data can be accurately
diagnosed and analyzed
New Generation
Black Box Feature
Millisecond-level data recording. Fast data & fault analyzing.
Built-in high-speed ROM. 2~48 hours of operating data& fault code storage.
Dual-throttle redundancy, ensuring more secure throttle control.
New Drone Application
Security Strategy
The protection strategy is optimized according to the industry application scenarios.
For example, over-current protection millisecond-level restart, over-temperature
only provides early warning without limiting power output, and the protection
logic takes the safety of the drone as the first priority to ensure reliability.

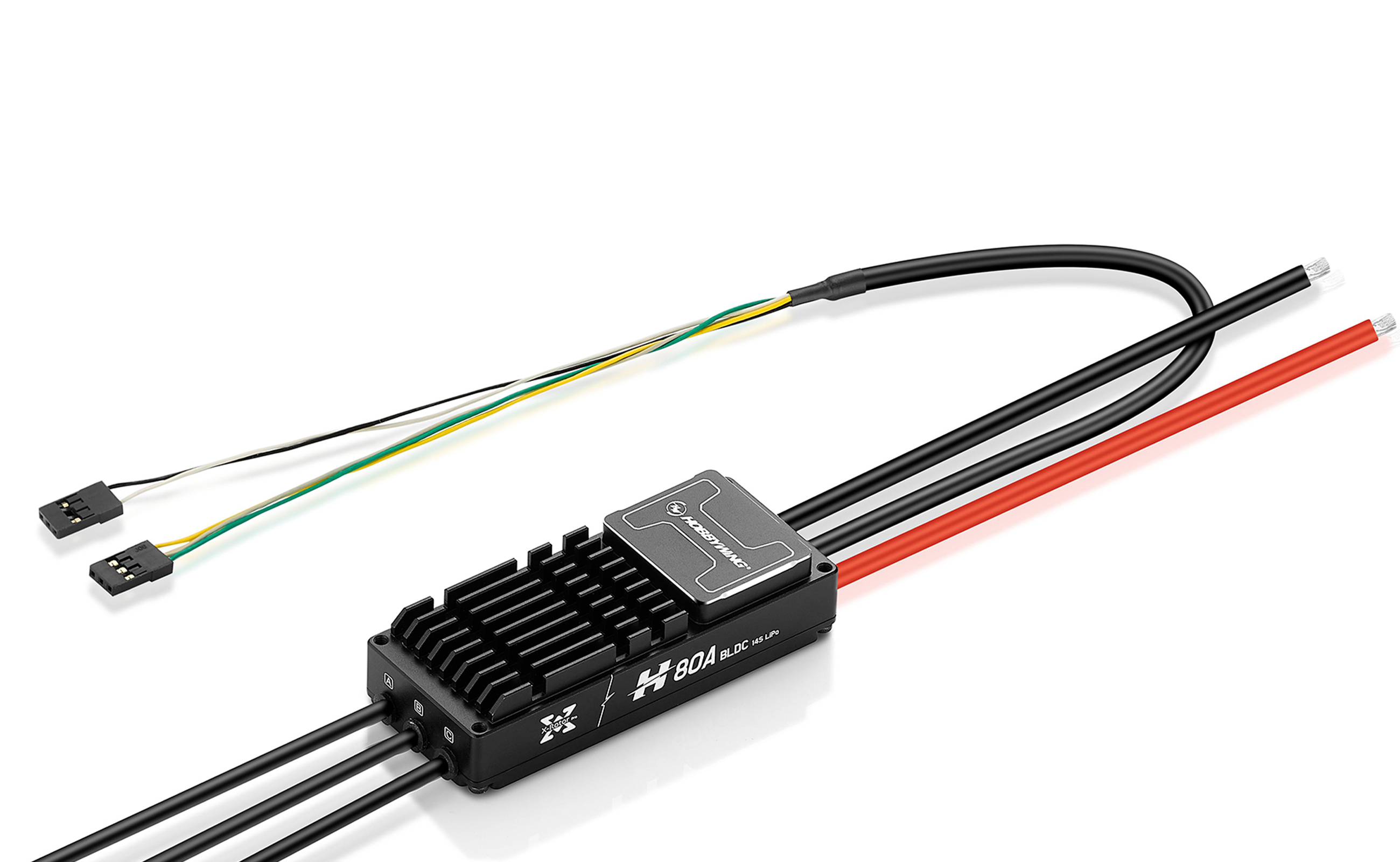

XRotor H80A 14S BLDC/FOC CAD

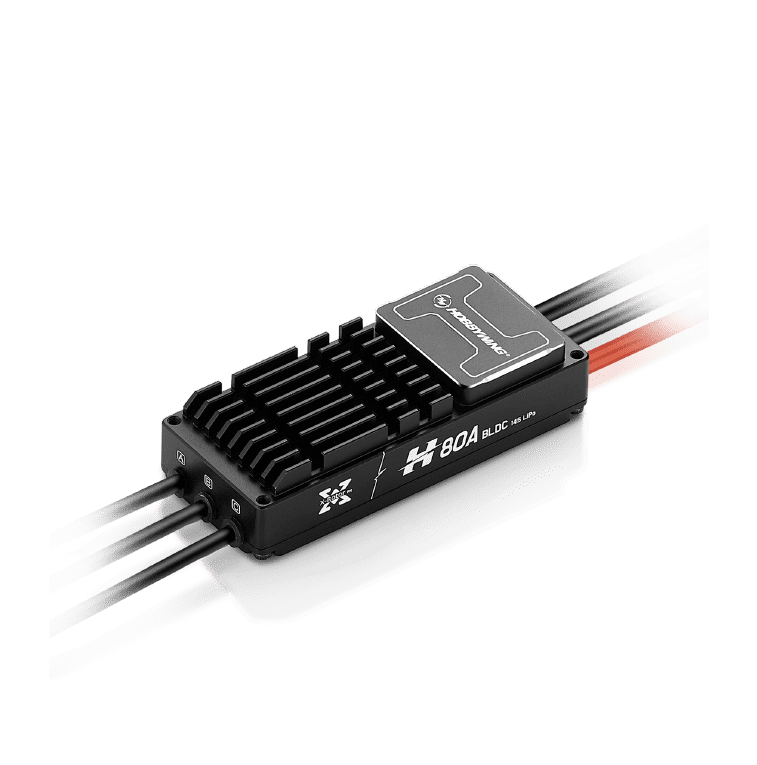

XRotor H80A 14S BLDC IPC CAD

Product Name
XRotor Pro H80A 14S BLDC XRotor Pro H80A 14S FOC
Specifications
Input Voltage 6-14S(18-65V) 6-14S(18-65V)
Continuous Current 40A(Good heat dissipation) 40A(Good heat dissipation)
Peak Current 100A (3S) 100A (3S)
Operating Temperature -40℃~65℃ -40℃~65℃
Communication Protocol CAN(Custom Serial port) CAN(Custom Serial port)
Throttle signal isolated Mode Customizable Throttle Isolation Customizable Throttle Isolation
Firmware Upgrade Support Support
Digital Throttle Support(CAN) Support(CAN)
PWM Input Signal Level 5V/3.3V 5V/3.3V
Throttle Signal Frequency 50-500Hz 50-500Hz
Operating Pulse Width 1100-1940μS 1100-1940μS
Throttle Travel Calibration NO NO
Double Throttle Signal Support(CAN and PWM) Support(CAN and PWM)
Propeller Positioning Optional Optional
Failure Storage 2-48 hours real-time data and fault data, real-time up to ms level 22-48 hours real-time data and fault data, real-time up to ms level
Waterproof Rating IP55(Custom IP67) IP55(Custom IP67)
Weight(Without Cable) 87g 87g
Size 84*35*20mm 84*35*20mm
Cable Specification Input: Silicone cable-12AWG-180mm *2

Output: Silicone cable-14AWG-100mm *3

Signal: Shielded cable - 5pin - 450mm * 1, JR-3Pin male connector * 2
Input: Silicone cable-12AWG-180mm *2

Output: Silicone cable-14AWG-100mm *3

Signal: Shielded cable - 5pin - 450mm * 1, JR-3Pin male connector * 2
