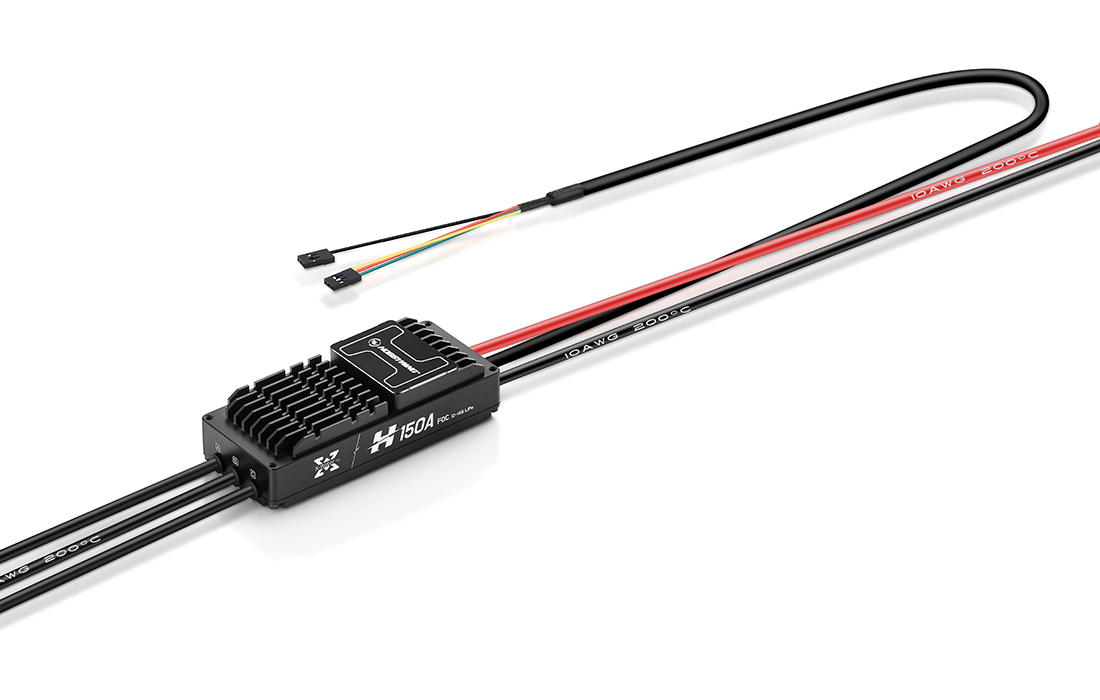

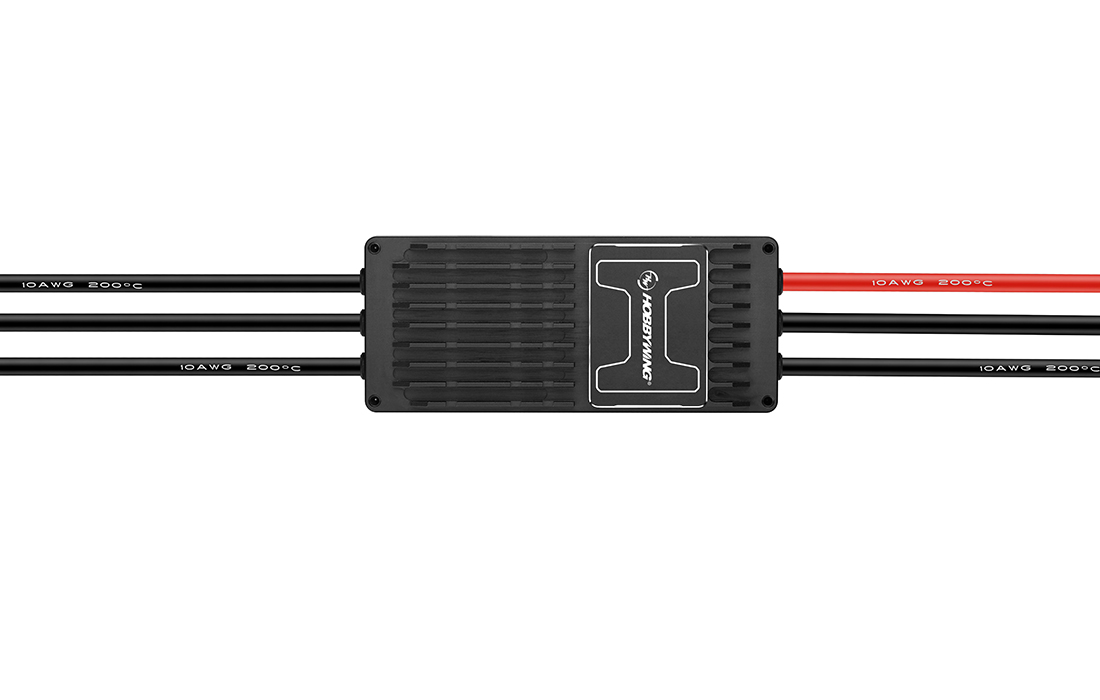

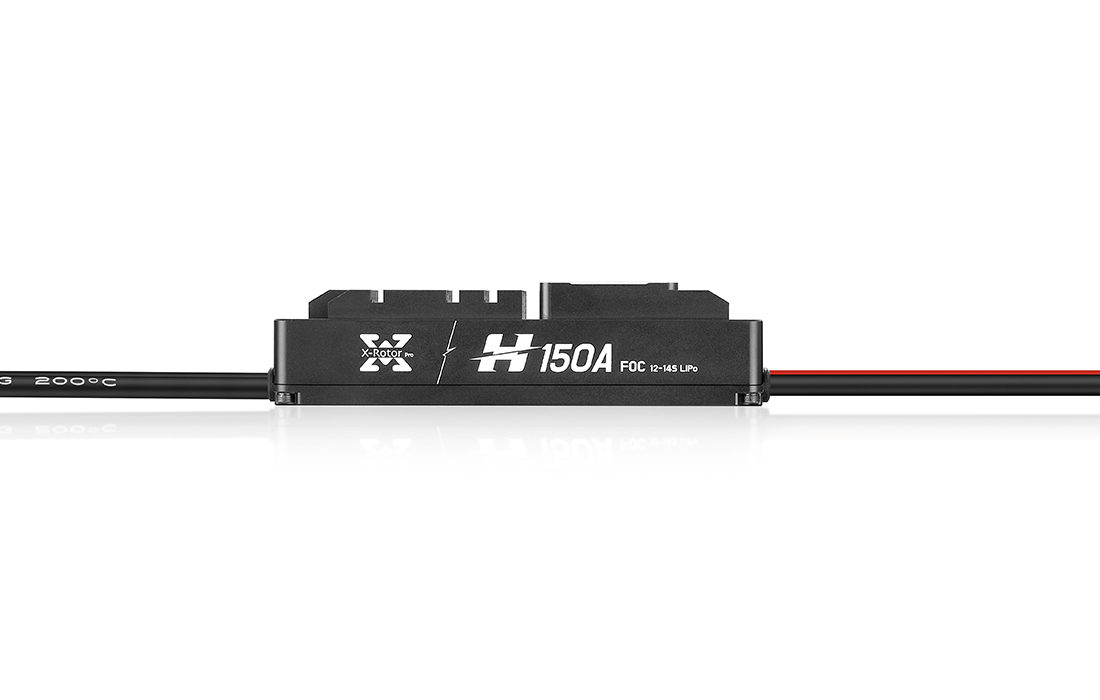

XRotor H150A 14S FOC
Precise and Efficient
Stable Operation
in Four Seasons
Working temperature-30~65°C
Storage temperature-40~85°C
Protection levelIP55
can be customized
IP67 -40~65℃
Intelligent
Propeller Control
Auto detecting propeller stop position
Able to stop the propeller to any angle
Reduce the resistance of gliding
  • this feature is optional
Intelligent FOC Driving
Precise and Efficient
Vector control has higher efficiency than others at
the same power. The throttle is more linear.
Low temperature, high efficiency Fast response, low noise, low interference Linear throttle, precise control Kinetic energy recovery
Intelligent Protection,
Fast Fault Analysis
Fault code auto-record, for quick analysis
Power-on self-test
Low voltage protection
Over voltage protection
Throttle lost protection
Over current protection
Xrotor H150A-14S-FOC CAD
Product Name
XRotor H150A-14S-FOC
Specifications
ESC XRotor Pro H150A-14S-FOC
Input Voltage 12-14S(44-60.9V)
Continuous Current 60A (Good heat dissipation)
Peak Current 150A(3S)
Operating Temperature -30~65℃(Custom-40℃~65℃)
Communication protocol CAN(Custom Serial port)
Isolation Mode fully isolated
Firmware Update Support
Double Throttle Signal Yes(CAN)
PWM Input Signal Level 5V/3.3V
Throttle Signal Frequency 50-500Hz
Operating Pulse Width 1100-1940μS
Throttle Travel Calibration No
Double throttle signal Yes(CAN+PWM)
Propeller Positioning Support, customized motors required
Waterproof Rating IP55 (Custom IP67)
Weight(Without Cable) 198g
Size 116*49.4*29.6mm
