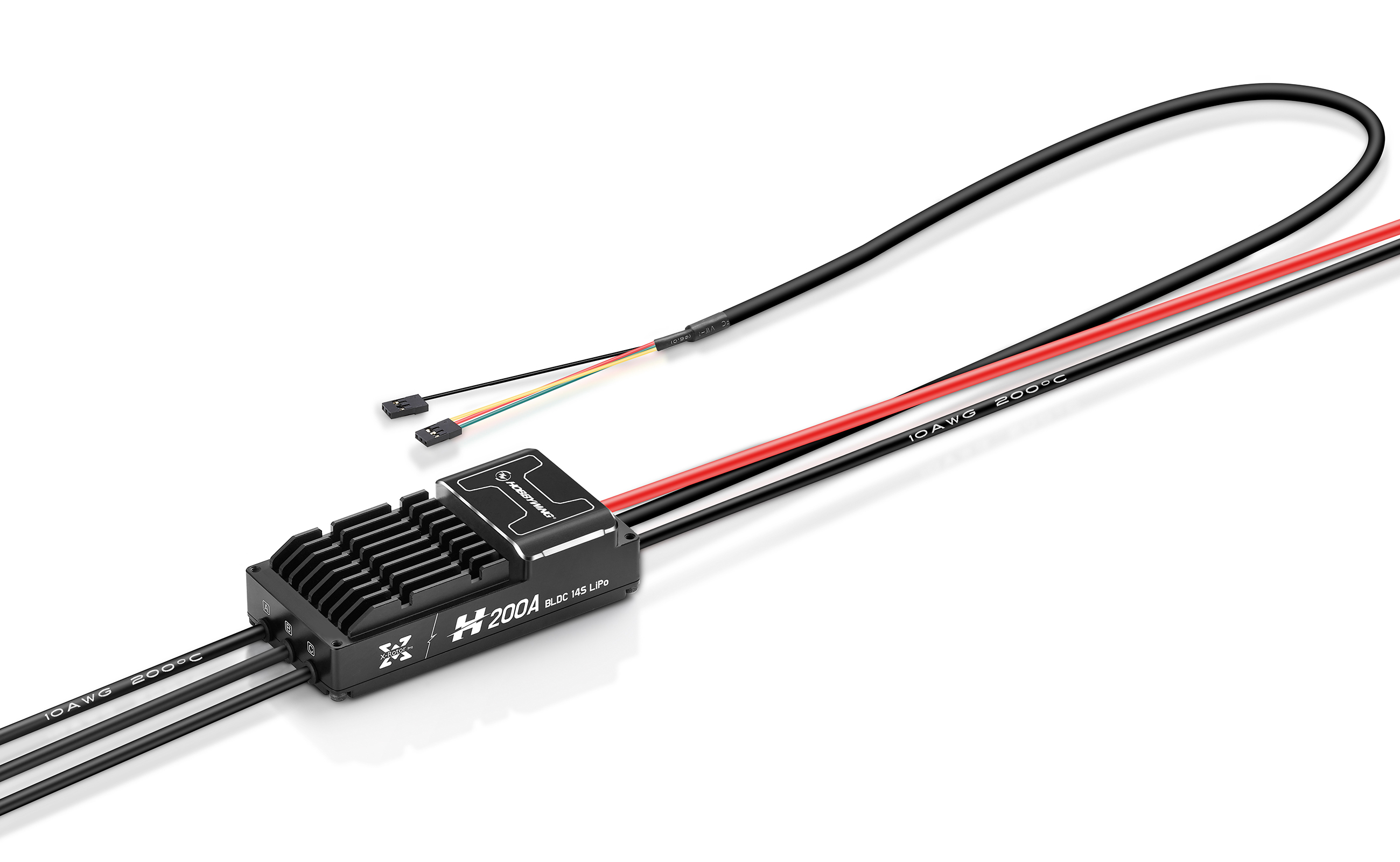

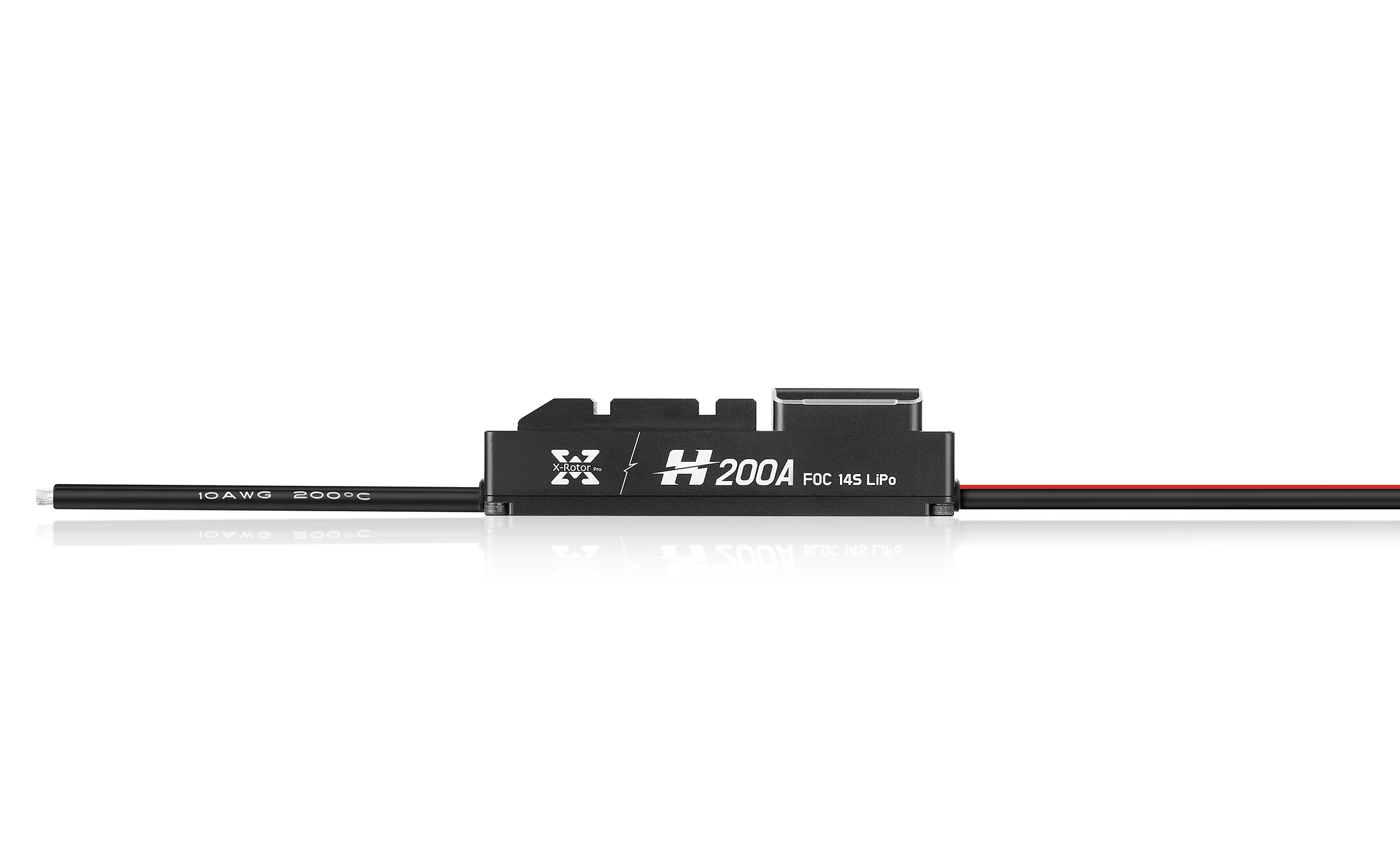

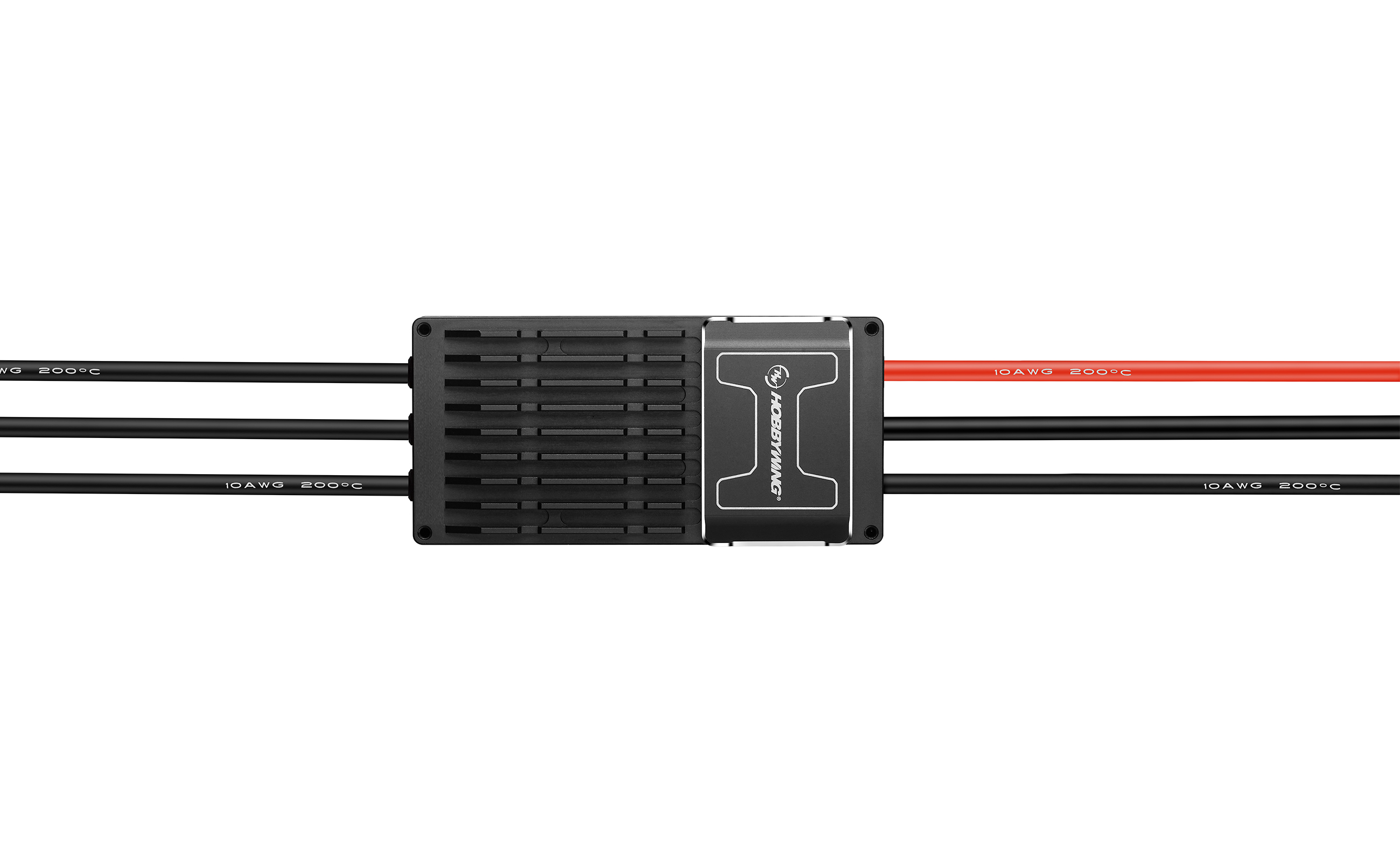

XRotor H200A-14S-BLDC/FOC
H200A-14S
Next Generation Black Box
New Hardware
Better Performance
High TG
High temperature resistance 170℃
Thick Copper PCB
Base copper 30Z
Full Copper Filling
Process Technology
Double-sided heat dissipation
structure, 30% more current
resistance than the same
power ESC
(Compare to Platinum 200A)
FOC Vector Control
Developed for many years, the sensorless FOC algorithm is highly reliable.
Precise Control Fast Response Efficient Driving Low Noise
BLDC, Compatible With More Motors
Intelligent timing and DEO, algorithm upgrade for high KV UAV motors.
Better compatibility and stability in driving. Higher drive efficiency and braking performance.
Intelligent
Propeller Control
(H200A-BLDC-IPC)
Special design for VTOL and drone dock applications.

Compatible with different motors and propellers, open
parameter settings.

Adjust parameters such as fixed propeller and maximum
current according to the needs,effectively prevent motor
overheating.
IP55 Dustproof& Waterproof
Using aluminium alloy shell and light weight
nano-coating. High power density, small size
and light weight.
  • IP67 optional
Optimized Structure Design, Easy to Install
New appearance, new shell edge design. Easy to install
on both multi-rotor and fixed-wing drones.
Throttle, Communication Isolation
Dual Throttle Redundancy, Stronger
Anti-interference
Using shielded signal cables, fully ensure signal reliability
CAN Digital Throttle
PWM Throttle
Intelligent Protection,
Fast Fault Analysis
Fault code auto-record, for quick analysis
Power-on Self-test
Low Voltage Protection
Over Voltage Protection
Throttle Lost Protection
Over Current Protection
New Generation Black Box Feature
Millisecond-level data recording. Fast data & fault analyzing.
Built-in high-speed ROM. 2~48 hours of operating data & fault code storage.
XRotor Pro H200A-14S-BLDC/FOC CAD
XRotor Pro H200A-14S-BLDC-IPC CAD
Product Name
XRotor Pro H200A-14S-BLDC XRotor Pro-H200A-14S-FOC
Specifications
Input Voltage 6-14S(18-65V) 6-14S(18-65V)
Continuous Current 100A(Good heat dissipation) 100A(Good heat dissipation)
Peak Current 200A(3S) 200A(3S)
Operating Temperature -40℃~65℃ -40℃~65℃
Communication Protocol CAN(Custom Serial port) CAN(Custom Serial port)
lsolation Mode Throttle/ communication supported Throttle/ communication supported
Firmware Update Support Support
Digital Throttle Support(CAN) Support(CAN)
PWM Input Signal Level 5V/3.3V 5V/3.3V
Throttle Signal Frequency 50-500Hz 50-500Hz
Operating Pulse Width 1100-1940μS 1100-1940μS
Throttle Travel Calibration No No
Double Throttle Signal Yes(CAN+PWM) Yes(CAN+PWM)
Propeller Positioning Optional. Max positioning working current is setable. Optional. Max positioning working current is setable.
Fault Storage 2~48 hours of operating data& fault code storage 2~48 hours of operating data& fault code storage
Waterproof Rating IP55 (Custom IP67) IP55 (Custom IP67)
Weight(Without Cable) 270g 270g
Size 116*56*31.5mm 116*56*31.5mm
Cable Specification Input: Silicone cable-10AWG-260mm *2
Output: Silicone cable-10AWG-200mm *3
Signal: Shielded cable - 5pin - 450mm * 1, JR-3Pin male connector * 2
Input: Silicone cable-10AWG-260mm *2
Output: Silicone cable-10AWG-200mm *3
Signal: Shielded cable - 5pin - 450mm * 1, JR-3Pin male connector * 2
