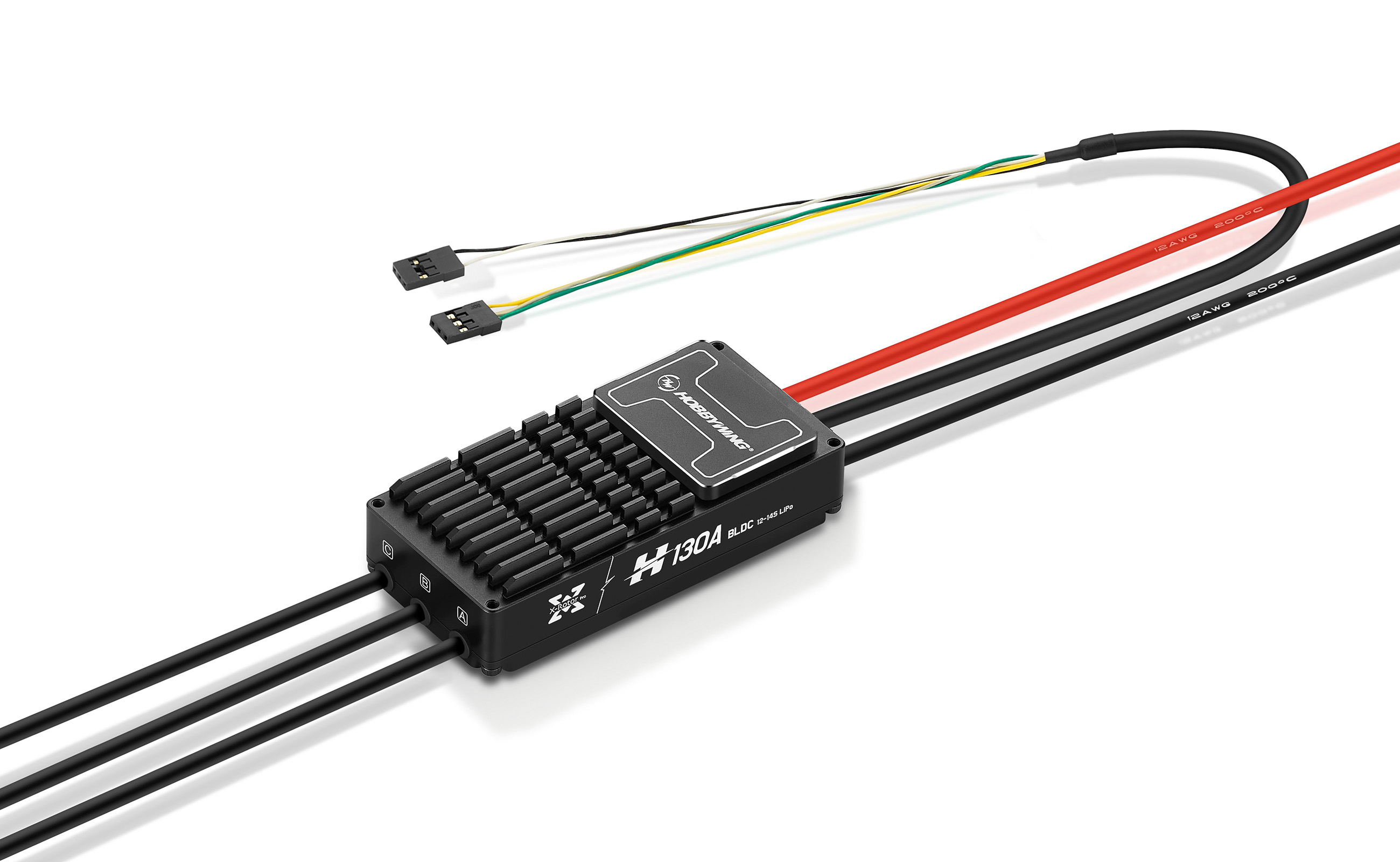

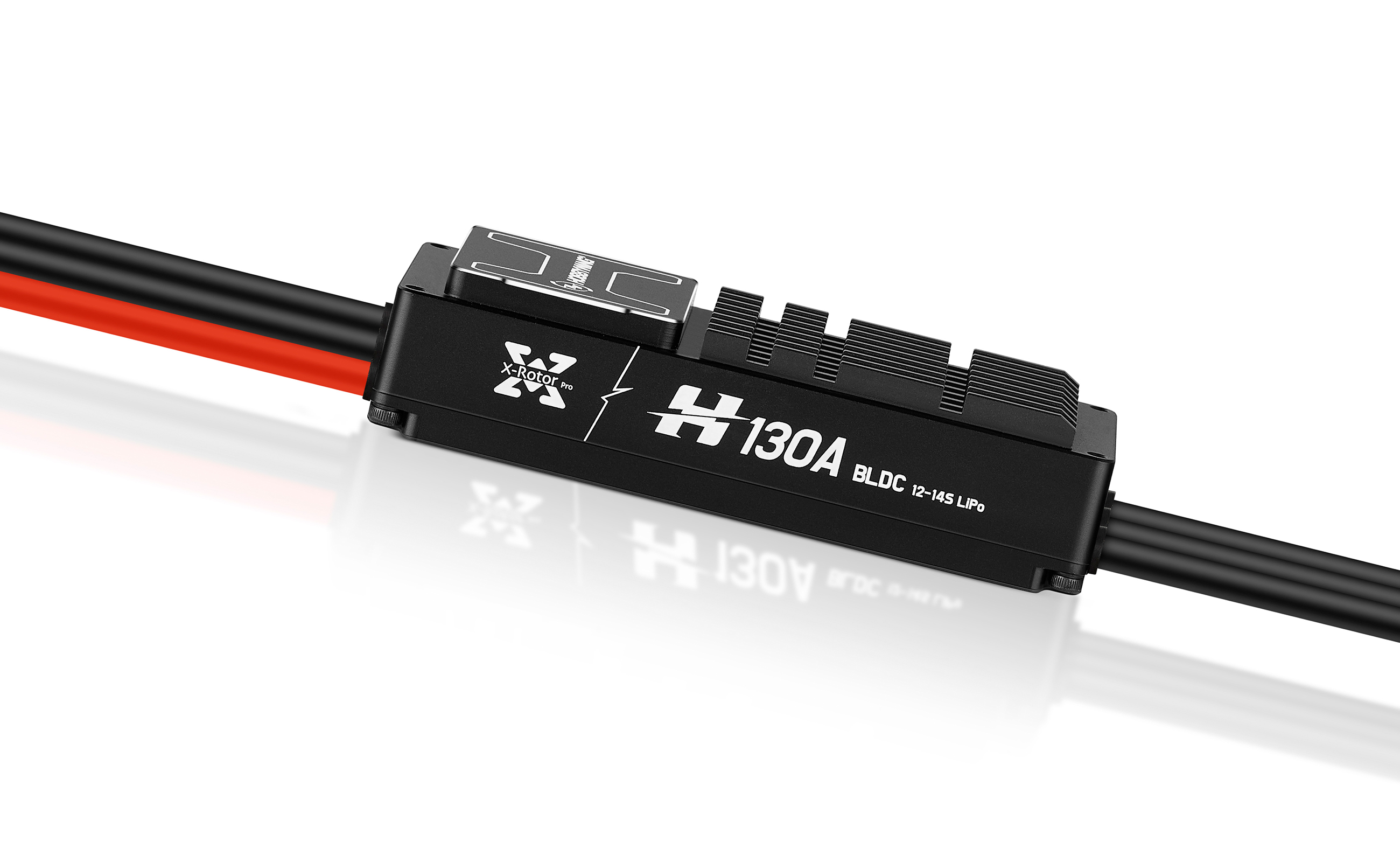

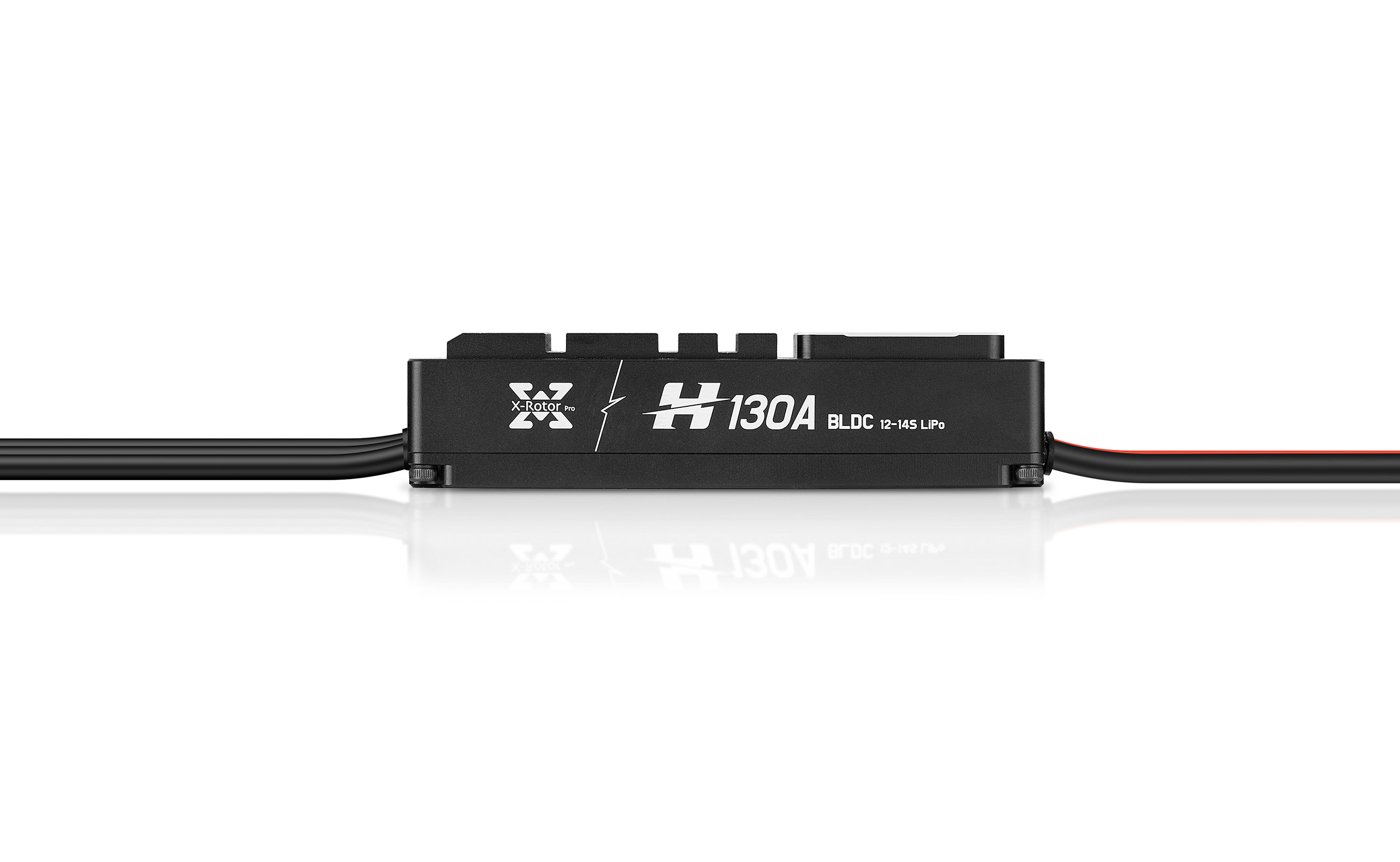

XRotor H130A 14S BLDC/FOC
New Hardware
Better Performance
High TG
High temperature resistance up to 170℃
Thick Copper PCB
Base copper 30Z
Full Copper Filling Process
Current Resistance
Improved By 30%

( Compared to Platinum 130A)
Dual Communication
Bus Design
The industry's first CAN + 485 dual-bus throttle design,
further enhances anti-interference and ensures safe flight.
Independent Power Supply,
Real-time Wake-up
  • The ESC control circuit and power circuit
    are powered separately to ensure power supply
    stability and quick response.
  • Compatible with low power consumption mode:
    Quickly enters a low-power state after activating
    sleep mode, and can be awaken to enter the working
    state at any time by external signals.
Detailed Design,Easy Installation
New appearance, easy to install on both multi-rotor and fixed-wing drones.
High Thermal Conductivity Materials
Strong heat dissipation, stable and reliable.
Compared to Platinum 130A, the temperature
drops by about 20℃ under the same
working conditions.
Wide Edge Design
Easy to do installation
High Power
Density
Compared with same
power ESC,
smaller in size and
lighter in weight.
Intelligent
Propeller Control
(H130A-BLDC-IPC)
Special design for VTOL and drone dock applications.

Compatible with different motors and propellers, open
parameter settings.

Adjust parameters such as fixed propeller and maximum
current according to the needs,effectively prevent motor
overheating.
CAN 2.0 Communication Technology
The working status of the ESC can be remotely monitored in real-time through the flight controller,
and the power system data can be accurately diagnosed and analyzed.
CAN digital throttle and PWM throttle form a dual-throttle redundancy,
ensuring more secure throttle control.
New Generation
Black Box Feature
Millisecond-level data recording. Fast data & fault analyzing.
Built-in high-speed ROM. 2~48 hours of
operating data & fault code storage.
New Drone Application
Security Strategy
The protection strategy is optimized according to the industry
application scenarios. For example, over-current protection
millisecond-level restart, over-temperature only provides early
warning without limiting power output. The protection logic
takes the safety of the drone as the first priority to ensure
reliability.
XRotor H130A 14S BLDC/FOC CAD
XRotor H130A 14S BLDC IPC CAD
Product Name
XRotor H130A 14S BLDC XRotor H130A 14S FOC
Specifications
Input Voltage 6-14S(18-65V) 6-14S(18-65V)
Continuous Current 60A(Good heat dissipation) 60A(Good heat dissipation)
Peak Current 150A(3S) 150A(3S)
Operating Temperature -40℃~65℃ -40℃~65℃
Communication Protocol CAN+RS485(Custom Serial port) CAN+RS485(Custom Serial port)
lsolation Mode Throttle And Communication Isolation Throttle And Communication Isolation
Firmware Update Support Support
Digital Throttle Support(CAN) Support(CAN)
PWM Input Signal Level 5V/3.3V 5V/3.3V
Throttle Signal Frequency 50-500Hz 50-500Hz
Operating Pulse Width 1100-1940μS 1100-1940μS
Throttle Travel Calibration No No
Double Throttle Signal Support(CAN and PWM) Support(CAN and PWM)
Propeller Positioning Optional Optional
Fault Storage 2-48 hours real-time data and fault data, real-time up to ms level 2-48 hours real-time data and fault data, real-time up to ms level
Waterproof Rating IP55 (Custom IP67) IP55 (Custom IP67)
Weight( without wire) 148g 148g
Size 96.5*46*23.5mm 96.5*46*23.5mm
Cable Specification Input: Silicone cable-12AWG-200mm *2

Output: Silicone cable-12AWG-150mm *3

Signal: Shielded cable - 5pin - 500mm * 1, JR-3Pin male connector * 2
Input: Silicone cable-12AWG-200mm *2

Output: Silicone cable-12AWG-150mm *3

Signal: Shielded cable - 5pin - 500mm * 1, JR-3Pin male connector * 2
