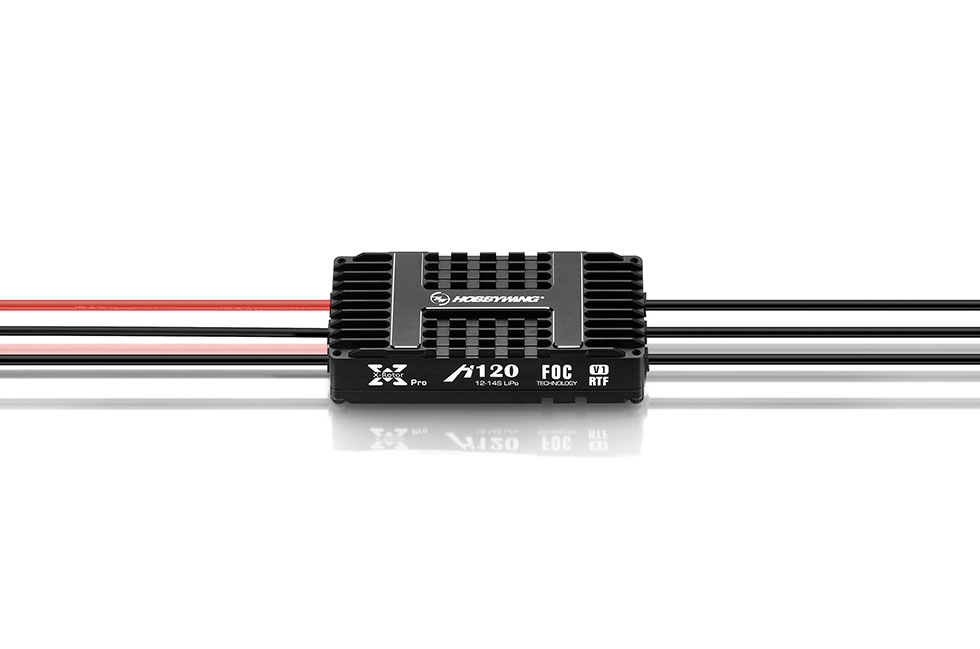

XRotor H120A 14S FOC V1

Excellent heat dissipation performance

Hardware: large-area heat-dissipating copper sheets and heat-conducting copper strips,
aluminum alloy case, efficient heat dissipation.
software: FOC is vector control, the drive efficiency increases by 10%, and reduces heat by up to 10°C.
Structurally: double-sided heat dissipation, scale-shaped heat dissipation fins for efficient heat dissipation.

High voltage ESC

60V is designed specifically for high voltage usage. It will heat up lesser compared
with low voltage ESCs of the same power.

Reliable operation regardless of seasonal changes

Ambient temperature -20~65°C for use, storage temperature -40~85°C,IP55 protection
grade (*IP67 and -40~65°C normal use temperature can be customized)

65°C
Hot Cold

-20°C
Hot Cold

FOC Intelligent drive is accurate and efficient

FOC ESC Comparing ESC with the same power, Intelligent drive vector control has higher
efficiency, lower temperature, faster response, lower noise, lower interference, linear throttle,
precise control, and kinetic energy recovery.

CAN Information and Communication

Fast data transmission and real-time acquisition of key information such as ESC status, speed, throttle,
current, voltage, MOSFET temperature, and capacitor temperature can be achieved using the black
box function. Data analysis is clear at a glance with the use of DATALINK box.

Intelligent protection, fault storage

Power-on self-test, undervoltage protection, overvoltage protection, overcurrent protection,
throttle signal loss protection, infinite restart, etc. According to the real-time working
conditions, the ESC intelligently protect the flight safety of the drone.
*The ESC has its own fault storage function for fault analysis.

Undervoltage
protection

Overvoltage
protection

Infinite
restart

Power-on
self-test

Fault
storage

Quick upgrade

The latest software from Hobbywing can be updated with the use of DATALINK box equipment.
*Support flight control remote upgrade (optional)

XRotor H120A 14S Foc V1 CAD
Product Name
XRotor H120A 14S Foc V1
Specifications
ESC XRotor Pro-H120A-14S-FOC-RTF-HW-H-V1
Input Voltage 12-14S(44-63V)
Continuous current 60A (Good heat dissipation)
Peak Current (3s) 120A(3S)
Operating Temperature -20℃~50℃
Magnetic encoder One motor, one program
Propeller positioning No
Waterproof Rating IP55(Custom IP67)
Weight 185.6g(Without wires)
Size 113*56*25.9mm
Communication protocol CAN(Custom Serial port)
Throttle signal isolated Isolated (Custom non-isolated)
PWM Input Signal Level 5V/3.3V
Throttle Signal Frequency 50-500Hz
Operating Pulse Width 1100us-1940us
Throttle travel calibration No
Specifications No
Double throttle signal Yes(CAN)
