GP Glossy Pro Propeller

Overview
Specifications
Support
Accessories
Detail

GP-Glossy Pro

Carbon Fiber Straight Propeller

Elaborate industry-specific
propeller with
versatile applicability

The twilled waving process with high gloss finish on the surface enhance the visual appeal of multi-rotor drones.

Superior corrosion resistance, capable of withstanding flights over the sea.
High efficiency, minimal noise and optimal balance, suitable for various drone applications.

Elevate performance to
new heights with
HOBBYWING’s H series motor

The dynamic performance of the entire propulsion system is fully played by
using propellers with the HOBBYWING’s H series motor with an elaborate magnetic circuit.

Recommended Combinations

Model

Recommended
motors
GP 26×8.5"

V8014
GP 27×8.8"

V8014/V8017
GP 28×9.2"

M8108/M8110/V8014
/V8017/V9616
GP 29×9.5"

M8108/M8110
/V8017/V9616

Model

Recommended
motors
GP 32×10.5"

M8108/M8110/M10005
/V8120/V9626
GP 34×11.2"

M9620
GP 40×13.1"

V11122

Enhanced reliablity
and durability
from mature processes

The twilled weaving process ensures an even distribution of stress,
providing a more stable structure and minimizing propeller deformation at high speeds.
The carbon fiber hot-pressing further ensures reliability and durability.

Easy installation

The propellers can be installed by
direct locking of motor rotor and quick dismantling of propeller base.

GP 26x8.5" CAD

GP 26x8.5"Specification

ModelGP 26x8.5"

Material of PropsCarbon fiber+Epoxy resin

Storage temperature-10℃~35℃

Recommended speed range2000~4000 r/min

Ultimate tension19.0kg

Folding/unfoldingunfolding
Weight73g

Surface technicsBright mirror

Operating Temperature-40℃~65℃

Storage humidness≤85%

Recommended thrust4.5~9.0kg

Recommended motors of hobbywingV8014

GP 26x8.5" Load performance parameters

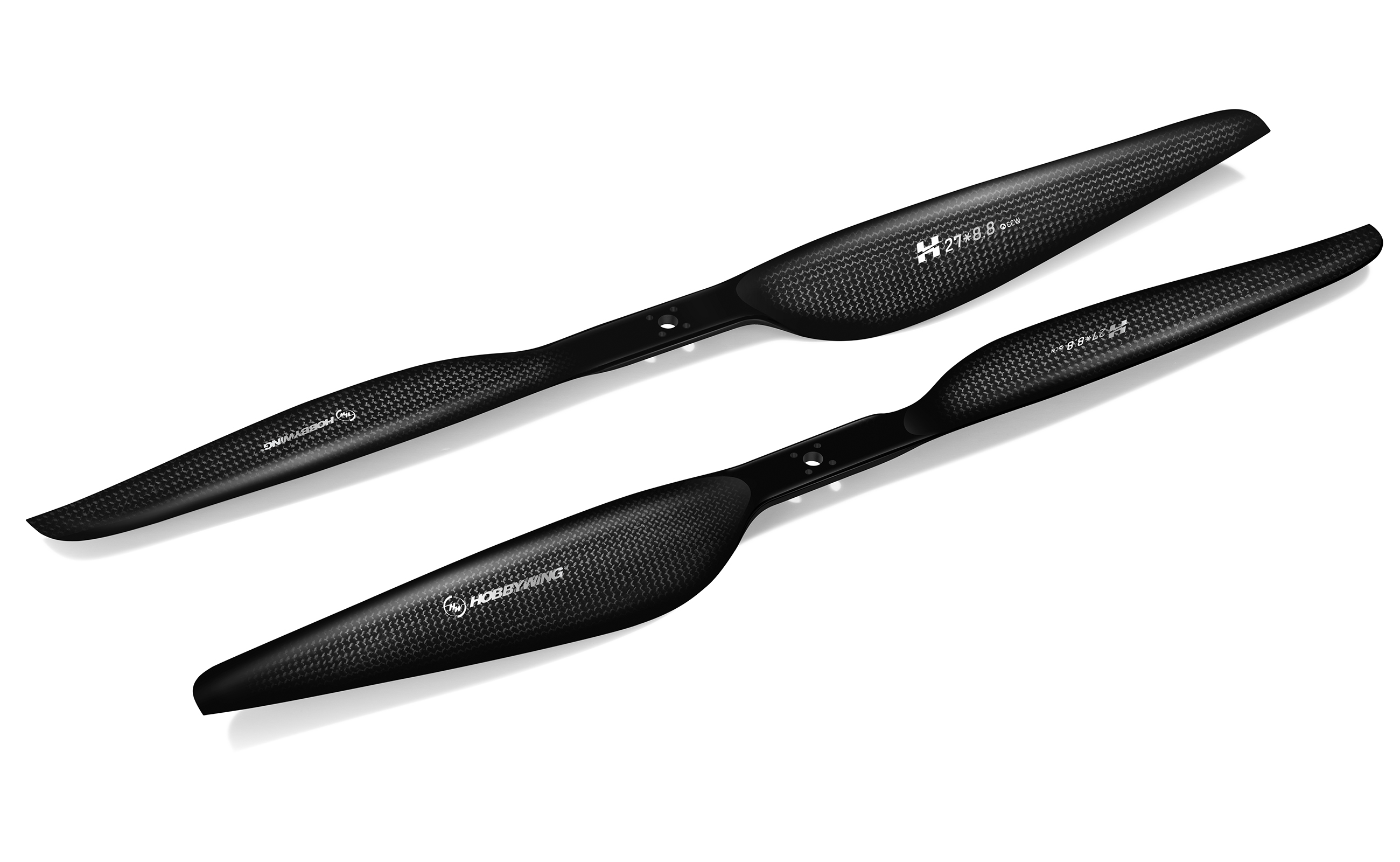

GP 27x8.8" CAD

GP 27x8.8"Specification

ModelGP 27x8.8"

Material of PropsCarbon fiber+Epoxy resin

Storage temperature-10℃~35℃

Recommended speed range1900~4000 r/min

Ultimate tension23.0 kg

Folding/unfoldingunfolding
Weight80g

Surface technicsBright mirror

Operating Temperature-40℃~65℃

Storage humidness≤85%

Recommended thrust5.0~10.0kg

Recommended motors of hobbywingV8014 / V8017

GP 27x8.8" Load performance parameters

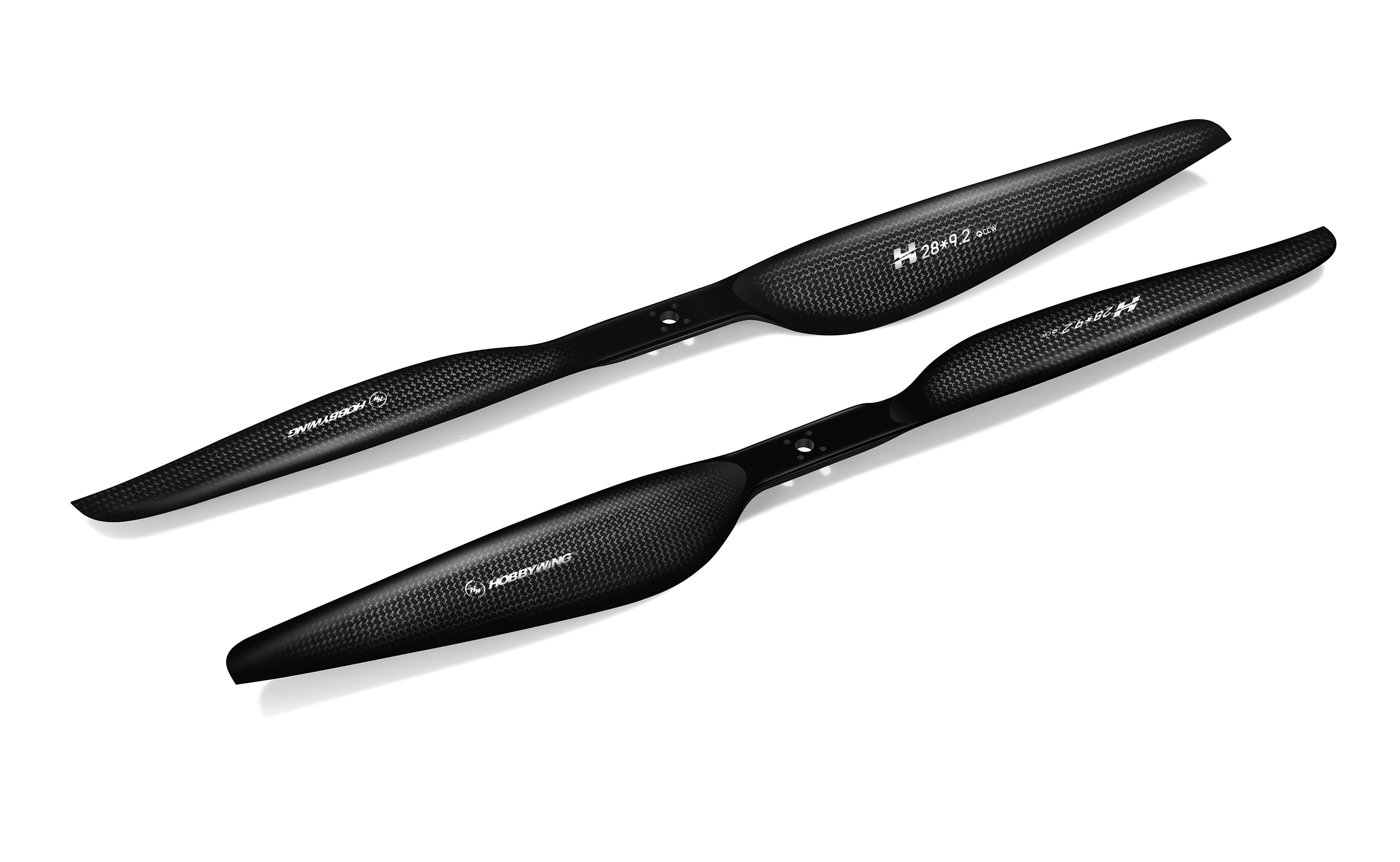

GP 28x9.2" CAD

GP 28x9.2"Specification

ModelGP 28x9.2"

Material of PropsCarbon fiber+Epoxy resin

Storage temperature-10℃~35℃

Recommended speed range1600~3800 r/min

Ultimate tension27.5 kg

Folding/unfoldingunfolding
Weight85g

Surface technicsBright mirror

Operating Temperature-40℃~65℃

Storage humidness≤85%

Recommended thrust5.5~10.5 kg

Recommended motors of hobbywingM8108/M8110/V8014/V8017/V9616

GP 28x9.2" Load performance parameters

GP 29x9.5" CAD

GP 29x9.5"Specification

ModelGP 29x9.5"

Material of PropsCarbon fiber+Epoxy resin

Storage temperature-10℃~35℃

Recommended speed range1500~3600 r/min

Ultimate tension32.0 kg

Folding/unfoldingunfolding
Weight95g

Surface technicsBright mirror

Operating Temperature-40℃~65℃

Storage humidness≤85%

Recommended thrust6.0~11.0 kg

Recommended motors of hobbywingM8108/M8110/V8017/V9616

GP 29x9.5" Load performance parameters

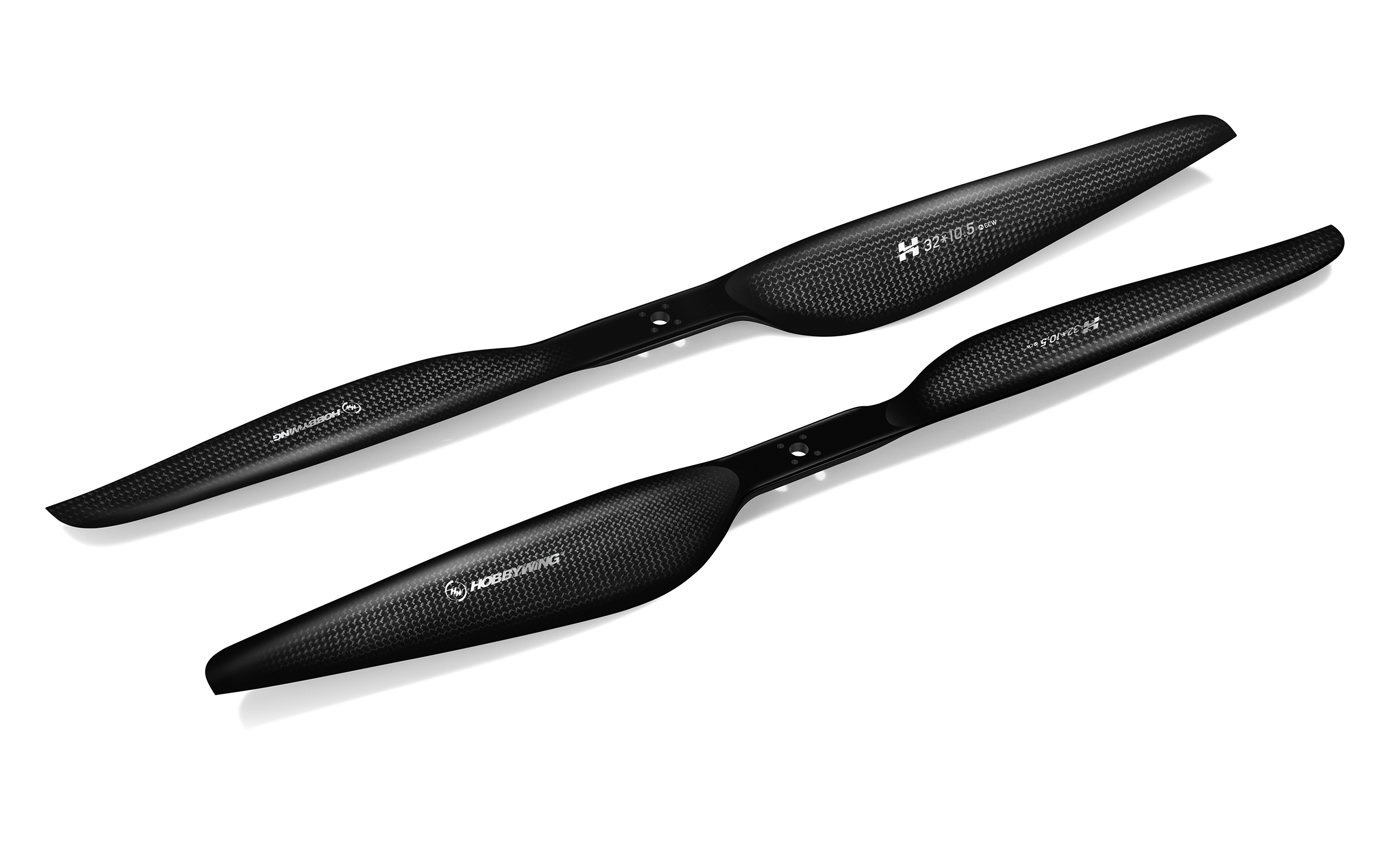

GP 32x10.5" CAD

GP 32x10.5"Specification

ModelGP 32x10.5"

Material of PropsCarbon fiber+Epoxy resin

Storage temperature-10℃~35℃

Recommended speed range1500~3300 r/min

Ultimate tension34.0kg

Folding/unfoldingunfolding
Weight125g

Surface technicsBright mirror

Operating Temperature-40℃~65℃

Storage humidness≤85%

Recommended thrust7.0~14.0kg

Recommended motors of hobbywingM8108/M8110/M10005/V8120/V9626

GP 32x10.5" Load performance parameters

GP 34x11.2" CAD

GP 34x11.2"Specification

ModelGP 34x11.2"

Material of PropsCarbon fiber+Epoxy resin

Storage temperature-10℃~35℃

Recommended speed range1200~3200 r/min

Ultimate tension42.0 kg

Folding/unfoldingunfolding
Weight137g

Surface technicsBright mirror

Operating Temperature-40℃~65℃

Storage humidness≤85%

Recommended thrust8.0~16.0 kg

Recommended motors of hobbywingM9620

GP 34x11.2" Load performance parameters

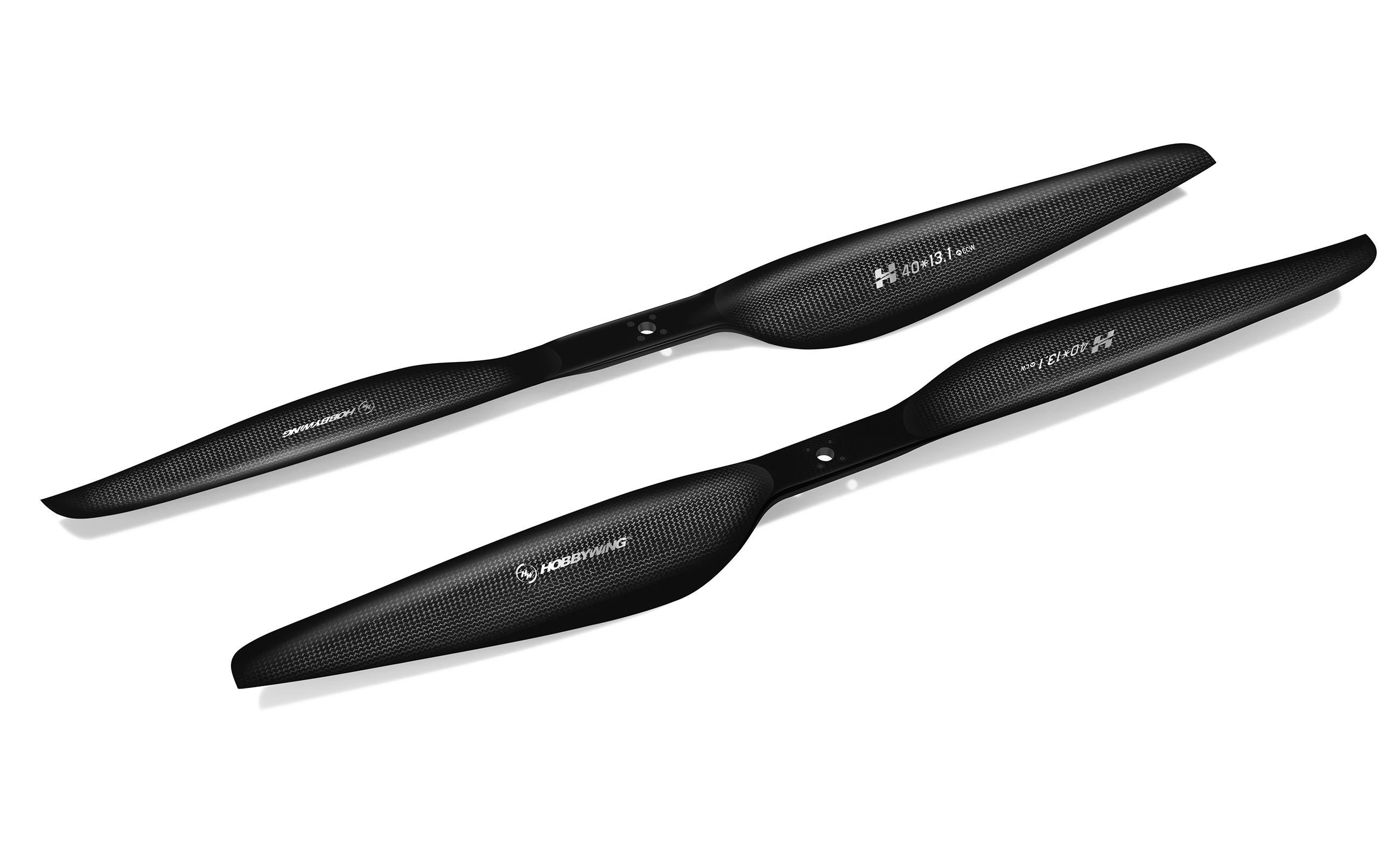

GP 40x13.1" CAD

GP 40x13.1"Specification

ModelGP 40x13.1"

Material of PropsCarbon fiber+Epoxy resin

Storage temperature-10℃~35℃

Recommended speed range1100~2800 r/min

Ultimate tension60.0 kg

Folding/unfoldingunfolding
Weight224g

Surface technicsBright mirror

Operating Temperature-40℃~65℃

Storage humidness≤85%

Recommended thrust15.0~25.0 kg

Recommended motors of hobbywingV11122

GP 40x13.1" Load performance parameters

GP 58x24" CAD

GP 58x24"Specification

ModelGP 58x24"

Material of PropsCarbon fiber+Epoxy resin

Storage temperature-10℃~35℃

Recommended speed range1400~2400 RPM

Ultimate tension100 kg

Folding/unfoldingunfolding
Weight715±35g

Surface technicsBright mirror

Operating Temperature-40℃~65℃

Storage humidness≤85%

Recommended thrust25~70 kg

Recommended motors of hobbywingM13842

GP 58x24" Load performance parameters

产品名称

HF 22*7.0"

基本参数

桨叶型号	HF 22*7.0" 碳塑折叠桨叶
Weight	66g
Material of Props	碳纤维增强聚合物
Surface technics	哑光晒纹
桨夹材质	铝合金
Operating Temperature	-30℃~65℃
Storage temperature	-10℃~45℃
Storage humidness	＜85%
Recommended speed range	3000RPM~4500RPM
Recommended thrust	2kg~5kg
推荐最大转速	6500RPM
Ultimate tension	11kg

Support

Manuals & Documents

GP 26x8.5" Specifications

GP27x8.8" Specifications

GP28x9.2" Specifications

GP29x9.5" Specifications

GP32x10.5" Specifications

GP34x11.2" Specifications

GP40x13.1" Specifications

GP58x24" Specifications

RC Systems

RC Cars Power System

XeRun

Professional Competition Level, Extreme Performance and Craftsmanship

EzRun

High-end Product, Balanced Performance

QuicRun

Budget-friendly, Cost-effective

RC Plane Power System

Platinum

Professional Competition, Extreme Flight

FlyFun

High-end Product, Comprehensive Performance

SkyWalker

Entry Level, Budget-friendly Product

FPV Racing

Racing Flight, The Choice of Flying

RC Boat Power System

SeaKing V3

High-end Product, Comprehensive Performance

SeaKing Pro

Built for Competition, Powerful Performance in Small Volumes

SeaKing V4

High-end Product, Comprehensive Performance

Accessories

RC Car

RC Boat

RC Aircraft

Drone Systems

Multirotor

INTEGRATED PROPULSION SYSTEM

Innovation and Performance for a simplified assembly

MOTOR

Endurance born from efficiency

ESC

Accurate control, trusted performance

PROPELLER

Superior efficiency, exceptional stability

WATER PUMP

Minimal maintenance, long service life

ACCESSORIES

VTOL

MOTOR

Superior performance for unmatched flights

ESC

Precise control, maximum performance

PROPELLER

Powerful burst, high intensity

Carbon Fiber Propeller

FPV

MOTOR

High efficiency, extended flight time

28XX
31XX

ESC

Optimized performance, trusted reliability

FLIGHT CONTROLLER

Simplicity and reliability combined

STACK

Personal Travel Systems

Electric Skateboard

Skateboard Controller

Controlled and Silky Smooth Operation

Skateboard Motor

Robust Power System With a Single Step

Electric Scooter

Scooter Controller

Transporting Each Trip in a Safe Manner

Personal Travel Accessories

Skateboard Accessories

Scooter Accessories

Service and Support

GP Glossy Pro Propeller

Overview Specifications Support Accessories Detail

GP-Glossy Pro

Carbon Fiber Straight Propeller

Elaborate
industry-specific
propeller with
versatile applicability

The twilled waving process with high
gloss finish on the surface enhance the
visual appeal of multi-rotor drones.

Superior corrosion resistance, capable of withstanding flights over the sea. High efficiency, minimal noiseand optimal balance, suitable for various drone applications.

Elevate performance
to new heights with
HOBBYWING’s
H series motor

The dynamic performance of the entire propulsion system is fully played by using propellers with the HOBBYWING’s H series motor with an elaborate magnetic circuit.

Recommended Combinations

Model

Recommended
motors
GP 26×8.5"

V8014
GP 27×8.8"

V8014/V8017
GP 28×9.2"

M8108/M8110/V8014
/V8017/V9616
GP 29×9.5"

M8108/M8110
/V8017/V9616
GP 32×10.5"

M8108/M8110/M10005
/V8120/V9626
GP 34×11.2"

M9620
GP 40×13.1"

V11122

Enhanced reliablity
and durability from
mature processes

The twilled weaving process ensures an even distribution of stress, providing a more stable structure and minimizing propeller deformation at high speeds. The carbon fiber hot-pressing further ensures reliability and durability.

Easy installation

The propellers can be installed by direct locking of motor rotor and quick dismantling of propeller base.

GP 26x8.5" CAD

GP 26x8.5"Specification

ModelGP 26x8.5"

Material of PropsCarbon fiber+Epoxy resin

Storage temperature-10℃~35℃

Recommended speed range2000~4000 r/min

Ultimate tension19.0kg

Folding/unfoldingunfolding
Weight73g

Surface technicsBright mirror

Operating Temperature-40℃~65℃

Storage humidness≤85%

Recommended thrust4.5~9.0kg

Recommended motors of hobbywingV8014

GP 26x8.5" Load performance parameters

GP 27x8.8" CAD

GP 27x8.8"Specification

ModelGP 27x8.8"

Material of PropsCarbon fiber+Epoxy resin

Storage temperature-10℃~35℃

Recommended speed range1900~4000 r/min

Ultimate tension23.0 kg

Folding/unfoldingunfolding
Weight80g

Surface technicsBright mirror

Operating Temperature-40℃~65℃

Storage humidness≤85%

Recommended thrust5.0~10.0kg

Recommended motors of hobbywingV8014 / V8017

GP 27x8.8" Load performance parameters

GP 28x9.2" CAD

GP 28x9.2"Specification

ModelGP 28x9.2"

Material of PropsCarbon fiber+Epoxy resin

Storage temperature-10℃~35℃

Recommended speed range1600~3800 r/min

Ultimate tension27.5 kg

Folding/unfoldingunfolding
Weight85g

Surface technicsBright mirror

Operating Temperature-40℃~65℃

Storage humidness≤85%

Recommended thrust5.5~10.5 kg

Recommended motors of hobbywingM8108/M8110/V8014/V8017/V9616

GP 28x9.2" Load performance parameters

GP 29x9.5" CAD

GP 29x9.5"Specification

ModelGP 29x9.5"

Material of PropsCarbon fiber+Epoxy resin

Storage temperature-10℃~35℃

Recommended speed range1500~3600 r/min

Ultimate tension32.0 kg

Folding/unfoldingunfolding
Weight95g

Surface technicsBright mirror

Operating Temperature-40℃~65℃

Storage humidness≤85%

Recommended thrust6.0~11.0 kg

Recommended motors of hobbywingM8108/M8110/V8017/V9616

GP 29x9.5" Load performance parameters

GP 32x10.5" CAD

GP 32x10.5"Specification

ModelGP 32x10.5"

Material of PropsCarbon fiber+Epoxy resin

Storage temperature-10℃~35℃

Recommended speed range1500~3300 r/min

Ultimate tension34.0kg

Folding/unfoldingunfolding
Weight125g

Surface technicsBright mirror

Operating Temperature-40℃~65℃

Storage humidness≤85%

Recommended thrust7.0~14.0kg

Recommended motors of hobbywingM8108/M8110/M10005/V8120/V9626

GP 32x10.5" Load performance parameters

GP 34x11.2" CAD

GP 34x11.2"Specification

ModelGP 34x11.2"

Material of PropsCarbon fiber+Epoxy resin

Storage temperature-10℃~35℃

Recommended speed range1200~3200 r/min

Ultimate tension42.0 kg

Folding/unfoldingunfolding
Weight137g

Surface technicsBright mirror

Operating Temperature-40℃~65℃

Storage humidness≤85%

Recommended thrust8.0~16.0 kg

Recommended motors of hobbywingM9620

GP 34x11.2" Load performance parameters

GP 40x13.1" CAD

GP 40x13.1"Specification

ModelGP 40x13.1"

Material of PropsCarbon fiber+Epoxy resin

Storage temperature-10℃~35℃

Recommended speed range1100~2800 r/min

Ultimate tension60.0 kg

Folding/unfoldingunfolding
Weight224g

Surface technicsBright mirror

Operating Temperature-40℃~65℃

Storage humidness≤85%

Recommended thrust15.0~25.0 kg

Recommended motors of hobbywingV11122

GP 40x13.1" Load performance parameters

GP 58x24" CAD

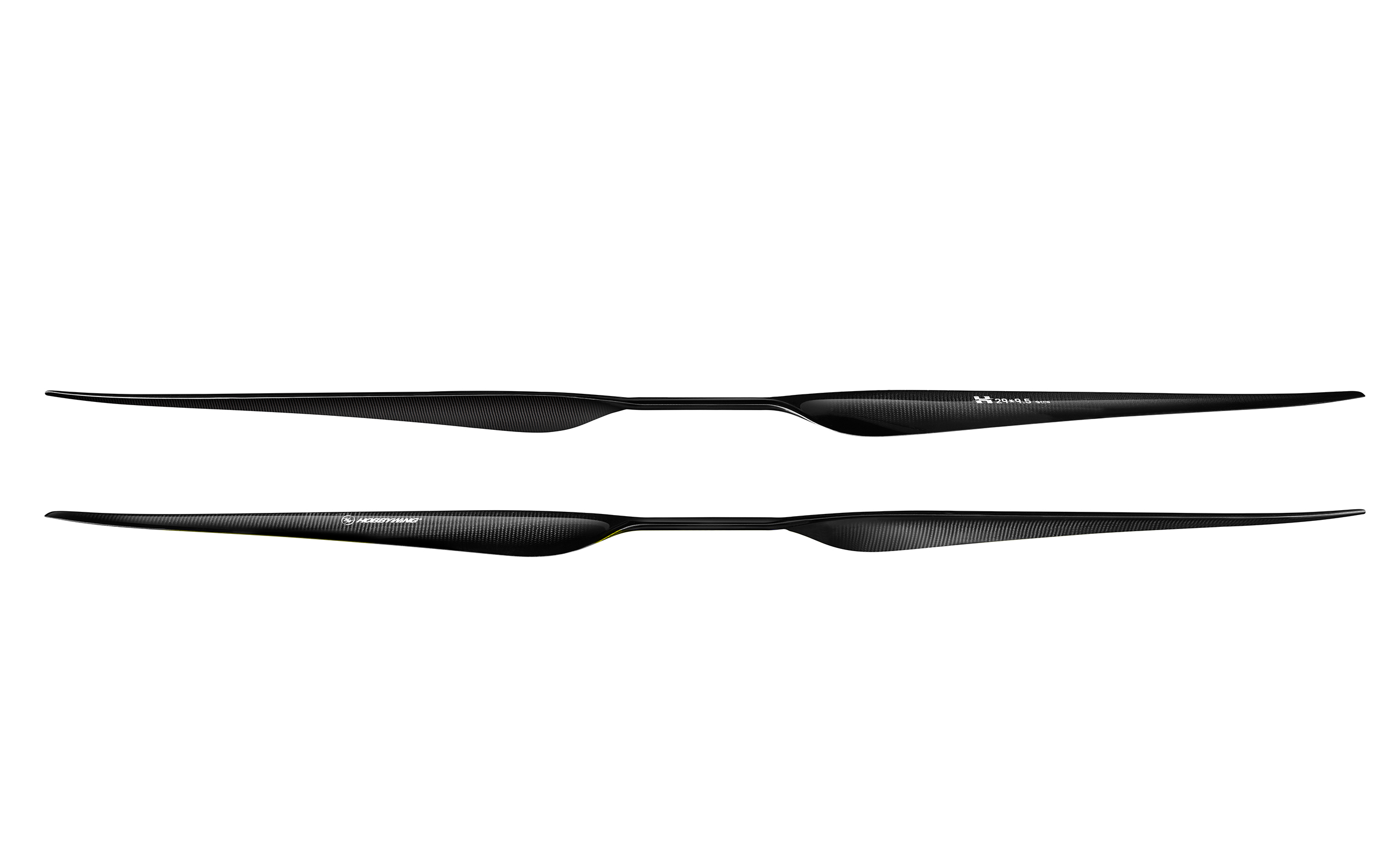

GP 58x24"Specification

ModelGP 58x24"

Material of PropsCarbon fiber+Epoxy resin

Storage temperature-10℃~35℃

Recommended speed range1400~2400 RPM

Ultimate tension100 kg

Folding/unfoldingunfolding
Weight715±35g

Surface technicsBright mirror

Operating Temperature-40℃~65℃

Storage humidness≤85%

Recommended thrust25~70 kg

Recommended motors of hobbywingM13842

GP 58x24" Load performance parameters

产品名称

HF 22*7.0"

基本参数

桨叶型号	HF 22*7.0" 碳塑折叠桨叶
Weight	66g
Material of Props	碳纤维增强聚合物
Surface technics	哑光晒纹
桨夹材质	铝合金
Operating Temperature	-30℃~65℃
Storage temperature	-10℃~45℃
Storage humidness	＜85%
Recommended speed range	3000RPM~4500RPM
Recommended thrust	2kg~5kg
推荐最大转速	6500RPM
Ultimate tension	11kg
