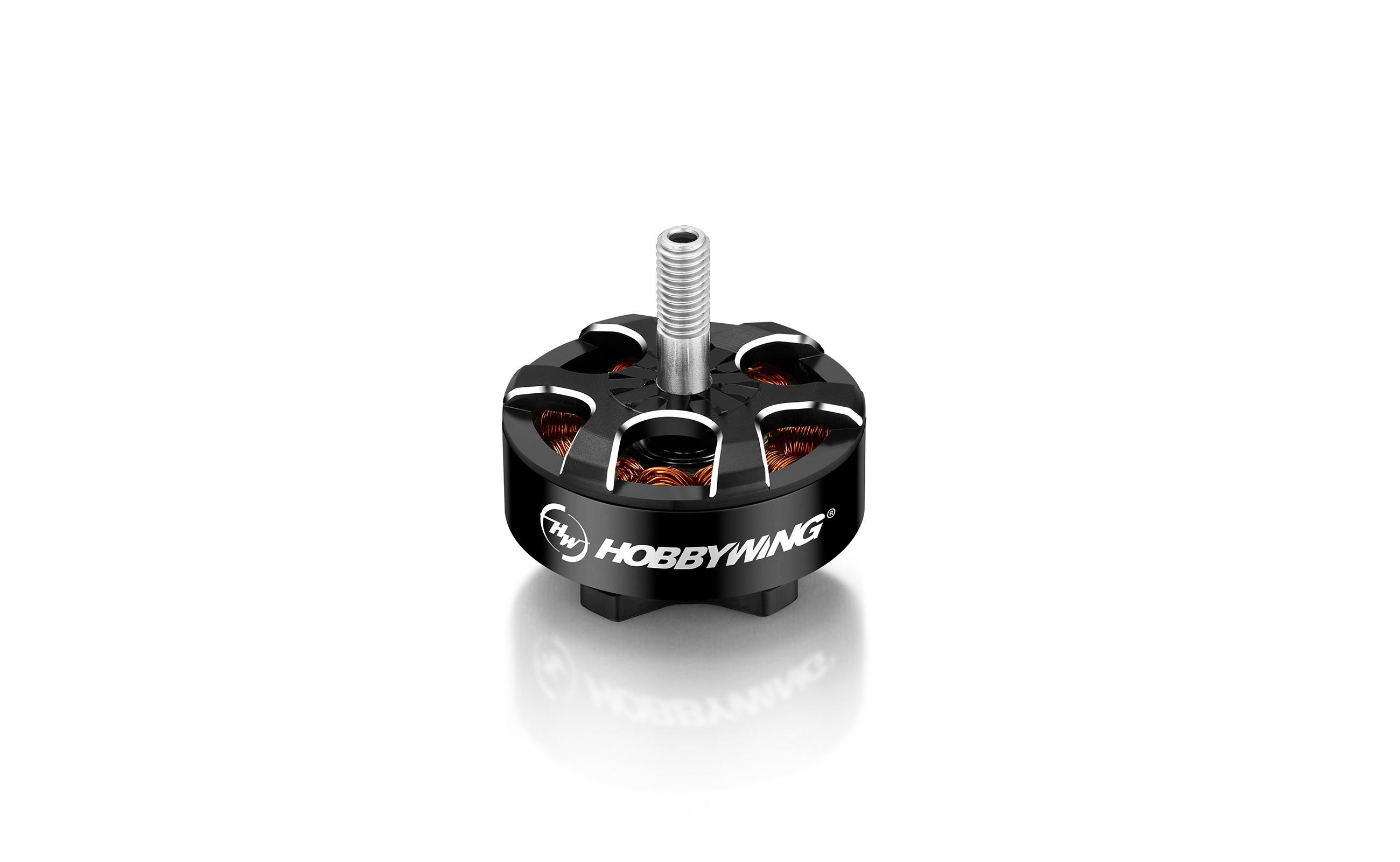

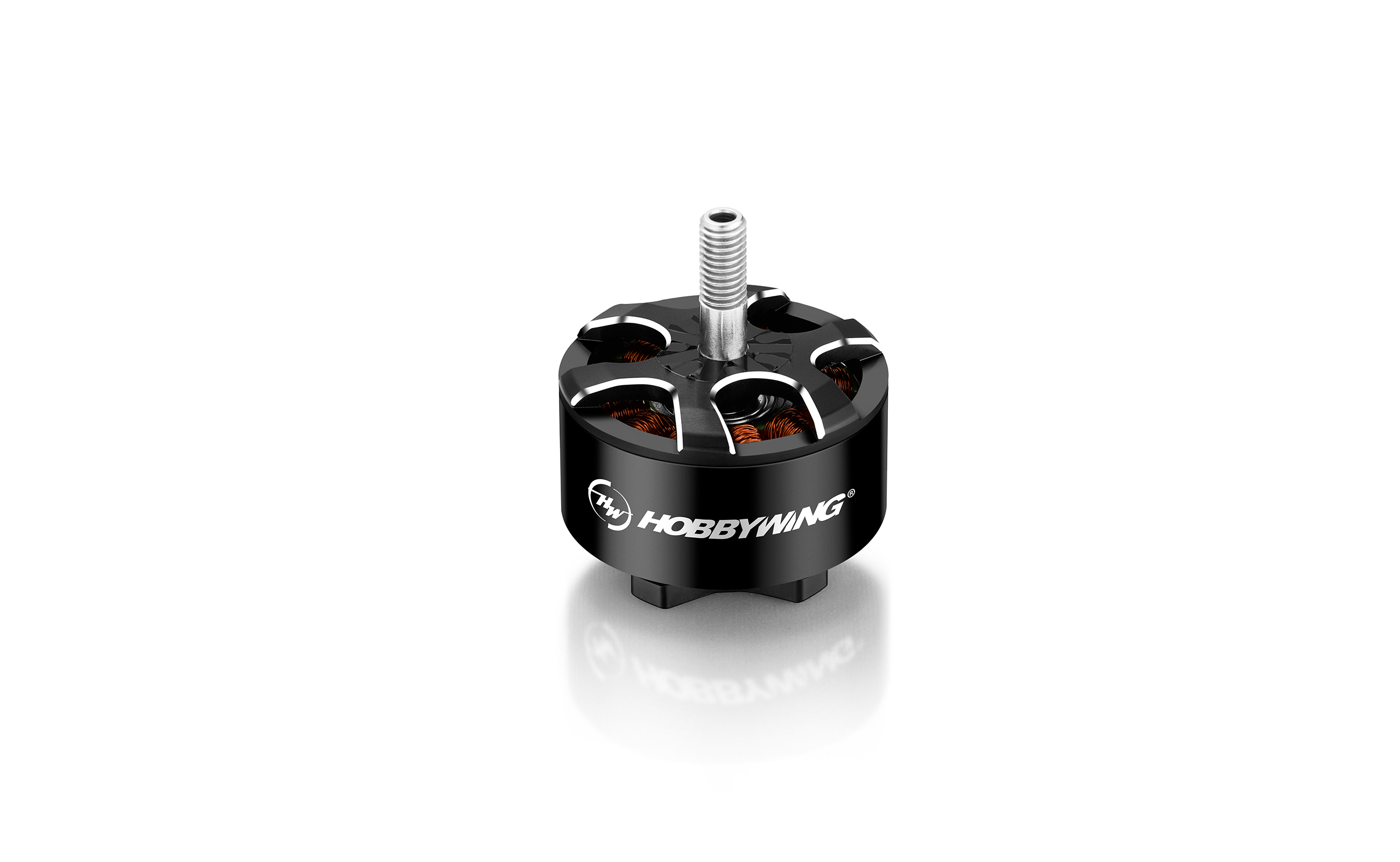

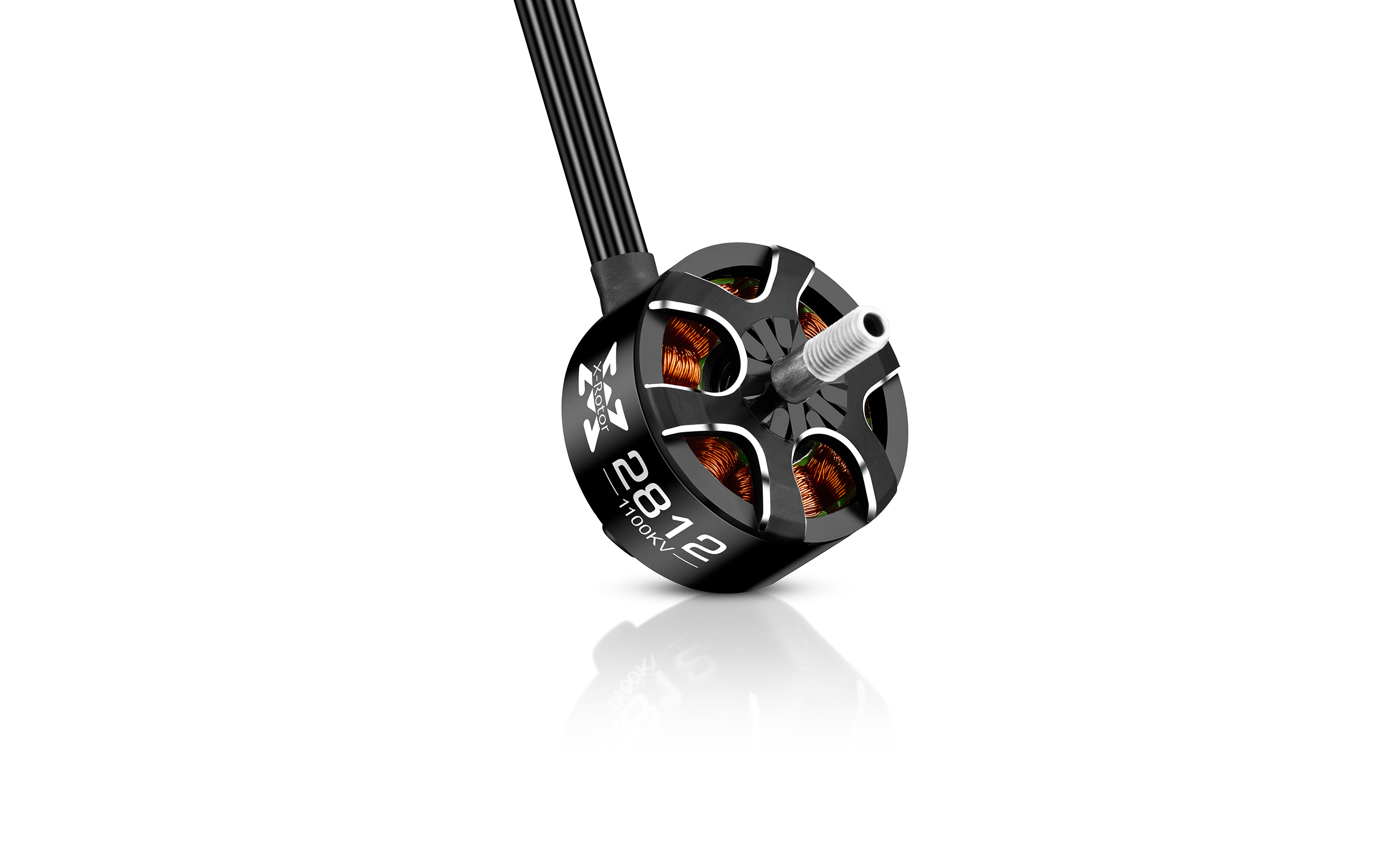

XRotor 2807/2812
XRotor 2807/2812
FPV MOTOR
High Efficiency
And Strong Performance
The 2807 has a better heavy-load efficiency in the middle
and rear sections by approximately more than 4% ,
compared with other competing brands on the market.
The 2812 has a better heavy-load efficiency by approximately more than 5%,
compared with other competing brands on the market.
  • 2807
  • 2812

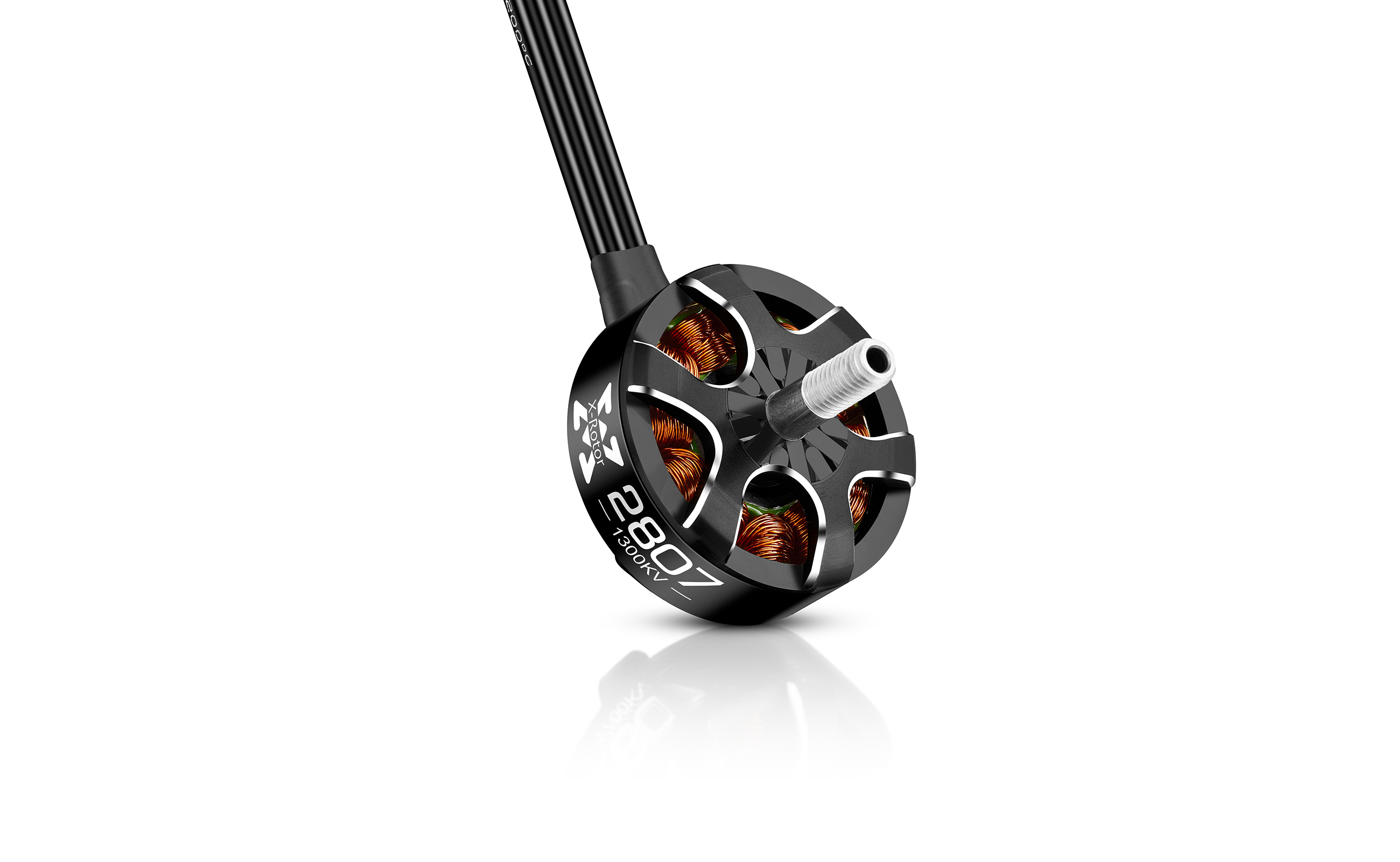

Good Heat Dissipation
And efficient cooling
The rotor has a cooling structure to improve heat dissipation performance.
The maximum running time under full load is extended by more than 40%
compared with other competing brands on the market.
Longer running time under actual load to ensure that the motor is always in optimal condition.

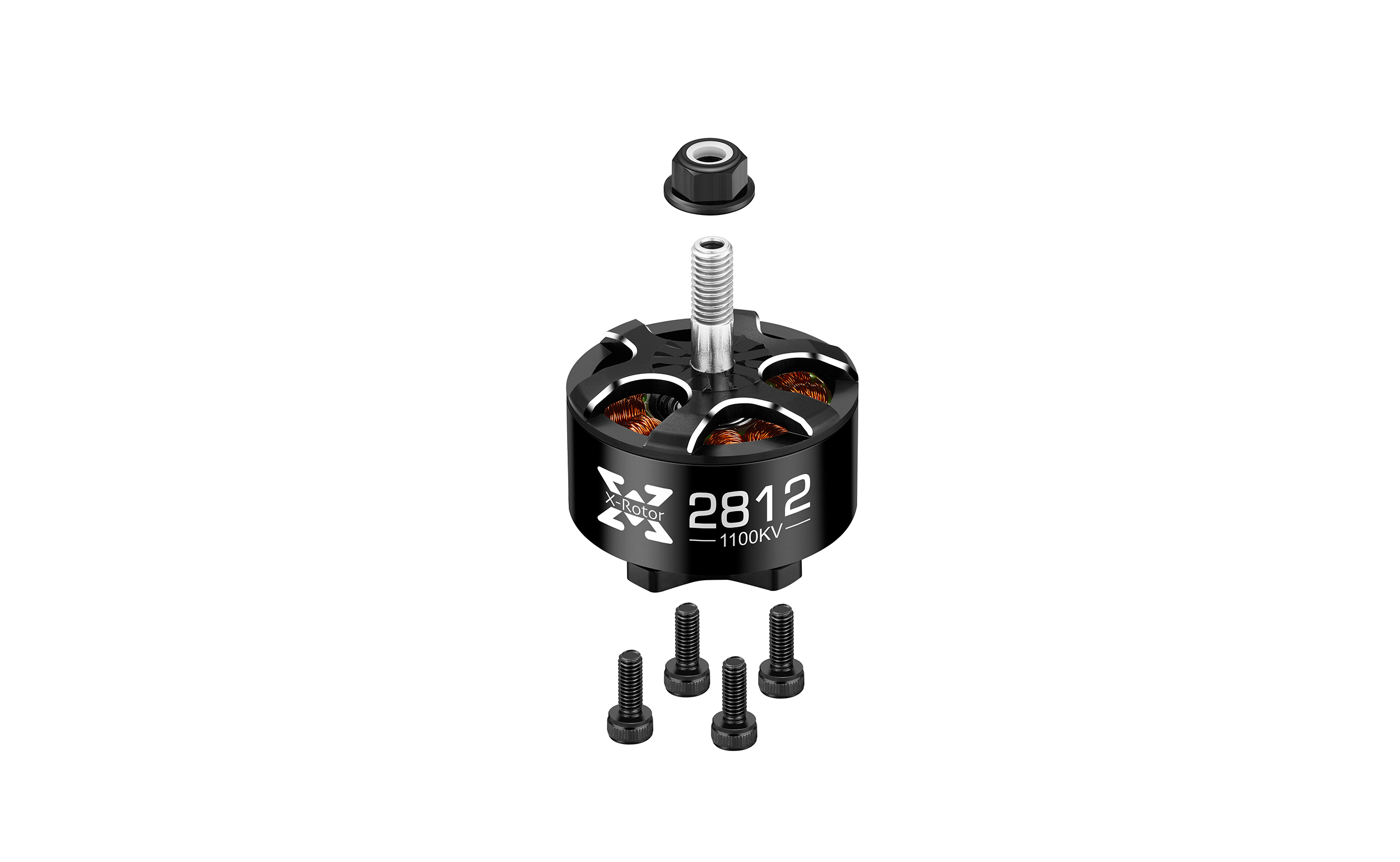

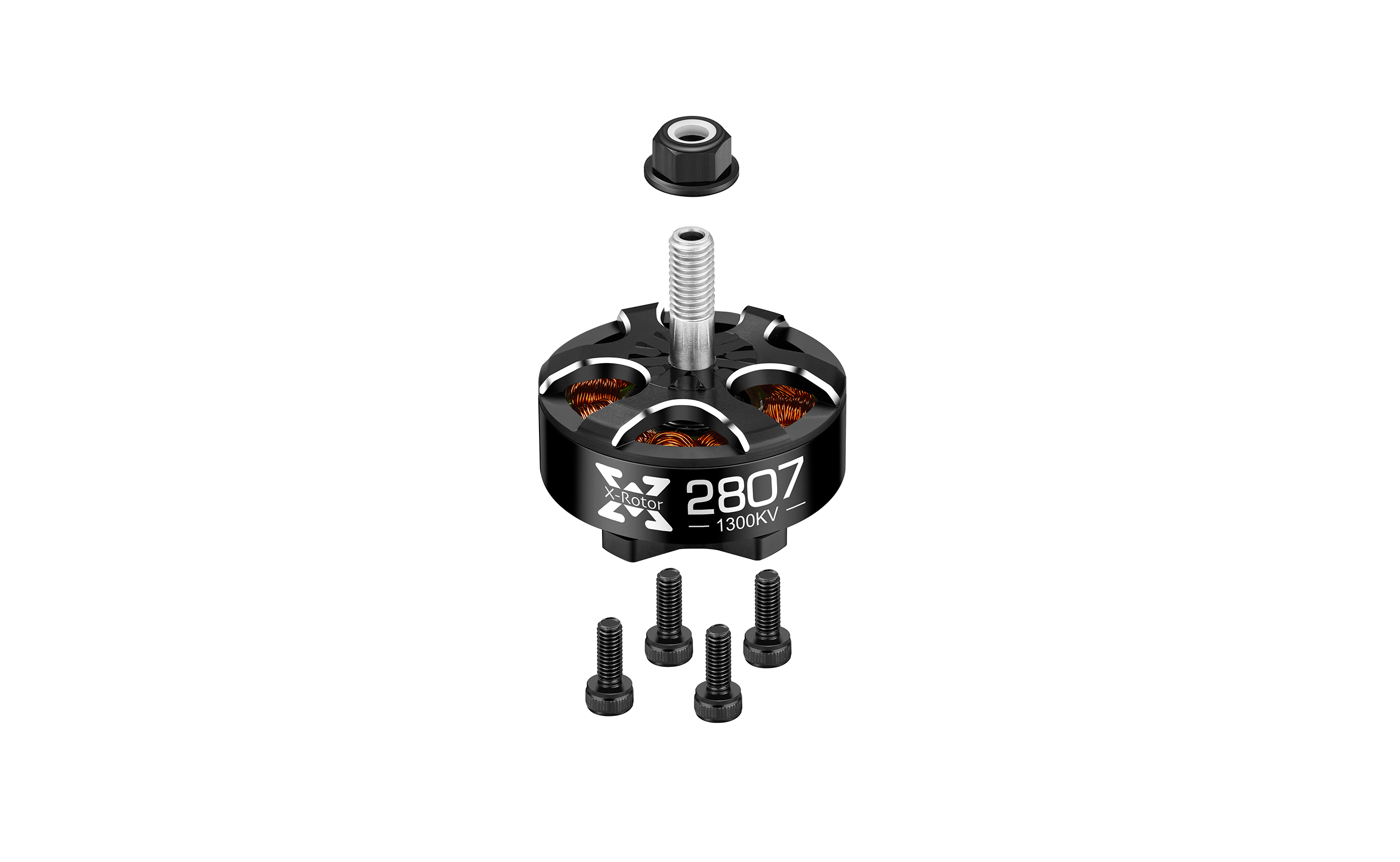

New Tooth Groove
Anti-slip Design
To achieve a safer and more reliable flight,
the propeller mount has a new grooved design
preventing the propeller from slipping.
New Tooth Groove
Anti-slip Design
To achieve a safer and more reliable flight,
the propeller mount has a new grooved design
preventing the propeller from slipping.
  • 2807
  • 2812
Excellent Product Design,
Industry-leading Materials
  • High-performance
    0.2mm silicon
    steel sheets
  • 200℃
    high-temperature
    resistant enameled wire
  • Meet the needs of users
    pursuing extreme motor
    performance

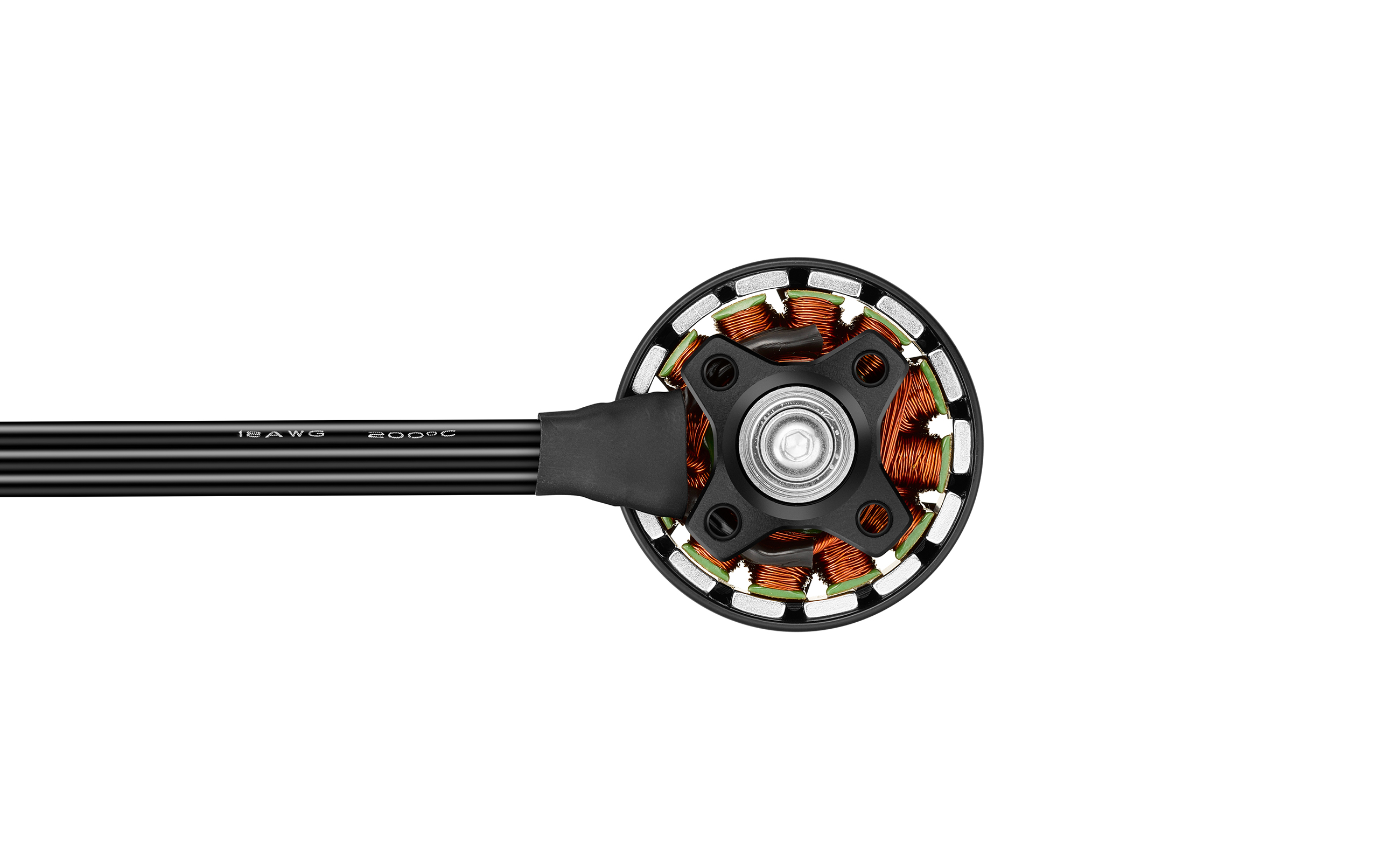

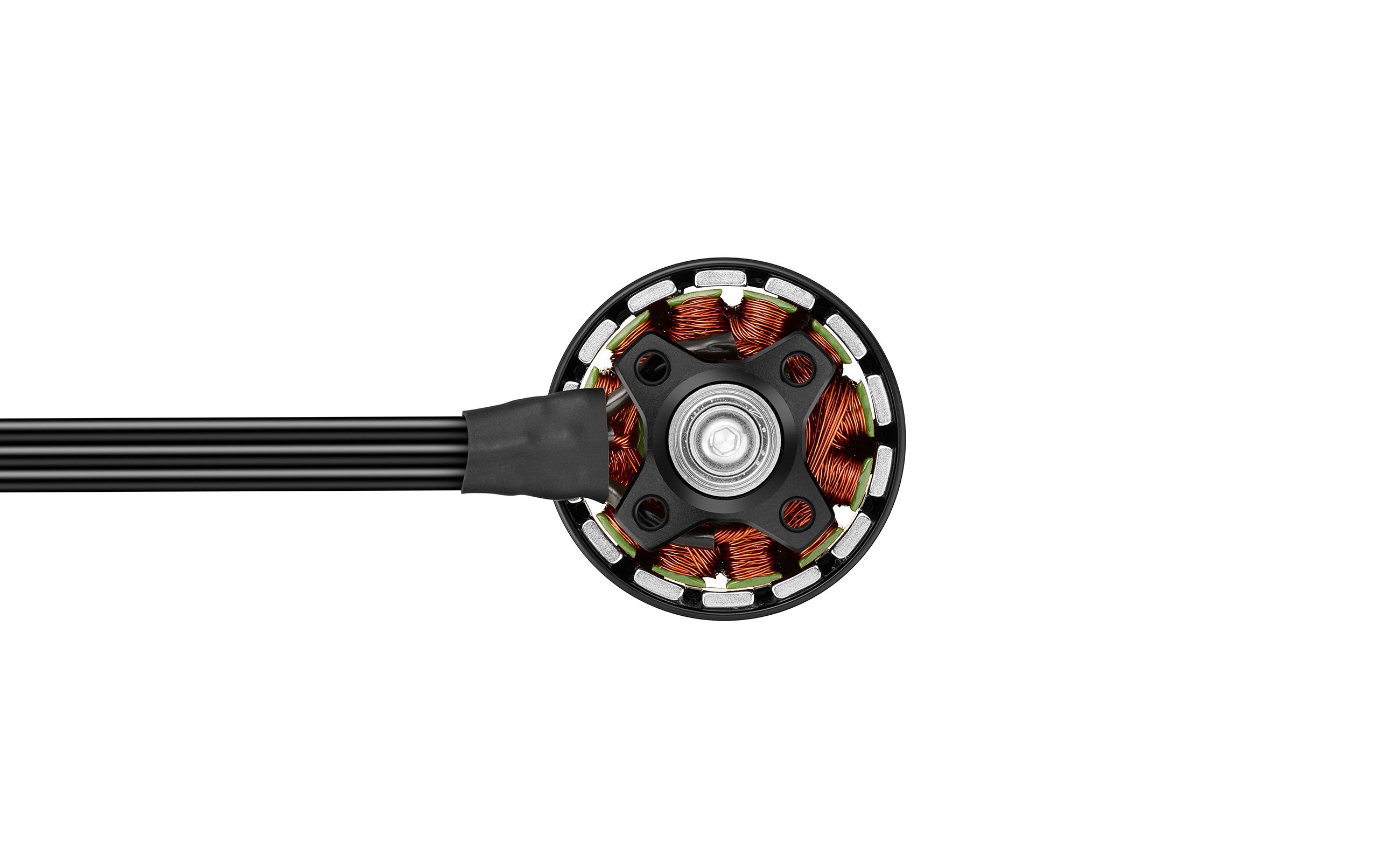

  • The multi-strand enameled
    wire winding design increases
    the slot full rate by
    approximately more than 5%
  • The temperature is lower
    when compared with
    other competing brands
    on the market

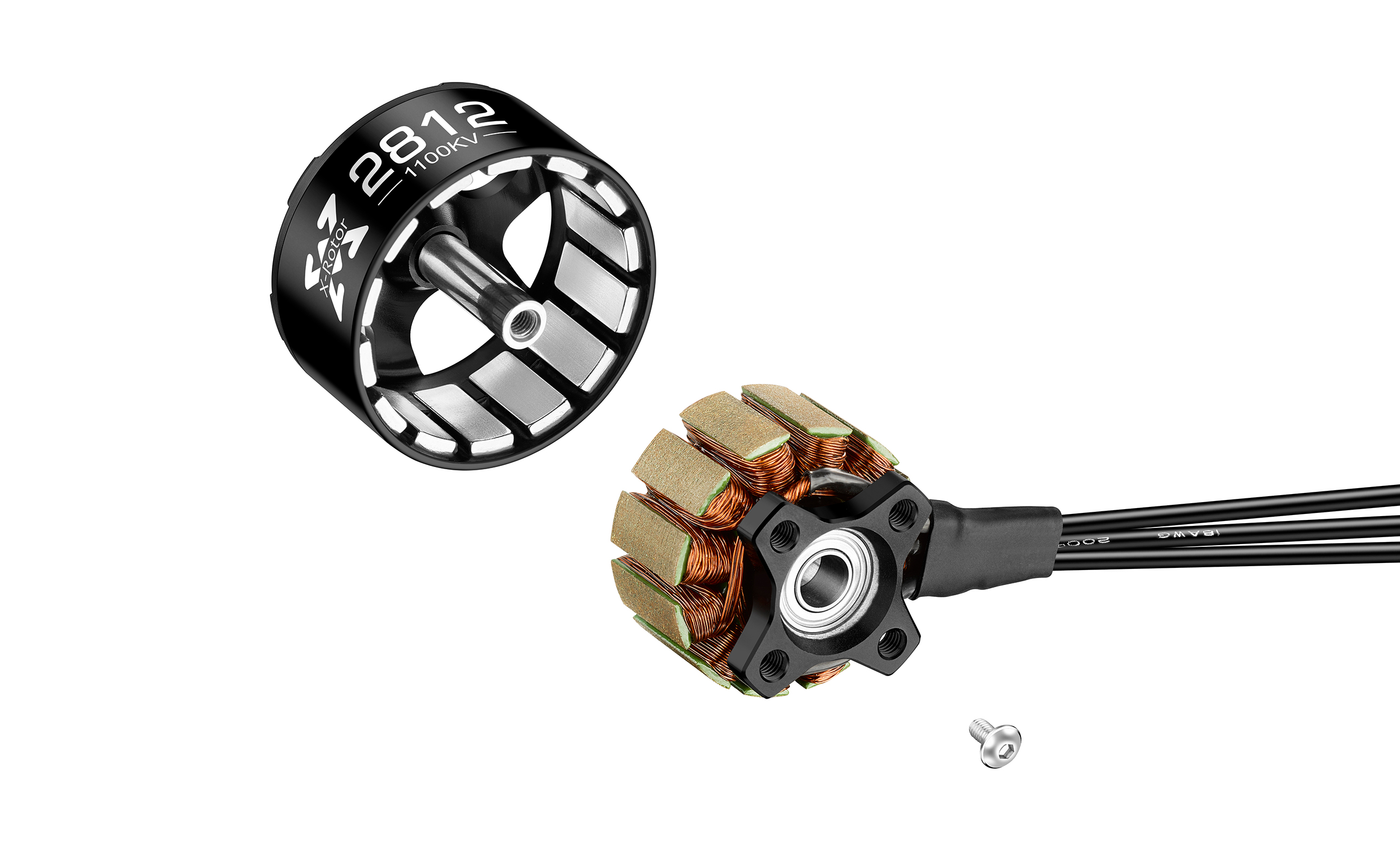

  • Uses N52 strong magnetic tiles
    with an arc- shaped design to
    provide a stronger torque
    to the motor
Model
XRotor 2807 1300KV XRotor 2807 1500KV XRotor 2807 1700KV XRotor 2812 900KV XRotor 2812 1100KV
Specifications
Product Number 30418000 30418001 30418002 30418003 30418004
KV Rating 1300KV 1500KV 1700KV 900KV 1100KV
LiPo Cells（LiPo） 4-6S 4-5S 3-4S 4-6S 4-6S
No-Load Current 2A/24V 2.27A/20V 2.13A/16V 1.5A/24V 1.88A/24V
Maximum Continuous Current 56.7A/6s 59.5A/7s 53.9A/13s 49.6A/9s 64.1A/10s
Maximum Continuous Rating 1361W/6s 1195W/7s 864W/13s 1191W/9s 1538W/10s
Maximum Thrust 2818g 2646g 2205g 3355g 3722g
Motor Weight 59g 58.7g 58.4g 83.4g 83.8g
Motor Size Φ34 *20.5mm Φ34 *20.5mm Φ34 *20.5mm Φ34 *25.5mm Φ34 *25.5mm
Slot/Pole 12N14P 12N14P 12N14P 12N14P 12N14P
Wire Size 18AWG 18AWG 18AWG 18AWG 18AWG
Wire Length 200mm 200mm 200mm 250mm 250mm
Enamelled Wire Insulation Class 180℃ High temperature Resistant, F Class insulation 180℃ High temperature Resistant, F Class insulation 180℃ High temperature Resistant, F Class insulation 180℃ High temperature Resistant, F Class insulation 180℃ High temperature Resistant, F Class insulation
Internal Resistance 53.8mΩ 43.6mΩ 37.5mΩ 63.9mΩ 46.6mΩ
Shaft Diameter D5+M5 D5+M5 D5+M5 D5+M5 D5+M5
Shaft Length 15mm 15mm 15mm 15mm 15mm
Screw Diameter / Thread Φ19mm-4*M3 Φ19mm-4*M3 Φ19mm-4*M3 Φ19mm-4*M3 Φ19mm-4*M3
Recommended
Props/ESCs
Recommended ESC Xrotor FPV G2 65A 4in1 ESC Xrotor FPV G2 65A 4in1 ESC Xrotor FPV G2 65A 4in1 ESC Xrotor FPV G2 65A 4in1 ESC Xrotor FPV G2 65A 4in1 ESC
Propeller 4-6S:HQ7x3.5x3;
HQ7x4x3		 4-5S:HQ7x3.5x3;
HQ7x4x3		 3-4S:HQ7x3.5x3;
HQ7x4x3		 4-6S:HQ8x4.5x3;
HQ9x5x3		 4-6S:HQ8x4.5x3
