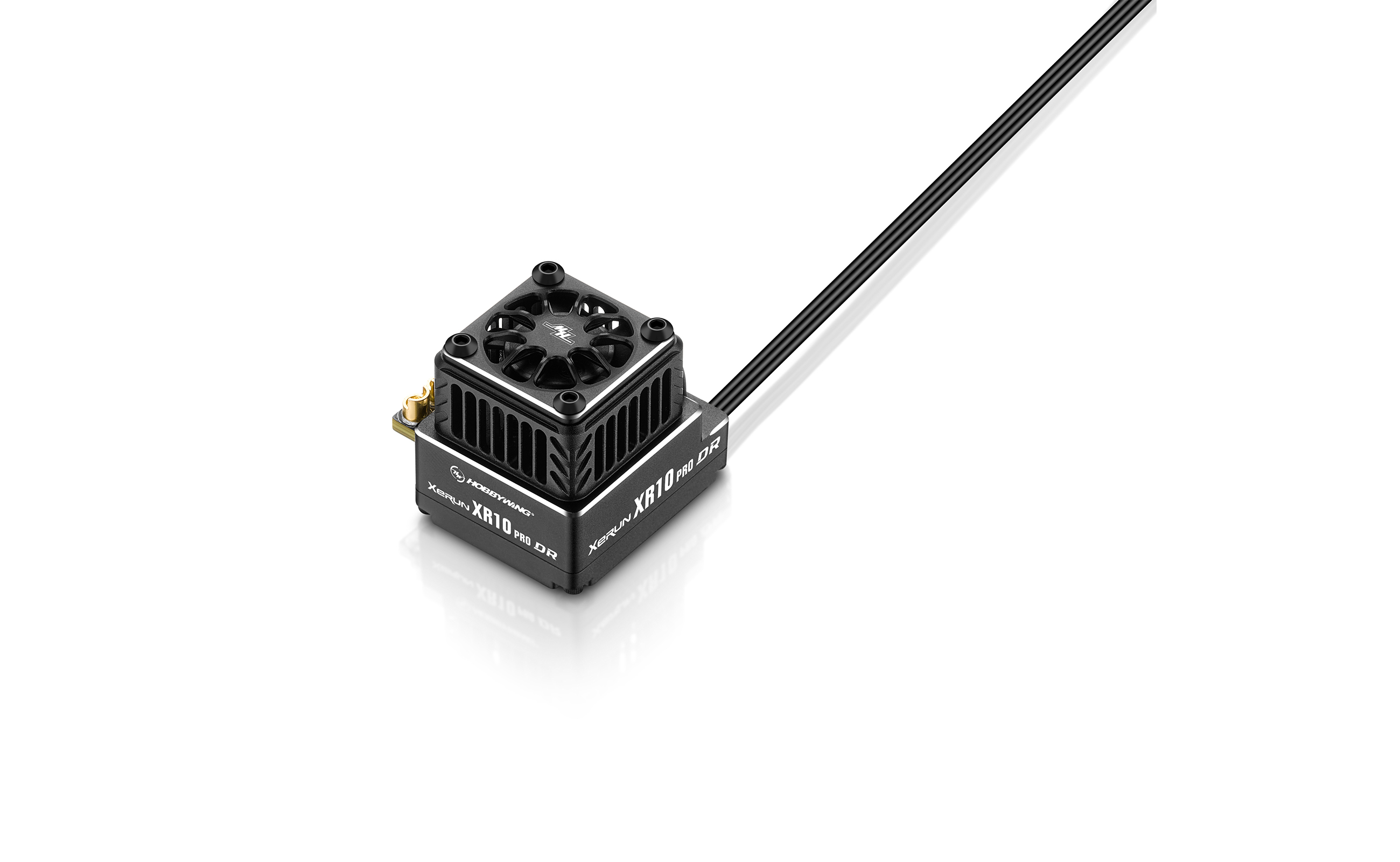

XeRun XR10 PRO DR
The ultimate weapon
in Drag racing
The XeRun XR10 PRO DR features a high-performance 32-bit M4 microprocessor.
The core of the software is optimized and based on the world championship winning
XeRun XR10 PRO G2S to provide the best control and performance for Drag Racing.
  • The response time is reduced
    when the throttle acceleration is set to
    the maximum at 30.
    (Compared to the XeRun XR10 PRO G2S ESC)
  • Note: The response time is affected by
    the characteristics of the motor
    and is subject to actual measurement!
9900uF Super Capacitor
The ESC comes standard with a 9900uF ultra-large capacitor.
The capacitance is increased by nearly 9 times to ensure that
the ESC voltage remains stable during extreme power output.
(Compared with the standard capacitor of the XERUN XR10 PRO G2S)
The capacitance
is increased by nearly
9 times
Adjustable throttle and
brake PWM frequencies
The ESC has an abundance of options to adjust the throttle and brake PWM frequencies.
Custom settings such as variable frequency adjustments on the throttle and
brake frequencies are supported to meet the drivers needs for precise adjustment
of the vehicle’s forward momentum and braking force.

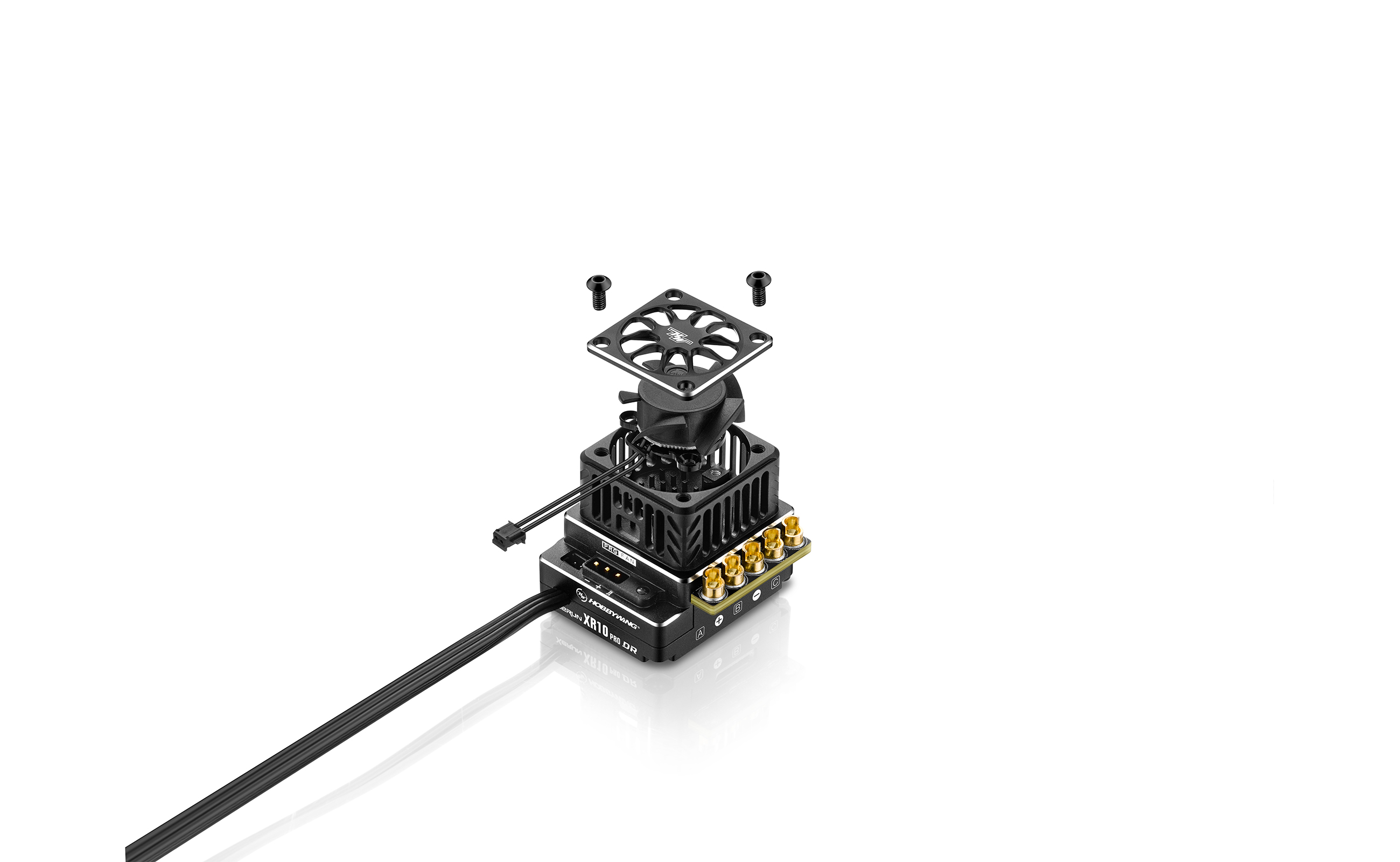

Frameless fan,
efficient heat dissipation
A frameless fan with patented technology is adopted to dissipate a large amount of air through the sides
of the fan. In addition, the internal power board is covered with a copper heat-conducting busbar to
generate internal heat transfer to the integrated casing radiator. The heat dissipation system ensures
that the ESC is always reliable and in good heat dissipation condition at all times.
External Bluetooth OTA
makes wireless operation
more convenient
A wireless connection can be established between the
mobile phone and the ESC. It is easy and convenient to
use the mobile app to make adjustment on the
parameters, data reading, and firmware upgrades.
Real-time storage of data,
easy to grasp the power status

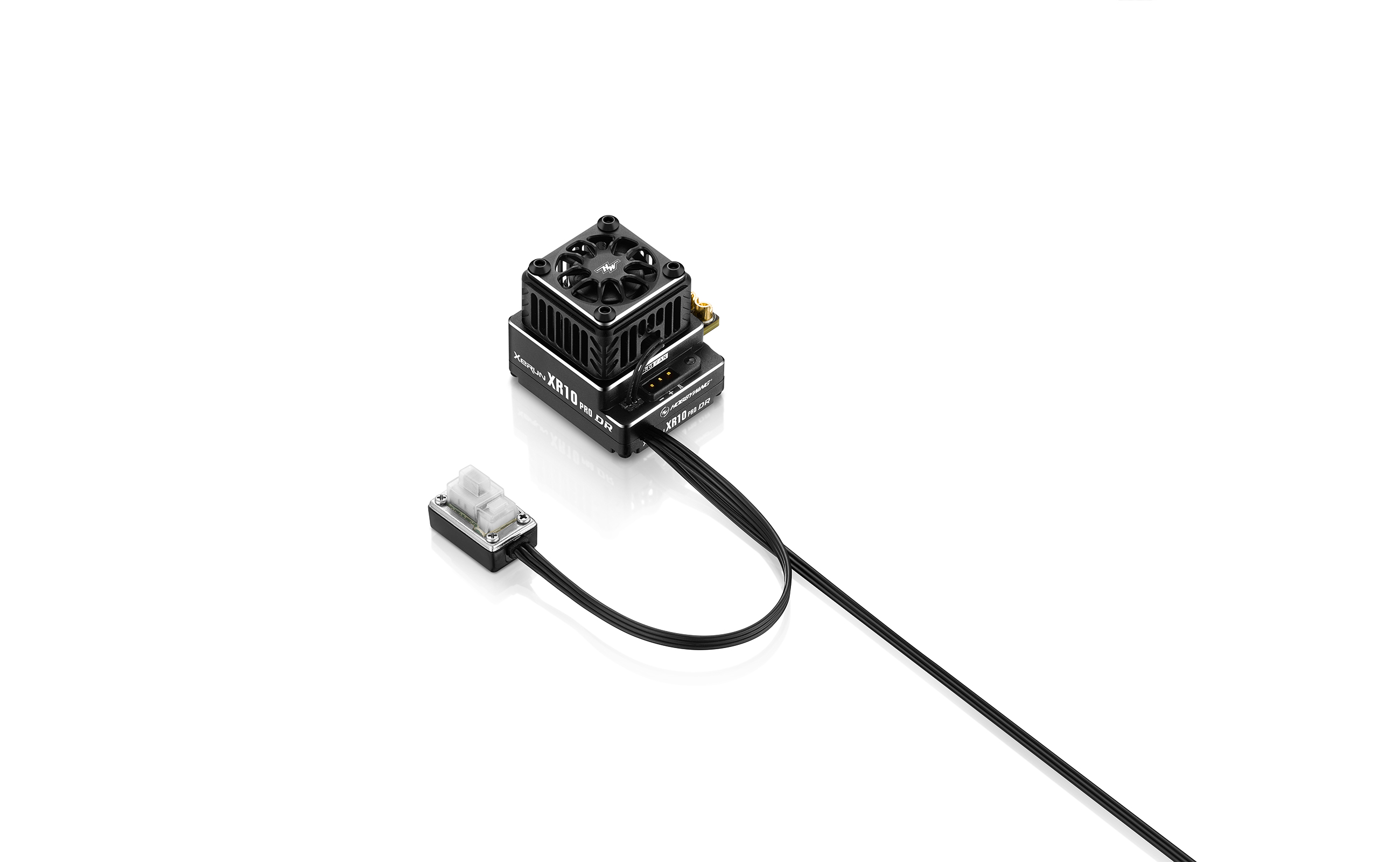

Connect the ESC to the OTA Bluetooth module.
By using the mobile phone APP,
you are able to view real-time data and operating status such as throttle,
voltage, temperature, speed, etc.
It can also view historical data (graphs) after operation
to easily obtain the operating status of the ESC and motor.
Note: Due to the Bluetooth transmission distance,
the effective distance is only about 5m!
Product Name
XERUN XR10 PRO DR
Product Number
  30112621
Type
Scale 1/10th
Brushed/Brushless Brushless
Sensored/Sensorless Sensored
Waterproof NO
Specifications
Cont./Peak Current 200A/1200A
Input Voltage 2S Lipo
BEC BEC Output Switch Mode 5V-7.4V @5A
Wires & Connectors
Input Wires Black-10AWG-200MMmm*1 Black-10AWG-200MMmm*1
Output Wires Black-10AWG-200MMmm*3
Input Connectors No
Output Connectors No
ESC Programing via
SET Button on ESC Not Supported
LED Program Box Not Supported
LCD G2 Program Box Supported
LCD PRO Supported
OTA Programmer Supported
Program Port Separate
Data Recording
Extreme value Supported
Real-time Data Supported
Historical data (Graph) Supported
Firmware
Firmware Upgrade Supported
Size & Weight
Size 37.7*37.2*33.2mm
Weight 137g (Included wires&connectors)
Applications
Motors SD BL Motors
Vehicles 1/10th Drag Racing
KV Rating/T Count XERUN 3652/3662 DRX
Support

Manuals & Documents

Manuals

FAQ

OTA Programmer

OTA Programmer

Product Number: 30850400
Working Voltage: 5-12.6V
Supported Bluetooh Version: ≥ 4.0
Effective Range: 0-5m (Open Field)
Applications: work on the XzRun series,
EzRun series of car ESCs, and the Platinum
series of aircraft ESCs, and
Seaking Prp series of boat ESCs.

+
