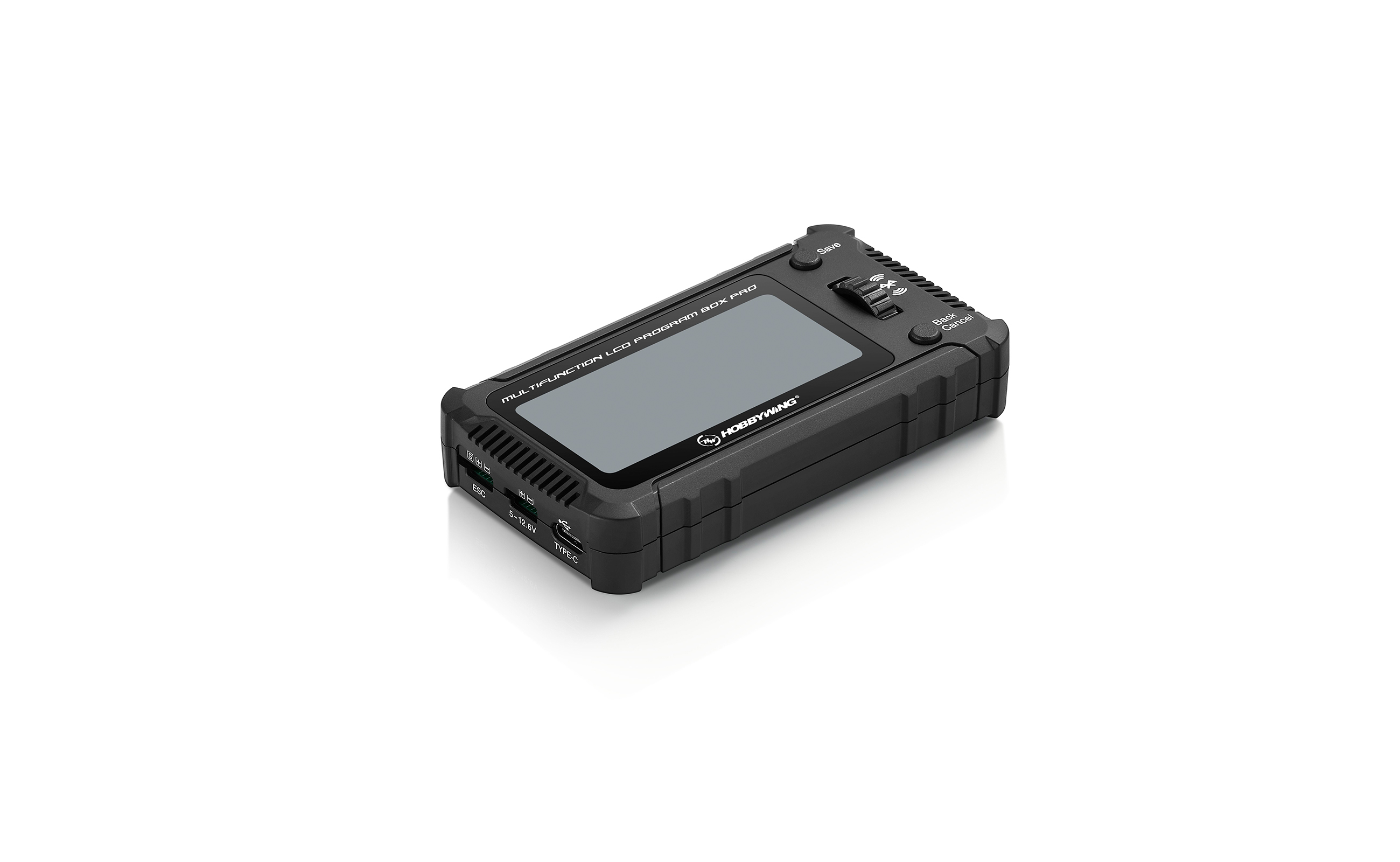

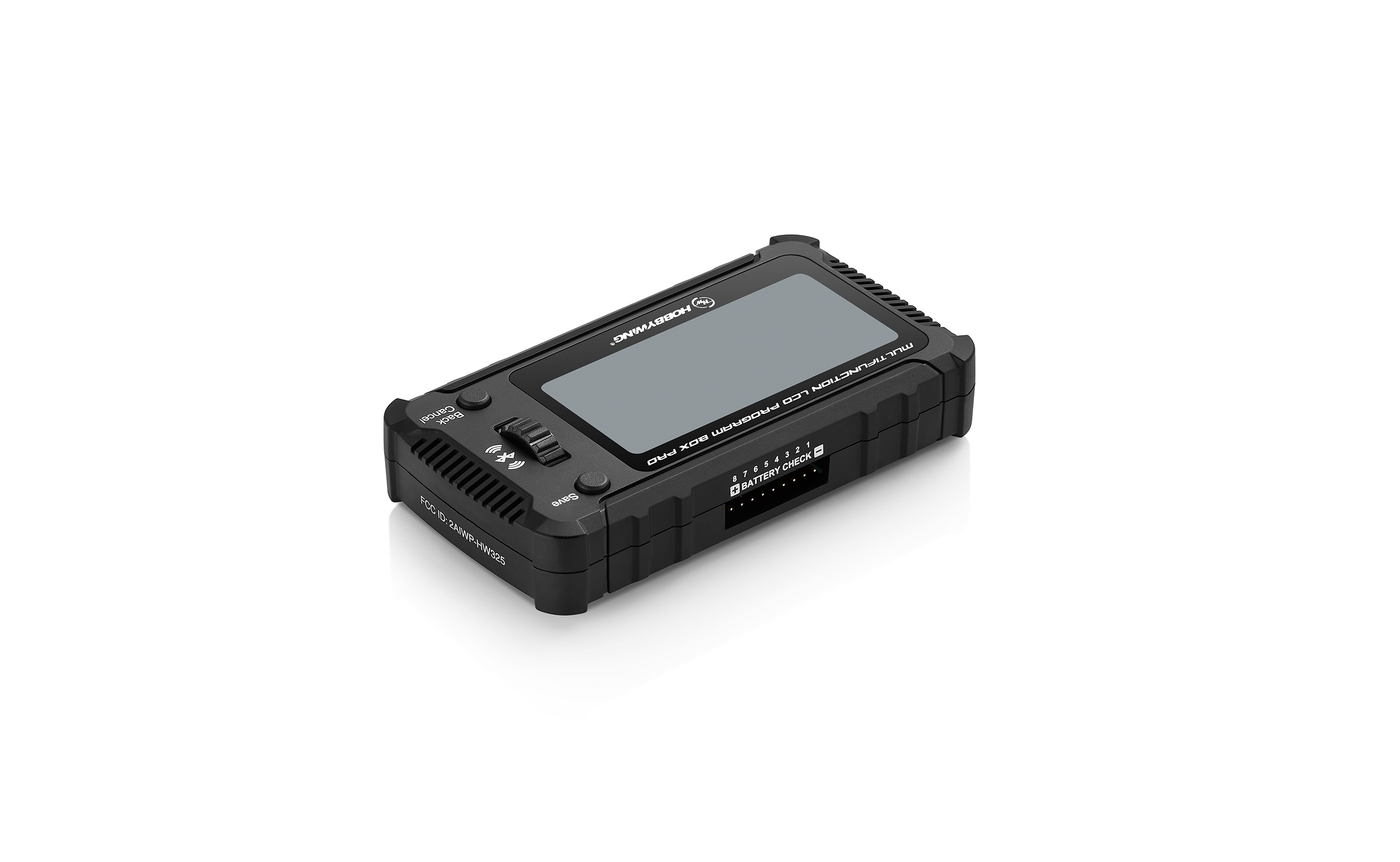

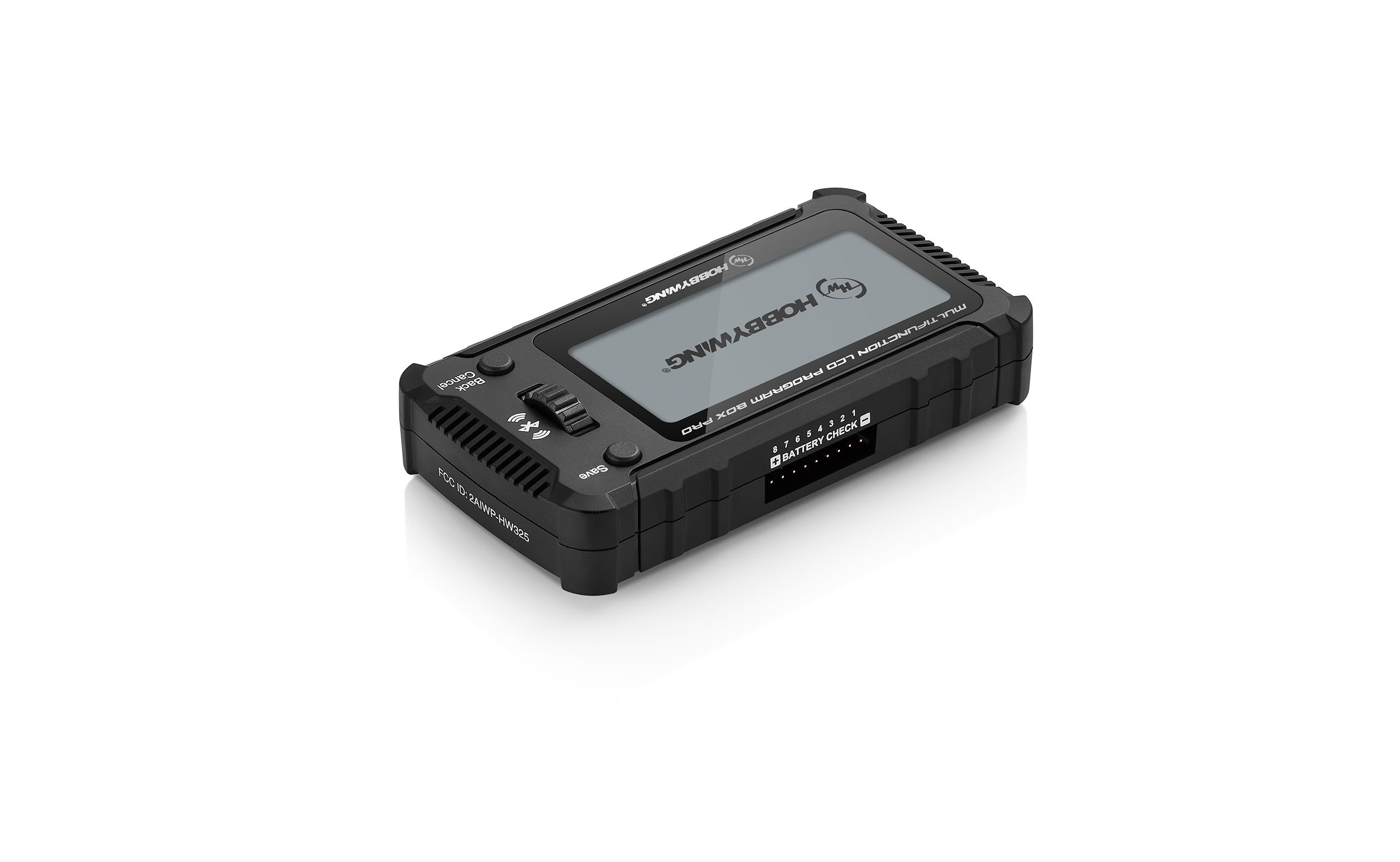

LCD Program Box Pro
Supports multiple languages
It makes setting ESC parameters a breeze.

Note: There are plans to expand even more languages support in the future.

Supports3languages:
  • CN
  • EN
  • JP
Chinese, English, Japanese
Large Screen is easier
to read then ever.

Equipped with a

2.8-inchdisplay
Double the characters and screen information over the previous LCD Program Box, the new display is a welcomed upgrade.
Support brightness
adjustment
Meet the needs of viewing in various brightness environments.

Supports

20levels

of adjustable brightness

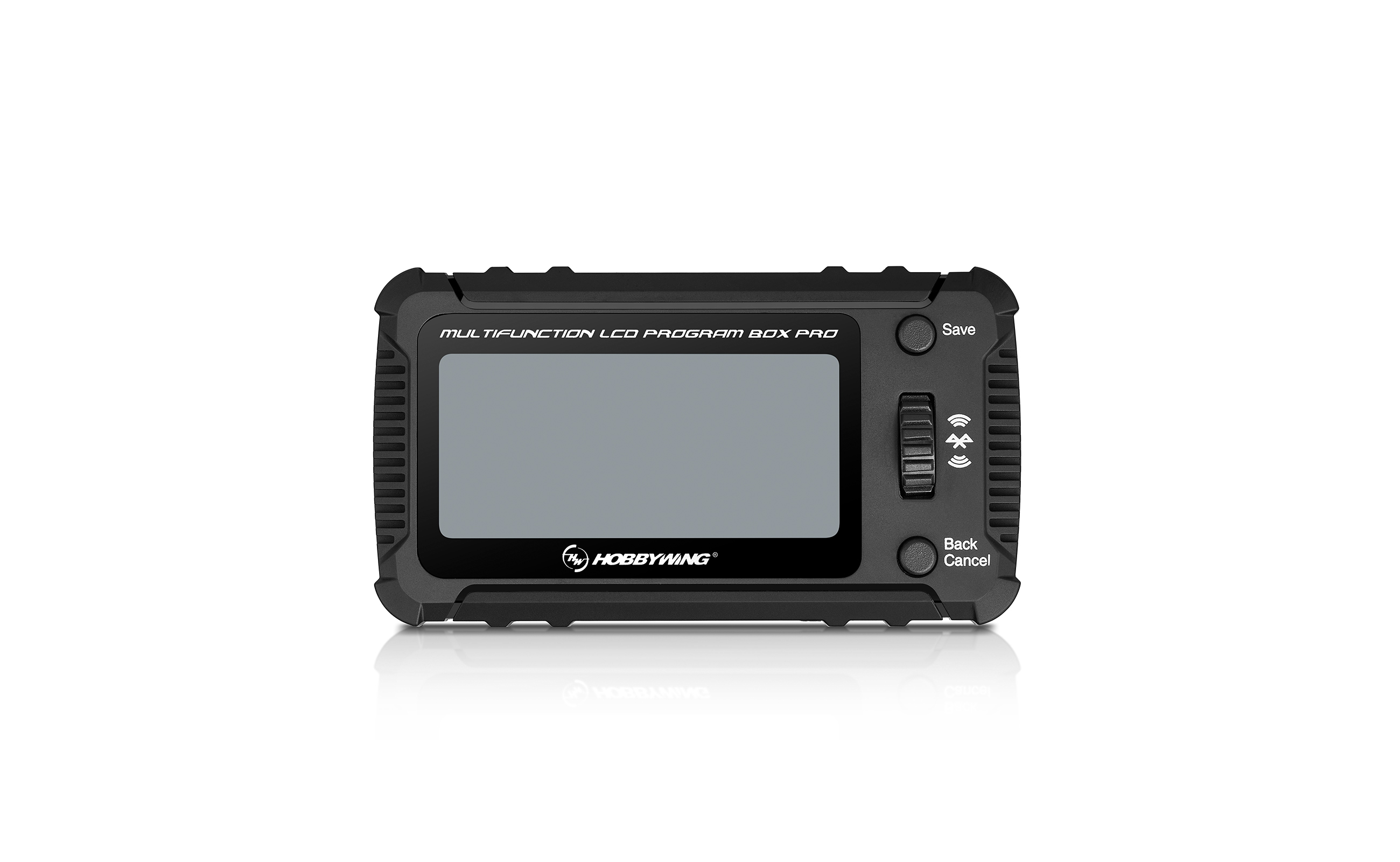

Roller helps to improve
quality of life
Simplified operation and control using the single roller interface.
Navigating a speed controls settings is easier then ever.
Import and Export
ESC profiles
Import and Export your favorite profiles with
ease. You can bring in your ESC settings,
save them and export them to a new ESC.
This makes profile sharing simple and easy.
OTA parameter adjustment
and firmware update
  • The built-in Bluetooth module functions as an OTA
    Programmer
    . The ESC establishes a wireless connection
    with a smartphone through the LCD programming box.
  • The HW Link V2 app can be used
    to adjust the ESC and update the
    Firmware
    .
  • Supports updates to the
    firmware
    of the LCD
    Program box
    itself as well
Built-in Sound
Built in audio to make settings save
confirmations easy. The sound can
of course be turned off as well.

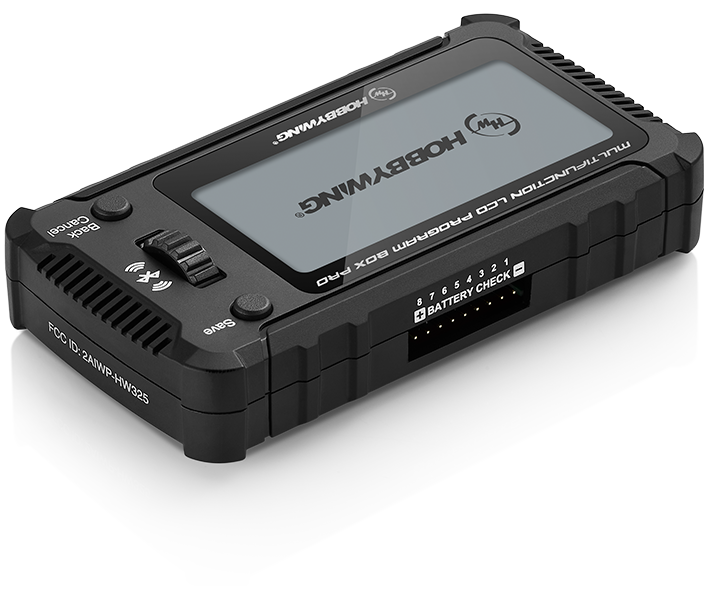

Battery Voltage
Tester is built in.

Supports

1-8S battery

voltage detection,

Easy to view battery cell voltage information.
Product Name
Product Number
Specifications Size

Weight

Input Voltage



Interface



Display Screen

Features
Product Name LCD Program Box Pro
Product Number 30502002
Specifications Size

Weight

Input Voltage



Interface



Display Screen

Features
105.6x59x24.4mm(LxWxH)

85g

5-12.6V (a separate battery is needed for powering

this program box when ESC has no built-in/external BEC)

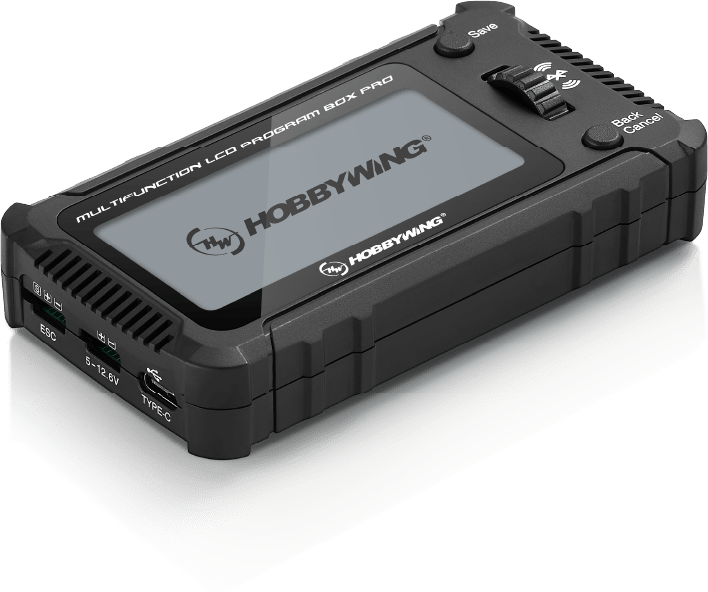

TYPE-C USB, ESC interface(Futaba plug),

Power supply interface(Futaba plug)

LCD

• As an independent parameter adjustment device, directly use the built-in LCD screen to display, set, and share ESC parameters (import).

• Connect the ESC to a computer using a USB adapter. Use the USB Link application software on the computer to upgrade the ESC firmware and set parameters.

• The OTA Bluetooth module: Using the mobile APP to set ESC parameters, upgrade firmware, and read data.

• Detect the overall voltage of the lithium battery and the individual voltage of each cell.

The scope of application here can also be understood as all the escs that the old LCD G2 program box and OTA Bluetooth module can support.
Support

Manuals & Documents

Software Download

LCD Program Box Pro
Supports
multiple languages
Supports3languages:
  • CN
  • EN
  • JP
Chinese, English, Japanese
It makes setting ESC parameters a breeze.
Note: There are plans to expand even more languages support in the future.
Large Screen is easier
to read then ever.

Equipped with a

2.8-inch
high-resolution display
Double the characters and screen information over the previous LCD Program Box, the new display is a welcomed upgrade.
Support brightness
adjustment
Meet the needs of viewing in
various brightness environments.

Supports

20levels

of adjustable brightness

Roller helps to improve quality of life
Simplified operation and control using the single roller interface. Navigating a speed controls settings is easier then ever.
Import and Export
ESC profiles
Import and Export your favorite profiles with ease. You can bring in your ESC settings, save them and export them to a new ESC. This makes profile sharing simple and easy.
OTA parameter
adjustment and
firmware update
  • The built-in Bluetooth module functions as
    an OTA Programmer. The ESC establishes
    a wireless connection with a smartphone
    through the LCD programming box.
  • The HW Link V2 app can be used to
    adjust the ESC and update the Firmware.
  • Supports updates to the firmware of
    the LCD Program box itself as well
Built-in Sound
Built in audio to make settings save
confirmations easy. The sound can
of course be turned off as well.
Battery Voltage
Tester is built in.

Supports

1-8S battery

voltage detection,

Easy to view battery cell voltage information.
Product Name LCD Program Box Pro
Product Number 30502002
Specifications Size

Weight

Input Voltage



Interface



Display Screen

Features
105.6x59x24.4mm(LxWxH)

85g

5-12.6V (a separate battery is needed for powering

this program box when ESC has no built-in/external BEC)

TYPE-C USB, ESC interface(Futaba plug),

Power supply interface(Futaba plug)

LCD

• As an independent parameter adjustment device, directly use the built-in LCD screen to display, set, and share ESC parameters (import).

• Connect the ESC to a computer using a USB adapter. Use the USB Link application software on the computer to upgrade the ESC firmware and set parameters.

• The OTA Bluetooth module: Using the mobile APP to set ESC parameters, upgrade firmware, and read data.

• Detect the overall voltage of the lithium battery and the individual voltage of each cell.

The scope of application here can also be understood as all the escs that the old LCD G2 program box and OTA Bluetooth module can support.
Product Name LCD Program Box Pro
Product Number 30502002
Specifications Size

Weight

Input Voltage



Interface



Display Screen

Features
105.6x59x24.4mm(LxWxH)

85g

5-12.6V (a separate battery is needed for powering

this program box when ESC has no built-in/external BEC)

TYPE-C USB, ESC interface(Futaba plug),

Power supply interface(Futaba plug)

LCD

• As an independent parameter adjustment device, directly use the built-in LCD screen to display, set, and share ESC parameters (import).

• Connect the ESC to a computer using a USB adapter. Use the USB Link application software on the computer to upgrade the ESC firmware and set parameters.

• The OTA Bluetooth module: Using the mobile APP to set ESC parameters, upgrade firmware, and read data.

• Detect the overall voltage of the lithium battery and the individual voltage of each cell.

The scope of application here can also be understood as all the escs that the old LCD G2 program box and OTA Bluetooth module can support.
