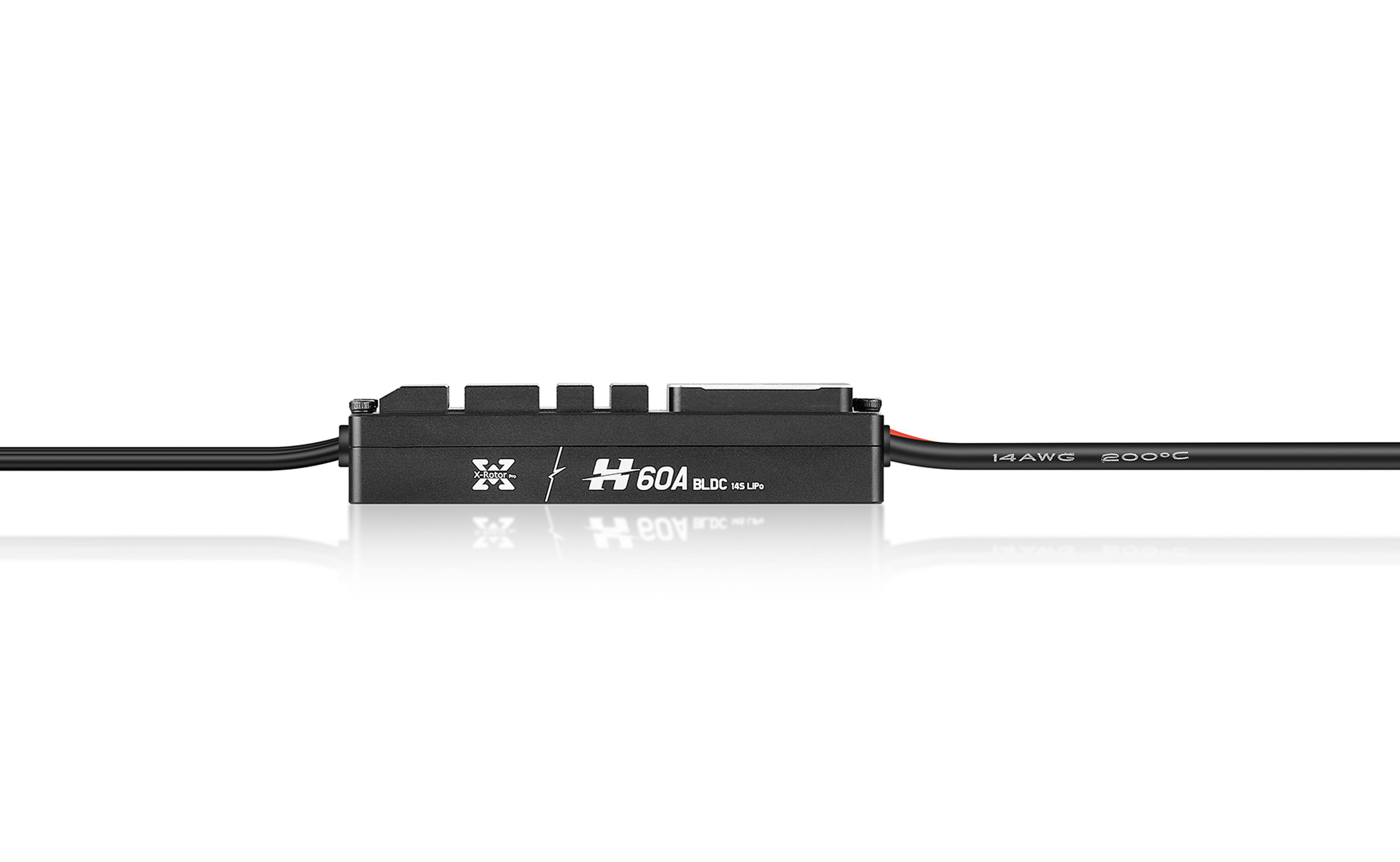

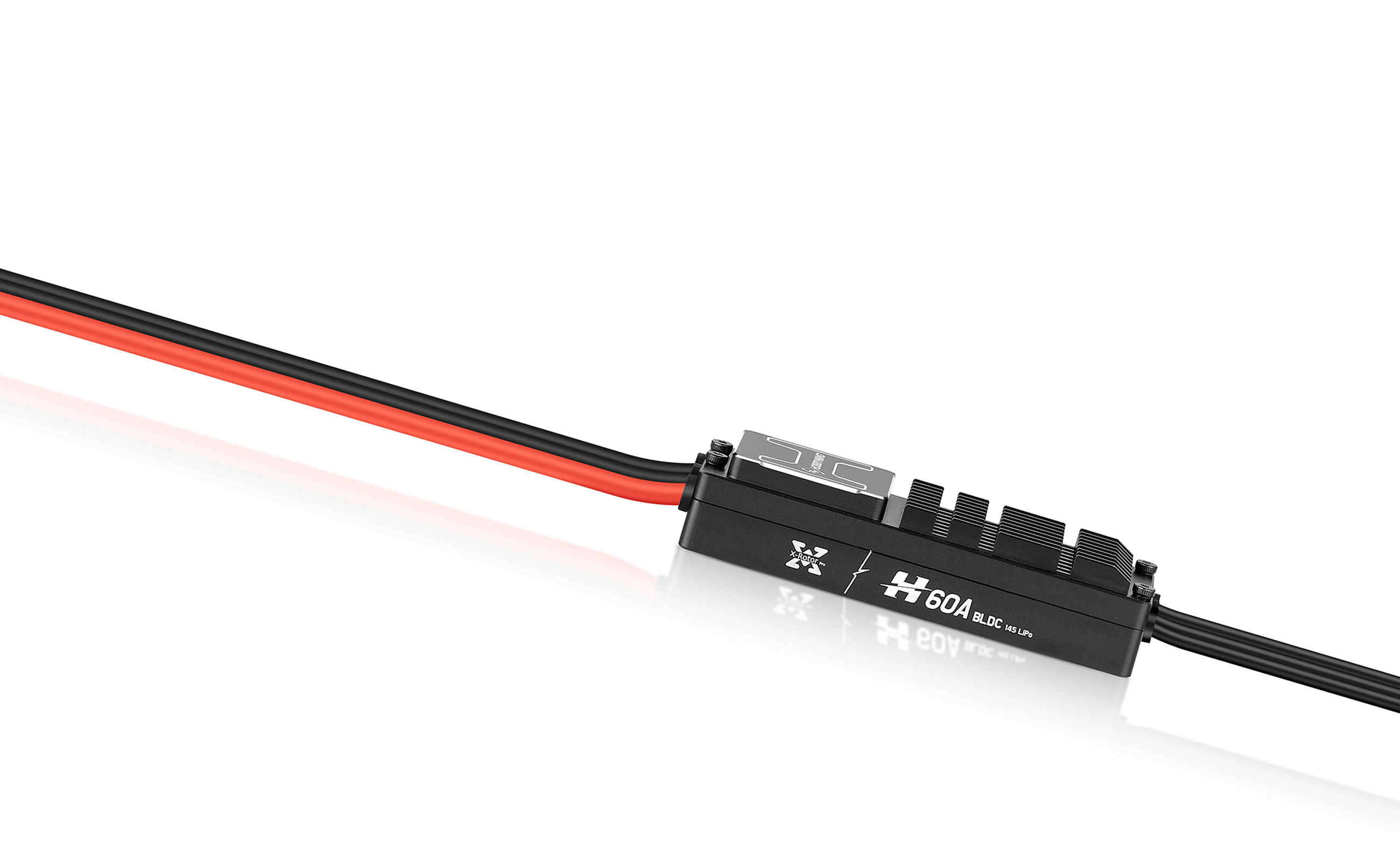

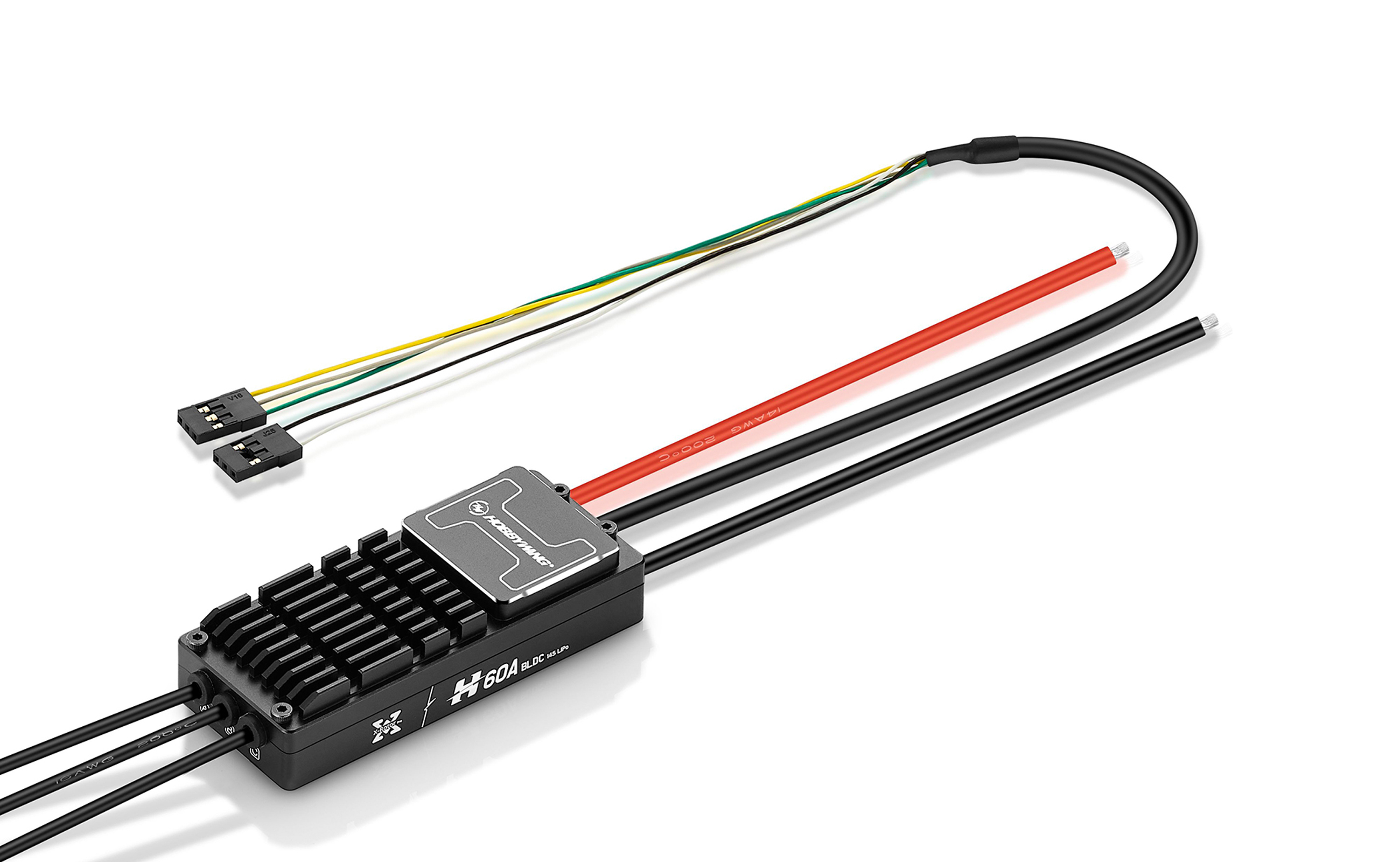

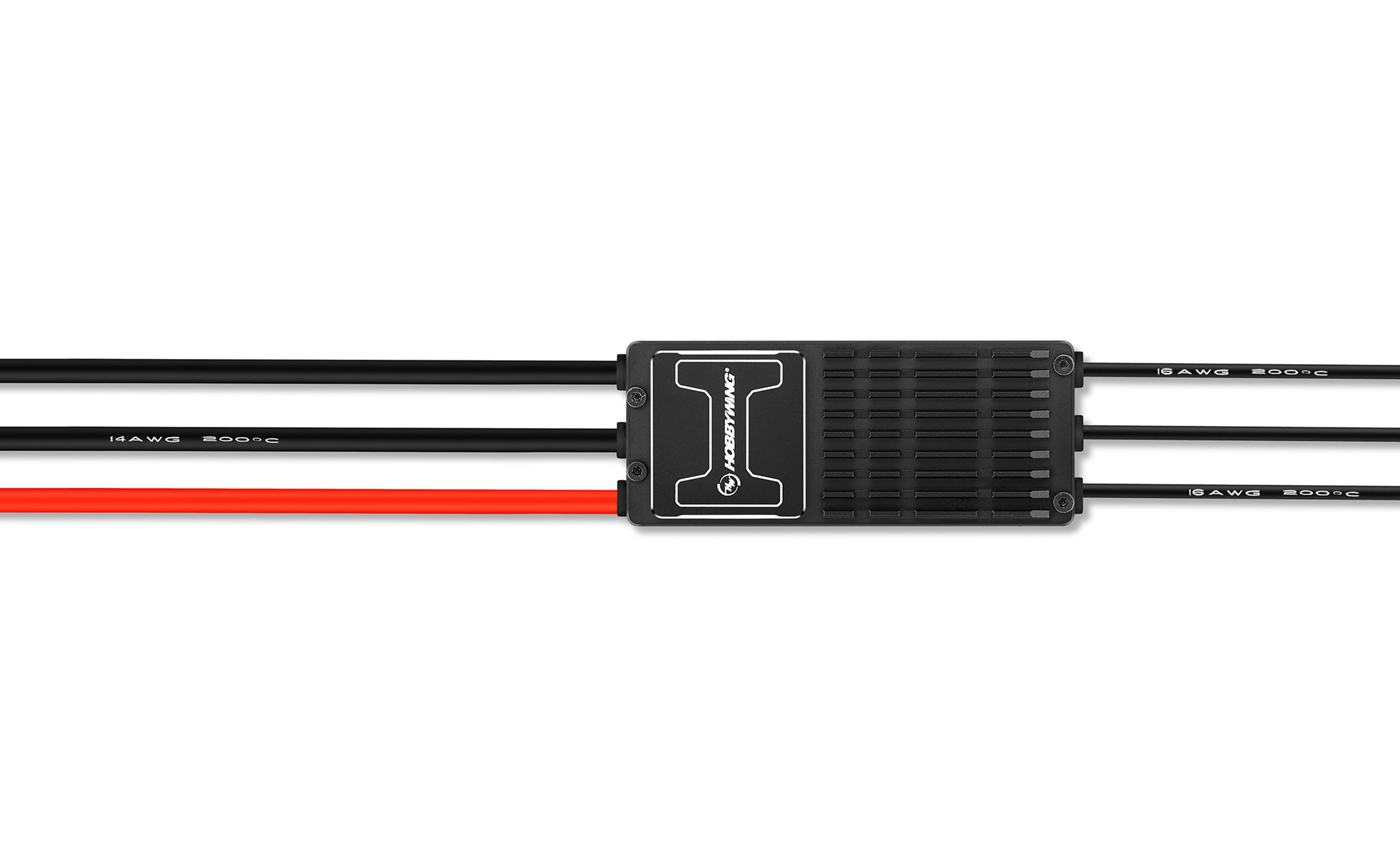

XRotor H60A 6S/14S BLDC/FOC
CAN 2.0 Communication Technology
The working status of the ESC can be remotely monitored in real-time through the flight controller,
and the thrust system data can be accurately diagnosed and analyzed.
New Generation
Black Box Feature
Millisecond-level data recording. Fast data & fault analyzing.
Built-in high-speed ROM. 2~48 hours of operating data & fault code storage.

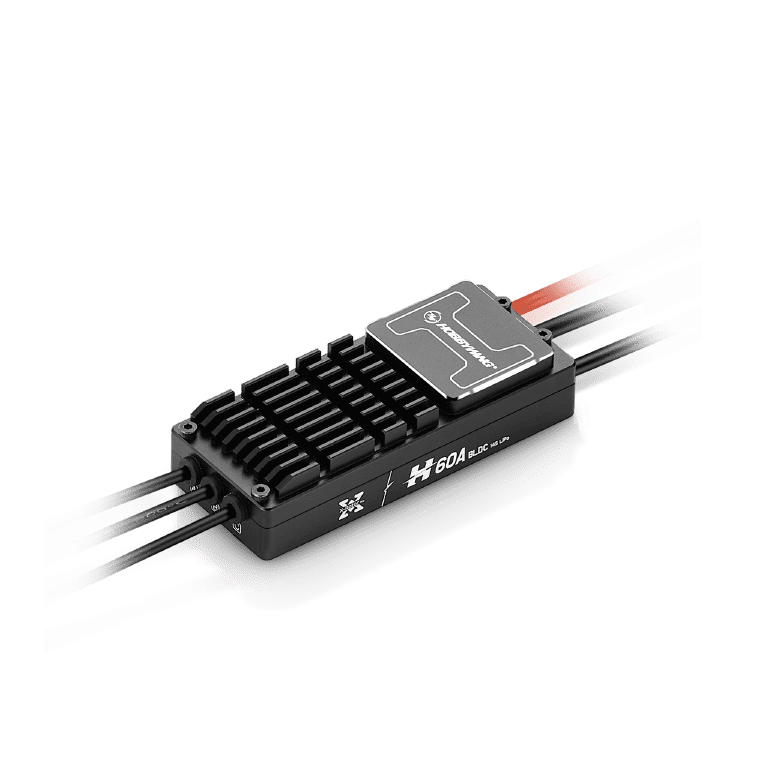

New Appearance
Superior Heat Dissipation

Large Cooling Fins
Excellent Heat Dissipation

Silicone Case Outlets
Better Protection

Light Weight

High Quality standard of H Series Products

Hobbywing H series quality standards, startup failure rate is less than 5 PPM,
average time between failure (MTBF) 2000h+

Using shielded signal cable. Strong anti-interference and high reliability.
XRotor H60A 6S FOC/BLDC CAD
XRotor H60A 14S FOC/BLDC CAD
Product Name
XRotor Pro H60A 6S FOC XRotor Pro H60A 6S BLDC XRotor Pro H60A 14S BLDC XRotor Pro H60A 14S FOC
Specifications
Input Voltage 4-6S(12-27V) 4-6S(12-27V) 6-14S(18-63V) 6-14S(18-63V)
Continuous Current 40A(Good heat dissipation) 40A(Good heat dissipation) 25A(Good heat dissipation) 25A(Good heat dissipation)
Peak Current 60A(3S) 60A(3S) 60A(3S) 60A(3S)
Operating Temperature -40℃~65℃ -40℃~65℃ -40℃~65℃ -40℃~65℃
Communication Protocol CAN(Custom Serial port) CAN(Custom Serial port) CAN(Custom Serial port) CAN(Custom Serial port)
lsolation Mode Support custom throttle isolation Support custom throttle isolation Support custom throttle isolation Support custom throttle isolation
Firmware Update Support Support Support Support
Digital Throttle Support(CAN) Support(CAN) Support(CAN) Support(CAN)
PWM Input Signal Level 5V/3.3V 5V/3.3V 5V/3.3V 5V/3.3V
Throttle Signal Frequency 50-500Hz 50-500Hz 50-500Hz 50-500Hz
Operating Pulse Width 1100-1940μS 1100-1940μS 1100-1940μS 1100-1940μS
Throttle Travel Calibration No No No No
Digital Throttle Support(CAN+PWM) Support(CAN+PWM) Support(CAN+PWM) Support(CAN+PWM)
Propeller Positioning No No No No
Fault Storage 2~48 hours of operating data& fault code storage 2~48 hours of operating data& fault code storage 2~48 hours of operating data& fault code storage 2~48 hours of operating data& fault code storage
Waterproof Rating IP55 (Custom IP67) IP55 (Custom IP67) IP55 (Custom IP67) IP55 (Custom IP67)
Weight( without wire) 53g 53g 67g 67g
Size 71.2*32.5*17.4mm 71.2*32.5*17.4mm 78.5*32.5*18.4mm 78.5*32.5*18.4mm
Cables Input: silicone cable-14AWG-180mm

Output: silicone cable-16AWG-75mm

Signal: shielded cable-5-core-350mm- 2 JR-3P male
Input: silicone cable-14AWG-180mm

Output: silicone cable-16AWG-75mm

Signal: shielded cable-5-core-350mm-2 JR-3P male
Input: silicone cable-14AWG-180mm

Output: silicone cable-16AWG-80mm

Signal: shielded cable-5-core-450mm- 2 JR-3P male
Input: silicone cable-14AWG-180mm

Output: silicone cable-16AWG-80mm

Signal: shielded cable-5-core-450mm- 2 JR-3P male
