XRotor 3110/3115
XRotor 3110/3115
FPV MOTOR
High Efficiency
And Strong Performance
The 3115 has a better heavy-load efficiency
in the rear sections by approximately more than5%
compared with other competing brands on the market.
Good Heat Dissipation
And efficient cooling
The rotor has a cooling structure to improve heat dissipation performance.
The maximum running time under full load is extended by more than 50%
compared with other competing brands on the market.
Longer running time under actual load to ensure that the motor is always in optimal condition.

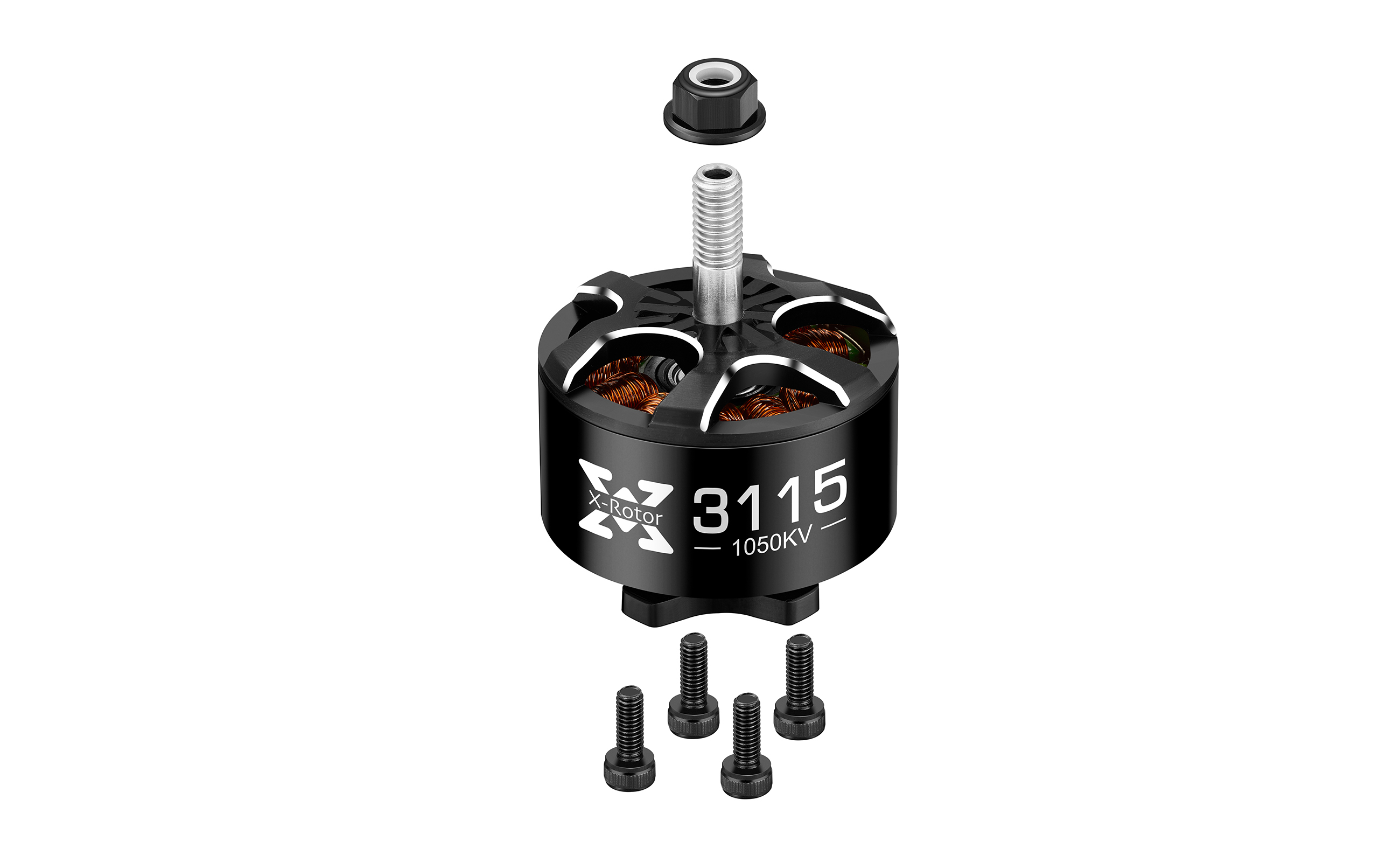

New Tooth Groove
Anti-slip Design
To achieve a safer and more reliable flight,
the propeller mount has a new grooved design
preventing the propeller from slipping.
New Tooth Groove
Anti-slip Design
To achieve a safer and more reliable flight,
the propeller mount has a new grooved design
preventing the propeller from slipping.
  • 3110
  • 3115

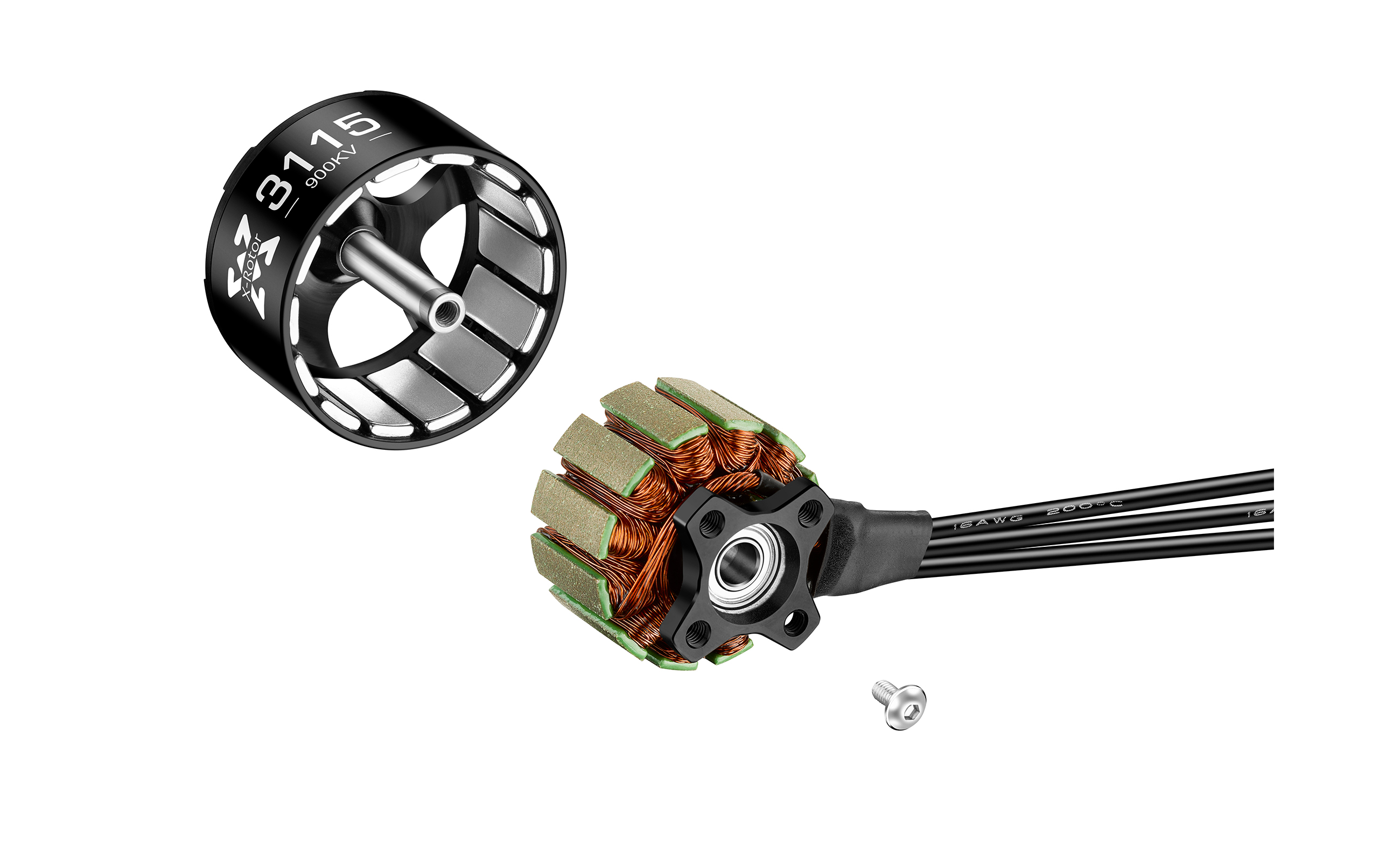

Excellent Product Design,
Industry-leading Materials
  • High-performance
    0.2mm silicon
    steel sheets
  • 200°C
    high-temperature
    resistant enameled wire
  • Meet the needs of users
    pursuing extreme motor
    performance
  • The multi-strand enameled
    wire winding design increases
    the slot full rate by
    approximately more than 5%
  • The temperature is lower
    when compared with
    other competing brands
    on the market
  • Uses N52 strong magnetic tiles
    with an arc- shaped design to
    provide a stronger torque
    to the motor
Thank you for your interest in HOBBYWING propulsion systems! For customized solutions,
please provide your contact information and technical requirements,
and we will get in touch with you within 24 hours.
captcha
By submitting this form, you agree to HOBBYWING's Privacy Policy
Thanks for reaching out!We have received your message and will get back to you shortly.
Best Regards,
HOBBYWING Team
Model
XRotor 3110 900KV XRotor 3110 1150KV XRotor 3115 900KV XRotor 3115 1050KV
Specifications
Product Number 30418005 30418006 30418007 30418008
KV Rating 900KV 1150KV 900KV 1050KV
LiPo Cells(LiPo) 4-6S 4-6S 4-6S 4-6S
No-Load Current 2.2A/24V 2.8A/24V 2.0A/24V 2.8A/24V
Maximum Continuous Current 63A/10s 69A/6s 81A/9s 70A/30s
Maximum Continuous Rating 1500W/10s 1656W/6s 1940W/9s 1675W/30s
Maximum Thrust 3626g 4126g 5177g 4420g
Motor Weight 89g 88g 125g 126g
Motor Size Φ37.2 *27mm Φ37.2 *27mm Φ37.2 *32mm Φ37.2 *32mm
Slot/Pole 12N14P 12N14P 12N14P 12N14P
Wire Size 18AWG 18AWG 16AWG 16AWG
Wire Length 250mm 250mm 300mm 300mm
Enamelled Wire Insulation Class 200℃ High temperature Resistant, H Class insulation 200℃ High temperature Resistant, H Class insulation 200℃ High temperature Resistant, H Class insulation 200℃ High temperature Resistant, H Class insulation
Internal Resistance 59mΩ 45mΩ 41mΩ 31mΩ
Shaft Diameter D5+M5 D5+M5 D5+M5 D5+M5
Shaft Length 16mm 16mm 16mm 16mm
Screw Diameter / Thread Φ19mm-4*M3 Φ19mm-4*M3 Φ19mm-4*M3 Φ19mm-4*M3
Recommended
Props/ESCs
Recommended ESC XRotor FPV G2 65A 4in1 ESC XRotor FPV G2 65A 4in1 ESC XRotor FPV G2 65A 4in1 ESC XRotor FPV G2 65A 4in1 ESC
Propeller 6S:HQ8x4.5x3;HQ9x4x3;HQ9x5x3 6S:HQ8x4x3;HQ9x4x3 6S:HQ9x4x3;HQ9x5x3;HQ10x4.5x3;HQ10x5x3 6S:HQ8x4.5x3;HQ9x4x3
