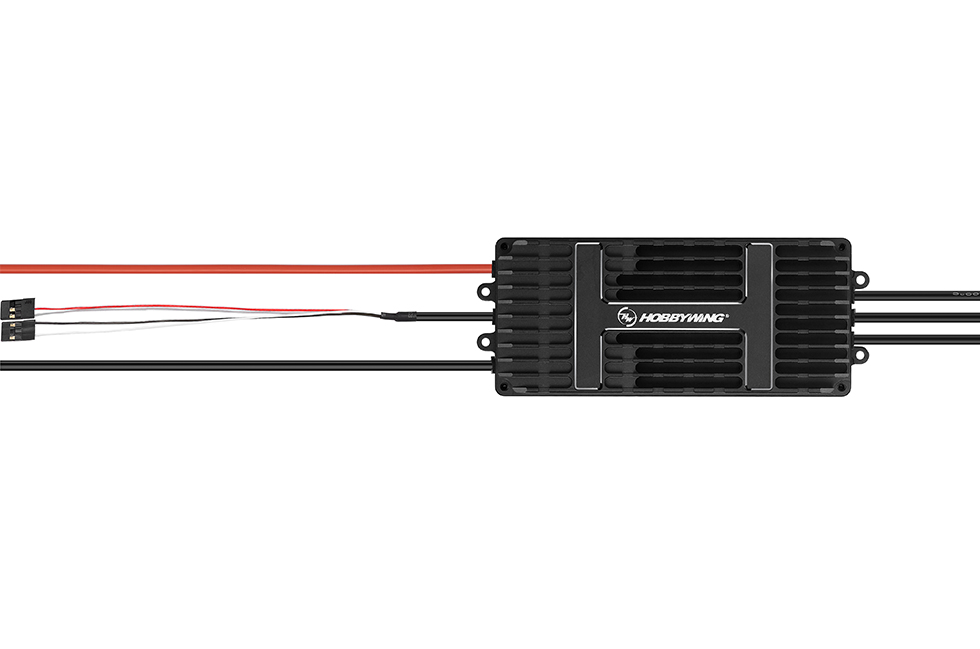

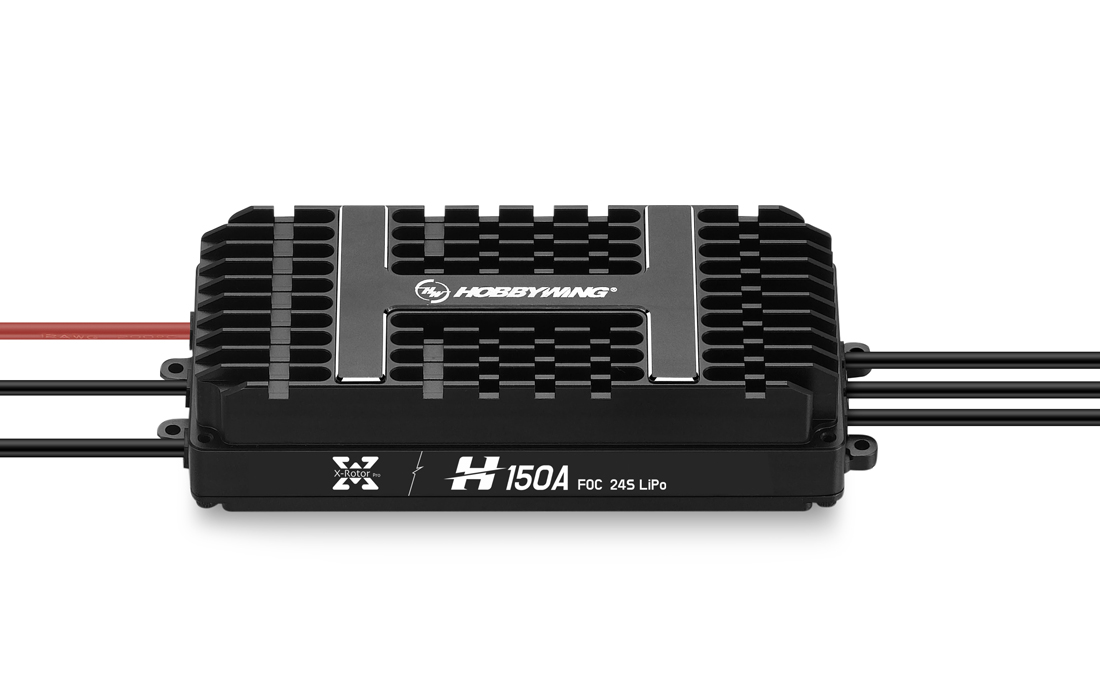

XRotor H150A 24S FOC V1

High voltage ESC

The 100V, 150A high current ESC is designed specifically for high voltage usage.
It will heat up lesser compared with low voltage ESCs of the same power.

FOC Intelligent drive is accurate and efficient

FOC ESC Comparing ESC with the same power, Intelligent drive vector control has higher efficiency, lower temperature,
faster response, lower noise, lower interference, linear throttle, precise control, and kinetic energy recovery.

10%
Efficiency
10°C
temperature

Protection class IP55

By using lightweight nano-coating, together with an integrated aluminum alloy shell,
the waterproof and dustproof is graded at IP55 class.
*Customizable IP67 protection

Intelligent protection, fault storage

Power-on self-test, undervoltage protection, overvoltage protection, overcurrent protection,
throttle signal loss protection, infinite restart, etc. According to the real-time working conditions,
the ESC intelligently protect the flight safety of the drone.
*The ESC has its own fault storage function for fault analysis.

Undervoltage
protection

Overvoltage
protection

Infinite
restart

Power-on
self-test

Fault
storage

Strong anti-interference

Shielded cable, CAN digital throttle + PWM throttle, can be customized to fully isolate the throttle signal,
and the quality of the throttle signal will be ensured in a variety of ways.

Information and Communication

Fast data transmission and real-time acquisition of key information such as ESC status, speed, throttle,
current, voltage, MOSFET temperature, and capacitor temperature can be achieved using the black box
function. Data analysis is clear at a glance with the use of DATALINK box.

Quick upgrade

The latest software from Hobbywing can be updated with the use of DATALINK box equipment.
*Support flight control remote upgrade (optional)

XRotor H150A 24S Foc V1 CAD
Product Name
XRotor H150A 24S Foc V1
Specifications
ESC XRotor Pro-H150A-24S-FOC-RTF-HW-H-V1
Input Voltage 18-24s(54~104.4V)
Continuous current 50A (Good heat dissipation)
Peak Current (3s) 150A(3S)
Operating Temperature -20℃~50℃
Magnetic encoder One motor, one program
Propeller positioning Hall sensor. Optional
Waterproof Rating IP55 (Custom IP67)
Weight 464g (Without wires)
Size 164*66*38mm
Communication protocol CAN(Custom Serial port)
Throttle signal isolated Isolated
PWM Input Signal Level 5V/3.3V
Throttle Signal Frequency 50-500Hz
Operating Pulse Width 1100us-1940us
Throttle travel calibration No
Specifications Yes
Double throttle signal Yes(CAN)
Support
