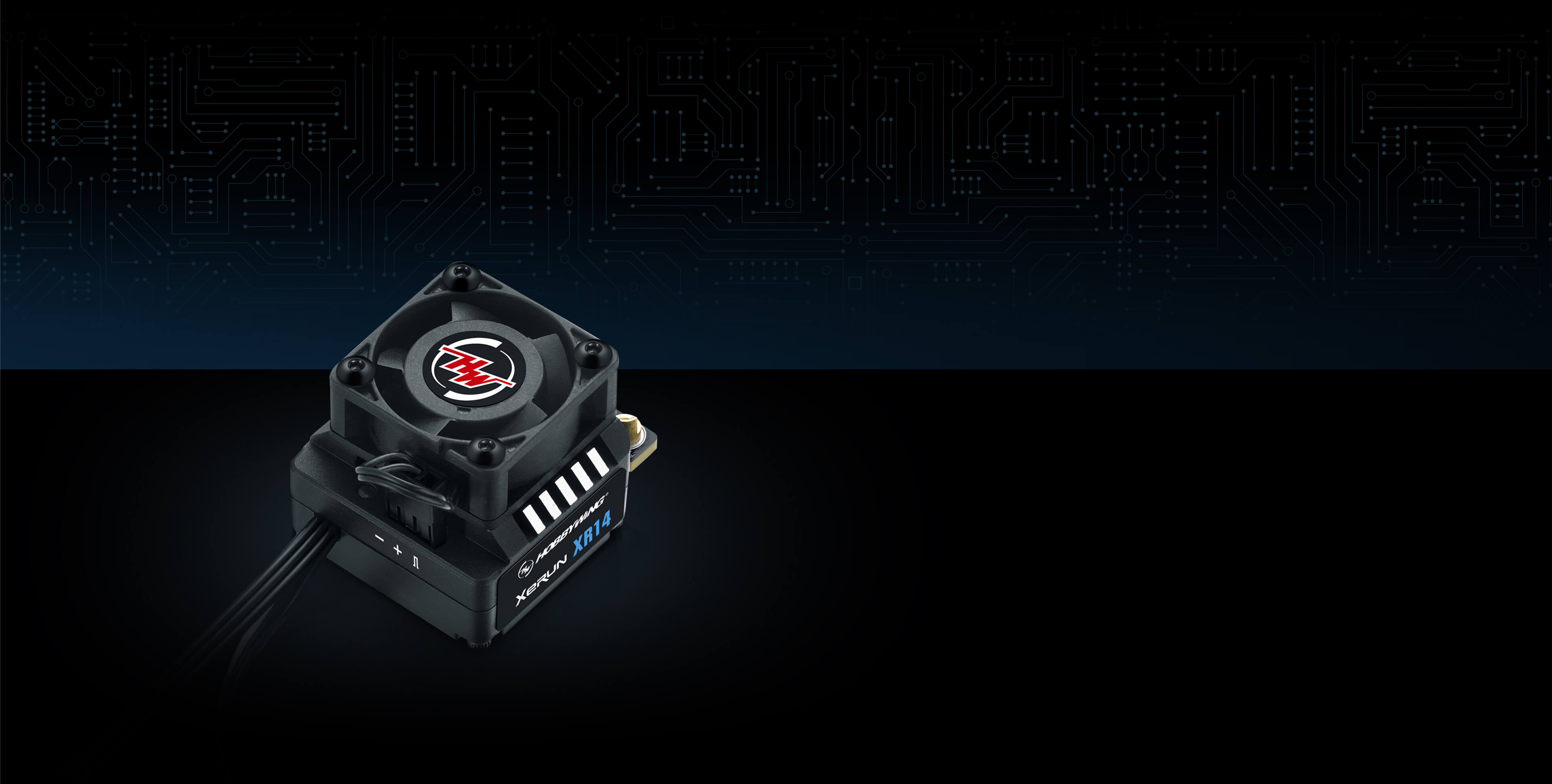

XeRun XR14
XeRun XR14
Built for Competition
An all-round competition-grade ESC, meticulously designed
with advanced software to deliver peak performance for both
1/14th on-road and off-road vehicles.
High power output,
excellent cooling
  • The maximum continuous
    output current of the ESC is
    as high as 70A

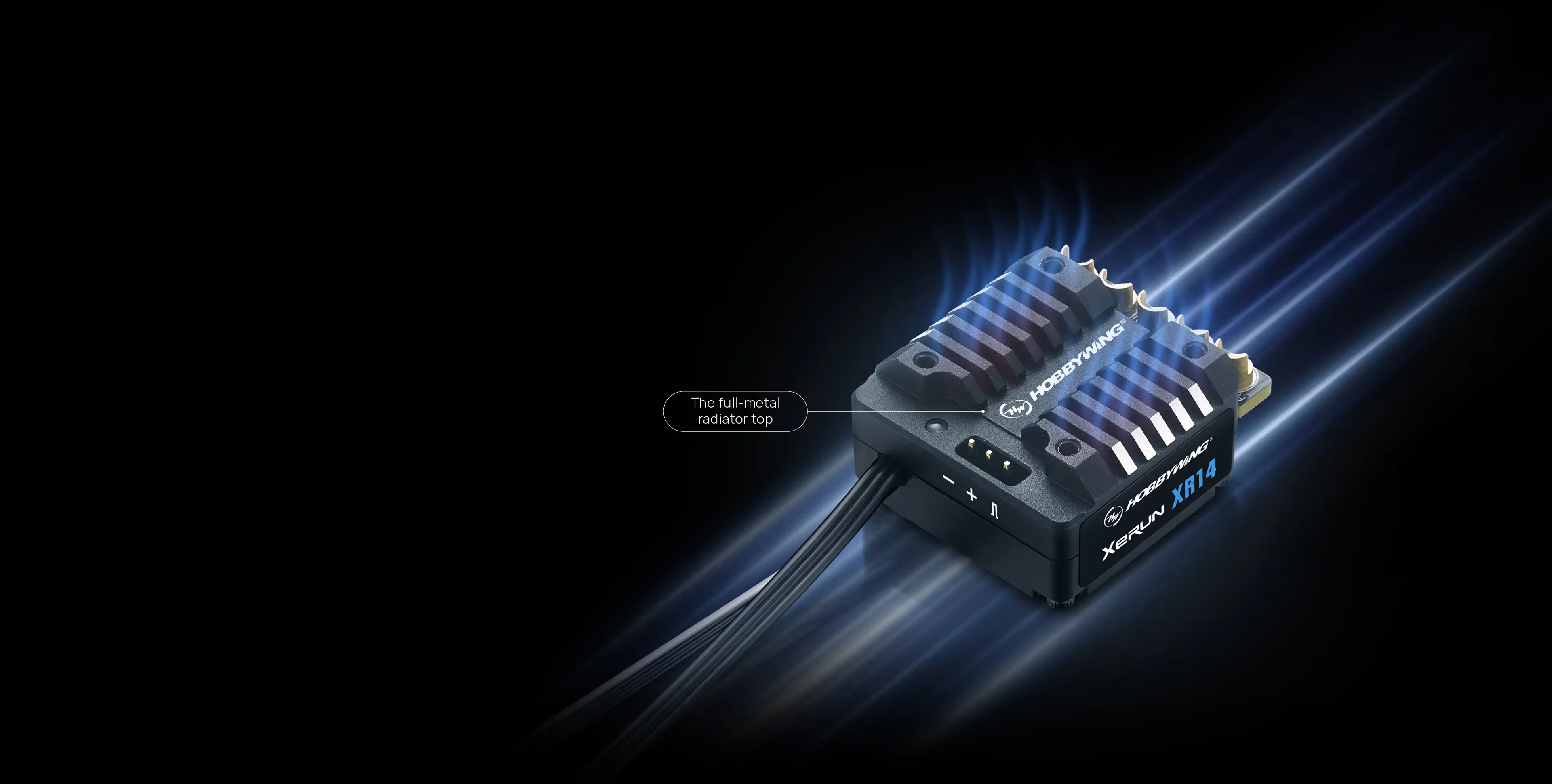

  • The full-metal heat sink top ensures
    efficient heat dissipation, keeping the
    ESC within safe operating
    temperature, even during intense use.

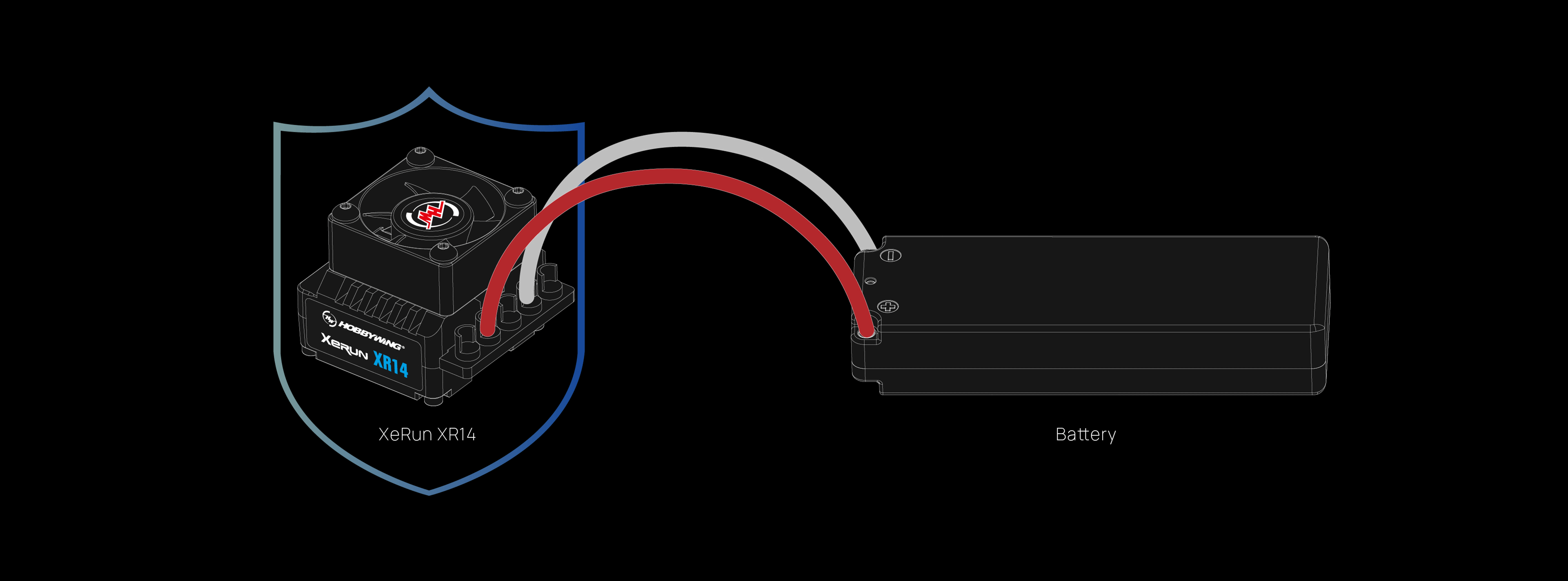

Built-in reverse polarity
protection circuit
Built-in reverse polarity protection prevents damage from
incorrect battery connection, safeguarding your ESC from
potential issues caused by reverse battery polarity.
Note: The reverse polarity protection of the entire power system can be achieved only by using the non-polarity capacitor sold as an option.
The standard capacitor of the ESC does not have this protection. Reverse connection of the battery will damage the capacitor,
but the ESC should not be damaged. Replacement of the capacitor is needed immediately.
High-Voltage
Servo Support
with Built-in BEC
  • Equipped with a built-in switch mode BEC,
  • A maximum
    continuous current of 4A
  • A peak of
    8A
  • Switchable output voltages of
    6V/7.4V
  • This ensures ample power supply to high-torque,
    high-voltage servos.

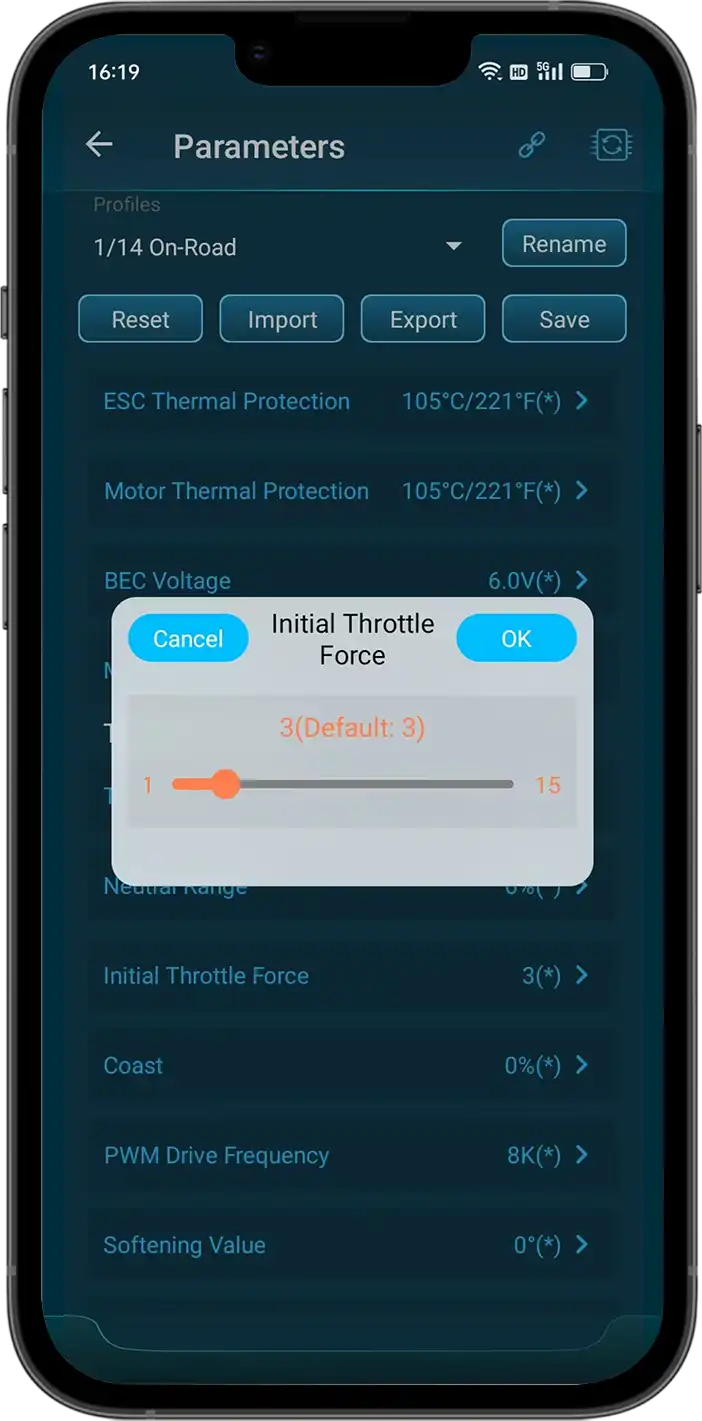

Data Logging for
Performance Monitoring

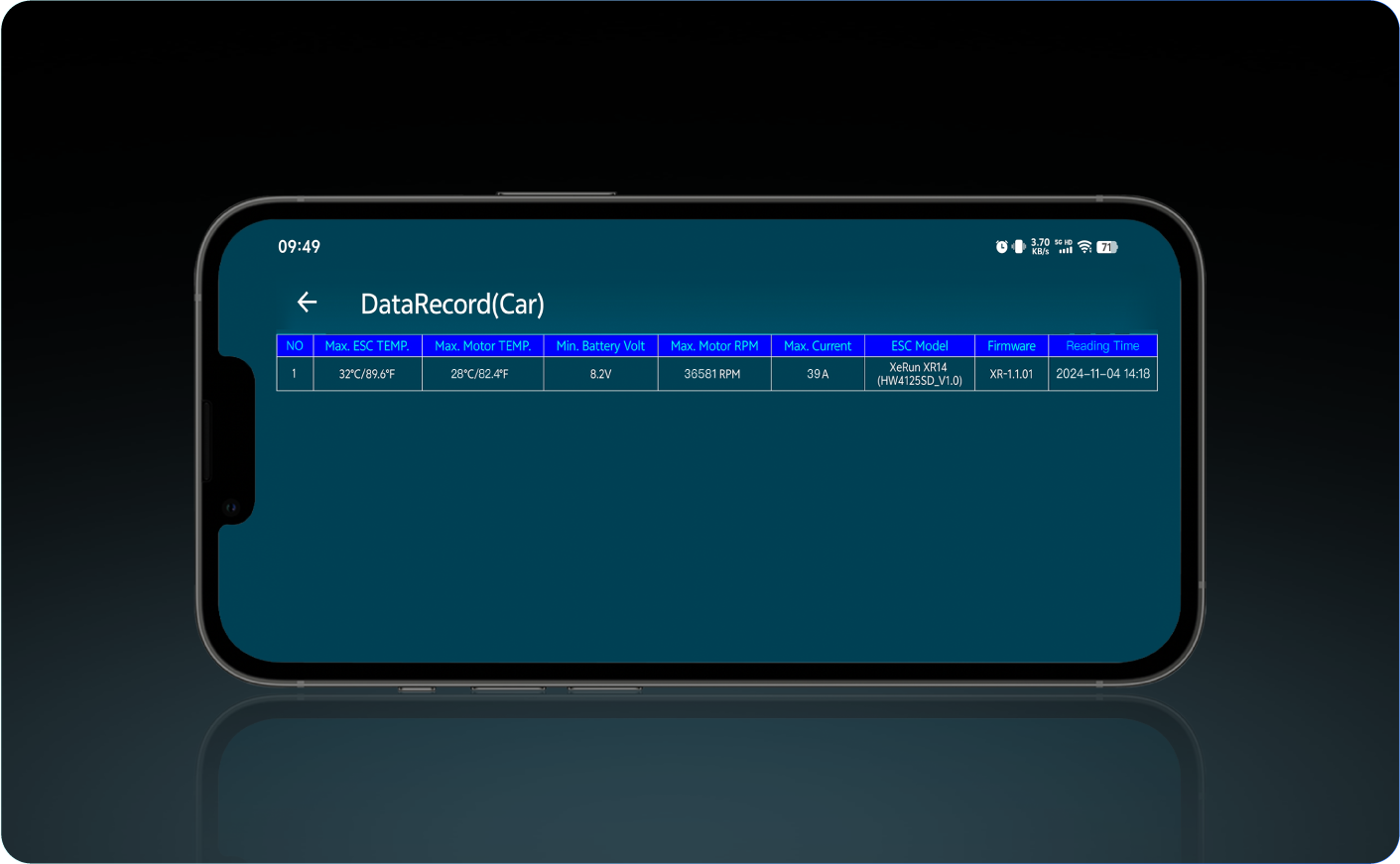

The ESC features a built-in data logging function that tracks
critical data such as minimum voltage, maximum current,
RPM, ESC temperature, and motor temperature.

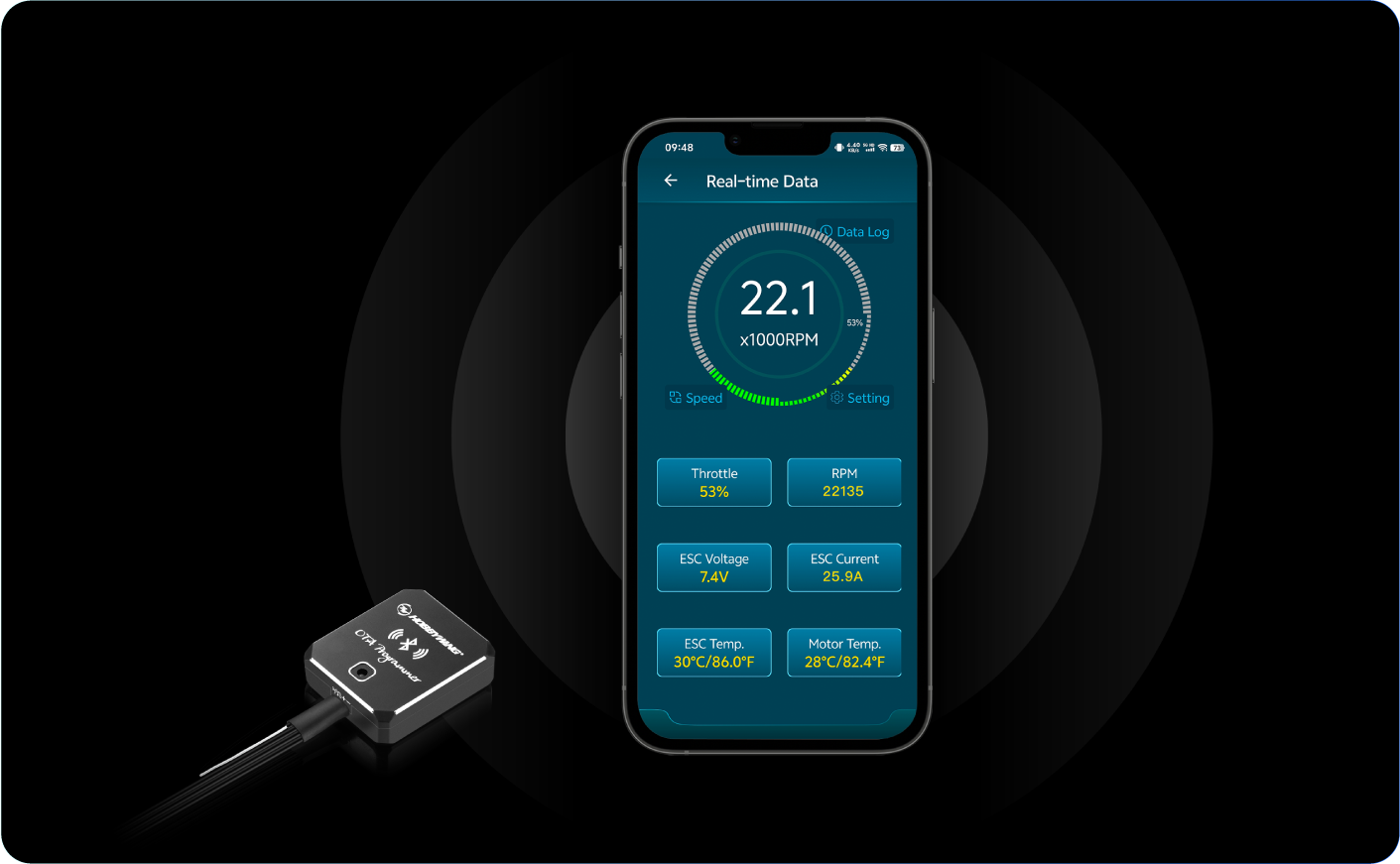

By connecting the ESC to the OTA Bluetooth module and the HW Link mobile app, users can monitor real-time data including throttle position, voltage, current, temperature, and RPM. The built-in memory in the OTA module allows data storage for post-race analysis through the app, enabling fine-tuning and detailed insights.
Note: Bluetooth effective range is approximately 5 meters.

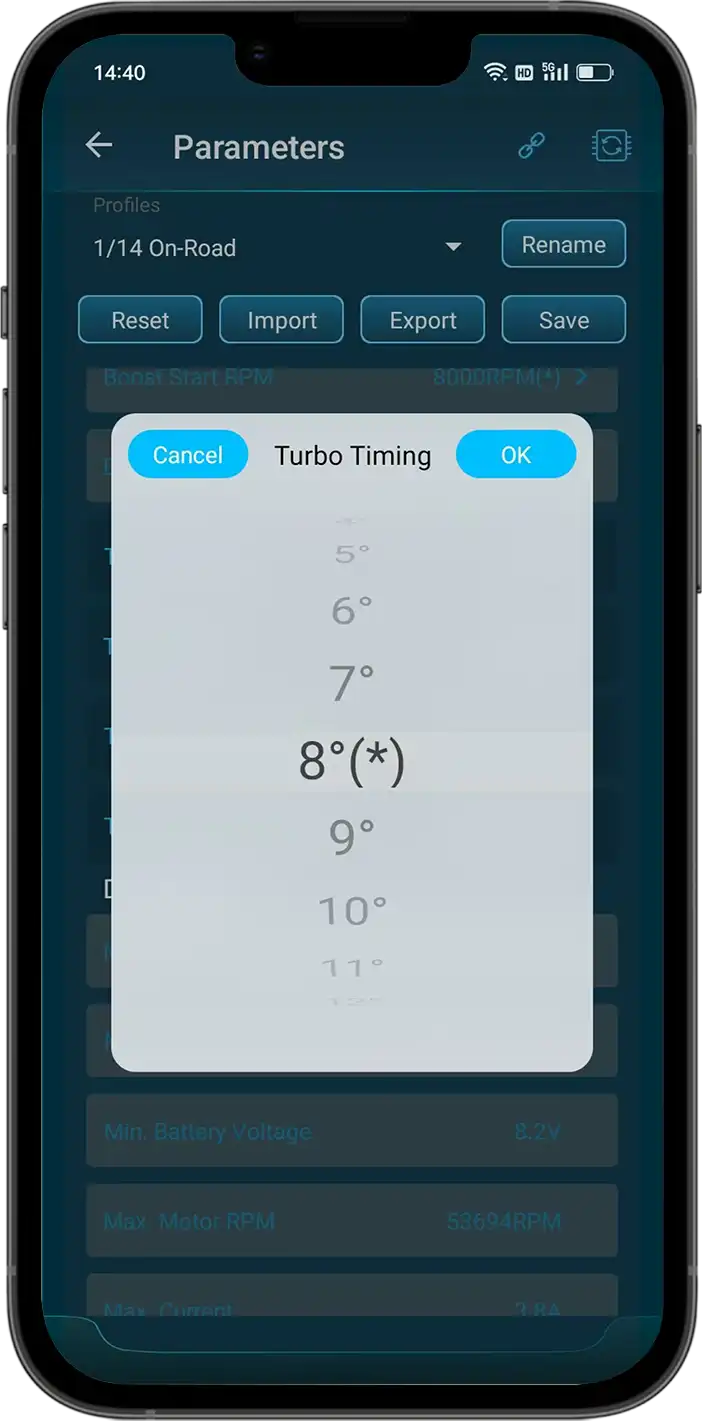

Extensive
Parameter
Adjustments

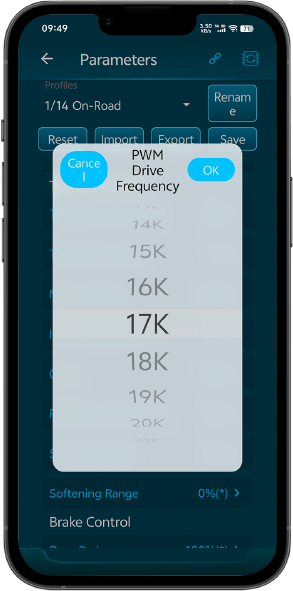

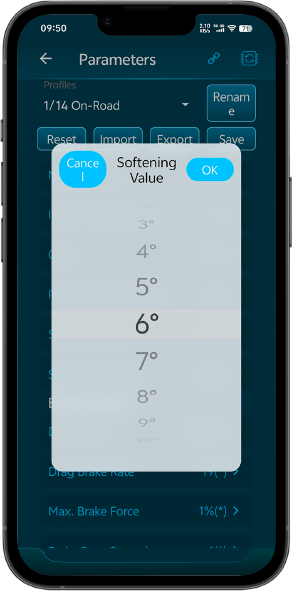

The ESC offers 26 adjustable parameters, including PWM frequency, softening, initial throttle response, and Boost/Turbo timing. This provides precise control over power delivery, enhancing the driving experience with fine-tuned customization.
Dual
application
modes

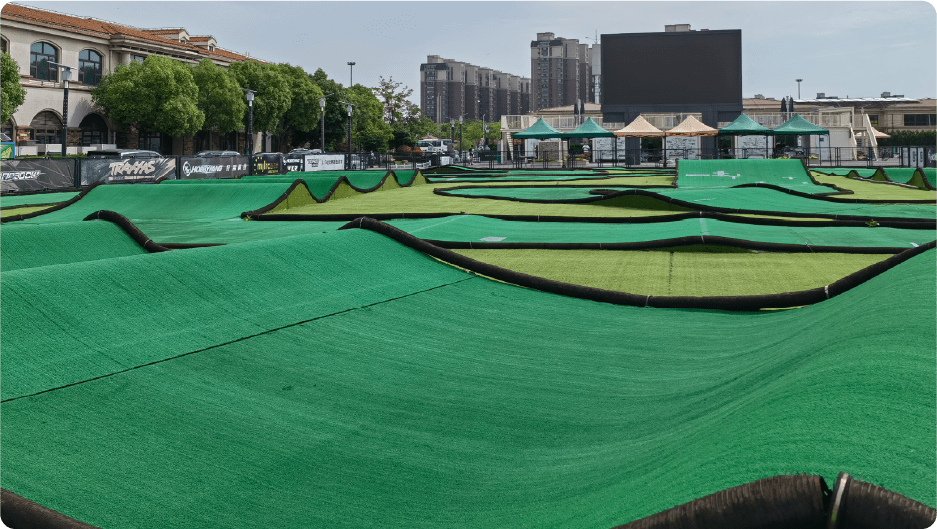

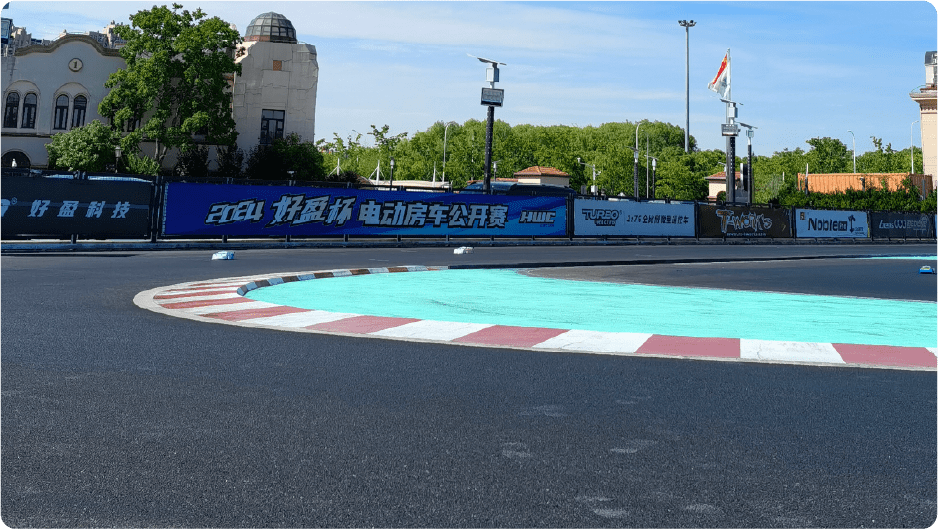

Designed with two pre-set modes, 1/14th On-Road and 1/14th Off-Road, this ESC is ready to race out of the box.
  • 1/14th On-Road
  • 1/14th Off-Road
Versatile Compatibility
While optimized for 1/14th Blinky and Boost racing, this ESC
is also compatible with 1/10th Blinky competitions, offering
flexibility across different racing formats.
Product Name
XERUN XR14
Product Number
  30112622
Type
Scale 1/14th、1/12th、 1/10th
Brushed/Brushless Brushless
Sensored/Sensorless Sensored
Waterproof NO
Specifications
Cont./Peak Current 70A/300A
Input Voltage 2S Lipo
BEC BEC Output Switch Mode 6V/7.4V @4A
Wires & Connectors
Input Wires Black-10AWG-200mm*1 Black-14AWG-175mm*2
Output Wires Black-14AWG-175mm*3
Input Connectors No
Output Connectors No
ESC Programing via
SET Button on ESC Not Supported
LED Program Box Not Supported
LCD G2 Program Box Supported
LCD PRO Supported
OTA Programmer Supported
Program Port Shared with Fan port
Data Recording
Extreme value Supported
Real-time Data Supported
Historical data (Graph) Supported
Firmware
Firmware Upgrade Supported
Size & Weight
Size 35.2*31.3*28.5mm
Weight 66g (Included wires)
Applications
Motors Sensored/Sensorless Brushless Motors
Vehicles 1/14 Scale Racing, 1/12&1/10 Light load vehicles with zero-timing(blinky) mode
KV Rating/T Count XERUN 2848
Support

Manuals & Documents

Manuals

FAQ

OTA Programmer

OTA Programmer

Product Number: 30850400
Working Voltage: 5-12.6V
Supported Bluetooh Version: ≥ 4.0
Effective Range: 0-5m (Open Field)
Applications: work on the XzRun series,
EzRun series of car ESCs, and the Platinum
series of aircraft ESCs, and
Seaking Prp series of boat ESCs.

+
LCD Program Box Pro

NEW

LCD Program Box Pro

Product Number: 30502002
Input Voltage: DC 5V~12.6V
Application: brushless ESC
Weight: 85g
Display:LCD

+
