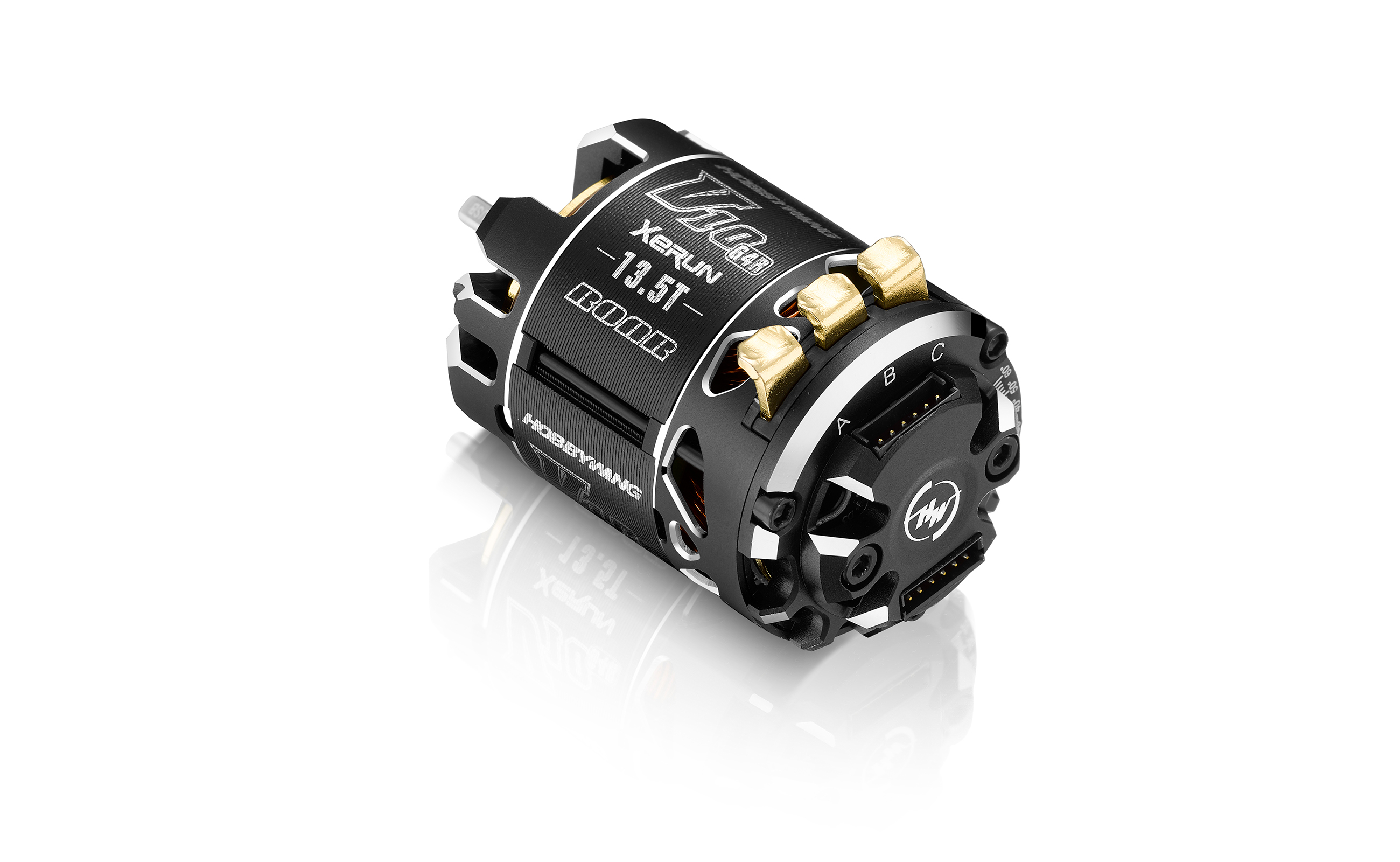

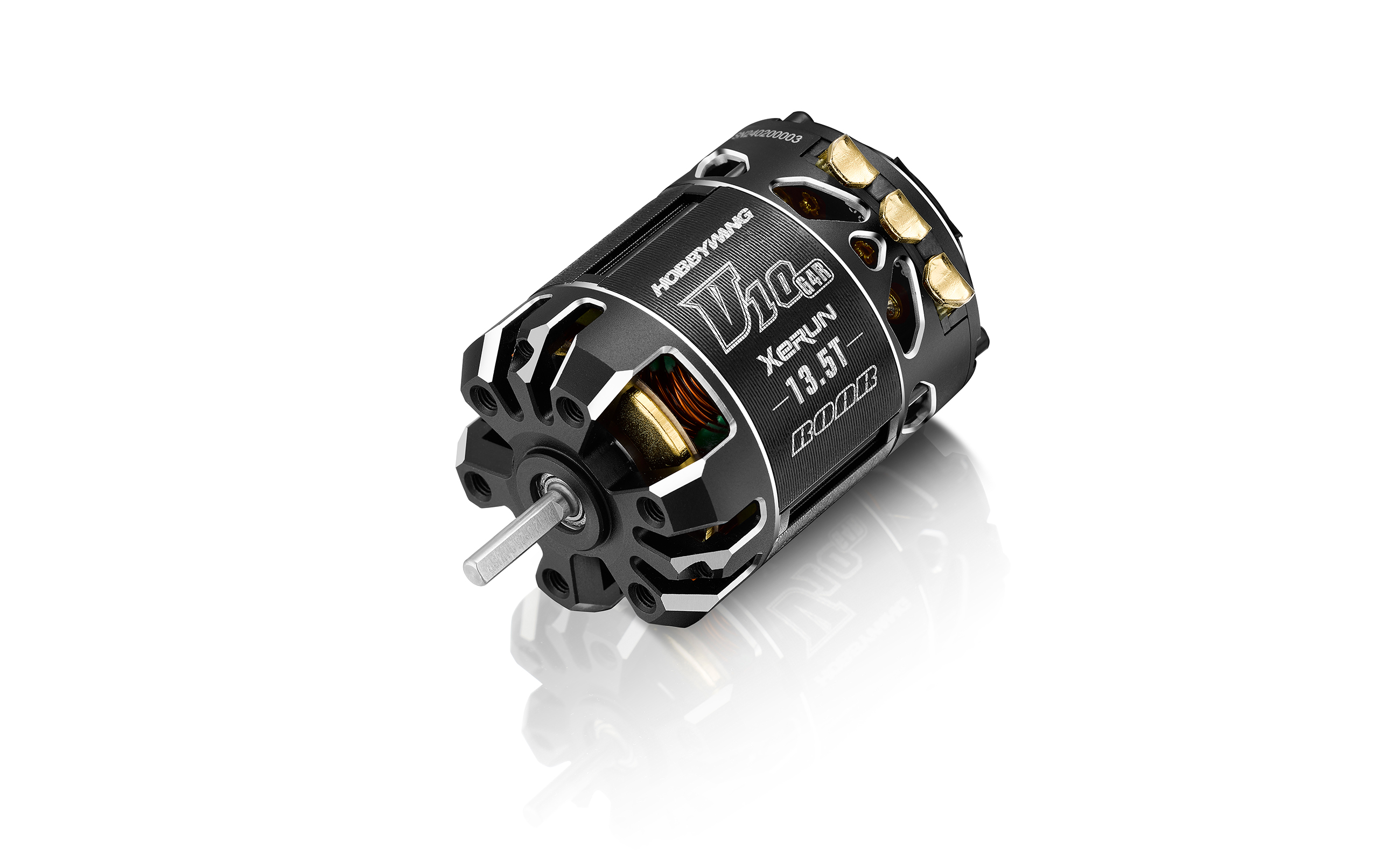

ROAR version: 13.5T/17.5T
Faster and more powerful.
The G4R platform shows confirmed improvements in
overall speed and power output by up to
Comparing it with V10 G4 motor series:
The output power
is increased by nearly
High-performance first-tier brand
Iron core
180°C high-temperature resistant and

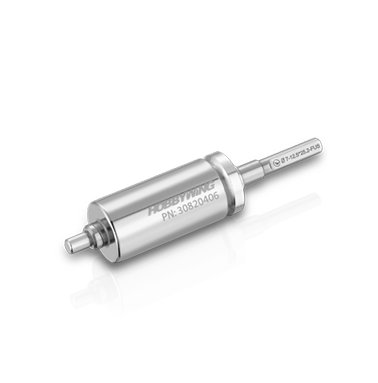

Explosion-proof
structure rotor
International first-tier brand
Bearings
Easily cope with harsh
Competition tests
Product Name | |
Product Number | |
Type | Scale Brushed/Brushless Sensored/Sensorless Pole Count |
Relevant Parameters | KV Rating LiPo Cells No-load Current(A) Max.Power Output(W) Current at the Point of |
Size & Weight | O.D.(mm) Length (mm) Shaft Diameter (mm) Weight (g) Front Bearing Rear Bearing |
Other Parameters | ESC Vehicles |
Product Name | XeRun V10 G4R 13.5T | XeRun V10 G4R 13.5T-ROAR | XeRun V10 G4R 17.5T | XeRun V10 G4R 17.5T-ROAR | XeRun V10 G4R 21.5T | XeRun V10 G4R 21.5T ROAR | |
Product Number | 30401749 | 30401746 | 30401748 | 30401745 | 30401747 | 30401744 | |
Type | Scale Brushed/Brushless Sensored/Sensorless Pole Count |
1/10th BL SD 2 |
1/10th BL SD 2 |
1/10th BL SD 2 |
1/10th BL SD 2 |
1/10th,1/12th BL SD 2 |
1/10th,1/12th BL SD 2 |
Relevant Parameters | KV Rating LiPo Cells No-load Current(A) Max.Power Output(W) Current at the Point of |
4100KV 1-3S LIPO 5.4A 297W 70.7A |
4100KV 1-3S LIPO 5.4A 297W 70.7A |
3150KV 1-3S LIPO 4.6A 213W 49.4A |
3150KV 1-3S LIPO 4.6A 213W 49.4A |
2600KV 1-3S 4.0A 166W 37.7A |
2600KV 1-3S 4.0A 166W 37.7A |
Size & Weight | O.D.(mm) Length (mm) Shaft Diameter (mm) Weight (g) Front Bearing Rear Bearing |
35.8 51.3 3.175 152g D9*D4*T4 D8*D3*T4 |
35.8 51.4 3.175 149g D9*D4*t4 D8*D3*t4 |
35.8 51.4 3.175 148g D9*D4*t4 D8*D3*t4 |
35.8 51.3 3.175 158g D9*D4*T4 D8*D3*T4 |
35.8 51.3 3.175 152g D9*D4*T4 D8*D3*T4 |
35.8 51.3 3.175 152g D9*D4*T4 D8*D3*T4 |
Other Parameters | ESC Vehicles |
XeRun XR10 G2S 1/10th & 1/12th STOCK |
XeRun XR10 G2S 1/10th & 1/12th STOCK |
XeRun XR10 G2S 1/10th & 1/12th STOCK |
XeRun XR10 G2S 1/10th & 1/12th STOCK |
XeRun XR10 G2S 1/10th & 1/12th STOCK |
XeRun XR10 G2S 1/10th & 1/12th STOCK |
Product Name | XeRun V10 G4R 13.5T | |
Product Number | 30401749 | |
Type | Scale Brushed/Brushless Sensored/Sensorless Pole Count |
1/10th BL SD 2 |
Relevant Parameters | KV Rating LiPo Cells No-load Current(A) Max.Power Output(W) Current at the Point of |
4100KV 1-3S LIPO 5.4A 297W 70.7A |
Size & Weight | O.D.(mm) Length (mm) Shaft Diameter (mm) Weight (g) Front Bearing Rear Bearing |
35.8 51.3 3.175 152g D9*D4*T4 D8*D3*T4 |
Other Parameters | ESC Vehicles |
XeRun XR10 G2S 1/10th & 1/12th STOCK |
Product Name | XeRun V10 G4R 13.5T | XeRun V10 G4R 13.5T-ROAR | XeRun V10 G4R 17.5T | XeRun V10 G4R 17.5T-ROAR | XeRun V10 G4R 21.5T | XeRun V10 G4R 21.5T ROAR | |
Product Number | 30401749 | 30401746 | 30401748 | 30401745 | 30401747 | 30401744 | |
Type | Scale Brushed/Brushless Sensored/Sensorless Pole Count |
1/10th BL SD 2 |
1/10th BL SD 2 |
1/10th BL SD 2 |
1/10th BL SD 2 |
1/10th,1/12th BL SD 2 |
1/10th,1/12th BL SD 2 |
Relevant Parameters | KV Rating LiPo Cells No-load Current(A) Max.Power Output(W) Current at the Point of |
4100KV 1-3S LIPO 5.4A 297W 70.7A |
4100KV 1-3S LIPO 5.4A 297W 70.7A |
3150KV 1-3S LIPO 4.6A 213W 49.4A |
3150KV 1-3S LIPO 4.6A 213W 49.4A |
2600KV 1-3S 4.0A 166W 37.7A |
2600KV 1-3S 4.0A 166W 37.7A |
Size & Weight | O.D.(mm) Length (mm) Shaft Diameter (mm) Weight (g) Front Bearing Rear Bearing |
35.8 51.3 3.175 152g D9*D4*T4 D8*D3*T4 |
35.8 51.4 3.175 149g D9*D4*t4 D8*D3*t4 |
35.8 51.4 3.175 148g D9*D4*t4 D8*D3*t4 |
35.8 51.3 3.175 158g D9*D4*T4 D8*D3*T4 |
35.8 51.3 3.175 152g D9*D4*T4 D8*D3*T4 |
35.8 51.3 3.175 152g D9*D4*T4 D8*D3*T4 |
Other Parameters | ESC Vehicles |
XeRun XR10 G2S 1/10th & 1/12th STOCK |
XeRun XR10 G2S 1/10th & 1/12th STOCK |
XeRun XR10 G2S 1/10th & 1/12th STOCK |
XeRun XR10 G2S 1/10th & 1/12th STOCK |
XeRun XR10 G2S 1/10th & 1/12th STOCK |
XeRun XR10 G2S 1/10th & 1/12th STOCK |
