Hall Sensor Cable

Hall Sensor Cable

Overview

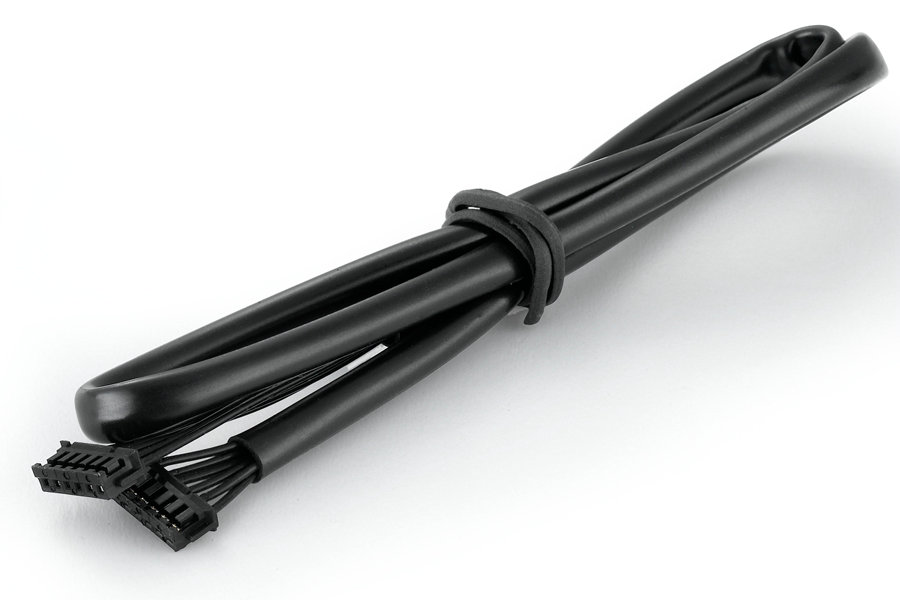

This sensor cable is for transmitting signals sensored motor and sensored ESC. The sensored motor and ESC will work in sensored mode only with this cable is used. Otherwises, they will work in sensorless mode.

Specifications

The sensor cable is available in five different lengths. All the following cable lengths are only the wire lengths (and connector lengths are not included).

Stock Spare Parts

Items


Product

1

PN:30850100
Product Name:80MM-SENSOR HARNESS
Specifications: 80mm in length(w/o two connectors)
Applications:

2

PN:30810000
Product Name:140MM-SENSOR HARNESS
Specifications: 140mm in length(w/o two connectors)
Applications:

3

PN:30850102
Product Name:200MM-SENSOR HARNESS
Specifications: 200mm in length(w/o two connectors)
Applications:

4

PN:30850103
Product Name:300MM-SENSOR HARNESS
Specifications: 300mm in length(w/o two connectors)
Applications:

Hall Sensor Cable

Overview

This sensor cable is for transmitting signals sensored motor and sensored ESC. The sensored motor and ESC will work in sensored mode only with this cable is used. Otherwises, they will work in sensorless mode.

Specifications

The sensor cable is available in five different lengths. All the following cable lengths are only the wire lengths (and connector lengths are not included).

Stock Spare Parts

Items


Product

1

PN:2360800
Product Name:80MM-SENSOR HARNESS
Specifications: 80mm in length(w/o two connectors)
Applications:

2

PN:2361200
Product Name:120MM-SENSOR HARNESS
Specifications: 120mm in length(w/o two connectors)
Applications:

3

PN:2362000
Product Name:200MM-SENSOR HARNESS
Specifications: 200mm in length(w/o two connectors)
Applications:

4

PN:2363000
Product Name:300MM-SENSOR HARNESS
Specifications: 300mm in length(w/o two connectors)
Applications:

5

PN:2364000
Product Name:400MM-SENSOR HARNESS
Specifications: 400mm in length(w/o two connectors)
Applications:
