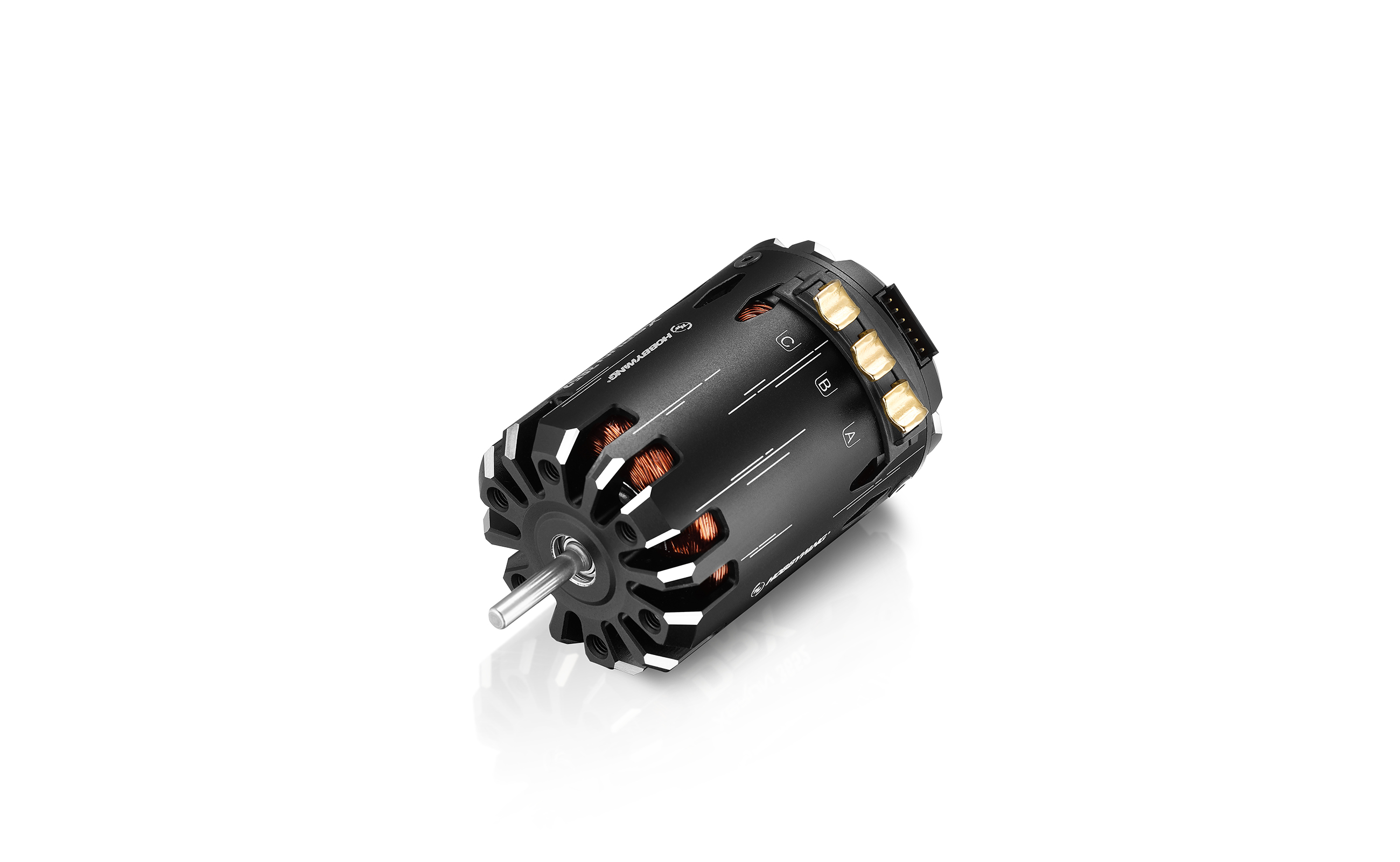

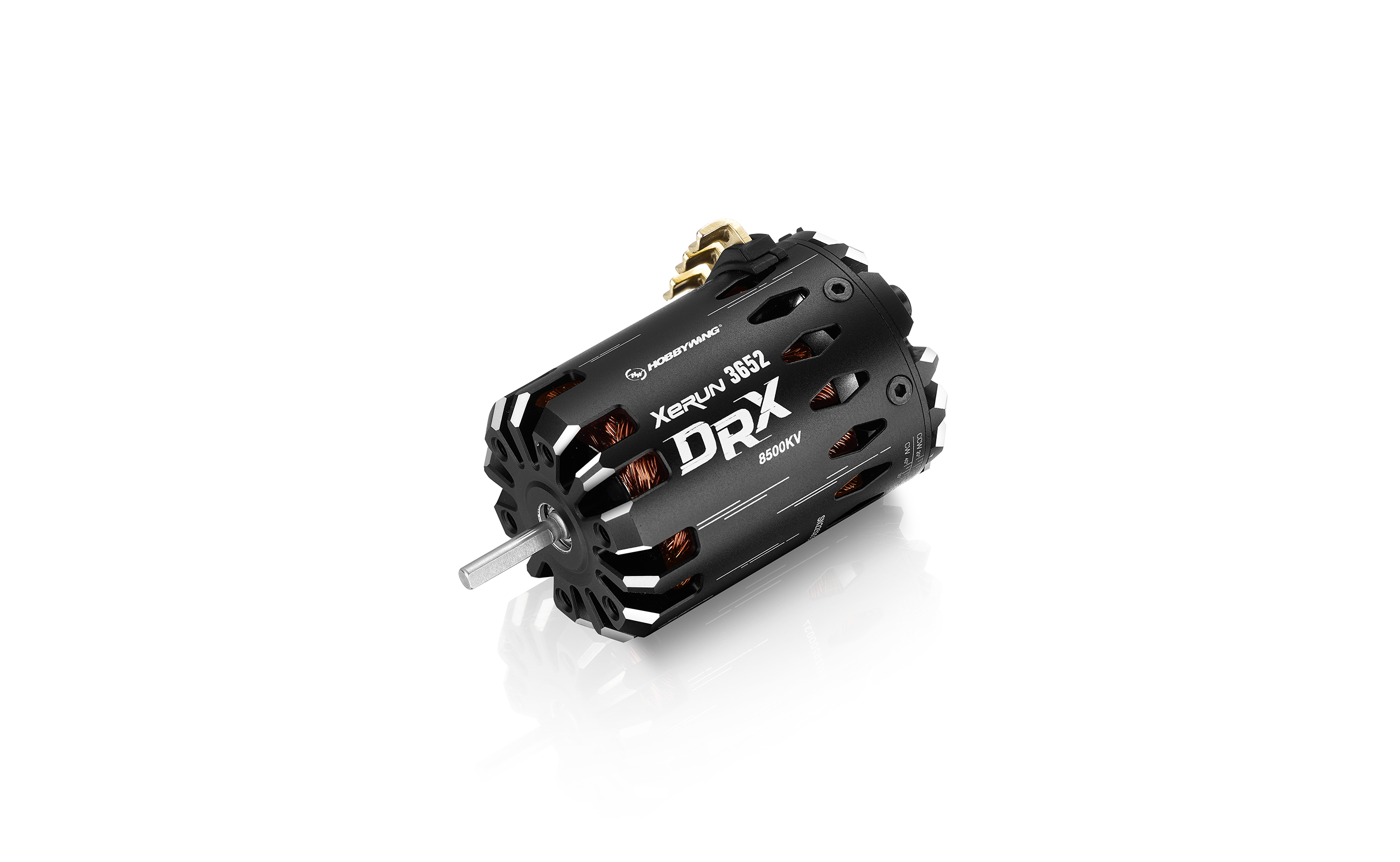

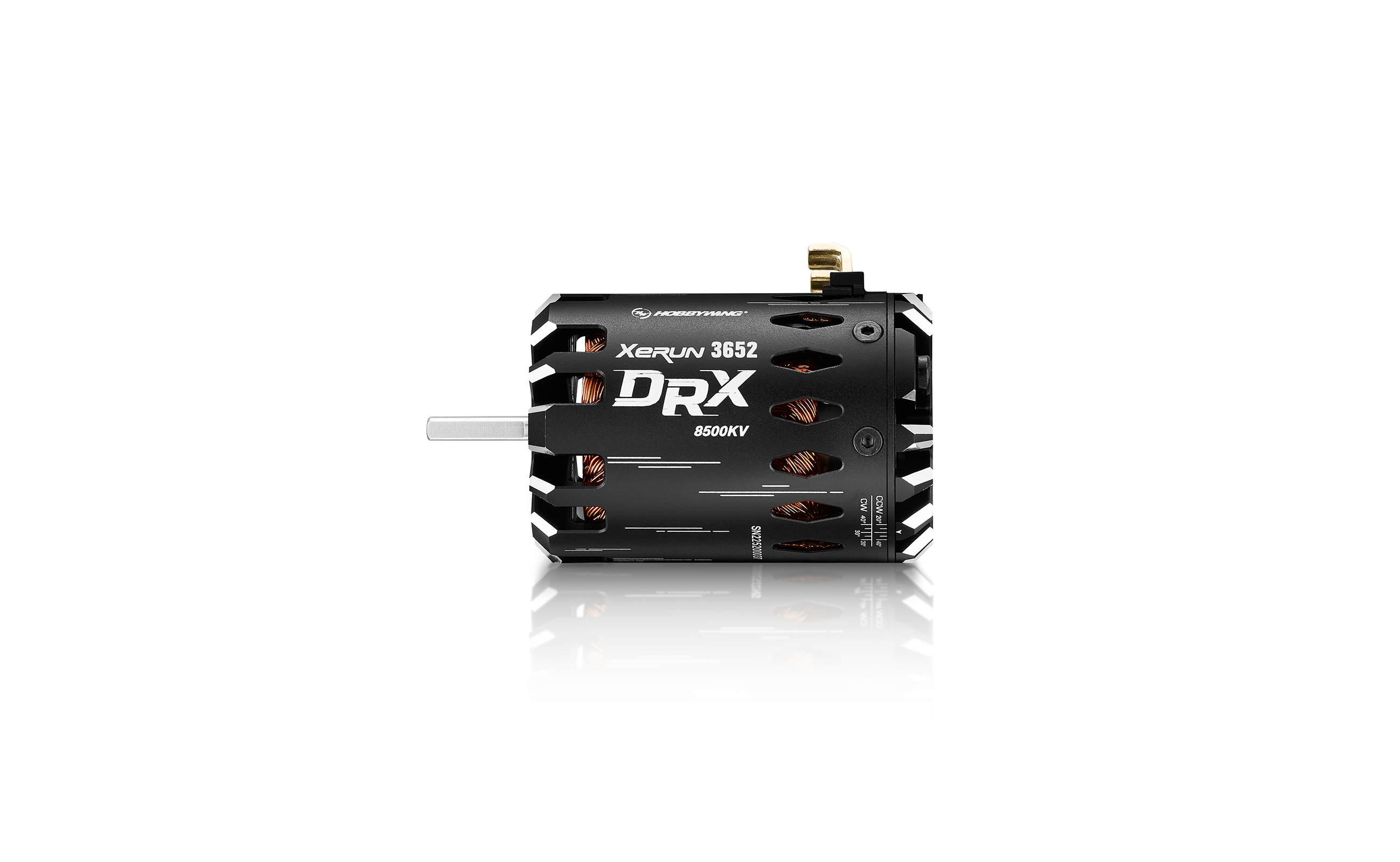

XeRun 3652 / 3662 DRX
XeRun 3652 / 3662
8500KV & 9500KV / 6500KV
High-speed operation,
extremely fast
High KV, combined with a fully adjustable endbell and precision timing
tuning provide unmatched power delivery for today's Drag Racing.

The high
KV motor
3652-8500KV & 9500KV
3662-6500KV

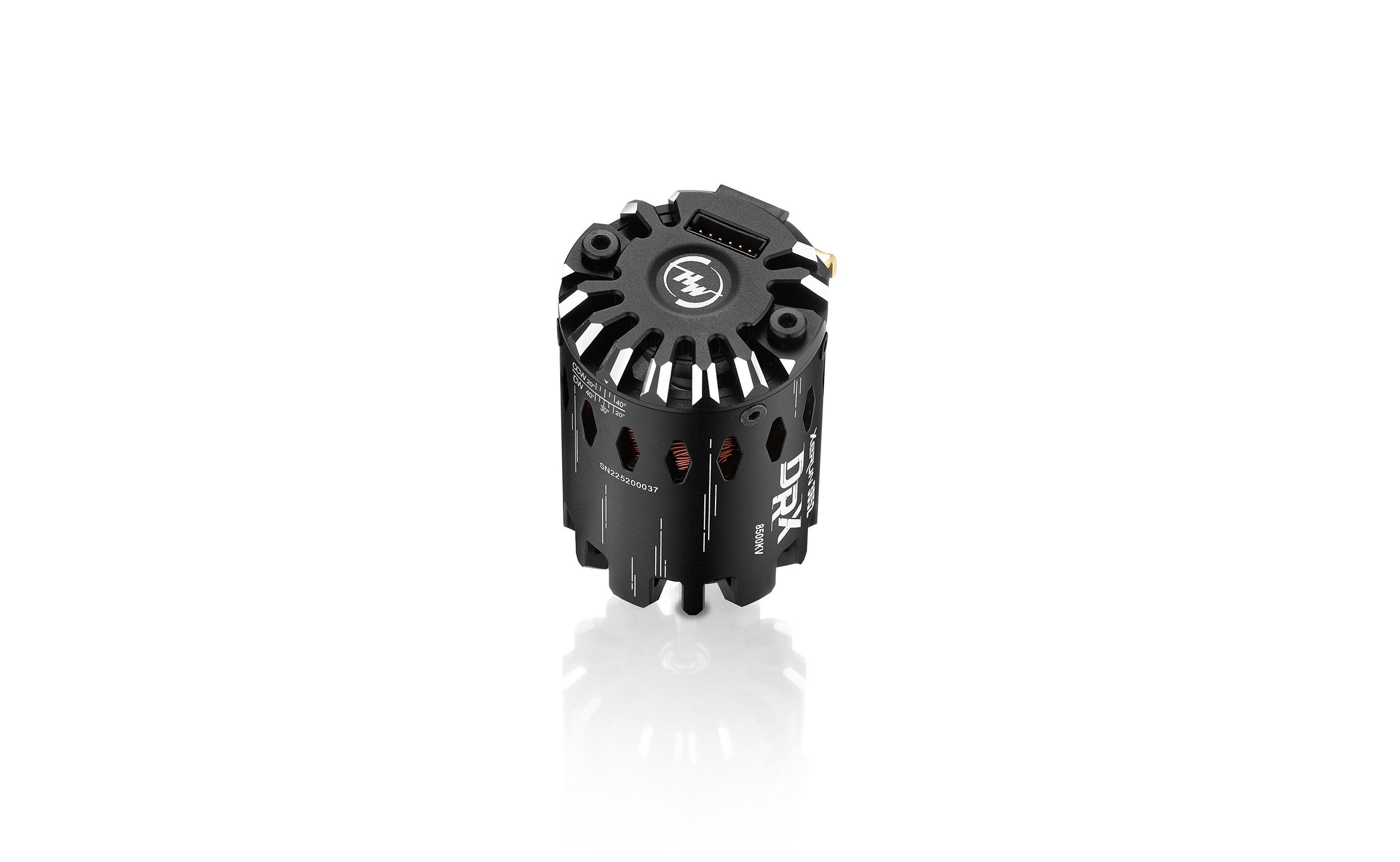

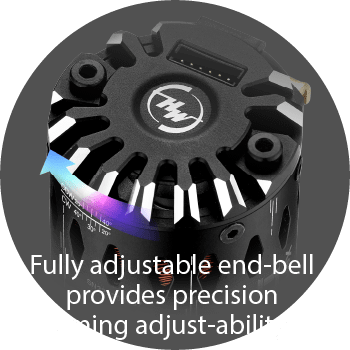

Fully adjustable end-bell
provides precision
timing adjust-ability.

Designed for
Drag
Race

Power, consistent,
and reliable power
The motor is powerful, and consistent.

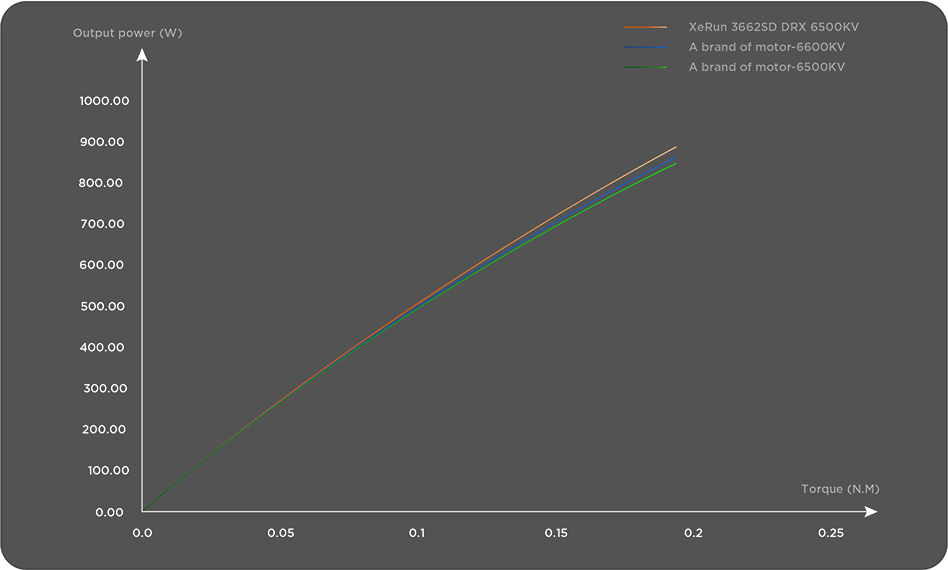

With the 3662-6500KV motor,
the maximum output power is increased
by approximately 6% compared with similar
top of the line motors on the market.
The maximum output
power is increased
by approximately comparatively
The motor is
extremely efficient,
resulting in less heat
when compared to
similar motors.
Using a 0.23N m load test,
The 3662 motor coil
temperature is approximately

Lower
The external
temperature is

cooler as well
High efficiency，
less heat
Failure Proof Rotor
The rotor steel sleeve ensure it will withstand the most extreme demands.
Dual sensor
port design for
easy wiring
Dual sensor ports allow builders wiring options.
Modular design
for easy maintenance
The motor adopts a modular structure design, which is convenient for
routine cleaning and maintenance, effectively prolonging the service life
of the motor and maintaining the working efficiency of the motor.
Premium materials,
strong and reliable

High hardness aluminum

CNC shell

High performance

iron core

Steel sleeve design

explosion-
proof rotor

200 ° C high temperature

resistance wire

High toughness alloy

output shaft

Top-of-the-line

bearings
The outlet terminal adopts customised
UU-shaped gold-plated
curved copper bar
which are widened and thickened in order
to have a lower internal resistance,
stronger current resistance,
and makes soldering a breeze.
Product Name
Product Number
Type Scale

Brushed/Brushless

Sensored/Sensorless

Pole Count
Relevant Parameters KV Rating

LiPo Cells

No-load Current(A)
Size & Weight O.D.(mm)

Length (mm)

Shaft Diameter (mm)

Weight (g)

Front Bearing

Rear Bearing
Other Parameters Vehicles
Product Name XeRun 3652 DRX 8500KV XeRun 3652 DRX 9500KV XeRun 3662 DRX 6500KV
Product Number 30401063 30401062 30401352
Type Scale

Brushed/Brushless

Sensored/Sensorless

Pole Count		 1/10th

BL

SD

4		 1/10th

BL

SD

4		 1/10th

BL

SD

4
Relevant Parameters KV Rating

LiPo Cells

No-load Current(A)		 8500KV

2S LIPO

8.2A		 9500KV

2S LIPO

8.6A		 6500KV

2S LIPO

8.0A
Size & Weight O.D.(mm)

Length (mm)

Shaft Diameter (mm)

Weight (g)

Front Bearing

Rear Bearing		 36

53

3.175

177g

D9*D4*T4

D8*D3*T4		 36

53

3.175

187g

D9*D4*T4

D8*D3*T4		 36

63

5

240g

D11*D5*T5

D8*D3*T4
Other Parameters Vehicles 1/10th Drag Racing 1/10th Drag Racing 1/10th Drag Racing
Support

Manuals & Documents

Manuals

FAQ

Hall Sensor Cable

Hall Sensor Cable

Part Number: 30850100, 30810000,
30850102, 30850103...
Size: The sensor cable is available
in five different lengths.
Applications: (Connection between)
the Sensored Motor(s) and ESC(s)

+
