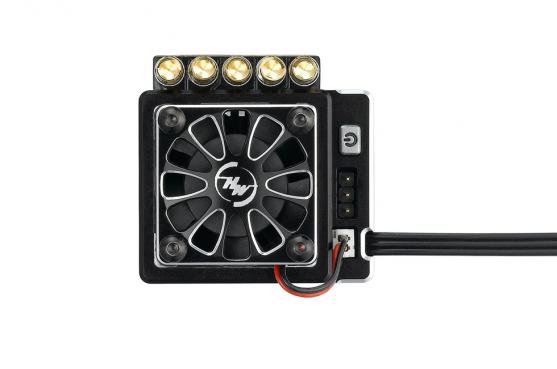

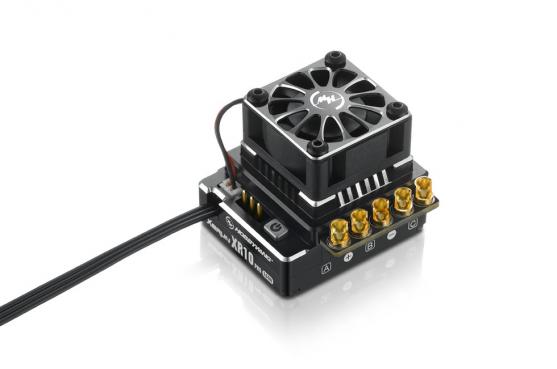

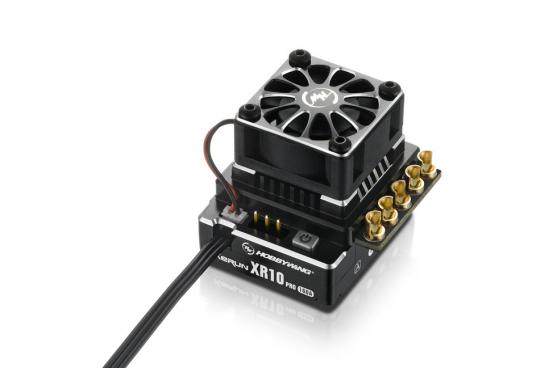

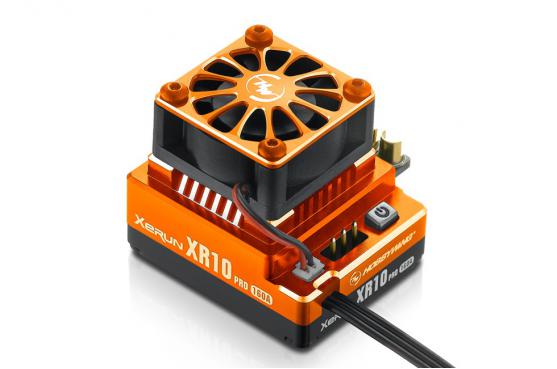

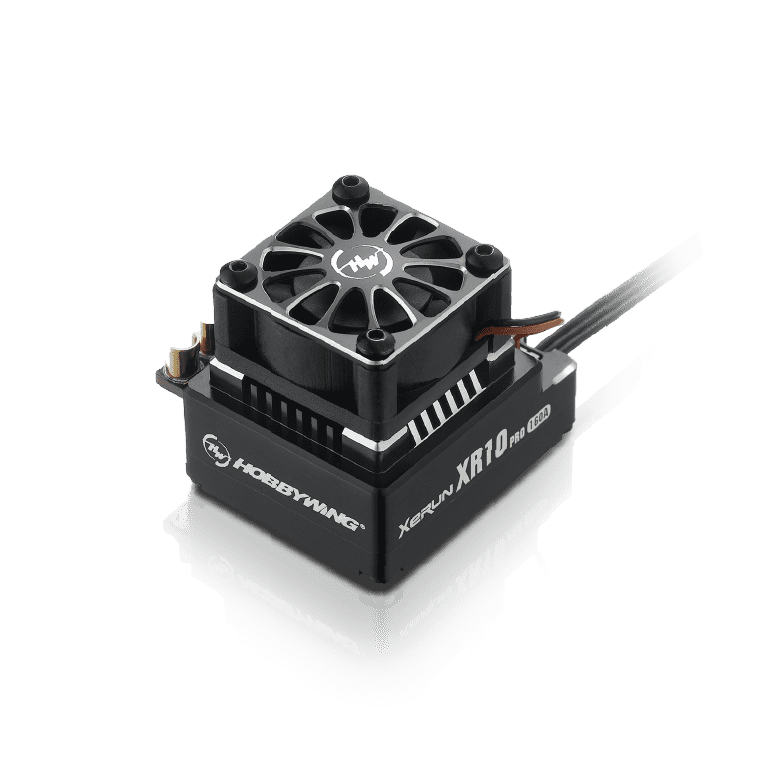

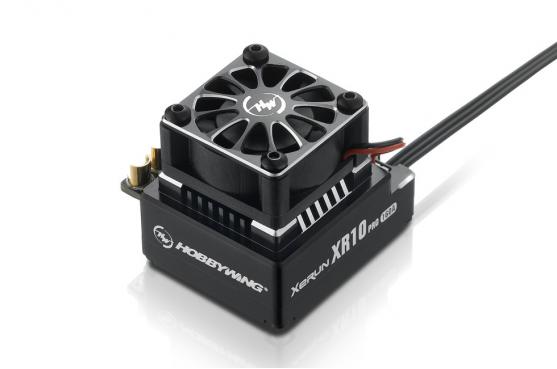

XeRun XR10 PRO 160A

Overview
Specifications
Support
Accessories
Detail

High Power Output

Continuous current of 160A and peak current of up to 1200A guarantees
a stable and high power output during competitions.

High Power Output

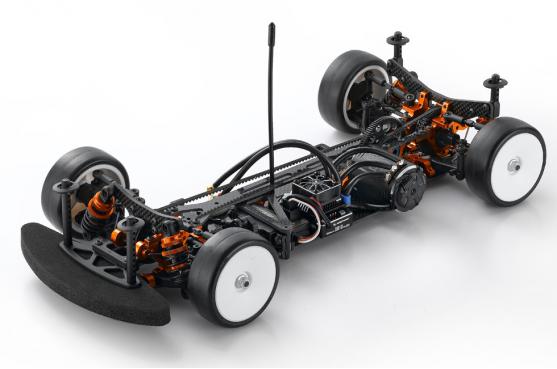

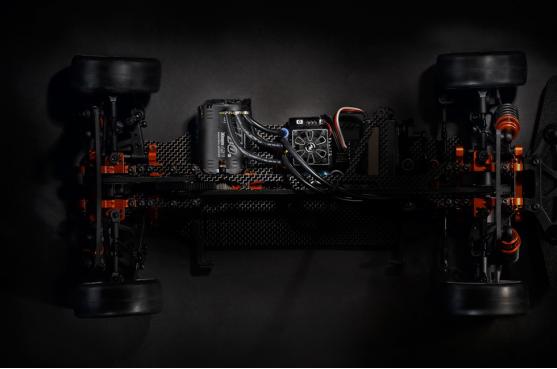

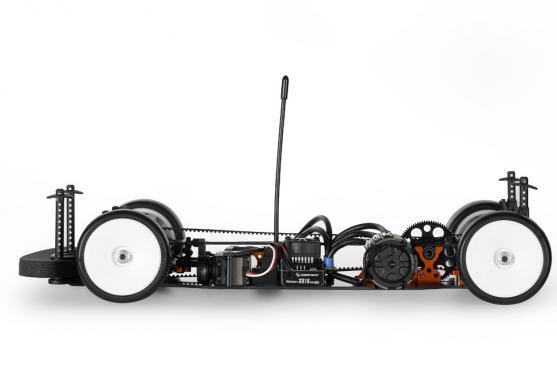

Special Design for Top Racing

Reliable hardware combined with intelligent software (containing 10 common select-to-use profiles)
creates an ideal power solution to 1/10^thscale top touring car, Pan car and buggy racing.

Special Design
for Top Racing

Programming / Upgrading /
Data reading wirelessly

With Hobbywing’s “WiFi Express” module and iPhone or an Android phone (with the
HOBBYWING WiFi Link software installed), the user can remotely program parameters,
upgrade firmware and check relevant data of the ESC without leaving the control stand.

Programming / Upgrading /
Data reading wirelessly

Wifi Express module

Adjustable Throttle & Brake PWM Frequencies

Independent and adjustable throttle & brake PWM frequencies guarantee precise and accurate
throttle and brake control for all classes of competitions (esp. the Stock class).

Adjustable Throttle &
Brake PWM Frequencies

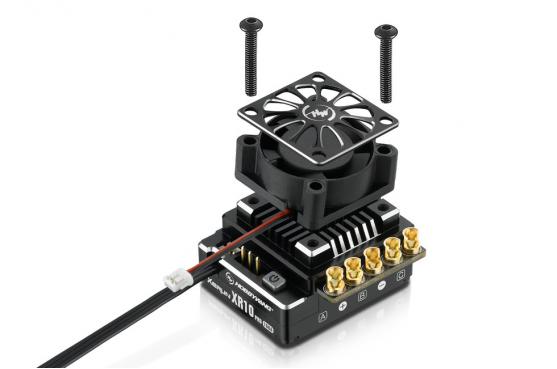

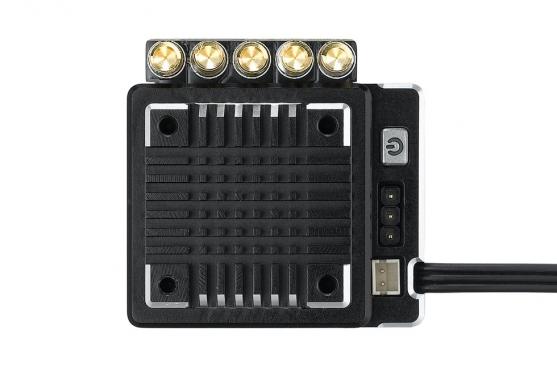

Efficient Heat Dissipating System

The aluminum casing and reticular heat sink combined with the HOBBYWING patented
copper heat-conductive plates which are attached to the MOSFET board allows the internal
heat to be quickly transferred to the heat sink for dissipation. With the high-performing detachable
cooling fan, a highly reliable heat transfer system for maximum cooling is accomplished.

Efficient Heat
Dissipating System

High current/voltage BEC

The built-in switch mode BEC with a maximum output of 8A and voltage adjustable
between 6V and 7.4V allows the user to use various high voltage servos.

High current/voltage BEC

Separate Programming/Fan Port

The separate PRG/FAN port on the ESC can power an external fan to maximize
cooling performance or connect the ESC to a LCD program box or WiFi
module for ESC programming.

Separate Programming/Fan Port

Built-in Electronic Switch

The internal electronic switch with a lifespan of over 50000 on/off cycles
completely solves the problems like stuck reed, rusted contact points, and
automatic shutdown conventional mechanical switches often have.

Advanced and Secure
Electronic Switch

Advanced and Secure Electronic Switch

Innovative data-logging Function

This ESC features the data-logging function which can record
the maximum ESC/motor temperature, RPM and etc. in
real time and allows the user to analyze the recorded data
via a the LCD program box or WiFi module after each use.

Innovative data-logging Function

Product Comparison

XeRun XR10 PRO 160A

XeRun 120A V3.1

Hardware

Cont./Peak Current

BEC Voltage/Current

BEC Voltage Regulation

Fan is Powered by

Fan shroud

Fan Speed

160A / 1200A

6V/7.4V,4A

Switch Mode

Yes

High

120A / 760A

6V,3A

Linear Mode

Battery

Normal

Software

Remote Off

(Motor) Drive Mode

COAST

PWM Drive Frequency

Brake Frequency

Brake Mode

Boost Timing Activation

Enabled/Disabled Switchable

Full Sensored/ Sensored or Sensorless Hybrid Switchable

0-20% Adjustable

1K/2K/4K/8K/12K/16K Adjustable

0.5K/1K/2K/4K Adjustable

Linear/Traditional/Hybrid Adjustable

RPM/Auto Adjustable

Enabled (Default)

Full Sensored

Not Adjustable

Note:"Sensored/Sensorless Hybrid" mode is applicable to 4WD SCT vehicles using 4 pole motors.

Programmable Items

Product Name
Product Number
Type	Scale Brushed/Brushless Sensored/Sensorless Sensored/Sensorless
Specifications	Cont./Peak Current Input Voltage BEC Output
Wires & Connectors	Input Wires Output Wires Input Connectors Output Connecotors
ESC Programing via	SET Button on ESC LED Program Box LCD Program Box WiFi Module Program Port
Fan	Size Voltage Range Powered by
Firmware	Firmware Upgrade
Size & Weight	Size Size
Applications	Motors Vehicles KV Rating/T Count

Product Name		XERUN XR10 PRO
Product Number		30112600(Black) / 30112601(Orange) / 30112602(Red)
Type	Scale Brushed/Brushless Sensored/Sensorless Sensored/Sensorless	1/10^th BL SD No
Specifications	Cont./Peak Current Input Voltage BEC Output	160A/1200A 2-3S LiPo/4-9 Cell NiMH Swich Mode：6V/7.4V,4A
Wires & Connectors	Input Wires Output Wires Input Connectors Output Connecotors	Black-12AWG-200mm2 Black-12AWG-200mm3 No No
ESC Programing via	SET Button on ESC LED Program Box LCD Program Box WiFi Module Program Port	Not Supported Not Supported Supported Supported Separate Program Port
Fan	Size Voltage Range Powered by	25.0x25.0x10.0mm 5-7.4V Powered by BEC
Firmware	Firmware Upgrade	Supported
Size & Weight	Size Size	37.5x30.9x31.6mm (w/Fan&Fan Shroud) 95g(w/ Wires)
Applications	Motors Vehicles KV Rating/T Count	SL BL Motors / SD BL Motors 1/10^th Touring Car/Buggy/Top Racing, 1/10^th Drift Car/F1, 1/10^th & 1/8^th Crawler 2S LiPo/6S NiMH: (Touring Car) T≥3.5T, (Buggy) T≥4.5T. 3S LiPo/9S NiMH: (Touring Car) T≥6.5T, (Buggy) T≥8.5T.

Support

Manuals & Documents

Manuals

Software Download

Application Guidance

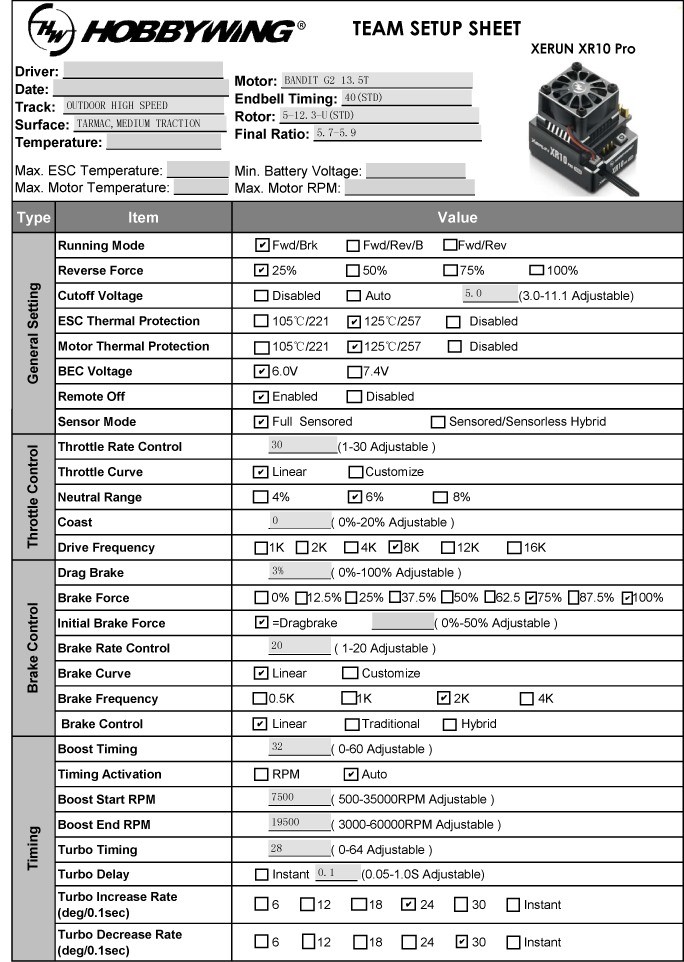

General Setups：Setup for 1/10^th Scale TC-Modified -4.5T-Carpet-Track with High Grip

General Setups：Setup for 1/10^th Scale TC-Modified-4.5T-Outdoor-Big Track with High Grip

General Setups：Setup for 1/10^th Scale TC-Modified-4.5T-Outdoor-Track with Moderate Grip

General Setups：1Setup for 1/10^th Scale TC-OpenStockV10-13.5T-Outdoor-Track with Moderate Grip

General Setups：Setup for 1/10^th Scale TC-OpenStockBandit-13.5T-Outdoor-Track with Moderate Grip

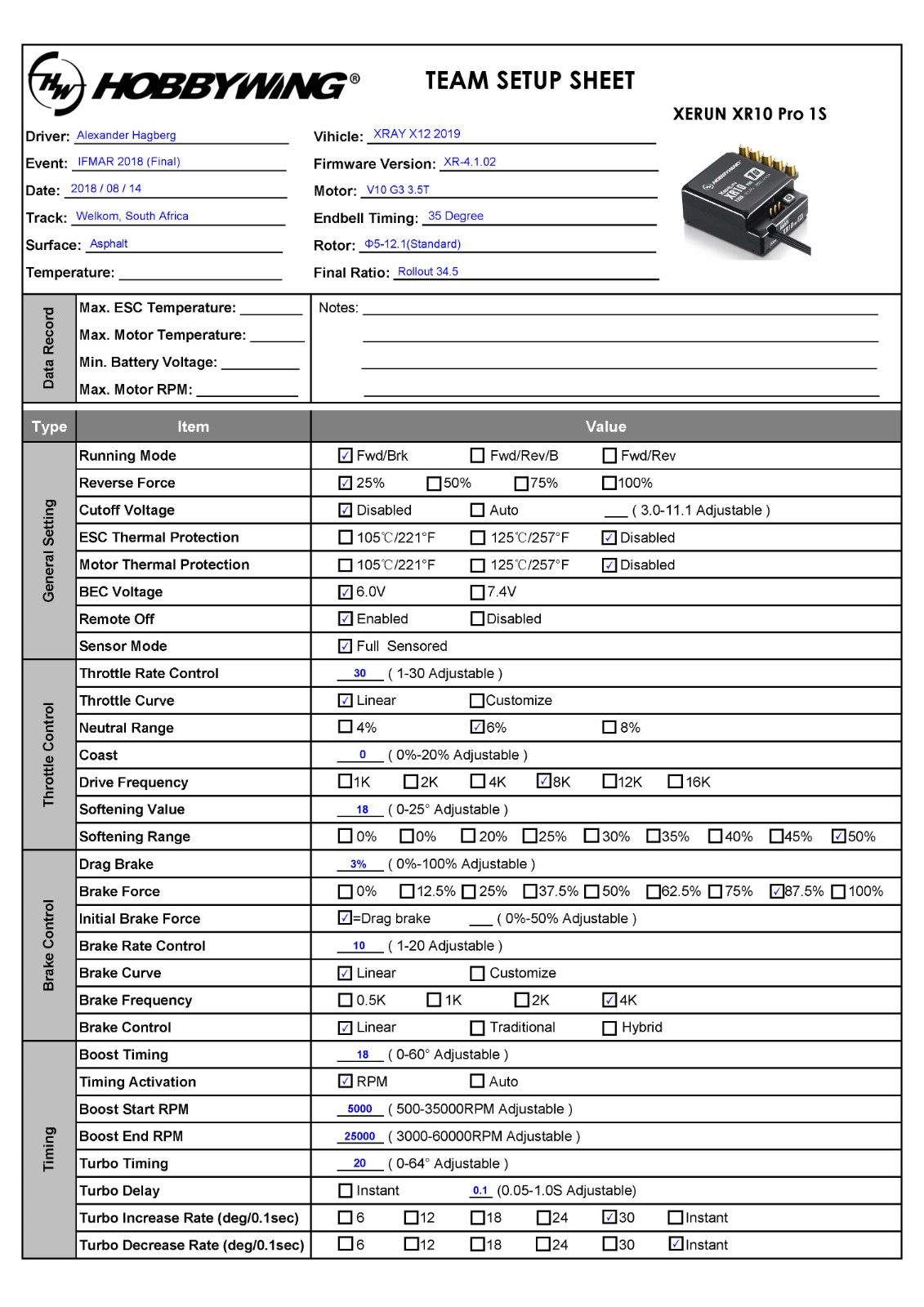

Classic Setups from Top Drivers : 1/10^th TC-Modified at IFMAR 2018 from World Champion Bruno Coelho

Classic Setups from Top Drivers ：1/10^th TC-Modified at IFMAR 2018 from World Champion Alexander Hagberg

Classic Setups from Top Drivers ：1/10^th TC-Modified at IFMAR 2016 from World Champion Bruno Coelho

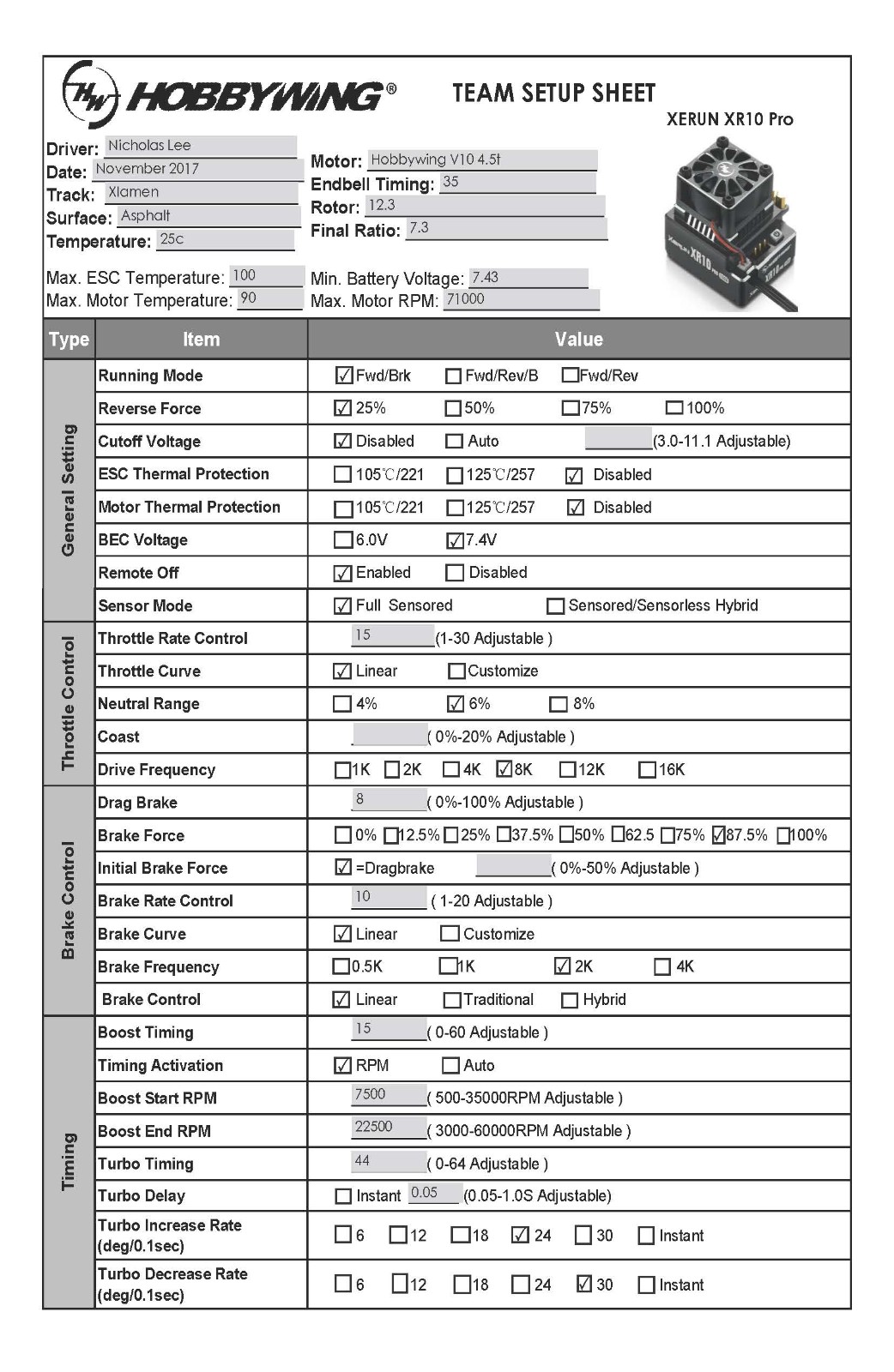

Classic Setups from Top Drivers ：1/10^th TC-Modified at TITC 2017 from World Champion Bruno Coelho

Classic Setups from Top Drivers ：1/10^th TC-Modified at Reedy Race 2017 from Top Driver Nicholas Lee

Classic Setups from Top Drivers ：1/10^th TC-Modified at SIGP 2017 from Top Driver Nicholas Lee

Classic Setups from Top Drivers ：1/10^th TC-Open Stock at TITC 2017 from Top Driver Jan Ratheisky

Classic Setups from Top Drivers ：1/10^th 2WD Buggy-Modified at INS8 from World Champion Ty Tessmann

Classic Setups from Top Drivers ：1/10^th 2WD Buggy-Modified at IFMAR 2017 from World Champion Bruno Coelho

Classic Setups from Top Drivers ：1/10^th 2WD Buggy-Modified at EOS 2018-19 Rd2 from World Champion Bruno Coelho

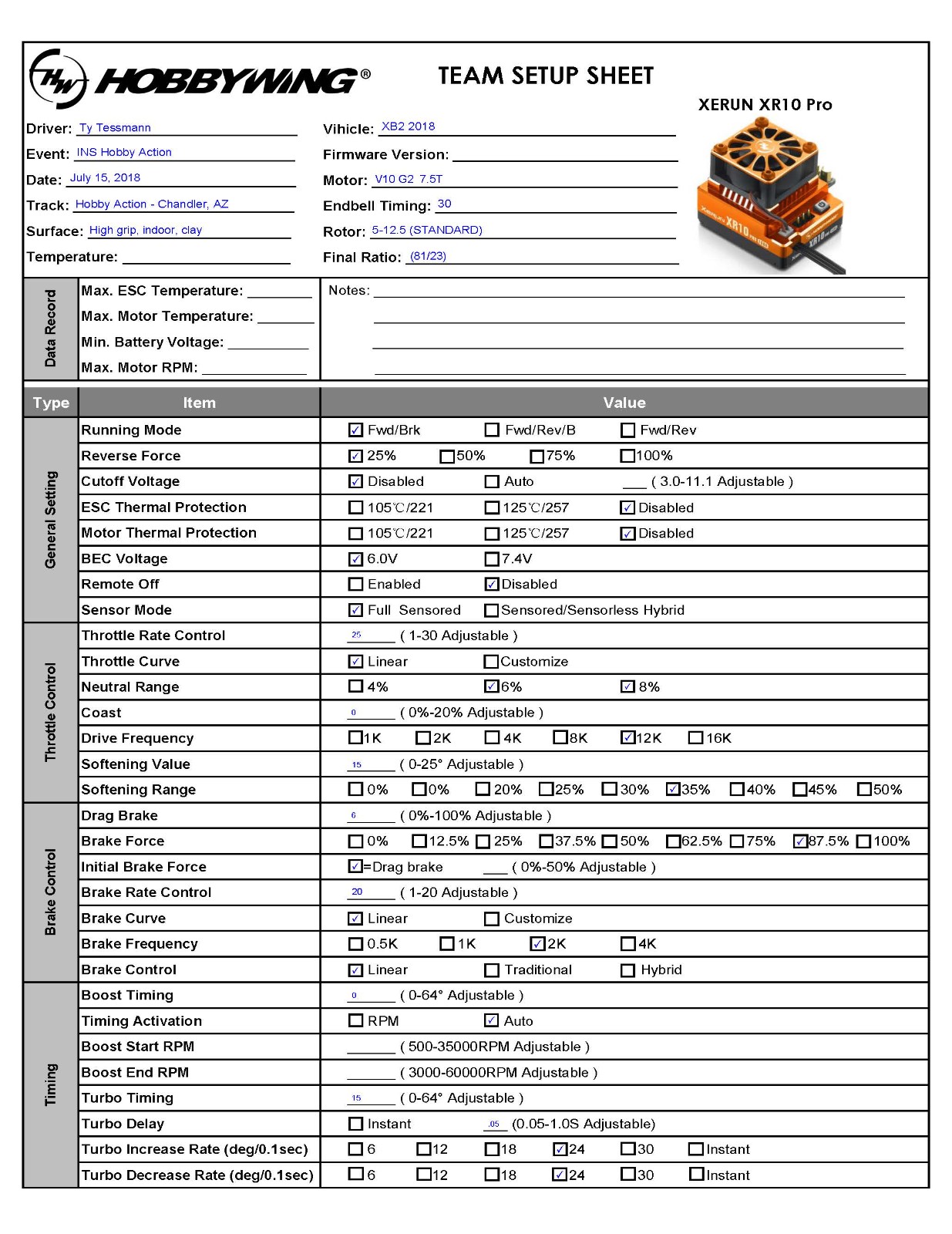

Classic Setups from Top Drivers ：1/10^th 2WD Truggy-Modified at INS8 from World Champion Ty Tessmann

Classic Setups from Top Drivers ：1/10^th 4WD Buggy-Modified at INS8 from World Champion Ty Tessmann

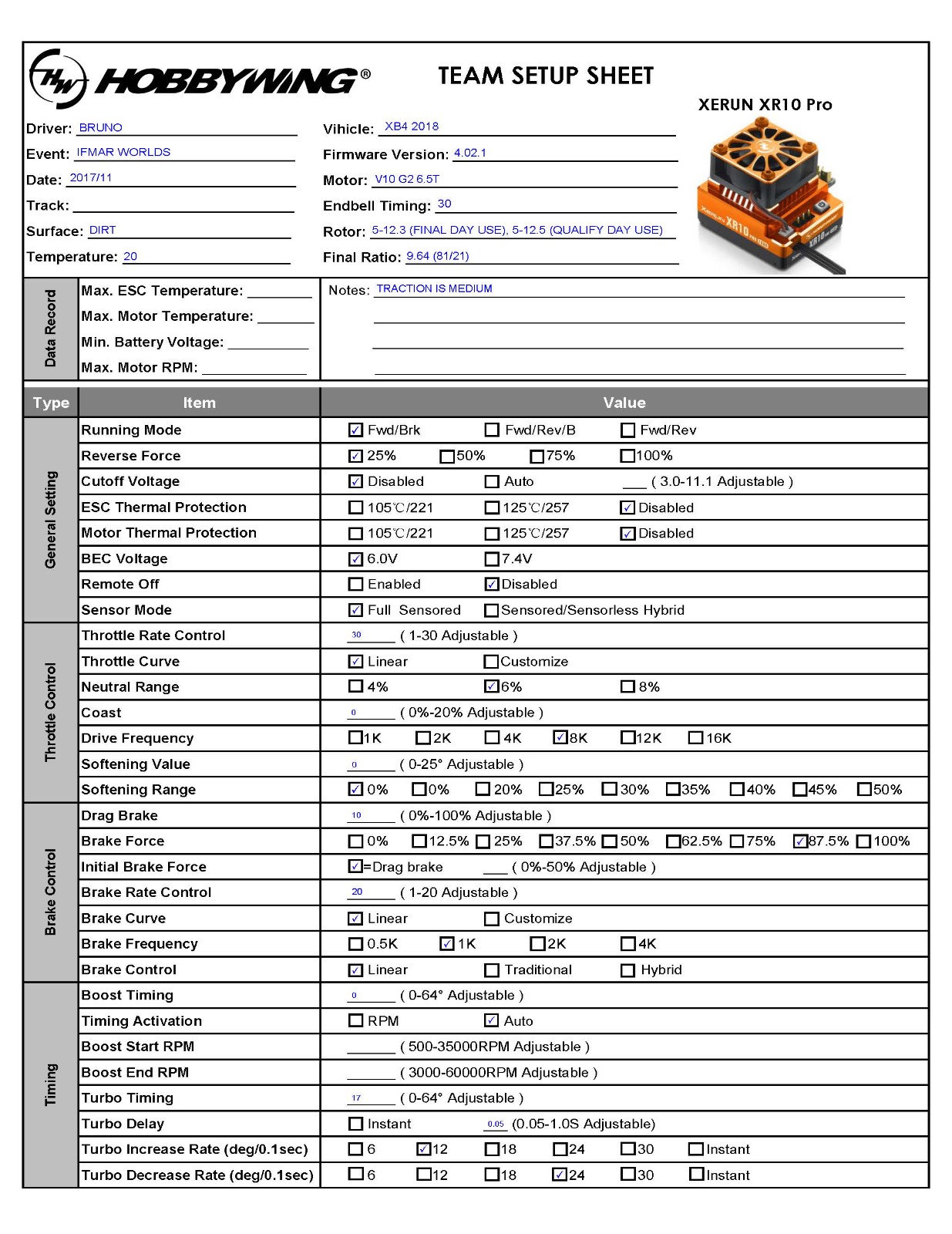

Classic Setups from Top Drivers ：1/10^th 4WD Buggy-Modified at IFMAR 2017 from World Champion Bruno Coelho

Classic Setups from Top Drivers ：1/10^th 4WD Buggy-Modified at EOS 2018-19 Rd2 from World Champion Bruno Coelho

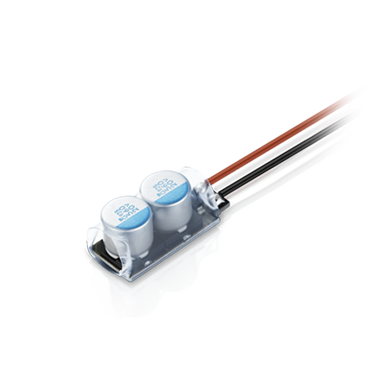

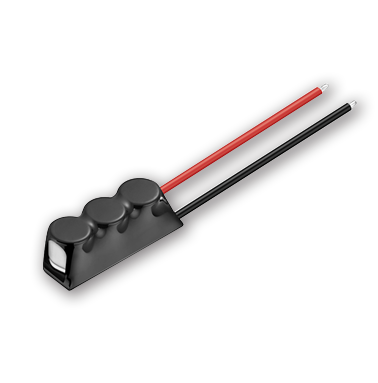

Low-impedance Capacitor Module

Part Number: 86030030, 86030000
Size: 29x13x13.2mm (LxWxH)
Applications: XeRun series & EzRun series
ESCs for 1/10^th scale vehicles

WiFi Express

STOPPED

WiFi Express

Product Number: 30503000
Working Voltage: 5V-12.6V
WiFi Protocol: IEEE802.11 b/g/n
WiFi Signal Effective Range: 0-10m
(Open Field) Applications: work on
the XeRun series, EzRun series
of car ESCs, and the Platinum series
of aircraft ESCs, and Seaking Pro
series of boat ESCs.

Multifunction LCD Program Box

Part Number: 30502001
Size: 91x51x17mm (LxWxH)
Applications: Platinum series of
brushless aircraft ESCs, XeRun
series & EzRun series of brushless
car ESCs, SeaKing Pro series of
brushless boat ESCs

OTA Programmer

Product Number: 30850400
Working Voltage: 5-12.6V
Supported Bluetooh Version: ≥ 4.0
Effective Range: 0-5m (Open Field)
Applications: work on the XzRun series,
EzRun series of car ESCs, and the Platinum
series of aircraft ESCs, and
Seaking Prp series of boat ESCs.
