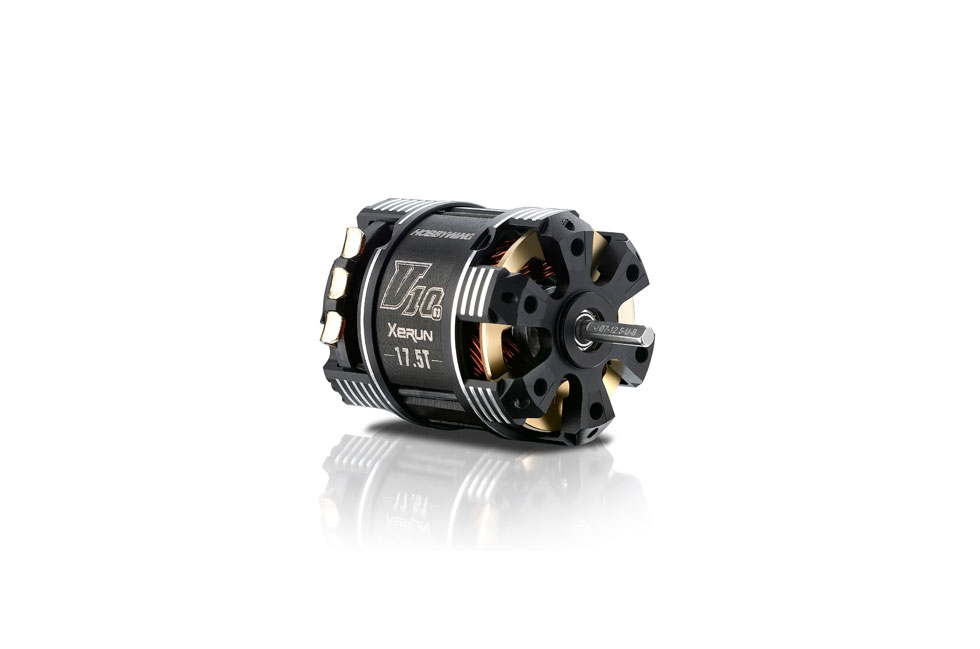

XeRun V10 G3

RPM Significantly Improved (for Stock Spec)

The G3 Stock Spec motor has its torque and KV rating improved by 4% and 16%
respectively, compared with the V10 G2 Stock Spec motor. The high torque & RPM
definitely will make this unit a “secret weapon” for the Stock class racing.

RPM Significantly Improved
(for Stock Spec)

XeRun V10 G3 Stock Spec

First-rate Linearity

The built-in high precision Hall sensor combined with the high precision
and balanced rotor will guarantee remarkable linearity of the motor.

First-rate
Linearity

Super Lightweight

The G3 Modified & Stock motors only weigh 161g and 132g
respectively; the weights are reduced by about 11% & 21%
when comparing with the V10 G2 motor. With the light weights,
drivers can easily adjust the balance of their vehicles.

Super
Lightweight

Asymmetric Bearings

By comparison (with the V10 G2 motor), for improving
the load-carrying capacity, the size of the front
bearing of the G3 motor is increased by 26% ; while
for lower resistance, the size of the rear bearing is
reduced by 6%. The asymmetric bearings design will
make the motor running more stable and smooth.

Asymmetric
Bearings

XeRun V10 G3

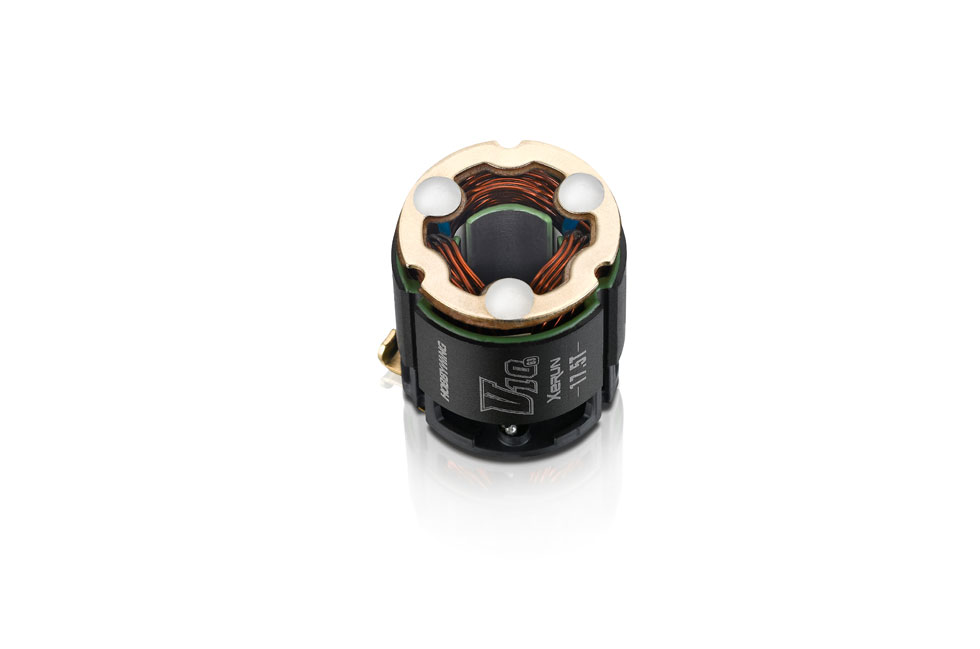

Great Heat Dissipation

The special shell design which makes the stator core (/laminations) expose to
the air will maximize cooling, the big holes(*) on the front & rear end plates will
guarantee outstanding heat dissipation of the motor.
(*Note: the 5.5T~8.5T motors are mainly adopted by off-road vehicles,
so the tactory detault end plates for those motors are the ones with small holes.)

Great Heat
Dissipation

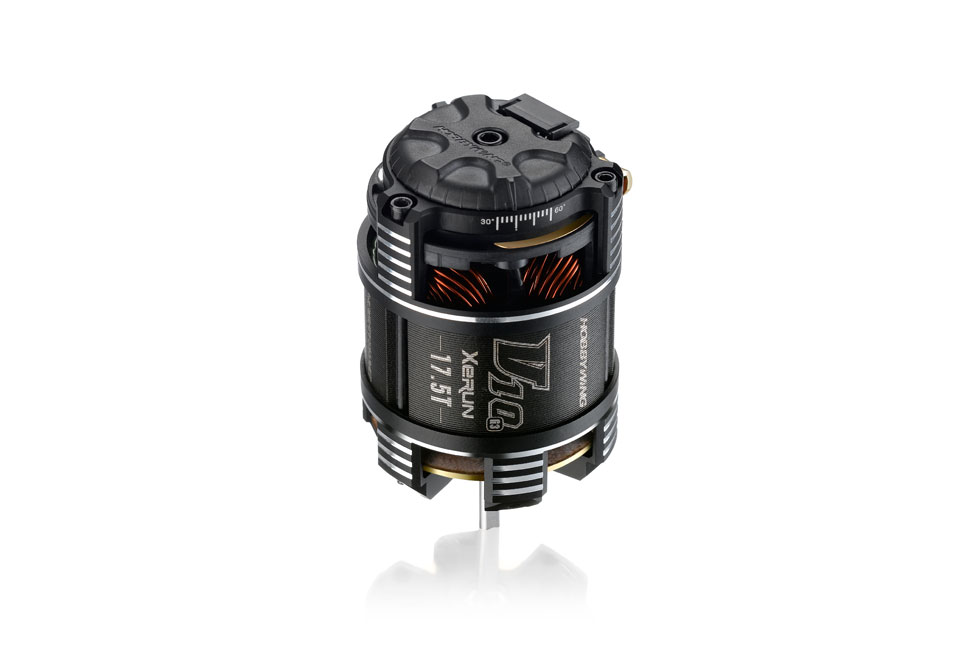

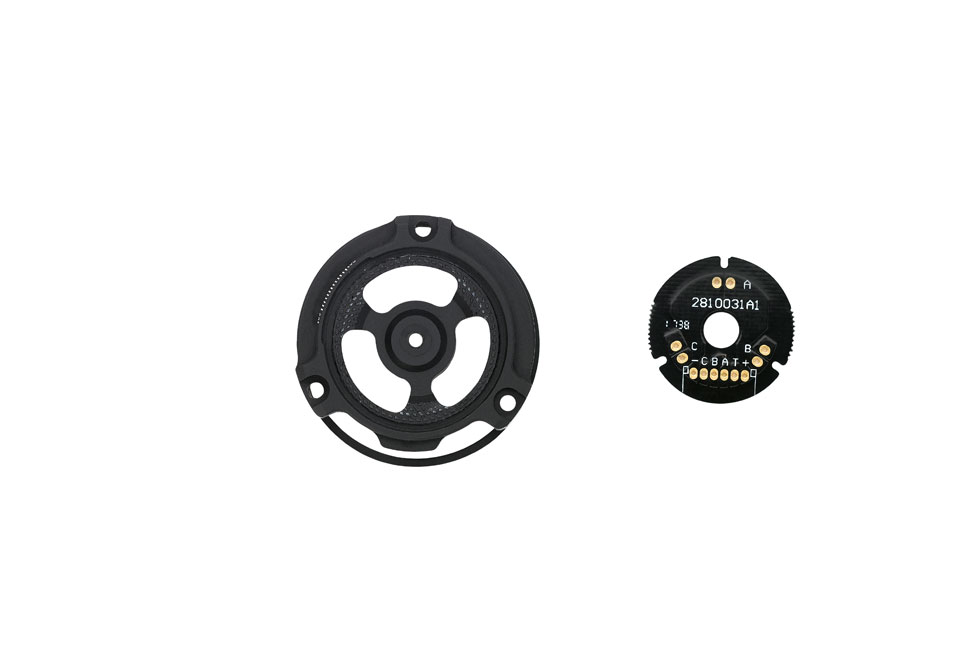

Stepless Adjustable Mechanical Timing

The mechanical timing can be adjusted finely and smoothly; the skid-proof lines
at the rear end of the motor will guarantee stability of the timing after adjustment.

Stepless Adjustable
Mechanical Timing

Re-buildable Structure

The detachable structure design for regular cleaning & maintenance will
effectively prolong the service life of the motor and retain its efficiency.

Re-buildable
Structure

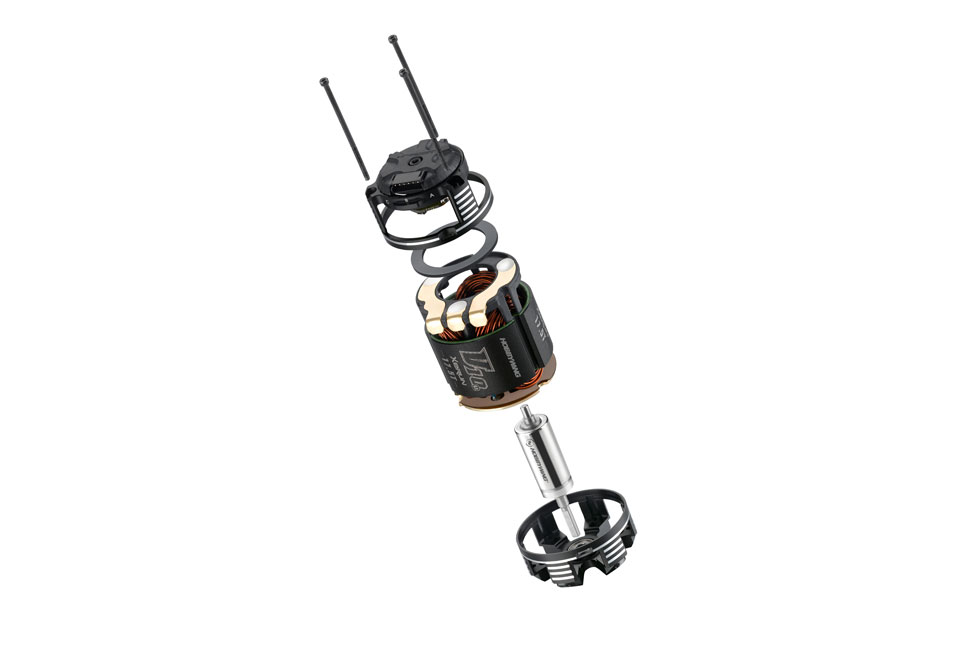

Exploded View of
XeRun V10 G3

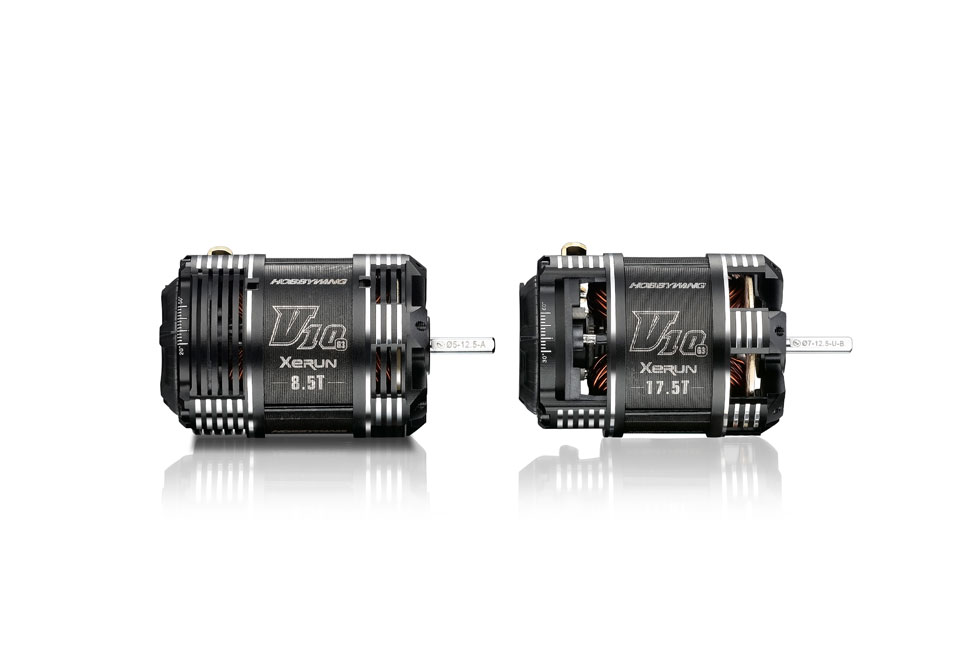

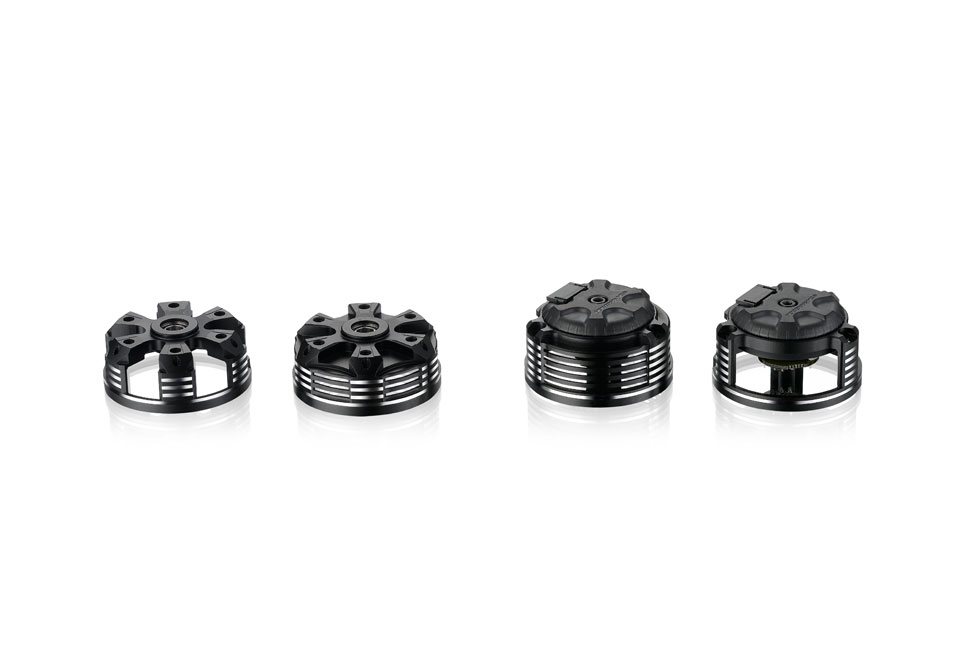

Two Different End Plates

The end plates with big holes adopted by the 3.5T~5.0T & 10.5T~21.5T motors will
guarantee excellent heat dissipation of the motor for on-road applications.
The end plates with small holes used by the 5.5T~8.5T motors will effectively prevent sand
or dirt from getting inside and damaging the motor for off-road applications.
Users can purchase and mount the end plates with big or small holes as per actual needs.

Two Different
End Plates

End Plates with Small Holes

End Plates with Big Holes

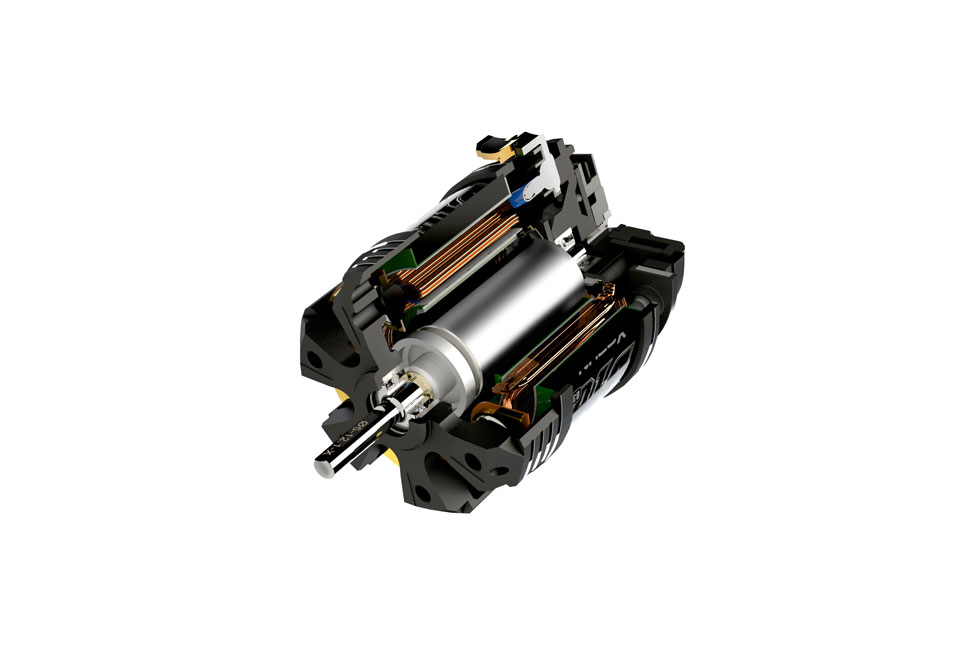

High-quality Components

The use of high-performance stator core (/laminations),
heat(200℃)-resistant pure copper wire, heat(200℃)-resistant
rotor with strong structure, international top brand high-precision
and high strength bearings, and copper solder tabs with super current
endurance will guarantee excellent performance and great
durability.

High-quality
Components

Product Name
Product Number
Type Scale

Brushed/Brushless

Sensored/Sensorless

Pole Count
Relevant Parameters KV Rating

LiPo Cells

No-load Current(A)

Max. Power Output(W)

Amp at the Max. Power Output(A)

Size & Weight O.D.(mm)

Length (mm)

Shaft Diameter (mm)

Shaft Length (mm)

Weight (g)

Front Bearing

Rear Bearing

Other Parameters Stock Rotor

Timing

Applications

Product Name XeRun V10 G3-3.5T XeRun V10 G3-4.5T XeRun V10 G3-5T XeRun V10 G3-5.5T XeRun V10 G3-6T XeRun V10 G3-6.5T XeRun V10 G3-7T XeRun V10 G3-7.5T XeRun V10 G3-8T XeRun V10 G3-8.5T XeRun V10 G3-10.5T XeRun V10 G3-13.5T XeRun V10 G3-17.5T XeRun V10 G3-21.5T XeRun V10 G3-25.5T XeRun V10 G3-13.5T-JMRCA XeRun V10 G3-17.5T-JMRCA XeRun V10 G3-21.5T-JMRCA XeRun V10 G3-6.5T OnRoad Spec
Product Number 30401106 30401102 30401116 30401107 30401117 30401109 30401118 30401110 30401119 30401111 30401112 30401103 30401104 30401105 30401113 30401120 30401121 30401122 30401123
Type Scale

Brushed/Brushless

Sensored/Sensorless

Pole Count
1/12th

BL

SD

2
1/10th,1/12th

BL

SD

2
1/10th,1/12th

BL

SD

2
1/10th

BL

SD

2
1/10th

BL

SD

2
1/10th

BL

SD

2
1/10th

BL

SD

2
1/10th

BL

SD

2
1/10th

BL

SD

2
1/10th

BL

SD

2
1/10th

BL

SD

2
1/10th

BL

SD

2
1/10th

BL

SD

2
1/10th

BL

SD

2
1/10th

BL

SD

2
1/10th

BL

SD

2
1/10th

BL

SD

2
1/10th

BL

SD

2
1/12th

BL

SD

2
Relevant Parameters KV Rating

LiPo Cells

No-load Current(A)

Max. Power Output(W)

Amp at the Max. Power Output(A)

9450

1S

7.7

462

126
7340

2S

6.7

457

122
6500

2S

5.5

443

118
5900

2S

5

426

115
5500

2S

4.5

415

113
5120

2S

3.9

402

113
4800

2S

3.5

364

106
4420

2S

3.3

346

100
4200

2S

3

320

88
3970

2S

2.8

298

84
4500

2-3S

5.5

260

74
3710

2-3S

4.5

216

59
2830

2-3S

3.9

152

42
2250

2-3S

2.8

118

32
1500

2-3S

1.6

79

23
3610

2-3S

4.1

205

56
2790

2-3S

3.5

144

40
2240

2-3S

2.4

112

30
6300

2S

7.4

428

107
Size & Weight O.D.(mm)

Length (mm)

Shaft Diameter (mm)

Shaft Length (mm)

Weight (g)

Front Bearing

Rear Bearing

35.9(1.41in)

51.2(2.01in)

3.17(0.125in)

13.3(0.52in)

163(5.75oz)

D9*D4*t4

D8*D3*t4
35.9(1.41in)

51.2(2.01in)

3.17(0.125in)

13.3(0.52in)

163(5.75oz)

D9*D4*t4

D8*D3*t4
35.9(1.41in)

51.2(2.01in)

3.17(0.125in)

13.3(0.52in)

159(5.60oz)

D9*D4*t4

D8*D3*t4
35.9(1.41in)

51.2(2.01in)

3.17(0.125in)

13.3(0.52in)

163(5.75oz)

D9*D4*t4

D8*D3*t4
35.9(1.41in)

51.2(2.01in)

3.17(0.125in)

13.3(0.52in)

162(5.71oz)

D9*D4*t4

D8*D3*t4
35.9(1.41in)

51.2(2.01in)

3.17(0.125in)

13.3(0.52in)

164(5.78oz)

D9*D4*t4

D8*D3*t4
35.9(1.41in)

51.2(2.01in)

3.17(0.125in)

13.3(0.52in)

161(5.68oz)

D9*D4*t4

D8*D3*t4
35.9(1.41in)

51.2(2.01in)

3.17(0.125in)

13.3(0.52in)

161(5.68oz)

D9*D4*t4

D8*D3*t4
35.9(1.41in)

51.2(2.01in)

3.17(0.125in)

13.3(0.52in)

160(5.64oz)

D9*D4*t4

D8*D3*t4
35.9(1.41in)

51.2(2.01in)

3.17(0.125in)

13.3(0.52in)

163(5.75oz)

D9*D4*t4

D8*D3*t4
35.9(1.41in)

50.5(1.99in)

3.17(0.125in)

14(0.55in)

133(4.69oz)

D9*D4*t4

D8*D3*t4
35.9(1.41in)

50.5(1.99in)

3.17(0.125in)

14(0.55in)

133(4.69oz)

D9*D4*t4

D8*D3*t4
35.9(1.41in)

50.5(1.99in)

3.17(0.125in)

14(0.55in)

131(4.62oz)

D9*D4*t4

D8*D3*t4
35.9(1.41in)

50.5(1.99in)

3.17(0.125in)

14(0.55in)

135(4.76oz)

D9*D4*t4

D8*D3*t4
35.9(1.41in)

51.2(2.01in)

3.17(0.125in)

13(0.51in)

154(5.43oz)

D9*D4*t4

D8*D3*t4

35.9(1.41in)

50.5(1.99in)

3.17(0.125in)

14(0.55in)

126(4.44oz)

D9*D4*t4

D8*D3*t4

35.9(1.41in)

50.5(1.99in)

3.17(0.125in)

14(0.55in)

130(4.59oz)

D9*D4*t4

D8*D3*t4
35.9(1.41in)

50.5(1.99in)

3.17(0.125in)

14(0.55in)

128(4.52oz)

D9*D4*t4

D8*D3*t4
35.9(1.41in)

51.2(2.01in)

3.17(0.125in)

13.3(0.52in)

150(5.29oz)

D9*D4*t4

D8*D3*t4
Other Parameters Stock Rotor

Timing

Applications

5-12.1

20-50 Degrees(Adjustable)

Modified Class of 1/12th

On-road Racing
5-12.3

20-50 Degrees(Adjustable)

Modified Class of 1/10th

&1/12th On-road Racing
5-12.3

20-50 Degrees(Adjustable)

Modified Class of 1/10th

&1/12th On-road Racing
5-12.5

20-50 Degrees(Adjustable)

Modified Class of 1/10th

4WD Off-road Racing
5-12.5

20-50 Degrees(Adjustable)

Modified Class of 1/10th

4WD Off-road Racing
5-12.5

20-50 Degrees(Adjustable)

Modified Class of 1/10th

4WD Off-road Racing
5-12.5

20-50 Degrees(Adjustable)

1/10th Drift, 2WD

Off-road Racing
5-12.5

20-50 Degrees(Adjustable)

1/10th Drift, 2WD

Off-road Racing
5-12.5

20-50 Degrees(Adjustable)

1/10th Drift, 2WD

Off-road Racing
5-12.5

20-50 Degrees(Adjustable)

1/10th Drift,

2WD Off-road Racing
7.3-12.5-U

30-60 Degrees(Adjustable)

1/10th Drift, Stock

Class of 1/10th
7.3-12.5-U

30-60 Degrees(Adjustable)

Stock Class of 1/10th

On-road Racing
7.3-12.5-U

30-60 Degrees(Adjustable)

Stock Class of 1/10th

On-road Racing
7.3-12.5-U

30-60 Degrees(Adjustable)

1/10th Stock Class Racing,

Rock Crawler
7.3-12.3-U

30-60Degrees(Adjustable)

1/10th Stock Class Racing,

Rock Crawler
Φ7.3-12.5-U

30-60Degrees(Adjustable)

Stock Class of 1/10th

On-road Racing
Φ7.3-12.5-U

30-60Degrees(Adjustable)

Stock Class of 1/10th

On-road Racing
Φ7.3-12.5-U

30-60Degrees(Adjustable)

Stock Class of 1/10th

On-road Racing
5-12.5

20-50 Degrees(Adjustable)

Modified Class of 1/12th

On-road Racing
