QuicRun WP Mini24
Designed for
smaller scale
crawling vehicles
The software, hardware, and structure of the QuicRun WP
Mini24 are tailor-made for small-scale crawling vehicles.
It has a large torque at low-speed, and operates smoothly.
The QuicRun WP Mini24 is the ideal choice for crawling
vehicles for 1/16th, 1/18th and 1/24th scale models.

Adjust drag brake
force in real time

The ESC programming port has an AUX function. Connect the
signal cable (standard 2pin cable) to an open channel on the
receiver to adjust the drag brake force in real time.
Adjusting drag brake force on the fly can be achieved to
meet various application environments.

Receiver

All-weather
operation capability
The ESC's protection level reaches IP67. Able to easily cope with
various competition environments such as rain, dust, and sand
with its excellent waterproof and dust-proof protection.
Note:
The above-mentioned IP67 protection level is splash-proof,
water-resistant, and dust-proof under normal use. It is not
permanently effective, and the protective performance may
decrease due to daily wear and aging. Do not soak in water for
a long time, otherwise the product may be damaged.
Built-in BEC supported for
high-voltage servo
The powerful switch mode BEC has a maximum current of 6A.
The output voltage is switchable between 6V/7.4V and
is suitable various standard/high-voltage servos on the market.
Waterproofing switch
The QuicRun WP Mini24 has a built-in waterproof switch with waterproof, dustproof,
and impact-resistant. Completely solved the traditional mechanical switch in dusty,
humid and other harsh environments frequent jamming, contact corrosion,
impact (such as falling to the ground) and lead to the
mechanical switch automatically shut down and other problems.

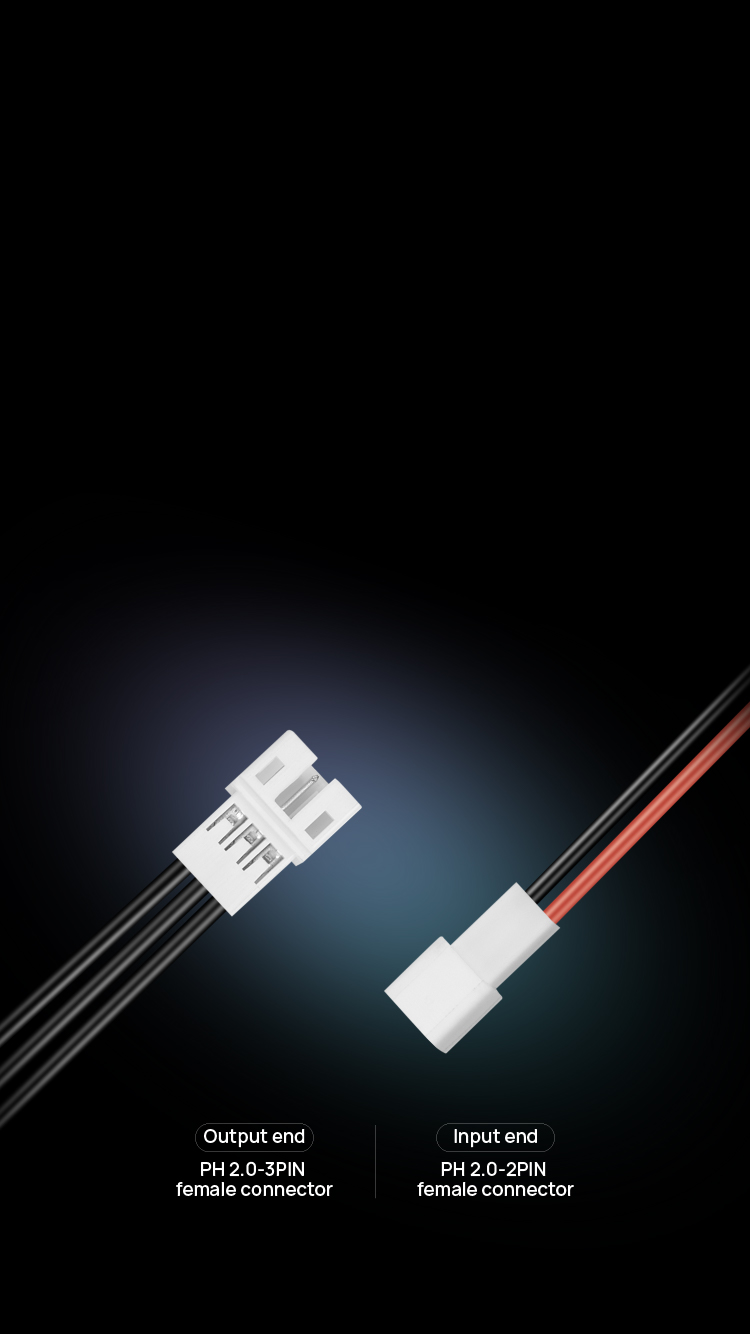

Easy to install
The QuicRun WP Mini24 uses a PH 2.0-3PIN female connector.
Plug and play with HW motors or another brand of motors with
the same plug. The input end uses a PH 2.0-2PIN female connector.
Other models such as SCX24 are able to plug and play.
The common connector saves the trouble of re-soldering plugs.
Note:
In addition, the ESC comes standard with a brushed adapter
cable for easy operation.
Support brushed and
brushless modes
The QuicRun WP Mini24 supports both brushed and brushless motors
with great compatibility.
Note:
The factory default is brushless mode. If you are connecting to a brushed
motor, please connect the A/C line and set the ESC to "Brushed Motor",
otherwise the ESC may be damaged.
Support brushed and
brushless modes
The QuicRun WP Mini24 supports both brushed and brushless motors
with great compatibility.
Note:
The factory default is brushless mode. If you are connecting to a brushed
motor, please connect the A/C line and set the ESC to "Brushed Motor",
otherwise the ESC may be damaged.
  • Brushless
  • Brushed
Support various LED/LCD
programming boxes
The ESC not only supports simple LED programming boxes,
but also supports high-end products like the
LCD programming boxes with a more complete display.

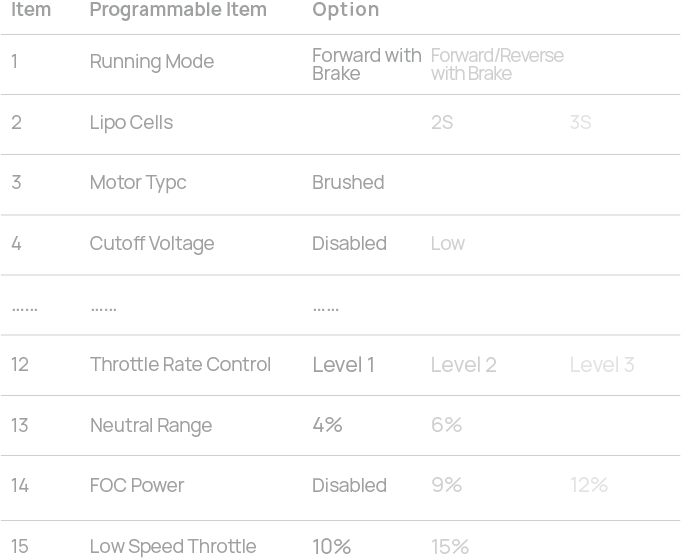

A vast variety of parameters
The QuicRun WP Mini24 has a vast variety of parameters for adjustment.
A total of 13 adjustable parameters are available.
It includes commonly used parameters such as drag brake force and drag brake acceleration.
It is able to adjust accurately the power requirements to meet various application setting needs.
Product Name
QuicRun WP Mini 24
Product Number
  30109004
Type
Scale 1/24th, 1/18th,1/16th
Brushed/Brushless Brushless,Brushed
Sensored/Sensorless Sensorless
Waterproof Waterproof
Specifications
Cont./Peak Current 25A/60A
Input Voltage 2-3S Lipo
BEC BEC Output 6V/7.4V adjustable, continuous current 2A (Switch mode)
Wires & Connectors
Input Wires Black-22AWG-110MMmm*1 Red-22AWG-110MMmm*1
Input Connectors Black-22AWG-60MMmm*3
Input Connectors PH2.0-2PIN Female Connector
Output Connecotors PH2.0-3PIN Female Connector
ESC Programing via
SET Button on ESC Not Supported
LED Program Box Supported
LCD G2 Program Box/LCD PRO Supported
OTA Programmer Not Supported
Program Port Independent programming cable
Data Recording
Extreme value Not Supported
Real-time Data Not Supported
Historical data (Graph) Not Supported
Firmware
Firmware Upgrade Not Supported
Size & Weight
Size 28*17.8*13mm
Weight 13.5g（including wires&connectors）
Applications
Motors Sensorless brushless motor, and brushed motor.
Vehicles 1/24thVehicles，1/18th、1/16thCrawlers
Applicable motors QUICRUN Outer 1621, mainstream 1212, 1806 sensorless outrunner motors; 050, 130, 180 including other brushed motors.
