QuicRun Fusion Mini16
QuicRun Fusion Mini16
Integrated design
The Fusion mini16 is the first commercialized FOC integrated power
system suitable for 1/18th and 1/16th scale models in the industry.
The frame layout is compact 24*42mm and lightweight 72g (including wires and plugs).
The petite size of the fusion mini16 is aesthetically beautiful
and solves wiring issues on smaller crawling vehicles.
Adjust drag brake force in real time
Connect the yellow signal wire to the open channel on
the receiver to adjust the drag brake force in real time.
Adjusting drag brake on the fly can be achieved to meet various application environments.
Note: The yellow signal wire is also the programming wire.
Please refer to the instruction manual for the connection method.
FOC drive,
good linearity,
high torque,
nearly silent
The Fusion mini16 is equipped
with a FOC drive method.
The large torque and excellent linearity
when operating at low speed further
exceeds standard brushless systems,
and matches the feel and
control of brushed systems.
The Fusion mini16 is nearly silent.
Smart Torque Output & Closed-loop
Speed Control for Easy Control

  • Up the hill
    The Fusion mini16 system automatically increases the
    torque output to overcome resistance and accelerate
    up the hill.

  • Going down the hill
    the ESC automatically reduces the torque output and
    stabilizes the vehicle speed when going down the hill.


Note: When the operating mode is set to normal mode, there is no fixed speed function, which is similar to a brushed effect.
IP66 protection level
The Fusion mini16 is IP66 protected.
It has excellent waterproofing and dust-proofing performance
to cope with complex and various climatic conditions.
Super Internal BEC
  • The powerful BEC has a
    continuous current of
    4A
  • Maximum
    current of
    10A
  • The output voltage is
    switchable between
    6V/7.4V
It is suitable various standard/high-voltage servos on the market.
Supports optional motor adapter,
compatible with
25.4mm mounting holes
  • The motor built in a set of mounting holes.
  • 14mm-M2.51 16mm-M2.52 17mm-M33
  • When the frame mounting hole is 25.4mm,
    an optional motor mounting conversion plate is available
    for purchase to adapt to more large-scale vehicle models.
Note: The conversion plate is an optional accessory and
needs to be purchased separately! （PN 30850502）
Wide applicability
  • The power system is
    not only suitable for
    1/16th and 1/18th
    climbing models
  • also suitable for
    1/14th、 1/12th and 1/10th
    lightweight single-speed scale models.
    (≤1.8kg, gear ratio ≥60).
Note: Since the proportions and sizes of each manufacturer are different,
please check whether there is enough space for the motor in the frame
before purchasing. For example, Traxxas 1/18 TRX-4M is not suitable
for this power system.
Supports three running modes
The Fusion mini16 meets a variety of application needs.

  • 1

    fixed speed mode
    (direct forward and reverse)

  • 2

    No fixed speed function normal
    mode
    (forward and reverse with brake)

  • 3

    No fixed speed function
    normal mode
    (direct forward and reverse)
Supports various
LED / LCD programming boxes
The ESC not only supports simple LED programming boxes,
but also supports high-end products like
the LCD programming boxes with a more complete display.
  • LED
  • LCD
  • LED programming box
  • LCD programming box PRO
A vast variety of parameters
The Fusion mini16 has a vast variety of parameters for adjustment.
It has a total of 13 adjustable parameters to meet various application setting needs.
Product Name
QuicRun Fusion Mini16
Product Number
  30120403
Type
Scale 1/16th,1/18th
Brushed/Brushless Brushless
Sensored/Sensorless Sensored
Waterproof Waterproof
Specifications
Cont./Peak Current 30A/80A
Input Voltage 2-3S LiPo,6-9 Cells NiMH
BEC BEC Output 6V/7.4V adjustable, continuous current 4A (Switch mode)
KV 3000KV
Motor Poles 4
Wires & Connectors
Input Wires Black-18AWG-150mm*1 Red-18AWG-150mm*1
Input Connectors EC2
ESC Programing via
SET Button on ESC Not Supported
LED Program Box Supported
LCD G2 Program Box/LCD PRO Supported
OTA Programmer Not Supported
Program Port Independent programming cable
Firmware
Firmware Upgrade Not Supported
Size & Weight

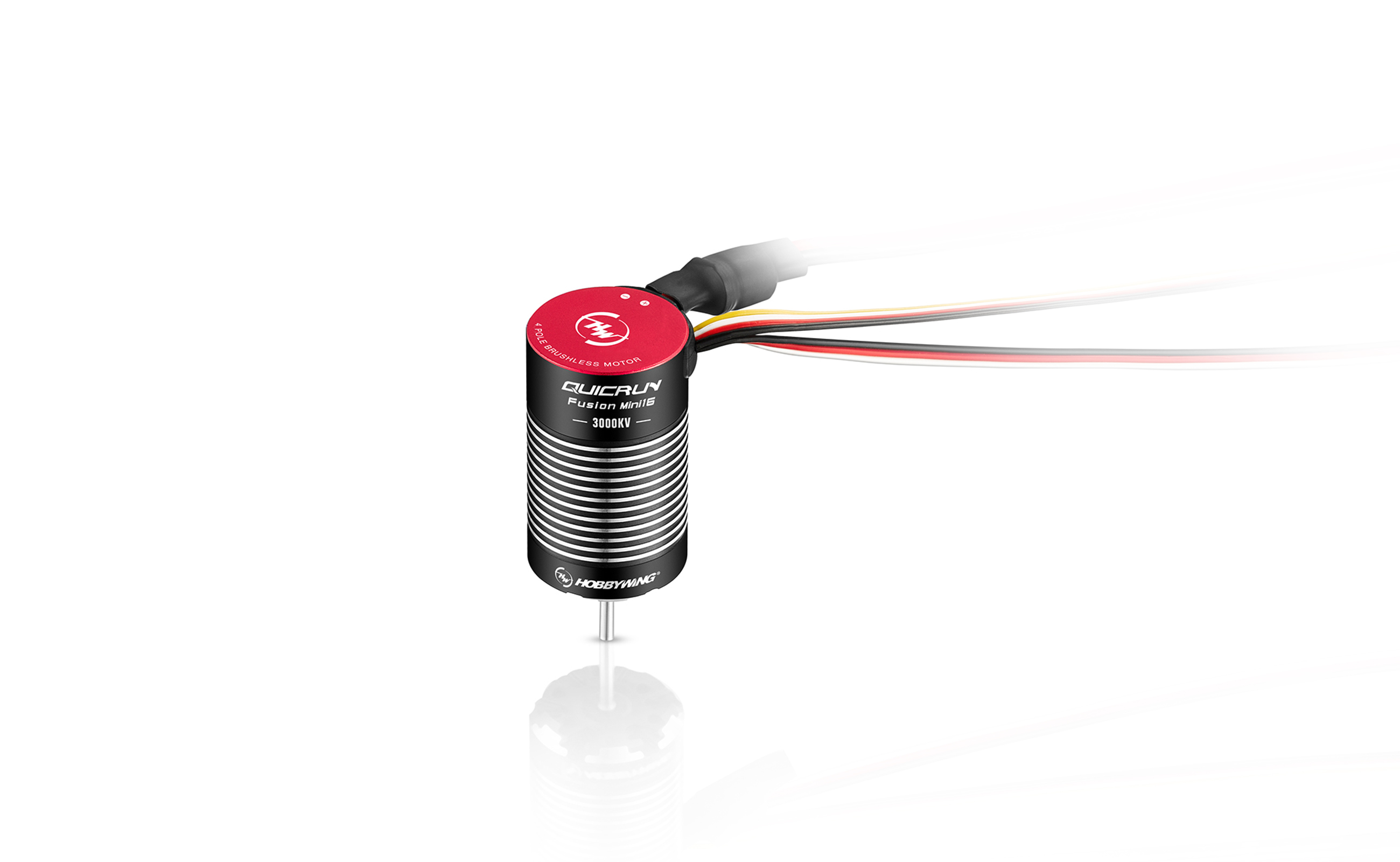

Diameter / Length of motor 24mm/42mm
Shaft diameter / exposed shaft length 2.3mm/13.5mm
Weight 72g（including wires&connectors）
Applications
Vehicles 1/16th,1/18thRock Crawler
Support

Manuals & Documents

Manuals

FAQ

LED Program Box_General

LED Program Box_General

Part Number: 30501003
Size: 88x58x14mm（LxWxH）
Applications:
Platinum V1/V2 series & FlyFun V5 SkyWalker V2
Series of brushless aircraft ESCs
XeRun series (most), EzRun series
& QuicRun series of brushless car ESCs
SeaKing series of brushless boat ESCs

+
LCD Program Box Pro

NEW

LCD Program Box Pro

Product Number: 30502002
Input Voltage: DC 5V~12.6V
Application: brushless ESC
Weight: 85g
Display:LCD

+

Products Center

Service and Support

News Center

About

Global Partners

Welcome to Brushless
System Trends

Privacy Policy 粤ICP备14009225号-1  |  ©2015 Hobbywing Technology CO., LTD.. All rights reserved
QuicRun Fusion Mini16
Overview Specifications Support Accessories Detail
QuicRun Fusion Mini16
Integrated design

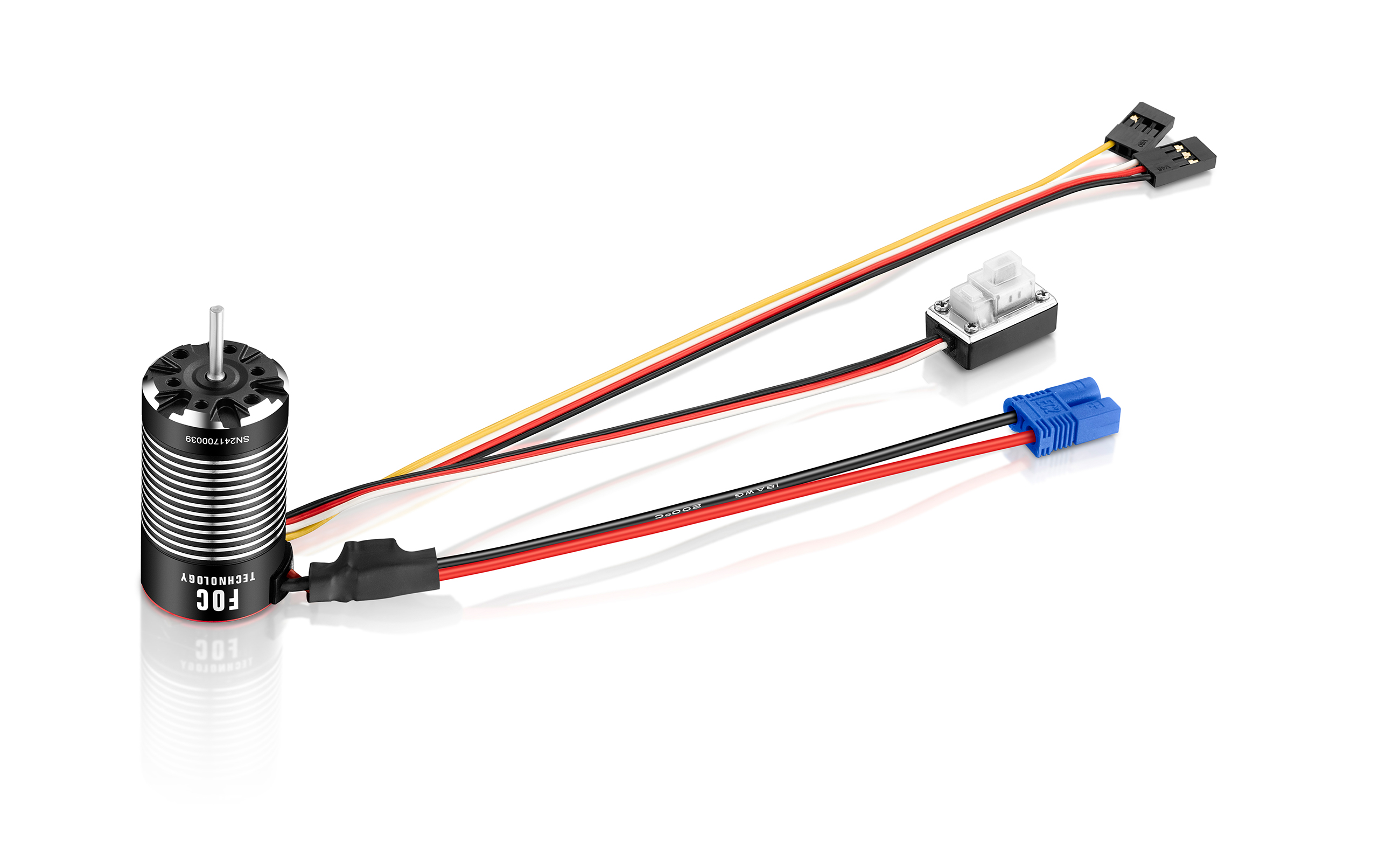

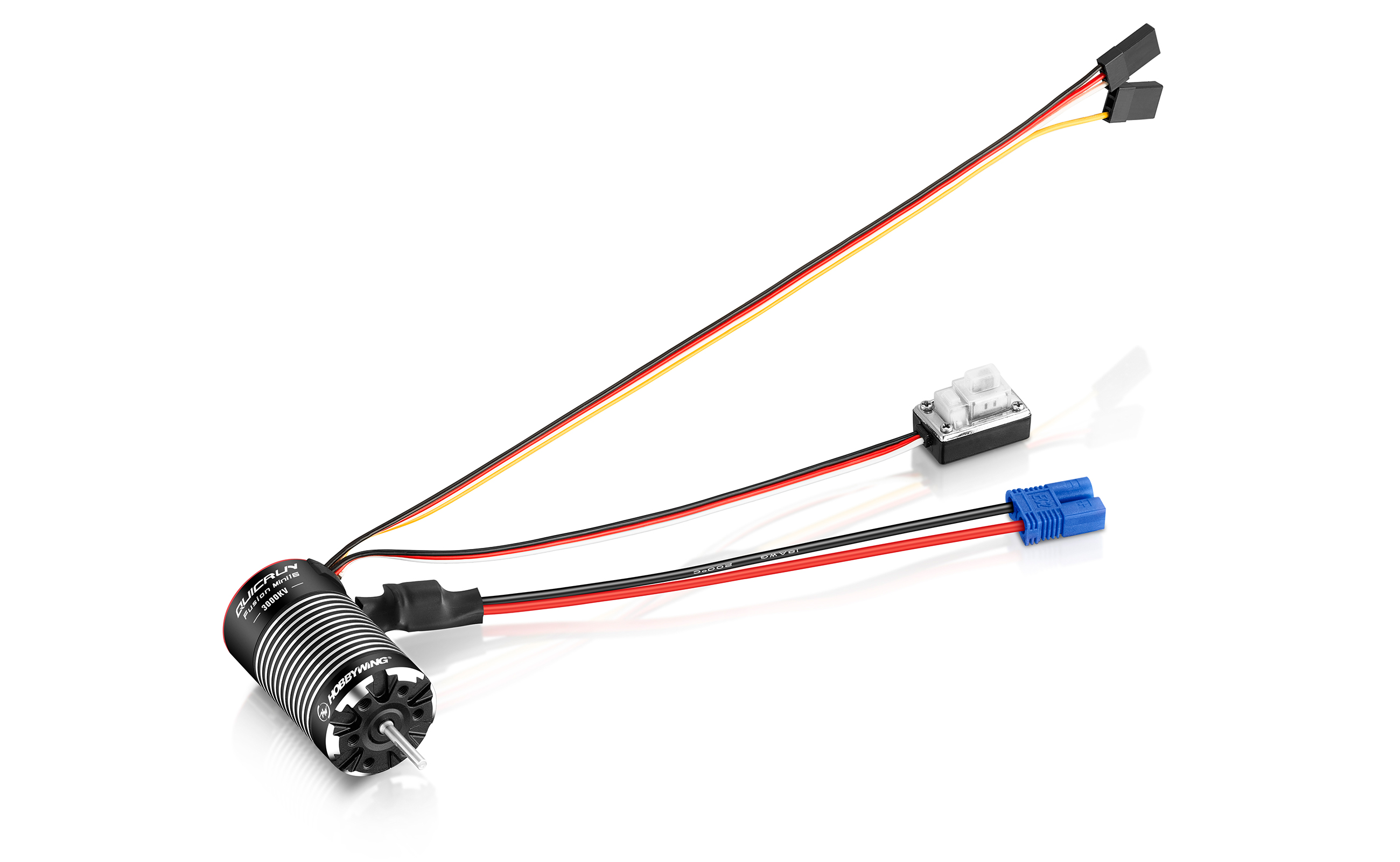

The Fusion mini16 is the first commercialized FOC integrated power
