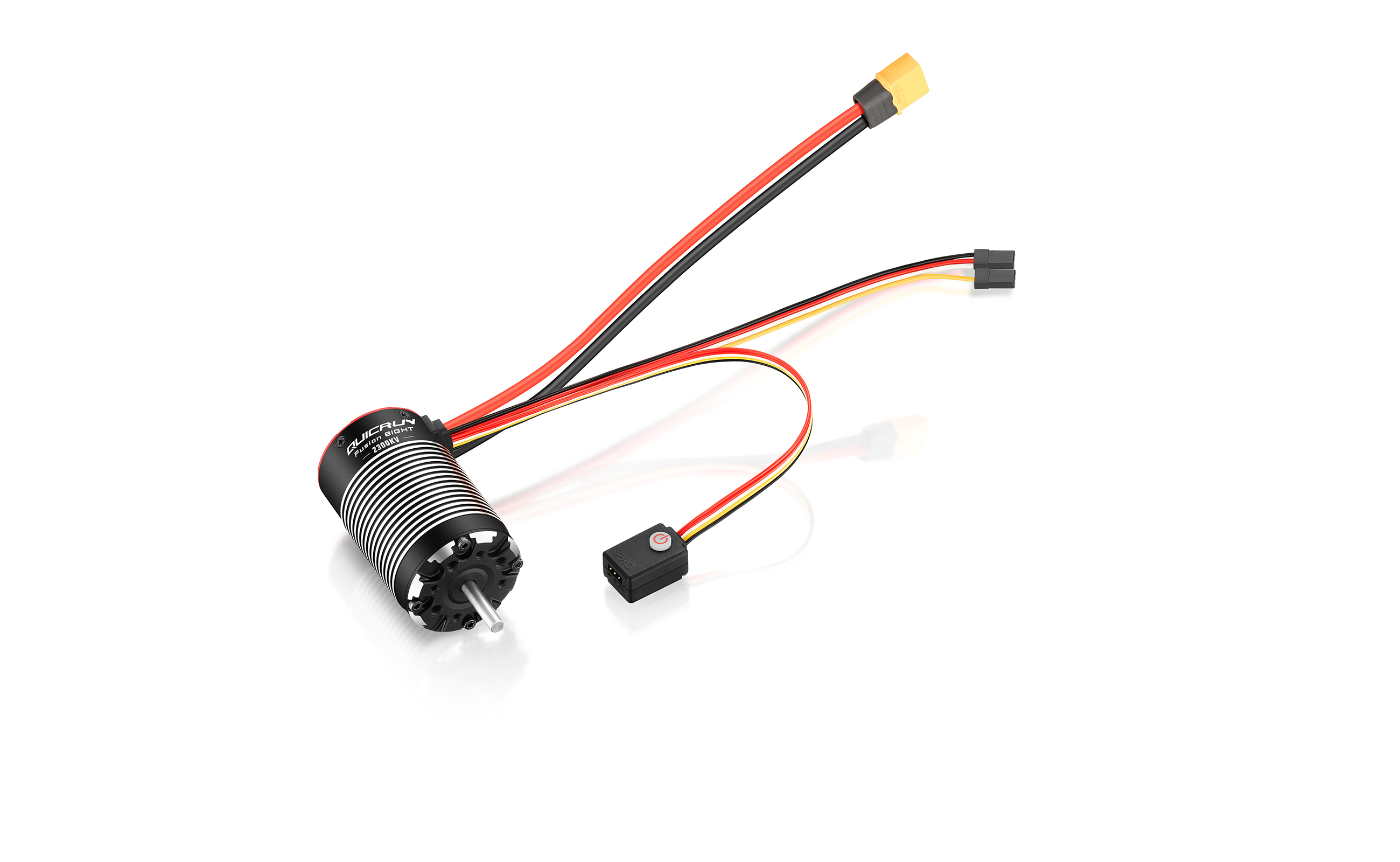

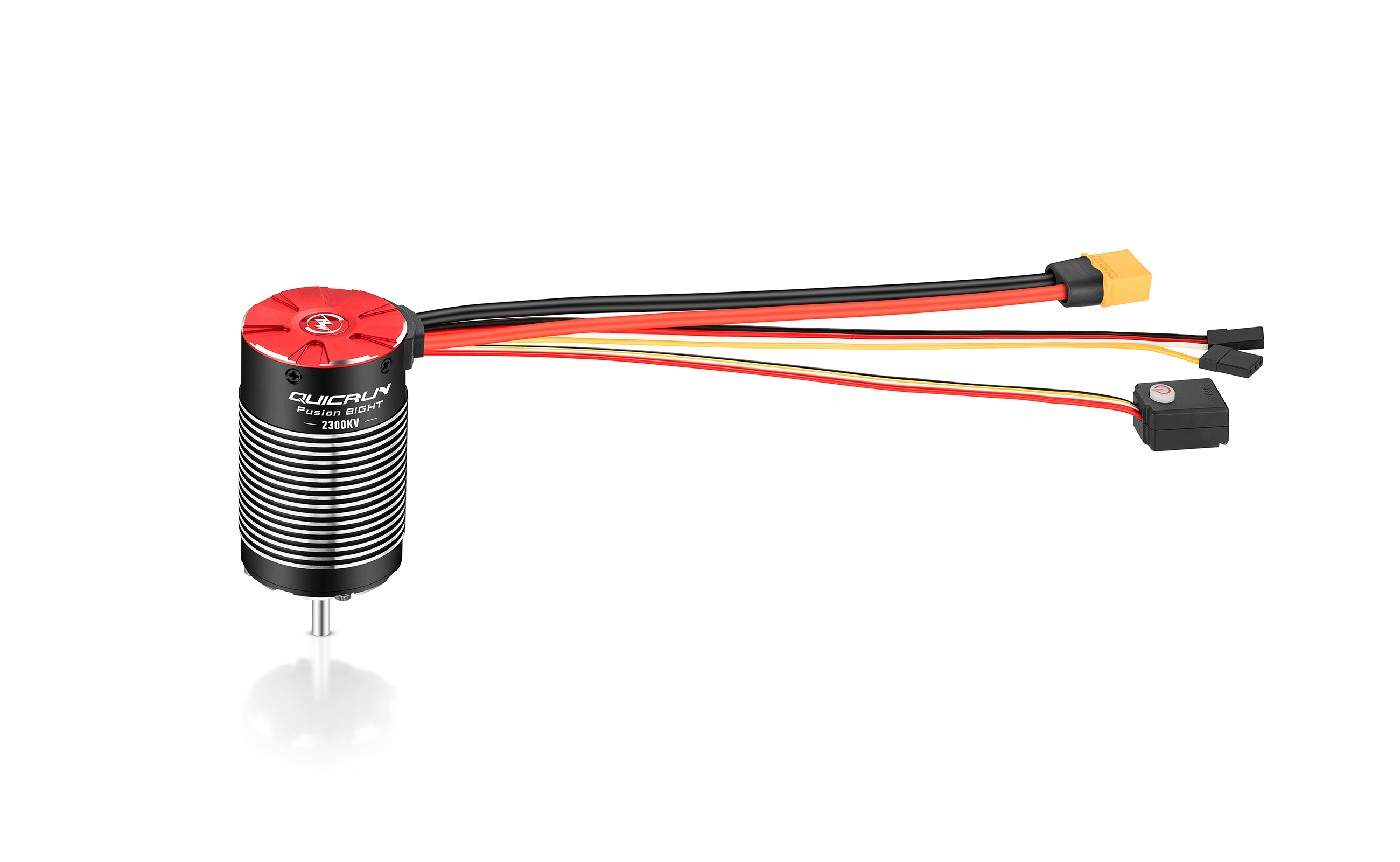

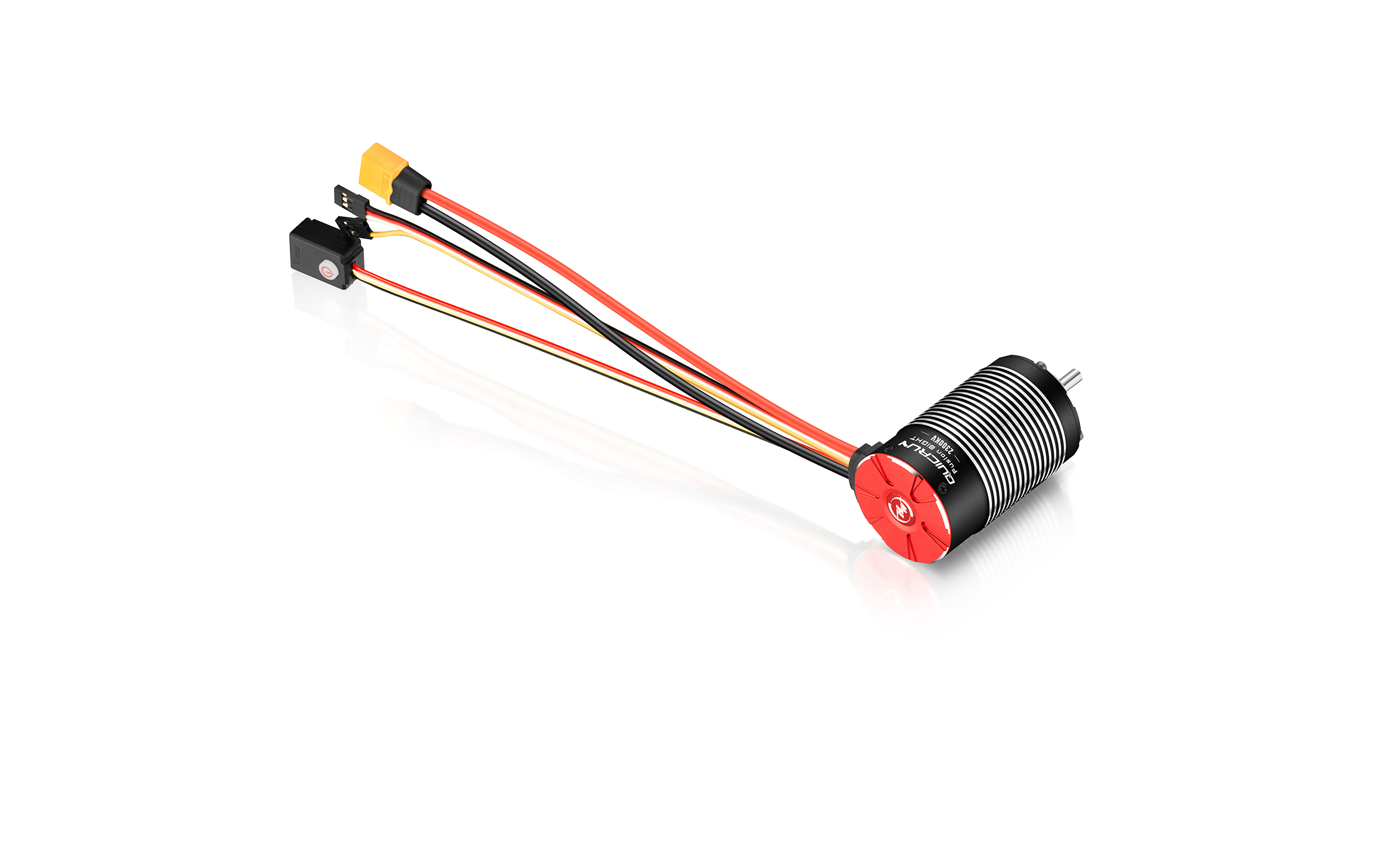

QuicRun Fusion 8IGHT
QuicRun
Fusion 8IGHT
Crawler integrated power system

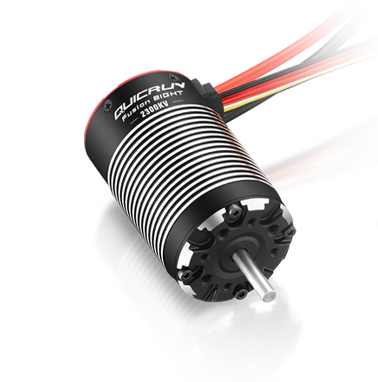

Integrated Design
The Fusion 8IGHT is the industry’s first Field-Oriented
Control (FOC) integrated power system, specifically designed for1/8th
scale models. Its compact frame layout measures 42×69mm, making
it a powerful yet space-efficient solution for builders. The integrated design
creates an ultra easy to install system, that makes for an extremely clean setup.
4S High Power Crawling ESC
  • The ESC is designed to support up to
    4S LiPo batteries
  • Delivering a maximum output current of up to
    80A
  • The Fusion 8IGHT is based on an 1/8th scale
    sized motor, but packs the performance to
    power large scale trucks and builds that re-
    quire more than average crawling power.
Adjust Drag Brake Force
in Real Time
Connect the yellow signal wire to an available
channel on the receiver to enable real-time
adjustments of the drag brake from your radio.
This feature allows on-the-fly drag brake tuning,
providing adaptability to various application
environments for optimal performance.

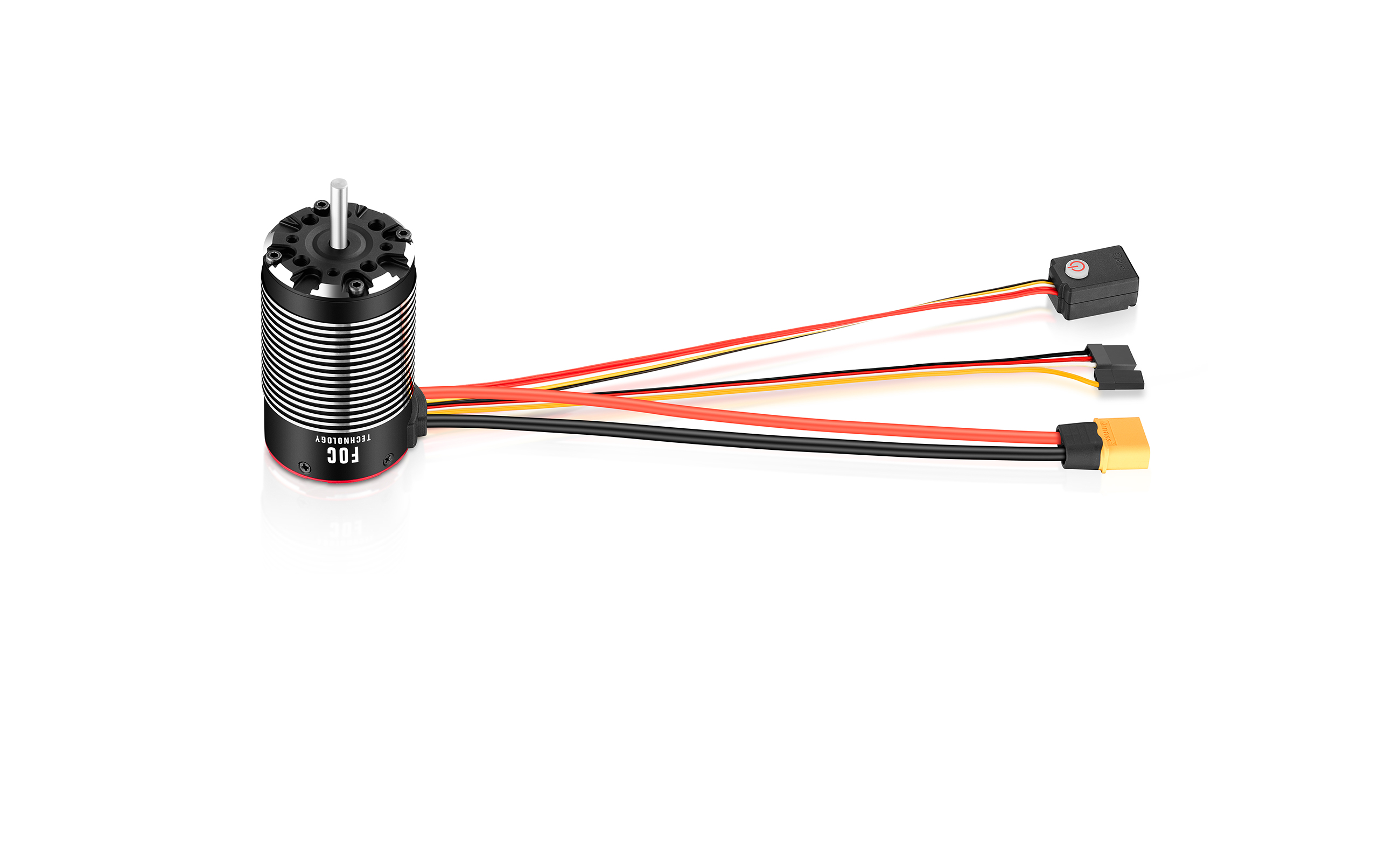

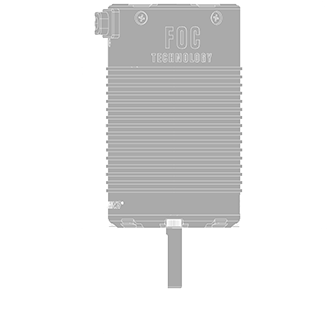

FOC Drive,
Throttle Linearity,
High Torque,
Nearly Silent
The Fusion 8IGHT is a FOC brushless system. Hobbywing’s unique
Field-Oriented-Control (FOC) provides ultra smooth control, while
providing response and feel that is 2nd to none. Not only is the
Hobbywing FOC tech extremely smooth and powerful, it provides
nearly silent operation and an amazing overall driving experience.
Smart Torque
Easy to Drive
Amazingly Smooth
  • Ascents, and climbs
    The ESC intelligently adjusts torque output to match driving
    conditions, automatically increasing torque to overcome
    resistance and accelerate uphill.

  • Decents
    Reducing torque to stabilise vehicle speed when descending.
    This smart torque management ensures precise speed
    control and smooth performance, delivering a consistently
    responsive driving experience.

Note: When operating in normal mode, the ESC does not have a fixed speed function,
providing a driving experience similar to that of a traditional brushed motor.
Applicable to
All Weather & Track Conditions
  • The entire power system is rated IP67, offering
    outstanding waterproof and dust-proof performance.
    This robust protection allows it to tackle challenging
    terrains such as sand, ice, snow, and water, ensuring
    reliable operation in diverse climatic conditions.
  • Note: The IP67 protection level mentioned above
    provides splash-proof, water-resistant, and
    dust-proof capabilities under normal use. However,
    it is not permanently effective, as protective
    performance may diminish over time due to regular
    wear and aging. Avoid prolonged immersion in water,
    as it may result in product damage.
Super Internal BEC
  • The Fusion 8IGHT features
    a built-in high-performance BEC
    with a maximum output current of 13A
  • Adjustable output voltages of
    6V/7.4V/8.4V
  • This flexibility allows it to effortlessly power a
    wide range of standard and high-voltage servos,
    as well as peripheral electronic devices such as
    light sets and winches.
Supports
Three Operating Modes
The system supports multiple operating modes to meet various application needs.
  • 1

    Fixed Speed Mode
    (direct forward and reverse)
  • 2

    Normal Mode
    (forward and reverse with brake)
  • 3

    Normal Mode
    without fixed speed functionality
Supports Various
LED / LCD Programming Boxes
Offering a more comprehensive display
and enhanced programming capabilities.
  • LED Program Box
    The ESC is compatible with both basic LED programming boxes
  • LCD Program Box Pro
    and advanced LCD programming boxes
A Vast Variety of
Parameters
The Fusion 8IGHT offers a wide range of customisable parameters,
with a total of 13 adjustable settings to accommodate diverse
application requirements and fine-tune performance.
  • Running Mode
  • Lipo Cells
  • Cutoff Voltage
  • Thermal Protection
  • Motor Rotation
  • BEC Voltage
  • Drag Brake Force
  • Drag Brake Rate
  • Max. Reverse Force
  • Max. Brake Force
  • RPM Decrease Rate
  • Punch
  • Neutral Range
  • Running Mode
  • Lipo Cells
  • Cutoff Voltage
  • Thermal Protection
  • Motor Rotation
  • BEC Voltage
  • Drag Brake Force
  • Drag Brake Rate
  • Max. Reverse Force
  • Max. Brake Force
  • RPM Decrease Rate
  • Punch
  • Neutral Range
Product Name
QuicRun Fusion 8IGHT
Product Number
  30120404
Type
Scale 1/8th
Brushed/Brushless Brushless
Sensored/Sensorless Sensored
Waterproof Waterproof
Specifications
Cont./Peak Current 80A/240A
Input Voltage 2-4S LiPo,6-12 Cells NiMH
BEC BEC Output 6V/7.4V/8.4V adjustable,continuous current 6A (Switch mode)
KV 2300KV
Motor Poles 4
Wires & Connectors
Input Wires Black-13AWG-250mm*1 Red13AWG-250mm*1
Input Connectors XT60
ESC Programing via
SET Button on ESC Not Supported
LED Program Box Supported
LCD G2 Program Box/LCD PRO Supported
OTA Programmer Not Supported
Program Port Independent programming port(switch position)
Firmware
Firmware Upgrade Not Supported
Size & Weight
Diameter / Length of motor 42mm/69mm
Shaft diameter / exposed shaft length 5mm/18.5mm
Weight 338(including wires&connectors)
Applications
Vehicles 1/8th Rock Crawler
Support

Manuals & Documents

FAQ
