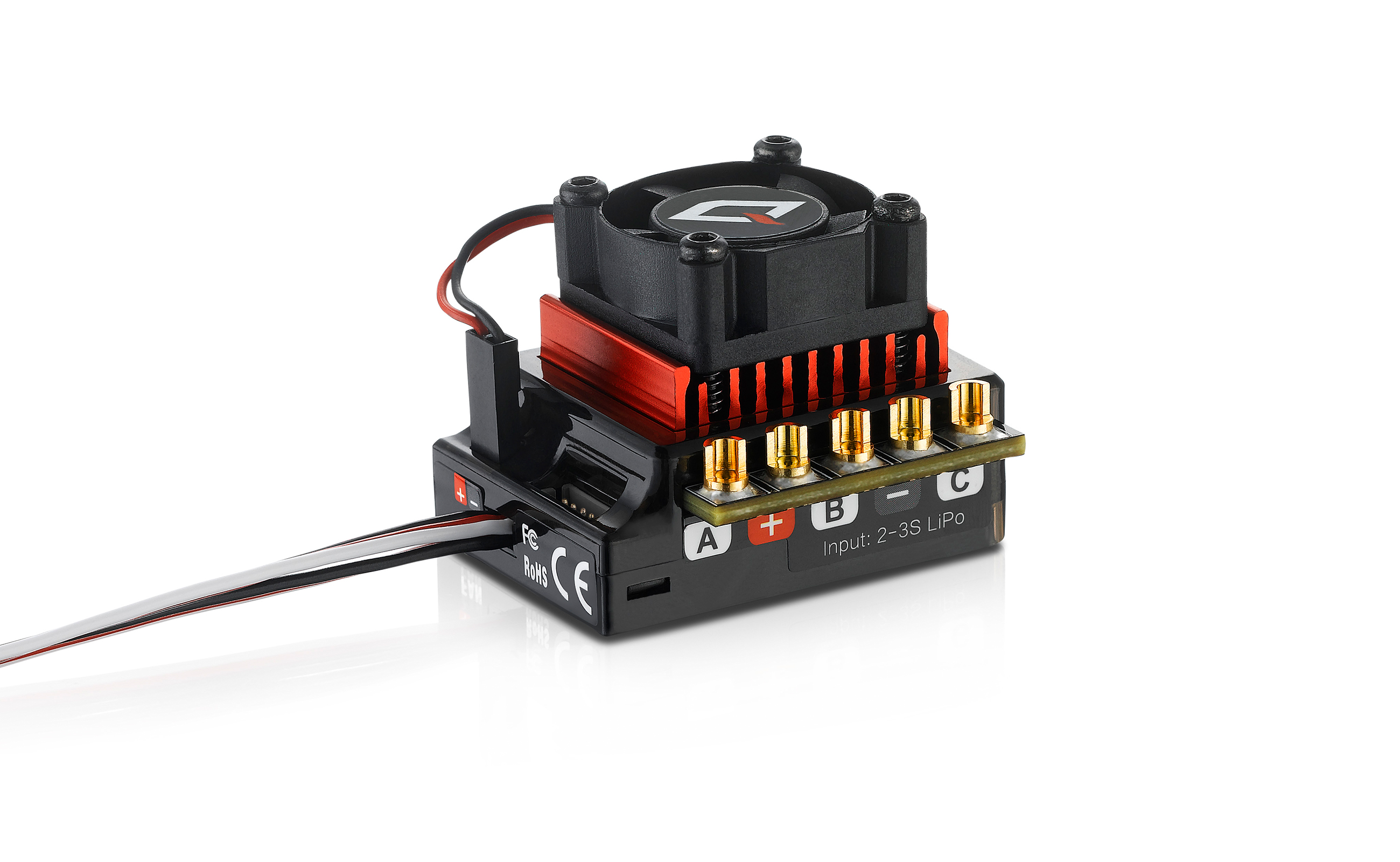

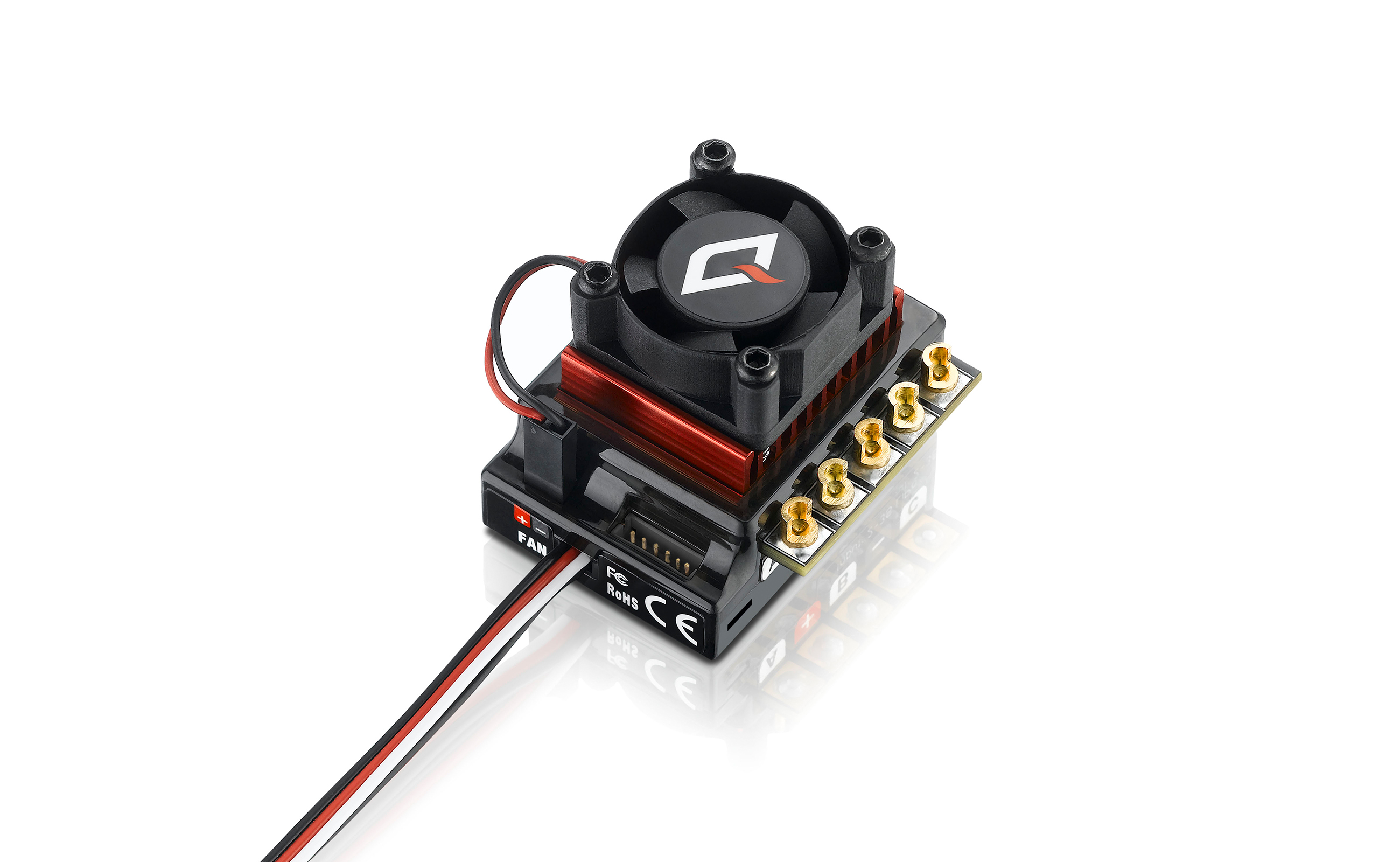

QuicRun 10BL120 Sensored G2

Overview
Specifications
Support
Accessories
Detail

QuicRun
10BL120 SENSORED G2

Best value for money, Easy to use

The new 10BL120 G2,
takes the outstanding quality and durability of proven
HOBBYWING platforms and makes it even easier to use and setup.
The perfect choice for 10^th scale setups.

BEC upgrade, stronger driver

The BEC's continuous output current
has been upgraded from 3A to 4A.
The maximum current is at 7A,

and the output voltage
is now 6V/7.4Vadjustable.

Hobbyist will be able to use
high-voltage and powerful
servos available on the
market with greater control.

Boost/Turbo timing
technology

The 10BL120 G2 features adjustable electronic timing.
Turbo and Boost can be used to fine tune power delivery
and get the most out of your setup.
Up to 32 degrees of electronic timing is available.

Note:
Boost and Turbo timing cannot be used with a
3S battery to prevent damage.

Combining software and hardware to
provide comprehensive protection

The ESC is built using top of the line hardware,
and proven software to provide a robust and reliable platform.

This allows for multi level protection that adds to
the overall performance and durability.

Abundance programming methods

Multiple programming/tuning methods are supported.
Works with the Multifunction LCD programming Box Pro,
The Multifunction LCD Programming Box (Non pro), the LED Programming Box,
and has on board button/led tuning.

Supports Motor Rotation

The motor rotation is adjustable
CW (clockwise) and CCW (counterclockwise),
adapting to different chassis.

Product Name
Product Number
Type	Scale Brushed/Brushless Sensored/Sensorless Waterproof
Specifications	Cont./Peak Current Input Voltage BEC Output
Wires & Connectors	Input Wires Output Connectors Input Connectors Output Connecotors
ESC Programing via	SET Button on ESC LED Program Box LCD Pro Program Box OTA Programmer Program Port
Fan	Size Output Wires Input Connectors
Firmware	Firmware Upgrade
Size & Weight	Size Weight
Applications	Motors Vehicles KV Rating/T Count

Product Name		QUICRUN WP 10BL120 G2
Product Number		30125002
Type	Scale Brushed/Brushless Sensored/Sensorless Waterproof	1/10^th BL SD No
Specifications	Cont./Peak Current Input Voltage BEC Output	120A/760A 2-3S Lipo Switch Mode 6V/7.4V @4A
Wires & Connectors	Input Wires Output Connectors Input Connectors Output Connecotors	Black-12AWG-200MMmm1 / Red--12AWG-200MMmm1 Blue-12AWG-200mm1 Yellow-12AWG-200mm1 Orange-12AWG-200mm*1 No No
ESC Programing via	SET Button on ESC LED Program Box LCD Pro Program Box OTA Programmer Program Port	Supported Supported Supported Not Supported Separate Program Port
Fan	Size Output Wires Input Connectors	25x25x10mm 5-8.4V Powered by BEC
Firmware	Firmware Upgrade	Not Supported
Size & Weight	Size Weight	4336.832.3mm 101.5g (Included wires&connectors)
Applications	Motors Vehicles KV Rating/T Count	Sensorless / Sensored Brushless Motor 1/10^th Touring Cars/Buggies/Drift Cars 2SLipo≥4.5T 3SLipo≥10.5T 3650 Size Motor
