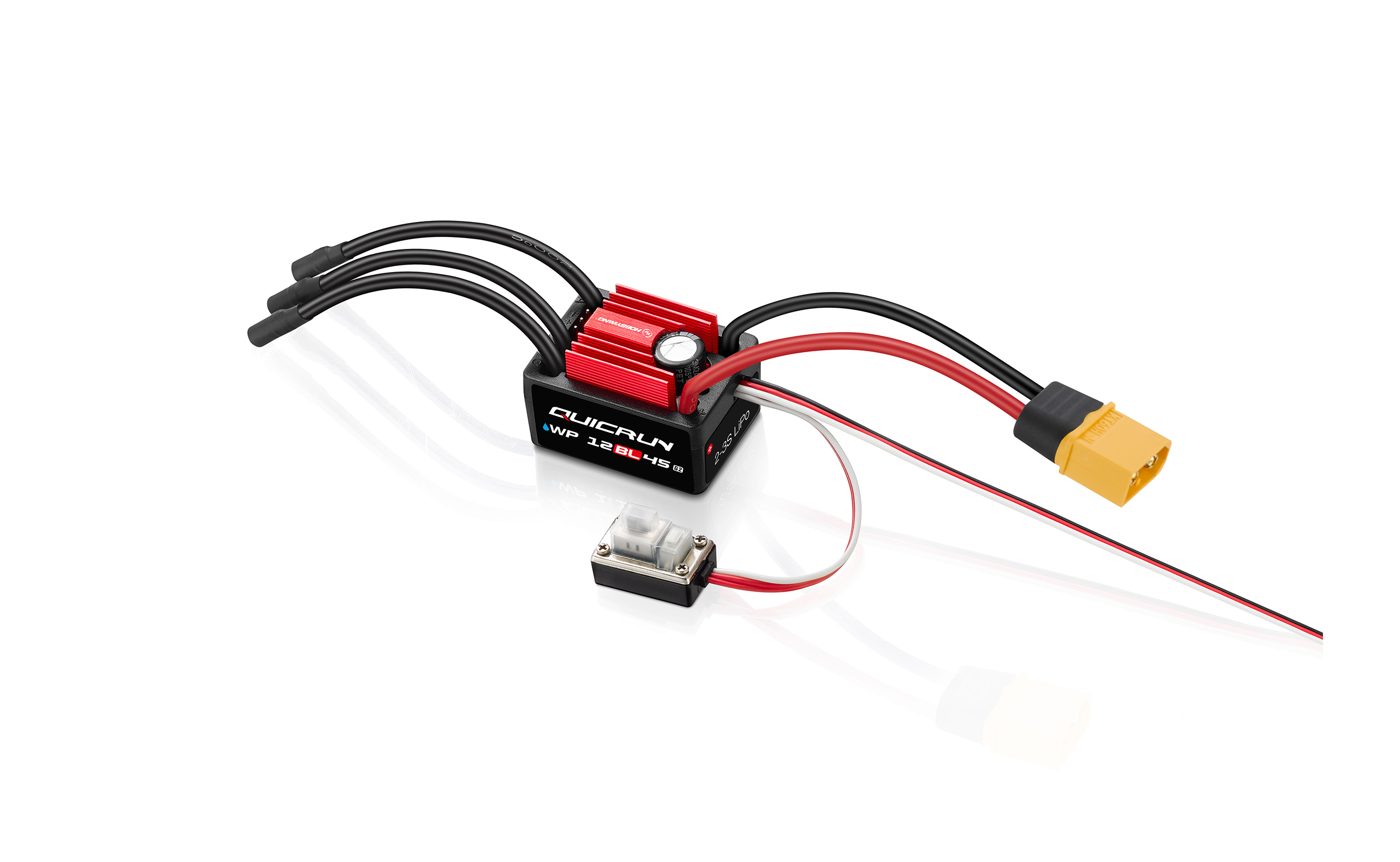

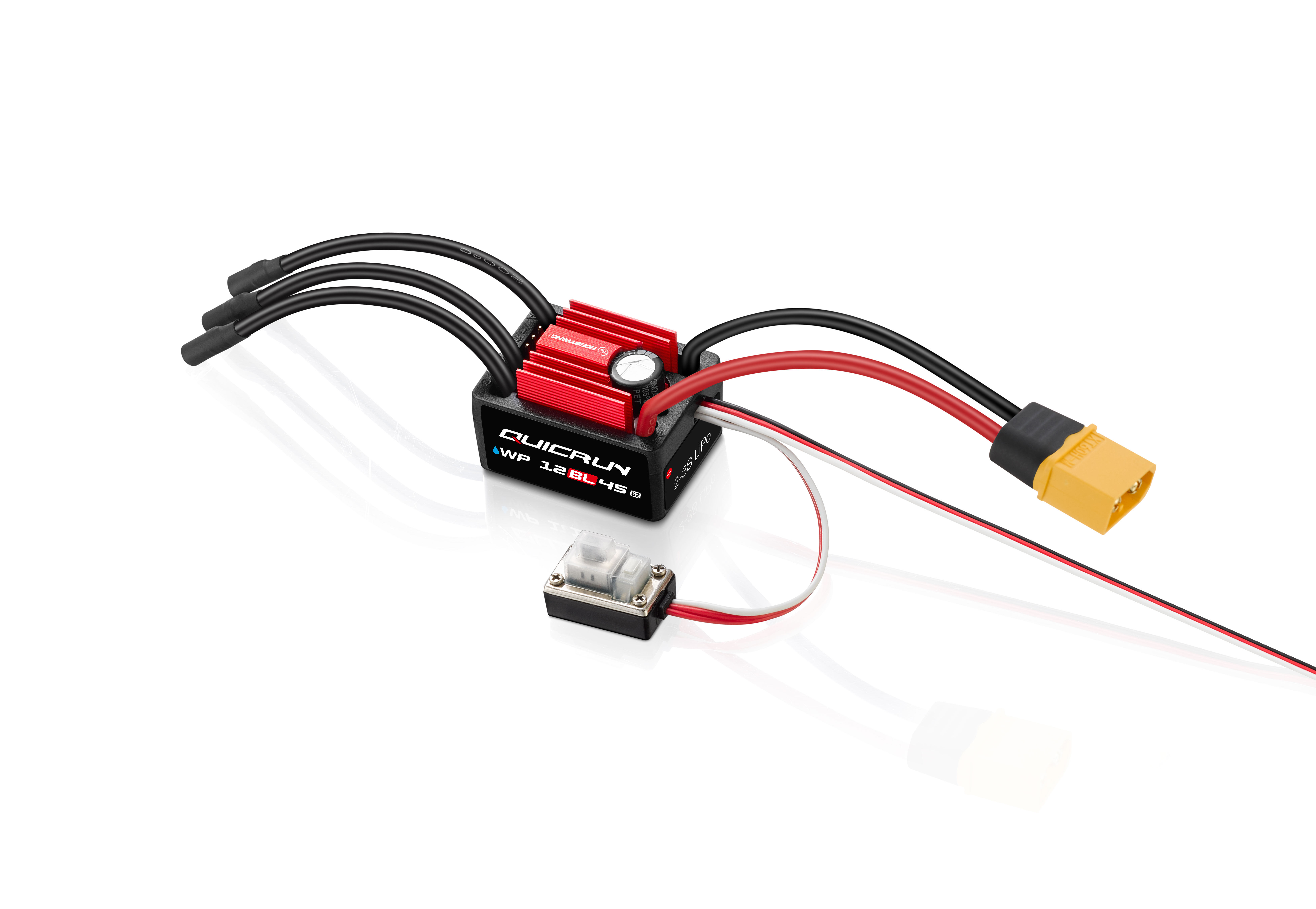

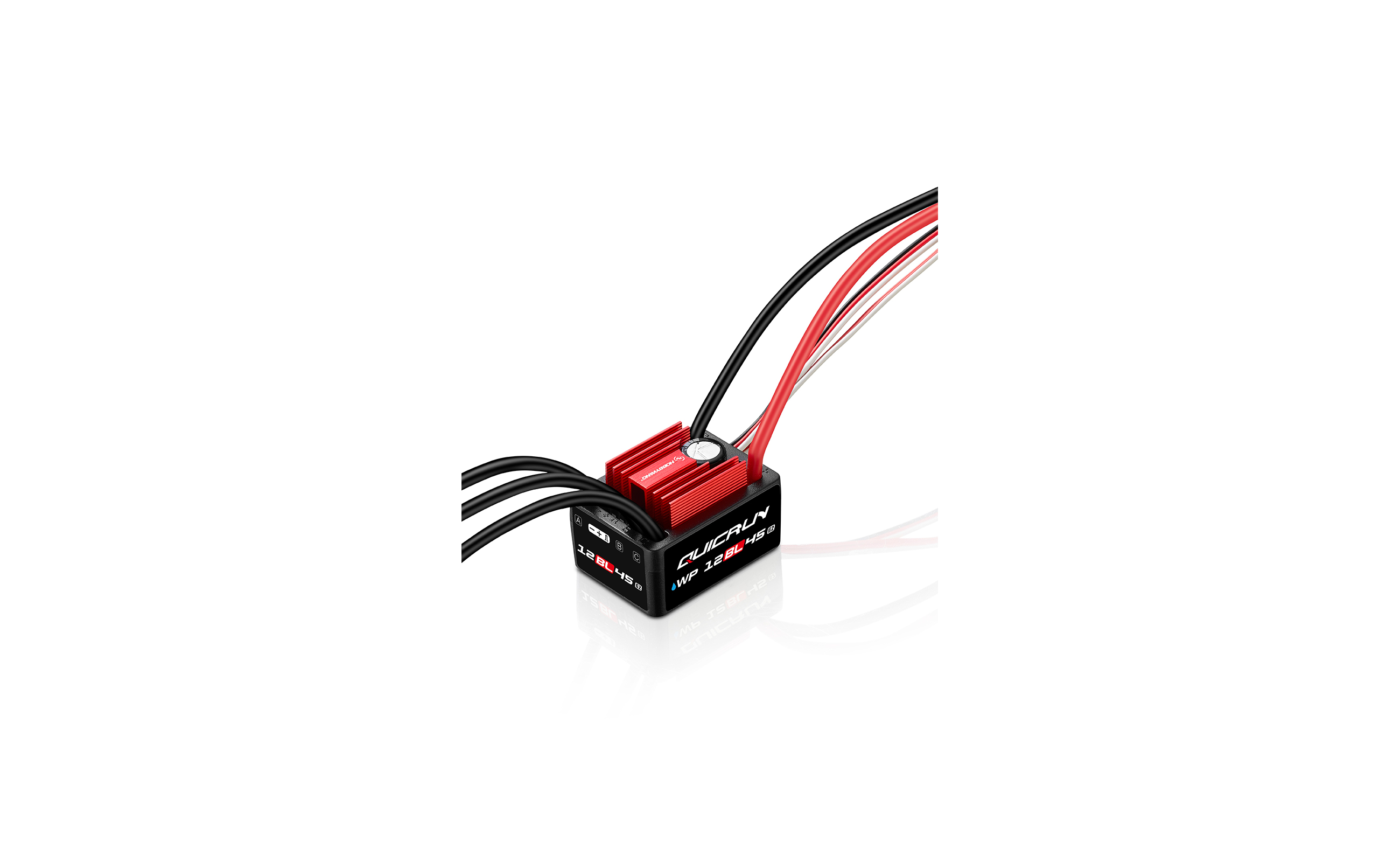

QuicRun WP 12BL45 G2
QuicRun WP 12BL45G2

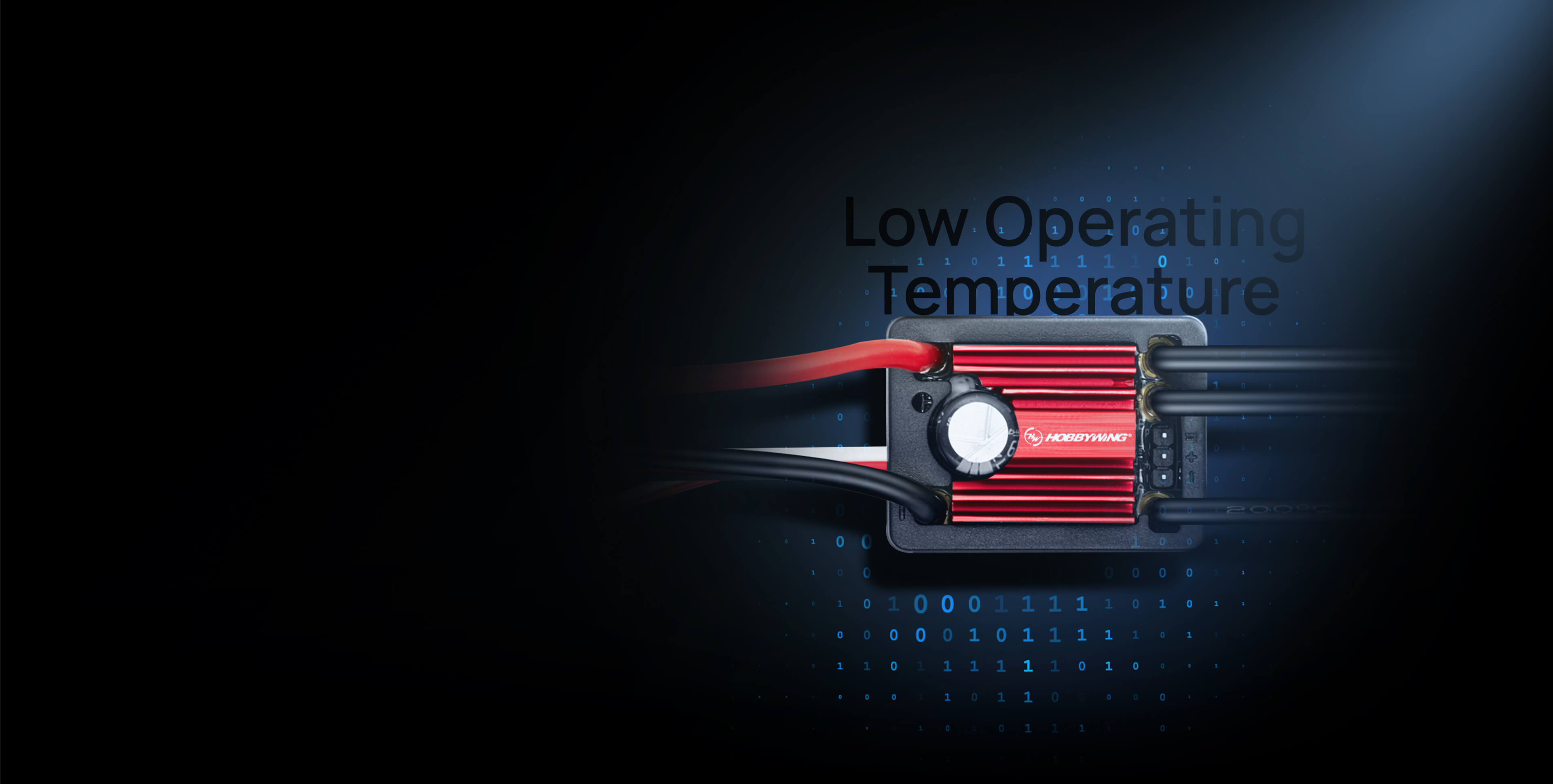

Advanced Intelligent
Cooling for Sustained
and Stable Performance
  • The ESC adopts innovative intelligent freewheeling technology,
  • significantly enhancing drive efficiency, reducing operating
  • temperatures, and ensuring stable performance even under
  • prolonged high-load operation.
Built-in High-Power BEC
The BEC provides
a continuous current of
4A
Maximum output
current of
7A
Supporting selectable
voltages of
6V/7.4V
Easily powers various high-torque and high-voltage servos, delivering
precise and responsive control for an enhanced user experience.

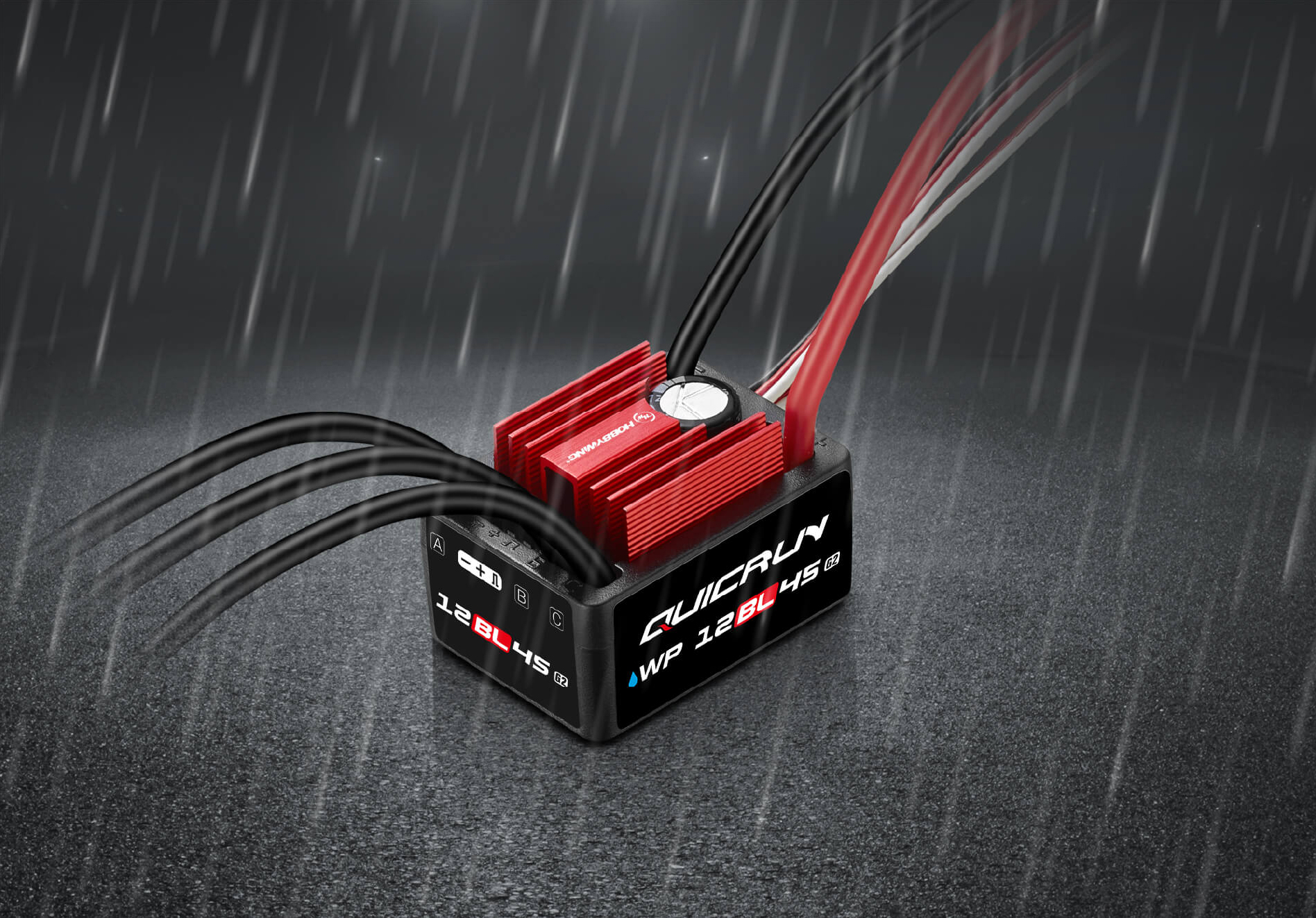

IP67 High-Level Protection
  • The ESC features an IP67 protection rating, delivering excellent waterproof and
    dustproof performance. It ensures reliable operation in various weather conditions and
    harsh environments, allowing for worry-free driving.
Note: The IP67 protection rating described above applies under normal usage conditions, offering splash
resistance, water resistance, and dust resistance, and has been tested under controlled laboratory
conditions. These protective functions are not permanent and may degrade over time due to daily wear and
aging. Do not submerge the product in water for extended periods, as this may result in damage.
Splash Resistance & Water Resistance
Dust Resistance
Multiple Parameter
Adjustment Options
  • Supports three parameter adjustment methods: LCD Program Box Pro,
  • LED Program Box, and SET button, allowing users to conveniently
  • choose their preferred programming method.

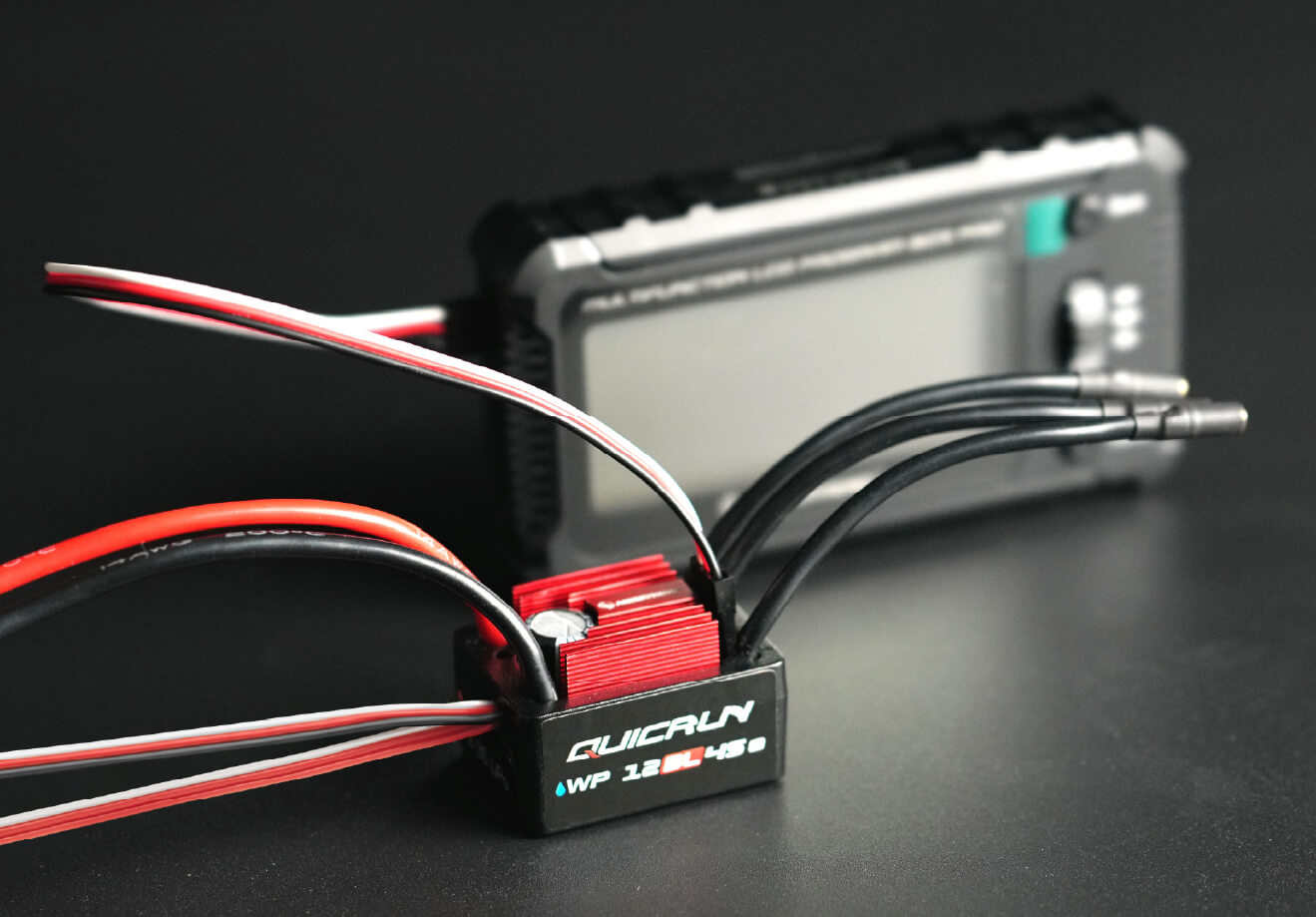

LCD Program Box Pro
LED Program Box

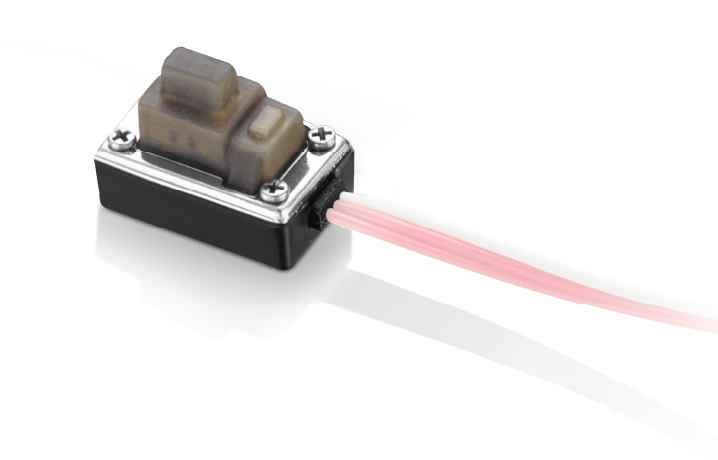

SET Button
Dedicated Programming Port
for Enhanced Convenience
  • Designed with a dedicated programming port, eliminating the need to unplug
  • the throttle cable during parameter adjustments.
1
Connect LCD/LED Program Box
Simply connect the LCD/LED Program Box to the
independent programming port for quick adjustments.
2

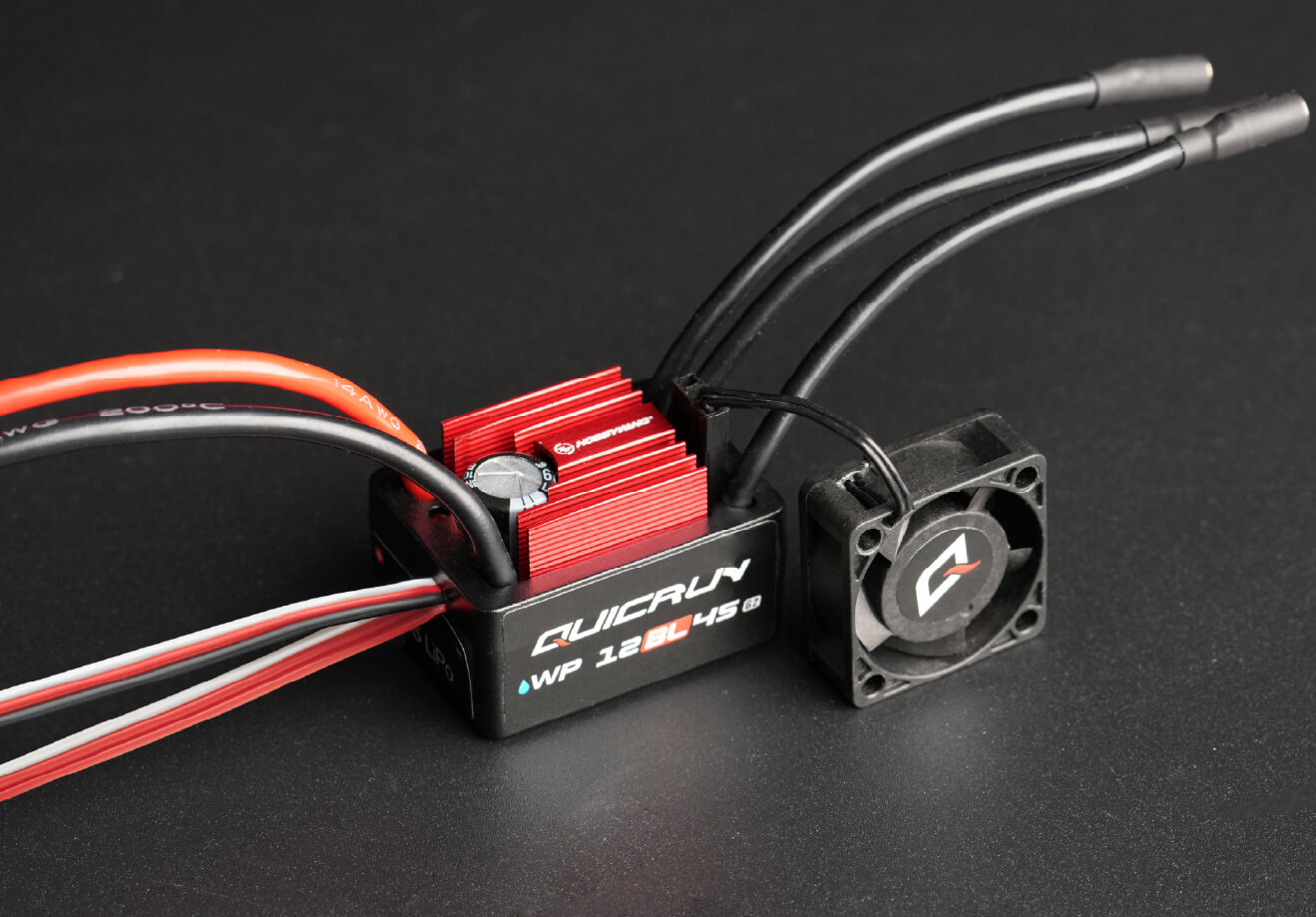

Connect an External Fan
This port can also be used to connect an
external fan or other cooling devices,
offering versatile functionality.
Excellent Value for Money,
Ideal Choice for Beginners
  • Specifically designed for entry-level users, inheriting HOBBYWING’s
  • exceptional quality. Easy to operate and beginner-friendly, with no
  • complex setup required for effortless use.

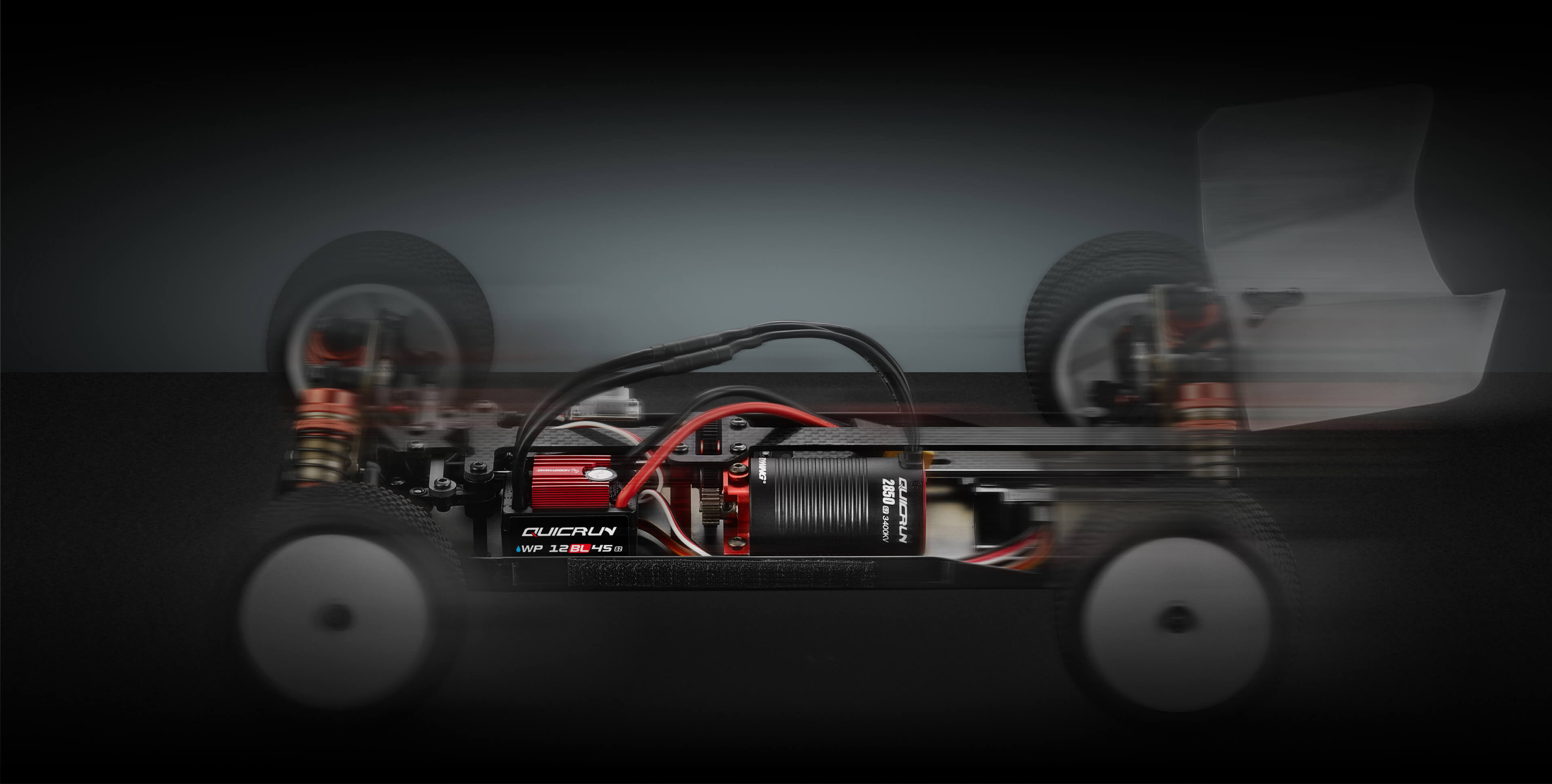

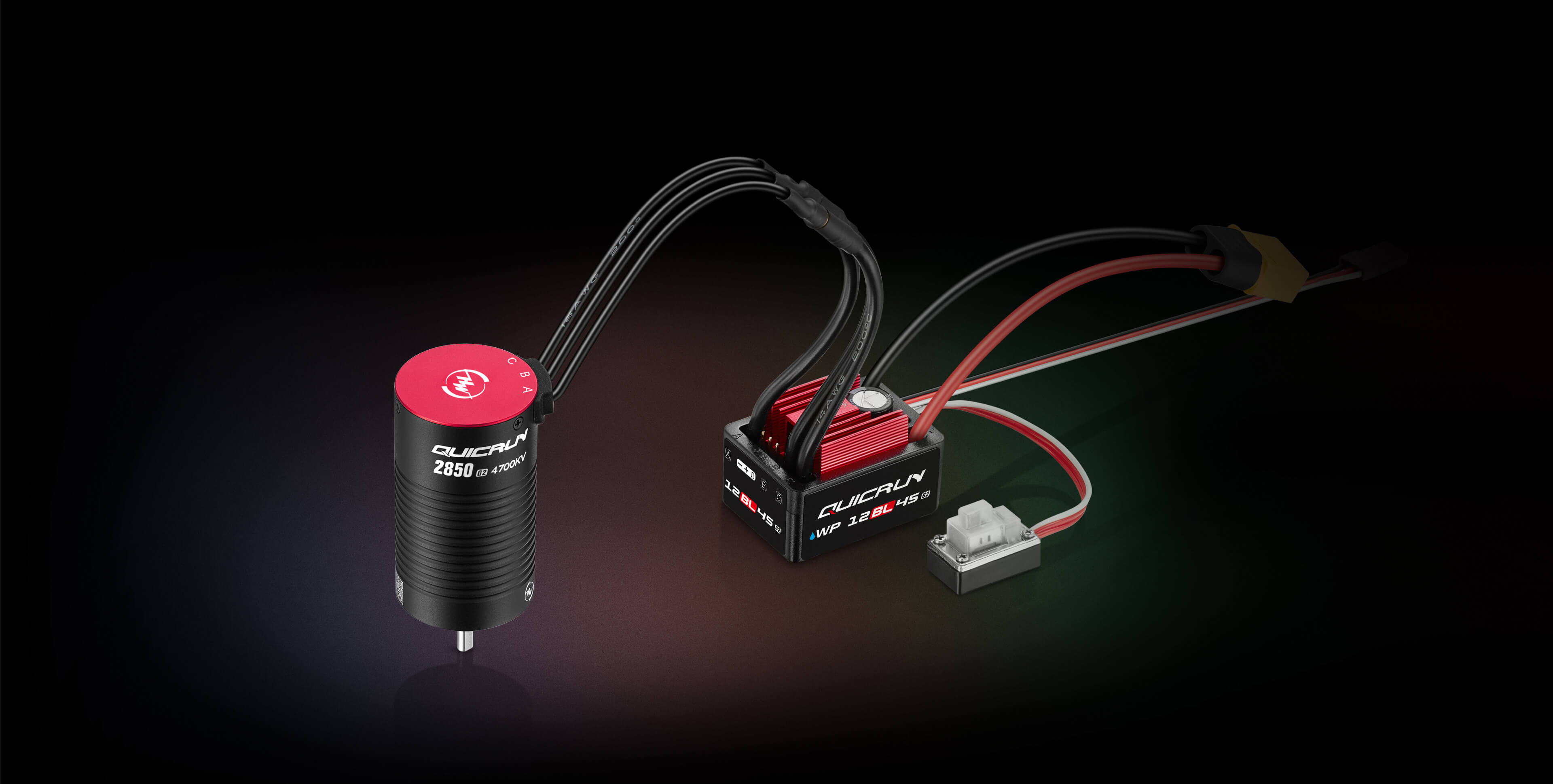

Perfectly Compatible with
QuicRun 2840/2850 G2 Motors
  • When paired with QuicRun 2840/2850 SL G2 motors, the ESC delivers
  • smoother power output and superior control performance, providing a
  • more exhilarating driving experience.
Wide Compatibility
  • The power system is suitable for both 1/12th & 1/14th scale hobby vehicles.
Product NameQUICRUN WP 12BL45 G2
Product Number
  •
  • 30107000
Type
  • Scale
  • Brushed/Brushless
  • Sensored/Sensorless
  • Waterproof
  • 1/12th、1/14th
  • Brushless
  • Sensorless
  • Waterproof
Specifications
  • Cont./Peak Current
  • Input Voltage
  • BEC Output
  • 45A/200A
  • 2-3S
  • 6V/7.4V,4A
Wires & Connectors
  • Input Wires
  • Output Wires
  • Input Connectors
  • Output Connectors
  • Black-14AWG-110mm*1,Red-14AWG-110mm*1
  • Black-14AWG-85mm*3
  • XT60
  • 3.5MM Gold (female)
ESC Programing via
  • SET Button on ESC
  • LED Program Box
  • LCD G2 Program Box
  • LCD PRO
  • OTA Programmer
  • Program Port
  • Supported
  • Supported
  • Supported
  • Supported
  • Not Supported
  • Independent program port
Data Recording
  • Extreme value
  • Real-time Data
  • Historical data (Graph)
  • Not Supported
  • Not Supported
  • Not Supported
Firmware
  • Firmware Upgrade
  • Not Supported
Size & Weight
  • Size
  • Weight
  • 39.2*29.2*25.6mm
  • 57g( Included wires & connectors)
Applications
  • Motors
  • Vehicles
  • KV Rating/T Count
  • Sensorless / Sensored Brushless Motor (only in sensorless mode)
  • 1/12th、1/14th On-Road & Off-Road
  • QUICRUN 2840/2850 G2
Support

Manuals & Documents

Manuals

FAQ

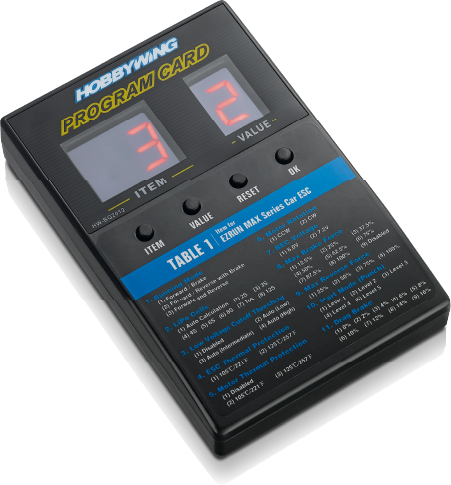

LED Program Box_General

LED Program Box_General

Part Number: 30501003
Size: 88x58x14mm（LxWxH）
Applications:
Platinum V1/V2 series & FlyFun V5 SkyWalker V2
Series of brushless aircraft ESCs
XeRun series (most), EzRun series
& QuicRun series of brushless car ESCs
SeaKing series of brushless boat ESCs

+

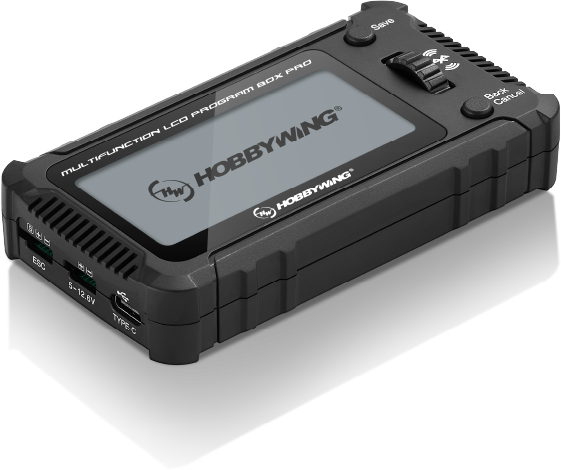

LCD Program Box Pro

NEW

LCD Program Box Pro

Product Number: 30502002
Input Voltage: DC 5V~12.6V
Application: brushless ESC
Weight: 85g
Display:LCD

+
