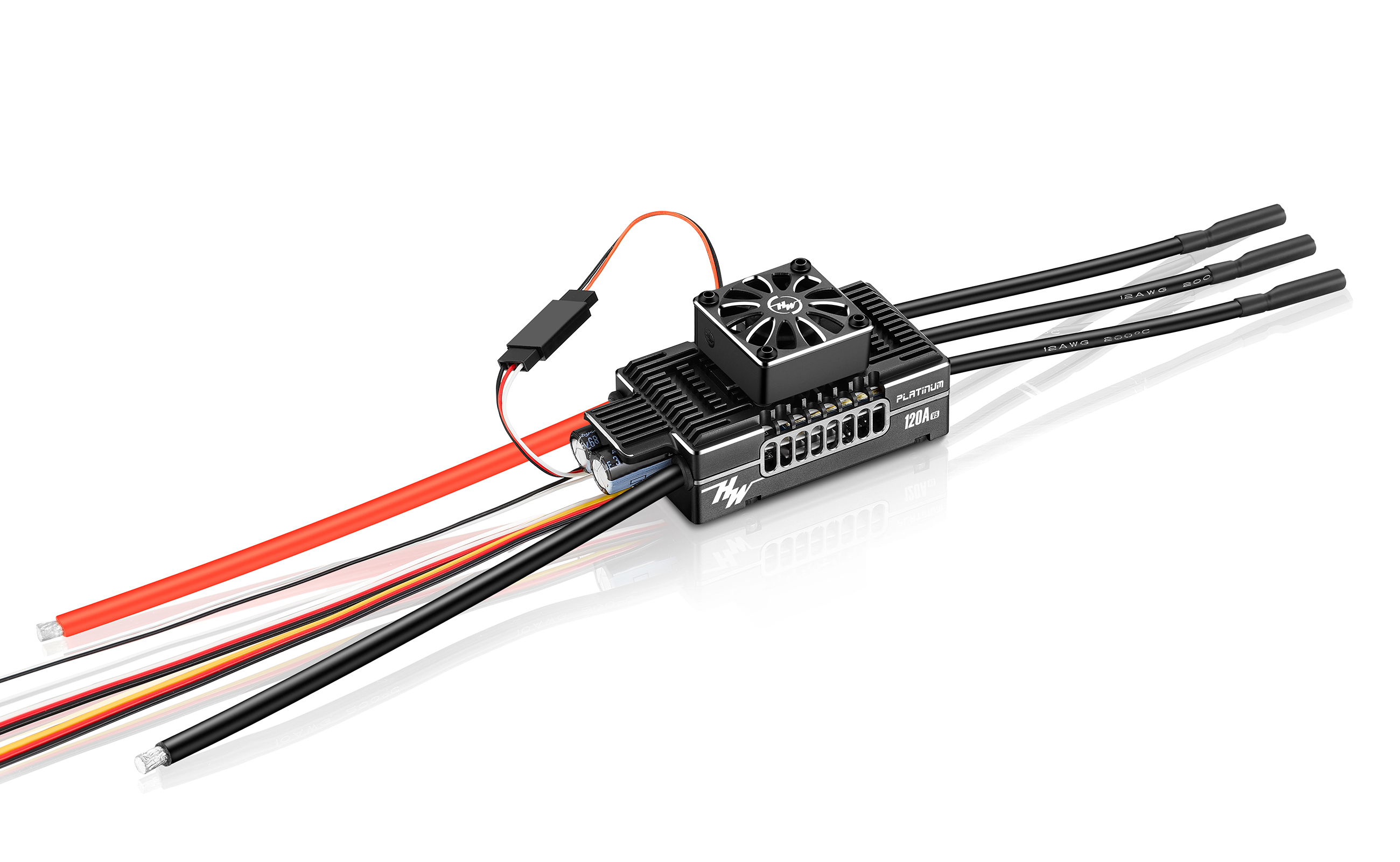

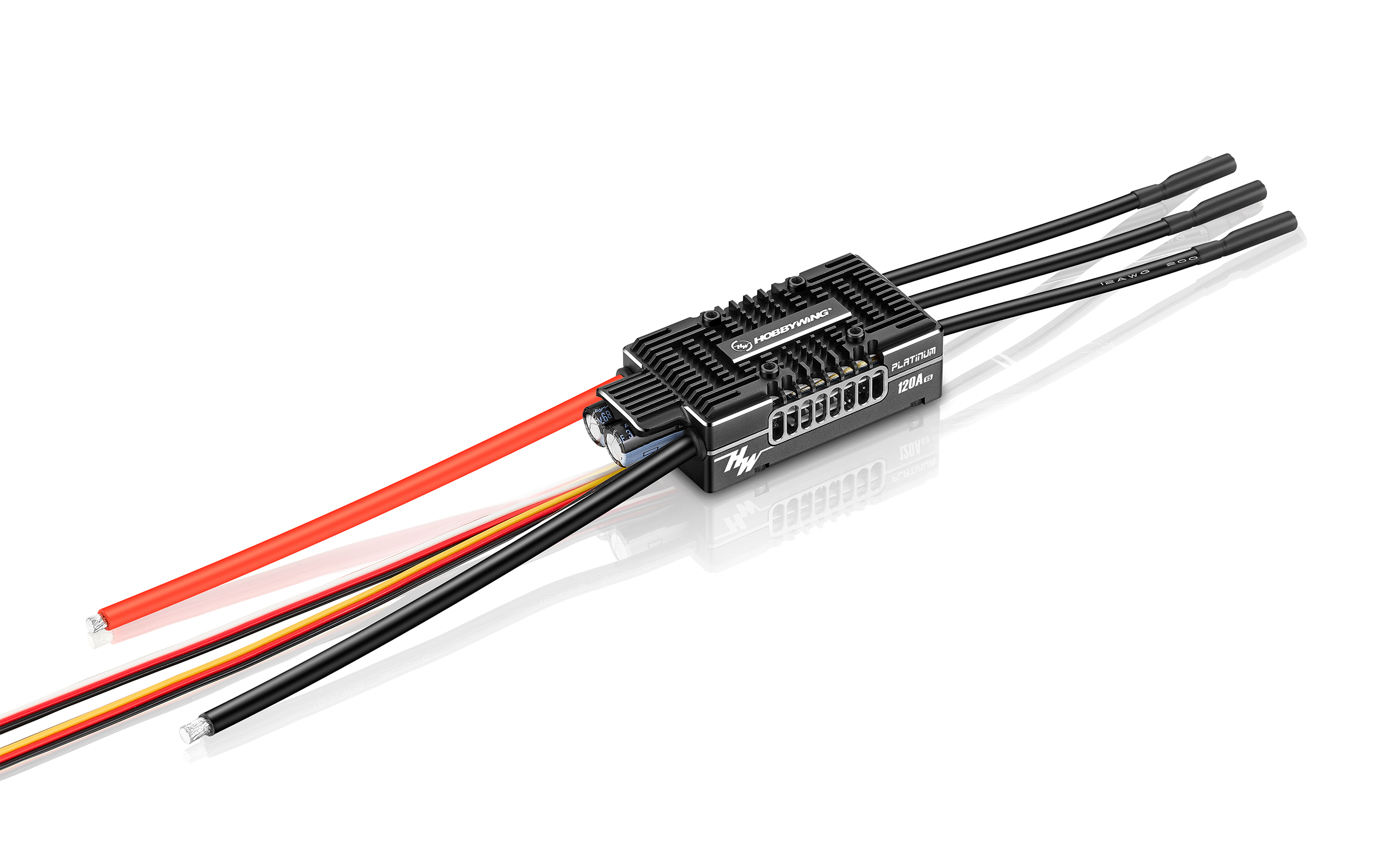

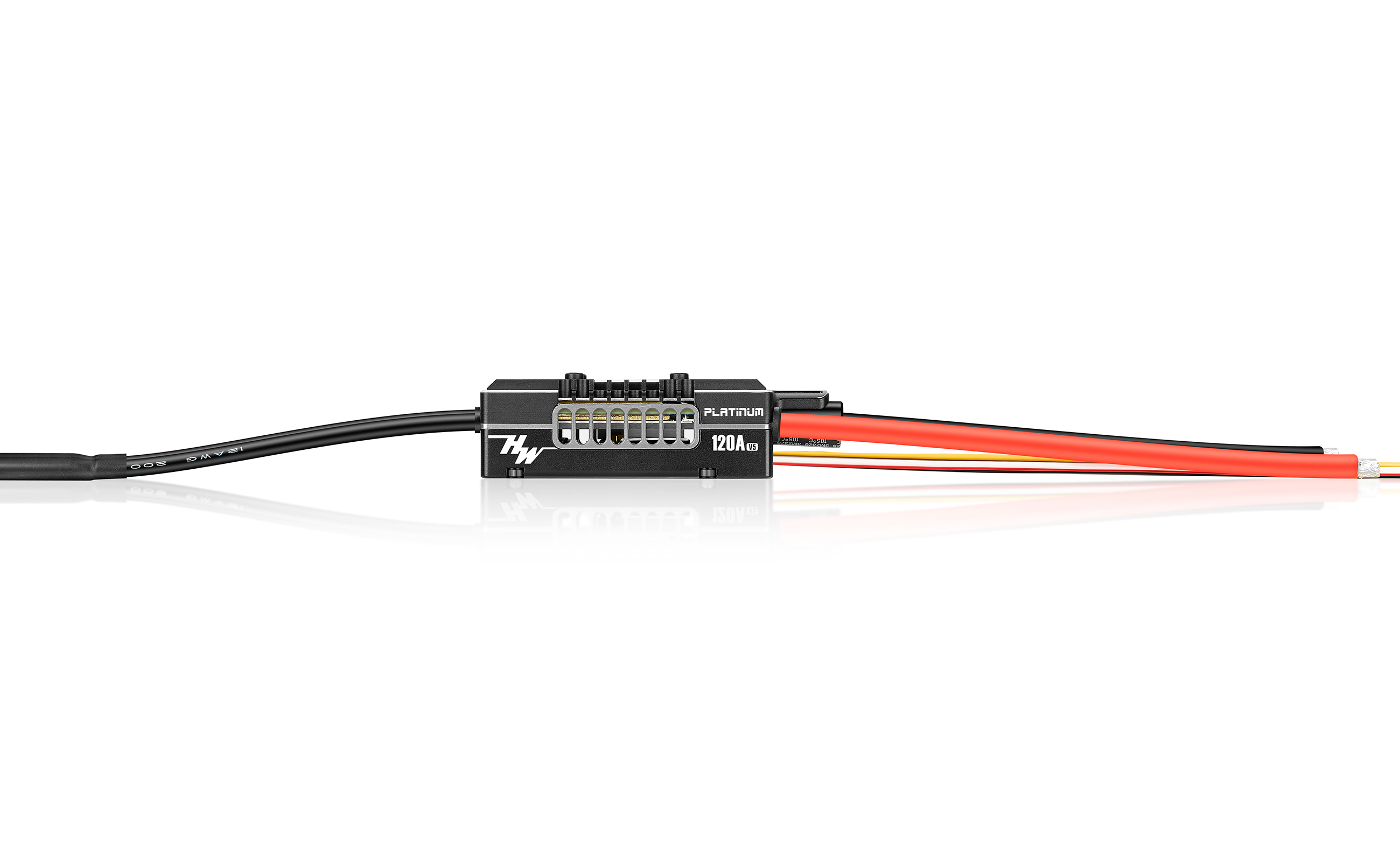

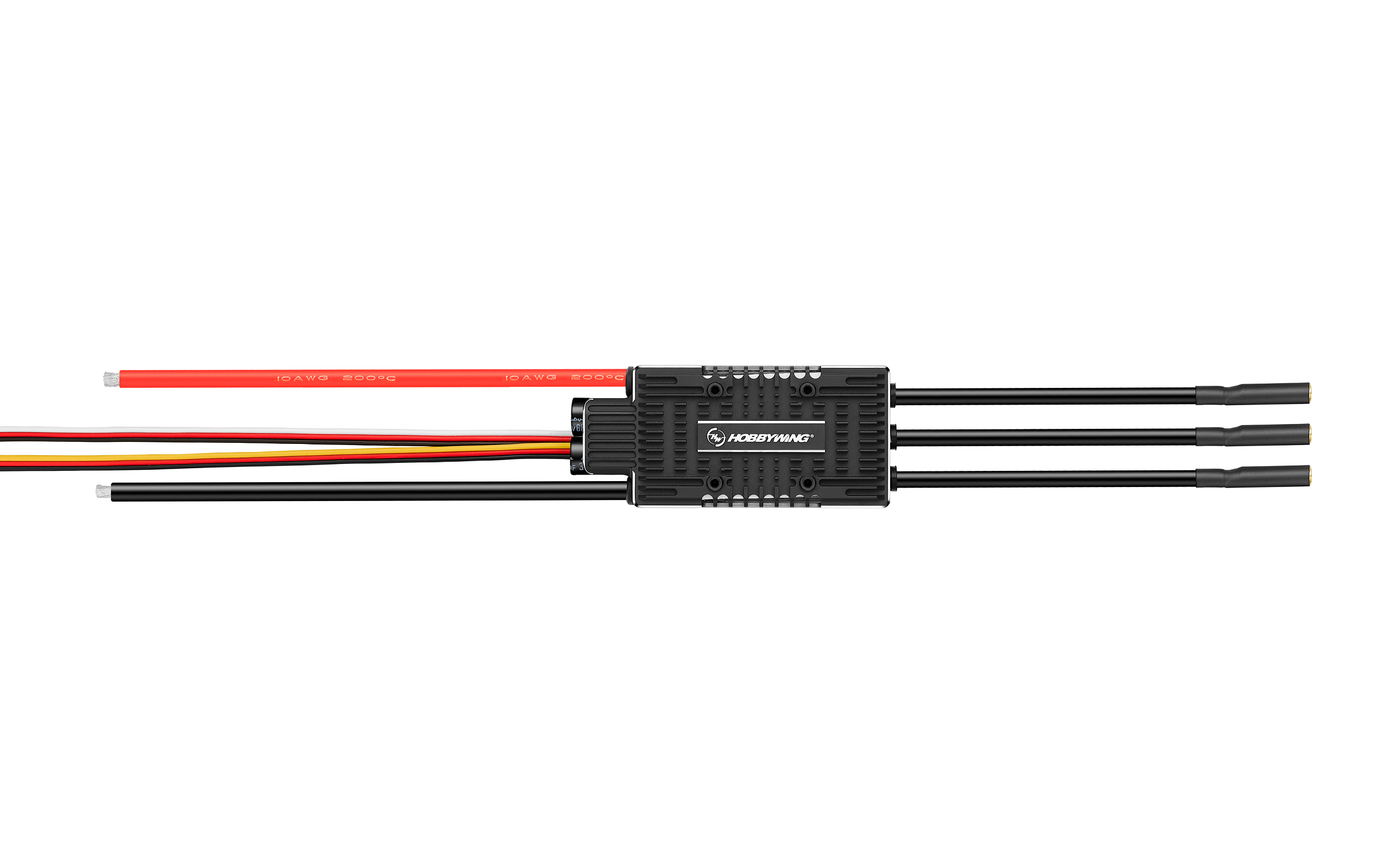

Platinum 120A V5
PLATINUM 120A V5 SBEC
Compact size with
efficient heat sink design
Continue to use the heat-dissipation structure of PLATINUM V5,
The ESC is redesigned with a double-sided hollow heat dissipation structure as well as an addition side "window" design.
The air is able to quickly pass through the inside of the ESC and take away the heat generated by the internal circuit board.
This innovative air duct design is able to generate strong airflow on the entire ESC from the cooling fan.
Overall, significantly improving the capability of heat dissipation.
NOTE
The double-sided hollow heat dissipation structure has applied for a patent,
please do not imitate it!
Built-in 12V Switch BEC for
greater output capability
The high-power BEC has added an anti-reverse circuit to use parallel with
external batteries at the same time to provide double protection.
  • 1
    Built-in Programmable Switch
    BEC
  • 2
    The maximum output voltage
    12V
    5-12V Adjustable
  • 3
    The maximum output current up to
    35A
Constant speed
performance upgrade,
Ultimate flight experience
The 32-bit processor combined with the RPM
accuracy algorithm makes the ESC more
powerful and more consistent, maximizing the
RPM accuracy to enhance overall performance.

Compared with the previous ESC,The RPM
accuracy algorithm makes the ESC more
powerful and more consistent.The adjustable
constant speed sensitivity allows every pilot to
easily find a setting that suits them personally!
Support multiple protocols,
versatile
SUPPORT
Mikado VBar System,Futaba S.BUS2 and other devices' data return protocols.
Users are able to adjust parameters on the remote-control device
(VBar protocol support) or check the working status of the ESC at any time.
Synchronous rectification technology,
multiple advantages
The ESC has synchronous rectification driving efficiency optimization technology
DEO — DRIVING EFFICIENCY OPTIMIZATION
which brings multiple advantages:

  • Faster throttle response,
    enhanced flight stability and flexibility

  • Higher driving efficiency
    and longer battery life-span

  • Lower ESC temperature rise,
    more reliable
Multiple protection,
double security
It has multiple protection functions,
to effectively prolonging the lifespan of the ESC.

  • Start-up
    protection

  • Current
    protection

  • Temperature
    protection

  • Overload
    protection

  • Throttle signal
    loss protection

  • Input voltage
    abnormality protection
Product Name
Platinum 120A V5
Product Number
  30203402
Type
Brushed/Brushless BL
High Voltage/Regular Regular
Specifications
Cont./Peak Current 120A/150A
Input Voltage 3-8S Lipo
BEC Output Switch Mode:5-12V & Cont. 10A,Peak 30A
Wires & Connectors
Input Wires Red-10AWG-150mm*1/Black-10AWG-150mm*1
Output Wires Black-12AWG-100mm*3
Input Connectors No
Output Connecotors 4.0mm Gold Connectors (Female)
ESC Programing via
Transmitter Not Support
LED Program Card Not Support
LED Program Box Not Support
LCD Program Box Supported
OTA Programmer Supported
Program Port Separate Program Port
Firmware
Firmware Upgrade Supported
Telemetry Function
  Mikado VBar;Futaba S.Bus2;etc.
Size & Weight
Size 83.2*37.1*22.5mm(without fan)
Weight 150.4g(with wires, no fan)
Application scope
  420-520 class electric helicopter (main blade length 420-520mm),or fixed-wing
