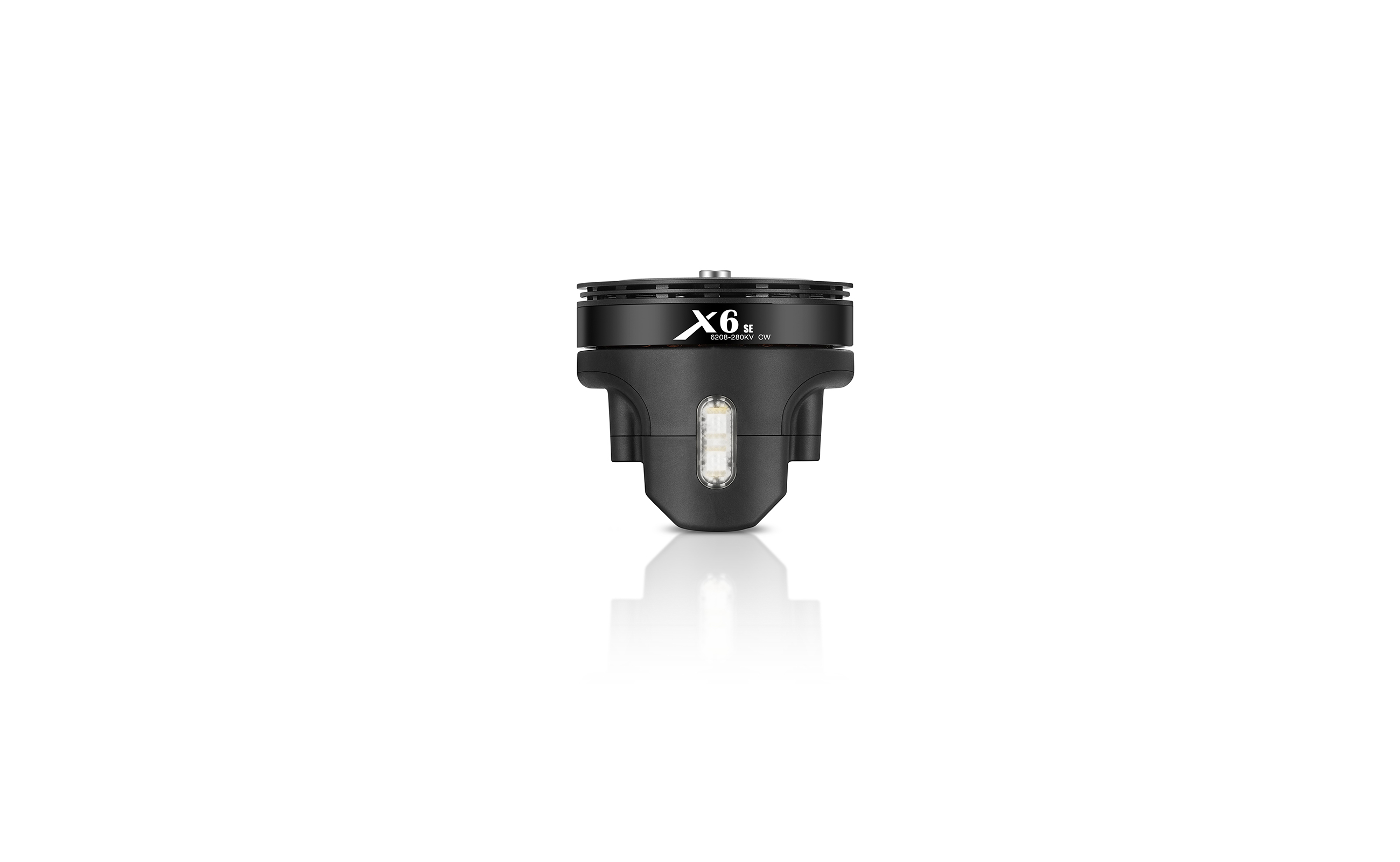

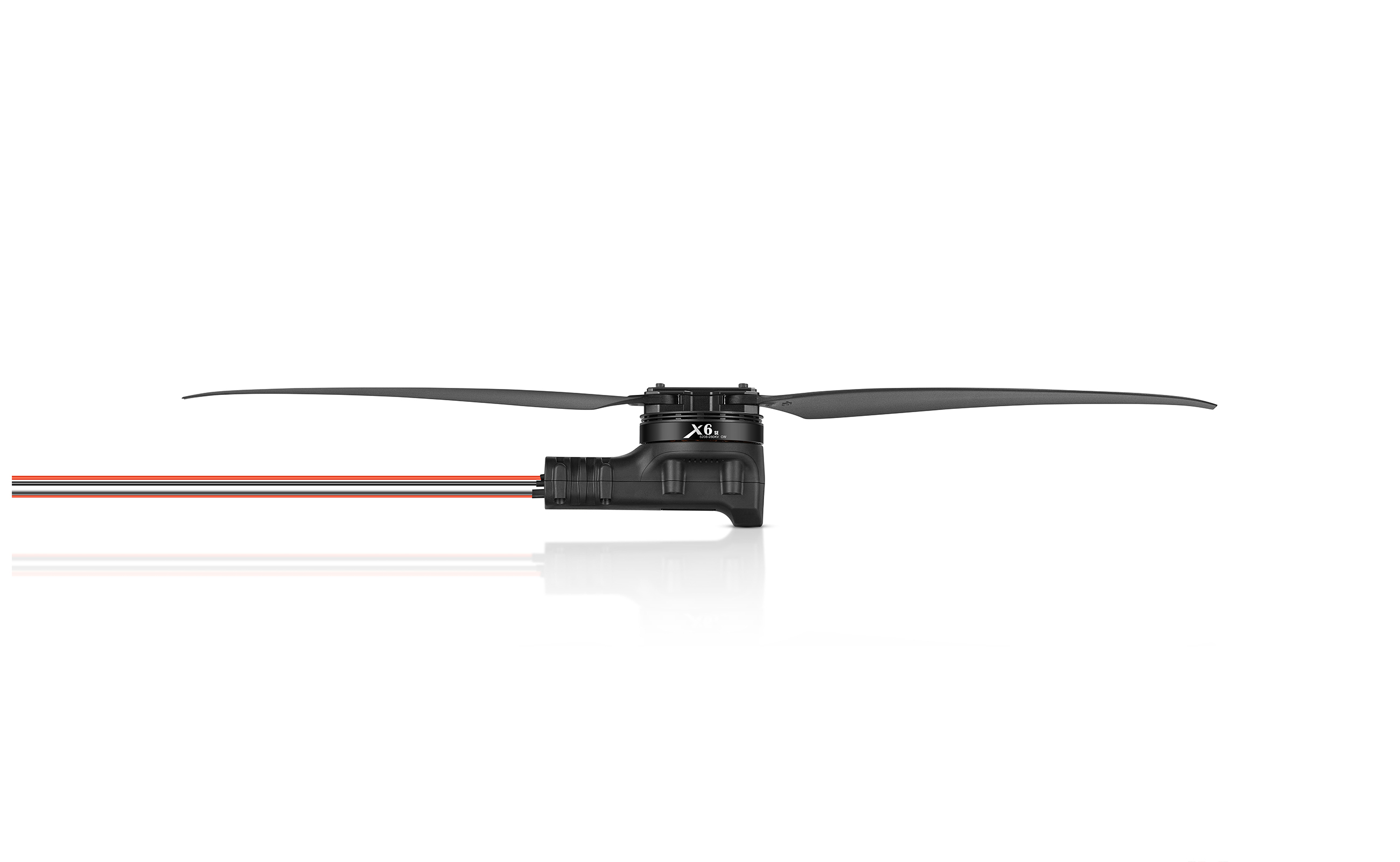

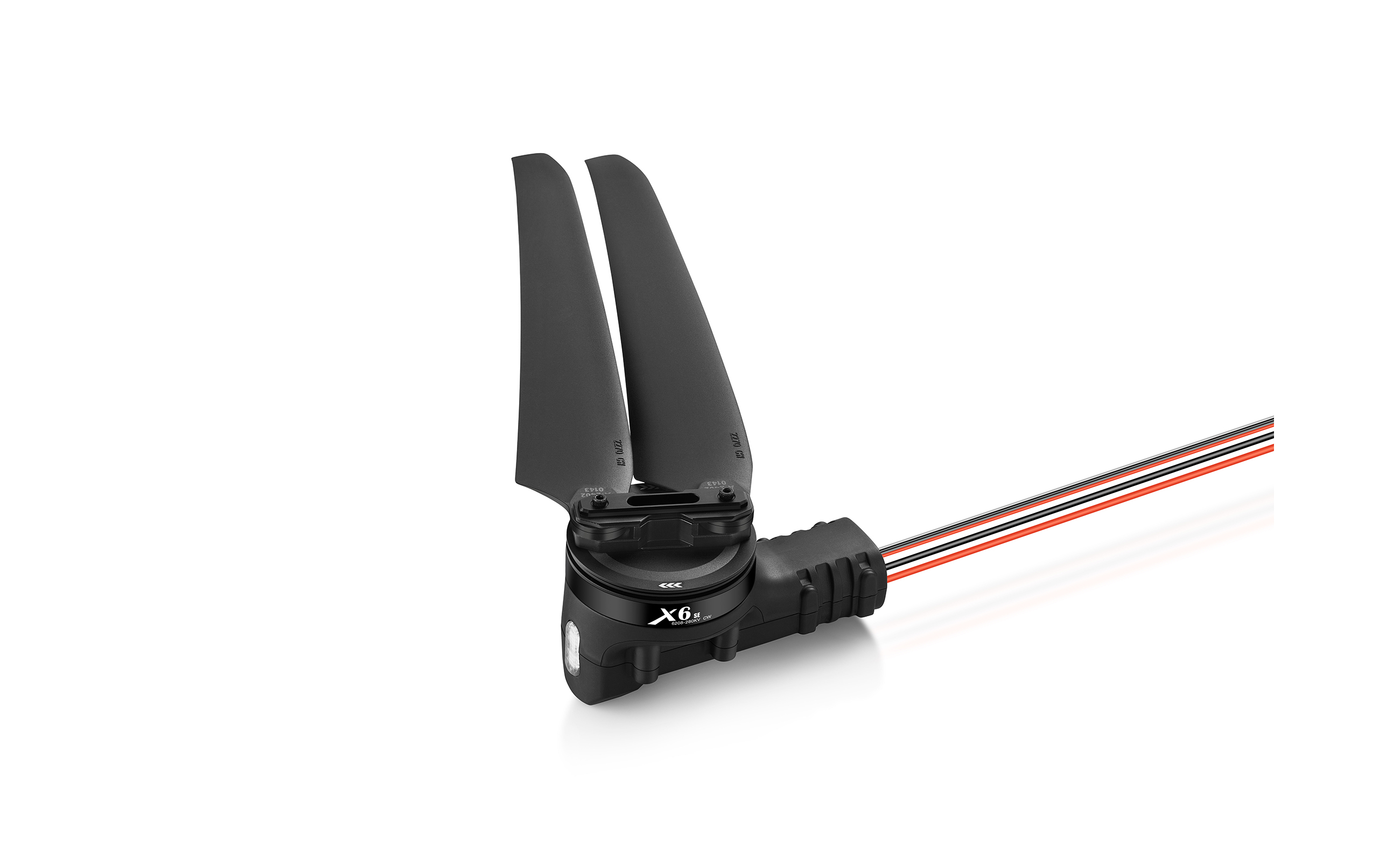

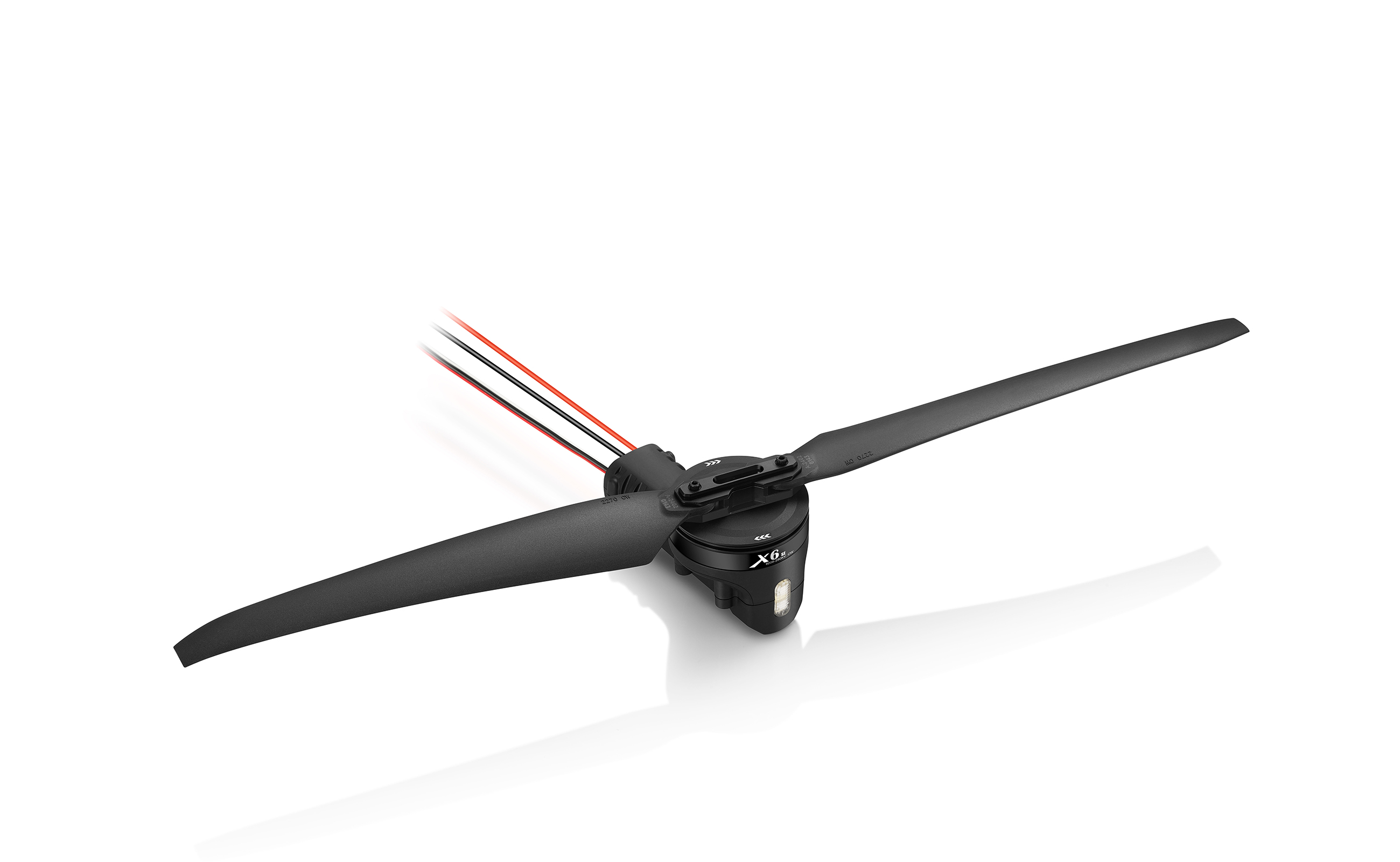

X6-SE: Integrated Propulsion System

A Cost-Effective and Multi-Functional

Propulsion Solution for Training and Education,
Versatile Applications in One Drone

Fully Adapted to Education 1 and Training Applications: Tailored for UAV professional education
and training institutions, universities
and colleges, ensuring optimal
compatibility and performance.

Low Initial Investment Cost2: Low-voltage 6S (LiPo) platform,
Carbon-plastic motor mount and propellers.

Minimal Operating 3 and Maintenance Costs: Easy installation, user-friendly operation,
simplified maintenance, efficient diagnostics,
low failure rate, and cost-effective spare parts.

Multi-Scenario Adaptability4: Adaptable for extensive industry and fully capable of handling
various industry applications such as aerial photography,
surveying and mapping, security, and law enforcement.

: Aerial photography

: Surveying and mapping

: Security

: Law enforcement

Lightweight and Long-Endurance

Extreme Lightweight Design1: With a lightweight injection-molded motor base,
the overall propulsion system weight is 373g
(including propellers) Achieves an industry-leading
thrust-to-weight ratio of 16:1 with exceptional
payload capacity

High Efficiency 2 and Long Endurance: Recommended single-axis takeoff weight:
2-2.5kg; System’s efficiency under a
single-axis thrust of 2.2kg up to
10g/W; Flight time
Over 45min
Per battery

Compact Design3: Designed to fit a 25mm arm tube diameter,
this product is fully compatible with
mainstream quadcopter, hexacopter, and
octocopter frames in the market, allowing
for easy installation and application.

: Quadcopter

: Hexacopter

: Octocopter

High Reliability and Long Service Life

Low Temperature Rise and High Power Redundancy: Equipped with an ESC (Electronic Speed Controller) rated at 30A
(60A peak) and paired with a high-efficiency heat sink, it effectively
controls the temperature rise of the propulsion system even during
heavy-load flight operations, ensuring safe and stable performance.

Dual Throttle Redundancy: Featuring dual-channel throttle control (CAN digital
and PWM analog),the system rapidly executes seamless
throttle signal switching under abnormal
conditions while maintaining unaffected flight attitude.

Self-Test + Protection: Power-on self-test detects potential faults before takeoff, effectively preventing issues from arising.
During flight, various intelligent hardware and software protection mechanisms,
reporting and warning mechanisms,
and rapid restart mechanisms in extreme cases ensure optimal flight safety and minimize flight losses.

Rigorous Testing Process, 12
Rugged and Long-Lasting

Passed industry-leading rigorous testing standards, including: Drive Performance Validation (DPV),
Tri-Comprehensive (Temperature, Humidity, Vibration) Testing and Temperature Cycling (TC) Test to
ensure reliable performance of propulsion systems in complex environments.
Specific test items include but are not limited to:

Drive Performance
Validation (DPV)
Functional
Shock Testing
0-600Hz/10G
Vibration Testing
Thermal Cycling
Start-Stop Test
Operational
Temperature
Endurance
Storage Stability
Testing
Temperature
Cycling (TC) Test
Humidity
Bias Testing
Dust Ingress
Testing
Water Ingress
Testing
Thermal Shock
Testing
Load Endurance
Testing

Passed over

1000

Hours of fatigue and
service life tests in the lab
500

Hours of real
flight verification

0~600Hz & 10G
Vibration Test
Temperature
Cycling (TC) Test
Dust Ingress
Testing
Water Ingress
Testing

Quick-Install, Pilot-Friendly,
Low-Maintenance, Smart-Diagnostic


All-in-One Design, Plug and Play: Offers an integrated propulsion solution,
simplifies the traditional separate purchase and
assembly process of motors, ESC, and motor base,
and improves installation efficiency and reliability.


Anti-Loosing and Precision Positioning Design: Pre-drilled alignment holes on clamp base enable
dual fastening options: screws or rivets.
This mechanism prevents vibration-induced
loosening or torsional displacement of motor
mounts during flight operations.


Rapid Response and Stable Flight: Rapid propulsion response and seamless
compatibility with various flight controllers,
deliver superior maneuverability
and hovering stability.


Broad Flight Controller Compatibility: Supports interoperability with several mainstream
flight controller brands like ArduPilot open-source
ecosystem, VK, Byaero, and JIYI. Supports CAN
communication to build an intelligent flight ecosystem.


Intuitive Fault Prompt: The intelligent control LED is embedded on
the propulsion system surface,
and the visual "light indications" provide an intuitive
and convenient display of the flight status and fault
codes in real time, thus facilitating
quick identification and troubleshooting.


Real-time Data Interaction: Through real-time data interaction with flight controller via
the CAN interface, key flight parameters such as RPM,
throttle, current, voltage and temperature, etc. are monitored.
It enables rapid data analysis and timely response,
enhancing safety.
(Operating OTA upgrade and parameter tuning functions
through flight controller to the ESC have been achieved
with multiple brand flight controllers,
offering greater convenience in operation.)


Quick Parameter Tuning and Firmware OTA Updates: With HOBBYWING’s proprietary host computer software,
users can adjust drive parameters, motor direction,
and LED color effortlessly, optimize flight performance
and upgrade the latest firmware.


Fault Storage: The ESC automatically stores fault code,
enabling quick location and diagnosis
of faults after the fault.

Recommended Configuration

Takeoff weight
(Quadcopter)

8kg
Rated thrust/rotor

2kg
Recommended load

2.5kg
Recommended battery

6S 30000mAh
Flight time

45min

Guaranteed Quality and Service Backed
by 12 Years of Experience in UAV
Propulsion R&D and Manufacturing

World’s Earliest: HOBBYWING is one of the world’s earliest
professional manufacturers of UAV motors and
ESCs, serving over 500 UAV manufacturers.
The UAV propulsion systems produced have an
accumulative flight time of 50 million hours.

Pre-sales Technical Support: Our cutting-edge team provides pre-sales
support and continually innovates and
develops to ensure that users receive the
most suitable UAV propulsion products and
customized solutions.

After-sales Professional Maintenance: Our professional after-sales maintenance team
promises to provide users with rapid and
efficient maintenance services to safeguard their interests.

Mature Sales Channels: With two decades of experience, worldwide sales channels are established,
ensuring that our products and services are easily accessible to customers.

: Thank you for your interest in HOBBYWING propulsion systems! For customized solutions,
please provide your contact information and technical requirements,
and we will get in touch with you within 24 hours.

By submitting this form, you agree to HOBBYWING's Privacy Policy

Thanks for reaching out!We have received your message and will get back to you shortly.: Best Regards,
HOBBYWING Team

CM-X6-SE CAD

Product Name

CM-X6-SE

Specifications

Model	CM-X6-SE
Max Thrust	6.2kg
Recommended takeoff weight per axis	2.2kg
Efficiency of recommended takeoff weight	10g/W
Input voltage	9~27V
Rated voltage	23V
Lithium compatible	6S（LiPo）
Tube outer diameter	25mm
Weight（with cable and Props）	373±15g
Cable specification	Power cable: 16AWG*410±10mm signal cable:530±10mm
Operating temperature	-20~50℃
Ingress Protection	IP43

Motor

Model	6208-280KV
Weight（with wire）	173g±10g
Motor diameter	68.7mm
Slot& Pole	24N28P

ESC

Mode	60A-BLDC
Communication protocol	UAVCAN
ESC size	55mm*25mm（PCB）
Weight（without cable）	15g
Peak current （3 seconds）	60A（3s）
Continuous current	30A
Throttle range calibration	Not supported
Double throttle signal	PWM+CAN
Operating pulse width	1100-1940μs
Fault storage	Supported

Propeller

Model	HF22*7.0"
Weight	66g
Material of Props	Carbon nylon folding Props
Mounting dimensions	D18-2M3&D20-2M3， centre hole D8

CM-X6-SE Load performance parameters

CM-X6-SE Techenical Parameters

Voltage(V)	Propeller	Throttle(%)	Thrust(g)	Current(A)	Power(W)	Speed(RPM)	Efficiency(g/W)	Torque(N-m)	Temperature℃
23V (6S LiPo)	22*7.0"	33%	1076	3.6	83.8	2105	12.8	0.28	72℃
		35%	1209	4.2	96.1	2220	12.6	0.31
		37%	1351	4.8	110.7	2340	12.2	0.34
		39%	1500	5.5	127.2	2461	11.8	0.38
		42%	1733	6.7	155.3	2642	11.2	0.44
		45%	1974	8.1	186.8	2819	10.6	0.50
		48%	2219	9.6	221.0	2988	10.0	0.55
		51%	2467	11.2	257.6	3149	9.6	0.62
		54%	2717	12.9	296.3	3301	9.2	0.68
		57%	2969	14.6	337.2	3447	8.8	0.74
		60%	3223	16.5	380.3	3588	8.5	0.80
		63%	3480	18.5	425.9	3724	8.2	0.86
		66%	3740	20.6	474.3	3858	7.9	0.92
		69%	4003	22.8	526.0	3990	7.6	0.99
		72%	4269	25.2	581.2	4122	7.3	1.05
		75%	4538	27.8	640.0	4254	7.1	1.12
		78%	4807	30.5	701.9	4385	6.8	1.19
		81%	5073	33.3	766.4	4513	6.6	1.25
		84%	5331	36.1	832.0	4634	6.4	1.32
		87%	5577	38.9	896.5	4746	6.2	1.38
		90%	5800	41.6	956.9	4842	6.1	1.44
		100%	6207	46.4	1069.1	4996	5.8	1.54

The above data is measured by HobbyWing laboratory at room temperature 25℃, sea level, change the throttle input adjustment, the motor temperature is 65% and the throttle runs for 10 minutes, for reference only.
