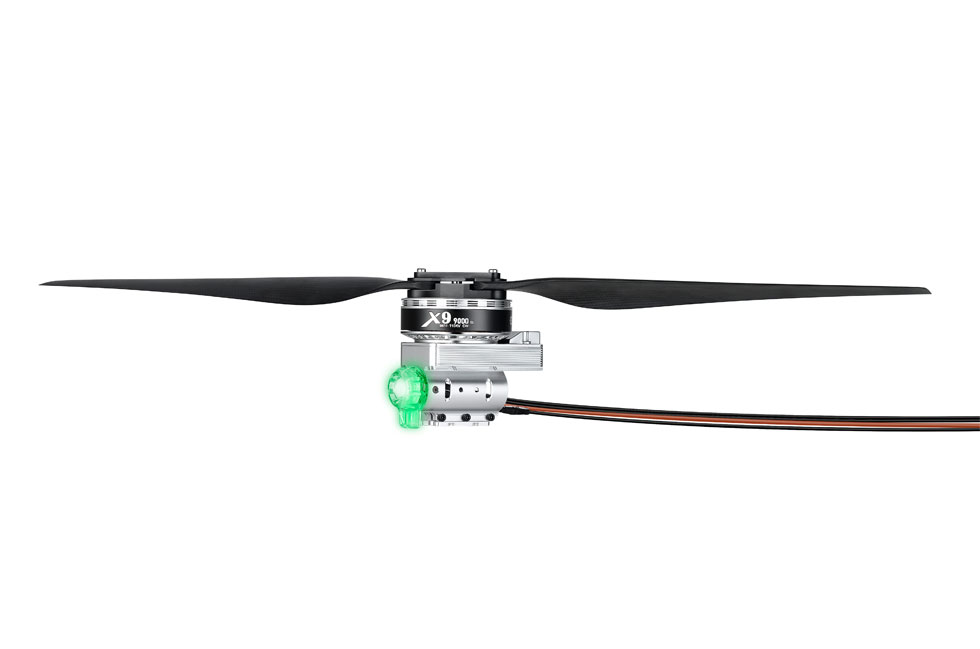

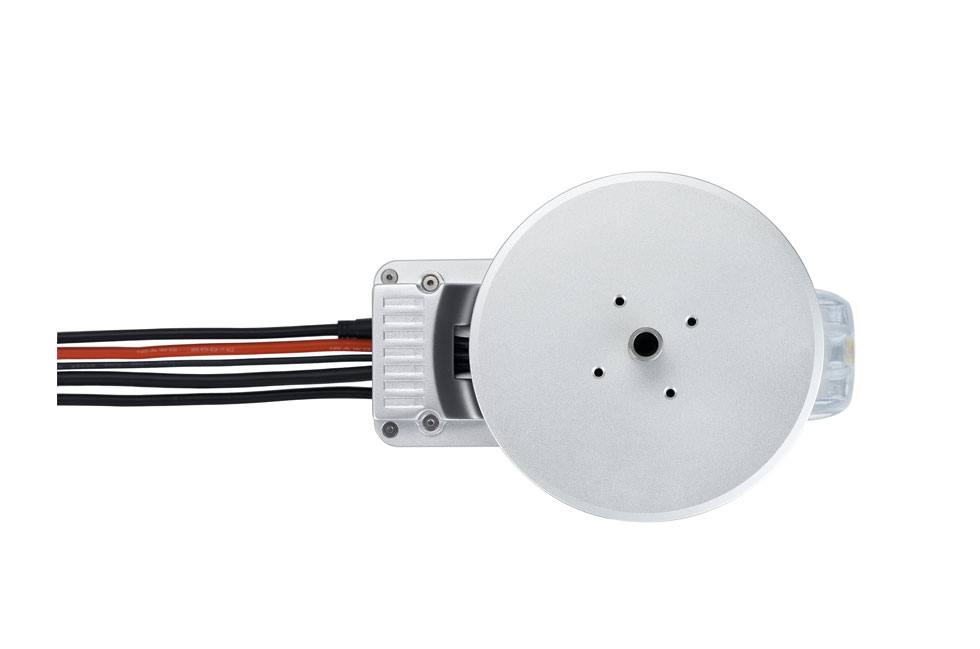

XRotor X9

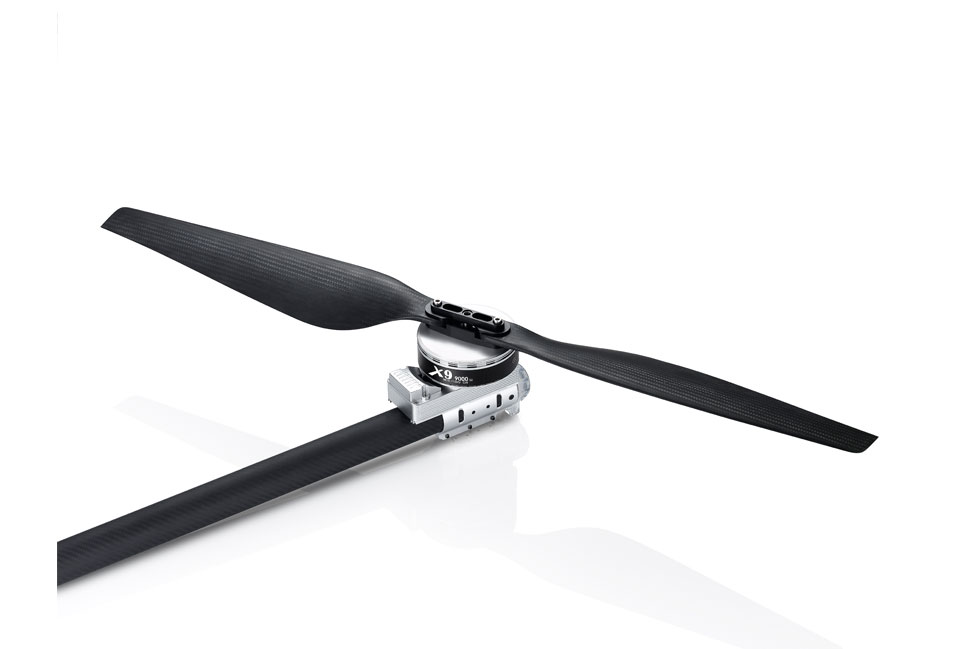

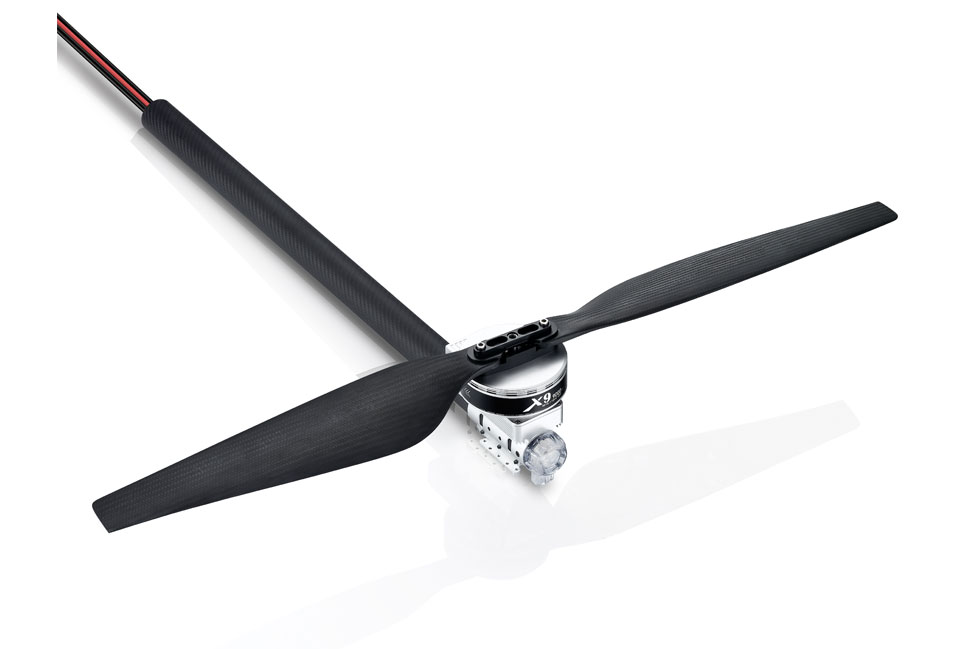

Tube-on-one structural design
The X9 is three-dimensional and designed with an integrated motor and ESC as one.
The installation of the lightweight structure is convenient and can be matched with
the circular carbon fiber tube(40mm).Optionally, it can be used with 34.7 propellers
or 3411 propellers or 36190 propellers.
Smarter, more compatible
& the perfect powertrain
The power system is smoother and improves the compatibility of the flight controller
(can be used with more excellent flight controllers). The overall stability and
reliability of the aircraft has increased with an improved flight effect. LED
light color adjustment function remove the lampshade and uses the DIP switch
to adjust the LED light color.Smarter, more compatible & the perfect powertrain
X9 Large load
using FOC ESC (optimization algorithm based
on field-oriented control)
easy airworthiness 16kg load four-axis plant
protection rotor aircraft or larger type.
  • 23kg
    Maximum tension

  • 7-1kg/rotor
    Heavy load

All-weather application

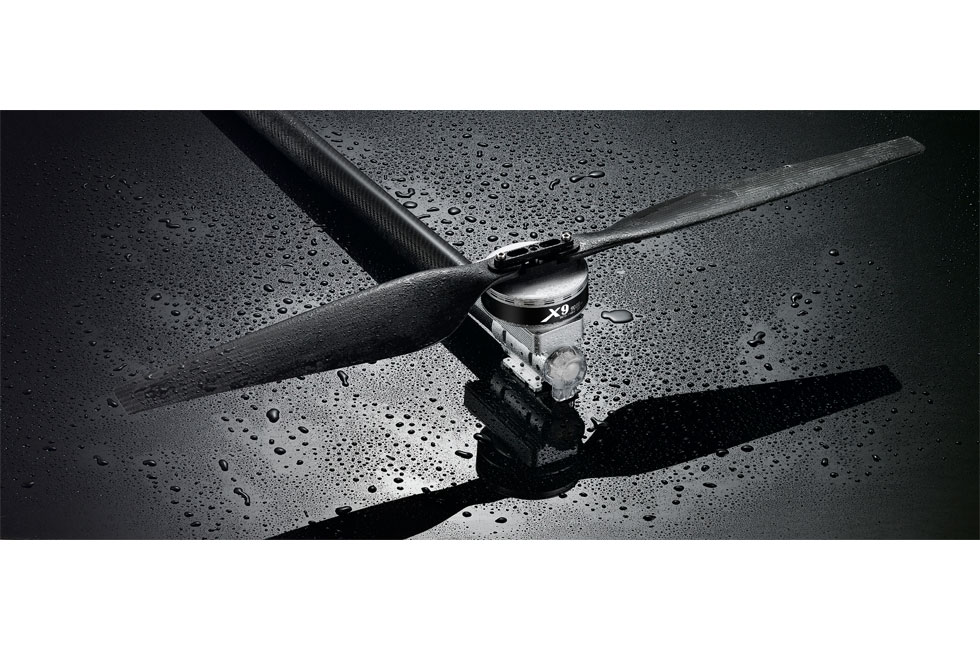

The X9 is equipped with an overall waterproofing protection of IPX6 rating.
It guarantees excellent waterproofing and dustproofing protection. The X9 is anti-corrosive and is fully sealed
to cope with harsh environment and climates around the world.

The X9 powertrain is suitable for a wide range of
   operating environments and climates worldwide

Excellent design for
heat dissipation
The X9 system design are closely connected.
The increase in conductive area greatly
improves heat dissipation and can be used for
higher power load. The overall
structure is more reliable. Excellent design
for heat dissipation

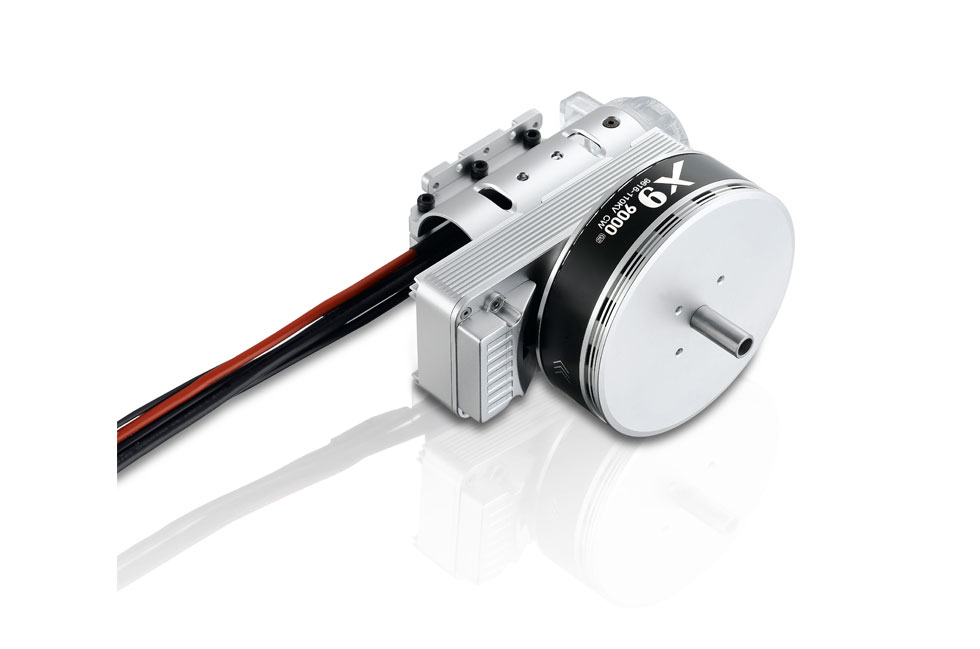

Accessibility interface

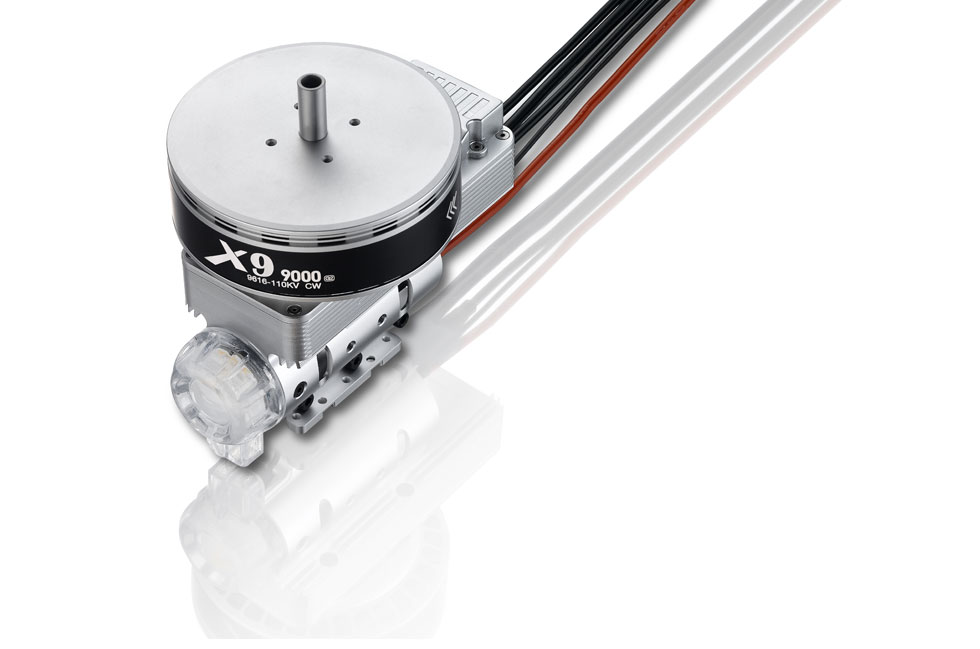

Collision avoidance
structure LED lights

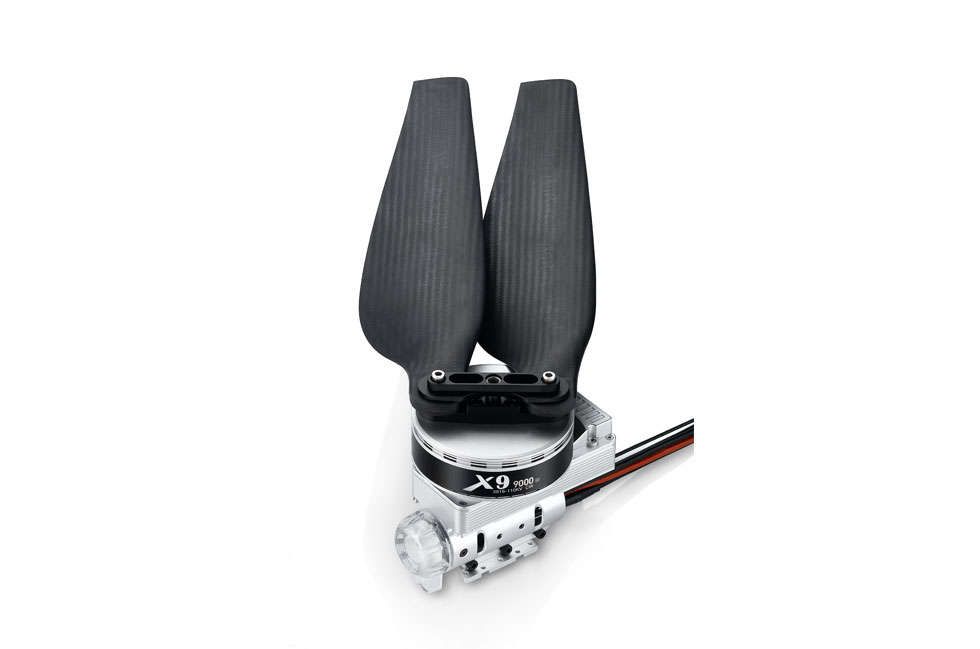

Propellers are available
with a variety of options

The bottom of the powertrain is reserved for the
nozzle mounting mount.It can be connected directly
to various nozzles for installation usinga variety of plant
protection models for auxiliary applications to simplify
the structure

The X9 motor seat-tail and anti-impact design absorbs
impact, and protects both the motor and ESC from
damaging caused by a malfunction crash.

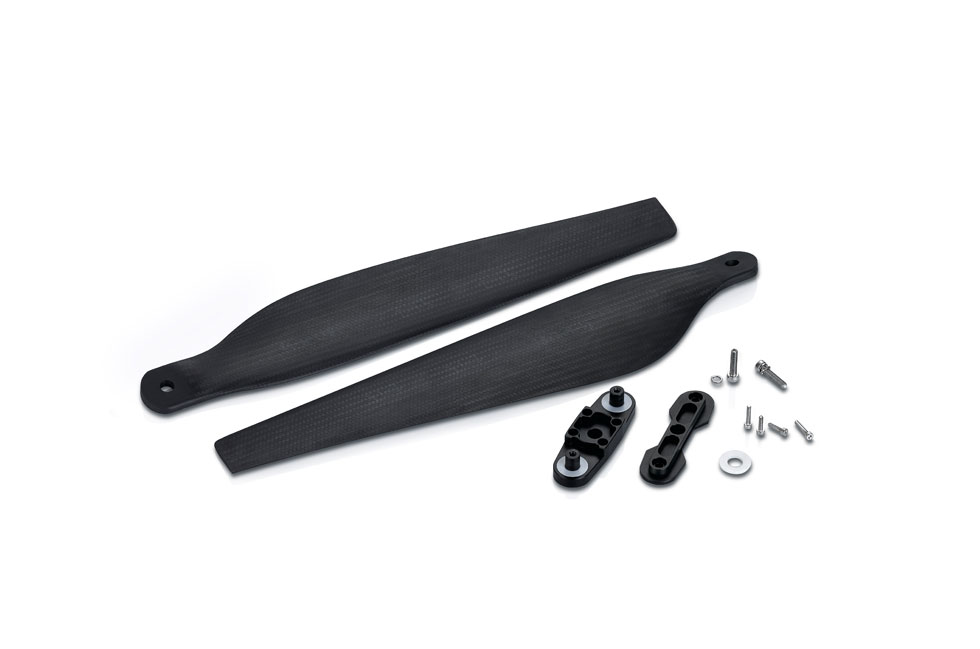

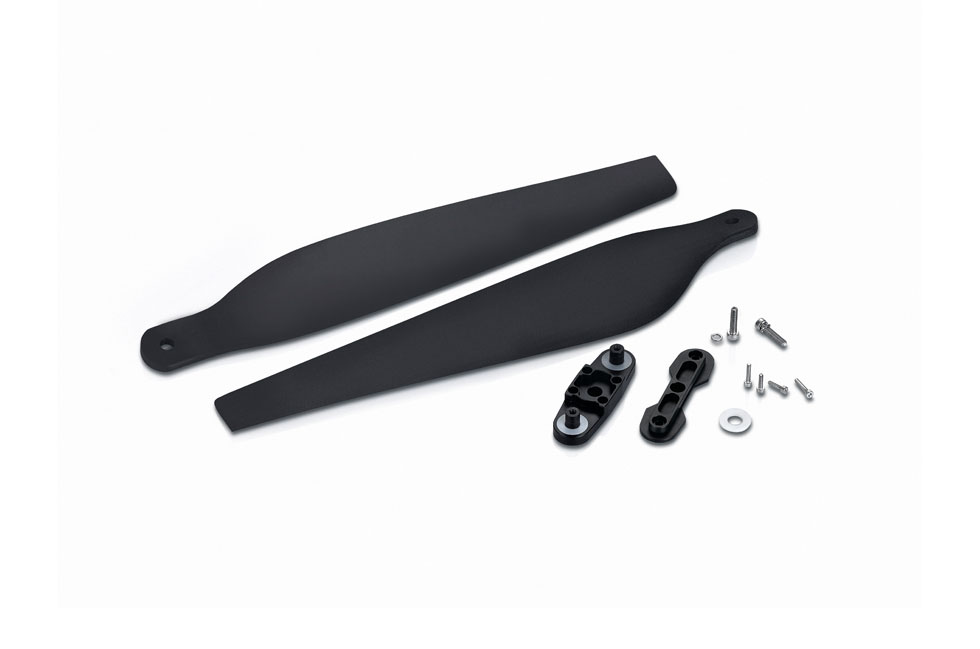

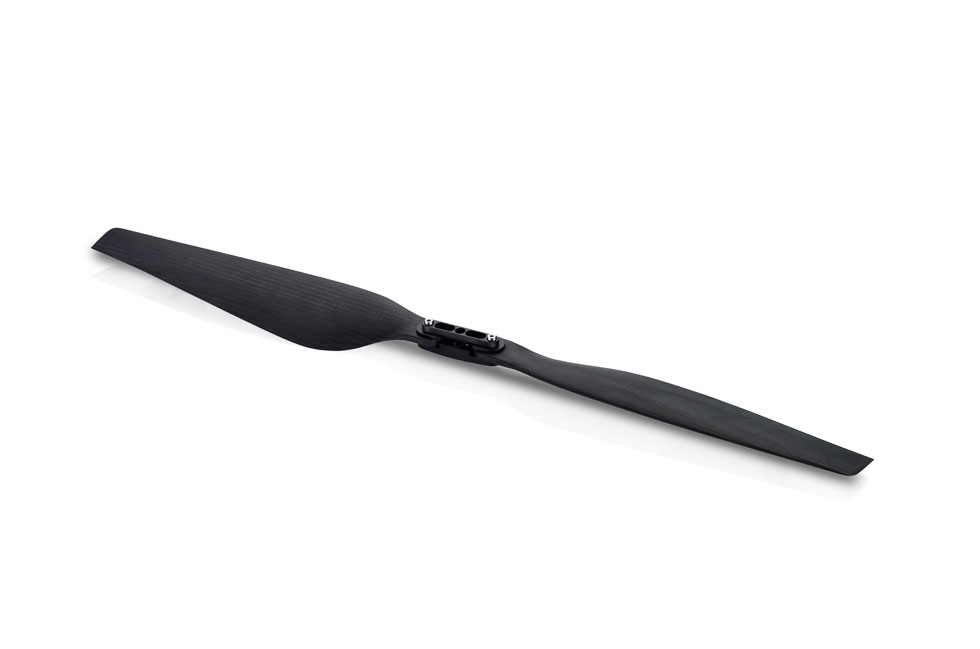

34.7 carbon fiber propeller, 3411 carbon propeller,
36190 carbon propeller

Multiple protection functions
The X9 power system is equipped with several protection functions such as:Power-on self-test, Power-on voltage
abnormal protection, Current protection and Stall protection.It is able to output an operating status data to the
flight controller in real time including; input throttle amount, responsethrottle volume motor speed,
bus voltage, bus current, phase current, capacitor temperature and MOSFET temperature, etc. This allows the flight
controller to grasp the electronics in real-time during operation to improve the flight performance and efficiency. It improves
the overall system reliability.
Note: Using the Hobbywing DataLink data acquisition memory (Note: need to be purchased separately) can
simultaneously collect the real-time operation dataof the 8-channel power system, and pass it to the
flight controller through the bus interface toform a closed-loop control system.

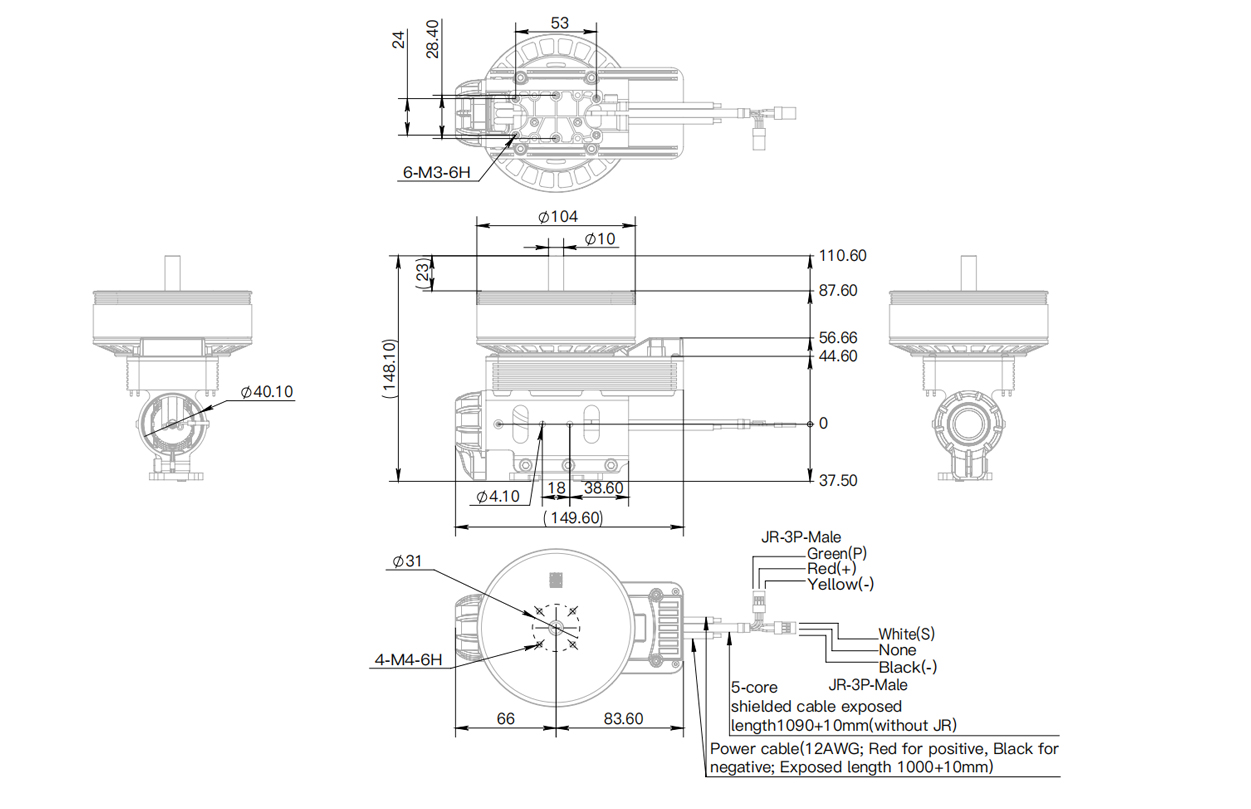

XRotor X9 CAD
Product Name
XRotor 9 Power System Combo
Specifications
Max Thrust 22kg/rotor(54V, Sea Level)
Thrust/rotor 7-9.5kg/rotor(54V, Sea Level)
Recommended Battery 12-14S(LiPo)
Operating Temperature -20-55℃
Total Weight 1524g
Ingress Protection IPX6
Motor
KV Rating 110 rpm/V
Stator Size 96*16mm
Tube Diameter φ40
Bearing Imported Waterproof Bearing
ESC
Recommended LiPo Battery 12-14S LiPo
PWM Input Signal Level 3.3V/5V(Compatible)
Throttle Signal Frequency 50-500Hz
Operating Pulse Width 1100-1940us(Fixed or cannot be Programmed)
Max. Input Voltage 61V
Max. Input Current (Cont.) 120A(With/ Good Heat Dissipation)
Max. Peak Current (10s) 150A(w/ Good Heat Dissipation)
BEC No
Mounting Holes for Nozzle φ28.4mm-2*M3
Propeller
Diameter×Pitch 3411/36190

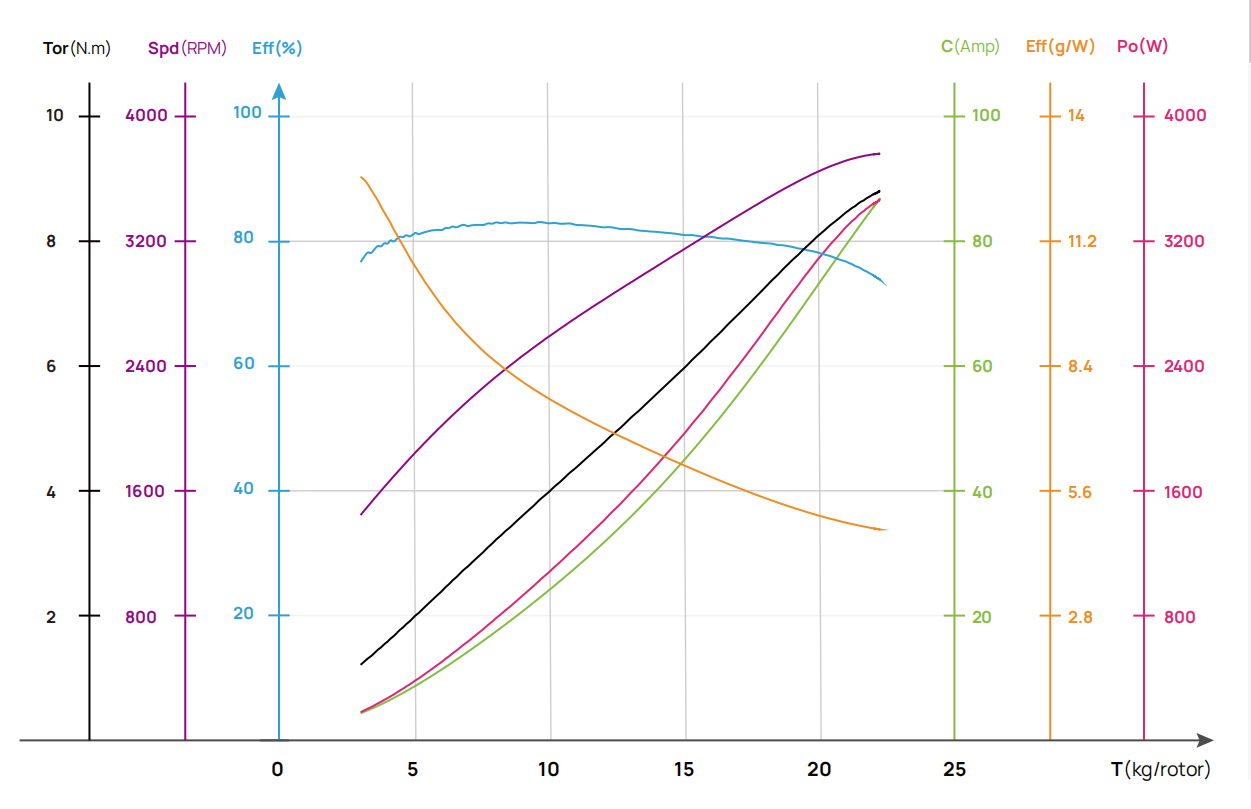

X9-34.7 Technical Parameters

Voltage(V)

Propeller

Throttle(%)

Thrust(g)

Current(A)

Power(W)

Speed(RPM)

Efficiency(g/W)

46V (12S LiPo)

34.7*11 Inch Foldable Propeller

40%

4,840

9.1

425.1

1766

11.38

45%

5,829

11.9

551.9

1952

10.56

50%

6,996

15.5

718.4

2145

9.74

52%

7,399

17.2

796.7

2216

9.29

54%

7,892

19.1

882.9

2285

8.94

56%

8,433

21.0

970.1

2366

8.69

58%

8,999

23.2

1072.4

2434

8.39

60%

9,415

25.1

1160.4

2515

8.11

62%

10,000

27.4

1268.6

2585

7.88

64%

10,551

29.6

1370.9

2661

7.70

66%

11,935

35.7

1654.3

2810

7.21

70%

12,704

39.2

1822.8

2890

6.97

75%

14,417

47.7

2209.0

3075

6.53

80%

16,371

58.0

2696.4

3261

6.07

90%

20,495

83.9

3871.9

3626

5.29

100%

22,195

94.7

4361.6

3754

5.09

The above data is measured by changing the throttle input to adjust the tension under the environment of 25°C and sea level.
X9-34.7 Techenical Parameters

Voltage(V)

Propeller

Throttle(%)

Thrust(g)

Current(A)

Power(W)

Speed(RPM)

Efficiency(g/W)

53.6V (14S LiPo)

34.7*11 Inch Foldable Propeller

40%

4,639

7.7

414.5

1767

11.19

45%

5,643

10.3

555.3

1955

10.16

50%

6,891

13.5

727.5

2139

9.47

52%

7,260

14.8

799.7

2219

9.08

54%

7,831

16.4

1880.7

2289

8.89

56%

8,335

18.1

972.2

2366

8.57

58%

9,015

20.2

1085.0

2443

8.31

60%

9,503

22.1

1187.0

2516

8.01

62%

10,175

24.3

1307.2

2586

7.78

64%

10,491

25.8

1389.9

2661

7.55

66%

11,374

28.7

1544.1

2734

7.37

68%

12,004

31.1

1676.3

2816

7.16

70%

12,503

33.4

1800.2

2887

6.95

75%

14,321

41.2

2221.4

3071

6.45

80%

16,520

51.2

2754.0

3266

6.00

90%

20,506

73.0

3921.9

3635

5.23

100%

22,269

82.3

4413.9

3752

5.05

The above data is measured by changing the throttle input to adjust the tension under the environment of 25°C and sea level.
X9-3411 Techenical Parameters

Voltage(V)

Propeller

Throttle(%)

Thrust(g)

Current(A)

Power(W)

Speed(RPM)

Efficiency(g/W)

46V (12S LiPo)

HW 34 Inch Foldable Propeller

40%

5,005

9.6

444.2

1763

11.27

45%

5.998

12.8

591.5

1946

10.14

50%

7,248

17.0

789.4

2139

9.18

52%

7,923

19.1

885.0

2218

8.95

54%

8,495

21.2

982.8

2287

8.64

56%

9,018

23.7

1094.8

2372

8.24

58%

9,498

25.5

1183.8

2432

8.02

60%

10,143

28.0

1301.2

2515

7.80

62%

10,769

30.6

1422.9

2590

7.57

64%

11,493

34.2

1578.6

2671

7.28

66%

12,136

37.1

1716.7

2738

7.07

68%

13,004

41.0

1896.7

2818

6.86

70%

13,646

44.1

2048.1

2889

6.66

75%

15,198

53.5

2470.0

3075

6.15

80%

17,500

66.4

3073.1

3271

5.69

90%

21,553

94.6

4373.8

3636

4.93

100%

22,994

100.8

4790.4

3697

4.80

The above data is measured by changing the throttle input to adjust the tension under the environment of 25°C and sea level.
X9-3411 Techenical Parameters

Voltage(V)

Propeller

Throttle(%)

Thrust(g)

Current(A)

Power(W)

Speed(RPM)

Efficiency(g/W)

53.6V (14S LiPo)

34 Inch Foldable Propeller

40%

5.005

8.4

453.7

1770

11.03

45%

6,136

11.4

616.7

1955

9.95

50%

7,289

15.0

805.4

2139

9.05/p>

52%

7,901

16.4

889.1

2216

8.89

54%

8,301

18.1

974.7

2290

8.52

56%

8.994

20.2

1089.5

2366

8.25

58%

9,672

22.6

1215.3

2439

7.96

60%

10,226

24.5

1318.3

2513

7.76

62%

10,801

26.8

1439.7

2589

7.50

64%

11,512

29.5

1586.6

2666

7.26

66%

12,312

32.1

1726.7

2736

7.13

68%

12,747

34.5

1858.5

2815

6.86

70%

13,496

37.7

2034.8

2883

6.63

75%

15,503

47.0

2528.0

3079

6.13

80%

17,272

56.0

3029.5

3259

5.70

90%

21,513

81.7

4388.6

3625

4.90

100%

23,038

87.5

4768.8

3714

4.83

The above data is measured by changing the throttle input to adjust the tension under the environment of 25°C and sea level.
Support

Manuals & Documents

Disclaimer

The purpose of this website is only to introduce you to the basic situation of HOBBYWING company and product information. Unless otherwise stated, all information provided on this website should not be regarded as an offer or acceptance, and this website will not assume any binding obligations to you as a result of the provision of information. For all your requests, HOBBYWING reserves the full right to decide whether to commit or not.

This Website and its contents are provided for your convenience on an "as is" basis and your use of this Website is at your sole risk. HOBBYWING does not guarantee that this website will be uninterrupted or error-free, and reserves the right to amend this website or withdraw access to this Website at any time. We make no warranties, express or implied, as to the content, existence, accuracy or reliability of this Website, including, but not limited to, warranties of title, non-infringement or implied warranties of merchantability or fitness for a particular purpose or use.

HOBBYWING shall not be liable for any direct, indirect, incidental, special or consequential damages, loss of profits or business interruption caused by the use or inability to use the services provided by the Website, even if HOBBYWING has been advised of the possibility of similar losses. The exclusions and limitations of the warranty liability of HOBBYWING shall be effective to the extent permitted by applicable law.

HOBBYWING shall not be liable for any damage or loss to your computer system or any other software, hardware, IT system or property caused by viruses or other destructive programs caused by accessing, viewing and using this website or downloading any content from this Website (including but not limited to 2D model files, 3D model files).

HOBBYWING shall not be liable for any direct or indirect damage or loss caused by any third party using illegal means to access the website to obtain the relevant passwords, information and content.

If you or your company is located in the United States or Canada, you need to fill out this disclaimer confirmation letter online and submit it successfully before you can download the relevant materials you are interested in. The link address you fill in online is https://www.hobbywingdirect.com/pages/digital-file-release-form

If you do not agree with this disclaimer, please do not continue to this page. If you continue to access, browse and use this interface, you have read, understood and agreed to be bound by this statement and comply with all applicable laws and regulations.

HOBBYWING reserves the right to correct, modify and update this statement at any time.

Confirm >

Software Download

FAQ

XRotor X9

Tube-on-one structural design

The X9 is three-dimensional and designed with an integrated motor and ESC as one. The installation of the lightweight structure is convenient and can be matched with the circular carbon fiber tube(40mm).Optionally, it can be used with 34.7 propellers or 3411 propellers or 36190 propellers.

Tube-on-one structural design

Smarter, more compatible& the perfect powertrain

The power system is smoother and improves the compatibility of the flight controller (can be used with more excellent flight controllers). The overall stability and reliability of the aircraft has increased with an improved flight effect. LED light color adjustment function remove the lampshade and uses the DIP switch to adjust the LED light color.Smarter, more compatible & the perfect powertrain

Smarter, more compatible
& the perfect powertrain

The maximum tensile force of a single shaft can reach 23kg, which is suitable for large-load plant protection machines with 7-10kg/axis

X9 large-duty plant protection aircraft application, using FOC ESC (optimization algorithm based on field-oriented control) easy airworthiness 16kg load four-axis plant protection rotor aircraft or larger type.

All-weather application

The X9 is equipped with an overall waterproofing protection of IPX7 rating. It guarantees excellent waterproofing and dustproofing protection. The X9 is anti-corrosive and is fully sealed to cope with harsh environment and climates around the world.

All-weather application

Excellent design for heat dissipation

The X9 system design are closely connected. The increase in conductive area greatly improves heat dissipation and can be used for higher power load. The overall structure is more reliable. Excellent design for heat dissipation

Excellent design,
for heat dissipation

Collision avoidance structure LED lights

The X9 motor seat-tail and anti-impact design absorbs impact, and protects both the motor and ESC from damaging caused by a malfunction crash.

Collision avoidance
structure LED lights

Accessibility interface

The bottom of the powertrain is reserved for the nozzle mounting mount. It can be connected directly to various nozzles for installation using a variety of plant protection models for auxiliary applications to simplify the structure.

Accessibility interface

Propellers are available with a variety of options

34.7 carbon fiber propeller, 3411 carbon propeller,36190 carbon propeller

Multiple protection functions

The X9 power system is equipped with several protection functions such as: Power-on self-test, Power-on voltage abnormal protection, Current protection and Stall protection.It is able to output an operating status data to the flight controller in real time including; input throttle amount, response throttle volume motor speed, bus voltage, bus current, phase current, capacitor temperature and MOSFET temperature, etc. This allows the flight controller to grasp the electronics in real-time during operation to improve the flight performance and efficiency. It improves the overall system reliability.
Note: Using the Hobbywing DataLink data acquisition memory (Note: need to be purchased separately) can simultaneously collect the real-time operation data of the 8-channel power system, and pass it to the flight controller through the bus interface to form a closed-loop control system.

Multiple protection functions

Support system upgrades

Hobbywing allows you to update your ESC to the latest firmware and synchronize it using a computer via the Hobbywing Data Link software at all times.

XRotor X9 CAD
Product Name
XRotor 9 Power System Combo
Specifications
Max Thrust 22kg/rotor(54V, Sea Level)
Thrust/rotor 7-9.5kg/rotor(54V, Sea Level)
Recommended Battery 12-14S(LiPo)
Operating Temperature -20-55℃
Total Weight 1524g
Ingress Protection IPX6
Motor
KV Rating 110 rpm/V
Stator Size 96*16mm
Tube Diameter φ40
Bearing Imported Waterproof Bearing
ESC
Recommended LiPo Battery 12-14S LiPo
PWM Input Signal Level 3.3V/5V(Compatible)
Throttle Signal Frequency 50-500Hz
Operating Pulse Width 1100-1940us(Fixed or cannot be Programmed)
Max. Input Voltage 61V
Max. Input Current (Cont.) 120A(With/ Good Heat Dissipation)
Max. Peak Current (10s) 150A(w/ Good Heat Dissipation)
BEC No
Mounting Holes for Nozzle φ28.4mm-2*M3
Propeller
Diameter×Pitch 3411/36190
X9-34.7 Technical Parameters

Voltage(V)

Propeller

Throttle(%)

Thrust(g)

Current(A)

Power(W)

Speed(RPM)

Efficiency(g/W)

46V (12S LiPo)

34.7*11 Inch Foldable Propeller

40%

4,840

9.1

425.1

1766

11.38

45%

5,829

11.9

551.9

1952

10.56

50%

6,996

15.5

718.4

2145

9.74

52%

7,399

17.2

796.7

2216

9.29

54%

7,892

19.1

882.9

2285

8.94

56%

8,433

21.0

970.1

2366

8.69

58%

8,999

23.2

1072.4

2434

8.39

60%

9,415

25.1

1160.4

2515

8.11

62%

10,000

27.4

1268.6

2585

7.88

64%

10,551

29.6

1370.9

2661

7.70

66%

11,935

35.7

1654.3

2810

7.21

70%

12,704

39.2

1822.8

2890

6.97

75%

14,417

47.7

2209.0

3075

6.53

80%

16,371

58.0

2696.4

3261

6.07

90%

20,495

83.9

3871.9

3626

5.29

100%

22,195

94.7

4361.6

3754

5.09

The above data is measured by changing the throttle input to adjust the tension under the environment of 25°C and sea level.
X9-34.7 Techenical Parameters

Voltage(V)

Propeller

Throttle(%)

Thrust(g)

Current(A)

Power(W)

Speed(RPM)

Efficiency(g/W)

53.6V (14S LiPo)

34.7*11 Inch Foldable Propeller

40%

4,639

7.7

414.5

1767

11.19

45%

5,643

10.3

555.3

1955

10.16

50%

6,891

13.5

727.5

2139

9.47

52%

7,260

14.8

799.7

2219

9.08

54%

7,831

16.4

1880.7

2289

8.89

56%

8,335

18.1

972.2

2366

8.57

58%

9,015

20.2

1085.0

2443

8.31

60%

9,503

22.1

1187.0

2516

8.01

62%

10,175

24.3

1307.2

2586

7.78

64%

10,491

25.8

1389.9

2661

7.55

66%

11,374

28.7

1544.1

2734

7.37

68%

12,004

31.1

1676.3

2816

7.16

70%

12,503

33.4

1800.2

2887

6.95

75%

14,321

41.2

2221.4

3071

6.45

80%

16,520

51.2

2754.0

3266

6.00

90%

20,506

73.0

3921.9

3635

5.23

100%

22,269

82.3

4413.9

3752

5.05

The above data is measured by changing the throttle input to adjust the tension under the environment of 25°C and sea level.
X9-3411 Techenical Parameters

Voltage(V)

Propeller

Throttle(%)

Thrust(g)

Current(A)

Power(W)

Speed(RPM)

Efficiency(g/W)

46V (12S LiPo)

HW 34 Inch Foldable Propeller

40%

5,005

9.6

444.2

1763

11.27

45%

5.998

12.8

591.5

1946

10.14

50%

7,248

17.0

789.4

2139

9.18

52%

7,923

19.1

885.0

2218

8.95

54%

8,495

21.2

982.8

2287

8.64

56%

9,018

23.7

1094.8

2372

8.24

58%

9,498

25.5

1183.8

2432

8.02

60%

10,143

28.0

1301.2

2515

7.80

62%

10,769

30.6

1422.9

2590

7.57

64%

11,493

34.2

1578.6

2671

7.28

66%

12,136

37.1

1716.7

2738

7.07

68%

13,004

41.0

1896.7

2818

6.86

70%

13,646

44.1

2048.1

2889

6.66

75%

15,198

53.5

2470.0

3075

6.15

80%

17,500

66.4

3073.1

3271

5.69

90%

21,553

94.6

4373.8

3636

4.93

100%

22,994

100.8

4790.4

3697

4.80

The above data is measured by changing the throttle input to adjust the tension under the environment of 25°C and sea level.
X9-3411 Techenical Parameters

Voltage(V)

Propeller

Throttle(%)

Thrust(g)

Current(A)

Power(W)

Speed(RPM)

Efficiency(g/W)

53.6V (14S LiPo)

34 Inch Foldable Propeller

40%

5.005

8.4

453.7

1770

11.03

45%

6,136

11.4

616.7

1955

9.95

50%

7,289

15.0

805.4

2139

9.05/p>

52%

7,901

16.4

889.1

2216

8.89

54%

8,301

18.1

974.7

2290

8.52

56%

8.994

20.2

1089.5

2366

8.25

58%

9,672

22.6

1215.3

2439

7.96

60%

10,226

24.5

1318.3

2513

7.76

62%

10,801

26.8

1439.7

2589

7.50

64%

11,512

29.5

1586.6

2666

7.26

66%

12,312

32.1

1726.7

2736

7.13

68%

12,747

34.5

1858.5

2815

6.86

70%

13,496

37.7

2034.8

2883

6.63

75%

15,503

47.0

2528.0

3079

6.13

80%

17,272

56.0

3029.5

3259

5.70

90%

21,513

81.7

4388.6

3625

4.90

100%

23,038

87.5

4768.8

3714

4.83

The above data is measured by changing the throttle input to adjust the tension under the environment of 25°C and sea level.
Support

Manuals & Documents

Disclaimer

The purpose of this website is only to introduce you to the basic situation of HOBBYWING company and product information. Unless otherwise stated, all information provided on this website should not be regarded as an offer or acceptance, and this website will not assume any binding obligations to you as a result of the provision of information. For all your requests, HOBBYWING reserves the full right to decide whether to commit or not.

This Website and its contents are provided for your convenience on an "as is" basis and your use of this Website is at your sole risk. HOBBYWING does not guarantee that this website will be uninterrupted or error-free, and reserves the right to amend this website or withdraw access to this Website at any time. We make no warranties, express or implied, as to the content, existence, accuracy or reliability of this Website, including, but not limited to, warranties of title, non-infringement or implied warranties of merchantability or fitness for a particular purpose or use.

HOBBYWING shall not be liable for any direct, indirect, incidental, special or consequential damages, loss of profits or business interruption caused by the use or inability to use the services provided by the Website, even if HOBBYWING has been advised of the possibility of similar losses. The exclusions and limitations of the warranty liability of HOBBYWING shall be effective to the extent permitted by applicable law.

HOBBYWING shall not be liable for any damage or loss to your computer system or any other software, hardware, IT system or property caused by viruses or other destructive programs caused by accessing, viewing and using this website or downloading any content from this Website (including but not limited to 2D model files, 3D model files).

HOBBYWING shall not be liable for any direct or indirect damage or loss caused by any third party using illegal means to access the website to obtain the relevant passwords, information and content.

If you or your company is located in the United States or Canada, you need to fill out this disclaimer confirmation letter online and submit it successfully before you can download the relevant materials you are interested in. The link address you fill in online is https://www.hobbywingdirect.com/pages/digital-file-release-form

If you do not agree with this disclaimer, please do not continue to this page. If you continue to access, browse and use this interface, you have read, understood and agreed to be bound by this statement and comply with all applicable laws and regulations.

HOBBYWING reserves the right to correct, modify and update this statement at any time.

Confirm >

Software Download

FAQ
