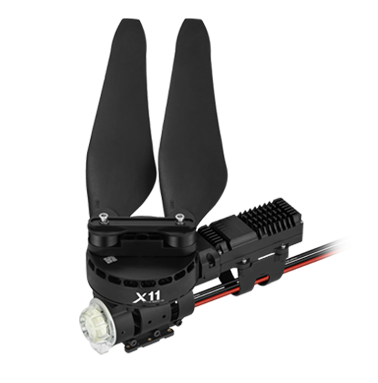

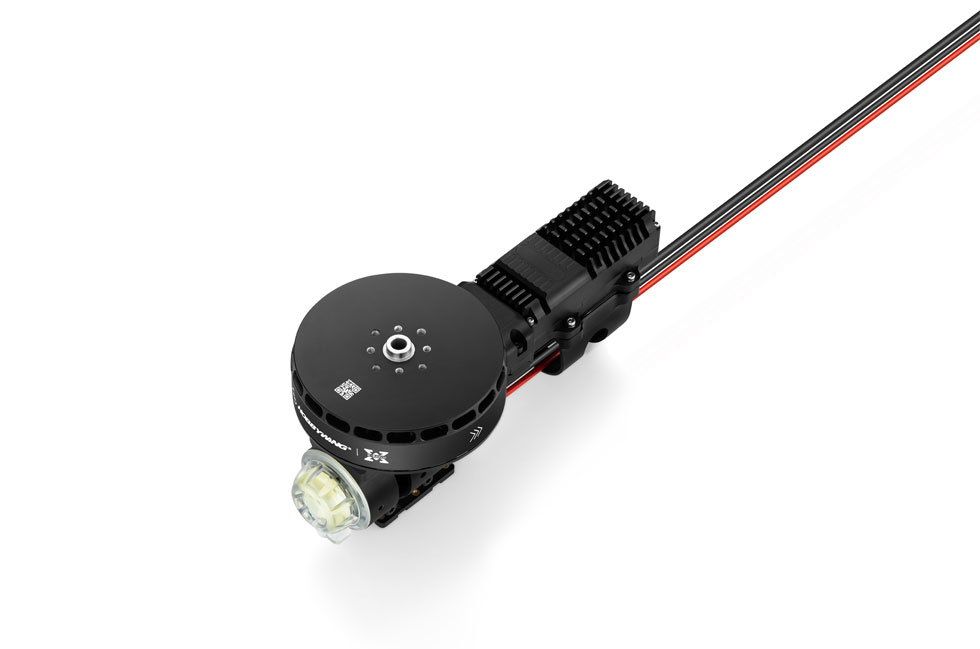

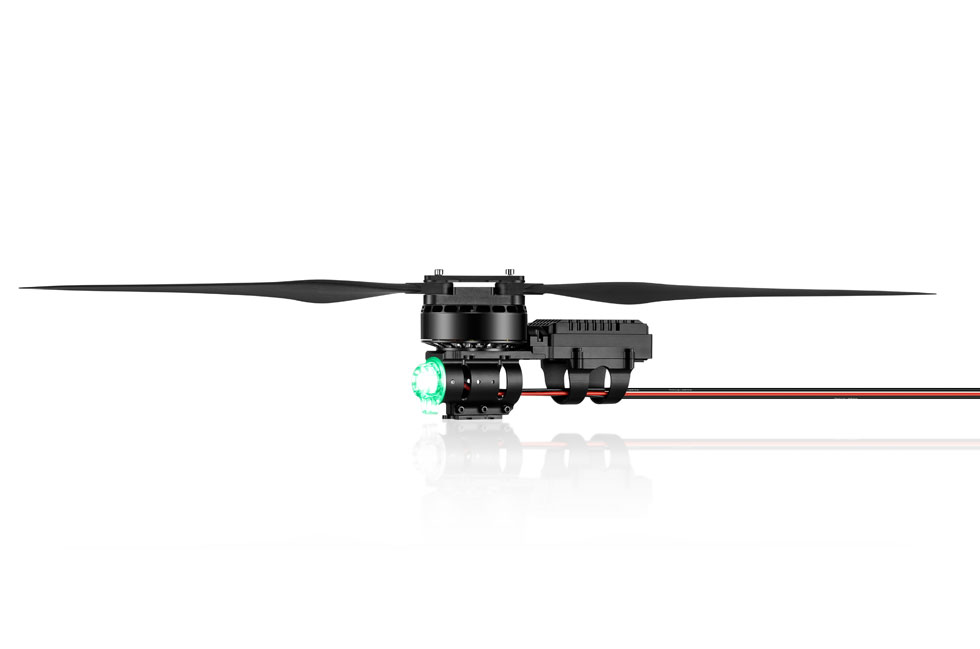

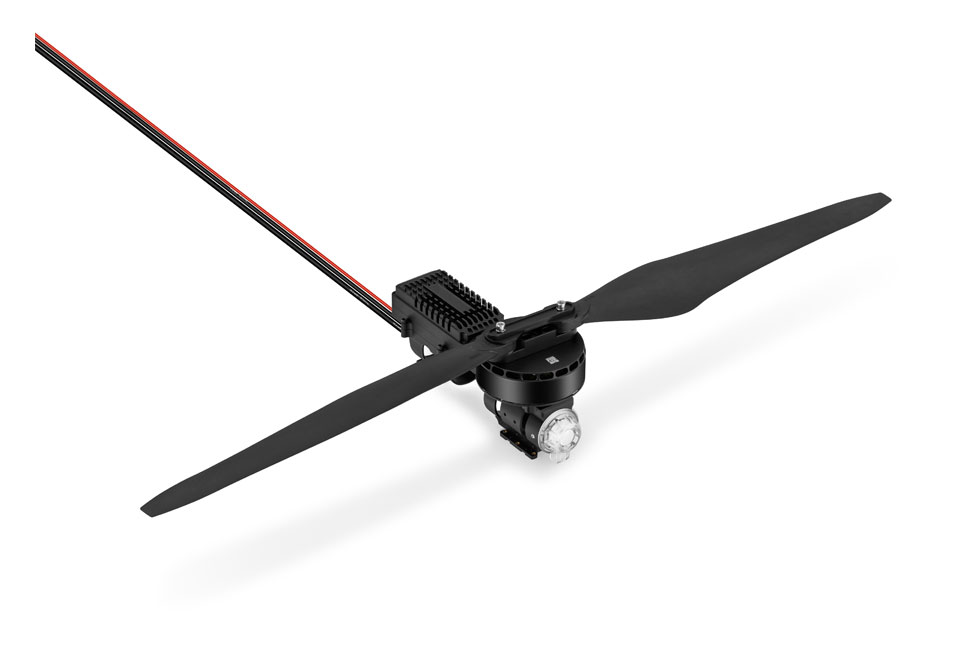

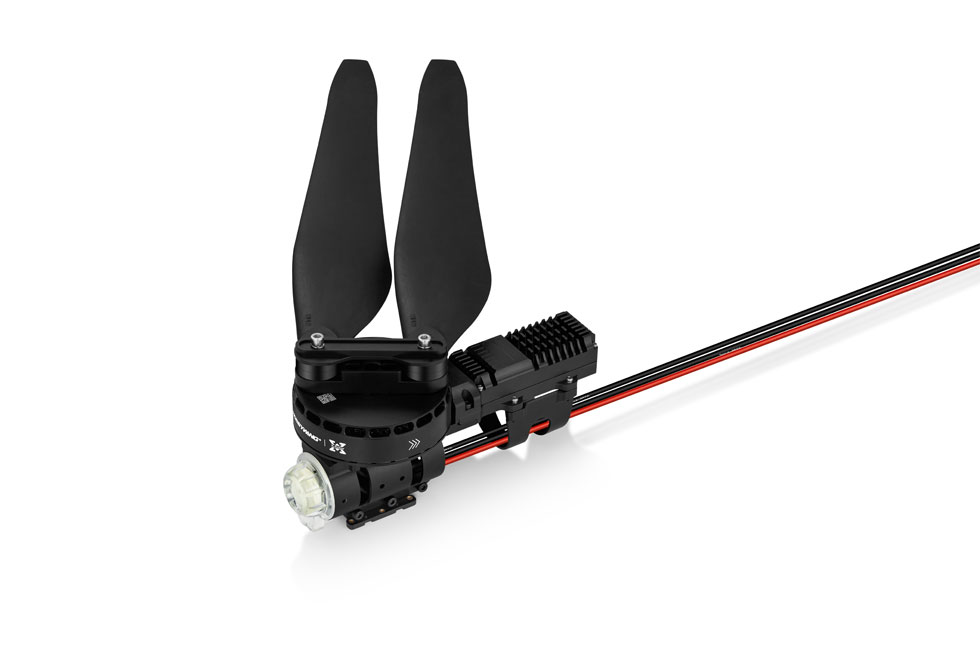

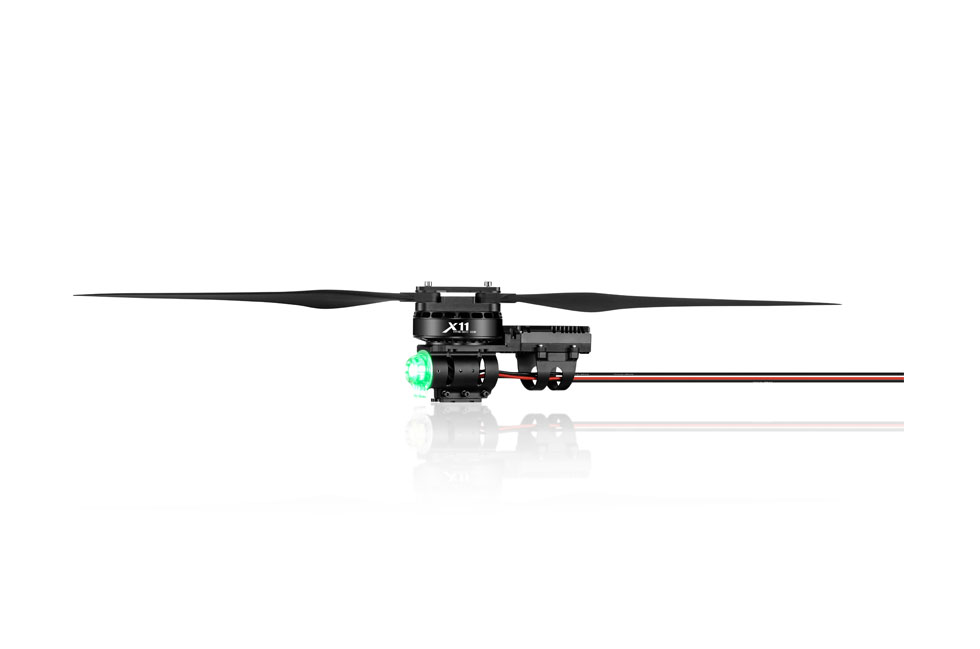

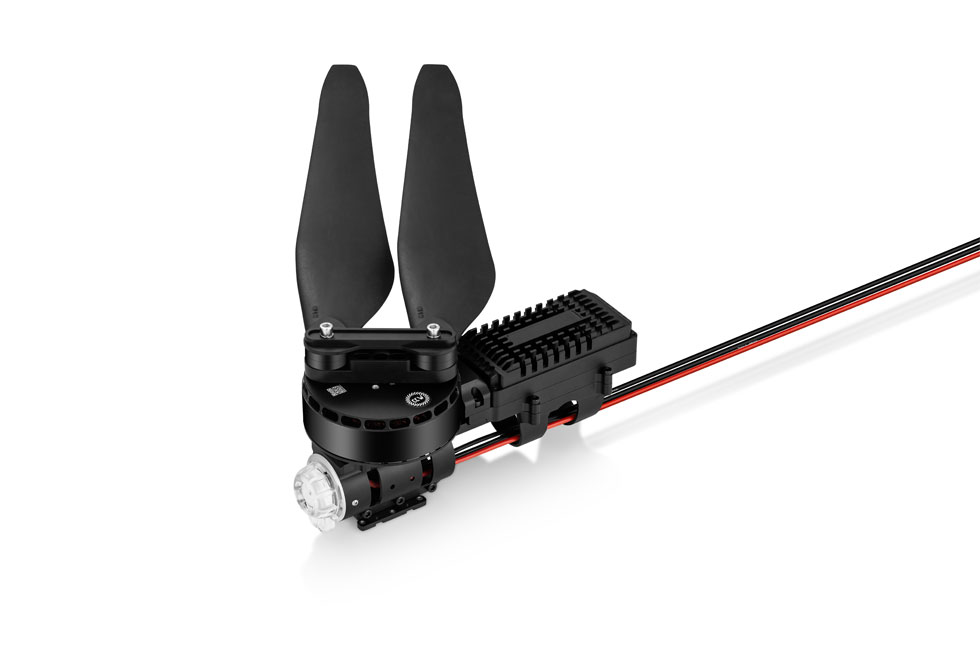

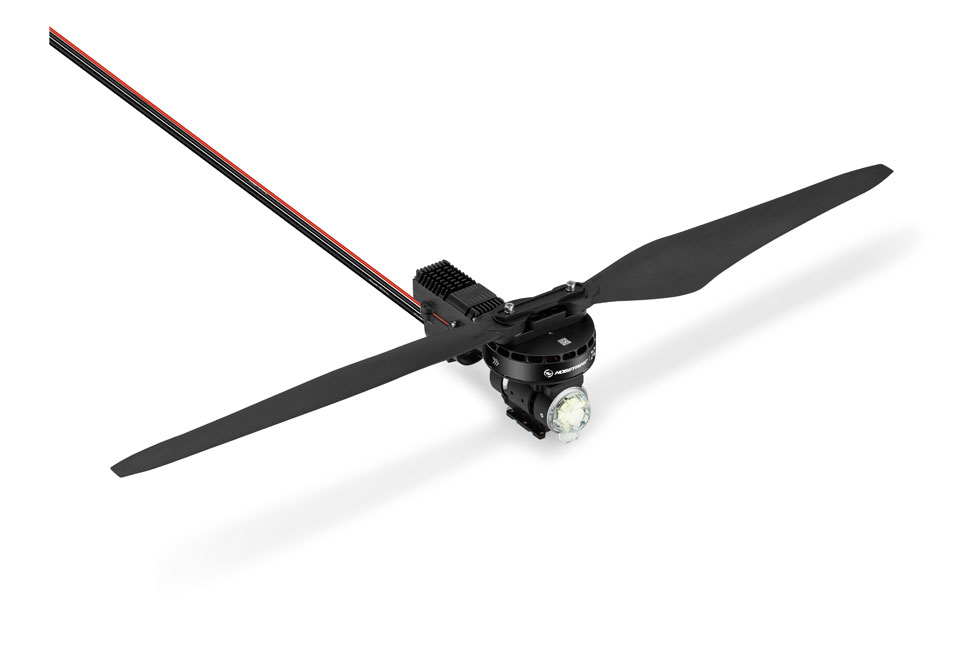

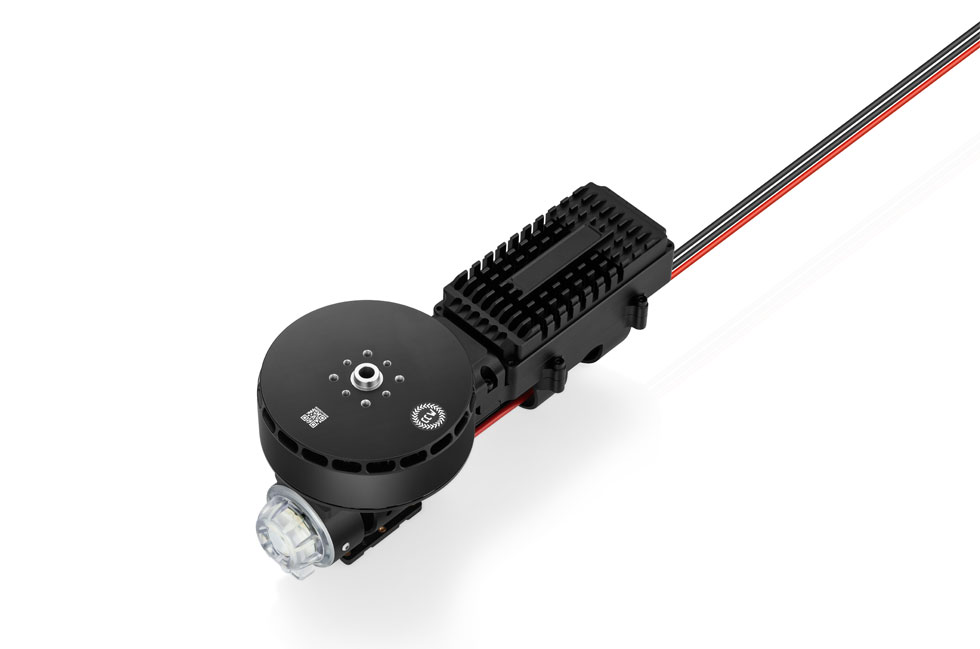

XRotor X11 14S & 18S

Large agricultural drone power series - X11

High pressure drive & high thrust force
The power system from the X11-14S series has a maximum thrust force of 34kg at 54V. By reducing the
operating current and the weight of the electronical connection, the X11 is able to achieve a large
load of thrust to ensure stability and reliability of the system. It also supports high-voltage
batteries (3.85v) of up to 60.9V.

High pressure drive
& high thrust force

Protection class IPX7

The X11 is equipped with an overall waterproofing protection of IPX7 rating. It guarantees excellent waterproofing and dustproofing protection. The X11 is anti-corrosive and is fully sealed to cope with harsh environment and climates around the world.

Protection class IPX7

Electrical & structural performance double optimization

The iron core structure from the motor has been redesigned to reduce the internal resistance and increase the overall efficiency rate. Additionally, the weight of the motor is reduced to improve the overall performance.By adopting the FOC vector control drive technology with fixed-point optimization, the drive efficiency and the battery life are further improved. The factory chooses high quality large bearing system (6002) to increase load capacity. This would mean that the structure of the diameter shalf will be increased to give better rigidity, longer life and is not easily deformed.

upgrade iron core platform

Enrich the language of navigation lights

More power failures are added into the system in order to find the fault.
The flashing display of the flight lights will indicate the issue and users
are able to troubleshoot them in QuickTime.

Enrich the language
of navigation lights

Tiled integrated structure for enhanced heat
dissipation & lower center of gravity

X11 series power system adopts a newly integrated structural design. The overall CG is reduced
and is lowered by 10mm. The overall flight will be more stable. The compatibility of rack
equipment will be greater. The ESC & motor heat dissipation are designed separately to
improve the overall heat dissipation effect of the system. Compared to the X9, the
new X11 will operate at a lower temperature (20% ~ 25%). This ensures that the
large heavy-duty UAVs carries out a safe and stabilized operation at all times.

：tiled integrated
structure

System anti-interference upgrade

The new layout of the PCB is optimized in order to cope with high power interference. The data communication signal line adopts a fully shielded bundle line, and the working data uses CAN/serial port data transmission, which improves the overall anti-external interference and high-current interference performance.

System anti-interference upgrade

Multiple protection functions

X11 power system is equipped with several protection functions
such as: Power-on self-test, Power-on voltage abnormal protection,
Current protection and Stall protection.It is able to output an
operating status data to the flight controller in real time including;
input throttle amount, response throttle volume motor speed, bus voltage,
bus current, phase current, capacitor temperature and MOS tube temperature,
etc. This allows the flight controller to grasp the electronics in real-time
during operation to improve the flight performance and efficiency.
It improves the overall system reliability.
Note: Using the Hobbywing Data Link data acquisition memory
(Note: need to be purchased separately) can simultaneously
collect the real-time operation data of the 8-channel power
system, and pass it to the flight controller through the
bus interface to form a closed-loop control system.

Multiple Protections

Self-
checking

Over-load
Protection

Start-up
Protection

Overcurent
protection

Support system upgrades

Hobbywing allows you to update your ESC to the latest firmware and synchronize it using a computer via the Hobbywing Data Link software at all times.

Support system upgrades

XRotor X11 14S & 18S CAD
Product Name
Specifications Max. Thrust

Recommended Takeoff Weight

Recommended LiPo Battery

Operating Temperature

Combo Weight

Waterproof Rating
Motor KV Rating

Stator Size

Tube Diameter

Bearing
ESC Recommended LiPo Battery

PWM Input Signal Level

Throttle Signal Frequency

Operating Pulse Width

Max. Input Voltage

Max. Peak Current (10s)

BEC

Mounting Holes for Nozzle
Propeller Diameter×Pitch
Product Name X11-14S/18S
Specifications Max. Thrust

Recommended Takeoff Weight

Recommended LiPo Battery

Operating Temperature

Combo Weight

Waterproof Rating		 34kg/ axis（53.6V, sea level）

15-17kg/axis(sea level)

14S(LiPo)

-20-55℃

2340g

IPX7
Motor KV Rating

Stator Size

Tube Diameter

Bearing		 95 KV

111*15

φ45/50mm

Waterproof Bearing
ESC Recommended LiPo Battery

PWM Input Signal Level

Throttle Signal Frequency

Operating Pulse Width

Max. Input Voltage

Max. Peak Current (10s)

BEC

Mounting Holes for Nozzle		 14S LiPo

3.3V/5V

50-500Hz

1050-1950us

60.9V

150A (excellent heat dissipation are required)

No

φ28.4mm-2*M3

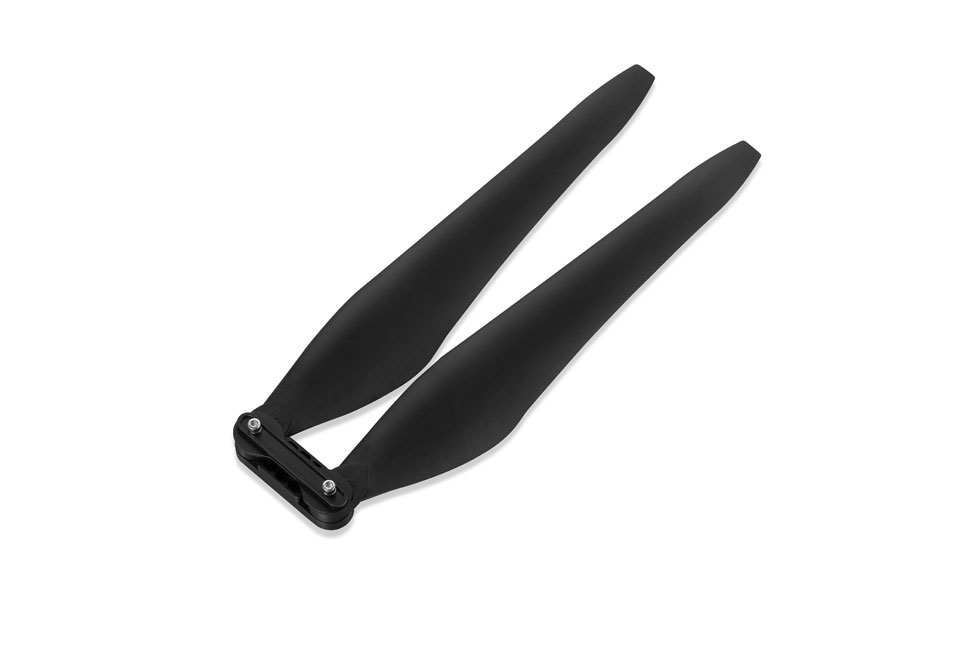

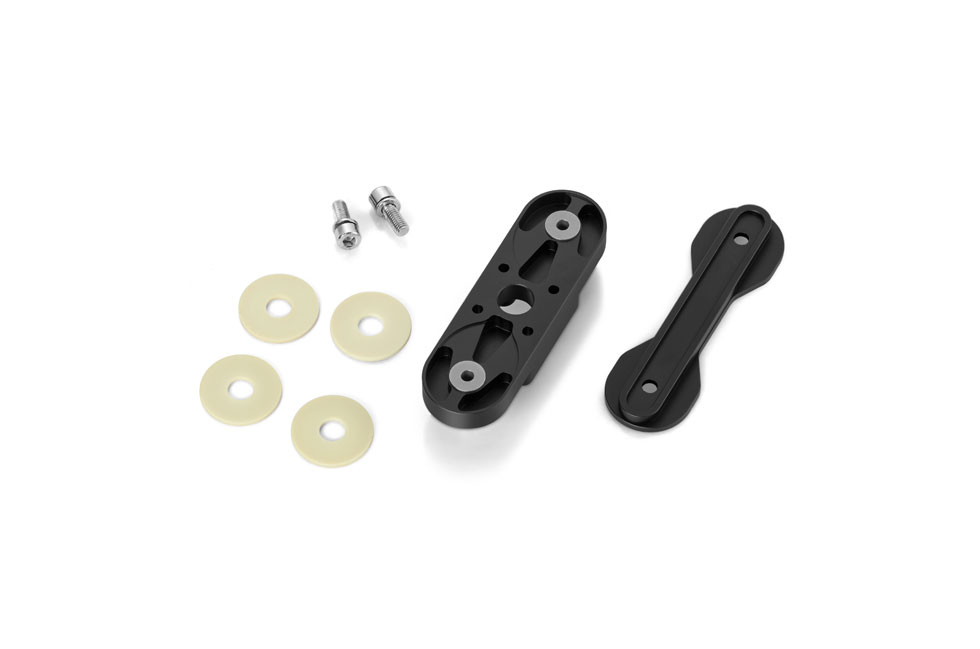

Propeller Diameter×Pitch 41135
HW-X11-14S Techenical Parameters:

Voltage(V)

Propeller

Throttle（%)

Thrust(g)

Current(A)

Power(W)

Speed(RPM)

Efficiency(g/W)

46V (12S LIPO)

41*13.5 Inch Foldable Propeller

40%

8865

18.3

844.5

1902

10.5

42%

9960

22.2

1022.3

2022

9.7

44%

10700

24.9

1148.4

2099

9.3

46%

11575

28.2

1301.0

2187

8.9

48%

12515

31.8

1466.9

2277

8.5

50%

13515

35.7

1644.1

2366

8.2

52%

14650

40.0

1845.9

2461

7.9

54%

15600

43.7

2016.1

2536

7.7

56%

16605

47.7

2199.2

2611

7.6

58%

17605

51.8

2386.6

2684

7.4

60%

19055

58.0

2672.8

2785

7.1

62%

19865

61.7

2842.7

2841

7.0

64%

21065

67.5

3110.8

2925

6.8

66%

21850

71.6

3298.2

2981

6.6

68%

23430

80.5

3706.2

3095

6.3

70%

24575

87.4

4027.1

3180

6.1

72%

24880

89.4

4115.5

3202

6.0

74%

27135

104.3

4801.0

3365

5.7

76%

27770

108.6

4997.4

3407

5.6

78%

28040

110.4

5080.2

3424

5.5

80%

29890

122.2

5624.1

3520

5.3

100%

30320

124.7

5738.7

3535

5.3

Voltage(V)

Propeller

Throttle（%)

Thrust(g)

Current(A)

Power(W)

Speed(RPM)

Efficiency(g/W)

54V (14S LIPO)

41*13.5 Inch Foldable Propeller

40%

8860

15.7

850.6

1909

10.4

42%

9680

18.1

979.5

1998

9.9

44%

10760

21.4

1160.2

2111

9.3

46%

11510

23.9

1291.2

2186

8.9

48%

12400

26.8

1450.9

2271

8.5

50%

12750

28.0

1514.6

2303

8.4

52%

14015

32.3

1748.8

2416

8.0

54%

15400

37.2

2010.5

2531

7.7

56%

16385

40.7

2199.7

2608

7.4

58%

17335

44.1

2384.9

2679

7.3

60%

18865

49.8

2691.1

2789

7.0

62%

19385

51.7

2797.8

2825

6.9

64%

20775

57.2

3092.1

2919

6.7

66%

21875

61.7

3336.2

2992

6.6

68%

23090

67.0

3620.1

3071

6.4

70%

24530

73.6

3979.8

3164

6.2

72%

25635

79.1

4275.1

3236

6.0

74%

26275

82.4

4454.5

3277

5.9

76%

27635

89.9

4857.6

3365

5.7

78%

28830

96.9

5236.9

3441

5.5

80%

30290

106.1

5624.1

3533

5.3

100%

33970

131.7

7112.8

3741

4.8
The above data is measured by changing the throttle input to adjust the tension under the environment of 25°C and sea level.
HHW-X11-18S Techenical Parameters:

Voltage(V)

Propeller

Throttle（%)

Thrust(g)

Current(A)

Power(W)

Speed(RPM)

Efficiency(g/W)

70V (18S LiPo)

HW 41*13.8 Inch Foldable Propeller

40%

8760

12.4

854.8

1956

10.2

42%

9560

14.1

973.5

2044

9.8

44%

10455

16.1

1113.4

2138

9.4

46%

11420

18.4

1271.7

2235

9.0

48%

12330

20.7

1427.3

2323

9.2

50%

13065

22.5

1557.0

2391

8.4

52%

14300

25.8

1782.6

2499

8.0

54%

15300

28.5

1972.1

2583

7.8

56%

16420

31.7

2191.3

2673

7.5

58%

17720

35.5

2455.5

2773

7.6

60%

18730

38.6

2668.4

2848

7.0

62%

19675

41.6

2874.3

2918

6.8

64%

20785

45.2

3125.2

2998

6.7

66%

22160

50.0

3451.4

3096

6.4

68%

23030

53.1

3667.6

3158

6.3

70%

23960

56.6

3908.4

3224

6.1

72%

25400

62.3

4302.9

3327

5.9

74%

26670

67.7

4675.6

3418

5.7

76%

27045

69.4

4790.5

3444

5.6

78%

28290

75.2

5189.7

3532

5.5

80%

29655

82.0

5661.0

3627

5.2

90%

33230

102.7

7090.4

3842

4.7

100%

34775

113.2

7809.7

3909

4.5
The above data is measured by changing the throttle input to adjust the tension under the environment of 25°C and sea level.
Support

Manuals & Documents

HW-X11-18S 41135 Technical Parameters
X11-14S-41135 technical parameters
X11-14S&18S-50mm-pupe shape
X11-14S&18S-D50 3D Model Drawing
X11-14S User-Manual
X11-18S User-Manual

Software Download

FAQ

DATALINKV2

DATALINKV2

DATALINKV2

Name: DATALINKV2
Telemetry: USB, CAN, Serial
Voltage: 6-81V
Size: 57*40*13mm(without wires)
Weight: 27g

+

Products Center

Service and Support

News Center

About

Global Partners

Welcome to Brushless
System Trends

Privacy Policy 粤ICP备14009225号-1  |  ©2015 Hobbywing Technology CO., LTD.. All rights reserved
XRotor X11 14S & 18S
Overview Specifications Support Accessories Detail

Large agricultural drone power series - X11

High pressure drive & high thrust force The power system from the X11-14S series has a maximum thrust force of 34kg at 54V. By reducing the operating current and the weight of the electronical connection, the X11 is able to achieve a large load of thrust to ensure stability and reliability of the system. It also supports high-voltage batteries (3.85v) of up to 60.9V.

Electrical & structural performance double optimization

The iron core structure from the motor has been redesigned to reduce the internal resistance and increase the overall efficiency rate. Additionally, the weight of the motor is reduced to improve the overall performance. By adopting the FOC vector control drive technology w ith fixed-point optimization, the drive efficiency and the battery life are further improved. The factory chooses high quality large bearing system (6002) to increase load capacity. This would mean that the structure of the diameter shalf will be increased to give better rigidity, longer life and is not easily deformed.

Tiled integrated structure for enhanced heat dissipation & lower center of gravity

X11 series power system adopts a newly integrated structural design. The overall CG is reduced and is lowered by 10mm. The overall flight will be more stable. The compatibility of rack equipment will be greater. The ESC & motor heat dissipation are designed separately to improve the overall heat dissipation effect of the system. Compared to the X9, the new X11 will operate at a lower temperature (20% ~ 25%). This ensures that the large heavy-duty UAVs carries out a safe and stabilized operation at all times.

Enrich the language of navigation lights

More power failures are added into the system in order to find the fault. The flashing display of the flight lights will indicate the issue and users are able to troubleshoot them in QuickTime.

System anti-interference upgrade

The new layout of the PCB is optimized in order to cope with high power interference. The data communication signal line adopts a fully shielded bundle line, and the working data uses CAN/serial port data transmission, which improves the overall anti-external interference and high-current interference performance.

Protection class IPX7

The X11 is equipped with an overall waterproofing protection of IPX7 rating. It guarantees excellent waterproofing and dustproofing protection. The X11 is anti-corrosive and is fully sealed to cope with harsh environment and climates around the world.

Multiple protection functions

X11 power system is equipped with several protection functions such as: Power-on self-test, Power-on voltage abnormal protection, Current protection and Stall protection.It is able to output an operating status data to the flight controller in real time including; input throttle amount, response throttle volume motor speed, bus voltage, bus current, phase current, capacitor temperature and MOS tube temperature, etc. This allows the flight controller to grasp the electronics in real-time during operation to improve the flight performance and efficiency. It improves the overall system reliability. Note: Using the Hobbywing Data Link data acquisition memory (Note: need to be purchased separately) can simultaneously collect the real-time operation data of the 8-channel power system, and pass it to the flight controller through the bus interface to form a closed-loop control system.

Support system upgrades

Hobbywing allows you to update your ESC to the latest firmware and synchronize it using a computer via the Hobbywing Data Link software at all times.

XRotor X11 14S & 18S CAD
Product Name X11-14S/18S
Specifications Max. Thrust

Recommended Takeoff Weight

Recommended LiPo Battery

Operating Temperature

Combo Weight

Waterproof Rating		 34kg/ axis（53.6V, sea level）

15-17kg/axis(sea level)

14S(LiPo)

-20-55℃

2340g

IPX7
Motor KV Rating

Stator Size

Tube Diameter

Bearing		 95 KV

111*15

φ45/50mm

Waterproof Bearing
ESC Recommended LiPo Battery

PWM Input Signal Level

Throttle Signal Frequency

Operating Pulse Width

Max. Input Voltage

Max. Peak Current (10s)

BEC

Mounting Holes for Nozzle		 14S LiPo

3.3V/5V

50-500Hz

1050-1950us

60.9V

150A (excellent heat dissipation are required)

No

φ28.4mm-2*M3
Propeller Diameter×Pitch 41135
Product Name X11-14S/18S
Specifications Max. Thrust

Recommended Takeoff Weight

Recommended LiPo Battery

Operating Temperature

Combo Weight

Waterproof Rating		 34kg/ axis（53.6V, sea level）

15-17kg/axis(sea level)

14S(LiPo)

-20-55℃

2340g

IPX7
Motor KV Rating

Stator Size

Tube Diameter

Bearing		 95 KV

111*15

φ45/50mm

Waterproof Bearing
ESC Recommended LiPo Battery

PWM Input Signal Level

Throttle Signal Frequency

Operating Pulse Width

Max. Input Voltage

Max. Peak Current (10s)

BEC

Mounting Holes for Nozzle		 14S LiPo

3.3V/5V

50-500Hz

1050-1950us

60.9V

150A (excellent heat dissipation are required)

No

φ28.4mm-2*M3
Propeller Diameter×Pitch 41135
HW-X11-14S Techenical Parameters:

Voltage(V)

Propeller

Throttle（%)

Thrust(g)

Current(A)

Power(W)

Speed(RPM)

Efficiency(g/W)

46V (12S LIPO)

41*13.5 Inch Foldable Propeller

40%

8865

18.3

844.5

1902

10.5

42%

9960

22.2

1022.3

2022

9.7

44%

10700

24.9

1148.4

2099

9.3

46%

11575

28.2

1301.0

2187

8.9

48%

12515

31.8

1466.9

2277

8.5

50%

13515

35.7

1644.1

2366

8.2

52%

14650

40.0

1845.9

2461

7.9

54%

15600

43.7

2016.1

2536

7.7

56%

16605

47.7

2199.2

2611

7.6

58%

17605

51.8

2386.6

2684

7.4

60%

19055

58.0

2672.8

2785

7.1

62%

19865

61.7

2842.7

2841

7.0

64%

21065

67.5

3110.8

2925

6.8

66%

21850

71.6

3298.2

2981

6.6

68%

23430

80.5

3706.2

3095

6.3

70%

24575

87.4

4027.1

3180

6.1

72%

24880

89.4

4115.5

3202

6.0

74%

27135

104.3

4801.0

3365

5.7

76%

27770

108.6

4997.4

3407

5.6

78%

28040

110.4

5080.2

3424

5.5

80%

29890

122.2

5624.1

3520

5.3

100%

30320

124.7

5738.7

3535

5.3

Voltage(V)

Propeller

Throttle（%)

Thrust(g)

Current(A)

Power(W)

Speed(RPM)

Efficiency(g/W)

54V (14S LIPO)

41*13.5 Inch Foldable Propeller

40%

8860

15.7

850.6

1909

10.4

42%

9680

18.1

979.5

1998

9.9

44%

10760

21.4

1160.2

2111

9.3

46%

11510

23.9

1291.2

2186

8.9

48%

12400

26.8

1450.9

2271

8.5

50%

12750

28.0

1514.6

2303

8.4

52%

14015

32.3

1748.8

2416

8.0

54%

15400

37.2

2010.5

2531

7.7

56%

16385

40.7

2199.7

2608

7.4

58%

17335

44.1

2384.9

2679

7.3

60%

18865

49.8

2691.1

2789

7.0

62%

19385

51.7

2797.8

2825

6.9

64%

20775

57.2

3092.1

2919

6.7

66%

21875

61.7

3336.2

2992

6.6

68%

23090

67.0

3620.1

3071

6.4

70%

24530

73.6

3979.8

3164

6.2

72%

25635

79.1

4275.1

3236

6.0

74%

26275

82.4

4454.5

3277

5.9

76%

27635

89.9

4857.6

3365

5.7

78%

28830

96.9

5236.9

3441

5.5

80%

30290

106.1

5624.1

3533

5.3

100%

33970

131.7

7112.8

3741

4.8
The above data is measured by changing the throttle input to adjust the tension under the environment of 25°C and sea level.
HHW-X11-18S Techenical Parameters:

Voltage(V)

Propeller

Throttle（%)

Thrust(g)

Current(A)

Power(W)

Speed(RPM)

Efficiency(g/W)

70V (18S LiPo)

HW 41*13.8 Inch Foldable Propeller

40%

8760

12.4

854.8

1956

10.2

42%

9560

14.1

973.5

2044

9.8

44%

10455

16.1

1113.4

2138

9.4

46%

11420

18.4

1271.7

2235

9.0

48%

12330

20.7

1427.3

2323

9.2

50%

13065

22.5

1557.0

2391

8.4

52%

14300

25.8

1782.6

2499

8.0

54%

15300

28.5

1972.1

2583

7.8

56%

16420

31.7

2191.3

2673

7.5

58%

17720

35.5

2455.5

2773

7.6

60%

18730

38.6

2668.4

2848

7.0

62%

19675

41.6

2874.3

2918

6.8

64%

20785

45.2

3125.2

2998

6.7

66%

22160

50.0

3451.4

3096

6.4

68%

23030

53.1

3667.6

3158

6.3

70%

23960

56.6

3908.4

3224

6.1

72%

25400

62.3

4302.9

3327

5.9

74%

26670

67.7

4675.6

3418

5.7

76%

27045

69.4

4790.5

3444

5.6

78%

28290

75.2

5189.7

3532

5.5

80%

29655

82.0

5661.0

3627

5.2

90%

33230

102.7

7090.4

3842

4.7

100%

34775

113.2

7809.7

3909

4.5
The above data is measured by changing the throttle input to adjust the tension under the environment of 25°C and sea level.
Support

Manuals & Documents

HW-X11-18S 41135 Technical Parameters
X11-14S-41135 technical parameters
X11-14S&18S-50mm-pupe shape
X11-14S&18S-D50 3D Model Drawing
X11-14S User-Manual
X11-18S User-Manual

Software Download

FAQ

DATALINKV2
DATALINKV2

DATALINKV2

Name: DATALINKV2
Telemetry: USB, CAN, Serial
Voltage: 6-81V
Size: 57*40*13mm(without wires)
Weight: 27g
Top

Products Center

Service and Support

News Center

About

Global Partners

Welcome to Brushless
System Trends

Privacy Policy | 粤ICP备14009225号-1  |  ©2015 Hobbywing Technology CO., LTD.. All rights reserved
