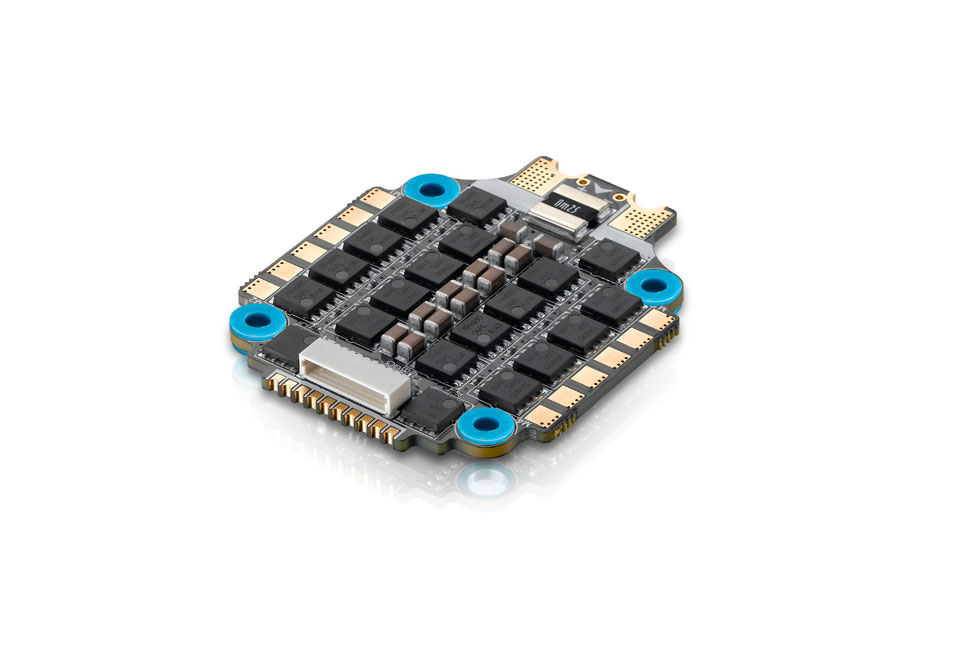

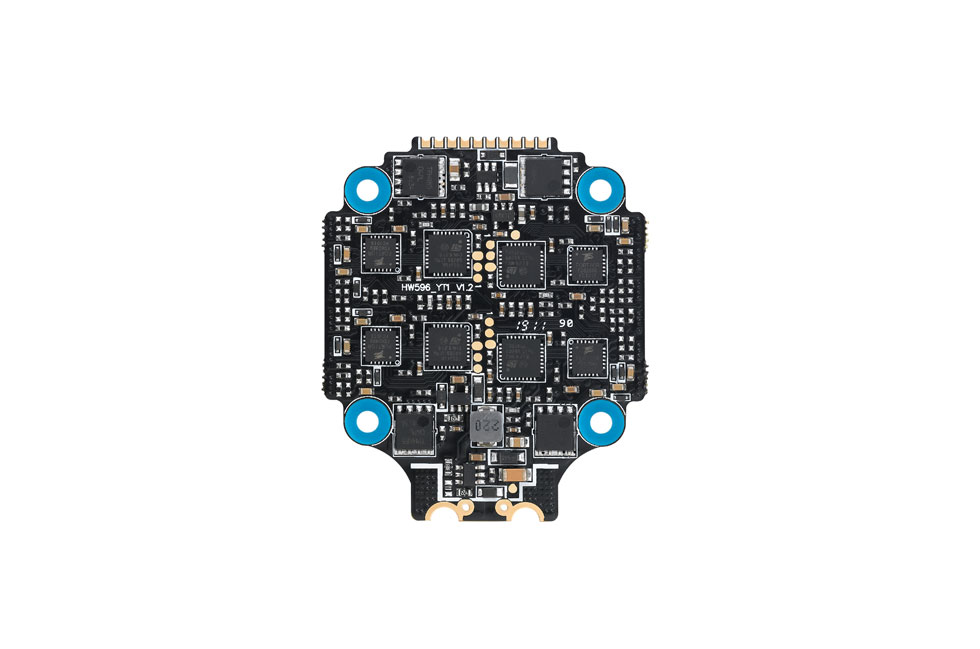

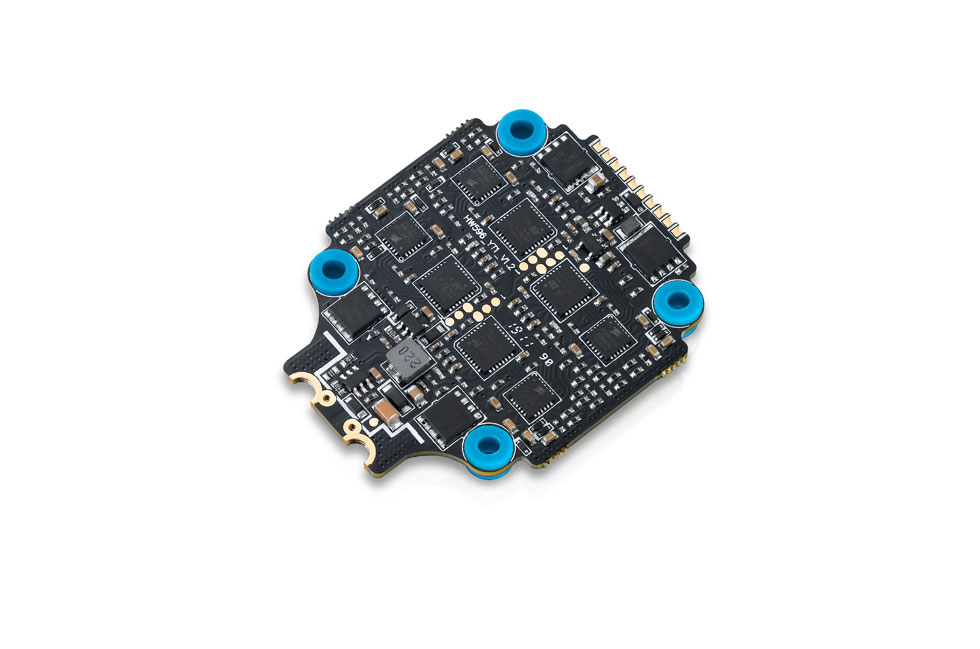

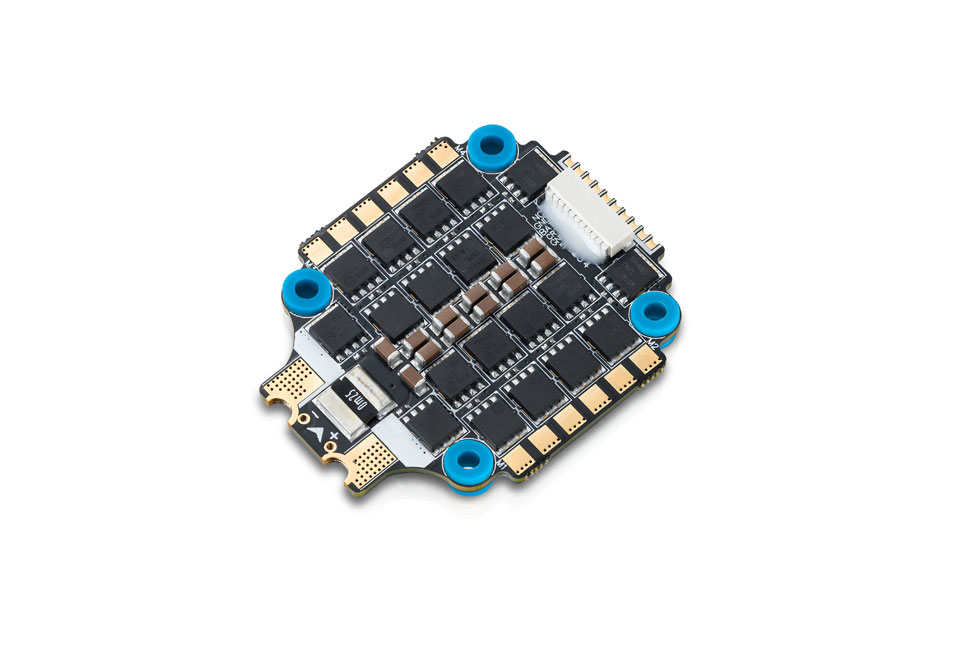

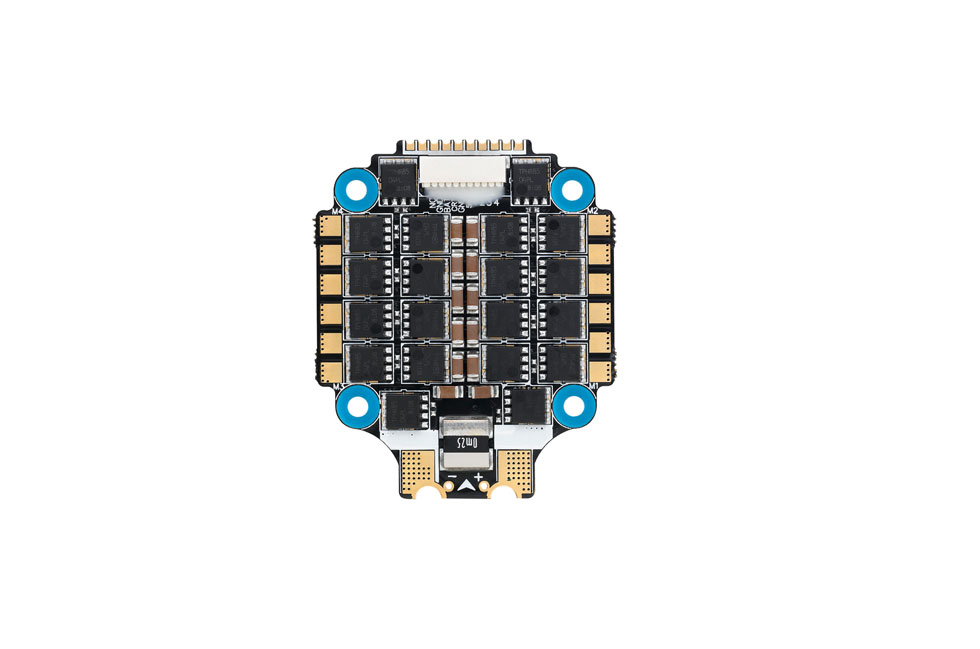

XRotor FPV G2 65A 4in1 ESC
High Quality Hardware
New high performance 32-bit ARM F4 microprocessors, increases operating frequency
to 120MHZ. Imported MOSFETs have greater voltage/current endurance. 3-in-1 drive ICs,
imported high quality ceramic capacitors, 3-ounce copper, 6 layers of PCBs guarantees
less heat, higher efficiency and rapider response.
High Quality Hardware

Imported MOSFETs

Imported High Quality
Ceramic Capacitors
New high performance 32-bit
ARM F4 microprocessor

3-in-1 Drive ICs

128KHz Dynamic PWM
Supports 24K-128KHz PWM frequency,
and can be dynamically adjusted adjusted
for precision throttle control.
128KHz Dynamic PWM
Support
128KHz
PWM Frequency
Highly Integrated
With a similar size of a FC, the 4IN1 ESC includes 4 high performance 65A BLHeli_32
DShot1200 ESCs, a 5V BEC which can provide power for devices (i.e. FC), and a
voltmeter which allows FC to monitor the amp & volt in real time. The two ways to
connect the ESC to a FC: 1) connecting via cables, 2) soldering via solder tabs. The
soft mounting of the ESC reduces external vibration and impact on the highly
sensitive components and provides dampening to the stacked components (i.e. FC).
This ESC is designed for FPV racing.
4 High Performance ESC


Voltmeter
|
Soft Cables


5V BEC
|
Shock-absorbing
Highly Integrated
Support variety throttle modes
Support latest DShot mode. In this mode, the ESC has great anti-interference
performance and rapid response. It also supports the regular PWM mode,
Oneshot mode, Multishot modes, Proshot modes, and etc..
Variety Throttle Modes: Oneshot
Latest DShot Multishot
Regular PWM Proshot
Support variety
throttle modes
BLHeli-32 Firmware Ready
The ESC flashed with the 3rd-generation BLHeli-32 firmware has great
performance & rich functions and supports adjusting
parameters or upgrading firmware via different ways
(i.e. via throttle signal wire with using other development board
or a FC flashed with the Betaflight firmware).
BLHeli-32
Firmware Ready
Product Name
Product Number
Specifications Cont./Peak Current

Input Voltage

BEC output
Wires & Connectors Input Wires

Output Wires

Input Connectors

Output Connectors
Size & Weight Size

Weight
Features Firmware

ESC Programming

Stick Programming

DEO

Throttle Range Calibration

Oneshot125 Mode

Oneshot42 Mode

MultiShot Mode

DShot150/300/600/1200

Timing

Motor Rotation
Applications
Product Name XRotor FPV G2 65A 4in1 ESC
Product Number 30902064
Specifications Cont./Peak Current

Input Voltage

BEC output
60Ax4/ 80Ax4

3-6S Lipo

5V & 0.6A
Wires & Connectors Input Wires

Output Wires

Input Connectors

Output Connectors
Red-12AWG-130mm/ Black-12AWG-130mm

No wires but solder tabs

XT60(w/ Wires Soldered on)

No
Size & Weight Size

Weight
52x42x6.6mm

15g
Features Firmware

ESC Programming

Stick Programming

DEO

Throttle Range Calibration

Oneshot125 Mode

Oneshot42 Mode

MultiShot Mode

DShot150/300/600/1200

Timing

Motor Rotation
Hobbywing_XRotor_BLHeli_32_AT421 Firmware

BLHeliSuite32

Supported

Supported

Supported

Supported

Supported

Supported

Supported

Supported

Supported
Applications 130-300mm FPVs
