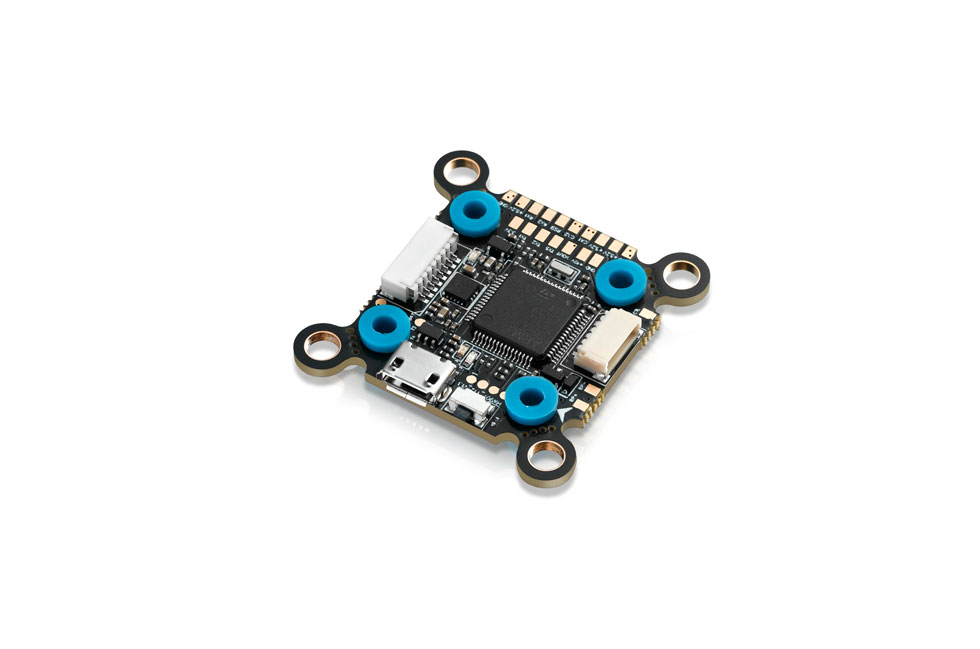

XRotor Flight Controller F7

Super hardware and running speed

Equipped with STM32F722 MCU which has powerful computing ability and fast running
speed, and high sensitivity six-axis motion sensor. It can perfectly support MPU6500
bidirectional DShot digital throttle communication. The integrated OSD chip can adjust
and set each OSD parameters in FC parameter adjustment software and radio, which is
simple and convenient. On-board large capacity Flash memory chip can record and store
more flight logs, which is convenient for users to debug aircraft based on flight data.

Super hardware
and running speed

Special interface for DJI image transmission system

With DJI image transmission system port, equipped with corresponding flat cable
(FC has been equipped), can avoid welding， realize plug and play.

Special interface for DJI
image transmission system

Special interface for DJI
image transmission system

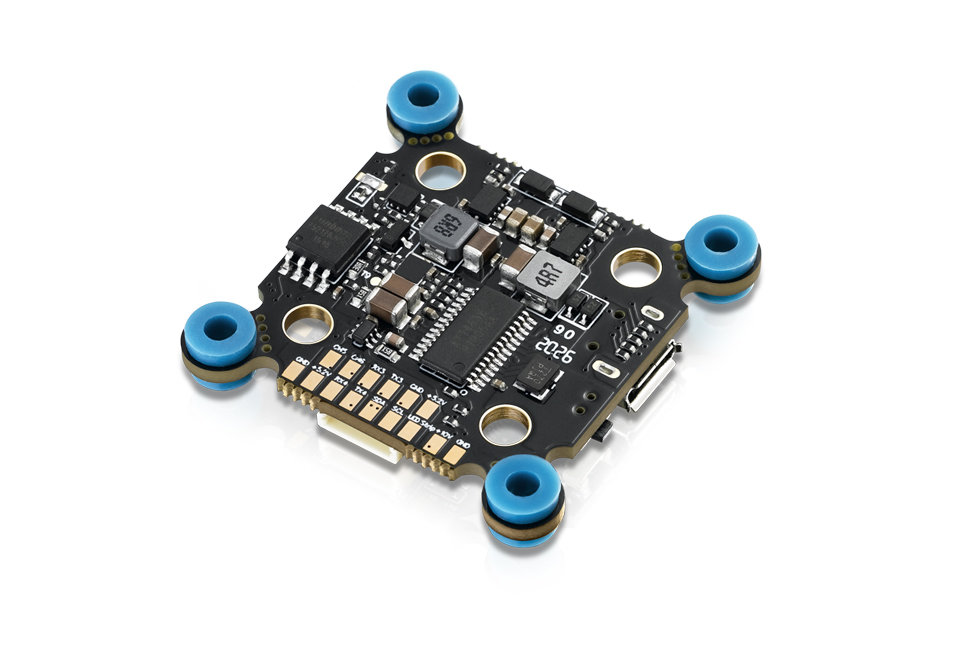

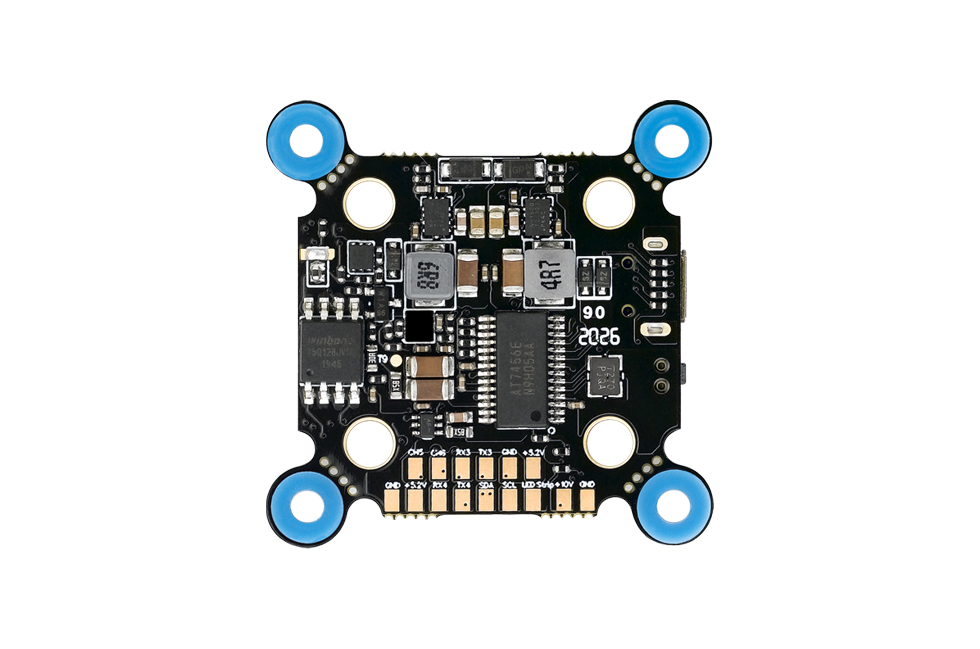

On-board 5V & 12V dual BEC circuit

FMU integrates with 12V BEC circuit. It can supply super power
output for image transmission and 12V LED devices.

On-board 5V & 12V
dual BEC circuit

On-board 5V&12V dual BEC circuit

On-board 5V&12V dual BEC circuit

On-board Pit Switch module

FC integrated Pit Switch module can open or close VTx by radio after
being adjusted on FC parameter software. Easy and convenient.

On-board Pit Switch module

On-board Pit Switch module

On-board Pit Switch module

Perfectly support firmware of various FPV

It support the firmware of BetaFlight , Cleanflight , Butterflight , inva and other
mainstream FPV, and can use corresponding parameter adjustment software to adjust
various parameters, making the FC more suitable for various FPV flight and race.

Perfectly support firmware
of various FPV

Unique installation design and shock
absorption structure

The double hole distance mounting hole design (30 * 30MM & 20 * 20MM)
can adapt to different frames. The unique flexible flat cable connection mode
(The effect is better with hobbywing tower 4in1 ESC ), and the shock
absorption mechanism of installation hole, can effectively reduce the
impact of external vibration on FC high-sensitivity components,
and make the flight more stable and accurate.

Unique installation design and
shock absorption structure

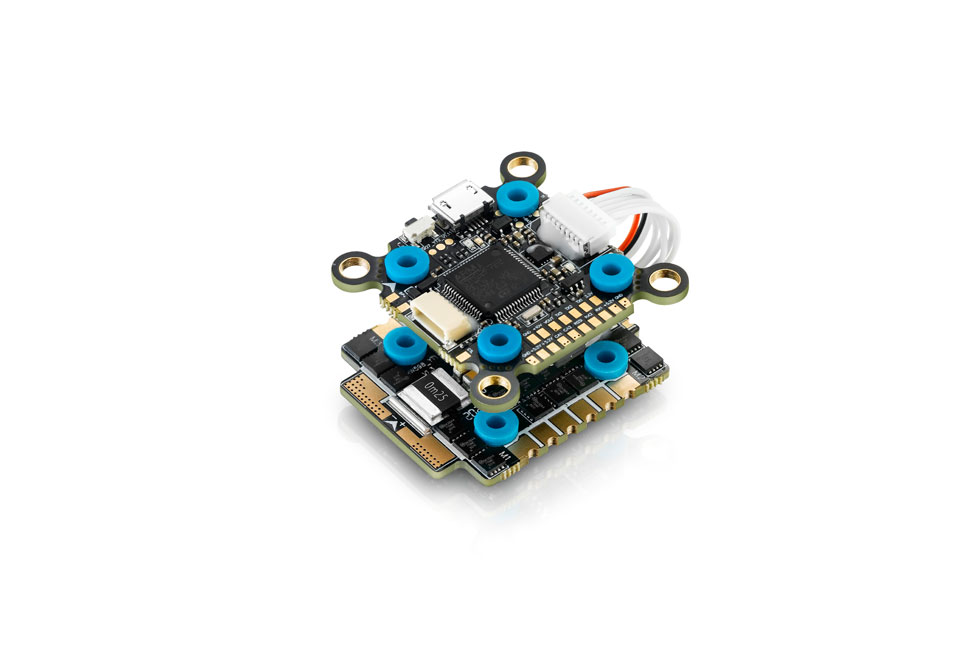

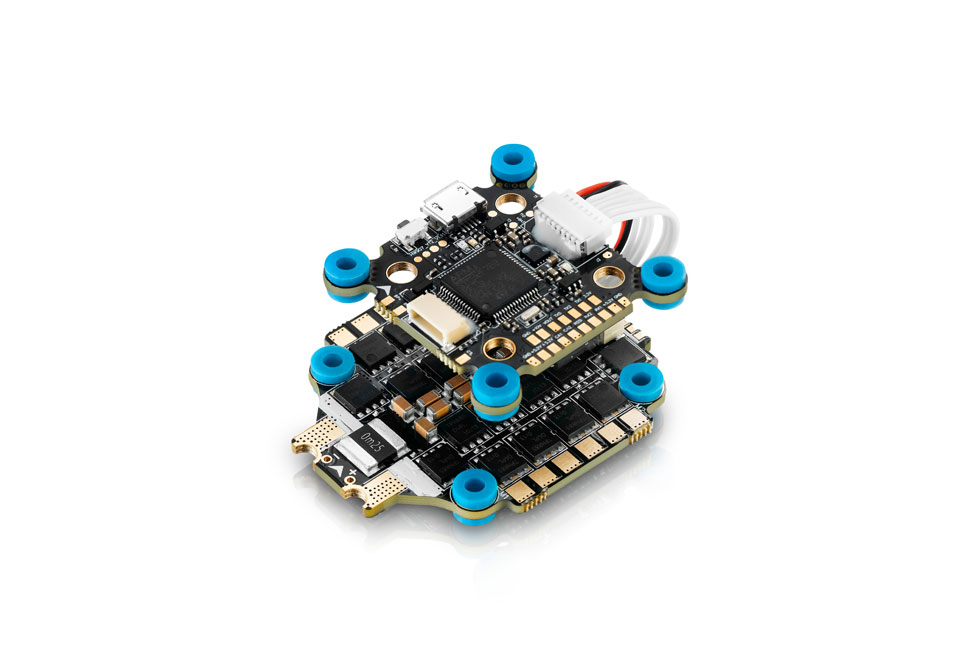

Unique soft layout connection mode.

Perfectly match with Hobbywing ESC

Match with Hobbywing tower 4in1 ESC,
easy to install and wire. The appearance is more beautiful.

Perfectly match with Hobbywing ESC

Product Name
Product Number
Size & Weight Size

Weight
Basic Features Compatible with (Multirotors)

Firmware

FC Programming

Programming via

Compatible with (Modes)



Compatible with (Transmitters)

OSD

Voltage Monitoring

Current Monitoring

External Buzzer

LED Control

BEC

USB Port
Applications
Product Name XRotor Flight Controller F7
Product Number 31003002
Size & Weight Size

Weight		 32*32mm

3.3g
Basic Features Compatible with (Multirotors)

Firmware

FC Programming

Programming via

Compatible with (Modes)



Compatible with (Transmitters)

OSD

Voltage Monitoring

Current Monitoring

External Buzzer

LED Control

BEC

USB Port		 Quadcopters

HOBBYWING_XROTORF7CONV

Supported

Betaflight/Cleanflight-configurator

PWM、Oneshot125、Oneshot42、Multishot、Dshot150、Dshot300、Dshot600、PROSHOT1000

PPM、Spektrum、SBUS、SUMD、SUMH、 XBUS、IBUS、JETIEXBUS、CRSF、SRXL

Built-in

Supported

Supported

Supported

Supported

5V @ 1.5A;10V @ 1.5A

MicroUSB
Applications 300mm above FPVs
Support
