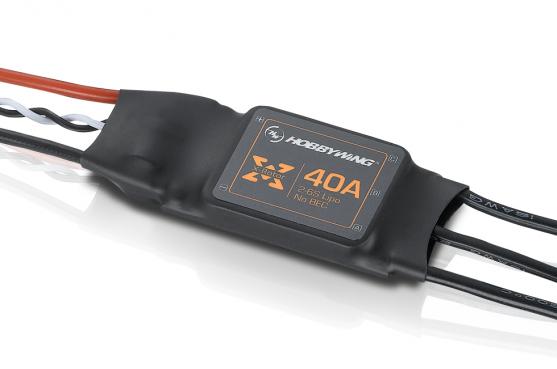

XRotor 40A

Rapid Throttle Response

Dedicated program for multi-rotor ESCs, which is better than various
open-source programs, greatly improves throttle response.

Rapid Throttle Response

Easy to Use

All settings except the "Timing (adjustable between High and Intermediate)"
are preset, making usage simple, highly intelligent and adaptive.

Easy to Use

Great Compatibility

Specifically optimized software utilized by XRotor 40A ESCs
ensures excellent compatibility between these ESCs and multi-rotor motors.

Great Compatibility

Multi-rotor Motor

Less Signal Interference

The twisted-pair throttle signal cable effectively reduces interference produced
in signal transmission and makes flight more stable and reliable.

Less Signal
Interference

Super Low Internal Resistance

Good quality MOSFETs utilized by this XRotor 40A ESC make
internal resistance low but current endurance high.

Super Low
Internal Resistance

Super High Throttle Signal

Compatible with various flight-control systems and supports a
throttle signal frequency of up to 621Hz.

Super High
Throttle Signal

Product Name
Product Number
Specifications Cont./Peak Current

LiPo Cells

BEC Output
Wires & Connectors Input Wires



Output Wires

Input Connectors

Output Connectors
Size & Weight Size

Weight
Features Throttle Range Calibration

Stick Programming

DEO

OneShot Mode

Timing

Light Color

Motor Rotation
Applications
Product Name XRotor 40A(International Version A) XRotor 40A(International Version B) XRotor 40A(Asian Version A) XRotor 40A(Asian Version B)
Product Number 30901013 30901001 30901014 30901000
Specifications Cont./Peak Current

LiPo Cells

BEC Output
40A/60A

2-6S LiPo

No
40A/60A

2-6S LiPo

No
40A/60A

2-6S LiPo

No

40A/60A

2-6S LiPo

No

Wires & Connectors Input Wires



Output Wires

Input Connectors

Output Connectors
Red-16AWG-150mm*1;

Black-16AWG-150mm*1

Black-16AWG-75mm*3

No

3.5mm Gold Connectors (Female)
Red-16AWG-150mm*1;

Black-16AWG-150mm*1

No

No

3.5mm Gold Connectors (Female)
Red-16AWG-150mm*1;

Black-16AWG-150mm*1

Black-16AWG-75mm*3

No

3.5mm Gold Connectors (Female)
Red-16AWG-150mm*1;

Black-16AWG-150mm*1

No

No

3.5mm Gold Connectors (Female)
Size & Weight Size

Weight
56x25.2x12.4mm

32g
65.5x25.0x8.7mm

28g
56x25.2x12.4mm

32g
65.5x25.0x8.7mm

28g
Features Throttle Range Calibration

Stick Programming

DEO

OneShot Mode

Timing

Light Color

Motor Rotation
Supported

Supported

Not Supported

Not Supported

Supported

Not Supported

Not Supported
Supported

Supported

Not Supported

Not Supported

Supported

Not Supported

Not Supported
Supported

Supported

Not Supported

Not Supported

Supported

Not Supported

Not Supported
Supported

Supported

Not Supported

Not Supported

Supported

Not Supported

Not Supported
Applications 550/650 Class Multirotors 550/650 Class Multirotors 550/650 Class Multirotors 550/650 Class Multirotors
