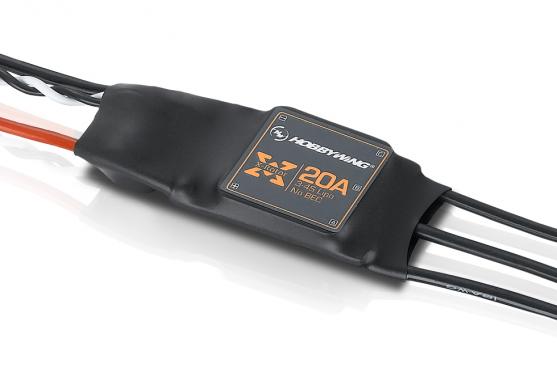

XRotor 20A

Rapid Throttle Response

Dedicated program for multi-rotor ESCs, which is better than various open-source
programs, greatly improves throttle response.

Rapid Throttle Response

Easy to Use

All settings except the "Timing (adjustable between High and Intermediate)"
are preset, making usage simple, highly intelligent and adaptive.

Easy to Use

Great Compatibility

Specifically optimized software utilized by XRotor 20A ESCs ensures
excellent compatibility between these ESCs and multi-rotor motors.

Great Compatibility

Multi-rotor Motor

Less Signal Interference

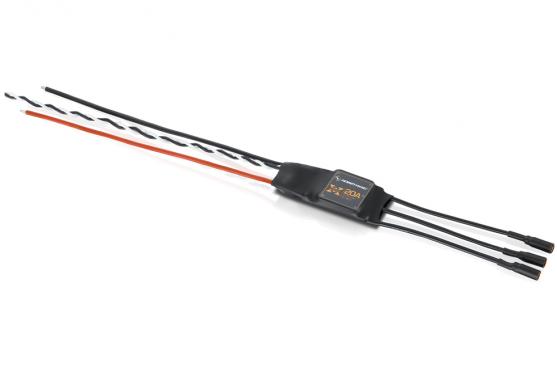

The twisted-pair throttle signal cable effectively reduces interference produced
in signal transmission and makes flight more stable and reliable.

Less Signal Interference

Super Low Internal Resistance

Good quality MOSFETs utilized by this XRotor 20A ESC make
internal resistance low but current endurance high.

Super Low Internal
Resistance

Super High Throttle Signal

Compatible with various flight-control systems and supports a
throttle signal frequency of up to 621Hz.

Super High
Throttle Signal

Product Name
Product Number
Specifications Cont./Peak Current

LiPo Cells

BEC Output
Wires & Connectors Input Wires



Output Wires

Input Connectors

Output Connectors

Size & Weight Size

Weight
Features Throttle Range Calibration

Stick Programming

DEO

OneShot Mode

Timing

Light Color

Motor Rotation
Applications
Product Name XRotor 20A(International Version A) XRotor 20A(International Version B) XRotor 20A(Asian Version A) XRotor 20A(Asian Version B)
Product Number 30901011 30901005 30901012 30901004
Specifications Cont./Peak Current

LiPo Cells

BEC Output
20A/30A

3-4S LiPo

No
20A/30A

3-4S LiPo

No
20A/30A

3-4S LiPo

No
20A/30A

3-4S LiPo

No
Wires & Connectors Input Wires



Output Wires

Input Connectors

Output Connectors

Red-18AWG-150mm*1;

Black-18AWG-150mm*1

Black-18AWG-75mm*3

No

3.5mm Gold Connectors (Female)

Red-18AWG-150mm*1;

Black-18AWG-150mm*1

No

No

3.5mm Gold Connectors (Female)

Red-18AWG-150mm*1;

Black-18AWG-150mm*1

Black-18AWG-75mm*3

No

3.5mm Gold Connectors (Female)
Red-18AWG-150mm*1;

Black-18AWG-150mm*1

No

No

3.5mm Gold Connectors (Female)
Size & Weight Size

Weight
42.0x21.6x12.0mm

18.5g
50.0x21.6x12.0mm

15g
42.0x21.6x12.0mm

18.5g
50.0x21.6x12.0mm

15g
Features Throttle Range Calibration

Stick Programming

DEO

OneShot Mode

Timing

Light Color

Motor Rotation
Supported

Supported

Not Supported

Not Supported

Supported

Not Supported

Not Supported
Supported

Supported

Not Supported

Not Supported

Supported

Not Supported

Not Supported
Supported

Supported

Not Supported

Not Supported

Supported

Not Supported

Not Supported
Supported

Supported

Not Supported

Not Supported

Supported

Not Supported

Not Supported
Applications 330/450 Class Multirotors 330/450 Class Multirotors 330/450 Class Multirotors 330/450 Class Multirotors
