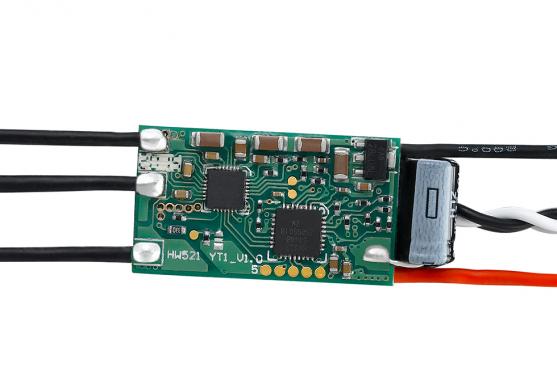

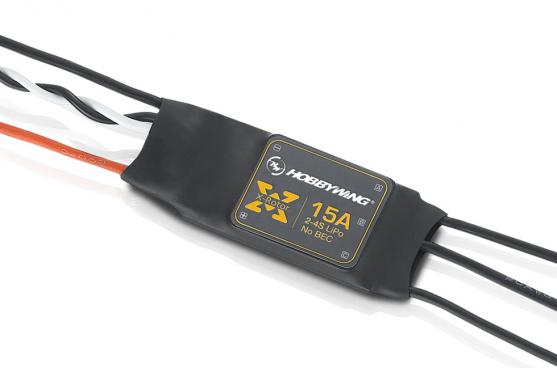

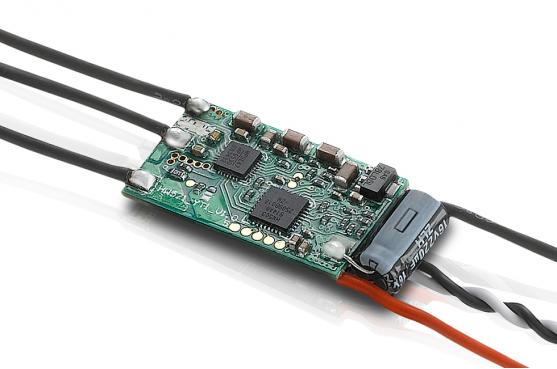

XRotor 15A

The Best ESC for 250/300 Class Multi-Rotors

When comparing to regular 12A & 10A QAV ESCs, the XRotor-15A ESC’s current endurance
is improved by 25% to 50%. There won’t be any problem to pair it with 1806 size motor &
2204 size motor. They will provide high power for 250/300 class multi-rotors.

The Best ESC

Temperature Comparison

Throttle Amount

XRotor-15A ESC

BLHeli-12A ESC

50%

62.5℃

90.6℃

60%

71.5℃

104℃

70%

82.5℃

118℃

100%

89.7℃

120℃

Test Equipment & Conditions:
XRotor-15A ESC & BLHeli-12A ESC (both use the default settings without any adjustment),
2204 size 2300KV motor, 5030 three-blade propellers, the input voltage of 12.6V, and each test was run for 8 minutes.

Operating Current Comparison

Model

XRotor-15A ESC

BLHeli-12A ESC

Thrust(g)

Current(A)

Efficiency(g/w)

Current(A)

Efficiency(g/w)

100

2.1

4.18

6.1

1.44

150

3.2

4.11

8.8

1.50

200

4.5

3.90

9.2

1.91

250

6.4

3.43

9.8

2.24

300

8.2

3.21

10.2

2.58

350

10.5

2.92

10.7

2.87

Test Equipment & Conditions:
XRotor-15A ESC & BLHeli-12A ESC (both use the default settings without any adjustment),
2204 size 2300KV motor, 5045 propellers, the input voltage of 11.4V.

Conclusion:The XRotor-15A ESC is much better than other ESCs for QAV 250/300.

OneShot
Mode Supported

Besides regular throttle signals with a refresh rate
below 500Hz, the XRotor-15A ESC also supports
OneShot mode throttle signals. In this mode, the
communication between the flight controller and ESC
becomes more agile, the throttle linearity is better,
and the response speed is much faster.

OneShot Mode
Supported

DEO (Driving Efficiency
Optimization)

The XRotor-15A ESC adopted the DEO technology which has
multiple advantages:
● Active braking. When reducing the throttle amount, the motor will
decelerate very quickly. This feature enables pilot to more easily
perform all maneuvers like sharp turns, altitude rapid changes, and
sudden braking.
● Higher driving efficiency, longer flight time.
● Lower ESC temperature.
* Different companies call this technology by different names;
“SimonK” calls it “Comp_PWM”, “BLHeli” calls it “Dampaning-light”
and Kontronik calls it “Active Freewheeling”.

Rapider throttle
response

Higher efficiency and
longer flight time

Lower temperature rise

Highly Intelligent

Highly intelligent and adaptive default settings meet almost all
applications. The ESC is extremely easy to use.

Highly Intelligent
asy to use

Twisted-Pair Signal Cable
Reduces Interference

The twisted-pair throttle signal cable effectively reduces
interference produced in signal transmission and makes
the flight much more stable and reliable.

Less Signal
Interference

Twisted-pair Throttle Cable

Product Name
Product Number
Specifications Cont./Peak Current

LiPo Cells

BEC Output
Wires & Connectors Input Wires

Output Wires

Input Connectors

Output Connectors
Size & Weight Size

Weight
Features Throttle Range Calibration

Stick Programming

DEO

OneShot Mode

Timing

Light Color

Motor Rotation
Applications
Product Name XRotor 15A
Product Number 30901100
Specifications Cont./Peak Current

LiPo Cells

BEC Output
15A/20A

2-4S LiPo

No



Wires & Connectors Input Wires

Output Wires

Input Connectors

Output Connectors
Red-20AWG-100mm*1/Black-20AWG-100mm*1

Black-20AWG-100mm*3

No



2.0mm Gold Connectors (Female)
Size & Weight Size

Weight
47.0x17.0x8.3mm

10g
Features Throttle Range Calibration

Stick Programming

DEO

OneShot Mode

Timing

Light Color

Motor Rotation
Supported

Supported

Supported

Supported

Supported

Not Supported

Not Supported
Applications 250/300 Class Multirotors
Support

Manuals & Documents

Software Download

FAQ

XRotor 15A

The Best ESC for 250/300 Level Multi-Rotors

When comparing to regular 12A & 10A QAV ESCs, the XRotor-15A ESC’s current endurance is improved by 25% to 50%. There won’t be any problem to pair it with 1806 size motor & 2204 size motor. They will provide high power for 250/300 level multi-rotors.

The Best ESC

Temperature Comparison

Throttle Amount

XRotor-15A ESC

BLHeli-12A ESC

50%

62.5℃

90.6℃

60%

71.5℃

104℃

70%

82.5℃

118℃

100%

89.7℃

120℃

Test Equipment & Conditions:
XRotor-15A ESC & BLHeli-12A ESC (both use the default settings without any adjustment),
2204 size 2300KV motor, 5030 three-blade propellers, the input voltage of 12.6V, and each test was run for 8 minutes.

Operating Current Comparison

Model

XRotor-15A ESC

BLHeli-12A ESC

Thrust(g)

Current(A)

Efficiency(g/w)

Current(A)

Current(A)

100

2.1

4.18

6.1

1.44

150

3.2

4.11

8.8

1.50

200

4.5

3.90

9.2

1.91

250

6.4

3.43

9.8

2.24

300

8.2

3.21

10.2

2.58

350

10.5

2.92

10.7

2.87

Test Equipment & Conditions:
XRotor-15A ESC & BLHeli-12A ESC (both use the default settings without any adjustment),
2204 size 2300KV motor, 5045 propellers, the input voltage of 11.4V.

Conclusion:The XRotor-15AESC is much better than other ESCs for QAV 250/300.

OneShot Mode Supported

Besides regular throttle signals with a refresh rate below 500Hz, the XRotor-15A ESC also supports OneShot mode throttle signals. In this mode, the communication between the flight controller and ESC becomes more agile, the throttle linearity is better, and the response speed is much faster.

OneShot Mode
Supported

DEO (Driving Efficiency Optimization)

The XRotor-15A ESC adopted the DEO technology which has multiple advantages:
● Active braking. When reducing the throttle amount, the motor will decelerate very quickly. This feature enables pilot to more easily perform all maneuvers like sharp turns, altitude rapid changes, and sudden braking.
● Higher driving efficiency, longer flight time.
●● Lower ESC temperature. * Different companies call this technology by different names; “SimonK” calls it “Comp_PWM”, “BLHeli” calls it “Dampaning-light” and Kontronik calls it “Active Freewheeling”.

Rapider throttle
response

Higher efficiency and
longer flight time

Lower temperature rise

Highly Intelligent

Highly intelligent and adaptive default settings meet almost all applications. The ESC is extremely easy to use.

Twisted-Pair Signal Cable Reduces Interference

The twisted-pair throttle signal cable effectively reduces interference produced in signal transmission and makes the flight much more stable and reliable.

Less Signal
Interference

Product Name XRotor 15A
Product Number 30901100
Specifications Cont./Peak Current

LiPo Cells

BEC Output
15A/20A

2-4S LiPo

No



Wires & Connectors Input Wires

Output Wires

Input Connectors

Output Connectors
Red-20AWG-100mm*1/Black-20AWG-100mm*1

Black-20AWG-100mm*3

No



2.0mm Gold Connectors (Female)
Size & Weight Size

Weight
47.0x17.0x8.3mm

10g
Features Throttle Range Calibration

Stick Programming

DEO

OneShot Mode

Timing

Light Color

Motor Rotation
Supported

Supported

Supported

Supported

Supported

Not Supported

Not Supported
Applications 250/300 Class Multirotors
Product Name XRotor 15A
Product Number 30901100
Specifications Cont./Peak Current

LiPo Cells

BEC Output
15A/20A

2-4S LiPo

No



Wires & Connectors Input Wires

Output Wires

Input Connectors

Output Connectors
Red-20AWG-100mm*1/Black-20AWG-100mm*1

Black-20AWG-100mm*3

No



2.0mm Gold Connectors (Female)
Size & Weight Size

Weight
47.0x17.0x8.3mm

10g
Features Throttle Range Calibration

Stick Programming

DEO

OneShot Mode

Timing

Light Color

Motor Rotation
Supported

Supported

Supported

Supported

Supported

Not Supported

Not Supported
Applications 250/300 Class Multirotors
