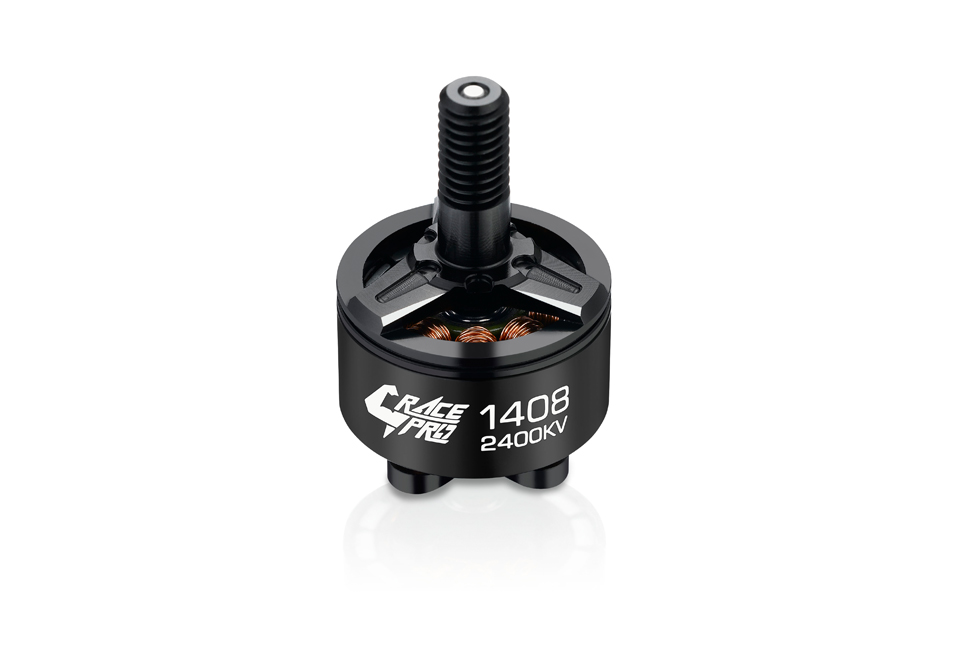

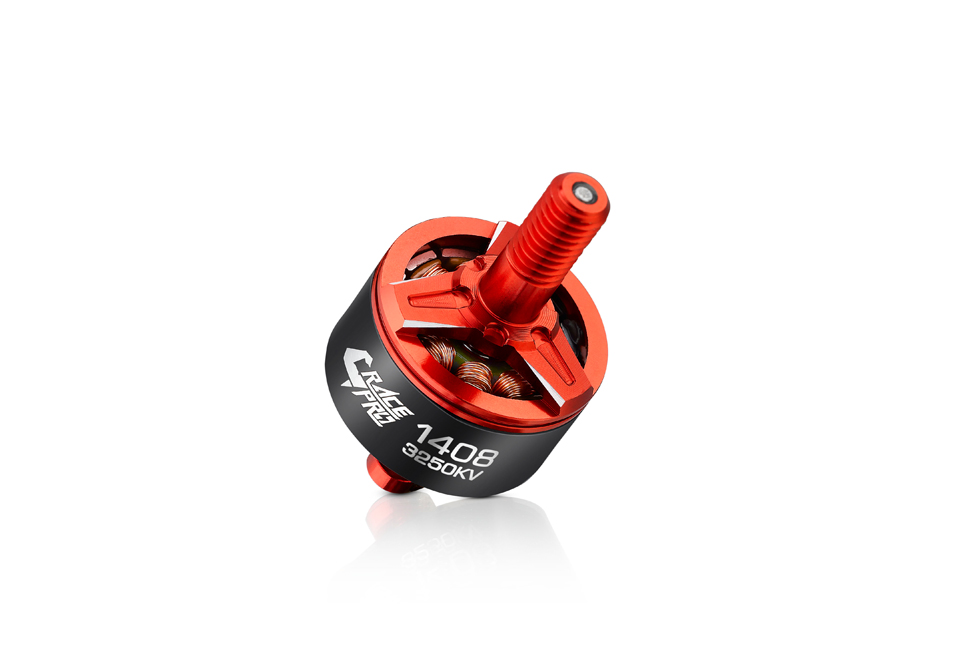

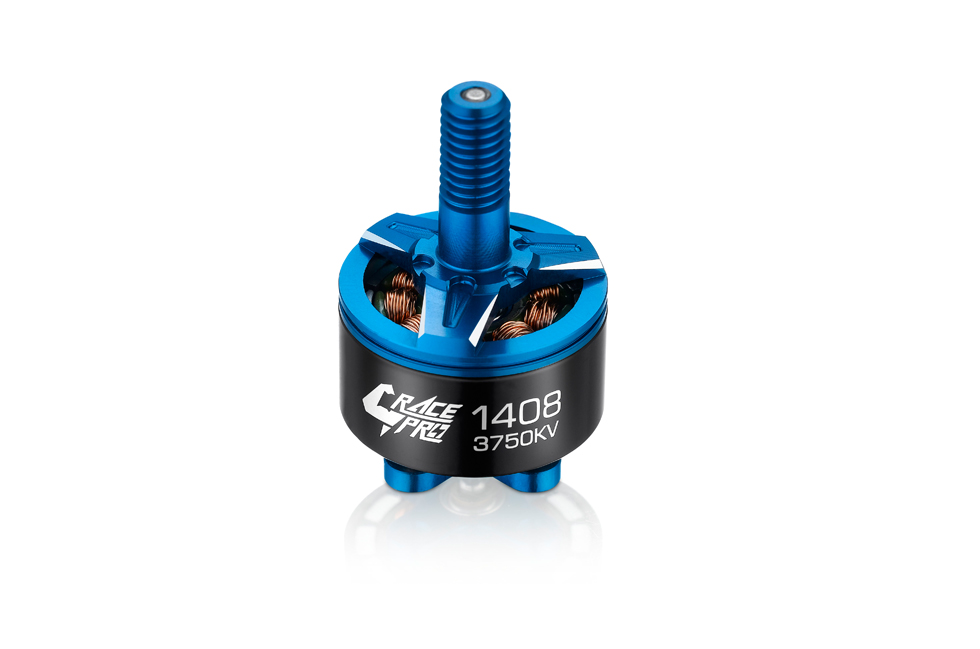

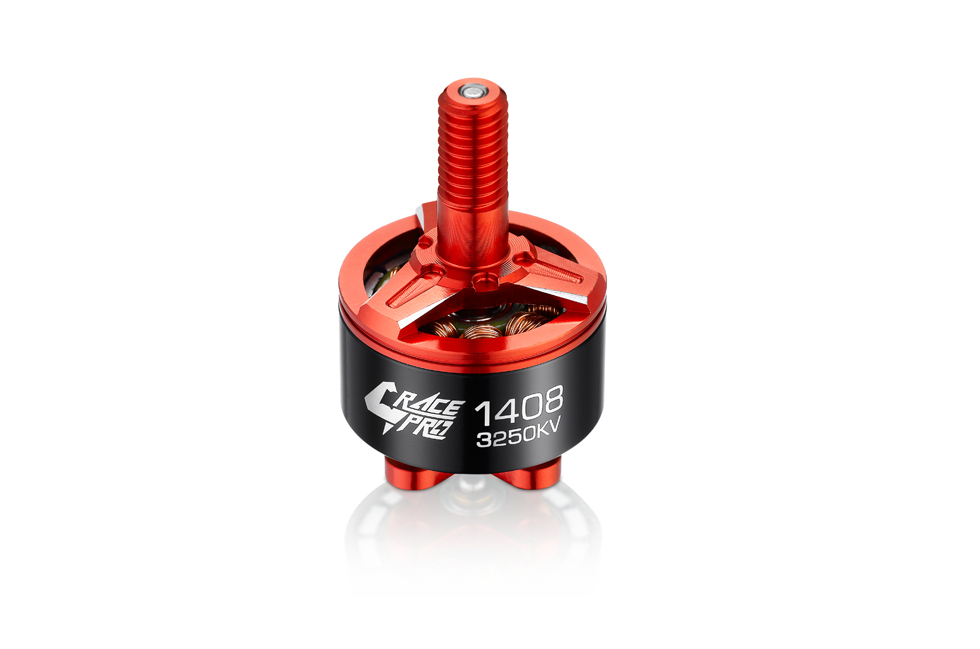

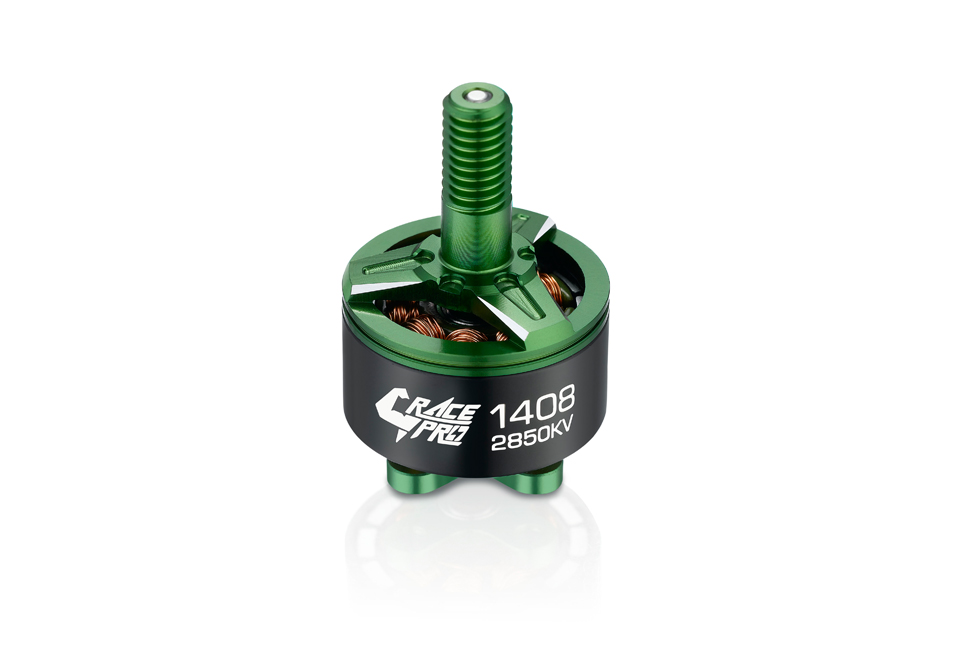

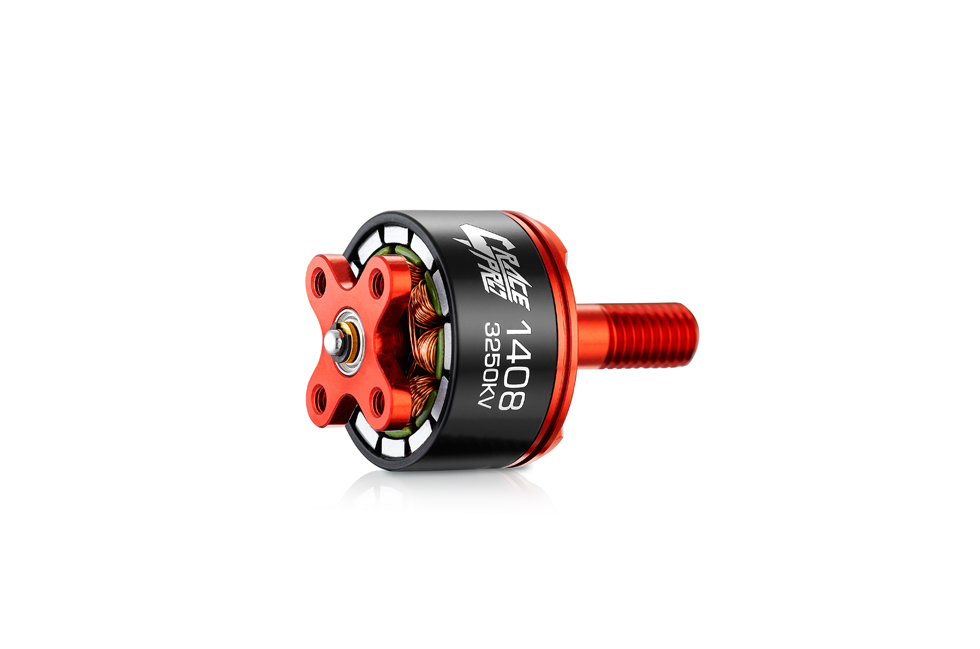

Xrotor 1408 Race Pro

Strong Power

The Hobbywing Xrotor 1408 Race Pro motor has been
designed for the 130mm FPV racing drones. It inherits
the swift acceleration, rapid response, high efficiency of
the XRotor Race Pro series motors; the ultra-thin
(0.15mm) silicon steel laminations combined with the
NbFeB magnets and the innovative magnetic circuit
design guarantee the strong power of the small motor.

Strong Power

Ultra Lightweight Design

The new 1408 motor has been developed to push
the limits of durability while remaining extremely
lightweight, it weighs only 15.5g (w/o wires).

Ultra Lightweight Design

Top Quality Components

●High quality 6061 aluminum and high-precision CNC Machining technology produce an improved strength and axial concentricity.
●The NSK bearings are high-quality Japanese bearings are the best available, providing longer life, lower noise, and improved overall tolerances.
●Ultra-thin (0.15mm) silicon steel laminations are used to manufacture the stators. This high-quality material improves overall efficiency.
●Using the strongest, and most heat resistant NbFeB magnets ensure maximum torque under load, and excellent consistency across the motors operating ranges.

Top Quality
Components

NSK Bearing
(imported from Japan)

Super Heat-resistant
N54 NeFeB Maget

Ultra-thin (0.15mm)
Silicon Steel Sheet

NSK Bearing
(imported from Japan)

Smoother operation, longer life
Lower noise, smaller clearance

Super heat-resistant
N54 NdFeB magnet

Ultra-thin (0.15mm) silicon steel sheet

Less iron loss & heat generation, higher efficiency

High Quality 6061 Aluminum
High-precision CNC
Machining Technology

KV (measured value)   Motor Propeller(s) Voltage(V) Throttle(%) Current(A) Thrust(g) Efficiency(g/W) Speed(RPM) Power(W)
    Xrotor Race Pro 1408 2400KV Azure Power 3060 24 20 0.78 60 3.2 20000 18.7
    24 40 2.9 203 2.92 28571 69.6
    24 60 5.35 331 2.58 33908 128.4
    24 80 9.31 496 2.22 38461 223.6
    24 100 12.97 637 2.05 47619 311.5
    Xrotor Race Pro 1408 2850KV Azure Power 3060 20 20 0.9 56 3.12 12500 18
    20 40 3.33 198 2.97 27106 66.6
    20 60 6.1 320 2.62 33986 122.1
    20 80 10.29 478 2.32 40970 206
    20 100 14.8 621 2.09 43478 296.5
    Xrotor Race Pro 1408 3250KV Azure Power 3060 16 20 0.84 48 3.58 14287 13.4
    16 40 3.3 168 3.18 23809 52.9
    16 60 6.02 274 2.85 29411 96.3
    16 80 9.64 400 2.59 37857 154.6
    16 100 14.11 522 2.3 40000 226.3
    Xrotor Race Pro 1408 3750KV Azure Power 3060 12 20 0.86 35 3.39 11250 10.38
    12 40 3.37 137 3.38 23809 40.6
    12 60 6.08 221 3.03 26315 73.2
    12 80 9.35 315 2.8 31250 112.6
    12 100 13.74 420 2.54 35714 165.4





Product Name
Product Number
Specifications Motor KV

Stator Diameter

Stator Thickness

No.of Stator Arms

No.of Rotor poles

No-load Current(A/11.1V)

Motor Resistance

Max Continuous Current（30s）

Max Continuous Power（30s）

Weight（Excluding Cable）

Rotor Diameter

Shaft Diameter

Body Length

Overall shaft Length

No.of Cells(Lipo)

ESC

Recommended Prop(inch)

Wire Szie
Product Name XRotor 1408 race pro 2400KV XRotor 1408 race pro 2850KV XRotor 1408 race pro 3250KV XRotor 1408 race pro 3750KV
Product Number 30405550 30405551 30405552 30405553
Specifications Motor KV

Stator Diameter

Stator Thickness

No.of Stator Arms

No.of Rotor poles

No-load Current(A/11.1V)

Motor Resistance

Max Continuous Current（30s）

Max Continuous Power（30s）

Weight（Excluding Cable）

Rotor Diameter

Shaft Diameter

Body Length

Overall shaft Length

No.of Cells(Lipo)

ESC

Recommended Prop(inch)

Wire Szie		 2400KV

14mm

8mm

9S

12P

0.47A

207mΩ

9.31A

223.6W

15.8g

19mm

5mm

16.3mm

29.3mm

6S

12-15A

3Inch

24AWG/80mm		 2850KV

14mm

8mm

9S

12P

0.55A

145mΩ

10.29A

206W

15.8g

19mm

5mm

16.3mm

29.3mm

5S

12-15A

3Inch

24AWG/80mm		 3250KV

14mm

8mm

9S

12P

0.7A

118mΩ

9.61A

154.6W

15.8g

19mm

5mm

16.3mm

29.3mm

4S

12-15A

3Inch

24AWG/80mm		 3750KV

14mm

8mm

9S

12P

0.9A

93mΩ

9.35A

112.6W

15.8g

19mm

5mm

16.3mm

29.3mm

3S

12-15A

3Inch

24AWG/80mm
