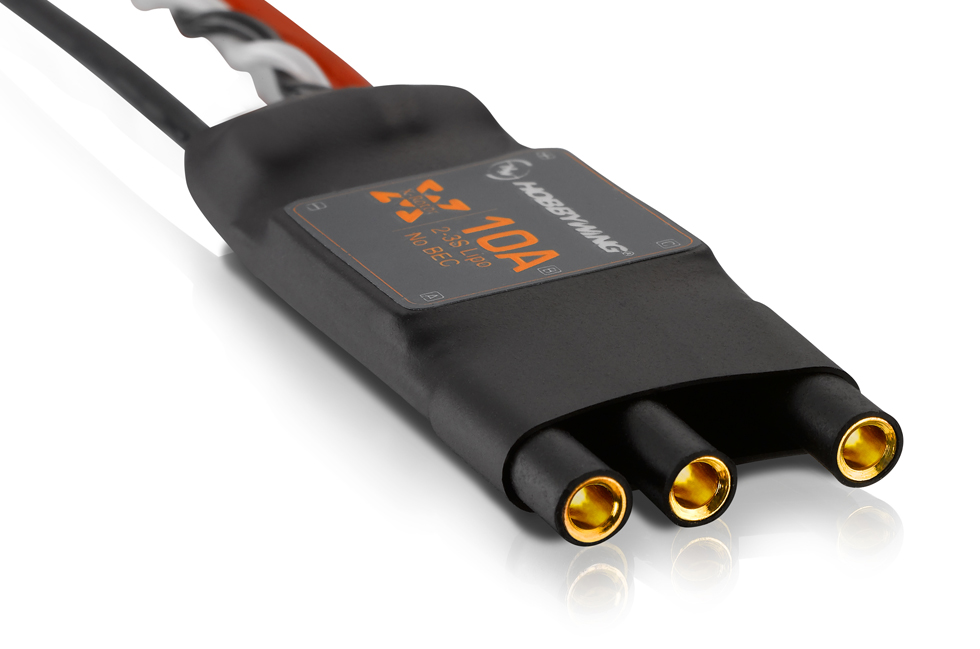

XRotor 10A

Rapid Throttle Response

Dedicated program for multi-rotor ESCs, which is better than various
open-source programs, greatly improves throttle response.

Rapid Throttle
Response

Easy to Use

All settings except the "Timing (adjustable between High and Intermediate)"
are preset, making usage simple, highly intelligent and adaptive.

Easy to Use

Great Compatibility

Specifically optimized software utilized by XRotor 10A ESCs ensures excellent
compatibility between these ESCs and multi-rotor motors.

Great Compatibility

Multi-rotor Motor

Less Signal Interference

The twisted-pair throttle signal cable effectively reduces interference produced
in signal transmission and makes flight more stable and reliable.

Less Signal
Interference

Super Low Internal Resistance

Good quality MOSFETs utilized by this XRotor 10A ESC make
internal resistance low but current endurance high.

Super Low
Internal Resistance

Super High Throttle Signal

Compatible with various flight-control systems and supports a
throttle signal frequency of up to 621Hz.

Super High
Throttle Signal

Product Name
Product Number
Specifications Cont./Peak Current

LiPo Cells

BEC Output
Wires & Connectors Input Wires



Output Wires

Input Connectors

Output Connectors
Size & Weight Size

Weight
Features Throttle Range Calibration

Stick Programming

DEO

OneShot Mode

Timing

Light Color

Motor Rotation
Applications
Product Name XRotor 10A(International Version A) XRotor 10A(International Version B) XRotor 10A(Asian Version A) XRotor 10A(Asian Version B)
Product Number 30901009 30901003 30901010 30901002
Specifications Cont./Peak Current

LiPo Cells

BEC Output		 10A/15A

2-3S LiPo

No		 10A/15A

2-3S LiPo

No		 10A/15A

2-3S LiPo

No		 10A/15A

2-3S LiPo

No
Wires & Connectors Input Wires



Output Wires

Input Connectors

Output Connectors		 Red-20AWG-100mm*1;

Black-20AWG-100mm*1

Black-20AWG-100mm*3

No

2.0mm Gold Connectors (Female)		 Red-20AWG-100mm*1;

Black-20AWG-100mm*1

No

No

2.0mm Gold Connectors (Female)		 Red-20AWG-100mm*1;

Black-20AWG-100mm*1

Black-20AWG-100mm*3

No

2.0mm Gold Connectors (Female)		 Red-20AWG-100mm*1;

Black-20AWG-100mm*1

No

No

2.0mm Gold Connectors (Female)
Size & Weight Size

Weight		 32.0x16.7x8.2mm

9g		 44.0x16.7x8.2mm

8g		 32.0x16.7x8.2mm

9g		 44.0x16.7x8.2mm

8g
Features Throttle Range Calibration

Stick Programming

DEO

OneShot Mode

Timing

Light Color

Motor Rotation		 Supported

Supported

Not Supported

Not Supported

Supported

Not Supported

Not Supported		 Supported

Supported

Not Supported

Not Supported

Supported

Not Supported

Not Supported		 Supported

Supported

Not Supported

Not Supported

Supported

Not Supported

Not Supported		 Supported

Supported

Not Supported

Not Supported

Supported

Not Supported

Not Supported
Applications 250 Class Multirotors 250 Class Multirotors 250 Class Multirotors 250 Class Multirotors
