XeRun XR8 SCT

Overview
Specifications
Support
Accessories
Detail

Full-sensored Mode Supported

The first 1/8 scale competition ESC which can work the full-sensored mode at all
times (when pairing it with a HOBBYWING matching motor).

Full-sensored
Power System

Turbo Timing Technology

Turbo timing technology is implemented by the XR8 SCT to unleash the maximum power
of a HOBBYWING matching motor.

Turbo Timing

Small & Light Structure Design

Small (30.1% smaller than XR8 Plus in size) and light (36.5g lighter than XR8
Plus in weight) structure design greatly simplifies the installation of
the power system (esp. for vehicles like buggy and touring car
with compact chassis).

Small Size &
Light Weight

Programming / Upgrading /
Data reading wirelessly

With Hobbywing's "WiFi Express" module and iPhone or an Android phone (with the HOBBYWING
WiFi Link software installed), the user can remotely program parameters, upgrade firmware and
check relevant data of the ESC without leaving the control stand.

Programming Wirelessly

WiFi Module

Coasting

The XR8 SCT provides an exceptionally smooth off-throttle coasting function, which simulates the feeling
of inertia and momentum of a large-scale car driving experience. This can greatly improve the
performance of builds utilizing large, high-powered motors as electromagnetic drag
becomes a substantial factor in sudden deceleration when in the off-throttle
position, adversely affecting driving performance and overall maneuvering.

Coasting

Capacitor Thermal Protection

Capacitor thermal protection implemented by the XR8 SCT will effectively prevent capacitors
from exploding and causing irreversible damage to the ESC due to overload.

Capacitor
Thermal Protection

High Voltage Built-in BEC

High voltage built-in BEC with an output current of up to 15 Amp and a
switchable output voltage of 6V-7.4V allows users to
use various high torque and high voltage servos.

High Voltage Built-in BEC

High Reliability & Durability

Built with the most rugged and high-quality components and coupled with cutting-edge firmware,
the XR8 SCT is able to deliver unmatched power and performance for even the most hardcore
of racing applications, but is also responsive enough to protect itself from damage due
to overloading due to physical abuse, overuse or even human error.

High Reliability & Durability

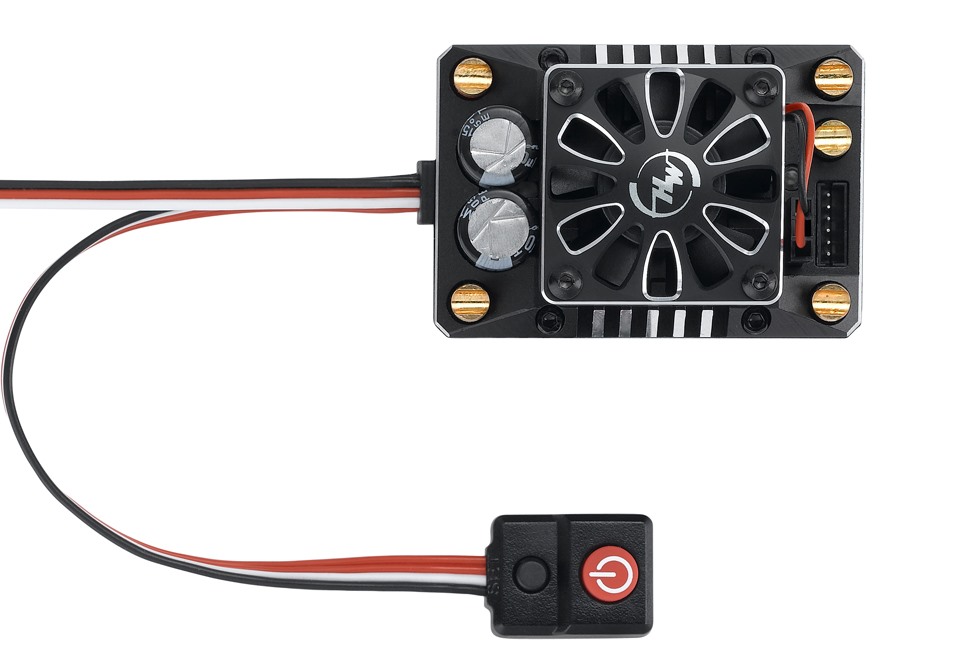

Advanced and Secure Electronic Switch

Electronic switch with a lifespan of over 50000 on/off cycles, housed in a completely waterproof,
dust-proof and shock-resistant design.

Advanced and Secure
Electronic Switch

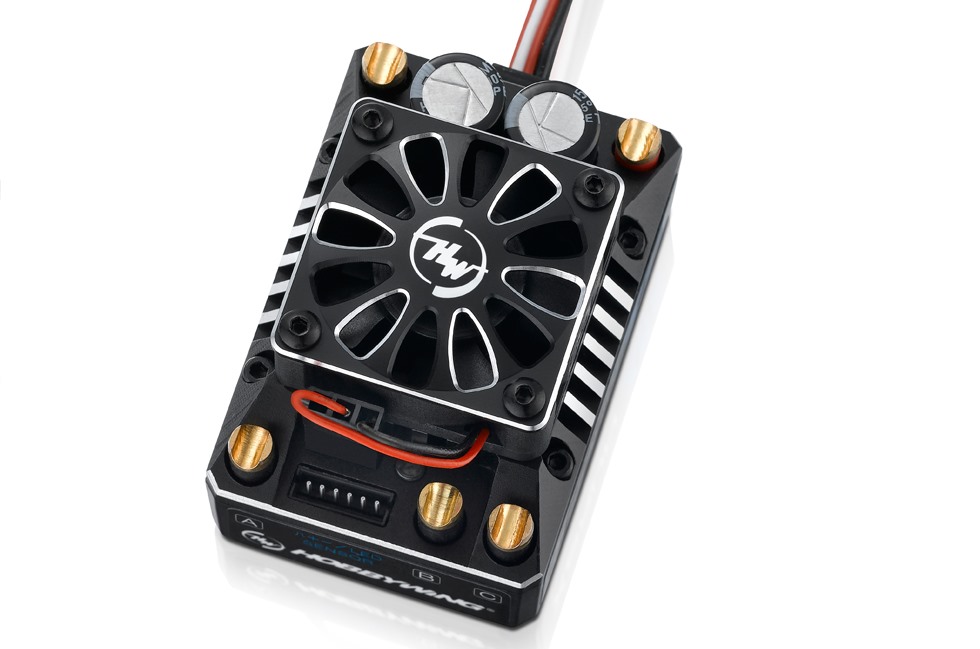

Ultra-Reliable Cooling System

HOBBYWING's patented cooling technology utilizes proprietary heat-conductive copper
bars to rapidly and effectively transfer all internal heat from the MOSFET board to the
integrated CNC machined billet aluminum heatsink housing. The cooling fan adopts a
shockproof mounting which effectively reduces the possibility
of fan damage due to vehicle’s frequent jumps.

Ultra-Reliable
Cooling System

Wide applicability

This XR8 SCT ESC is not only applicable to 1/8^th buggies and short-course
trucks but also 1/10^th short-course trucks, trucks and monster trucks.

Wide applicability

Product Name
Product Number
Type	Scale Brushed/Brushless Sensored/Sensorless Waterproof
Specifications	Cont./Peak Current Input Voltage BEC Output
Wires & Connectors	Input Wires Output Wires Input Connectors Output Connectors
ESC Programing via	SET Button on ESC LED Program Box LCD Program Box WiFi Module OTA Programmer Programming Port
Fan	Size Voltage Range Powered by
Firmware	Firmware Upgrade
Size & Weight	Size Weight
Applications	Motors Vehicles KV Rating/T Count

Product Name		XeRun XR8 SCT
Product Number		30113301
Type	Scale Brushed/Brushless Sensored/Sensorless Waterproof	1/8^th & 1/10^th BL SD No
Specifications	Cont./Peak Current Input Voltage BEC Output	140A/880A 2-4S Lipo/6-12 Cell NiMHSwitch Mode: 6V/7.4V,6A
Wires & Connectors	Input Wires Output Wires Input Connectors Output Connectors	Red-12AWG-200mm1/Black--12AWG-200mm1 Blue -12AWG-200mm1 Yellow-12AWG-200mm1 Orange -12AWG-200mm*1 No No
ESC Programing via	SET Button on ESC LED Program Box LCD Program Box WiFi Module OTA Programmer Programming Port	Not Supported Not Supported Supported Supported Supported PRG/Fan Port
Fan	Size Voltage Range Powered by	30x30x10mm 5-8.4V Powered by BEC
Firmware	Firmware Upgrade	Supported
Size & Weight	Size Weight	54.1x37.2x36.1mm 90.5g
Applications	Motors Vehicles KV Rating/T Count	SL BL Motors SD BL Motors 1/10^th SCT/Truck/Monster Truck & 1/8^th Buggy/On-road Racing With 2S LiPo/6S NiMH: 3660 size motor, KV≤6000 With 3S LiPo/9S NiMH: 3660 size motor, KV≤4000 With 4S LiPo/12S NiMH: 3660 size motor, KV≤3000 With 4S LiPo/12S NiMH: 4268 size motor, KV≤2500(Buggy). 4268 size motor, KV≤3200(On-Road).

Support

Manuals & Documents

Manuals

Software Download

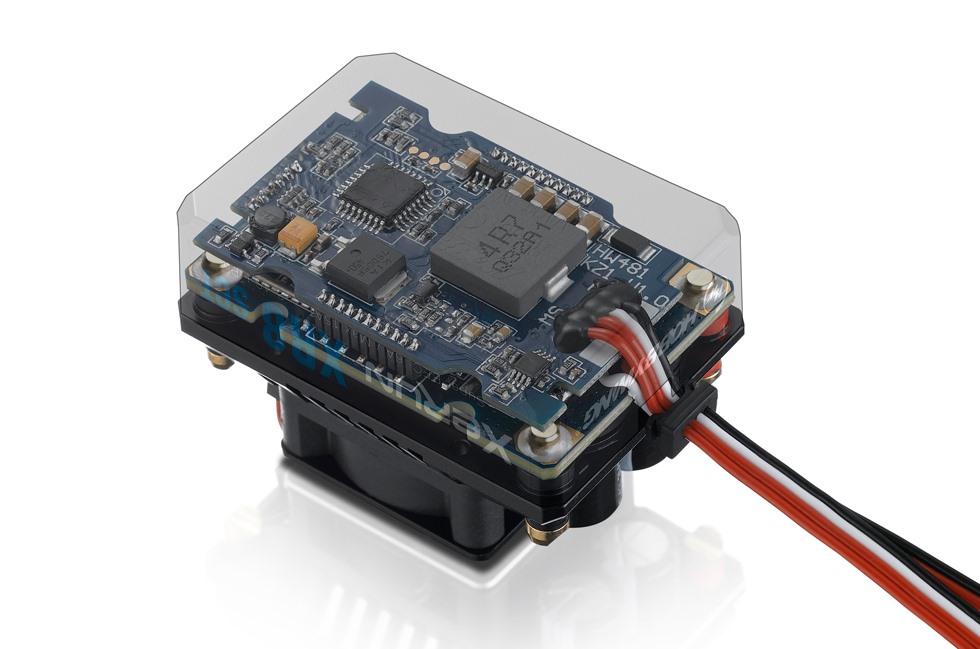

WiFi Express

STOPPED

WiFi Express

Product Number: 30503000
Working Voltage: 5V-12.6V
WiFi Protocol: IEEE802.11 b/g/n
WiFi Signal Effective Range: 0-10m
(Open Field) Applications: work on
the XeRun series, EzRun series
of car ESCs, and the Platinum series
of aircraft ESCs, and Seaking Pro
series of boat ESCs.

Multifunction LCD Program Box

Part Number: 30502001
Size: 91x51x17mm (LxWxH)
Applications: Platinum series of
brushless aircraft ESCs, XeRun
series & EzRun series of brushless
car ESCs, SeaKing Pro series of
brushless boat ESCs

OTA Programmer

Product Number: 30850400
Working Voltage: 5-12.6V
Supported Bluetooh Version: ≥ 4.0
Effective Range: 0-5m (Open Field)
Applications: work on the XzRun series,
EzRun series of car ESCs, and the Platinum
series of aircraft ESCs, and
Seaking Prp series of boat ESCs.
