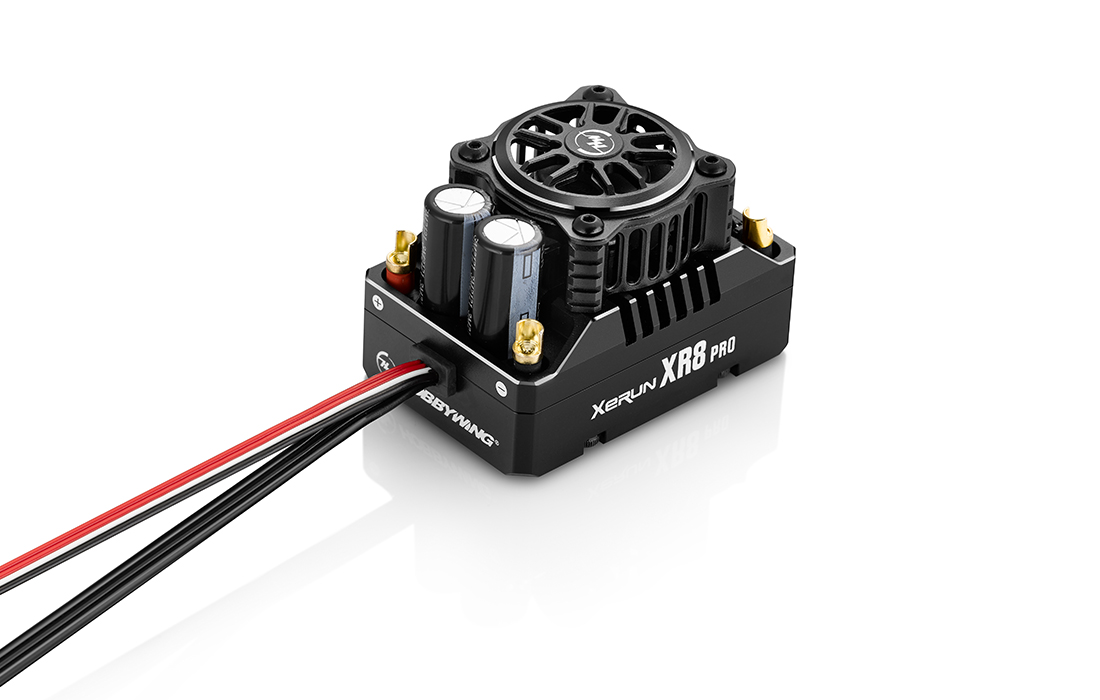

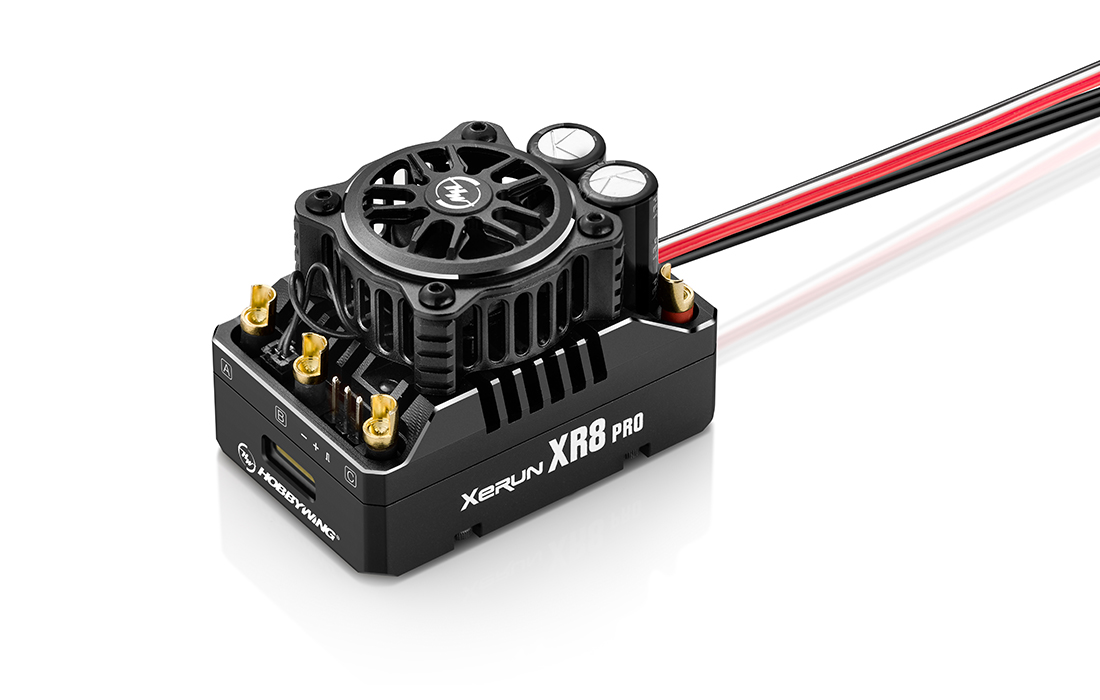

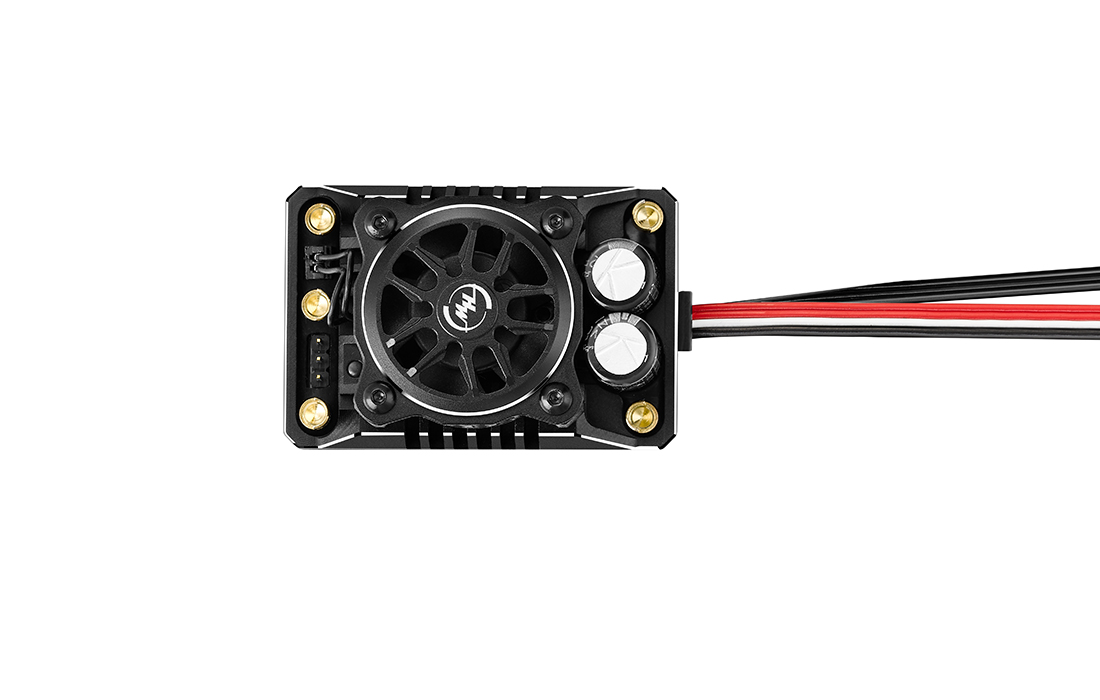

XeRun XR8 PRO G3
Compact and capable carry light on the field
The new XR8 Pro G3 ESC is 1.3mm shorter, and 5.3mm narrower compared
to its predecessor. The overall footprint is reduced by approximately 15%,
The all-new fully sensored XR8 PRO G3 ESC meets the needs of
high-end 8th scale racing applications with its strong explosive power,
ultra large output power(200a), while having excellent low-speed linearity.

A maximum output current of as high as
200A

XeRun XR8 PRO G3
XeRun XR8 PRO G2
Comparing the length between
XR8 PRO G3 and XR8 PRO G2
Comparing the width between
XR8 PRO G3 and XR8 PRO G2
XR8 PRO G3
XR8 PRO G2
XR8 PRO G3
XR8 PRO G2
Shortened by1.3mm
Shortened by5.3mm
54.8mm
36.8mm
56.1mm
42.1mm
Dual brake mode
The innovative closed-loop torque brake control mode is
also known as the disc brake mode. It completely solves
the problem of non-linear force caused by the influence
of vehicle speed on traditional braking methods.
It enables linear output of braking force accurately,
similar to the effect of real car disc brakes.
The disc brake mode supports the adjustment of
the curvature of the braking force and force distribution
of the front and rear sections of the brakes.
At the same time, the traditional braking mode is
retained to take into account the driver's control habits.
XeRun 4268 G3
XeRun XR8 PRO G3
Excellent hardware design combined with innovative
smart freewheeling technology enables the ESC to have
higher drive efficiency and lower operating
temperature. Compared with the XR8 Pro G2, the
maximum temperature is reduced by approximately
15°C, and the ESC is stable and reliable.

  Remarks:  Under heavy load conditions, the temperature of

XR8 Pro G3 is lower than the XR8 Pro G2.

Compared with the XR8 Pro G2,
the maximum temperature is
reduced by approximately

Intelligent fan start/stop,
noise reduction and
power saving
The fan of the ESC does not work when the
temperature is low. The fan will automatically
turn on when the temperature rises to the pre-set
value. The intelligent start and stop function of
the fan not only reduces noise, saves power,
but also ensures that the ESC works in a good
temperature range.
Frameless fan,
efficient and durable
The frameless fan blade is designed with
the use of specially formulated material to
reduce the defective rate of the fan
caused by impact from small stones,
sand and other foreign objects.
Frameless fan

Turbo timing technology

Advanced Boost & Turbo Timing Technology
The XR8 Pro G3 ESC performs the best when it is paired with the recommended HOBBYWING motor.
It inherits the same Turbo Timing technology used on the XR10 Pro series used in 1/10th On-Road
and Off-Road competition.This ESC is able to support up to 48 degrees of Boost and Turbo Timing.
There is a 50% increase in performance and is only recommended
to pair with the new HOBBYWING 4268/4274 G3 motors.
Built-in reverse polarity
protection circuit,
reinforced protection
The ESC is reverse polarity protected.
In an event when a user makes a mistake by reversing the polarity,
the ESC will not be broken.

Built-in reverse polarity
protection circuit

Real-time data
recording function,
easy to obtain
power running status
After connecting the OTA module box, turn on
real-time data recording function to access the
operating status.

Data recording function

Note: The effective distance is
only about 5m due to Bluetooth
transmission distance.
Capacitor thermal protection
Capacitor Thermal
Protection
Capacitor thermal protection is
designed and implemented into the
ESC and will effectively prevent
capacitors from exploding and causing
irreversible damage to the ESC due to overload.

  Note:
If the overheating protection of the ESC is off,
and it is used on a flat road vehicle, please add a
capacitor pack, otherwise the capacitor may be
overheated and damaged!
Superior Dustproof Protection
The ESC is IP5X rated. It has a superior dustproof
protection to protect the ESC
in all types of environments.

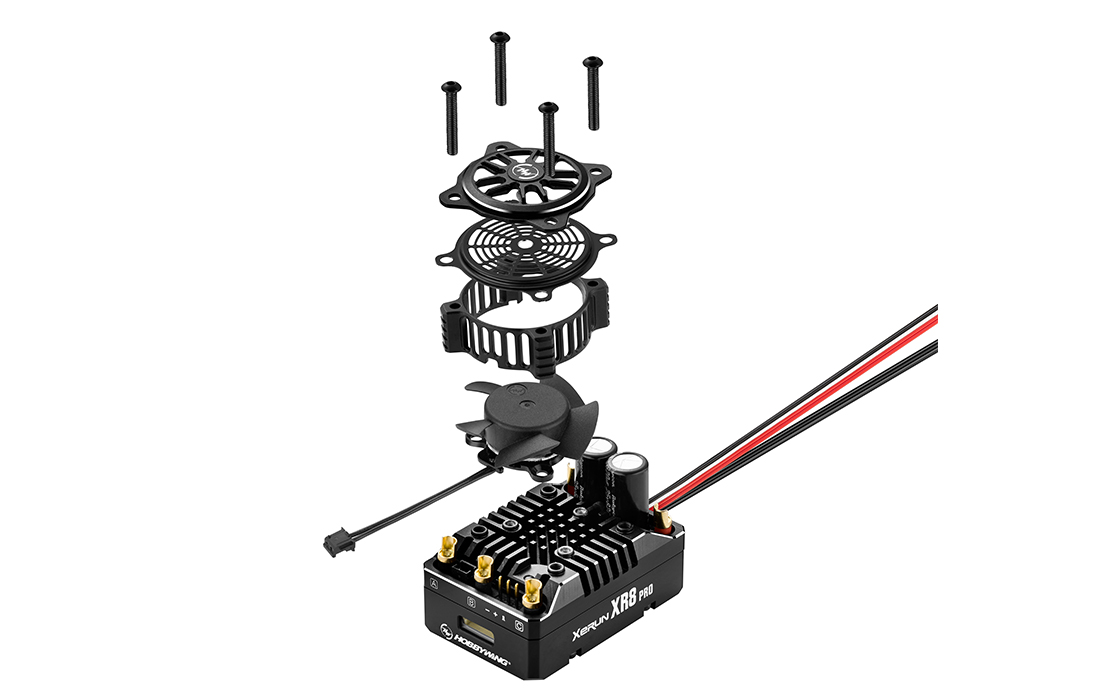

In addition, the ESC is equipped with a small protective
cover for better fan protection.
Small Protective Cover

Custom ultra-soft
11AWG silicone wire
The ultra-soft 11AWG silicone wire is specially
chosen for this product. The wire is ultra-flexible
and low in resistance, making it the perfect
combination to for your electronics.
Custom
ultra-soft
11AWG
1Silicone wire
Product Name
Product Number
Type Scale

Brushed/Brushless

Sensored/Sensorless

Waterproof
Specifications Cont./Peak Current

Input Voltage

BEC Output
Wires & Connectors Input Wires

Output Wires

Input Connectors

Output Connectors
ESC Programing via SET Button on ESC

LED Program Box

LCD G2 Program Box

OTA Programmer

Programming Port
Fan Size

Output Wires

Input Connectors
Data Recording Extreme value

Real-time Data

Historical data (Graph)
Firmware Firmware Upgrade
Size & Weight Size

Weight
Applications Motors

Vehicles
Product Name XeRun XR8 PRO G3
Product Number 30113400
Type Scale

Brushed/Brushless

Sensored/Sensorless

Waterproof
1/8th

BL

SD

No
Specifications Cont./Peak Current

Input Voltage

BEC Output
200A/1080A

2-4S Lipo

6V/7.4V Adjustable, Continuous Current: 6A(Switch-mode)
Wires & Connectors Input Wires

Output Wires

Input Connectors

Output Connectors
Black-11AWG-200MM*2

Black-11AWG-200MM*3

No

No
ESC Programing via SET Button on ESC

LED Program Box

LCD G2 Program Box

OTA Programmer

Programming Port
Not Supported

Not Supported

Supported

Supported

Independent programming port
Fan Size

Output Wires

Input Connectors
30x30x10mm

5-8.4V

Powered by BEC
Data Recording Extreme value

Real-time Data

Historical data (Graph)
Supported

Supported

Supported
Firmware Firmware Upgrade Supported
Size & Weight Size

Weight
54.8X36.8X38.8mm

102.8g
Applications Motors

Vehicles
4268 3660 size motor

1/8thOff-road,On-road Racing & 1/10th Short course truck,Monster truck
Support

Manuals & Documents

Software Download

XeRun XR8 PRO G3
Compact and capable
carry light on the field
The new XR8 Pro G3 ESC is 1.3mm shorter, and 5.3mm
narrower compared to its predecessor. The overall
footprint is reduced by approximately 15%, The
all-new fully sensored XR8 PRO G3 ESC meets the
needs of high-end 8th scale racing
applications with its strong explosive power,
ultra large output power(200a), while having
excellent low-speed linearity.

A maximum output current of as high as
200A

Dual brake mode
The innovative closed-loop torque brake control mode is
also known as the disc brake mode. It completely solves
the problem of non-linear force caused by the influence
of vehicle speed on traditional braking methods.
It enables linear output of braking force accurately,
similar to the effect of real car disc brakes.
The disc brake mode supports the adjustment of
the curvature of the braking force and force distribution
of the front and rear sections of the brakes.
At the same time, the traditional braking mode is
retained to take into account the driver's control habits.
Excellent hardware design combined with innovative
smart freewheeling technology enables the ESC to have
higher drive efficiency and lower operating
temperature. Compared with the XR8 Pro G2, the
maximum temperature is reduced by approximately
15°C, and the ESC is stable and reliable.
  Remarks: Under heavy load conditions,
                     the temperature of XR8 Pro G3
                     is lower than the XR8 Pro G2.

Compared with the XR8 Pro G2,
the maximum temperature is
reduced by approximately

Intelligent fan start/stop,
noise reduction and
power saving
The fan of the ESC does not work when the
temperature is low. The fan will automatically turn
on when the temperature rises to the pre-set
value. The intelligent start and stop function of
the fan not only reduces noise, saves power, but
also ensures that the ESC works in a good
temperature range.
Frameless fan,
efficient and durable
The frameless fan blade is designed with
the use of specially formulated material to
reduce the defective rate of the fan
caused by impact from small stones, sand
and other foreign objects.
Frameless fan

Turbo timing technology

Advanced Boost &
Turbo Timing Technology
The XR8 Pro G3 ESC performs the best when it is paired
with the recommended HOBBYWING motor. It inherits
the same Turbo Timing technology used on the XR10
Pro series used in 1/10th On-Road and Off-Road
competition.This ESC is able to support up to 48
degrees of Boost and Turbo Timing. There is a 50%
increase in performance and is only recommended
to pair with the new HOBBYWING 4268/4274 G3 motors.
Built-in reverse polarity
protection circuit,
reinforced protection
The ESC is reverse polarity protected.
In an event when a user makes a mistake by reversing the polarity,
the ESC will not be broken.

Built-in reverse polarity
protection circuit

Real-time data
recording function,
easy to obtain
power running status
After connecting the OTA module box, turn on
real-time data recording function to access the
operating status.
Note: The effective distance is
only about 5m due to Bluetooth
transmission distance.

Data recording
function

Capacitor thermal protection

Capacitor Thermal
Protection
Capacitor thermal protection is designed and
implemented into the ESC and will effectively
prevent capacitors from exploding and causing
irreversible damage to the ESC due to overload.
  Note:
If the overheating protection of the ESC is off,
and it is used on a flat road vehicle, please add a
capacitor pack, otherwise the capacitor may be
overheated and damaged!
Superior Dustproof
Protection
The ESC is IP5X rated. It has a superior dustproof
protection to protect the ESC
in all types of environments.
In addition, the ESC is equipped with a small protective
cover for better fan protection.
Custom ultra-soft
11AWG silicone wire
The ultra-soft 11AWG silicone wire is specially
chosen for this product. The wire is ultra-flexible
and low in resistance, making it the perfect
combination to for your electronics.
Custom
ultra-soft
11AWG
1Silicone wire
Product Name XeRun XR8 PRO G3
Product Number 30113400
Type Scale

Brushed/Brushless

Sensored/Sensorless

Waterproof
1/8th

BL

SD

No
Specifications Cont./Peak Current

Input Voltage

BEC Output
200A/1080A

2-4S Lipo

6V/7.4V Adjustable, Continuous Current: 6A(Switch-mode)
Wires & Connectors Input Wires

Output Wires

Input Connectors

Output Connectors
Black-11AWG-200MM*2

Black-11AWG-200MM*3

No

No
ESC Programing via SET Button on ESC

LED Program Box

LCD G2 Program Box

OTA Programmer

Programming Port
Not Supported

Not Supported

Supported

Supported

Independent programming port
Fan Size

Output Wires

Input Connectors
30x30x10mm

5-8.4V

Powered by BEC
Data Recording Extreme value

Real-time Data

Historical data (Graph)
Supported

Supported

Supported
Firmware Firmware Upgrade Supported
Size & Weight Size

Weight
54.8X36.8X38.8mm

102.8g
Applications Motors

Vehicles
4268 3660 size motor

1/8thOff-road,On-road Racing & 1/10th Short course truck,Monster truck

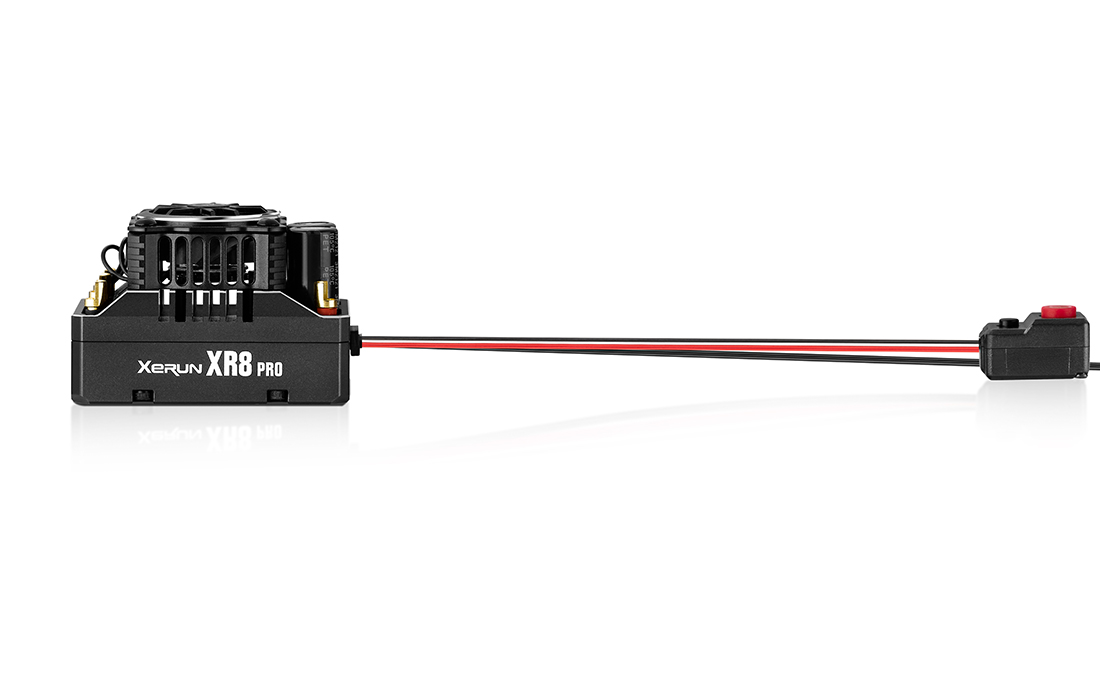

Product Name XeRun XR8 PRO G3
Product Number 30113400
Type Scale

Brushed/Brushless

Sensored/Sensorless

Waterproof
1/8th

BL

SD

No
Specifications Cont./Peak Current

Input Voltage

BEC Output
200A/1080A

2-4S Lipo

6V/7.4V Adjustable, Continuous Current: 6A(Switch-mode)
Wires & Connectors Input Wires

Output Wires

Input Connectors

Output Connectors
Black-11AWG-200MM*2

Black-11AWG-200MM*3

No

No
ESC Programing via SET Button on ESC

LED Program Box

LCD G2 Program Box

OTA Programmer

Programming Port
Not Supported

Not Supported

Supported

Supported

Independent programming port
Fan Size

Output Wires

Input Connectors
30x30x10mm

5-8.4V

Powered by BEC
Data Recording Extreme value

Real-time Data

Historical data (Graph)
Supported

Supported

Supported
Firmware Firmware Upgrade Supported
Size & Weight Size

Weight
54.8X36.8X38.8mm

102.8g
Applications Motors

Vehicles
4268 3660 size motor

1/8thOff-road,On-road Racing & 1/10th Short course truck,Monster truck
Support

Manuals & Documents

Software Download
