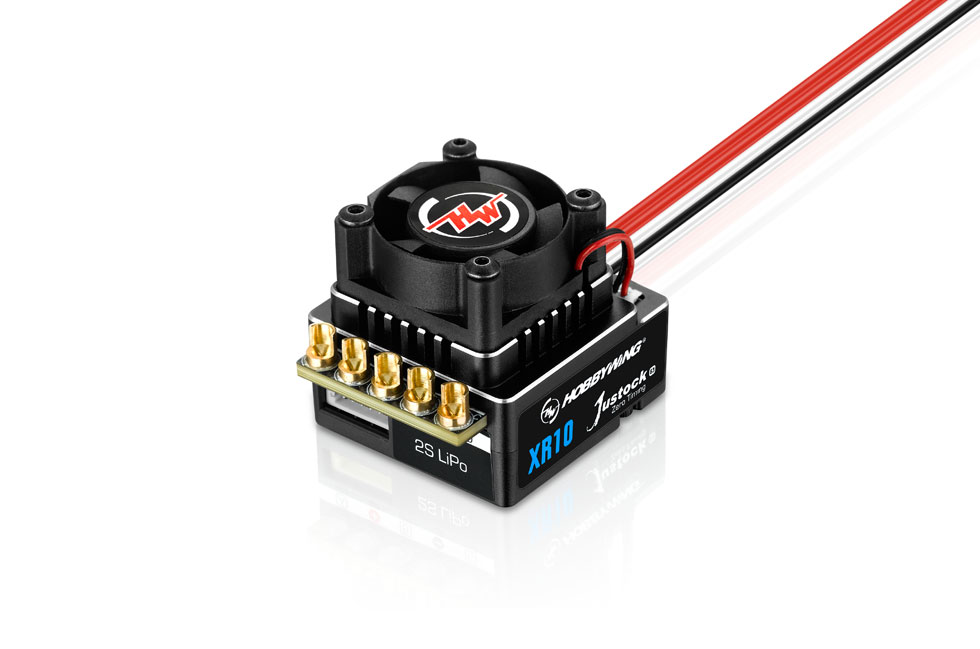

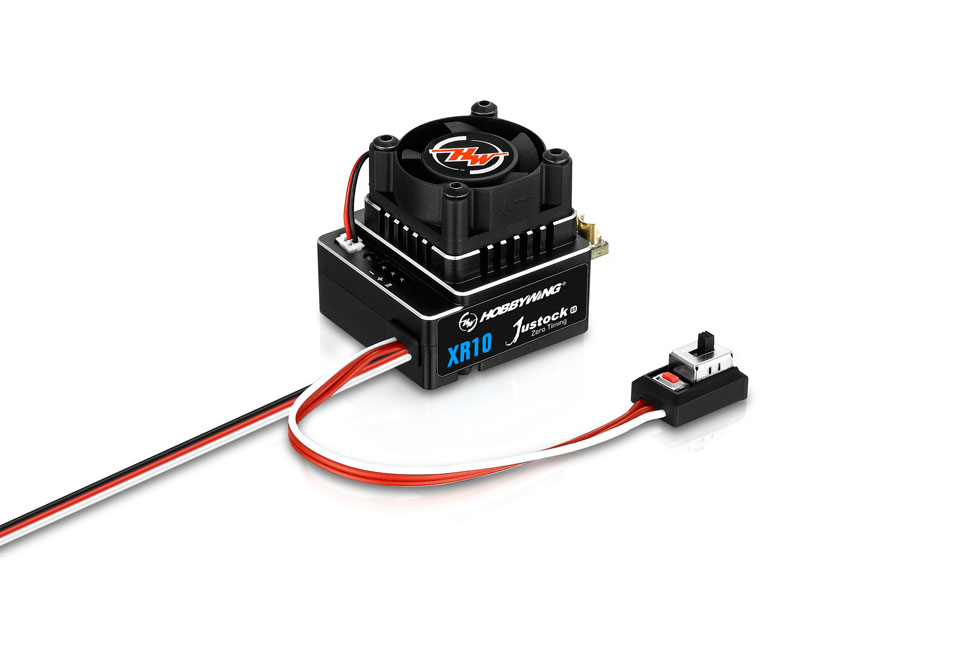

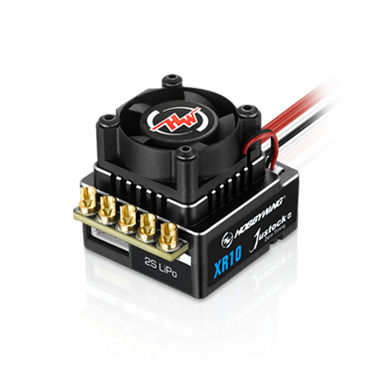

XeRun XR10 Justock G3

Overview
Specifications
Support
Accessories
Detail

Built-in polarity protection

One danger that all electrical systems face is a reversed polarity from
the power source. This can be caused by a short circuit, or usually,
incidentally reversing the terminals.
The XR10 Justock is integrated using MOSFET. If the battery terminals
are connected in reverse, the MOSFET will be reverse-biased and will
not allow current to flow through the system.

Built-in polarity
protection

Built-in capacitor module

The built-in capacitor module eliminates the need for external capacitors
and unwanted space.

Built-in capacitor
module

RPM speed limit function

The ESC is able to support up to 6 different speed (RPM) selections to meet the
needs and demands of various competitions in the world. It can be programmed
through using the latest OTA Bluetooth module or the traditional 3in1 program box.

RPM speed
limit function

Zero timing competition design

The internal timing of the ESC is fixed at 0 degrees and cannot be adjusted.
It is specifically built for zero timing races around the world.

Zero timing
competition design

Built-in BEC supporting
high-voltage steering gear

The ESC has a built-in BEC which can support a
maximum output current of up to 8A and the output
voltage at either 6V or 7.4V. This will ensure
constant power supplied to today’s high-torque
servos in the market.

Built-in BEC supporting
high-voltage steering gear

User-friendly and convenient for set-up

The ease of having a dedicated programming port eliminates the trouble of
plugging and unplugging the cable to the receiver. In addition, the interface can
power additional fans to further dissipate heat. The user-friendly interface allows
for easy and convenient setup by simply connecting the 3in1 LCD programming
box or OTA Bluetooth module to the dedicated programming port.

User-friendly and
convenient for set-up

Protection functions

The various protection functions have greatly
improved the reliability and durability of the ESC.

Protection functions

Reverse polarity protection

Battery low
voltage protection

Motor temperature
protection

Locked rotor protection

Signal lost
protection

ESC temperature
protection

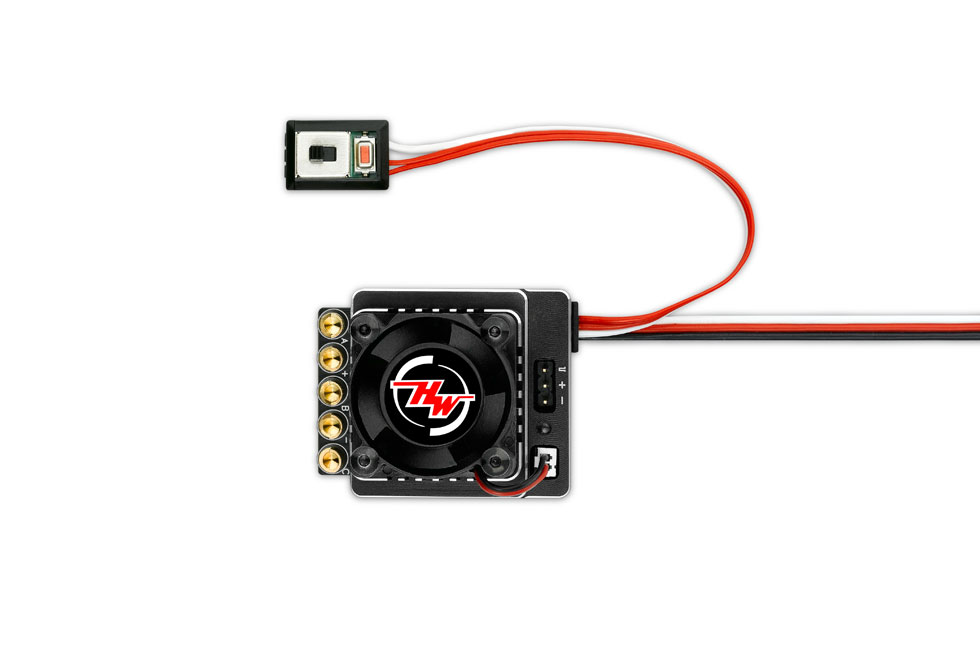

Single programming and RESET design button

The ESC is designed with a single built-in SET button. Calibrating or doing a factory-reset can
be achieved by using this SET button. Simple and easy to use.

Single programming
and RESET design button

Support bi-directional motor movement

The ESC supports both CCW (counterclockwise) and CW (clockwise) motor
rotational directions for different usage on the market.

Support bi-directional
motor movement

Motor Direction: CCW(Counterclockwise)

Motor Direction: CW(Clockwise)

Support ESC firmware upgrade

Hobbywing engineers are constantly innovating and pushing
the limits of its products. Enjoy the latest functions by
upgrading to the latest firmware. Simply connect the ESC
using either the HW LINK App via the OTA Bluetooth module
or the USB LINK software through the computer.

Support ESC
firmware upgrade

Product Name
Product Number
Type	Scale Brushed/Brushless Sensored/Sensorless Waterproof
Specifications	Cont./Peak Current Input Voltage BEC Output
Wires & Connectors	Input Wires Output Wires Input Connectors Output Connectors
ESC Programing via	SET Button on ESC LED Program Box LCD Program Box WiFi Module OTA Programmer Programming Port
Fan	Size Output Wires Input Connectors
Data Recording	Extreme value Real-time Data Historical data (Graph)
Firmware	Firmware Upgrade
Size & Weight	Size Weight
Applications	Applications Vehicles KV Rating/T Count

Product Name		XeRun XR10 Justock G3
Product Number		30112003(Black)
Type	Scale Brushed/Brushless Sensored/Sensorless Waterproof	1/10^th BL SD No
Specifications	Cont./Peak Current Input Voltage BEC Output	60A/380A 2S Lipo 6V/7.4V @4A
Wires & Connectors	Input Wires Output Wires Input Connectors Output Connectors	Black-14AWG-200mm2 Black-14AWG-200mm3 No No
ESC Programing via	SET Button on ESC LED Program Box LCD Program Box WiFi Module OTA Programmer Programming Port	Supported Supported Supported Supported Supported Separate
Fan	Size Output Wires Input Connectors	25x25x10mm 5-7.4V BEC
Data Recording	Extreme value Real-time Data Historical data (Graph)	Not Supported Not Supported Not Supported
Firmware	Firmware Upgrade	Supported
Size & Weight	Size Weight	40.9x33.9x32.1mm 75.4g(w/Wires)
Applications	Applications Vehicles KV Rating/T Count	SL BL Motors / SD BL Motors 1/10^th Touring Cars & Buggies for Racing ≥10.5T 3650 Motor

Support

Manuals & Documents

Manuals

Software Download

Multifunction LCD Program Box

Part Number: 30502001
Size: 91x51x17mm (LxWxH)
Applications: Platinum series of
brushless aircraft ESCs, XeRun
series & EzRun series of brushless
car ESCs, SeaKing Pro series of
brushless boat ESCs

OTA Programmer

Product Number: 30850400
Working Voltage: 5-12.6V
Supported Bluetooh Version: ≥ 4.0
Effective Range: 0-5m (Open Field)
Applications: work on the XzRun series,
EzRun series of car ESCs, and the Platinum
series of aircraft ESCs, and
Seaking Prp series of boat ESCs.
