XeRun XD10 Pro

Overview
Specifications
Support
Accessories
Detail

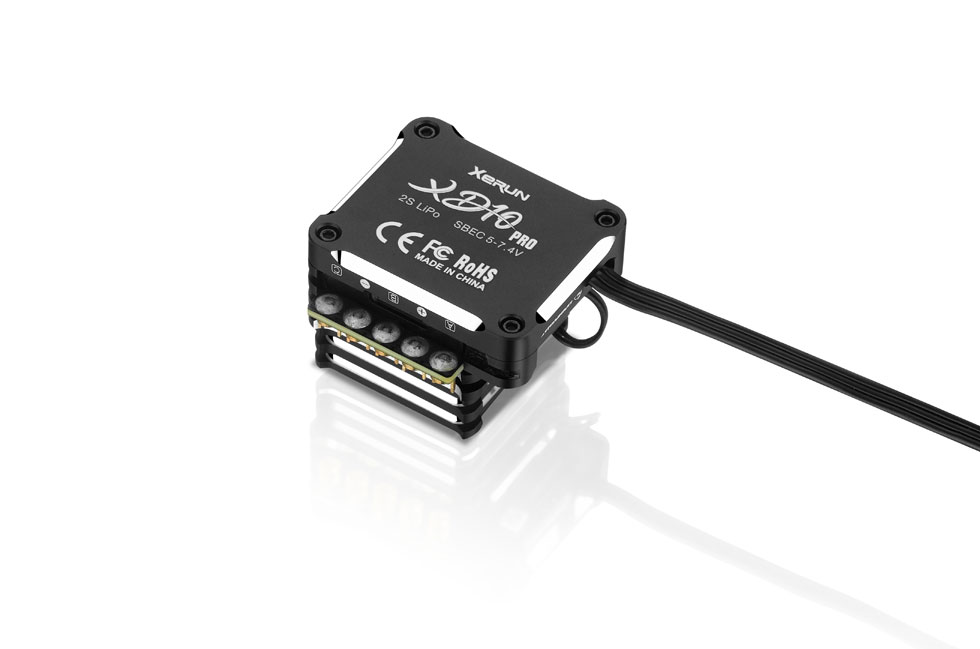

Elegantly designed for drift

The Xerun XD10 Pro ESC provides the ideal colors to perfectly match
your drift machines. They are available in black, red and purple.

Elegantly
designed for drift

Black

Red

Purple

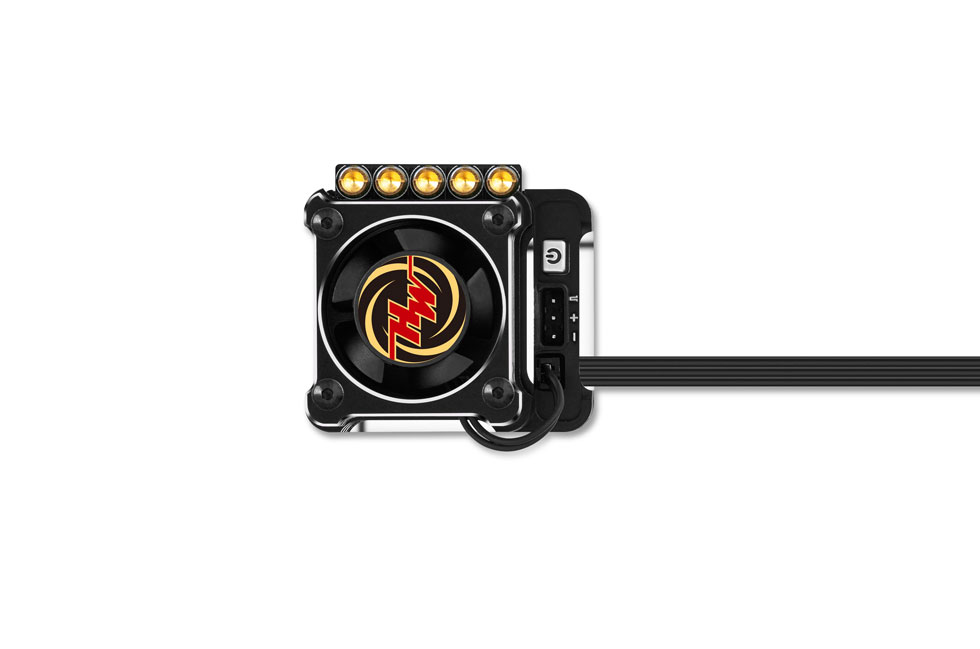

Equipped with a powerful fan

The stylish aluminum fan is powerful and helps to massively cool down the ESC.
Moreover, the texture of the materials have been carefully selected to give you a great overall satisfaction.

Equipped with a powerful fan

Black

Red

Purple

Ultra-soft 13AWG silicone wire

The ultra-soft 13AWG silicone wire will be included in the
XD10 Pro ESC. They are ultra-flexible and low in resistance.
Maximum performance is guaranteed.

Reverse Polarity Protected

The Xerun XD10 Pro is reverse polarity protected. In an event when a user makes a mistake
by reversing the polarity, the ESC will not be broken.
Note: The standard capacitor included in the ESC will be damaged when the polarity is
reversed. By selecting the optional non-polarity capacitors (Item number: 30840004,
30840005), it will be able to prevent any sort of damages from happening.

IReverse Polarity Protected

ESC

Built-in battery-reversal
protection circuitry frees you
from worrying about damage
caused by reverse installation.

BATT

Supports high-voltage BEC

The built-in BEC is able to support both high torque and high voltage
servos and can be adjustable at 5.0-7.4V (adjusted to 0.1V/step).

Supports high-voltage BEC

New communication protocol for quick
setup of parameters, firmware upgrades

The new communication protocol is used to set parameters and significantly
increase the speed of firmware upgrades, and the LCD G2 is twice as fast as
the OTA Programmer speed is 3-4 times faster.

Quick setup of
parameters

Firmware
upgrades

Programmable parameter optimized for drift

The 32-bit M4 processor is equipped with powerful software, features new
programmable parameters and it is optimized for drift applications. The new
parameters such as, initial start-up force adjustment, 48K ultra-high drive frequency,
and 24K ultra-high brake frequency ensures excellent drivability. It is tailored to extract
and maximize performance for high-end drifters.
Note! Use appropriate settings provided by the factory or team drivers. Check
operating temperature in order to maximize your electronics. The wrong settings
may damage the ESC/motor!

Programmable parameter
optimized for drift

Real-time data log makes it easy
to access operating status

After connecting the OTA module box, turn on real-time data
recording function to access the operating status.
Note: Bluetooth transmission distance is most effective within the 5m radius.

Real-time data log
makes it easy to
access operating status

Seamless connectivity with OTA
module box and mobile phone

Simple and convenient, parameter settings, firmware upgrading
and other operations can be established using Hobbywing’s OTA
Bluetooth module and your mobile phone via the Hobbywing app.

Seamless connectivity
with OTA module box
and mobile phone

Product Name
Product Number
Type	Scale Brushed/Brushless Sensored/Sensorless Waterproof
Specifications	Cont./Peak Current Input Voltage BEC Output
Wires & Connectors	Wires & Connectors Output Wires Input Connectors Output Connectors
ESC Programing via	SET Button on ESC LED Program Box LCD Program Box OTA Programmer Programming Port
Fan	Size Voltage Range Powered by
Data Recording	Extreme value Real-time Data Historical data (Graph)
Firmware	Firmware Upgrade
Size & Weight	Size Weight
Applications	Applications Vehicles KV Rating/T Count

Product Name		XeRun XD10 Pro
Product Number		30112614(Black),30112615(Red),30112616(Purple)
Type	Scale Brushed/Brushless Sensored/Sensorless Waterproof	1/10^th BL SD No
Specifications	Cont./Peak Current Input Voltage BEC Output	100A/800A 2S Lipo 5-7.4V，5A
Wires & Connectors	Wires & Connectors Output Wires Input Connectors Output Connectors	Black-13AWG-250mm2 Black-13AWG-250mm3 No 3.5mm male plug
ESC Programing via	SET Button on ESC LED Program Box LCD Program Box OTA Programmer Programming Port	Not Supported Not Supported Supported Supported Independent programming port
Fan	Size Voltage Range Powered by	30x30x10mm 5-7.4V Powered by BEC
Data Recording	Extreme value Real-time Data Historical data (Graph)	Supported Supported Supported
Firmware	Firmware Upgrade	Supported
Size & Weight	Size Weight	40.7x35.0x32.0mm(w/Fan) 95g (w/wires)
Applications	Applications Vehicles KV Rating/T Count	SL BL Motors SD BL Motors 1/101/10^thdrift car ≥8.5T

Support

Manuals & Documents

Manuals

Software Download

Application Guidance

2024 Rêve D Party International Drift Meet Glen XeRun XD10 ProSetup Sheet

Nonpolar Capacitor Package

Part Number: 30840004, 30840005

Multifunction LCD Program Box

Part Number: 30502001
Size: 91x51x17mm (LxWxH)
Applications: Platinum series of
brushless aircraft ESCs, XeRun
series & EzRun series of brushless
car ESCs, SeaKing Pro series of
brushless boat ESCs

OTA Programmer

Product Number: 30850400
Working Voltage: 5-12.6V
Supported Bluetooh Version: ≥ 4.0
Effective Range: 0-5m (Open Field)
Applications: work on the XzRun series,
EzRun series of car ESCs, and the Platinum
series of aircraft ESCs, and
Seaking Prp series of boat ESCs.
