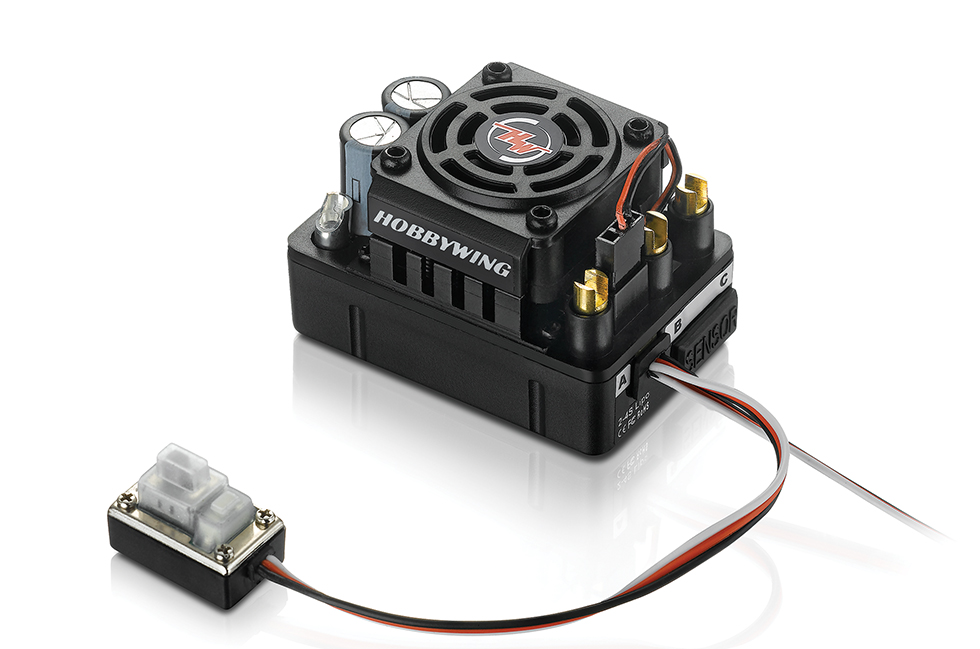

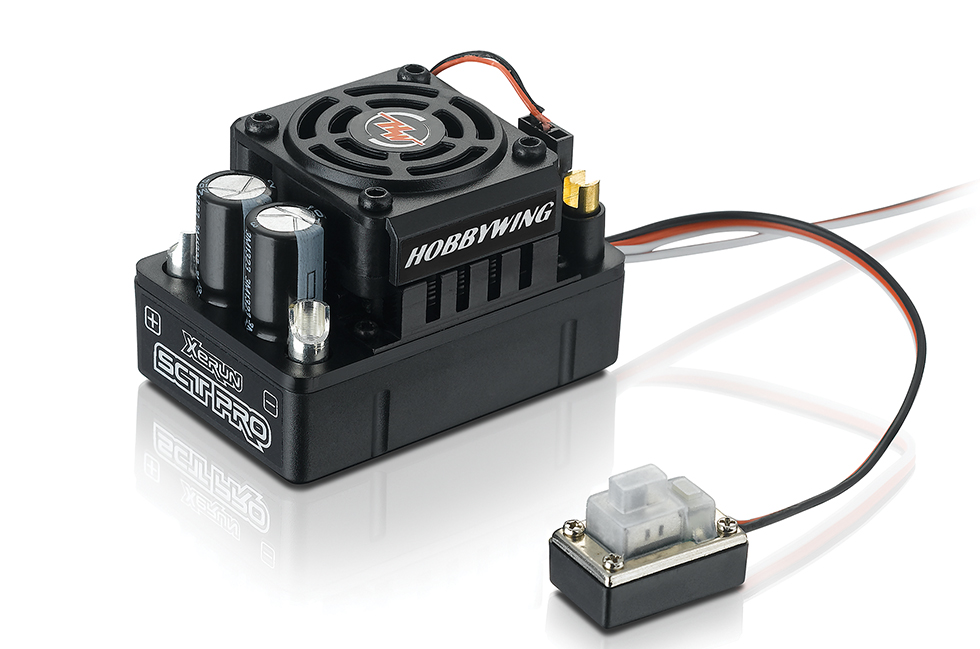

XeRun SCT PRO

Overview
Specifications
Support
Accessories
Detail

High Reliability & Durability

Reliable hardware combined with advanced software technology allows
the XERUN SCT PRO to not only provide high power output but also overload
protection of the ESC circuit.

High Reliability & Durability

Special Design for 1/8^th & 1/10^th Scale Racing

Reliable hardware combined with great software (which has 10 regular
ready-to-use modes) creates an ideal power solution to
1/8^th, 1/10^th scale short-course truck racing.

Special Design for
1/8^th & 1/10^th Scale Racing

Great Flexibility & Versatility

With the strong torque and excellent output,
the XERUN SCT PRO can definitely cater for all the power hungry requirements that
professional drivers need. The highly adjustable parameters of the ESC will allow drivers to
enjoy smooth throttle response when the throttle/brake
linearity is utmost required.

Great Flexibility & Versatility

Built-in BEC

The built-in switch mode BEC with a maximum output of 6Amp and
voltage of 6V make this ESC compatible with various servos.

Built-in BEC

Efficient Cooling System

Hobbywing patented heat-conductive copper bar cover on
the power board of the XERUN SCT PRO,
which can efficiently and effectively transfer heat to
the integrated CNC machined billet aluminum heat sink housing,
combined with reticular cooling design and high-performance cooling
fan can keep your ESC as cool as possible.

Efficient Cooling System

Single-button Programming & Factory Reset

The SET button on the ESC allows the user to easily program
or factory reset the ESC with ease.

Single-button Programming
& Factory Reset

Regular Firmware Updates
----Free of Charge

You can upgrade the XERUN SCT PRO with
the Hobbywing USB LINK software,
a multifunction LCD program box and a laptop.
Hobbywing updates its ESC firmware regularly giving you
upgraded features more often when available.

Regular Firmware Updates
----Free of Charge

Product Name
Product Number
Type	Scale Brushed/Brushless Sensored/Sensorless Waterproof
Specifications	Cont./Peak Current Input BEC Output
Wires & Connectors	Input Wires Output Wires Input Connectors Output Connecotors
ESC Programing via	SET Button on ESC LED Program Box LCD Program Box WiFi Module Program Port
Fan	Size Voltage Range Powered by
Firmware	Firmware Upgrade
Size & Weight	Size Weight
Applications	Motors Vehicles KV Rating/T Count

Product Name		XeRun SCT PRO
Product Number		81020260(Blue)/81020262(Black)
Type	Scale Brushed/Brushless Sensored/Sensorless Waterproof	1/10^th,1/8^th BL SD No
Specifications	Cont./Peak Current Input BEC Output	120A/760A 2-4S LiPo/6-12 Cells NiMH Switch Mode:6V/3A
Wires & Connectors	Input Wires Output Wires Input Connectors Output Connecotors	Red-12AWG-200mm1/Black-12AWG-200mm1 Blue-12AWG-200mm1/Yellow-12AWG-200mm1/Orange-12AWG-200mm*1 No No
ESC Programing via	SET Button on ESC LED Program Box LCD Program Box WiFi Module Program Port	Supported Supported Supported Supported FAN/Program Port
Fan	Size Voltage Range Powered by	30x30x10mm 5-7.4V Powered by BEC
Firmware	Firmware Upgrade	Supported
Size & Weight	Size Weight	53.5x36.0x36.0mm 99g
Applications	Motors Vehicles KV Rating/T Count	SL BL Motors SD BL Motors 1/10^th, 1/8^th SCT/Buggy/Monster Truck Competitions 2S LiPo: KV≤6000 3S LiPo: KV≤4000 4S LiPo: KV≤3000 (36XXSeries of Motors)

Support

Manuals & Documents

Manuals

Software Download

UBEC 10A-Car

Part Number: 30603003
Model: UBEC 10A-Car

LED Program Box_General

Part Number: 30501003
Size: 88x58x14mm（LxWxH）
Applications:
Platinum V1/V2 series & FlyFun V5 SkyWalker V2
Series of brushless aircraft ESCs
XeRun series (most), EzRun series
& QuicRun series of brushless car ESCs
SeaKing series of brushless boat ESCs

UBEC 5A

ProductNumber：30607000
Model：UBEC 5A

Signal Coupler

Part Number: 30850200
Size: 45.4x11.6x7.7mm（LxWxH）
Only for OPTO version

LED Program Box

Part Number : 30501003
Size : 88x58x14mm（LxWxH）

Rotor Replacement Tool

PN: 30607000

Multifunction LCD Program Box

Part Number: 30502001
Size: 91x51x17mm (LxWxH)
Applications: Platinum series of
brushless aircraft ESCs, XeRun
series & EzRun series of brushless
car ESCs, SeaKing Pro series of
brushless boat ESCs

OTA Programmer

Product Number: 30850400
Working Voltage: 5-12.6V
Supported Bluetooh Version: ≥ 4.0
Effective Range: 0-5m (Open Field)
Applications: work on the XzRun series,
EzRun series of car ESCs, and the Platinum
series of aircraft ESCs, and
Seaking Prp series of boat ESCs.
