XeRun Bandit G4

v

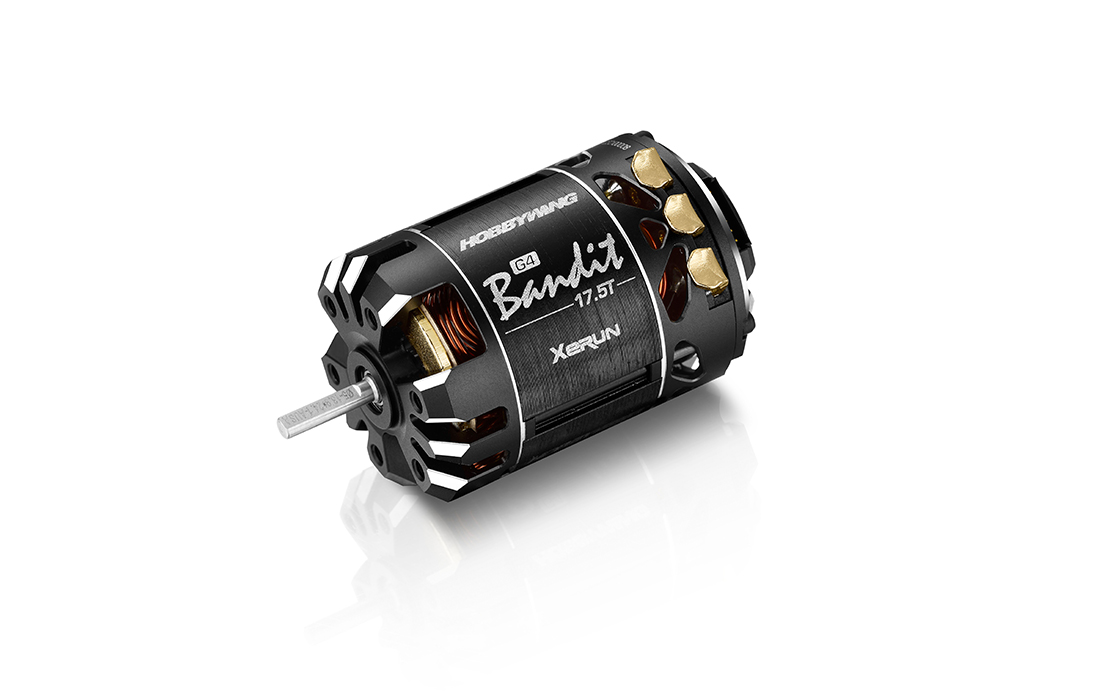

BANDIT G4

—

13.5T / 17.5T

High output, specially designed for
1/10th Outlaw competition
Compared with the Bandit G2R motor
The maximum output
power Bandit G4 13.5T
are further increased by
18%
The maximum output
power Bandit G4 17.5T
are further increased by
15%
High efficiency
Compared with the
Bandit G2R motor,
the new Bandit G4 is
12%
more efficient
This results in an extremely
minimum heat build-up,
and ensures that the motor is
always in a safe state.
20-60degrees
fully-adjustable
mechanical timing,
insane power
The motor has a fully-adjustable mechanical
timing from 20 to 60 degrees. The motor is able
to provide insane power to meet the power
requirements of various applications when the
timing is adjusted to the maximum (60 degrees).
Unique design for faster
Heat dissipation
The motor adopts a fully exposed
stator core structure.
The outer stator core is
directly exposed to maximize
heat dissipation performance.
TORQUE/OBL
dual version
you can choose
The 13.5T motors available in two versions;
Torque and OBL.
The Torque version is equipped with
a strong magnetic rotor suited for
blinky racing applications and OBL Stock
competition application on super big track.
The OBL version is equipped with
a thinner magnetic rotor suited for
driving OBL competition application.

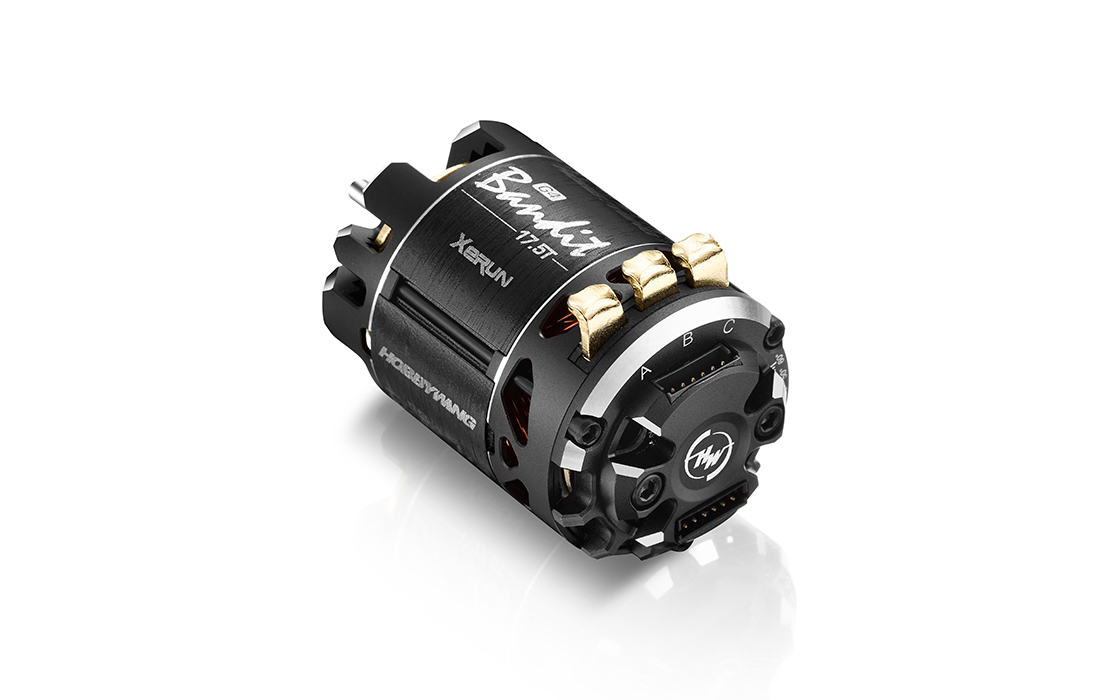

Dual Sensor port
design for ease
of wiring
The dual output socket design at the rear
of the motor meets various wiring needs
and allows for cleaner wire routing.

Easy to disassemble
and maintain,
improving efficiency

The motor adopts a modular structure
design. It makes daily cleaning and
maintenance convenient, effectively
prolonging the life-span of the motor and
maintaining high efficiencyof the motor

Front end plate

Rotor

Stator

Sensor module

Rear end plate

End cap

Short screws

Long screws

High quality materials ensure
maximum performance
High-precision grade bearings that offer exceptional durability,
maximum performance and consistency.
High temperature resistant
explosion-proof rotor(180°C)

High temperature resistant
wire(200°C)

High performance iron core


Customized widened
U-shapedgold-plated
curved copper bar

Large openings at the
rear for heat dissipation
Product Name
Product Number
Type Scale

Brushed/Brushless

Sensored/Sensorless

Pole Count
Relevant Parameters KV Rating

LiPo Cells

No-load Current(A)

Max. Power Output(W)

Current at the Point of
Size & Weight O.D.(mm)

Length (mm)

Shaft Diameter (mm)

Weight (g)

Front Bearing

Rear Bearing
Other Parameters Timing

Stock Rotor

Applications
Product Name XeRun Bandit G4 13.5T -TORQUE XeRun Bandit G4 13.5T-OBL XeRun Bandit G4 17.5T
Product Number 30401857 30401859 30401858
Type Scale

Brushed/Brushless

Sensored/Sensorless

Pole Count		 1/10th

BL

SD

2		 1/10th

BL

SD

2		 1/10th

BL

SD

2
Relevant Parameters KV Rating

LiPo Cells

No-load Current(A)

Max. Power Output(W)

Current at the Point of		 3200KV

2-3S Lipo

5.13A

387

48		 3400KV

2-3S Lipo

4.10A

368

46		 2500KV

2-3S Lipo

4.35A

270

34
Size & Weight O.D.(mm)

Length (mm)

Shaft Diameter (mm)

Weight (g)

Front Bearing

Rear Bearing		 35.8

53.9

3.175

187.6g

D9*D4*T4

D8*D3*T4		 35.8

53.9

3.175

187g

D9*D4*T4

D8*D3*T4		 35.8

53.9

3.175

181.4g

D9*D4*T4

D8*D3*T4
Other Parameters Timing

Stock Rotor

Applications		 20-60 Degrees(Adjustable)

Φ5-13.9*24.1-AUS

1/10th STOCK Outlaw Racing		 20-60 Degrees(Adjustable)

Φ5-13.3*24.1-AUS

1/10th OBL STOCK Outlaw Racing		 20-60 Degrees(Adjustable)

Φ5-13.9*24.1-AUS

1/10th STOCK Outlaw Racing
