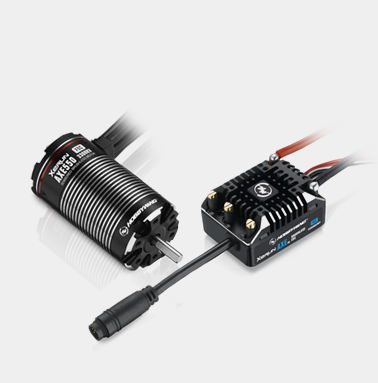

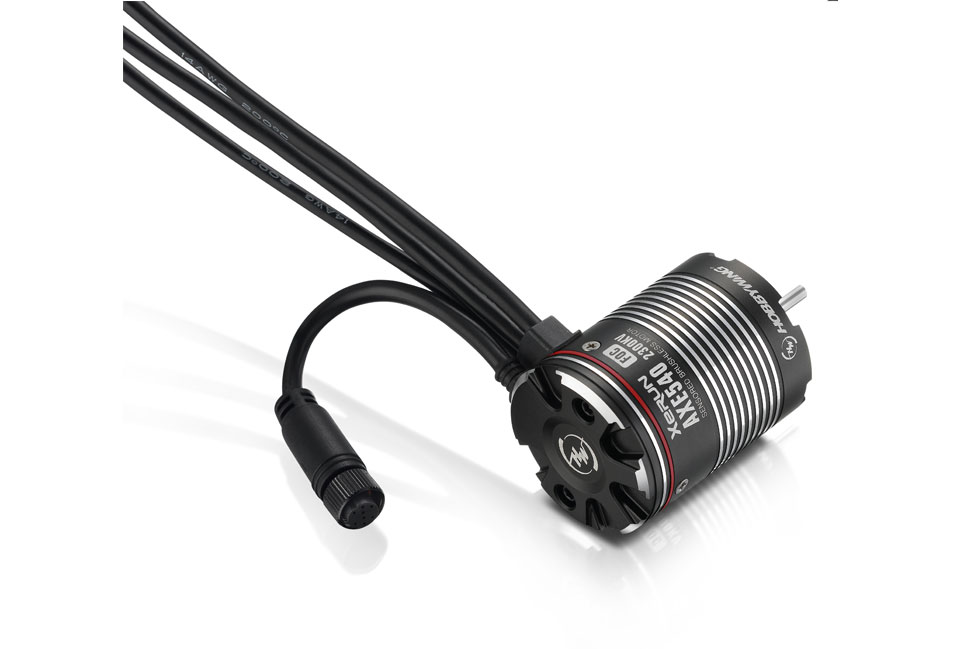

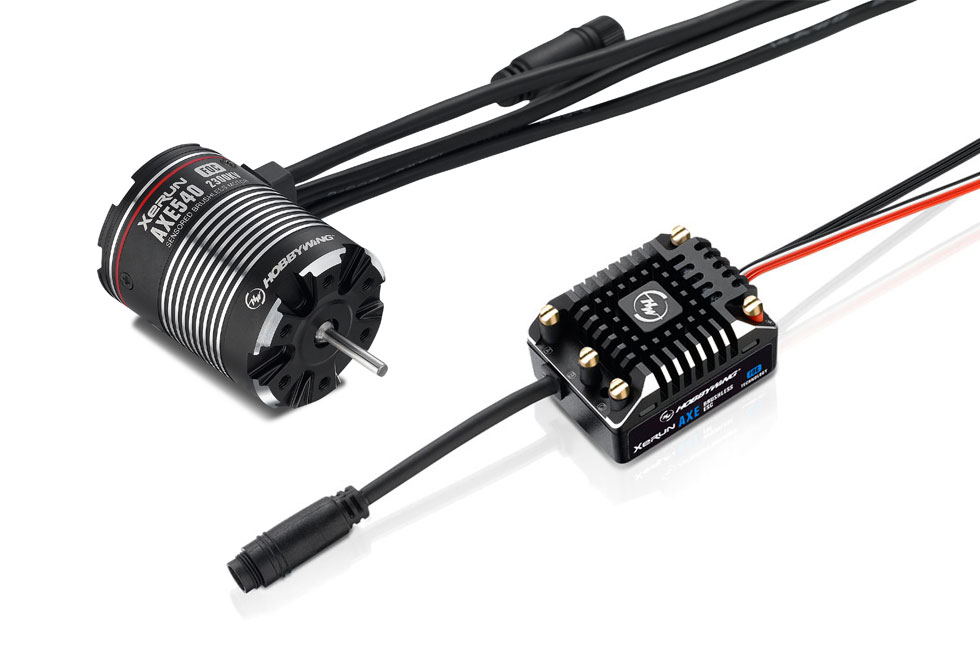

XeRun Axe Brushless Power System

XeRun Axe Brushless Power System

FOC (Field-oriented Control) for Super Linearity & High
Torque & Extreme Slience

New sensor technology has changed the feel, performance, and overall tune-ability of the new Axe ESC and Motor in ways some
have never experienced. Field-oriented Control is the name of this new tech, and is something all new to the scale trail, rock racing,
and rc world in-general. This new style of sensor allows extremely accurate control and sensing of the motor while maintaining
extreme performance and reliability. The motor and ESC are able to match the RPM of the motor to your throttle position under all
driving conditions. This greatly improves down hill driving giving this system the ability to drive down hill under complete control.
FOC technology also makes the whole system extremly silent, the motor doesn't create the annoying PWM noise when it is running.

FOC (Field-oriented Control)



Intelligent Torque Output & Speed
Closed-loop Control for Easy Control

Not just a new ESC and motor, the new FOC sensors, combined with Intelligent Torque
output and closed loop speed control mean the ESC and motor will maintain the
motor’s Torque level and RPM as the vehicles conditions change. Uphill, down hill,
under load, you name it, your Axe system will do what you’re telling it to do.

Intelligent Torque Output &
Speed Closed-loop Control
for Easy Control



Patented “Staggered Pole” Rotor
Design for Ultra-low Torque Ripple

The new Axe motor not only has a new sensor design, but compared to other rock crawler
design motors uses an improved staggered pole rotor design. What does this mean?
Smoother operation with no cogging, and very clean and consistent deceleration. Smoother
brakes, smoother power, and transitions between each are improved. This is specific to trail
and rock crawling and allows extremely precise throttle control under any load conditions.

Patented “Staggered Pole”
Rotor Design for
Ultra-low Torque Ripple

Patented “Staggered Pole”
Rotor Design for
Ultra-low Torque Ripple

Battery Reverse Polarity Protection

RCHobbywing's AXE FOC Crawler system has been designed with a
very unique feature protecting your ESC from damage caused by
Battery Reverse Polarity, so no matter how many times you reverse
the battery connections the AXE ESC and the paired motor are safe
from damage. Maybe this feature is the first in R/C Car industry.

Battery Reverse
Polarity Protection

ESC

Built-in battery-reversal
protection circuitry frees you
from worrying about damage
caused by reverse installation.

BATT

Applicable to All Weather & Track Conditions

The IP-67 waterproof has been taken to a new level with the AXE System.
Completely sealed ESC design with robust heatsink case design ensure
the ESC is ready for anything you throw at it. The motor as well,
is sealed, and combines a completely new sensor harness.
No messy extra steps to make your system water proof.

Applicable to All Weather
& Track Conditions



High Driving Efficiency for Long Battery Life

Extremely efficient design comes from the combination of new methods. The FOC
sensors provided significant improvements to overall motor performance when
compared to standard brushless setups. Runtime is increased dramatically while
maintaining exceptional levels of power and response.

High Driving Efficiency
for Long Battery Life

Professional Drag Brake Adjustments &
Super Parking Capacity

Drag brake rate, and drag brake tuning allows scalers to adjust not only the
hill/hold/drag brake, but how quickly the brake applies. This allows high
speed driving without sudden jerks or stops when releasing the throttle. The
drag brake itself is super charged, and able to be run at extremely high levels.
Compared to a standard crawling brushless setup, the drag brake in the Axe
System can be rated at 200% in comparison.

Professional Drag
Brake Adjustments &
Super Parking Capacity



Innovative Sensor Port

An all new sensor harness is more than just water proof, and will take on all element from
water to mud and dirt/dust. No need for anything extra, o-ring sealed, and uses a screw
together design to ensure it won’t come loose.

Built-in Bluetooth for Connecting
the Mobile APP Directly

Built in connectivity means exactly that. The ESC has Blue Tooth built
right in! Nothing extra is needed to access the ESC’s complete on board
programming but your smart phone device and the Free Hobbywing App from
your App Store. That’s right folks, the Bluetooth feature is BUILT INTO the ESC.
No extra devices, wires or connections required!
APPs will be available both IOS and Android.

Built-in Bluetooth
for Connecting the
Mobile APP Directly

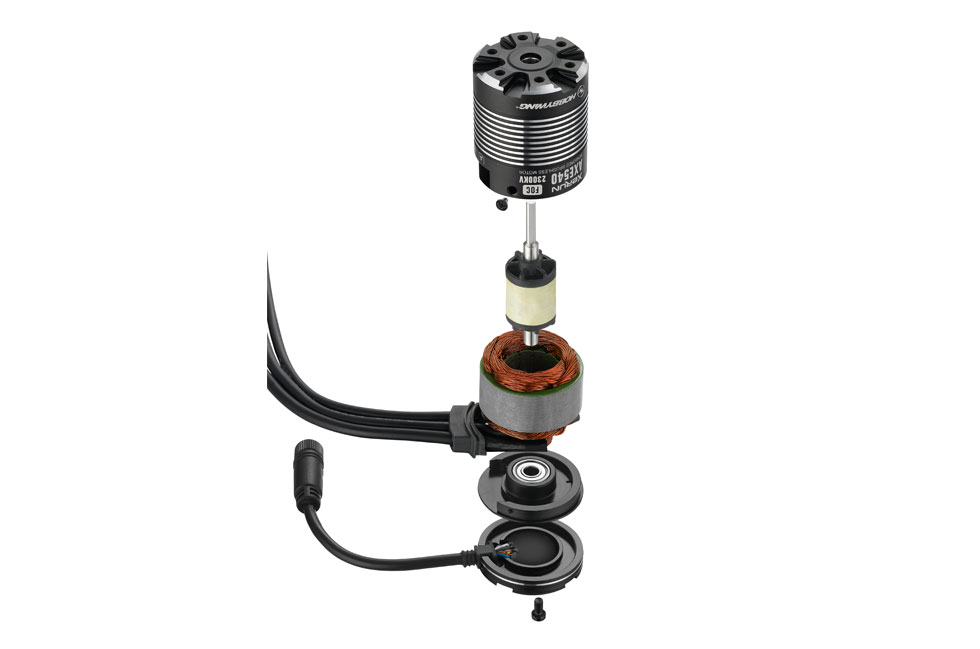

Built-in High-precision Magnetic Encoder

A high precision magnetic encoder is used in the motor to ensure precision and
consistent information is provided to the ESC. This allows the ESC to have more
information from the motor than standard “hall” type sensors and provides improved
performance and efficiency.

Built-in High-precision
Magnetic Encoder

Built-in High-precision Magnetic Encoder

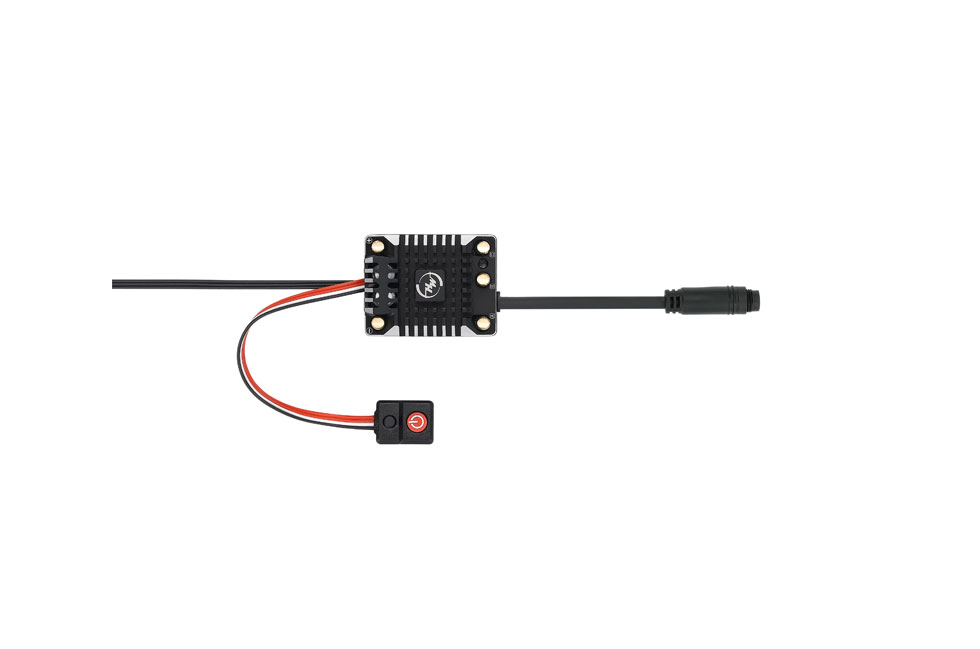

Advanced and Secure Electronic Switch

The dust, dirt, and waterproof switch housing ensures a long reliable life for your
ESC, will not suffer from the problems most standard on/off switches encounter.

Advanced and Secure
Electronic Switch

Multiple Programmable Items

With enough settings to keep your vehicle running “just right”, there are also timing/boost settings, just in
case it’s not fast enough, this feature allows you to unleash some extra top speed from your Axe System.
Sometimes the trails are long and winding, so more wheel speed is welcome!

Multiple
Programmable Items



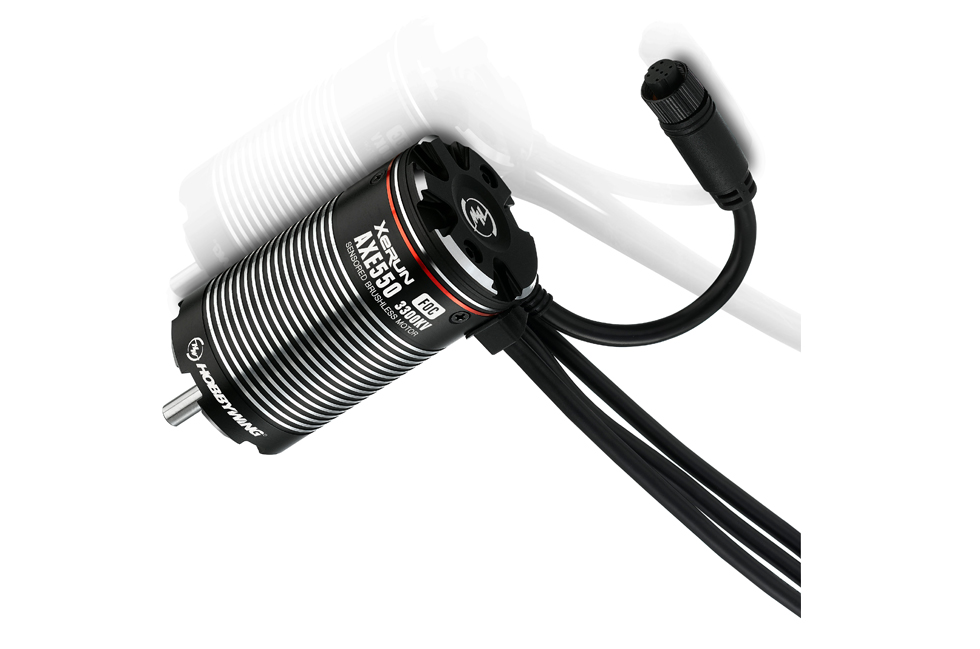

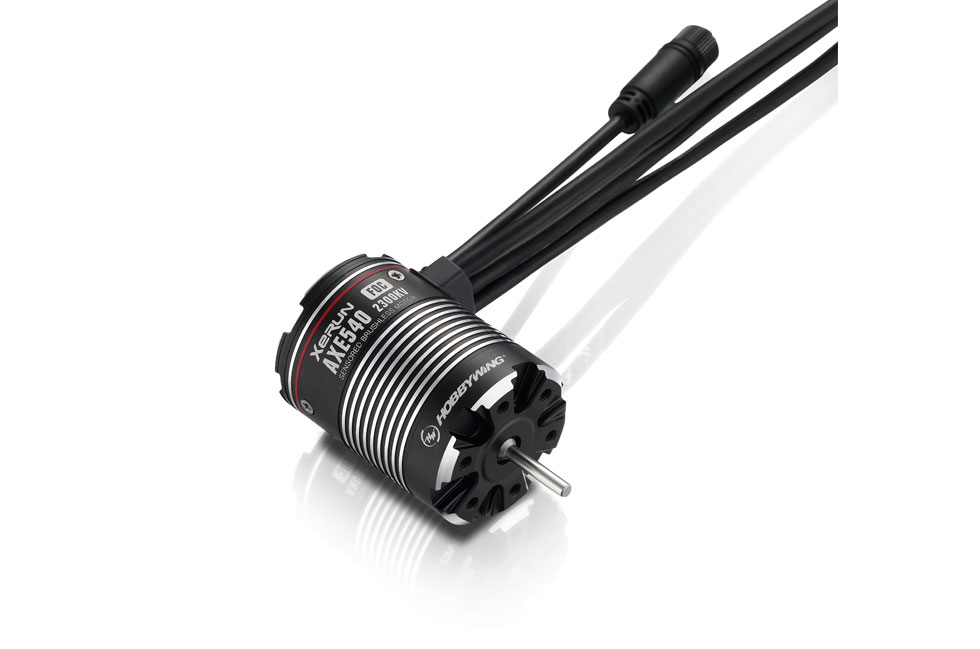

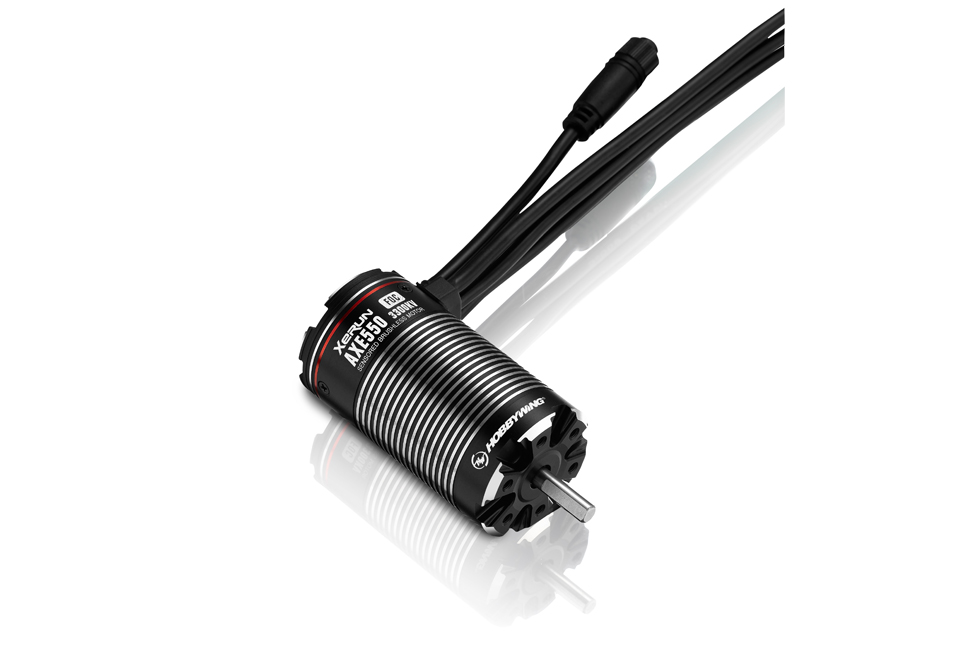

Motor 1200KV 1800KV 2300KV 2700KV 3300KV
Part Number 30401250 30401251 30401252 30401351 30401350
Combo Number 38020248 38020249 38020250 38020277 38020254
Poles 4 4 4 4 4
Resistance(Ω) 0.133 0.055 0.037 0.016 0.012
No-load Current (A) 0.9 1.2 1.5 2.7 3.8
Motor Diameter(mm) 36.0(1.42in) 36.0(1.42in) 36.0(1.42in) 36.0(1.42in) 36.0(1.42in)
Motor Length(mm) 48.8(1.92in) 48.8(1.92in) 48.8(1.92in) 66.2mm(2.61in) 66.2mm(2.61in)
Shaft Diameter(mm) 3.175(0.125in) 3.175(0.125in) 3.175(0.125in) 5(0.197in) 5(0.197in)
Shaft Length(mm) 15.5(0.61in) 15.5(0.61in) 15.5(0.61in) 16(0.63in) 16(0.63in)
Weight(g) 175(6.17oz) 173(6.1oz) 173(6.1oz) 289(10.2oz) 284(10.0oz)



Product Name
Product Number
Type Scale

Brushed/Brushless

Sensored/Sensorless

Waterproof

Applications
Specifications Cont./Peak Current

Input Voltage

BEC Output
Wires & Connectors Input Wires

Output Wires

Input Connectors

Output Connectors
ESC Programing via SET Button on ESC

LED Program Box

LCD Program Box

WiFi Module

Bluetooth Connection
Firmware Firmware Upgrade
Size & Weight Size

Weight

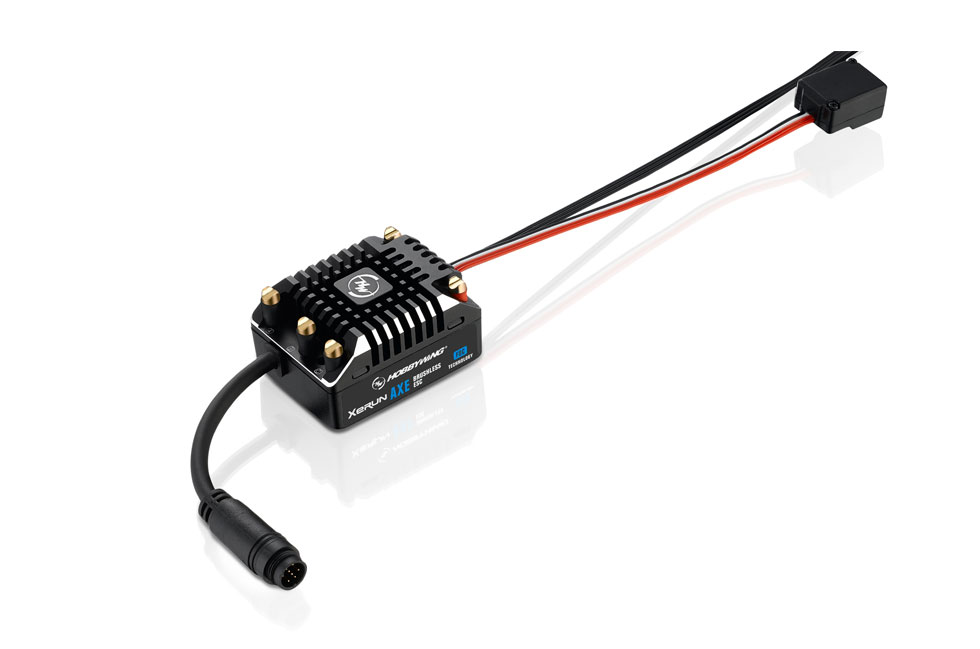

Product Name XeRun Axe Brushless Power System
Product Number 30112100
Type Scale

Brushed/Brushless

Sensored/Sensorless

Waterproof

Applications
1/10th

BL

SD FOC

YES(IP67)

1/10th Rock Crawler
Specifications Cont./Peak Current

Input Voltage

BEC Output
60A/360A

2-3S Lipo/6-9 Cell NiMH

Switch Mode:6V/7.4V@3A
Wires & Connectors Input Wires

Output Wires

Input Connectors

Output Connectors
Red-14AWG-200mm*1/ Black-14AWG-200mm*1

No

XT60

Solder Posts
ESC Programing via SET Button on ESC

LED Program Box

LCD Program Box

WiFi Module

Bluetooth Connection
Not Supported

Not Supported

Not Supported

Not Supported

Supported
Firmware Firmware Upgrade Supported
Size & Weight Size

Weight
47.4x36.2x24.6mm

82g
Support

Manuals & Documents

Software Download

XeRun Axe Brushless Power System

FOC (Field-oriented Control) for Super Linearity & High Torque & Extreme Slience

New sensor technology has changed the feel, performance, and overall tune-ability of the new Axe ESC and Motor in ways some have never experienced. Field-oriented Control is the name of this new tech, and is something all new to the scale trail, rock racing,and rc world in-general. This new style of sensor allows extremely accurate control and sensing of the motor while maintaining extreme performance and reliability. The motor and ESC are able to match the RPM of the motor to your throttle position under all driving conditions. This greatly improves down hill driving giving this system the ability to drive down hill under complete control. FOC technology also makes the whole system extremly silent, the motor doesn't create the annoying PWM noise when it is running.

FOC (Field-oriented Control)

Intelligent Torque Output & Speed Closed-loop Control for Easy Control

Not just a new ESC and motor, the new FOC sensors, combined with Intelligent Torque output and closed loop speed control mean the ESC and motor will maintain the motor’s Torque level and RPM as the vehicles conditions change. Uphill, down hill, under load, you name it, your Axe system will do what you’re telling it to do.

Intelligent Torque Output &
Speed Closed-loop Control
for Easy Control

Patented “Staggered Pole” Rotor Design for Ultra-low Torque Ripple

The new Axe motor not only has a new sensor design, but compared to other rock crawler design motors uses an improved staggered pole rotor design. What does this mean? Smoother operation with no cogging, and very clean and consistent deceleration. Smoother brakes, smoother power, and transitions between each are improved. This is specific to trail and rock crawling and allows extremely precise throttle control under any load conditions.

Patented “Staggered Pole”
Rotor Design for
Ultra-low Torque Ripple

Applicable to All Weather & Track Conditions

The IP-67 waterproof has been taken to a new level with the AXE System. Completely sealed ESC design with robust heatsink case design ensure the ESC is ready for anything you throw at it. The motor as well, is sealed, and combines a completely new sensor harness. No messy extra steps to make your system water proof.

Applicable to All Weather
& Track Conditions

High Driving Efficiency for Long Battery Life

Extremely efficient design comes from the combination of new methods. The FOC sensors provided significant improvements to overall motor performance when compared to standard brushless setups. Runtime is increased dramatically while maintaining exceptional levels of power and response.

High Driving Efficiency
for Long Battery Life

Professional Drag Brake Adjustments & Super Parking Capacity

Drag brake rate, and drag brake tuning allows scalers to adjust not only the hill/hold/drag brake, but how quickly the brake applies. This allows high speed driving without sudden jerks or stops when releasing the throttle. The drag brake itself is super charged, and able to be run at extremely high levels. Compared to a standard crawling brushless setup, the drag brake in the Axe System can be rated at 200% in comparison.

Professional Drag
Brake Adjustments &
Super Parking Capacity

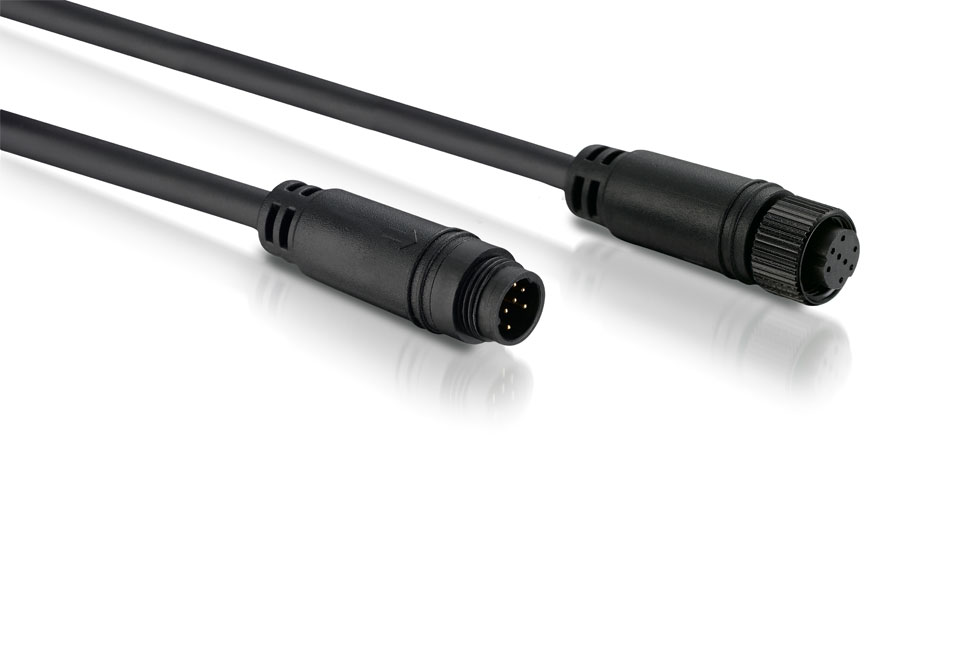

Innovative Sensor Port
