Voltage(V) |
Propeller |
Throttle(%) |
Thrust(g) |
Current(A) |
Power(W) |
Speed(RPM) |
Efficiency(g/W) |
Torque(N-m) |
Temperature(℃) |
|---|---|---|---|---|---|---|---|---|---|
|
92V (24S LiPo) |
MV40.1*16" |
33% |
8496 |
9.8 |
905.7 |
1698 |
9.4 |
4.08 |
87℃ |
|
35% |
9526 |
11.4 |
1052.3 |
1791 |
9.1 |
4.55 |
|||
|
37% |
10614 |
13.2 |
1218.7 |
1885 |
8.7 |
5.05 |
|||
|
39% |
11750 |
15.3 |
1404.1 |
1979 |
8.4 |
5.58 |
|||
|
42% |
13530 |
18.6 |
1715.7 |
2119 |
7.9 |
6.43 |
|||
|
45% |
15383 |
22.4 |
2065.0 |
2256 |
7.4 |
7.31 |
|||
|
48% |
17296 |
26.6 |
2449.3 |
2388 |
7.1 |
8.23 |
|||
|
51% |
19258 |
31.2 |
2867.0 |
2516 |
6.7 |
9.17 |
|||
|
54% |
21266 |
36.0 |
3317.8 |
2638 |
6.4 |
10.13 |
|||
|
57% |
23316 |
41.3 |
3802.7 |
2756 |
6.1 |
11.11 |
|||
|
60% |
25407 |
47.0 |
4324.0 |
2871 |
5.9 |
12.11 |
|||
|
63% |
27538 |
53.1 |
4885.2 |
2982 |
5.6 |
13.13 |
|||
|
66% |
29708 |
59.7 |
5490.6 |
3091 |
5.4 |
14.18 |
|||
|
69% |
31915 |
66.8 |
6145.1 |
3199 |
5.2 |
15.27 |
|||
|
72% |
34154 |
74.5 |
6853.3 |
3305 |
5.0 |
16.38 |
|||
|
75% |
36417 |
82.8 |
7618.9 |
3409 |
4.8 |
17.53 |
|||
|
78% |
38689 |
91.7 |
8443.4 |
3512 |
4.6 |
18.70 |
|||
|
81% |
40953 |
101.3 |
9324.6 |
3612 |
4.4 |
19.89 |
|||
|
84% |
43183 |
111.4 |
10254.9 |
3707 |
4.2 |
21.07 |
|||
|
87% |
45346 |
121.9 |
11219.1 |
3795 |
4.0 |
22.21 |
|||
|
90% |
47400 |
132.5 |
12190.0 |
3875 |
3.9 |
23.27 |
|||
|
100% |
52533 |
161.7 |
14878.4 |
4043 |
3.5 |
25.74 |
-
RC Systems
RC Cars Power SystemRC Plane Power SystemRC Boat Power SystemAccessories
-
Drone Systems
-
- INTEGRATED PROPULSION SYSTEM Innovation and Performance for a simplified assembly.
- X Series
- H Series
- P Series
-
-
-
- PROPELLER Superior efficiency, exceptional stability.
- Carbon Plastic Propeller
- Carbon Fiber Propeller
-
- CENTRIFUGAL NOZZLE Efficient atomizing, precise spraying.
- 9L
-
- WATER PUMP Minimal maintenance, long service life.
- 5L
- 8L
-
-
Personal Travel Systems
Electric SkateboardElectric ScooterPersonal Travel Accessories
- Service and Support
Medium to Large-Scale VTOL UAV Propulsion Solution
Strong Propulsion Output
- With a weight of 1,319g, Max. thrust of 52.5kg,
and a thrust-to-weight ratio up to 39.8,
the V11122 motor is suitable for VTOL UAVs
with a takeoff weight of 80~90kg.
- With a weight of 1,666g, Max. thrust of 63kg,
and a thrust-to-weight ratio up to 37.8,
the V11130 motor is suitable for VTOL UAVs
with a takeoff weight of 90~105kg.
Compared with Motors of the Same Class From Other Brands
- Max. thrust
improved by - 14%
- Temperature rise under a rated
load of 26kg decreased by - 30%
- It features exceptional heat dissipation and
- extended continuous running time at full throttle,
- making it capable of handling the full-throttle
- output demands during sudden stall recovery.
Note: Data cut-off when the winding temperature reaches 180°C, subject to the same test criteria
Applications
- The V11122/V11130 motor passes the 48-hour neutral salt spray test specified in GB/T 10125-2012 and demonstrates outstanding reliability and durability in harsh offshore operating environments where salt spray corrosion is severe,such as
- Marine Inspection
- Offshore Wind Farm Operation and Maintenance
- Marine Search and Rescue
- ……
- It is also suitable for
Power line inspection, hydrological monitoring, agriculture and forestry monitoring, emergency response, and other industrial applications.

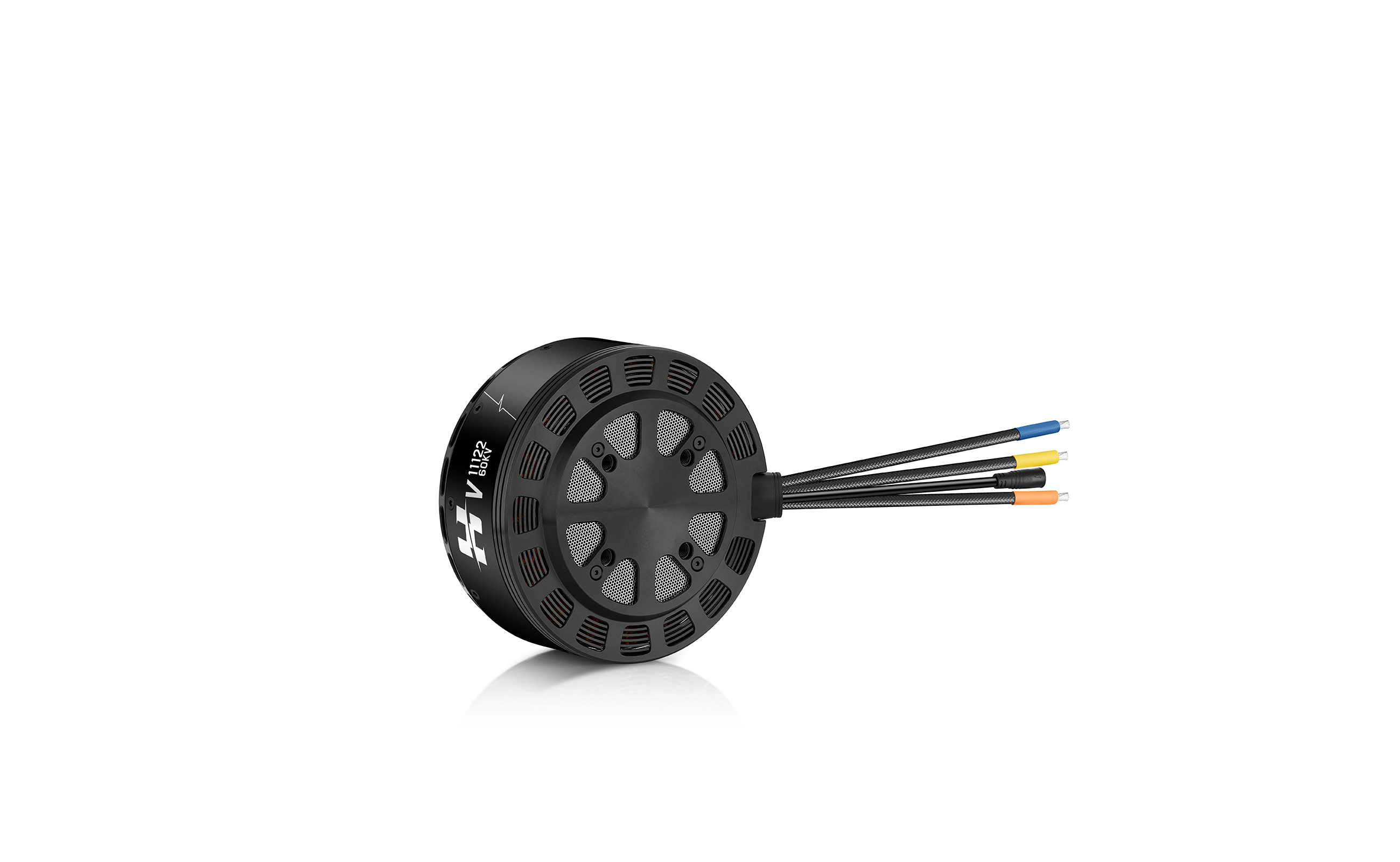

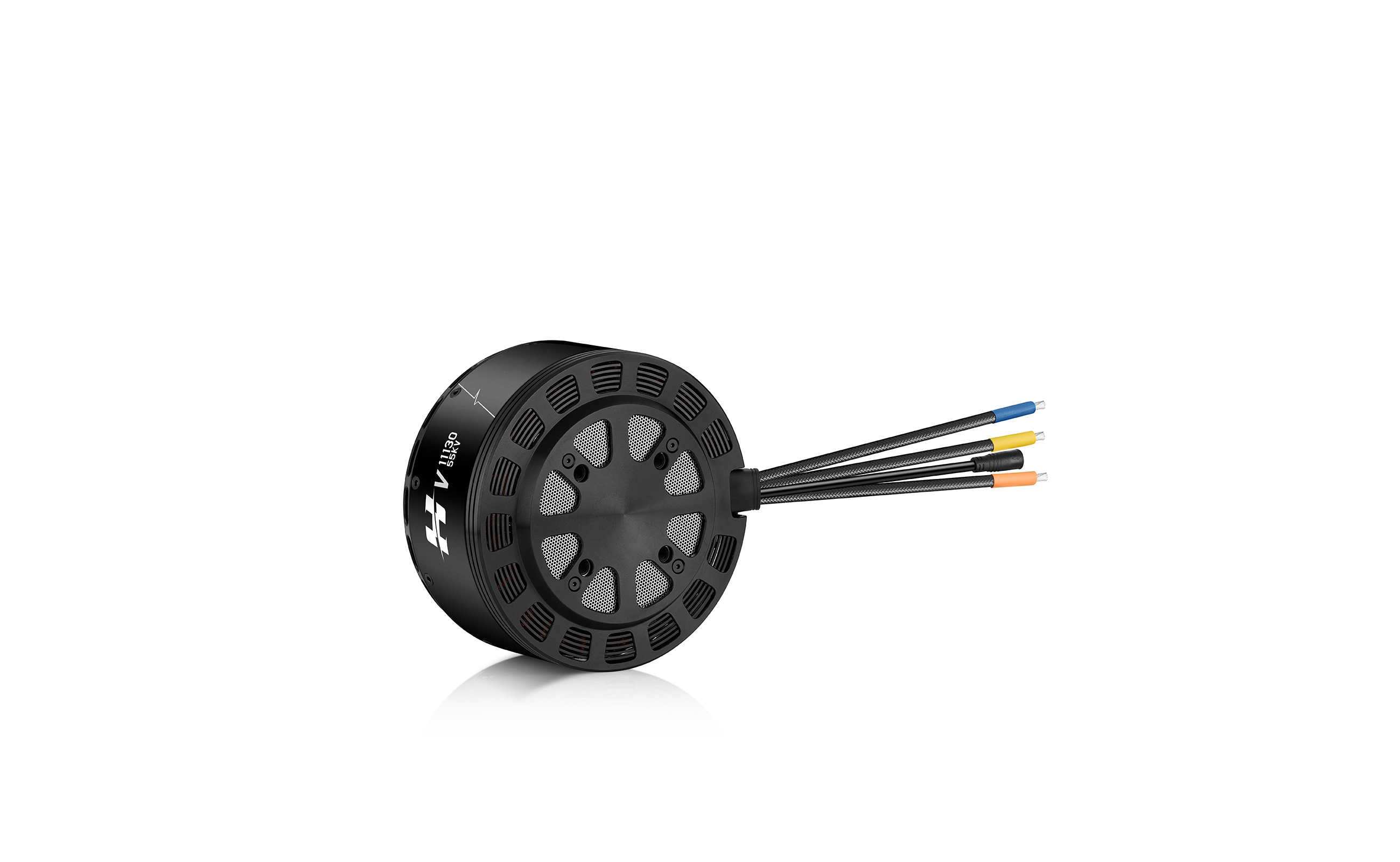

- The motor bracket and bottom cover feature a steel mesh structure,
- and its combination with large air outlets and a centrifugal cooling fan design can
- effectively resist dust intrusion and provide comprehensive and reliable protection.
Verified By Rigorous Tests
including drive compatibility test, water ingress test, and high and low temperature operation tests.
These ensure stable operation at all times in various complex environments.
and Flexible Configuration
- Low power consumption and accurate positioning with IPC
- When used with HOBBYWING’s IPC ESC,
it can flexibly and accurately set the propeller stopping position,
while reducing the resistance of the UAV during cruise flight and extending the flight endurance.

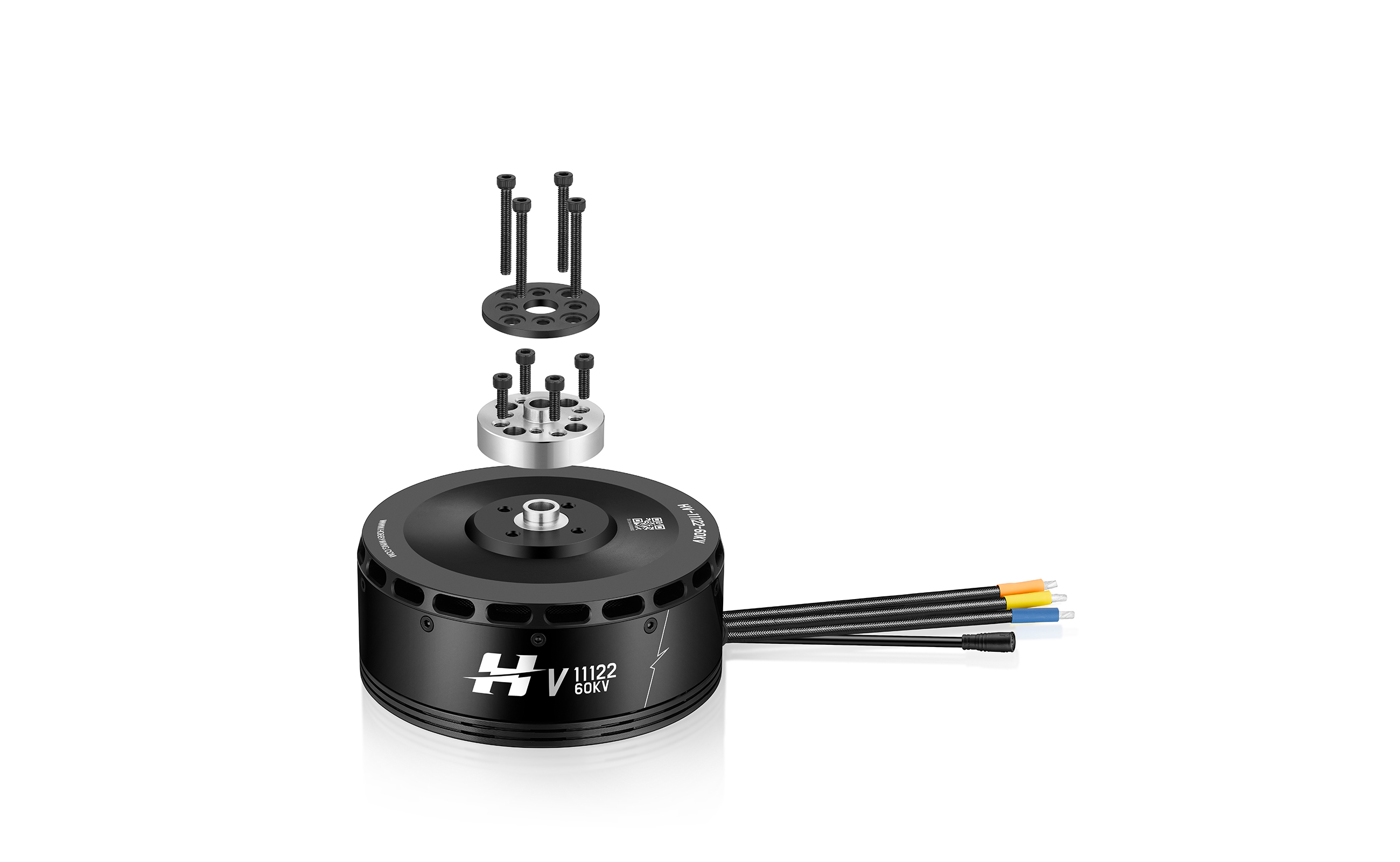

- Standardized Installation Connector
- A propeller adapter base is provided, which is compatible
with the installation of various conventional propeller,
thus meeting different configuration needs of users.
Propeller Adapter Base
MV 40.1x16"
MV 42x16.5"
Premium-Specification
Materials
-
1The high-grade magnets provides strong torque for the motor, withstanding temperature up to 180°C.
-
2The high-grade enameled wires have a temperature resistance of up to 200°C, ensuring that the motor can smoothly handle harsh climbing conditions of the VTOL UAVs.
-
3The high-performance iron core is punched by
0.2 mm high-quality low-loss silicon steel sheets to enhance motor efficiency. -
4The bread-shaped magnetic structure improves the use efficiency of magnet and ensures powerful torque and thrust capacity of the motor.

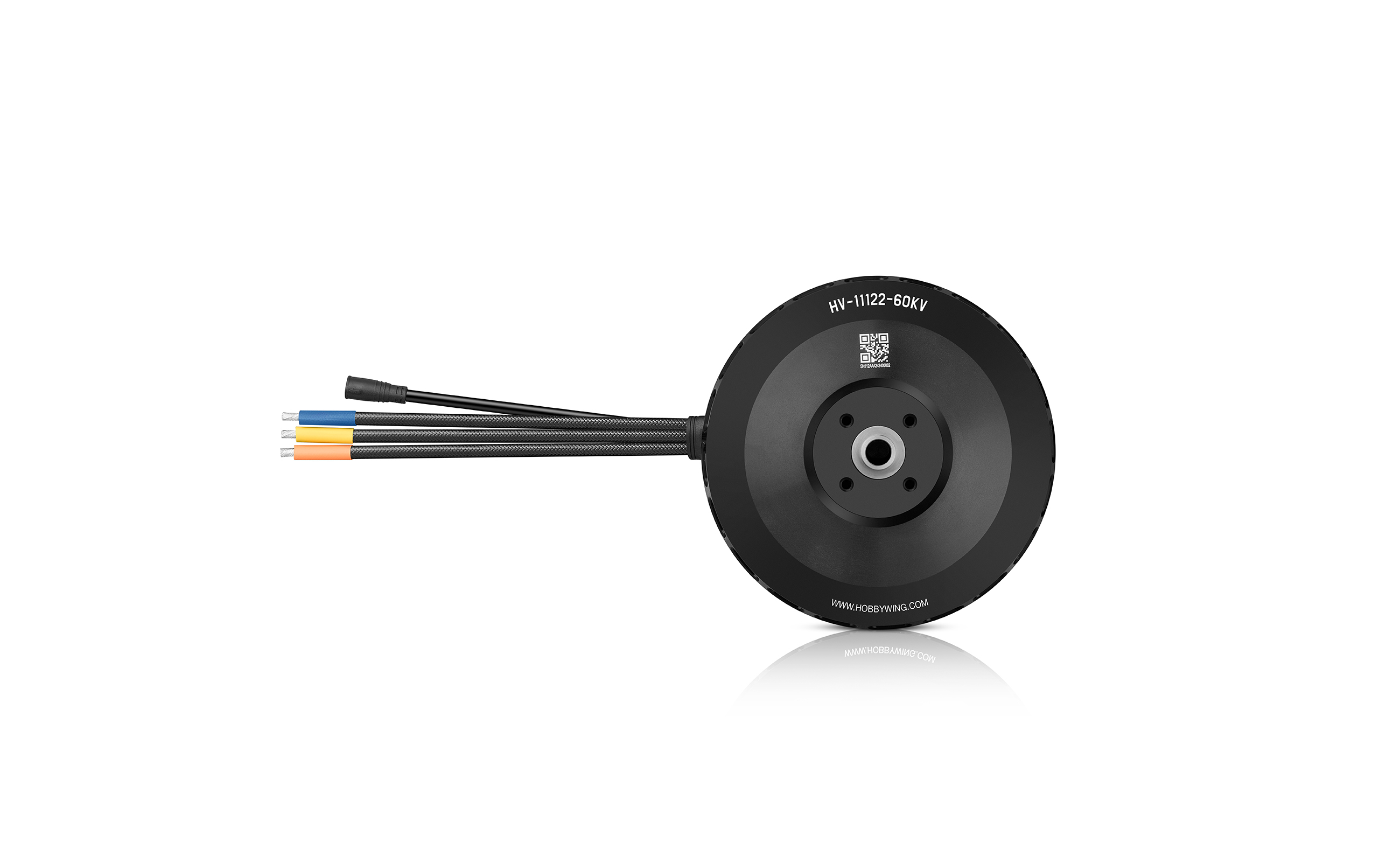

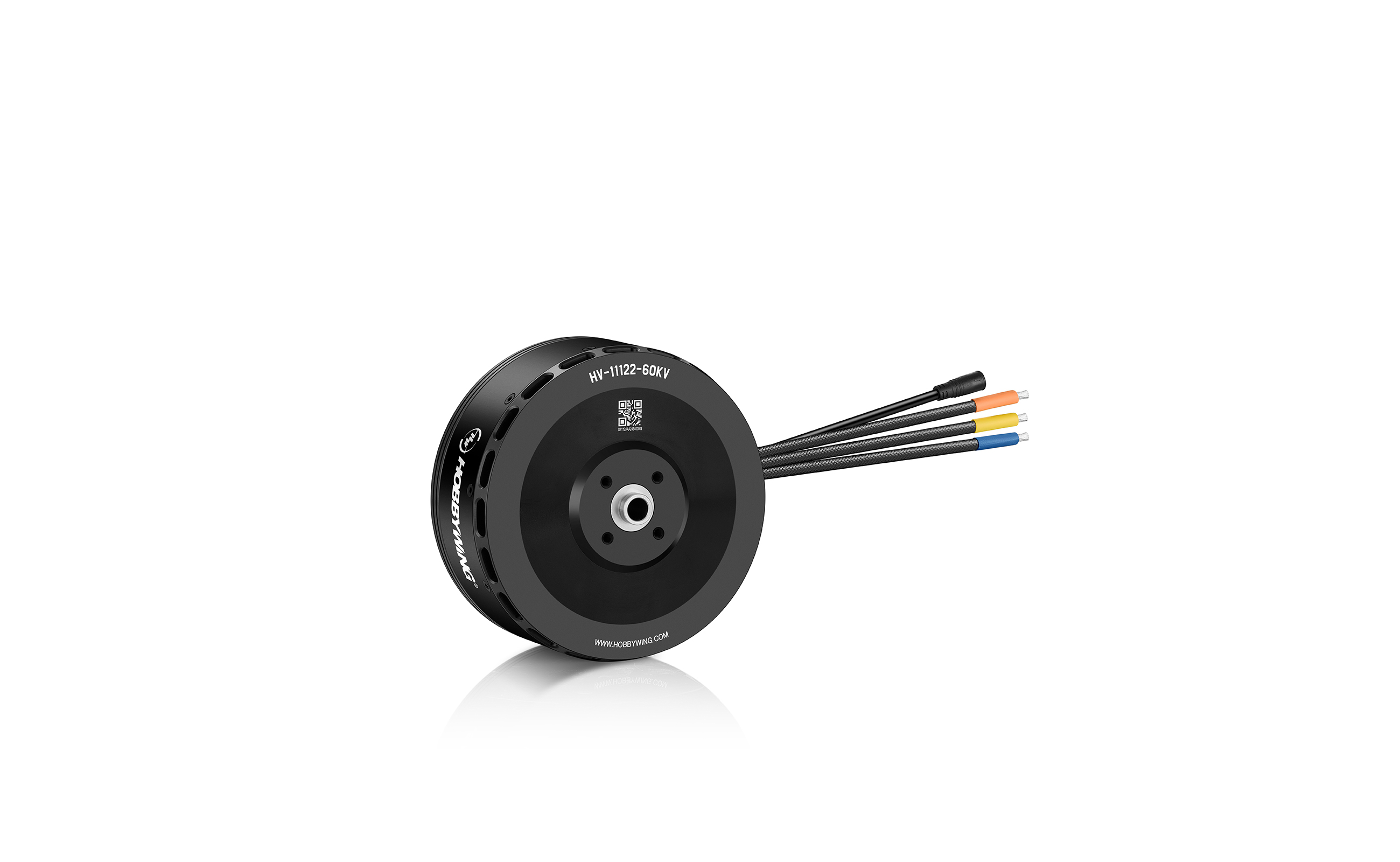

- Motor
- V11122 60KV
- Propeller
- MV40.1x16"
- ESC
- XRotor PRO H200A 24S BLDC
- Battery
- 24S LiPo
- Takeoff Weight/Rotor
- 20~23kg
- Max. Takeoff Weight of Quadrotor
- 80~90kg

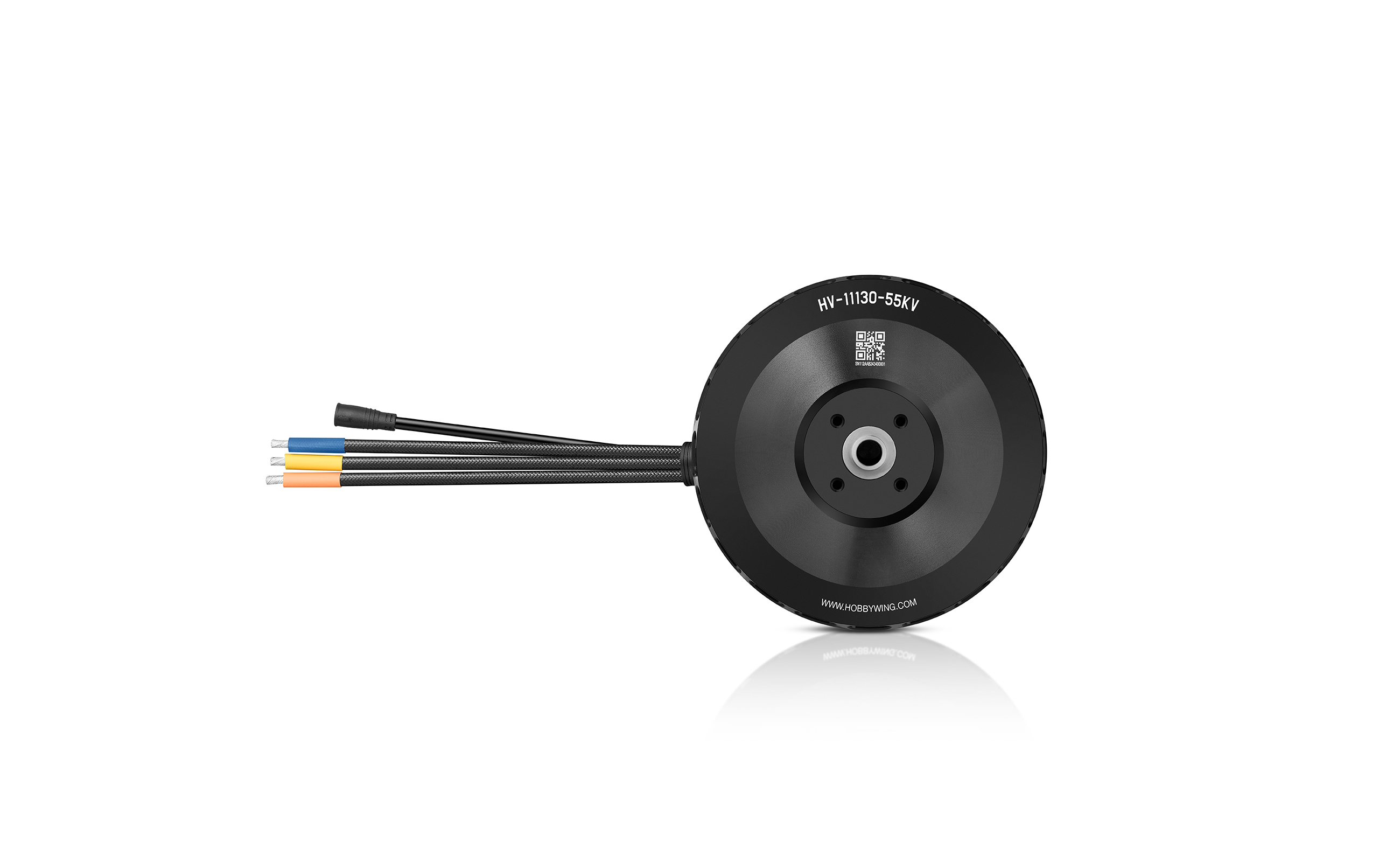

- Motor
- V11130 55KV
- Propeller
- MV42x16.5"
- ESC
- XRotor PRO H200A 24S BLDC
- Battery
- 24S LiPo
- Takeoff Weight/Rotor
- 23~26kg
- Max. Takeoff Weight of Quadrotor
- 90~105kg
-
Thank you for your interest in HOBBYWING propulsion systems! For customized solutions,
please provide your contact information and technical requirements,
and we will get in touch with you within 24 hours.
- Thanks for reaching out!We have received your message and will get back to you shortly.
- Best Regards,
HOBBYWING Team
| Product Name |
|
|||||||||||||||||||||||||||||||||||||||
| Specification |
|
|||||||||||||||||||||||||||||||||||||||
| Specification |
|
|||||||||||||||||||||||||||||||||||||||
| Recommended combinations |
|
|
Voltage(V) |
Propeller |
Throttle(%) |
Thrust(g) |
Current(A) |
Power(W) |
Speed(RPM) |
Efficiency(g/W) |
Torque(N-m) |
Temperature(℃) |
|---|---|---|---|---|---|---|---|---|---|
|
92V(24S LiPo) |
MV42*16.5" |
33% |
9914 |
11.8 |
1085.3 |
1664 |
9.1 |
5.00 |
96°C |
|
35% |
11069 |
13.7 |
1260.4 |
1754 |
8.8 |
5.57 |
|||
|
37% |
12315 |
15.9 |
1459.7 |
1847 |
8.4 |
6.18 |
|||
|
39% |
13633 |
18.3 |
1682.0 |
1940 |
8.1 |
6.83 |
|||
|
42% |
15712 |
22.3 |
2055.2 |
2080 |
7.6 |
7.87 |
|||
|
45% |
17878 |
26.9 |
2472.6 |
2216 |
7.2 |
8.96 |
|||
|
48% |
20105 |
31.8 |
2930.8 |
2347 |
6.9 |
10.09 |
|||
|
51% |
22380 |
37.2 |
3428.1 |
2472 |
6.5 |
11.24 |
|||
|
54% |
24696 |
43.1 |
3964.5 |
2593 |
6.2 |
12.42 |
|||
|
57% |
27057 |
49.3 |
4541.4 |
2709 |
6.0 |
13.62 |
|||
|
60% |
29470 |
56.1 |
5162.4 |
2823 |
5.7 |
14.86 |
|||
|
63% |
31944 |
63.4 |
5832.1 |
2933 |
5.5 |
16.13 |
|||
|
66% |
34490 |
71.2 |
6556.2 |
3042 |
5.3 |
17.44 |
|||
|
69% |
37115 |
79.8 |
7340.8 |
3150 |
5.1 |
18.80 |
|||
|
72% |
39821 |
89.0 |
8191.6 |
3257 |
4.9 |
20.21 |
|||
|
75% |
42606 |
99.0 |
9112.8 |
3363 |
4.7 |
21.67 |
|||
|
78% |
45456 |
109.8 |
10105.9 |
3467 |
4.5 |
23.18 |
|||
|
81% |
48347 |
121.3 |
11168.0 |
3569 |
4.3 |
24.71 |
|||
|
84% |
51239 |
133.5 |
12289.4 |
3666 |
4.2 |
26.25 |
|||
|
87% |
54079 |
146.2 |
13450.7 |
3758 |
4.0 |
27.76 |
|||
|
90% |
56794 |
158.9 |
14619.9 |
3841 |
3.9 |
29.20 |
|||
|
100% |
63344 |
192.3 |
17701.1 |
4028 |
3.6 |
32.63 |
Support
Manuals & Documents
Disclaimer
The purpose of this website is only to introduce you to the basic situation of HOBBYWING company and product information. Unless otherwise stated, all information provided on this website should not be regarded as an offer or acceptance, and this website will not assume any binding obligations to you as a result of the provision of information. For all your requests, HOBBYWING reserves the full right to decide whether to commit or not.
This Website and its contents are provided for your convenience on an "as is" basis and your use of this Website is at your sole risk. HOBBYWING does not guarantee that this website will be uninterrupted or error-free, and reserves the right to amend this website or withdraw access to this Website at any time. We make no warranties, express or implied, as to the content, existence, accuracy or reliability of this Website, including, but not limited to, warranties of title, non-infringement or implied warranties of merchantability or fitness for a particular purpose or use.
HOBBYWING shall not be liable for any direct, indirect, incidental, special or consequential damages, loss of profits or business interruption caused by the use or inability to use the services provided by the Website, even if HOBBYWING has been advised of the possibility of similar losses. The exclusions and limitations of the warranty liability of HOBBYWING shall be effective to the extent permitted by applicable law.
HOBBYWING shall not be liable for any damage or loss to your computer system or any other software, hardware, IT system or property caused by viruses or other destructive programs caused by accessing, viewing and using this website or downloading any content from this Website (including but not limited to 2D model files, 3D model files).
HOBBYWING shall not be liable for any direct or indirect damage or loss caused by any third party using illegal means to access the website to obtain the relevant passwords, information and content.
If you or your company is located in the United States or Canada, you need to fill out this disclaimer confirmation letter online and submit it successfully before you can download the relevant materials you are interested in. The link address you fill in online is https://www.hobbywingdirect.com/pages/digital-file-release-form
If you do not agree with this disclaimer, please do not continue to this page. If you continue to access, browse and use this interface, you have read, understood and agreed to be bound by this statement and comply with all applicable laws and regulations.
HOBBYWING reserves the right to correct, modify and update this statement at any time.
Medium to Large-Scale VTOL UAV Propulsion Solution
Strong Propulsion Output
- With a weight of 1,319g, Max. thrust of 52.5kg,
and a thrust-to-weight ratio up to 39.8,
the V11122 motor is suitable for VTOL UAVs
with a takeoff weight of 80~90kg.
- With a weight of 1,666g, Max. thrust of 63kg,
and a thrust-to-weight ratio up to 37.8,
the V11130 motor is suitable for VTOL UAVs
with a takeoff weight of 90~105kg.
Compared with Motors of the Same Class From Other Brands
- Max. thrust
improved by - 14%
- Temperature rise under a rated
load of 26kg decreased by - 30%
- It features exceptional heat dissipation and
- extended continuous running time at full throttle,
- making it capable of handling the full-throttle
- output demands during sudden stall recovery.
Note: Data cut-off when the winding temperature reaches 180°C, subject to the same test criteria
Applications
- The V11122/V11130 motor passes the 48-hour neutral salt spray test specified in GB/T 10125-2012 and demonstrates outstanding reliability and durability in harsh offshore operating environments where salt spray corrosion is severe,such as
- Marine Inspection
- Offshore Wind Farm Operation and Maintenance
- Marine Search and Rescue
- ……
- It is also suitable for
Power line inspection, hydrological monitoring, agriculture and forestry monitoring, emergency response, and other industrial applications.
- The motor bracket and bottom cover feature a steel mesh structure,
- and its combination with large air outlets and a centrifugal cooling fan design can
- effectively resist dust intrusion and provide comprehensive and reliable protection.
Verified By Rigorous Tests
including drive compatibility test, water ingress test, and high and low temperature operation tests.
These ensure stable operation at all times in various complex environments.
and Flexible Configuration
- Low power consumption and accurate positioning with IPC
- When used with HOBBYWING’s IPC ESC,
it can flexibly and accurately set the propeller stopping position,
while reducing the resistance of the UAV during cruise flight and extending the flight endurance.
- Standardized Installation Connector
- A propeller adapter base is provided, which is compatible
with the installation of various conventional propeller,
thus meeting different configuration needs of users.
Propeller Adapter Base
MV 40.1x16"
MV 42x16.5"
Premium-Specification
Materials
-
1The high-grade magnets provides strong torque for the motor, withstanding temperature up to 180°C.
-
2The high-grade enameled wires have a temperature resistance of up to 200°C, ensuring that the motor can smoothly handle harsh climbing conditions of the VTOL UAVs.
-
3The high-performance iron core is punched by
0.2 mm high-quality low-loss silicon steel sheets to enhance motor efficiency. -
4The bread-shaped magnetic structure improves the use efficiency of magnet and ensures powerful torque and thrust capacity of the motor.
- Motor
- V11122 60KV
- Propeller
- MV40.1x16"
- ESC
- XRotor PRO H200A 24S BLDC
- Battery
- 24S LiPo
- Takeoff Weight/Rotor
- 20~23kg
- Max. Takeoff Weight of Quadrotor
- 80~90kg
- Motor
- V11130 55KV
- Propeller
- MV42x16.5"
- ESC
- XRotor PRO H200A 24S BLDC
- Battery
- 24S LiPo
- Takeoff Weight/Rotor
- 23~26kg
- Max. Takeoff Weight of Quadrotor
- 90~105kg
- Thank you for your interest in HOBBYWING propulsion systems! For customized solutions, please provide your contact information and technical requirements, and we will get in touch with you within 24 hours.
- Thanks for reaching out!We have received your message and will get back to you shortly.
- Best Regards,
HOBBYWING Team
| Product Name |
|
|||||||||||||||||||||||||||||||||||||||
| Specification |
|
|||||||||||||||||||||||||||||||||||||||
| Specification |
|
|||||||||||||||||||||||||||||||||||||||
| Recommended combinations |
|
|
Voltage(V) |
Propeller |
Throttle(%) |
Thrust(g) |
Current(A) |
Power(W) |
Speed(RPM) |
Efficiency(g/W) |
Torque(N-m) |
Temperature(℃) |
|---|---|---|---|---|---|---|---|---|---|
|
92V (24S LiPo) |
MV40.1*16" |
33% |
8496 |
9.8 |
905.7 |
1698 |
9.4 |
4.08 |
87℃ |
|
35% |
9526 |
11.4 |
1052.3 |
1791 |
9.1 |
4.55 |
|||
|
37% |
10614 |
13.2 |
1218.7 |
1885 |
8.7 |
5.05 |
|||
|
39% |
11750 |
15.3 |
1404.1 |
1979 |
8.4 |
5.58 |
|||
|
42% |
13530 |
18.6 |
1715.7 |
2119 |
7.9 |
6.43 |
|||
|
45% |
15383 |
22.4 |
2065.0 |
2256 |
7.4 |
7.31 |
|||
|
48% |
17296 |
26.6 |
2449.3 |
2388 |
7.1 |
8.23 |
|||
|
51% |
19258 |
31.2 |
2867.0 |
2516 |
6.7 |
9.17 |
|||
|
54% |
21266 |
36.0 |
3317.8 |
2638 |
6.4 |
10.13 |
|||
|
57% |
23316 |
41.3 |
3802.7 |
2756 |
6.1 |
11.11 |
|||
|
60% |
25407 |
47.0 |
4324.0 |
2871 |
5.9 |
12.11 |
|||
|
63% |
27538 |
53.1 |
4885.2 |
2982 |
5.6 |
13.13 |
|||
|
66% |
29708 |
59.7 |
5490.6 |
3091 |
5.4 |
14.18 |
|||
|
69% |
31915 |
66.8 |
6145.1 |
3199 |
5.2 |
15.27 |
|||
|
72% |
34154 |
74.5 |
6853.3 |
3305 |
5.0 |
16.38 |
|||
|
75% |
36417 |
82.8 |
7618.9 |
3409 |
4.8 |
17.53 |
|||
|
78% |
38689 |
91.7 |
8443.4 |
3512 |
4.6 |
18.70 |
|||
|
81% |
40953 |
101.3 |
9324.6 |
3612 |
4.4 |
19.89 |
|||
|
84% |
43183 |
111.4 |
10254.9 |
3707 |
4.2 |
21.07 |
|||
|
87% |
45346 |
121.9 |
11219.1 |
3795 |
4.0 |
22.21 |
|||
|
90% |
47400 |
132.5 |
12190.0 |
3875 |
3.9 |
23.27 |
|||
|
100% |
52533 |
161.7 |
14878.4 |
4043 |
3.5 |
25.74 |
|
Voltage(V) |
Propeller |
Throttle(%) |
Thrust(g) |
Current(A) |
Power(W) |
Speed(RPM) |
Efficiency(g/W) |
Torque(N-m) |
Temperature(℃) |
|---|---|---|---|---|---|---|---|---|---|
|
92V(24S LiPo) |
MV42*16.5" |
33% |
9914 |
11.8 |
1085.3 |
1664 |
9.1 |
5.00 |
96°C |
|
35% |
11069 |
13.7 |
1260.4 |
1754 |
8.8 |
5.57 |
|||
|
37% |
12315 |
15.9 |
1459.7 |
1847 |
8.4 |
6.18 |
|||
|
39% |
13633 |
18.3 |
1682.0 |
1940 |
8.1 |
6.83 |
|||
|
42% |
15712 |
22.3 |
2055.2 |
2080 |
7.6 |
7.87 |
|||
|
45% |
17878 |
26.9 |
2472.6 |
2216 |
7.2 |
8.96 |
|||
|
48% |
20105 |
31.8 |
2930.8 |
2347 |
6.9 |
10.09 |
|||
|
51% |
22380 |
37.2 |
3428.1 |
2472 |
6.5 |
11.24 |
|||
|
54% |
24696 |
43.1 |
3964.5 |
2593 |
6.2 |
12.42 |
|||
|
57% |
27057 |
49.3 |
4541.4 |
2709 |
6.0 |
13.62 |
|||
|
60% |
29470 |
56.1 |
5162.4 |
2823 |
5.7 |
14.86 |
|||
|
63% |
31944 |
63.4 |
5832.1 |
2933 |
5.5 |
16.13 |
|||
|
66% |
34490 |
71.2 |
6556.2 |
3042 |
5.3 |
17.44 |
|||
|
69% |
37115 |
79.8 |
7340.8 |
3150 |
5.1 |
18.80 |
|||
|
72% |
39821 |
89.0 |
8191.6 |
3257 |
4.9 |
20.21 |
|||
|
75% |
42606 |
99.0 |
9112.8 |
3363 |
4.7 |
21.67 |
|||
|
78% |
45456 |
109.8 |
10105.9 |
3467 |
4.5 |
23.18 |
|||
|
81% |
48347 |
121.3 |
11168.0 |
3569 |
4.3 |
24.71 |
|||
|
84% |
51239 |
133.5 |
12289.4 |
3666 |
4.2 |
26.25 |
|||
|
87% |
54079 |
146.2 |
13450.7 |
3758 |
4.0 |
27.76 |
|||
|
90% |
56794 |
158.9 |
14619.9 |
3841 |
3.9 |
29.20 |
|||
|
100% |
63344 |
192.3 |
17701.1 |
4028 |
3.6 |
32.63 |
Support
Manuals & Documents
Disclaimer
The purpose of this website is only to introduce you to the basic situation of HOBBYWING company and product information. Unless otherwise stated, all information provided on this website should not be regarded as an offer or acceptance, and this website will not assume any binding obligations to you as a result of the provision of information. For all your requests, HOBBYWING reserves the full right to decide whether to commit or not.
This Website and its contents are provided for your convenience on an "as is" basis and your use of this Website is at your sole risk. HOBBYWING does not guarantee that this website will be uninterrupted or error-free, and reserves the right to amend this website or withdraw access to this Website at any time. We make no warranties, express or implied, as to the content, existence, accuracy or reliability of this Website, including, but not limited to, warranties of title, non-infringement or implied warranties of merchantability or fitness for a particular purpose or use.
HOBBYWING shall not be liable for any direct, indirect, incidental, special or consequential damages, loss of profits or business interruption caused by the use or inability to use the services provided by the Website, even if HOBBYWING has been advised of the possibility of similar losses. The exclusions and limitations of the warranty liability of HOBBYWING shall be effective to the extent permitted by applicable law.
HOBBYWING shall not be liable for any damage or loss to your computer system or any other software, hardware, IT system or property caused by viruses or other destructive programs caused by accessing, viewing and using this website or downloading any content from this Website (including but not limited to 2D model files, 3D model files).
HOBBYWING shall not be liable for any direct or indirect damage or loss caused by any third party using illegal means to access the website to obtain the relevant passwords, information and content.
If you or your company is located in the United States or Canada, you need to fill out this disclaimer confirmation letter online and submit it successfully before you can download the relevant materials you are interested in. The link address you fill in online is https://www.hobbywingdirect.com/pages/digital-file-release-form
If you do not agree with this disclaimer, please do not continue to this page. If you continue to access, browse and use this interface, you have read, understood and agreed to be bound by this statement and comply with all applicable laws and regulations.
HOBBYWING reserves the right to correct, modify and update this statement at any time.
