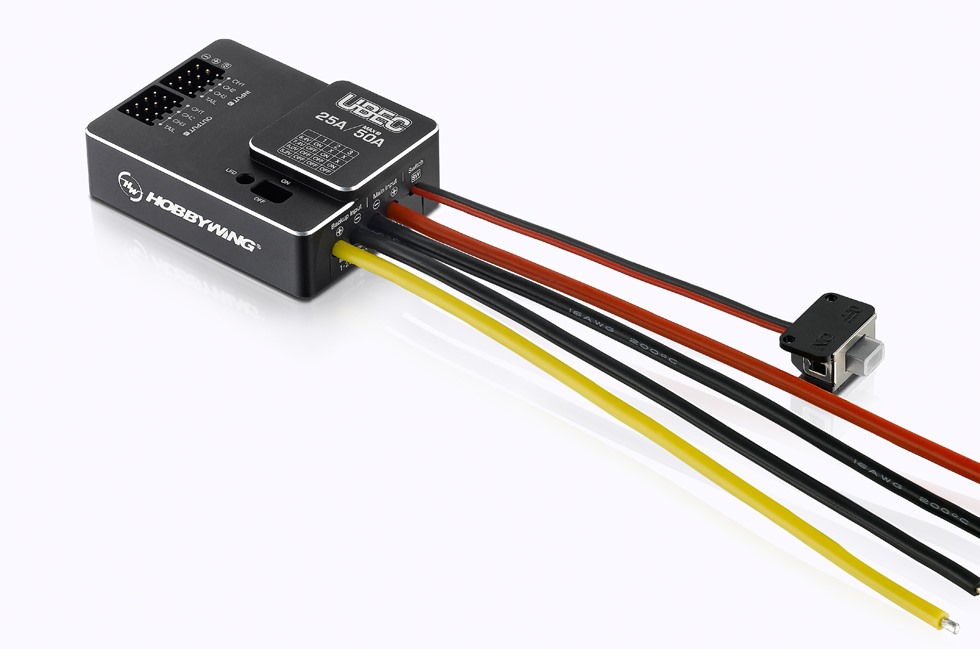

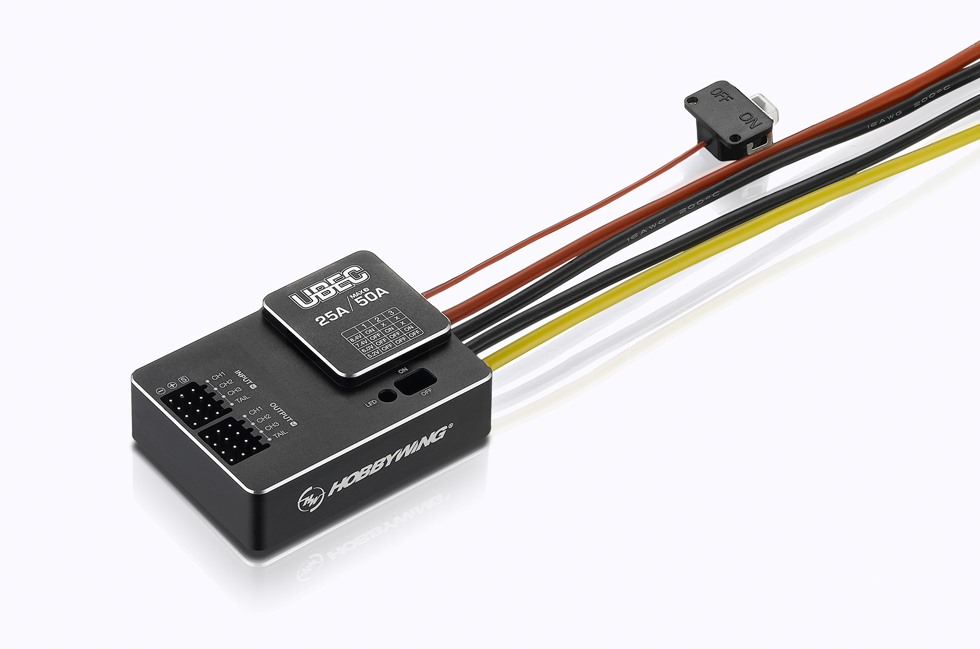

UBEC 25A HV

Elegant Look & Powerful Core Component

Elegant metal case helps dissipate heat and reduce electromagnetic interference.
High-efficient DC-DC voltage-regulating chip pairs with the specially designed circuit
hardware for the conversion efficiency of over 90%. Continuous current of 25A
(w/ peak current of up to 50A) meets various application requirements.

Elegant Look &
PowerfulCore Component

Various Functions & Different Applications

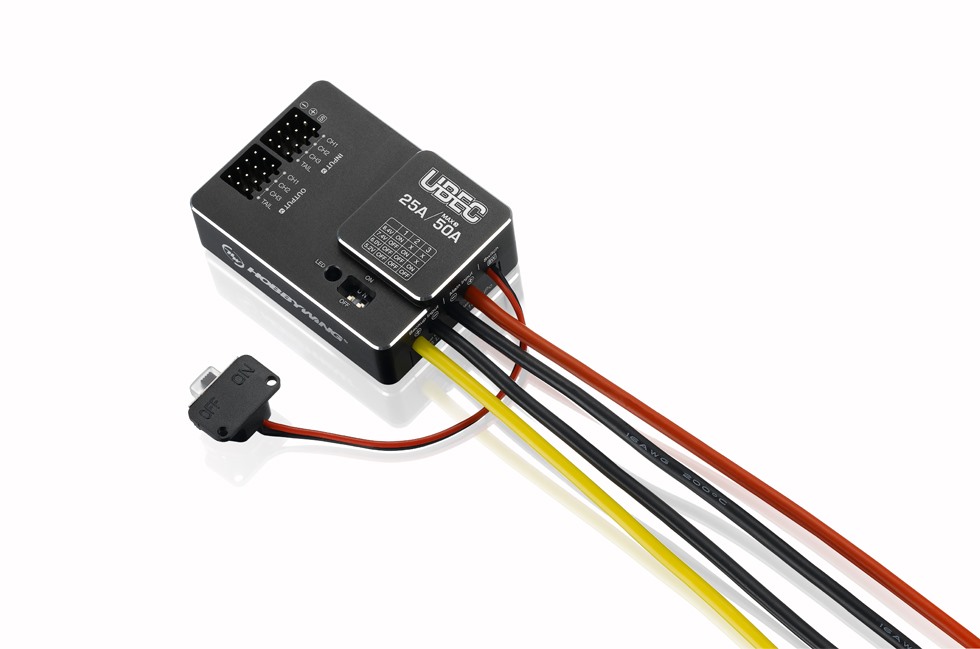

External switch allows users to easily switch on/off the UBEC. Wide voltage range
allows the main power supply ranges from 3S to 18S LiPo to be connected to the

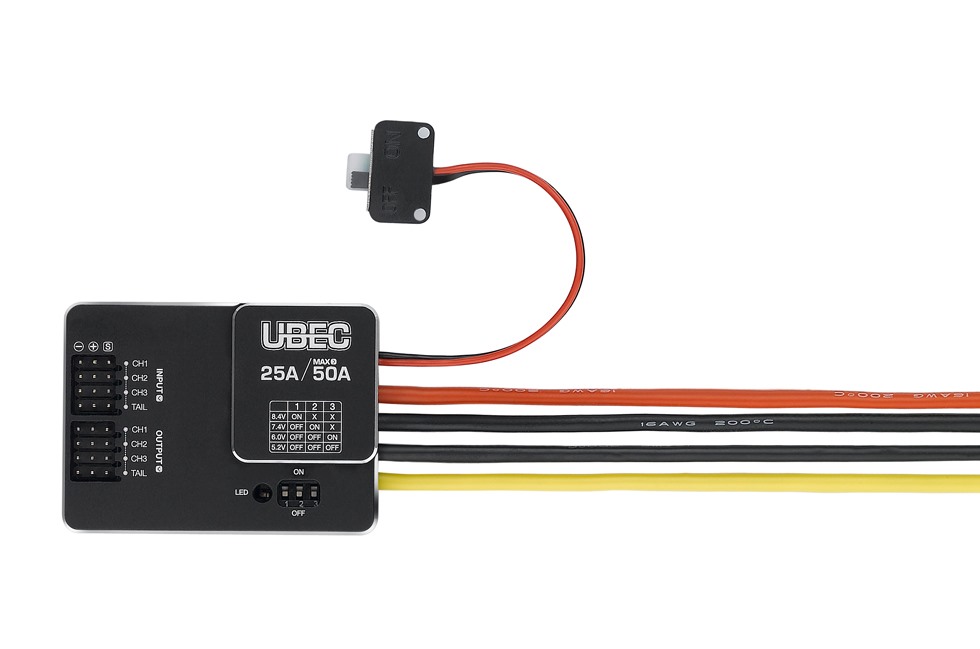

UBEC. Output voltage adjustable between 5.0V, 6.0V, 7.4V and 8.4Vmeets
different voltage requirements. Up to 8 channels of outputs (in parallel) can endure
higher current. And the internal LED indicators can indicate the working status or
abnormalities of the UBEC.

Various Functions &
Different Applications

Multiple Protections

UBEC shoot-through protection, which prevents the
voltage of the main power supply from directly flowing
to the output end of the UBEC and causing any
damage to the connected electronic device when the
UBEC is accidentally damaged, plus the protections
like over-current, (output end) short-circuit, overheat,
low-voltage cutoff guarantee safety and reliability.

Multiple Protections

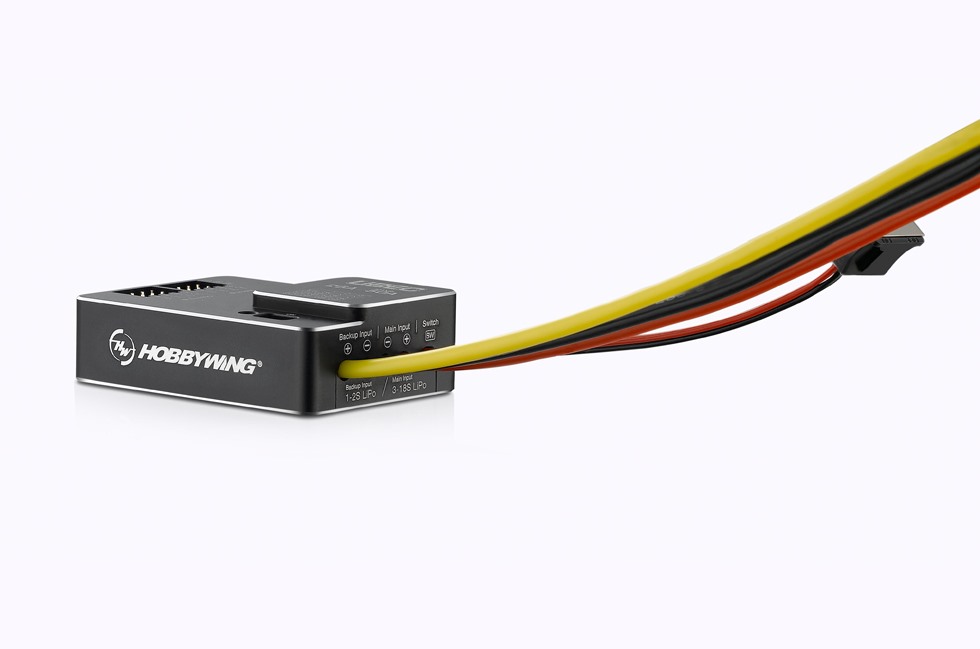

Backup Power Supply

Backup power supply switching-in function allows the electronic device connected
to the UBEC to get power directly from the backup power supply to guarantee the
continuation of the normal operation when the main power supply connected to the
UBEC is damaged or the UBEC fails to function due to internal faults.

Backup Power Supply

Product Name
Product Number
Type Linear Mode/Switch Mode

High Voltage/Regular
Specifications Cont./Peak Current

Input Voltage (of the Main Power Supply)

Input Voltage (of the Backup Power Supply)

Output Voltage
Wires & Connectors Input Wires



Output Wires



Input Connectors

Output Connectors
Size & Weight Size

Weight
Product Name UBEC 25A HV
Product Number 30606000
Type Linear Mode/Switch Mode

High Voltage/Regular
Switch mode

HV
Specifications Cont./Peak Current

Input Voltage (of the Main Power Supply)

Input Voltage (of the Backup Power Supply)

Output Voltage
25A/50A

3S~18S LiPo (/9V~80V)

1S~2S LiPo (/3-9V)

5.2V/6.0V/7.4V/8.4V Adjustable
Wires & Connectors Input Wires



Output Wires



Input Connectors

Output Connectors
Main Power Supply: Red-16AWG-270mm*1/Black-16AWG-270mm*1

Backup Power Supply: Yellow-16AWG-150MM*1/Black-16AWG-150mm*1

3P Vertical Pin Header

(60-strand PVC Wire with Two 3P-JR Male Connectors-100mm*4 included)

No

No
Size & Weight Size

Weight
55x40.2x17.6mm

74g
