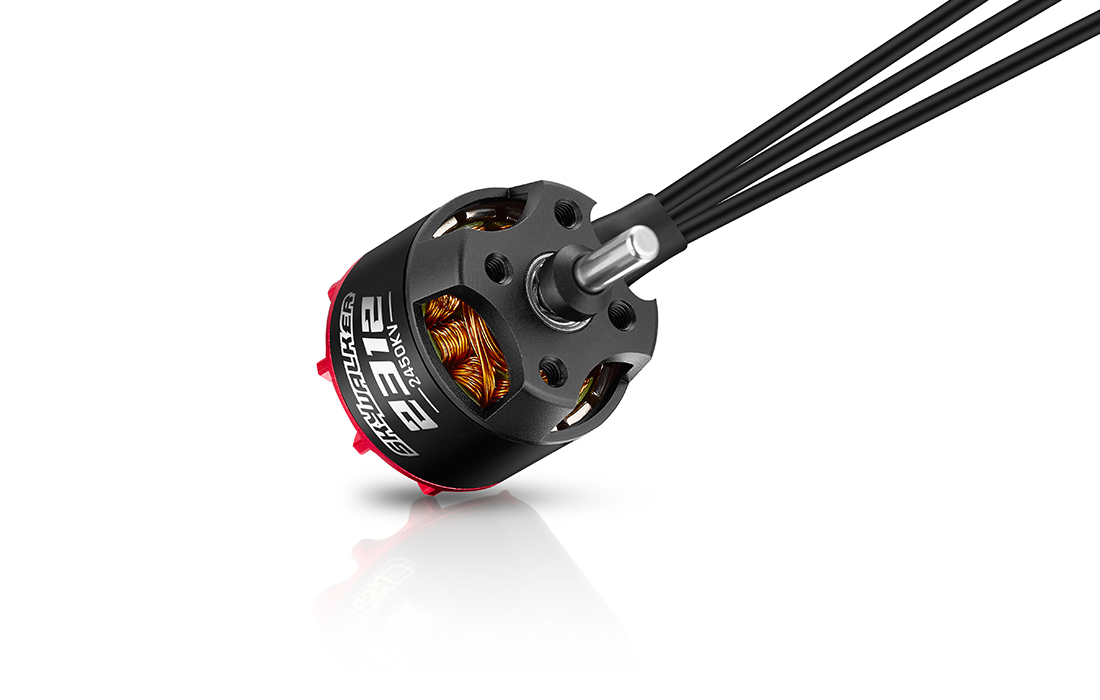

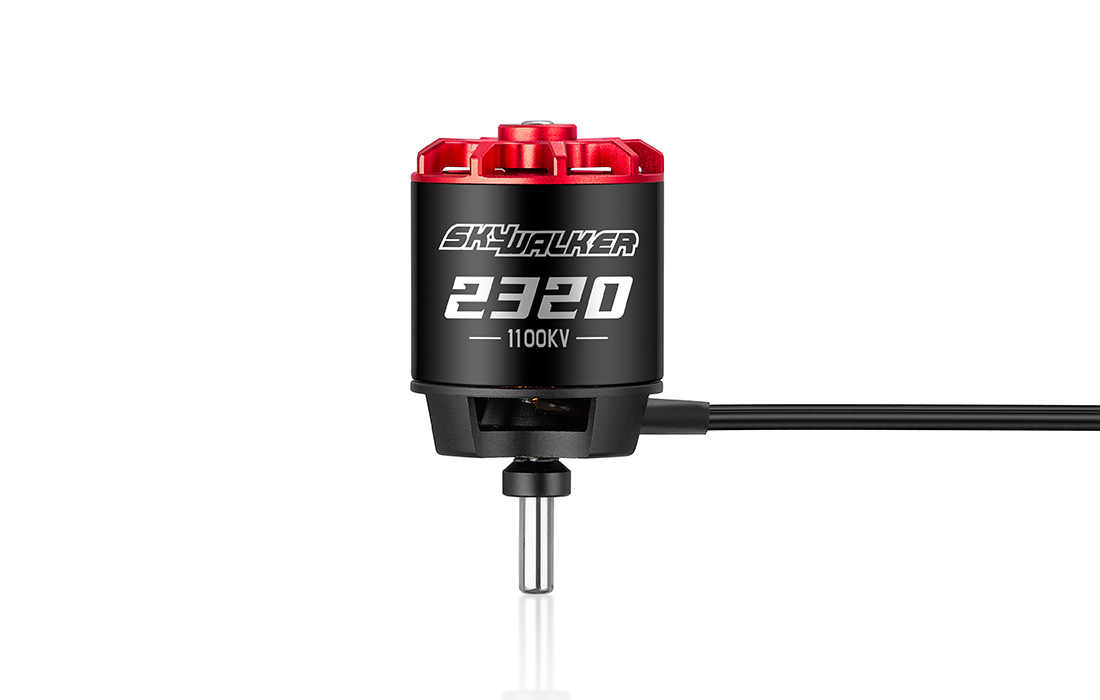

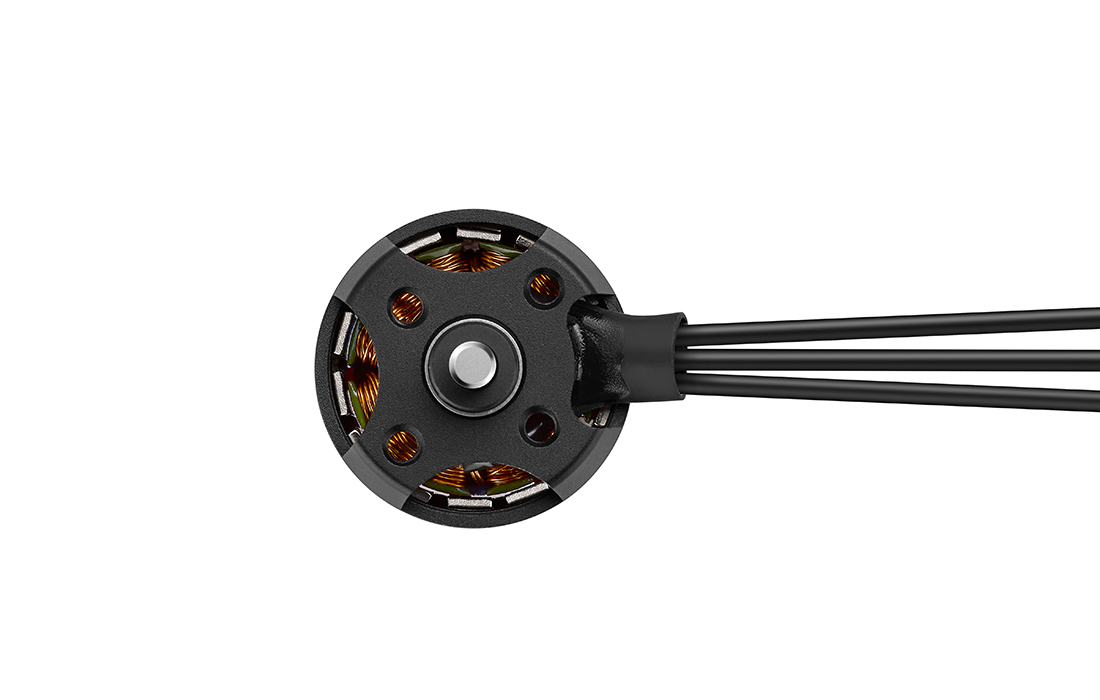

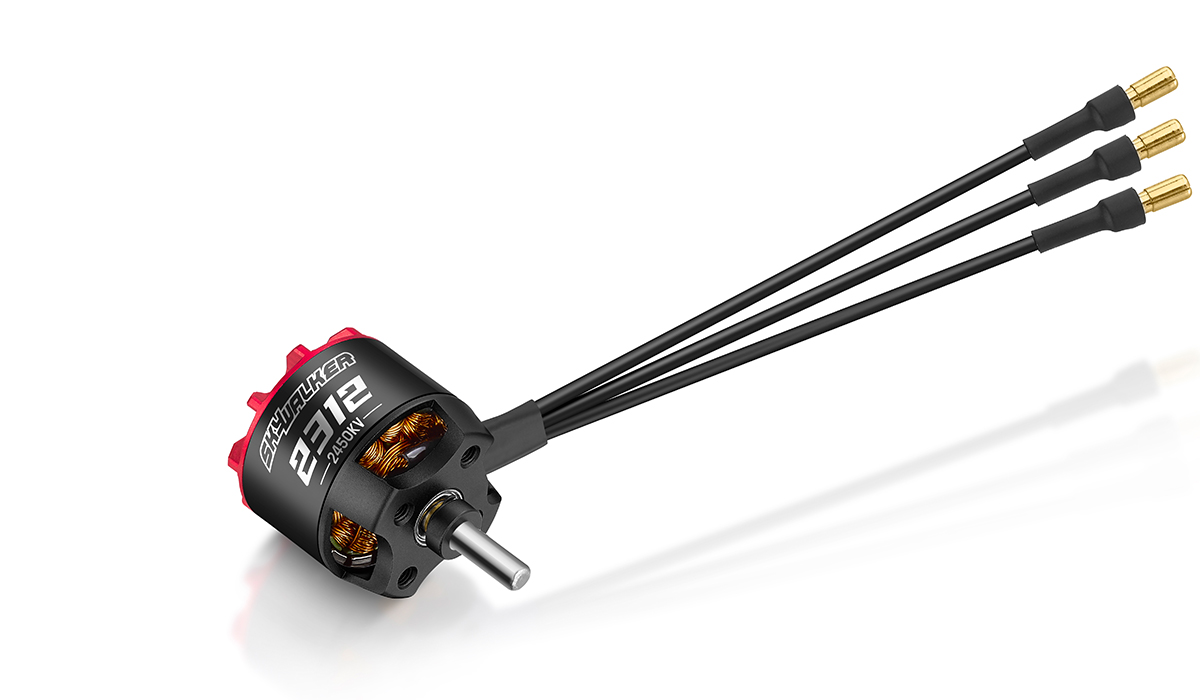

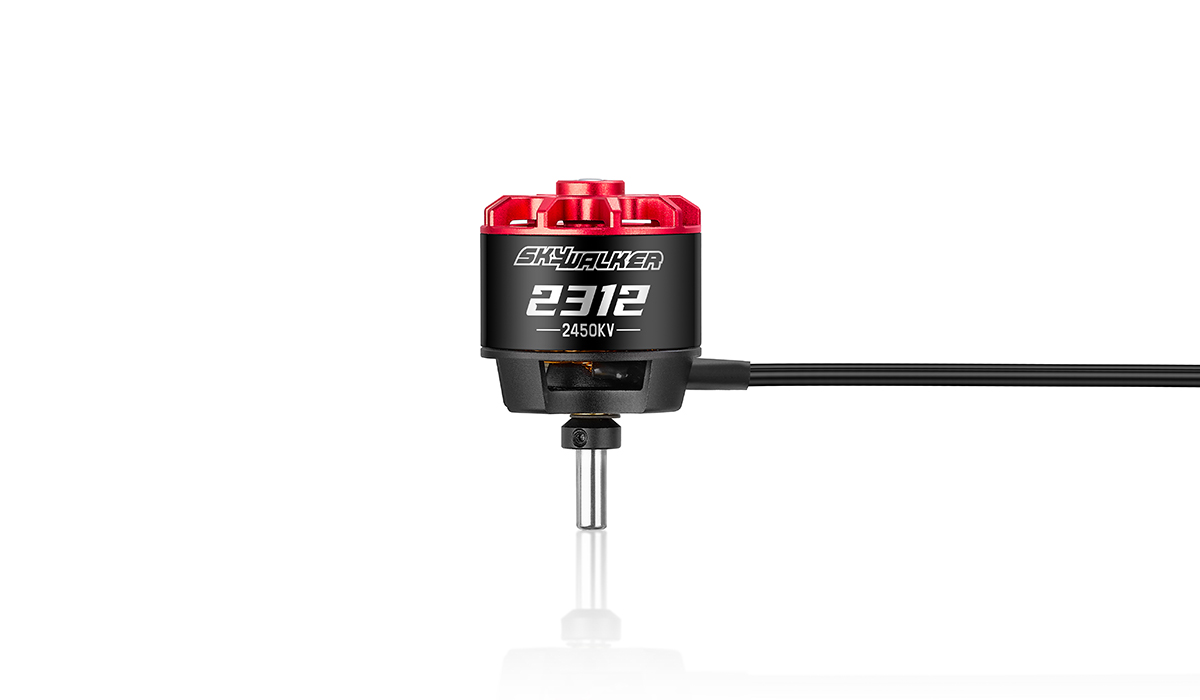

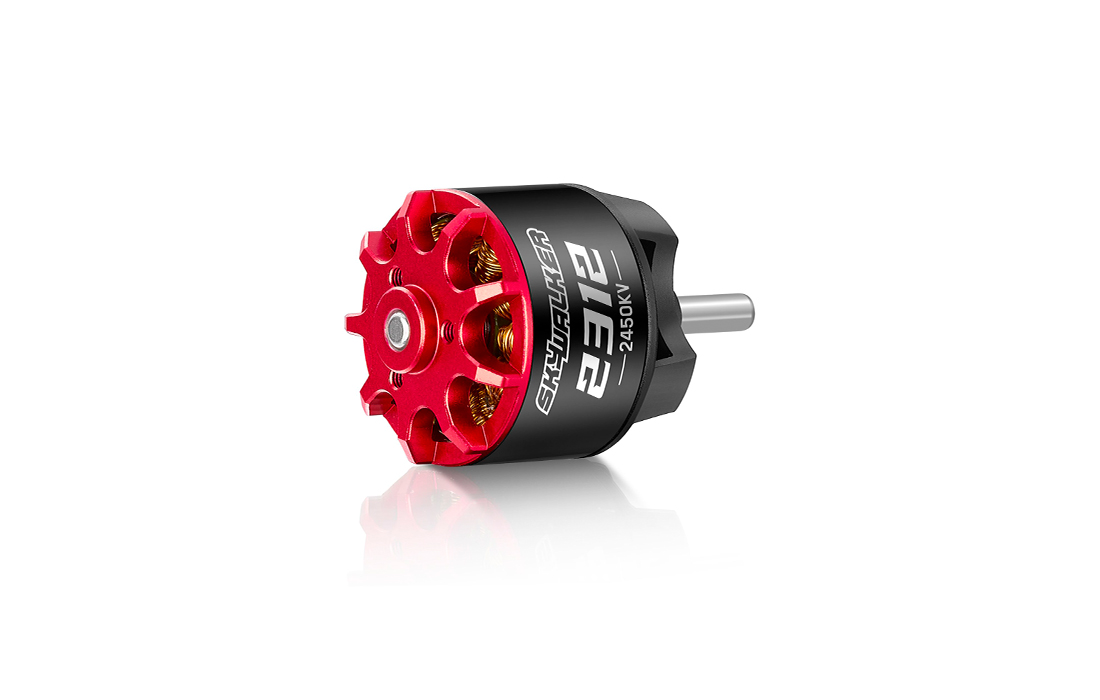

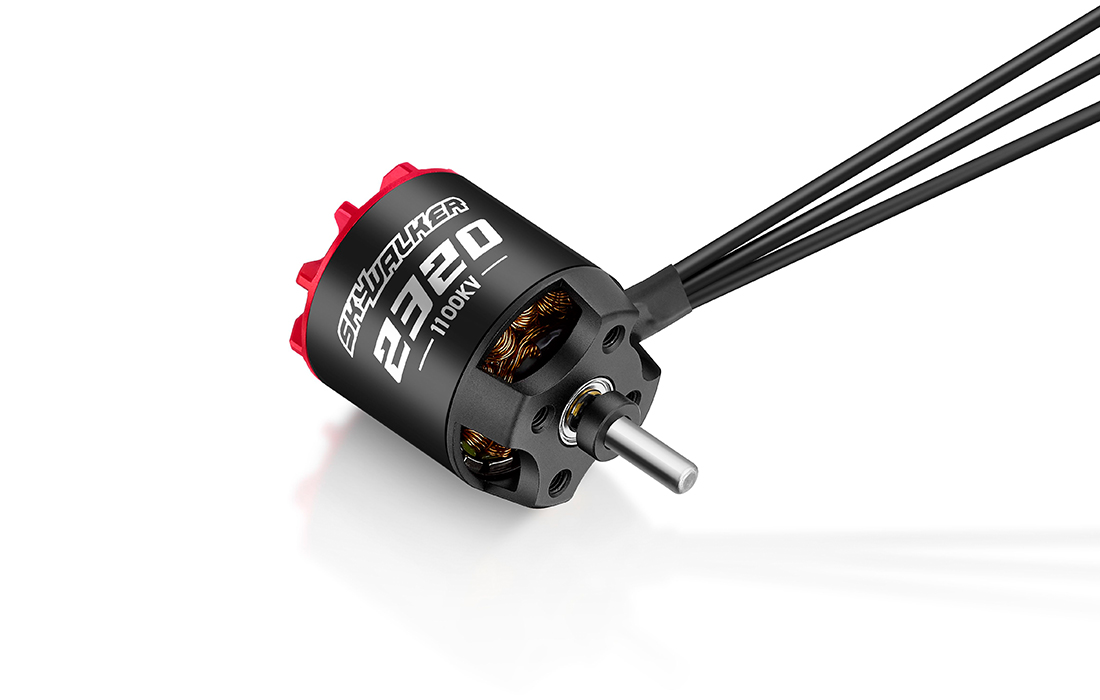

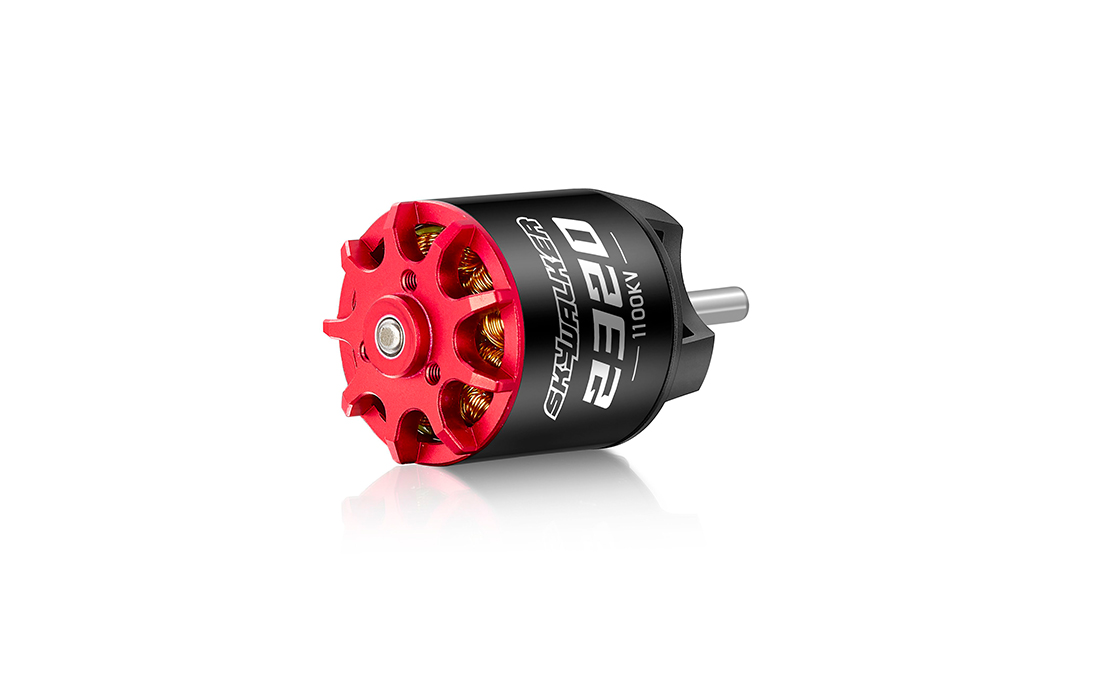

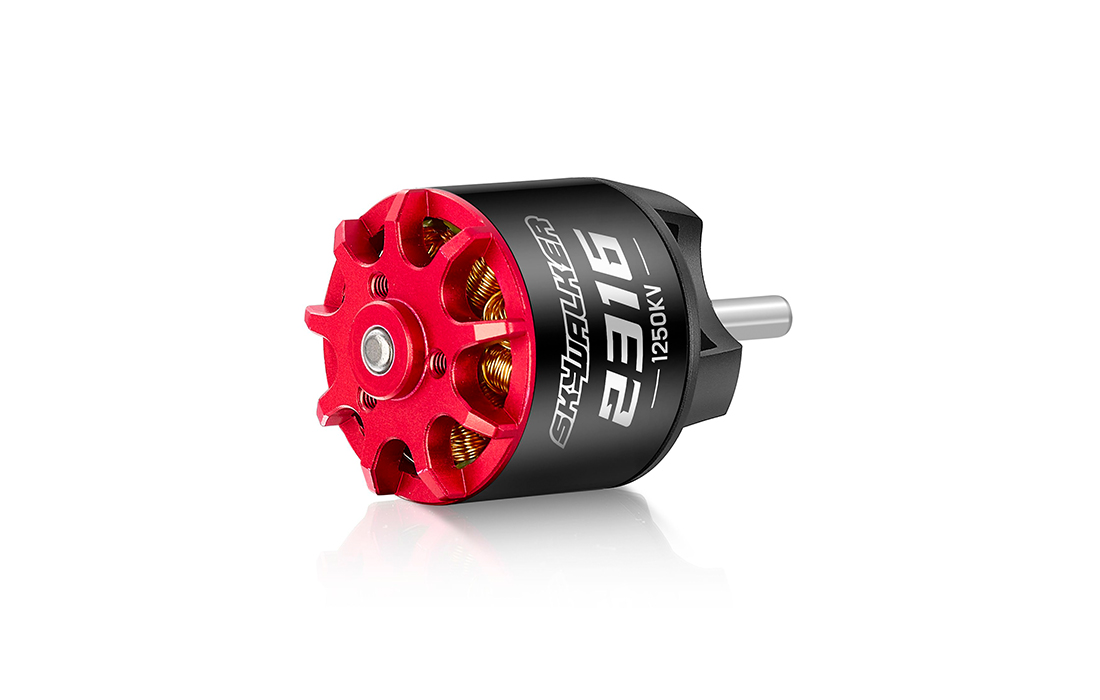

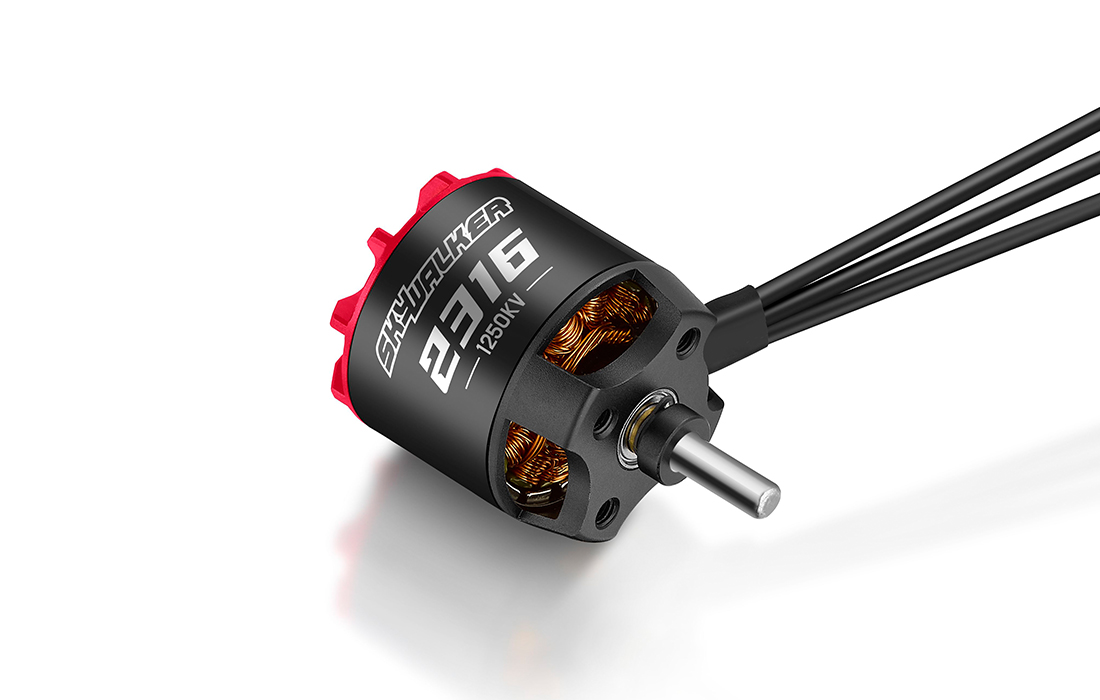

SkyWalker 2312 2316 2320
SkyWalker 2312 2316 2320
LOAD PERFORMANCE PARAMETERS
High power,
High performance
The newly designed 2312, 2316, and 2320
fixed-wing motors have increased output power.
The propeller mounting provides greater torque
Compared with competing motors of
the same specification,

the maximum output power


is approximately


10%higher
Excellent heat
dissipation structure
The large hollow design, combined with
the self-dissipating structure of the top cover,
enhances the cooling capacity of
the motor and prolongs the lifespan of the motor.
Higher dynamic balance requirements
Adopts an excellent production and assembly dynamic
balance technology with high-quality bearing and high-precision CNC machining,
it provides an extremely low dynamic balance of
the rotor to reduce motor vibration and provide smoother operation.
Multi-anti-loosening
rotor design
After installing the copper pad and retainer
spring on the core of the rotor shalf,
the bushing and set screw help secure the rotor
and improving the reliability of the motor.
Rotor assembly

Stator assembly

Copper pad

Retaining ring for shaft

Bushing

Set Screw

Excellent materials

Top branded JNEH1200
silicon steel sheet,
0.2mm thick material,
provides lower iron loss.

N48 strong magnetic arc
magnetic steel design
provides maximum torque
output for the motor.

180℃ high temperature
resistant enameled wire,
enhances the high
temperature
resistance of the stator coil.

Silicone wire outlet,
which is softer and easier
to route than the traditional
straight outlet silicone wire.

Standard components


Product Name
Product Number
Relevant Parameters Recommended Battery

KV Rating

No-load Current

Resistance

Number of slot poles

Maximum continuous current

Maximum continuous power
Specification and weight Motor Size

Motor Weight

Shaft Diameter

Bearing model

Phase cable

Cable length
Matching and installation Recommend ESC

propeller



Clip mounting hole thread

Base thread
Product Name Skywalker 2312 SL 980KV Skywalker 2312 SL 1250KV Skywalker 2312 SL 1400KV Skywalker 2312 SL 2450KV Skywalker 2316 SL 980KV Skywalker 2316 SL 1250KV Skywalker 2316 SL 1400KV Skywalker 2320 SL 860KV Skywalker 2320 SL 1100KV Skywalker 2320 SL 1250KV
Product Number 30415000 30415003 30415001 30415002 30415050 30415051 30415052 30415100 30415101 30415102
Relevant Parameters Recommended Battery

KV Rating

No-load Current

Resistance

Number of slot poles

Maximum continuous current

Maximum continuous power		 3-4S LIPO

980KV

1.3A/14.8V

75.6mΩ

12N14P

24A/180s

340W/10min		 3-4S LIPO

1250KV

1.5A/14.8V

51.6mΩ

12N14P

38A/35s

563W/35s		 3-4S LIPO

1400KV

1.8A/14.8V

39.9mΩ

12N14P

37A/65s

550W/65s		 3S LIPO

2450KV

4.1A/11.1V

19.3mΩ

12N14P

47A/10min

520W/10min		 3-4S LIPO

980KV

1.5A/14.8V

53.6mΩ

12N14P

31A/240s

455W/240s		 3-4S LIPO

1250KV

1.7A/14.8V

38.5mΩ

12N14P

41A/54s

615W/54s		 3-4S LIPO

1400KV

2.3A/14.8V

28.4mΩ

12N14P

42A/135s

618W/135s		 3-4S LIPO

860KV

1.5A/14.8V

48.4mΩ

12N14P

36A/90s

540W/90s		 3-4S LIPO

1100KV

1.8A/14.8V

33mΩ

12N14P

41A/180s

580W/194s		 3-4S LIPO

1250KV

2.3A/14.8V

28.9mΩ

12N14P

50A/94s

740W/94s
Specification and weight Motor Size

Motor Weight

Shaft Diameter

Bearing model

Phase cable

Cable length		 Φ28.8 *46mm

65g

4mm

684ZZ（D9*d4*4）

18AWG

100mm		 Φ28.8 *46mm

65g

4mm

684ZZ（D9*d4*4）

18AWG

100mm		 Φ28.8 *46mm

65g

4mm

684ZZ（D9*d4*4）

18AWG

100mm		 Φ28.8 *46mm

65g

4mm

684ZZ（D9*d4*4）

18AWG

100mm		 Φ28.8 *50mm

79g

4mm

684ZZ（D9*d4*4）

18AWG

100mm		 Φ28.8 *50mm

79g

4mm

684ZZ（D9*d4*4）

18AWG

100mm		 Φ28.8 *50mm

79g

4mm

684ZZ（D9*d4*4）

18AWG

100mm		 Φ28.8 *54mm

93g

4mm

684ZZ（D9*d4*4）

18AWG

100mm		 Φ28.8 *54mm

92g

4mm

684ZZ（D9*d4*4）

18AWG

100mm		 Φ28.8 *54mm

92g

4mm

684ZZ（D9*d4*4）

18AWG

100mm
Matching and installation Recommend ESC

propeller



Clip mounting hole thread

Base thread		 Skywalker-V2 30A

3S：10x6E，11x5.5E

4S：8x6E，9x4.5E

Φ12mm-3*M2.5

Φ16mm-2*M3/Φ19mm-2*M3		 Skywalker-V2 30A-40A

3S：8x6E，9x4.5E,10X6E

4S：8x4E，8x6E

Φ12mm-3*M2.5

Φ16mm-2*M3/Φ19mm-2*M3		 Skywalker-V2 30A-40A

3S：7x6E，8x6E

4S：7x5E，8x4E

Φ12mm-3*M2.5

Φ16mm-2*M3/Φ19mm-2*M3		 Skywalker-V2 20A-50A

3S：5x3E，6x6E



Φ12mm-3*M2.5

Φ16mm-2*M3/Φ19mm-2*M3		 Skywalker-V2 30A-40A

3S：10x6E，11x5.5E

4S：9x4.5E，9x6E，10x5E

Φ12mm-3*M2.5

Φ16mm-2*M3/Φ19mm-2*M3		 Skywalker-V2 30A-50A

3S：9x4.5E，10x5E,10x6E

4S：7x6E，8x6E

Φ12mm-3*M2.5

Φ16mm-2*M3/Φ19mm-2*M3		 Skywalker-V2 40A-50A

3S：7x6E，8x6E

4S：7x5E，8x4E

Φ12mm-3*M2.5

Φ16mm-2*M3/Φ19mm-2*M3		 Skywalker-V2 30A-40A

3S：12x6E，13x6.5E

4S：10x5E，10x6E，11x5.5E

Φ12mm-3*M2.5

Φ16mm-2*M3/Φ19mm-2*M3		 Skywalker-V2 40A-50A

3S：10x5E，10x6E，11x5.5E

4S：8x6E，9x4.5E

Φ12mm-3*M2.5

Φ16mm-2*M3/Φ19mm-2*M3		 Skywalker-V2 40A-50A

3S：9x4.5E，9x6E，10x6E

4S：8x4E，9x4.5E

Φ12mm-3*M2.5

Φ16mm-2*M3/Φ19mm-2*M3
