SeaKing 200A HV V4
SeaKing200AHV V4
14S High Voltage, High Power ESC
High Reliability and Durability
Delivers a continuous current of up to
200A
This ESC supports up to
14S LiPo

With immense power and explosive acceleration,
it offers excellent linear throttle, effortlessly handling high-load applications
and providing precise, responsive control.

14S High Voltage, High Power ESC
High Reliability and Durability
Delivers a continuous current of up to
200A
This ESC supports up to
14S LiPo

With immense power and explosive acceleration,
it offers excellent linear throttle, effortlessly handling high-load applications
and providing precise, responsive control.

IP67 fully waterproof design
  • With an IP67 protection rating, this ESC boasts outstanding waterproof and dustproof capabilities.
    It can be used immediately without any additional waterproofing treatment.
Note: The IP67 rating ensures protection against splashes, water, and dust under
normal use. It has been tested under controlled lab conditions according to GB/T
4208-2017 (domestic) and IEC 60529 (international) standards. However, the
protection is not permanent and may decrease with wear and aging.

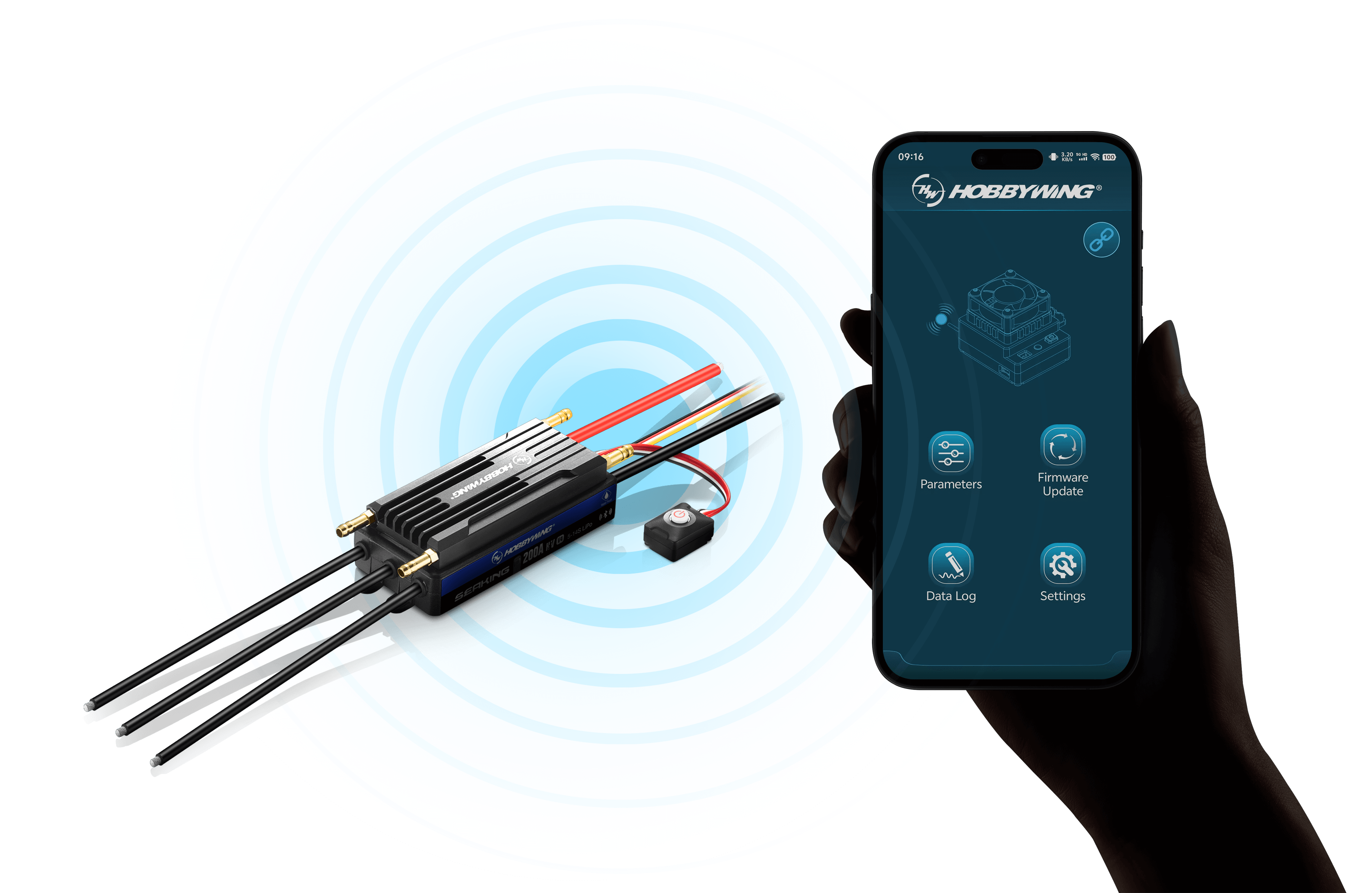

Built-in Bluetooth for Connecting
the Mobile APP Directly
  • The ESC features a built-in Bluetooth module,
  • allowing easy connection to a mobile app for parameter settings, data reading,
  • and firmware upgrades—all without the need for additional devices,
  • making it incredibly user-friendly.
Built-in Data Logging for
Performance Monitoring
  • Equipped with an internal logging module, this ESC can record the 10 minutes of operation.
  • By connecting to the mobile app, you can view historical data (in graph format) post-operation,
  • allowing easy monitoring of both ESC and motor performance.

Note: Bluetooth transmission is effective up to about 5 meters.

Super Built-inBEC
  • The built-in BEC delivers
    up to 25A of current
  • With switchable output voltages of
    6V7.4V8.4V
  • It easily powers high-torque
    and high-voltage servos,
    offering seamless and responsive control.

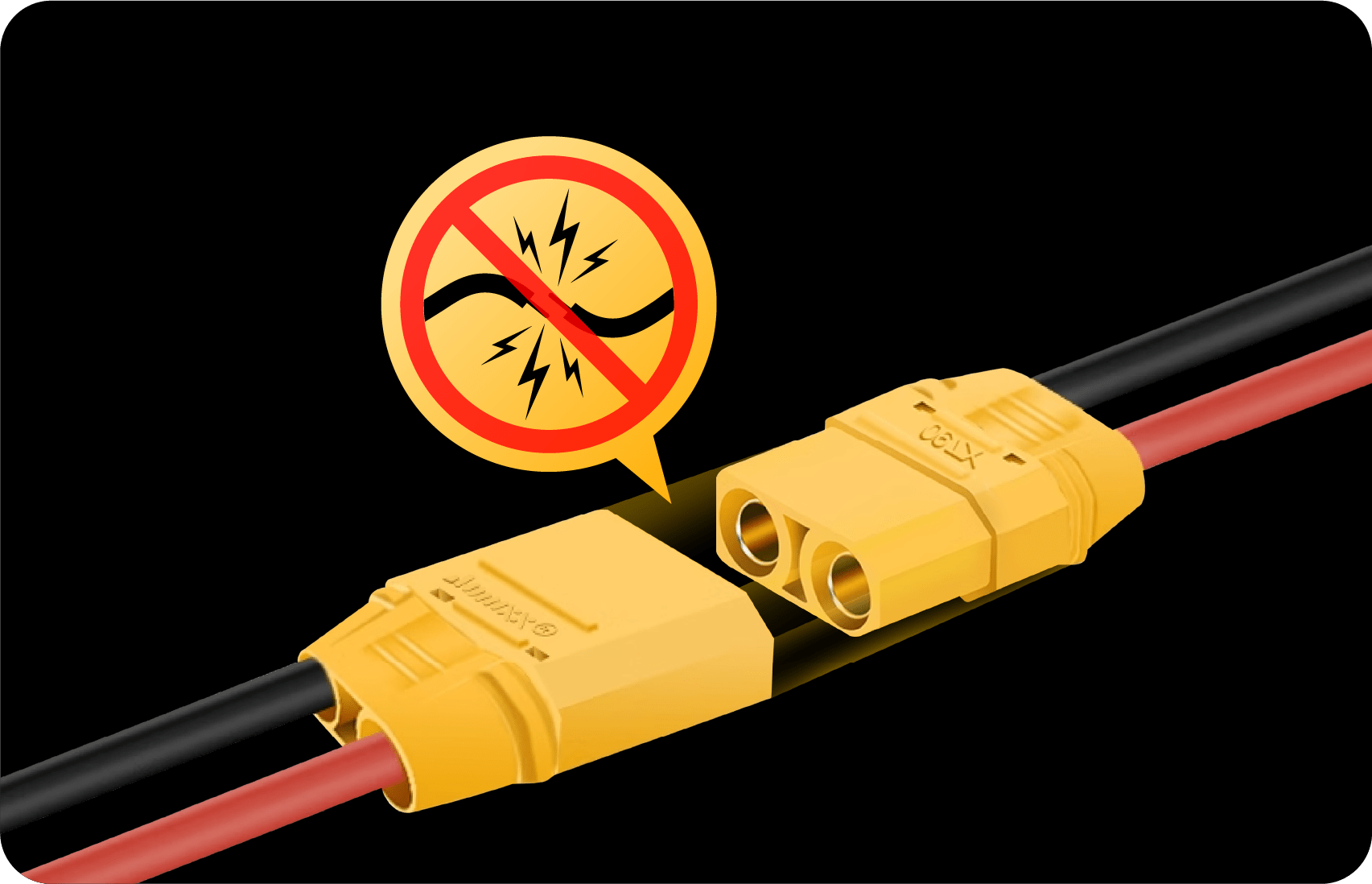

Built-in Spark-proof Design
  • The ESC includes a spark-proof circuit,
  • protecting battery plugs from damage when using higher voltages (6-14S).
  • This also prevents injuries from strong electrical sparks(e.g., to fingers).

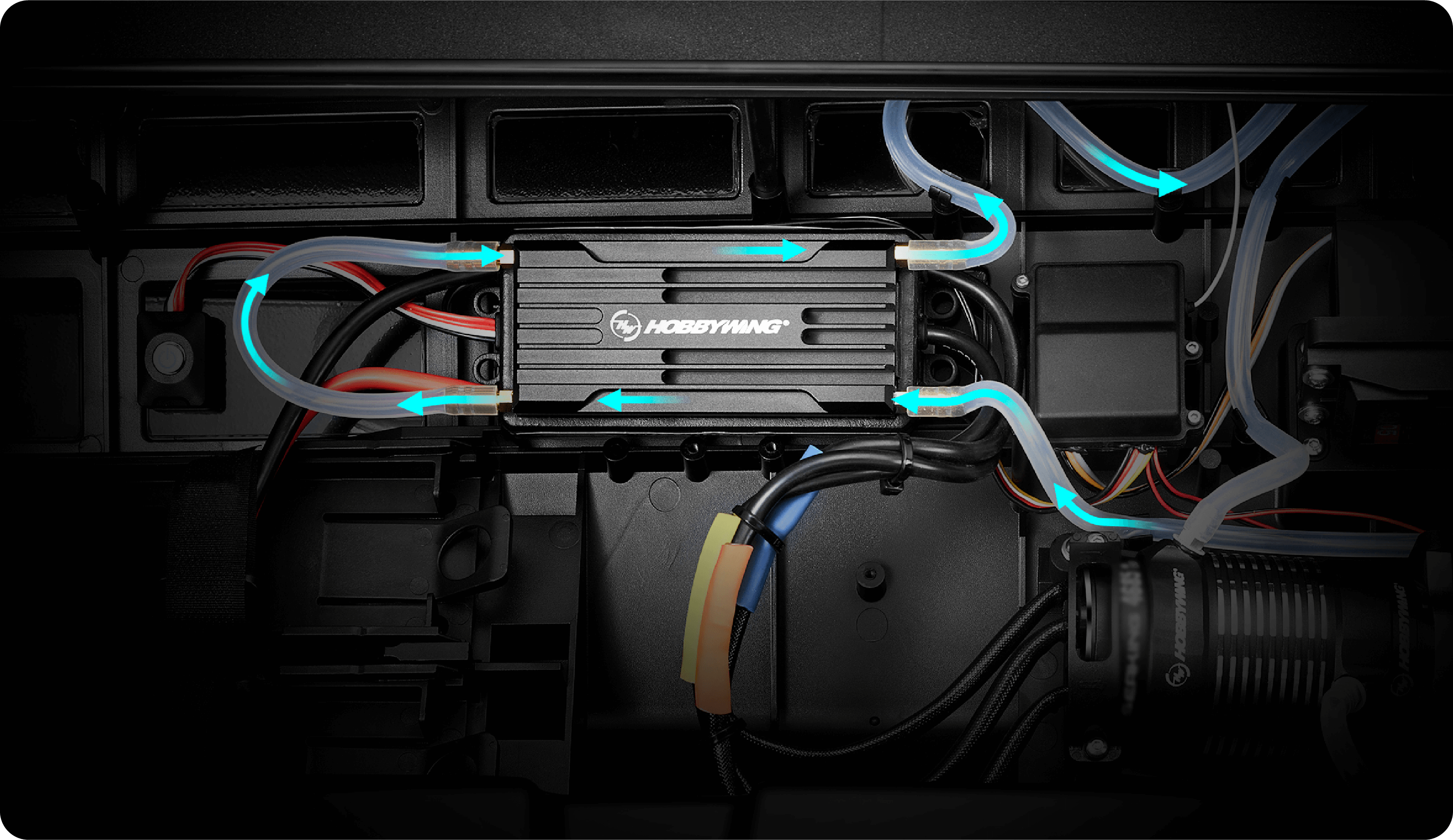

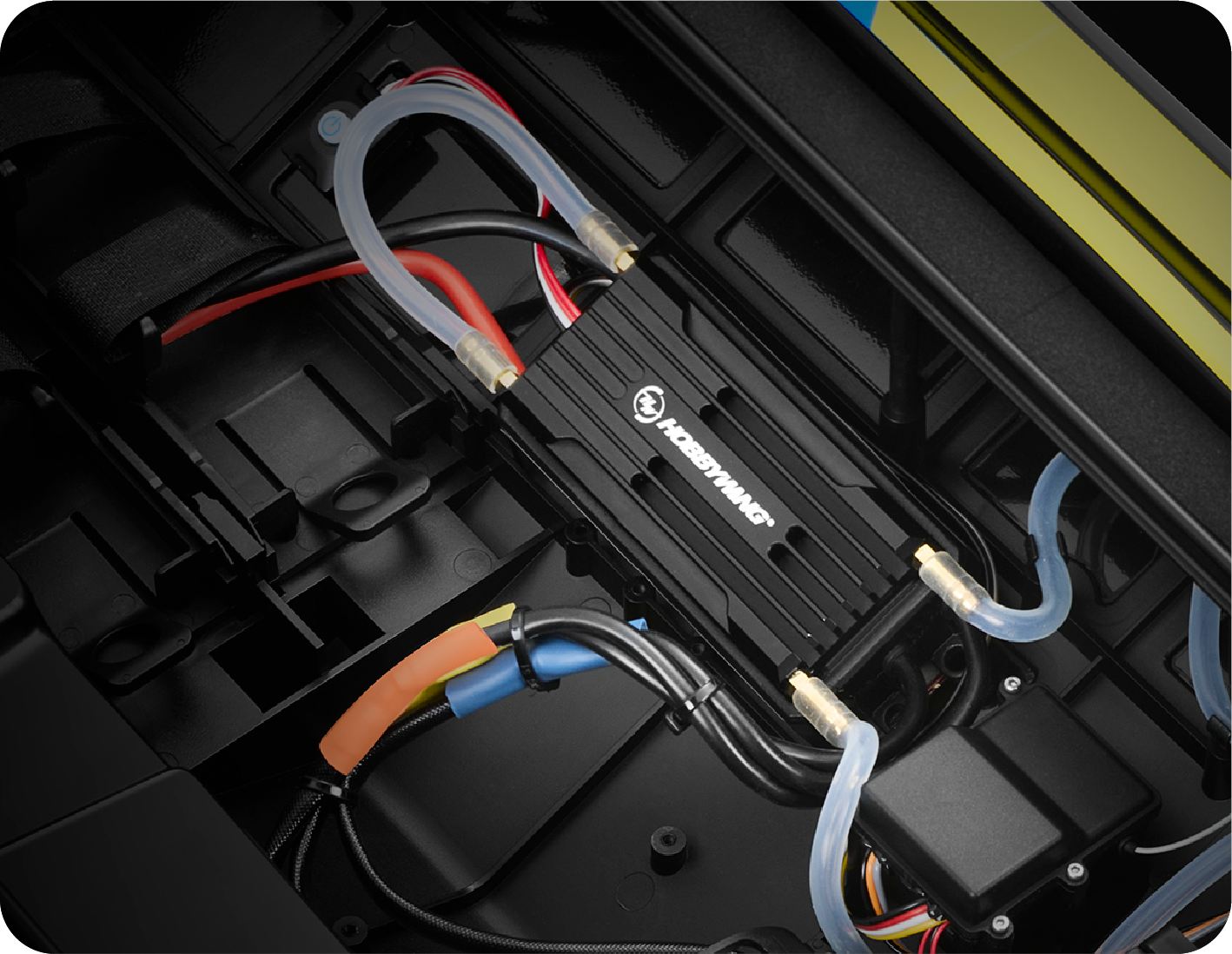

Dual-Channel Water Cooling
for Lower Temperature
  • This ESC features a dual-channel water cooling system,
  • providing enhanced heat dissipation and ensuring the ESC remains
  • within a safe temperature range during use.
Capacitor
overheating
protection
  • The capacitor overheating protection
  • helps prevent damage to the ESC caused
  • by capacitor failure due to overloading,
  • safeguarding the unit against damage.
Freewheeling function
  • The Freewheeling function reduces ESC temperature, improves deceleration
  • when the throttle is released, and enhances steering control during turns.
When Freewheeling function is enabled,
the boat decelerates faster when the throttle is released
When Freewheeling function is disabled,
the boat decelerates slower when the throttle is released
AUX External Control
Channel for Real-time
Parameter Adjustment
  • By connecting the yellow signal wire to an unused receiver channel,
  • you can adjust ESC parameters (like reverse thrust) in real-time using the remote control,
  • This on the fly usage allow simple on the fly tuning.
Swipe left to view all

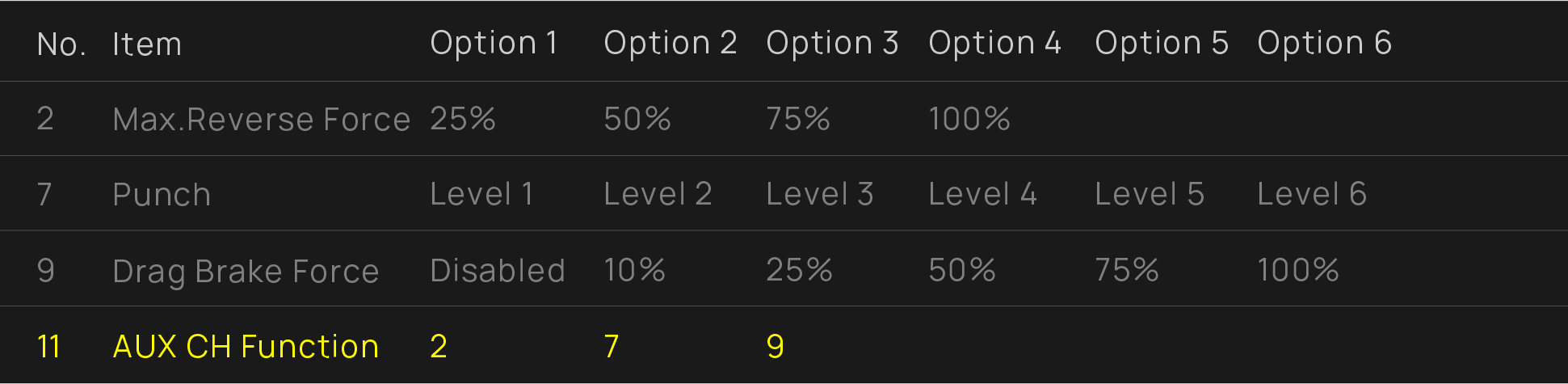

Note:The actual function of the yellow wire corresponds to the AUX CH Function settings in the parameter table.

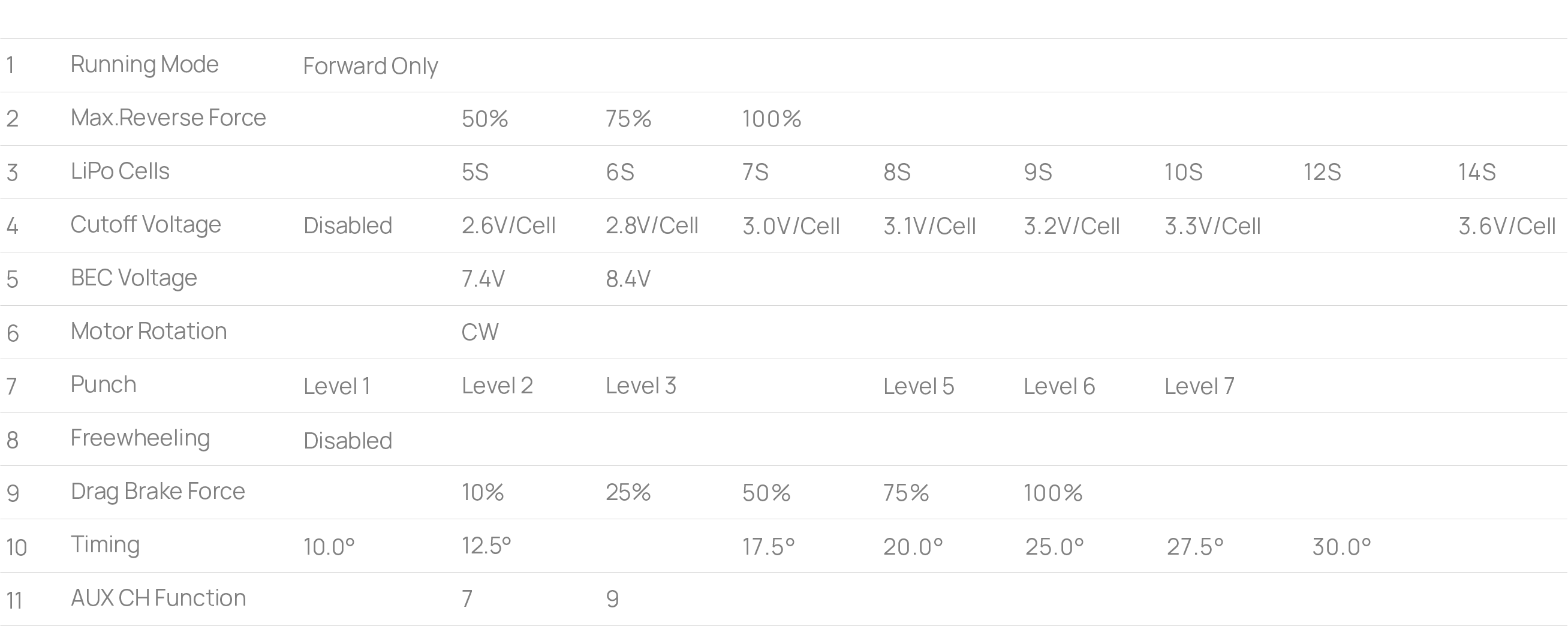

Versatile programmable parameters
  • With 11 programmable parameters, the ESC is designed to meet competitive racing needs,
  • offering a wider and more detailed range of settings.
Swipe left to view all

Product Name
SEAKING 200A HV V4
Product Number
  30301201
Type
Brushed/Brushless Brushless
Sensored/Sensorless Sensorless
Waterproof Waterproof
Specifications
Cont./Peak Current 200A/1000A
Input Voltage 5-14S Lipo
BEC BEC Output Switch Mode 6V/7.4V/8.4V @8A
Wires & Connectors
Input Wires Black-8AWG-200mm*1 Red-8AWG-200mm*1
Output Wires Black-10AWG-150mm*3
Input Connectors No
Output Connectors 6.5mm Female
ESC Programing via
LED Program Box Not Supported
LCD G2 Program Box Not Supported
LCD PRO Not Supported
OTA Programmer Not Supported
HW LINK APP Supported(Built-in Bluetooth)
Data Recording
Extreme value Supported
Real-time Data Supported
Historical data (Graph) Supported
Firmware
Firmware Upgrade Supported
Size & Weight
Size 106*51*31mm
Weight 386g (w / wires & output connectors)
Applications
Boat Applicable ≤140CM
