Competition Design
The light-weight of the Pro 120A is designed to meet the users’ requirements of a light
weight product for all marine competition which weight is a factor of speed and
endurance. The core program for top-level competition products guarantees the user
first-class control and “abundant” programmable parameter items for different
competition environments. (* The ESC is especially applicable to ECO/MONO1)
Competition Design

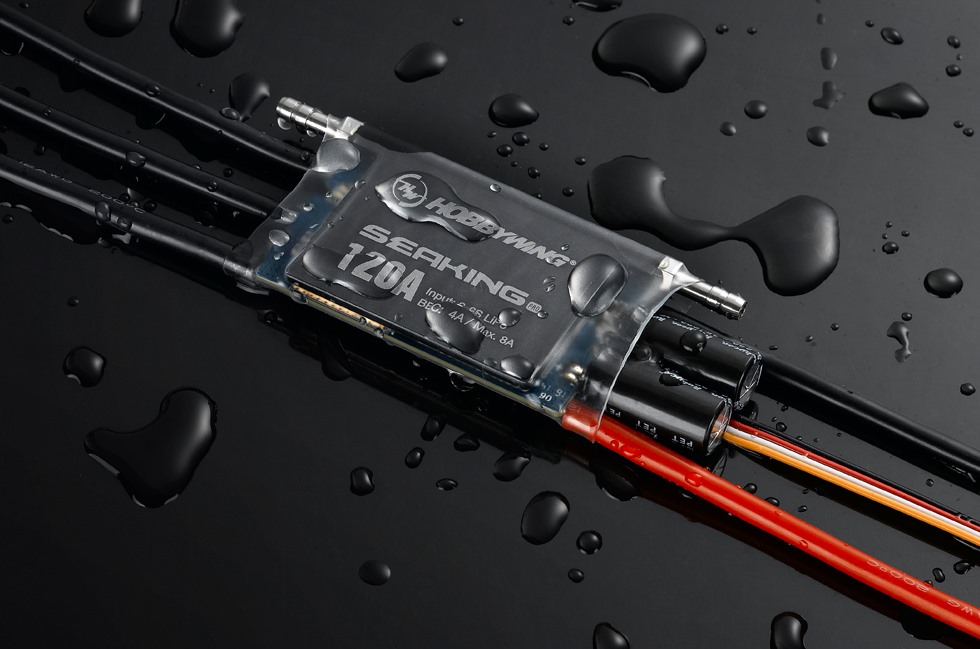

Splash-proof

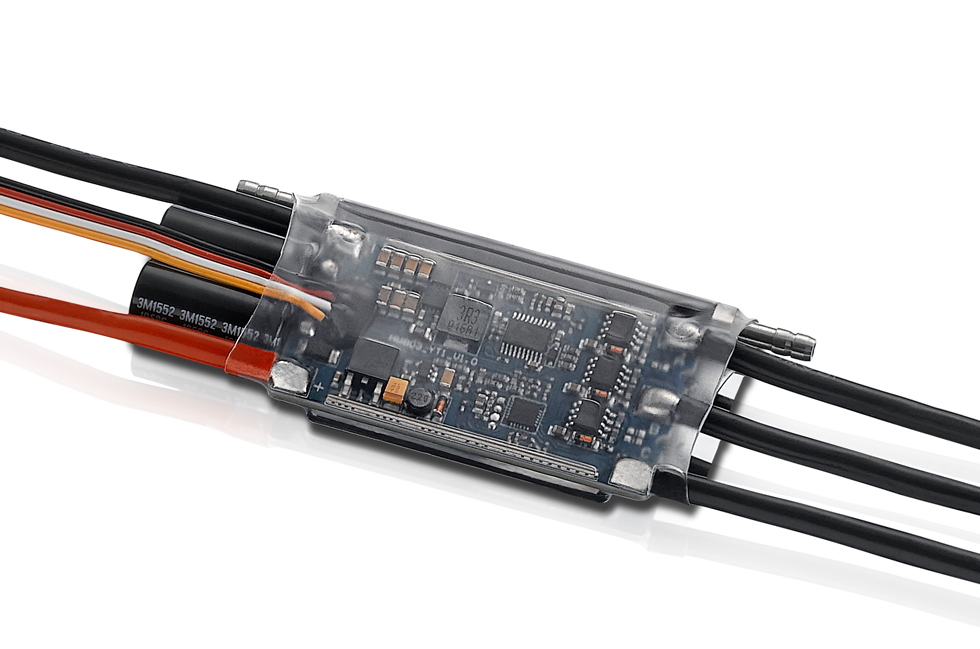

The whole circuit board and all the components on it have gone through nano-coating
treatment; this makes the Seaking Pro 120A ESC splash-proof.
Splash-proof
High Voltage Built-in BEC
The built-in switch mode BEC with a maximum output of 8A and adjustable
voltage of 6V/7.4V make the ESC compatible with various high voltage servos.
High Voltage
Built-in BEC
High Durability & Reliability
Reliable hardware (i.e. MOSFETs with extremely low internal resistance) combined with advanced
software (features low-voltage cutoff protection, thermal protection, throttle signal loss protection, and
etc) guarantees the durability and reliability of the ESC and relevant electronic devices.
High Durability & Reliability
Innovative Turbo Function
The world’s first marine ESC to have implemented the turbo timing function
which will give the user the edge over the competition with instant turbo boost.
Innovative
Turbo Function
Programming/Upgrading Wirelessly
With Hobbywing’s WiFi module and iPhone or an Android phone (with the
HOBBYWING WiFi Link software installed), the user can remotely program
parameters or upgrade firmware without leaving the control stand.
Programming/
Upgrading Wirelessly
Wifi Express module
Efficient Cooling System
The Hobbywing patented heat-conductive copper bar cover on the power board
of the ESC combined with the water cooling module efficiently and effectively
transfers heat to the outside thus keeping your ESC as cool as possible.
Efficient Cooling
System
Regular Firmware Updates Free of Charge
You can upgrade the ESC with the Hobbywing WiFi/USB LINK software, a WiFi
module/LCD program box and a smartphone /laptop. Hobbywing updates its ESC
firmware regularly giving you upgraded features more often when available.
Firmware
Upgradeable
LCD Program Box
WiFi Module
Product Name | |
Product Number | |
Type | Brushed/Brushless Waterproof |
Specifications | Cont./Peak Current Input Voltage BEC Output |
Wires & Connectors | Input Wires Output Wires Input Connectors Output Connectors |
ESC Programing via | Transmitter LED Program Box LCD Program Box WiFi Module OTA Programmer Program Port |
Firmware | Firmware Upgrade |
Size & Weight | Size I.D./O.D. of the Water Cooling Pipe Weight |
Applications |
Product Name | Seaking Pro 120A | |
Product Number | 30302361 | |
Type | Brushed/Brushless Waterproof |
BL Waterproof (IP55) |
Specifications | Cont./Peak Current Input Voltage BEC Output |
120A/760A 2-6S Lipo/6-18 Cell NiMH Switch Mode: 6V/7.4V,4A |
Wires & Connectors | Input Wires Output Wires Input Connectors Output Connectors |
Red-12AWG-200mm*1/Black-12AWG-200mm*1 Black-12AWG-150mm*3 No 4.0mm Gold Connectors (Female) |
ESC Programing via | Transmitter LED Program Box LCD Program Box WiFi Module OTA Programmer Program Port |
Supported Not Supported Supported Supported Supported Separate Program Wire |
Firmware | Firmware Upgrade | Supported |
Size & Weight | Size I.D./O.D. of the Water Cooling Pipe Weight |
96.6x37.9x10.3mm Ф2.0/5.5 mm 87.5g |
Applications | ECO, Mono1/Other Competition Boats (≤100cm) |
Part Number: 30850200
Size: 45.4x11.6x7.7mm(LxWxH)
Only for OPTO version
Product Number: 30503000
Working Voltage: 5V-12.6V
WiFi Protocol: IEEE802.11 b/g/n
WiFi Signal Effective Range: 0-10m
(Open Field) Applications: work on
the XeRun series, EzRun series
of car ESCs, and the Platinum series
of aircraft ESCs, and Seaking Pro
series of boat ESCs.
