Remote for Skateboard


2.4G Communication + PA Module
for Double Safety

The 2.4G communication, PA module (for signal amplification) and FHSS
(Frequency-Hopping Spread Spectrum implemented by the remote
guarantee signals’ stability and users’ safety.

Double Safety

Signal Indicator

Gear Button

Power Button

Skateboard Battery Level Indicator

Remote Wheel for
Accelerating/Braking

Forward/Backward
Direction Switch

Remote Battery Level Indicator

USB Port

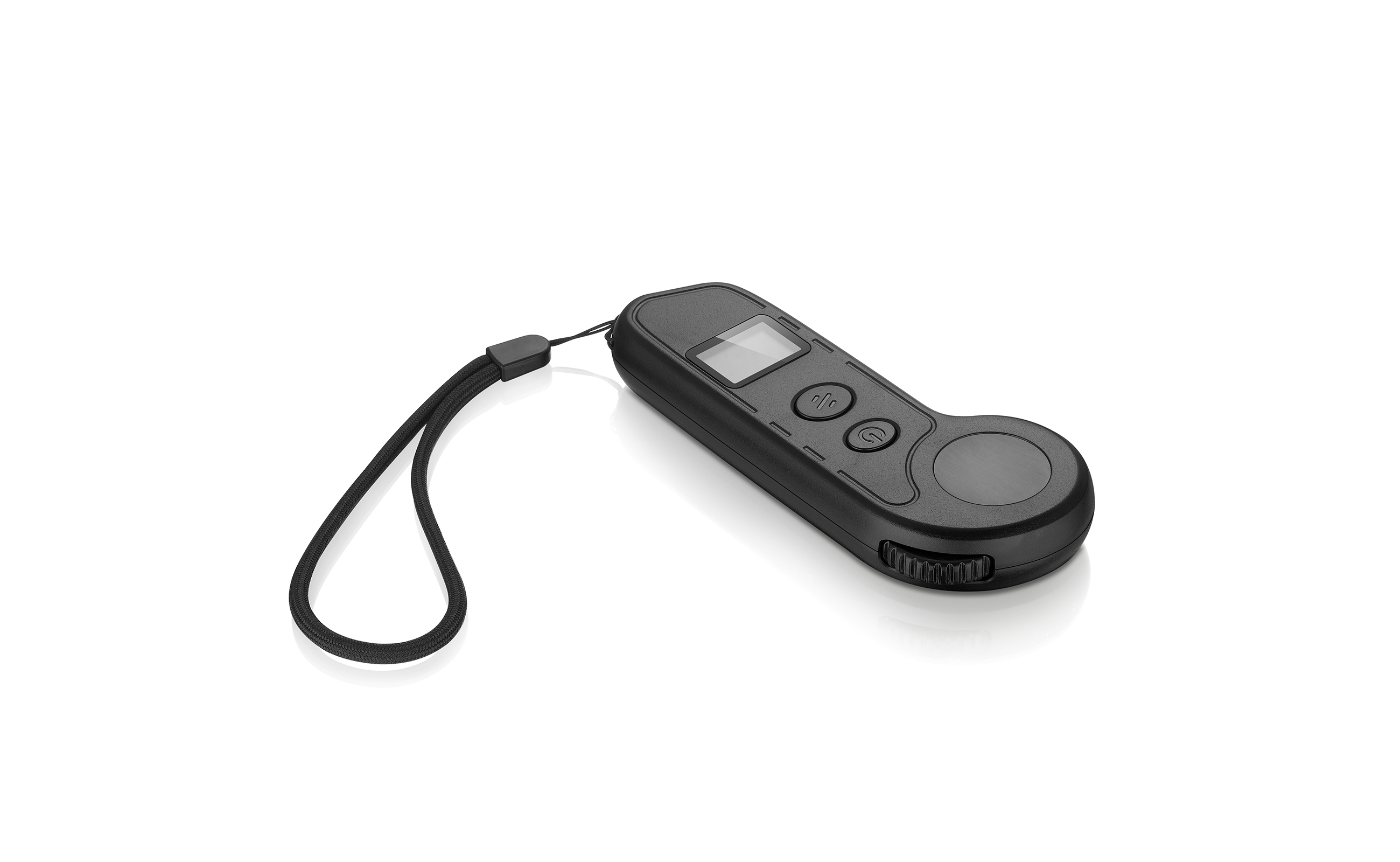

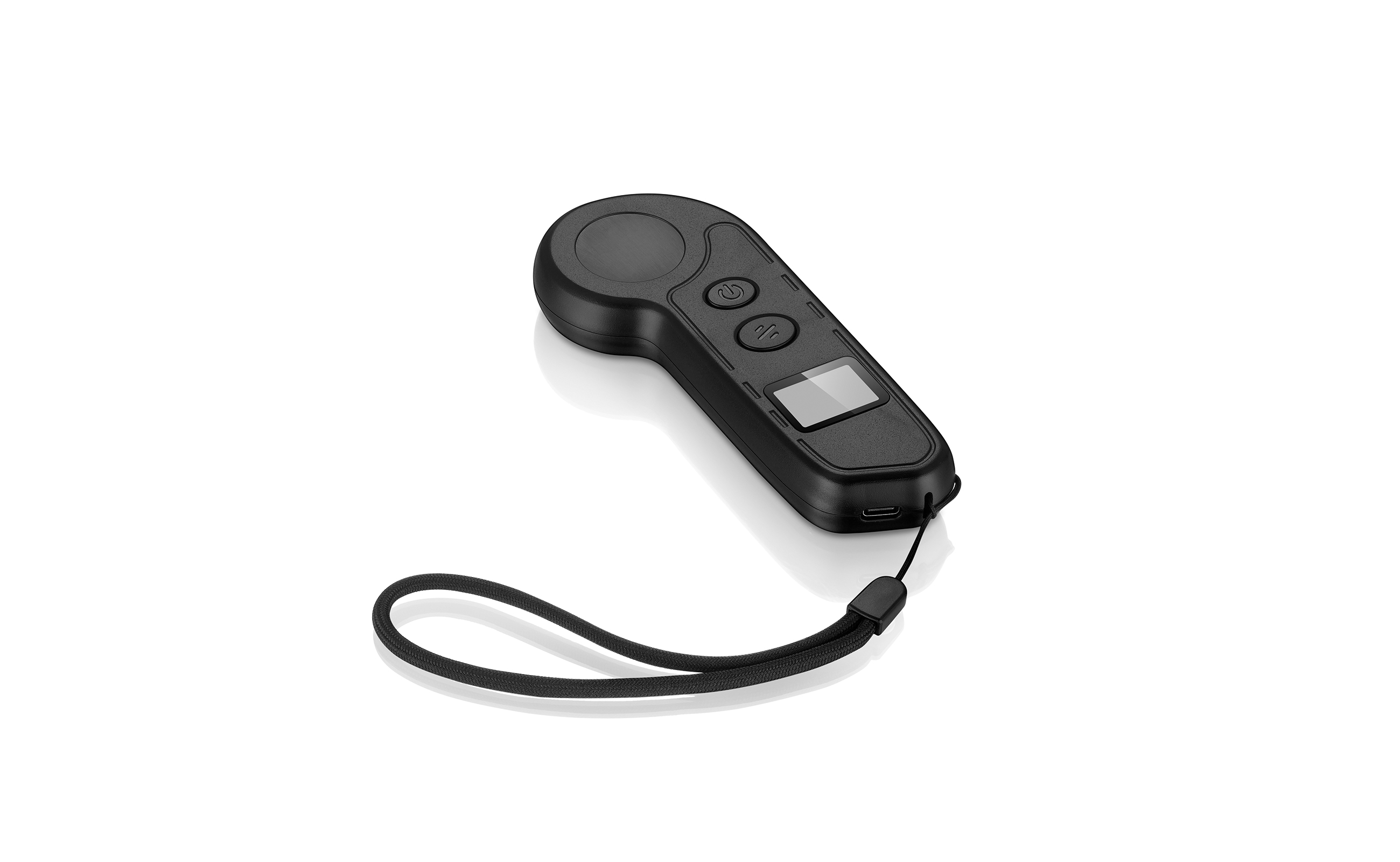

Compact Structure Design

The small remote, which implemented the 2.4G bi-directional
communication, is specially designed to pair the FOC ESC. It
features a series of functions like forward/backward direction switch,
gear switch, remote battery level indication, and skateboard battery
level indication. Two warning modes: LED flashing & vibration remind
users of possible issue(s). And the hand-held design makes the
interactive mode clear and simple.

Small Size



Remote for Skateboard HW7002/HW7009

Remote for Skateboard HW6123

WeChat

Contact: Peng Li

QQ：2869608364

Tel: 13632592011

Email：sales-c@hobbywing.com

Product Name
Specifications Model

Weight

ESC Limit/Model

Battery

Charging Port

Charging Time

Communication

Effective Distance

Warning Mode

Functions
Product Name Remote for Skateboard
Specifications Model

Weight

ESC Limit/Model

Battery

Charging Port

Charging Time

Communication

Effective Distance

Warning Mode

Functions		 Remote for Skateboard HW6123

55g

ESC-SKB-9005, ESC-SKB-9006

3.7V / 400MAH

Micro USB

1H

2.4G

40M(Open Field)

LED Flashes & Vibration

Forward/Back Direction Switch、Gear Switch、Remote Battery Level Indication、Skateboard Battery Level Indication
