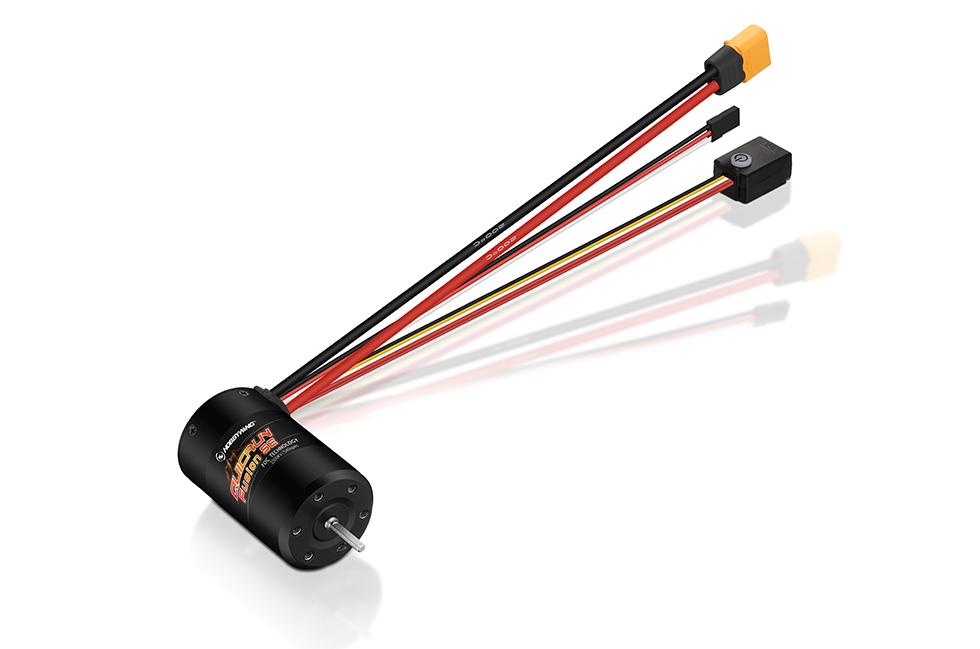

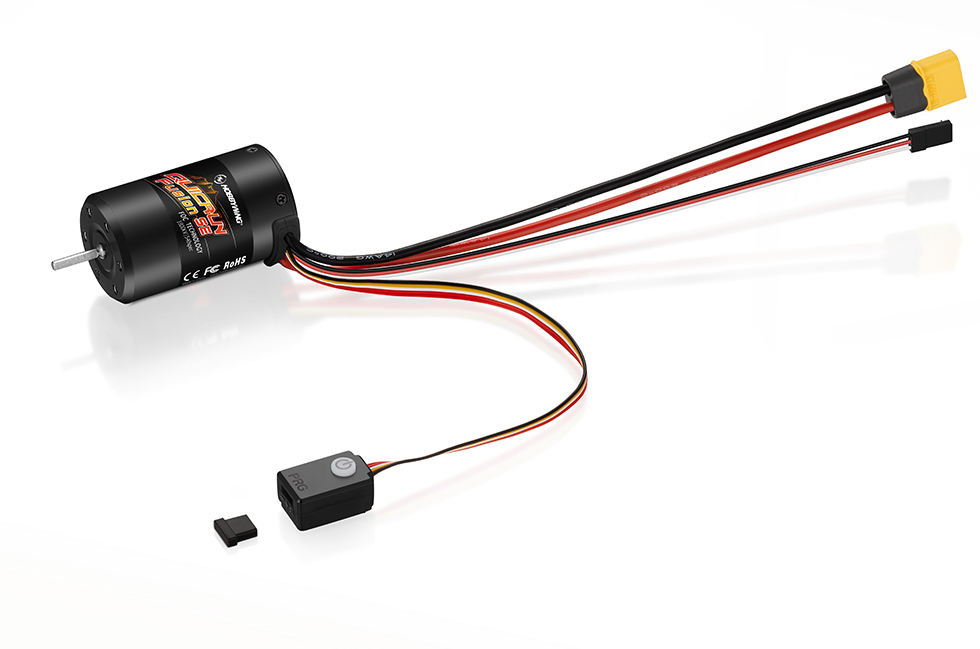

QuicRun Fusion SE
Aesthetically Appealing

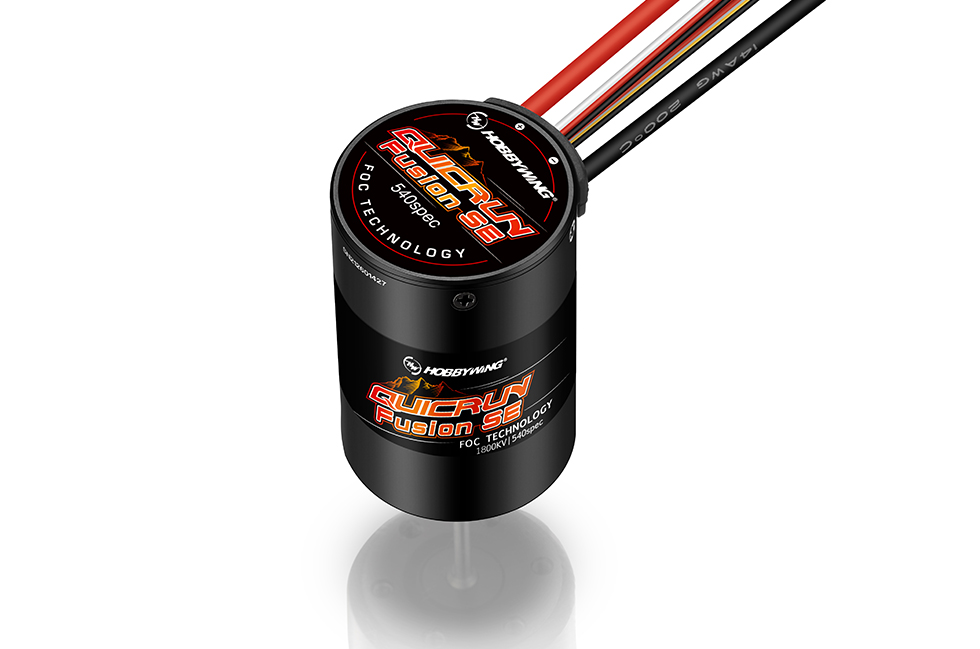

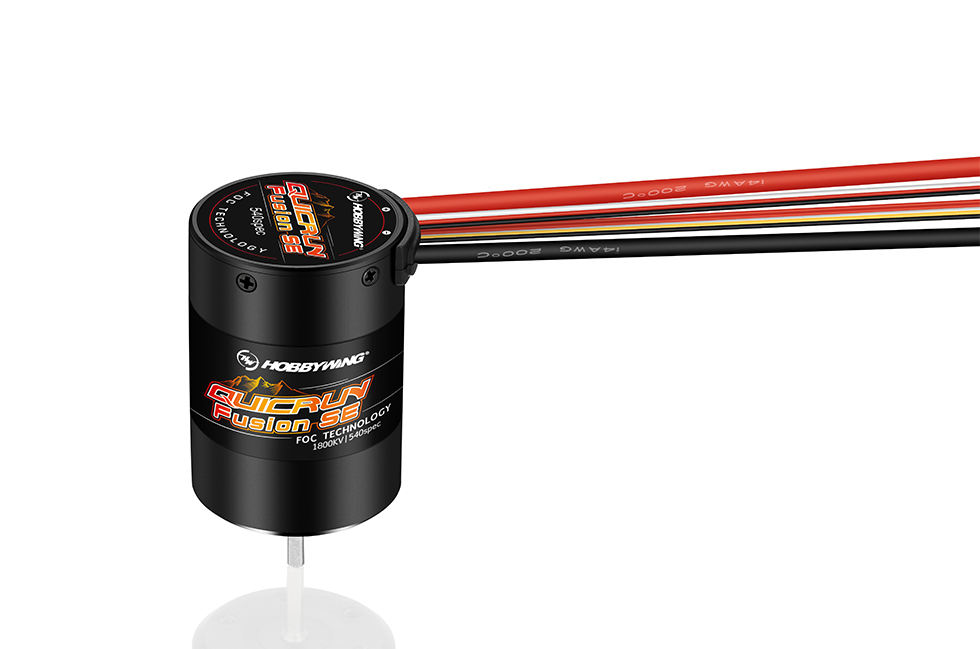

The Fusion SE provides an integrated space-saving design for
builders. With a 58mm length, the Fusion SE has been shortened
slightly to allow it to fit into more vehicles.
Integrated design
58mm

      ESC

MOTOR
FOC Powered
with proven design heritage
FOC has been a game changer for the crawling segm
ent. The extreme efficiency operates at lower temps and provides extended
runtimes. The nearly silent operation provides amazing power and
response at all speeds while providing extremely low RPM control.
Compared to normal brushless, FOC systems provide a dramatic
increase in response and power delivery.
Efficient operation

Low operating temperatures

High torque at low and high speeds

Quiet operation

FOC Powered
Smart torque output and closed loop control.
Amazing control on climbs and descents.
Intelligent Torque Output
The smart torque output control feature of the built-in
FOC ESC ensures unmatched downhill and uphill
driving. The ESC can automatically adjust the motor
output to RPM to match the driver inputs.
Intelligent Torque Output is a smart management system
that allows the ESC to adjust the motor for inclines or
descent under any load to match the throttle.
8-
Drag brake force
+
9-
Drag brake
Rate adjustment
+
2-
Drag brakes are 2
times stronger than
comparable systems
U- matched hill holding
With 8 levels of drag brake force (Power) and 9 levels of
Drag Brake Rate, drivers can fine-tune their vehicle’s
hill-holding power and general driving. Overall, drag brakes
can be 2 times stronger than normal brushless setups.

U- matched hill holding
Designed for Durability
Silicon rubber gaskets, electronic buttons, and quality
hardware ensure a long life for the Fusion SE. Made
to take the abuse and conditions of daily RC bashers.
Designed for Durability

Ready for all weather
and track conditions.
IP-67 waterproof rating ensures the Fusion SE has protection
from water, dust, and about anything else that gets thrown at it.
Designed to withstand all conditions time and time again.
Waterproof
Protection
IP67
Water proof
Dust proof
Note: The IP67 protection level mentioned above is splash-resistant, water-resistant and dust-resistant under normal use, and is tested under controlled
laboratory conditions. Its effect is in the GB / T 4208-2017 (domestic) / IEC 60529 (overseas) standard to IP67 level. Splash, water and dust resistance
are not permanently effective, and the level of protection may decline due to aging. Do not soak for a long time to avoid damaging the product.
Product Name
Product Number
Type Scale

Brushed/Brushless

Sensored/Sensorless

Waterproof

Specifications Cont./Peak Current

Input Voltage

BEC Output



Motor KV

Diameter/length of Motor

Shaft diameter / exposed shaft length

Motor Poles
Wires & Connectors Input Wires

Input Connectors

ESC Programing via SET Button on ESC

LED Program Box

LCD Program Box

OTA Programmer

Program Port
Firmware Firmware Upgrade
Size & Weight Size

Weight
Applications Vehicles
Product Name QuicRun Fusion SE
Product Number 1200KV-30404318;1800KV-30404317
Type Scale

Brushed/Brushless

Sensored/Sensorless

Waterproof

1/10th

BL

SD

Waterproof
Specifications Cont./Peak Current

Input Voltage

BEC Output



Motor KV

Diameter/length of Motor

Shaft diameter / exposed shaft length

Motor Poles
40A

2-3S Lipo/6-9 Cell NiMH

6V/7.4V@4A、6A peak

Note: 7.4V voltage can be output only when using 3S Lipo

1200KV & 1800KV

36mm / 58.1mm

3.175mm / 16.5mm

4

Wires & Connectors Input Wires

Input Connectors

Red-14AWG-200mm*1 / Black-14AWG-200mm*1

XT60
ESC Programing via SET Button on ESC

LED Program Box

LCD Program Box

OTA Programmer

Program Port
Not Supported

Supported

Not Supported

Not Supported

Independent programming interface(switch position)
Firmware Firmware Upgrade Not Supported
Size & Weight Size

Weight
36X58.1mm

201g (including wires&connectors)
Applications Vehicles 1/10th rock crawler
Support

Manuals & Documents

FAQ

QuicRun Fusion SE
QuicRun Fusion SE
Sensored Brushless Motor
Integrated Design
Aesthetically
Appealing
A vibrant look that catches the eye.
The design has been integrated and
optimized to provide a cleaner and
sleeker layout appearance. The overall
length is now at 58mm with a smaller
footprint to provide for a spacious
and easier assembly process
FOC Powered
FOC Powered
Excellent heritage
The FOC drive mode is a game changer.
The high efficiency generates lesser heat and
effectively extends the endurance time.
The almost silent operation has excellent low
speed torque and operates smoothly at low
speed. The overall power is able to
outperform the sensored power system and
provides extraordinary control experience
to the rock-crawler vehicles.
The smart torque output control
equipped in the ESC ensures vehicle
going up and downhill elegantly.
The ESC will automatically increase
its output torque to overcome the
resistance and go uphill smoothly;
Intelligent Torque Output
Smart torque output and
speed closed-loop control
Elegant posture
on the slope
Note: This feature is only available
in constant speed mode
Vice versa. The ESC automatically
reduces the output torque and
stabilizes the speed of the car
upon going downhill.
The ramp parking
skills are superb
The ramp
parking skills
are superb
There are 8-gears of drag brake
force and 9-gears of drag brake
acceleration adjustment to
provide for a stronger ramp
parking capability. The maximum
drag brake force is about 2 times
more than ordinary brushless
systems in order to satisfy the
users with different control habits.
Durable design
Durable design
The use of electronic switches is reliable
and ensures a longer lifespan. Heavy
impact or harsh surface will no longer
affect and damaged the switch, eliminating
any unwanted damage. Users will be able
to enjoy bashing their RC cars.
Applicable to
All Weather &
Track Conditions
The IP-67 waterproof system guarantees
excellent waterproofing and dustproofing
protection. The whole power system is able
to drive on a variety of surfaces including
muddy, sandy, icy, snowy and water
without damaging the power unit.

Product Name QuicRun Fusion SE
Product Number 1200KV-30404318;1800KV-30404317
Type Scale

Brushed/Brushless

Sensored/Sensorless

Waterproof

1/10th

BL

SD

Waterproof
Specifications Cont./Peak Current

Input Voltage

BEC Output



Motor KV

Diameter/length of Motor

Shaft diameter / exposed shaft length

Motor Poles
40A

2-3S Lipo/6-9 Cell NiMH

6V/7.4V@4A、6A peak

Note: 7.4V voltage can be output only when using 3S Lipo

1200KV & 1800KV

36mm / 58.1mm

3.175mm / 16.5mm

4

Wires & Connectors Input Wires

Input Connectors

Red-14AWG-200mm*1 / Black-14AWG-200mm*1

XT60
ESC Programing via SET Button on ESC

LED Program Box

LCD Program Box

OTA Programmer

Program Port
Not Supported

Supported

Not Supported

Not Supported

Independent programming interface(switch position)
Firmware Firmware Upgrade Not Supported
Size & Weight Size

Weight
36X58.1mm

201g (including wires&connectors)
Applications Vehicles 1/10th rock crawler
Product Name QuicRun Fusion SE
Product Number 1200KV-30404318;1800KV-30404317
Type Scale

Brushed/Brushless

Sensored/Sensorless

Waterproof

1/10th

BL

SD

Waterproof
Specifications Cont./Peak Current

Input Voltage

BEC Output



Motor KV

Diameter/length of Motor

Shaft diameter / exposed shaft length

Motor Poles
40A

2-3S Lipo/6-9 Cell NiMH

6V/7.4V@4A、6A peak

Note: 7.4V voltage can be output only when using 3S Lipo

1200KV & 1800KV

36mm / 58.1mm

3.175mm / 16.5mm

4

Wires & Connectors Input Wires

Input Connectors

Red-14AWG-200mm*1 / Black-14AWG-200mm*1

XT60
ESC Programing via SET Button on ESC

LED Program Box

LCD Program Box

OTA Programmer

Program Port
Not Supported

Supported

Not Supported

Not Supported

Independent programming interface(switch position)
Firmware Firmware Upgrade Not Supported
Size & Weight Size

Weight
36X58.1mm

201g (including wires&connectors)
Applications Vehicles 1/10th rock crawler
