QuicRun Brushed 540/555

Overview
Specifications
Support
Accessories
Detail

Brushed Motor

Outstanding Response and Control

The new Quicrun brushed motors offer improved performance,
reliability, and response over other motors.
With improved materials and overall design,
these motors offer significant power gains.

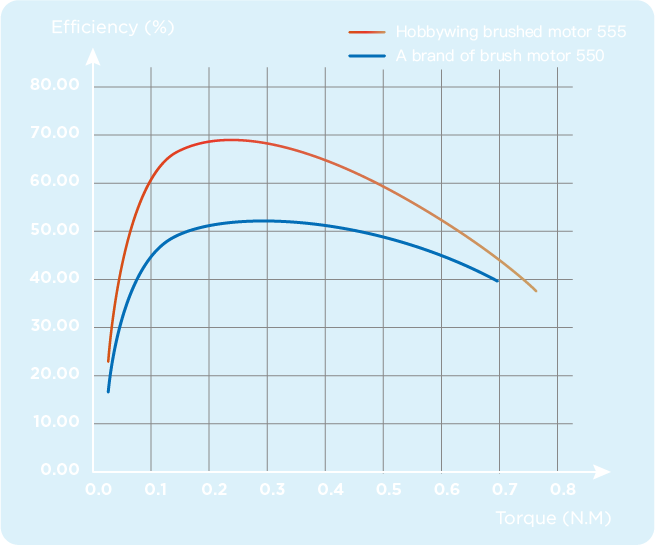

Excellent efficiency

With up to 69% maximum efficiency,
the Quicrun brushed motors far exceed
standard motors of the same
specifications (555-11T).
The maximum efficiency is up to 17% higher.
These new motors run cooler (Lower temps)
than similar motors under the same load.

Zero-cogging torque design

The 555 motor adopts a 5-slot design,
and the motor cogging effect is virtually eliminated.
These new motors have a very small torque fluctuation and,
bring a very linear response at all speeds
for an improved overall drive feel.

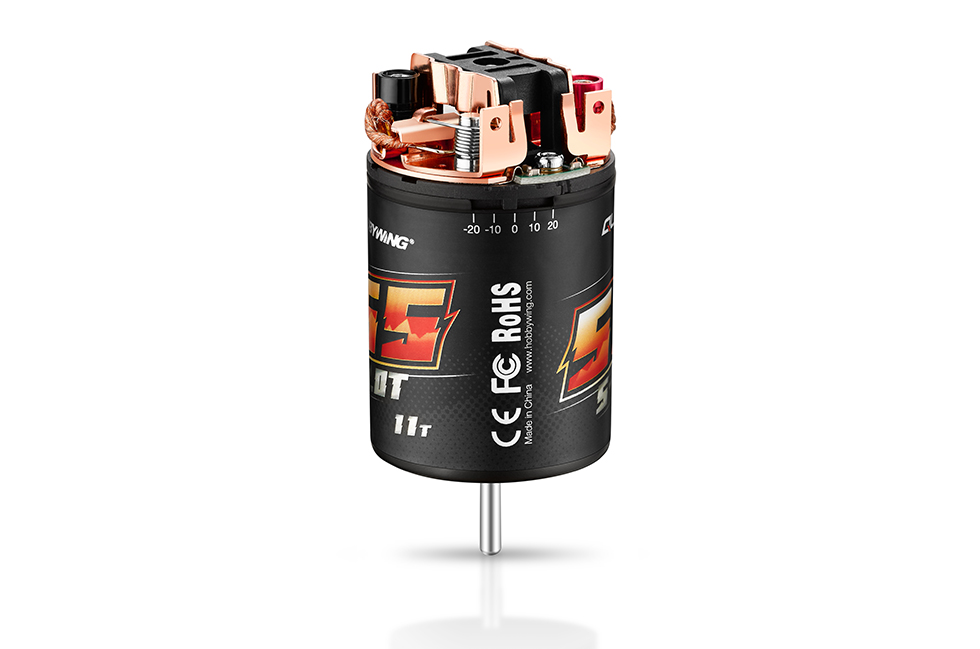

Adjustable mechanical
timing of the motor

The mechanical timing of the motor can be adjusted by -20 — 20 °.
This allows users to fine-tune the RPM and feel of motors.
Timing adjustments also allow
the motors to be used for CCW and CW applications.

Specialized Carbon Brush
for extended life

Developed specifically for these motors,
the new brushes feature a custom blend
to provide extremely long life,
while providing great performance.
These motors start to compare
to brushless motors in terms of life span.

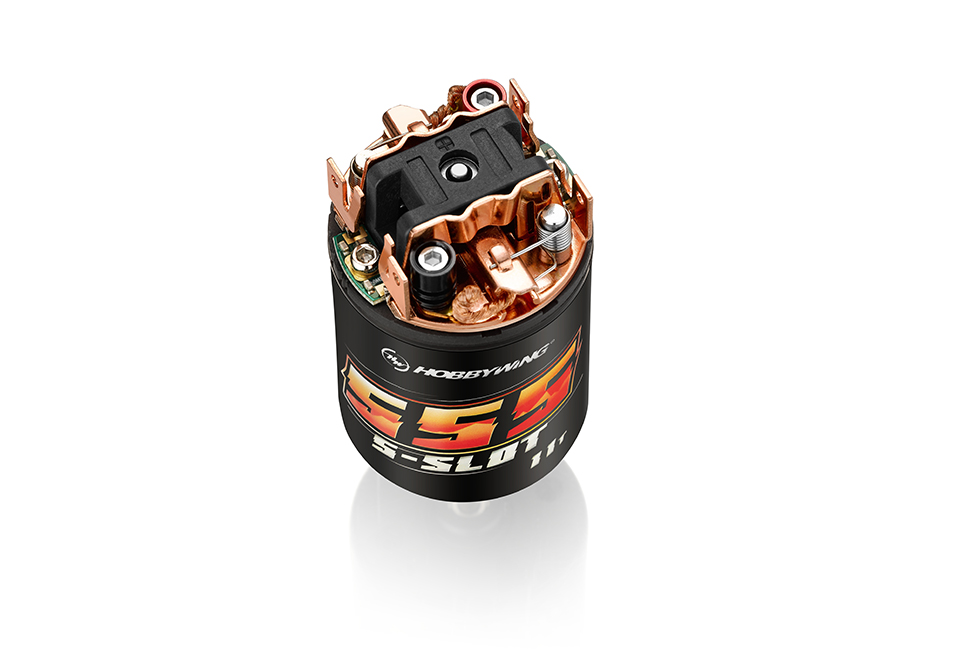

Modular design for easy service and cleaning

The motors feature an easy-to-service rebuildable design.
Convenient for cleaning and maintenance,
effectively prolonging the life span and maintaining
the efficiency of the motor.

PCB anti-interference
board

The motor is equipped with a
dual PCB anti-interference board.
These reduce the harmful spikes and
noise from affecting your speed control.

PCB anti-interference board

Quality materials

To ensure high tolerance to abuse and heavy-duty driving,
a 200°C high-temperature resistant magnet,
180°C high-temperature resistant copper
wire has been used.
Combined with 0.35 mm (only 555) ultra-thin silicon steel sheet,
and the Hobbywing custom carbon brush,
these motors are built to handle the demands of today's driver.

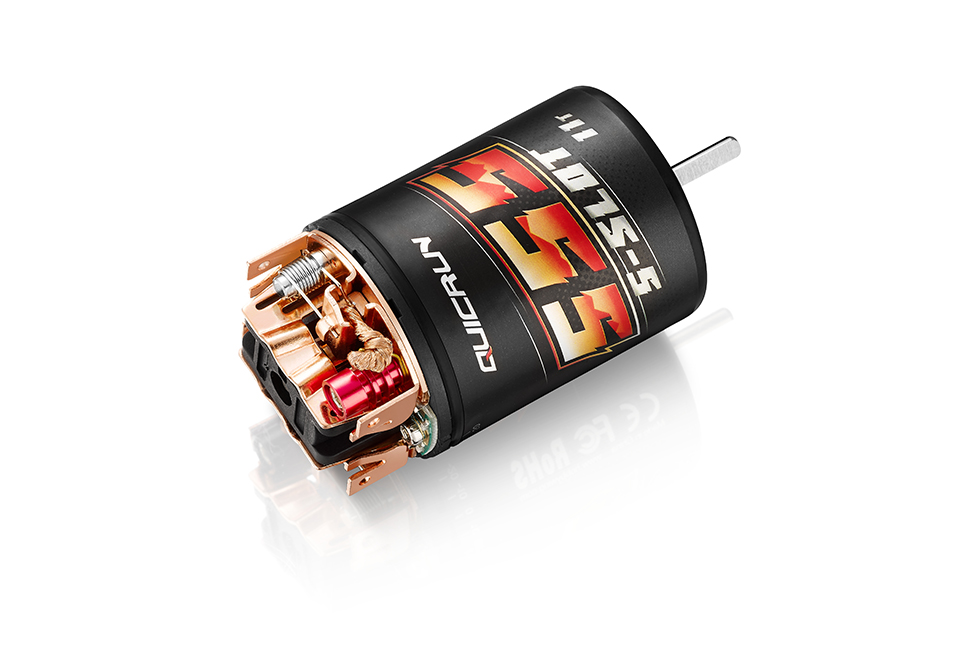

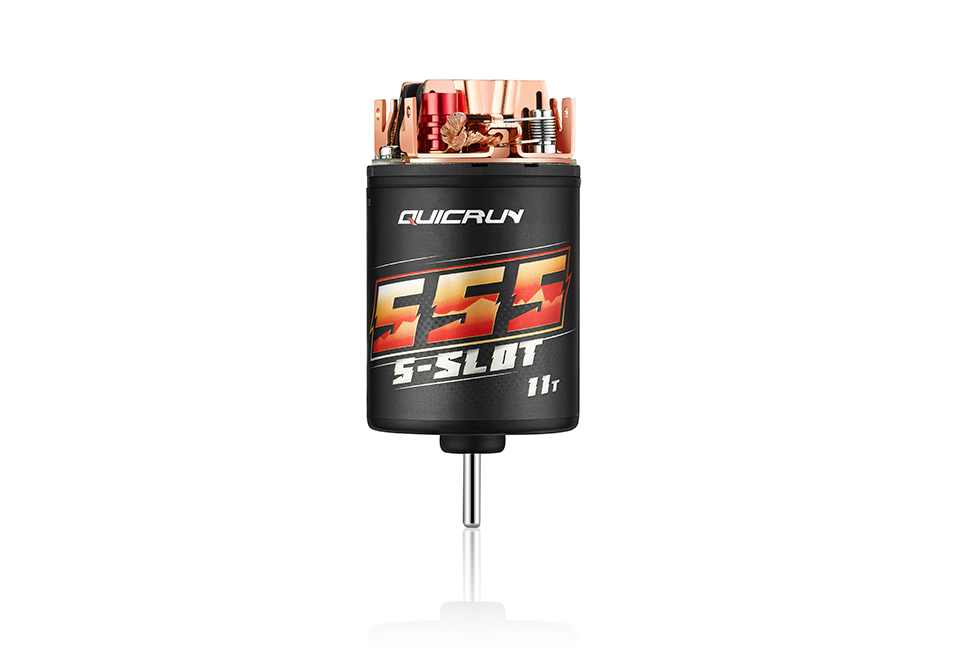

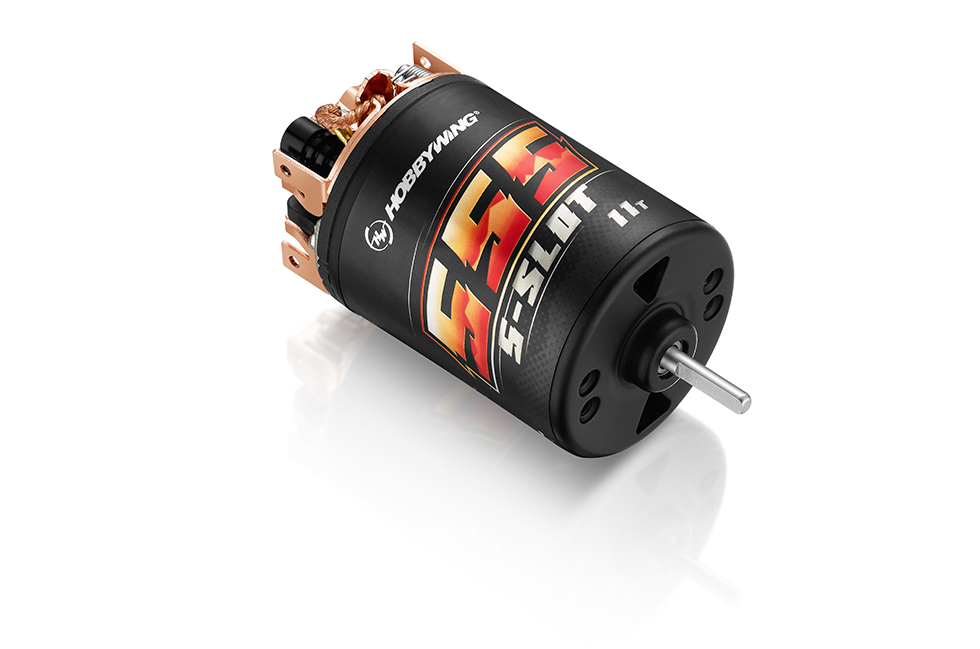

QuicRun Brushed 555

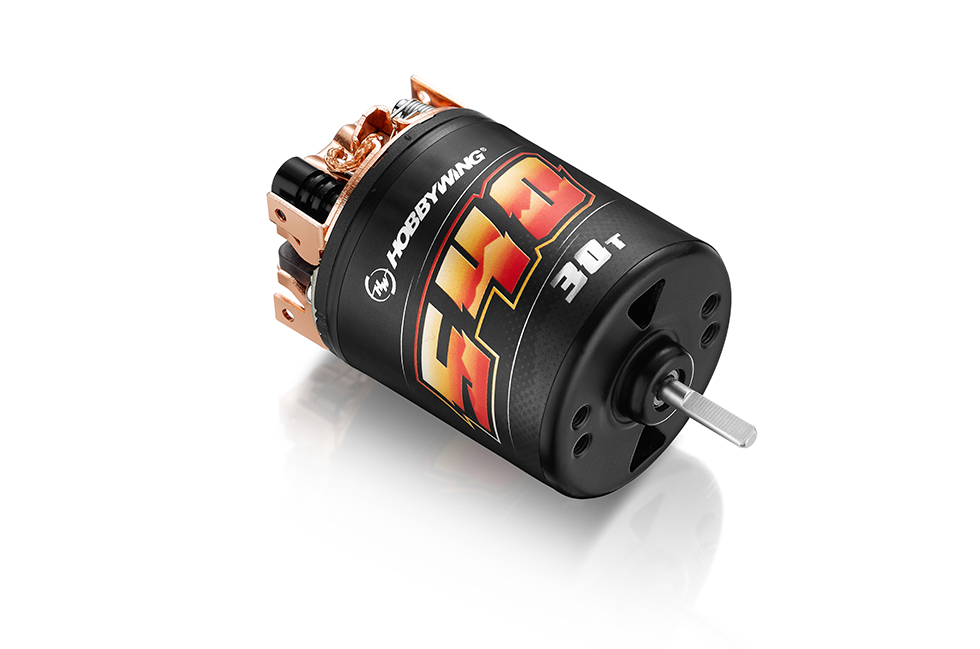

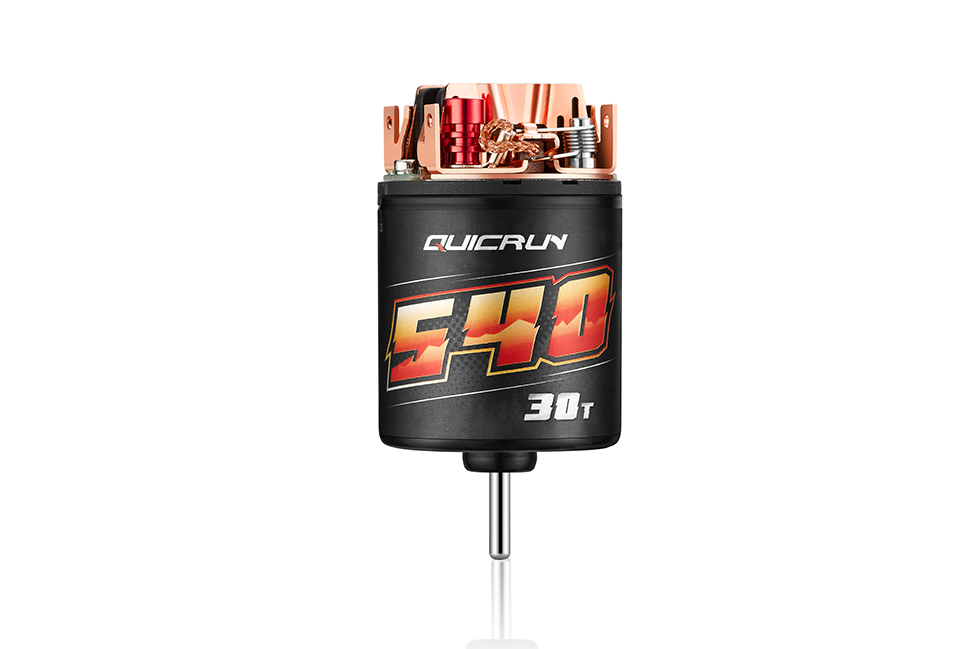

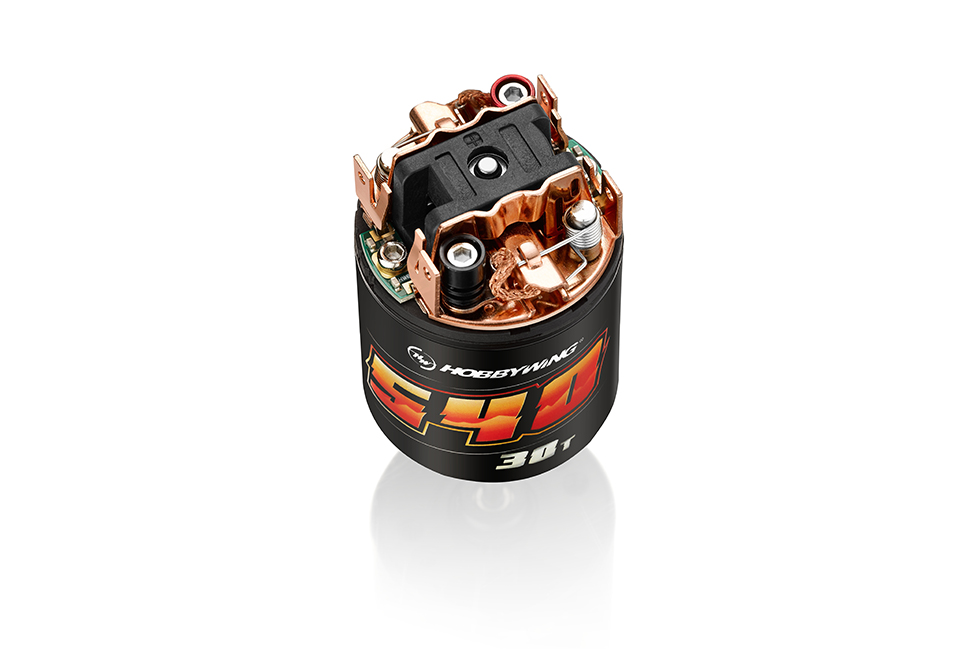

QuicRun Brushed 540

Product Name
Product Number
Type	Scale Brushed/Brushless Turns
Relevant Parameters	RPM@7.4V Input Voltage Slot
Size & Weight	O.D.(mm) Length (mm) Shaft Diameter (mm) Weight (g)
Other Parameters	Applications

Product Name		QuicRun Brushed 540-30T	QuicRun Brushed 540-40T	QuicRun Brushed 555-11T	QuicRun Brushed 555-13T
Product Number		30404313	30404314	30404315	30404316
Type	Scale Brushed/Brushless Turns	1/10^th Brushed 30T	1/10^th Brushed 40T	1/10^th Brushed 11T	1/10^th Brushed 13T
Relevant Parameters	RPM@7.4V Input Voltage Slot	14000 ≤12.6V 3	10500 ≤12.6V 3	17000 ≤10V 5	14000 ≤12.6V 5
Size & Weight	O.D.(mm) Length (mm) Shaft Diameter (mm) Weight (g)	36 53.2 3.175 168g	36 53.2 3.175 169g	36 58.5 3.175 193g	36 58.5 3.175 193g
Other Parameters	Applications	1/10^th On-road / Buggy / Crawler & 2WD Truck	1/10^th On-road / Buggy / Crawler & 2WD Truck	1/10^th Crawler / Short course truck / Monster truck

Support

Manuals & Documents

Manuals

RC Systems

RC Cars Power System

XeRun

Professional Competition Level, Extreme Performance and Craftsmanship

EzRun

High-end Product, Balanced Performance

QuicRun

Budget-friendly, Cost-effective

RC Plane Power System

Platinum

Professional Competition, Extreme Flight

FlyFun

High-end Product, Comprehensive Performance

SkyWalker

Entry Level, Budget-friendly Product

FPV Racing

Racing Flight, The Choice of Flying

RC Boat Power System

SeaKing V3

High-end Product, Comprehensive Performance

SeaKing Pro

Built for Competition, Powerful Performance in Small Volumes

Accessories

RC Car

RC Boat

RC Aircraft

Drone Systems

Agricultural Applications

All-in-one Power System

Drive Efficiency, Simplify Complexity

All-in-one Pump System

Convenient and Easy to Use, Safe and Durable

Industry

All-in-one Power System

Convenient, efficient and stable

ESC

Perform Every Task Efficiently and Safely

Consumer

Timely Response and Efficient Drive

Accessories

Propeller

Data Link

Safery E-power Switch

Personal Travel Systems

Electric Skateboard

Skateboard Controller

Controlled and Silky Smooth Operation

Skateboard Motor

Robust Power System With a Single Step

Electric Scooter

Scooter Controller

Transporting Each Trip in a Safe Manner

Personal Travel Accessories

Skateboard Accessories

Scooter Accessories

Service and Support

QuicRun Brushed 540/555

Overview Specifications Support Accessories Detail

Brushed Motor

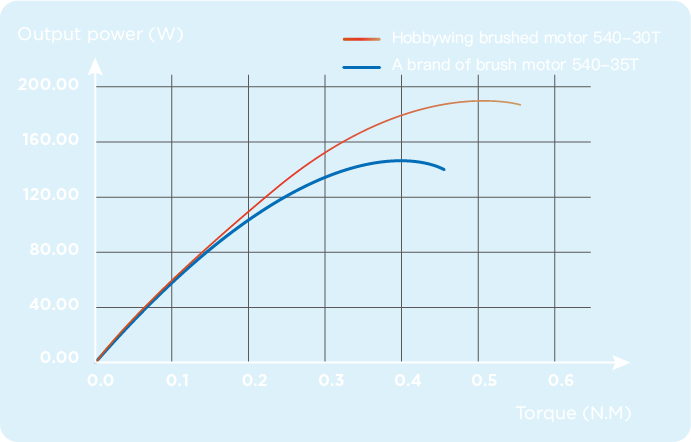

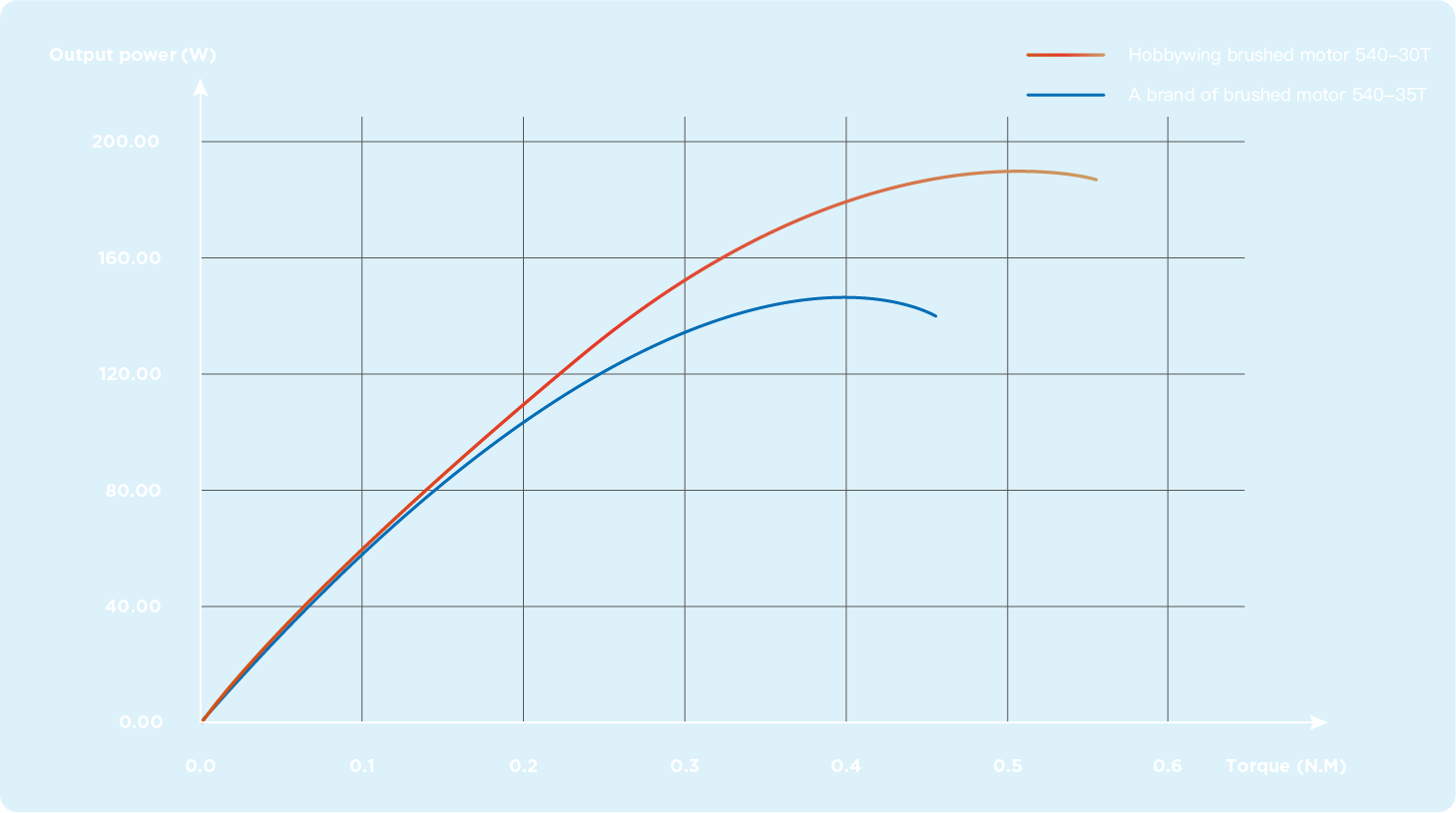

Outstanding
explosiveness

The maximum motor output power
is about 30% higher
than similar products (540-30T) with an
outstanding explosive force.

Excellent efficiency

The maximum efficiency of the motor
is as high as 69%and has far exceeded
motor of the same specifications (555-11T).
The maximum efficiency is about 17% higher
and the temperature rise of the motor
is lower under the same load conditions
comparing it with similar products.

Low cogging
torque design

The motor adopts modular detachable
structural design,
convenient for daily cleaning
and maintenance,
effectively prolonging the life-span
and maintaining
the efficiency of the motor.

Adjustable mechanical
timing of the motor

The mechanical timing of
the motor can be adjusted by -20 — 20 °,
which is convenient to accurately adjust
the output power and speed of the motors.

Customized carbon
brush,Super long-life

Customized carbon brush,
the lifetime is about 1 time longer under
the same load conditions comparing
it with similar products.
The lifetime is almost the same
as brushless motor.

Modular design,
easy to disassemble,
easy to clean
and maintain

The motor adopts modular detachable
structural design,
convenient for daily cleaning
and maintenance,
effectively prolonging the
life-span and maintaining
the efficiency of the motor.

Dual PCB
anti-interference board

The motor is equipped with a
dual PCB anti-interference board.
This effectively reduces the potential
interference onto the ESC and
ensures that they are always in
a stable working state.

Quality materials

The use of 200 °C high temperature
resistant magnet, 180 °C high temperature
resistant copper wire, 0.35 mm (only 555)
ultra-thin silicon steel sheet and first-line
brand carbon brush, guarantee a solid
long-term performance of the motor.

QuicRun Brushed 555

QuicRun Brushed 540

Product Name		QuicRun Brushed 540-30T
Product Number		30404313
Type	Scale Brushed/Brushless Turns	1/10^th Brushed 30T
Relevant Parameters	RPM@7.4V Input Voltage Slot	14000 ≤12.6V 3
Size & Weight	O.D.(mm) Length (mm) Shaft Diameter (mm) Weight (g)	36 53.2 3.175 168g
Other Parameters	Applications	1/10^th On-road / Buggy / Crawler & 2WD Truck

Product Name		QuicRun Brushed 540-30T	QuicRun Brushed 540-40T	QuicRun Brushed 555-11T	QuicRun Brushed 555-13T
Product Number		30404313	30404314	30404315	30404316
Type	Scale Brushed/Brushless Turns	1/10^th Brushed 30T	1/10^th Brushed 40T	1/10^th Brushed 11T	1/10^th Brushed 13T
Relevant Parameters	RPM@7.4V Input Voltage Slot	14000 ≤12.6V 3	10500 ≤12.6V 3	17000 ≤10V 5	14000 ≤12.6V 5
Size & Weight	O.D.(mm) Length (mm) Shaft Diameter (mm) Weight (g)	36 53.2 3.175 168g	36 53.2 3.175 169g	36 58.5 3.175 193g	36 58.5 3.175 193g
Other Parameters	Applications	1/10^th On-road / Buggy / Crawler & 2WD Truck	1/10^th On-road / Buggy / Crawler & 2WD Truck	1/10^th Crawler / Short course truck / Monster truck
